Explore the World of Dovetail End Mills

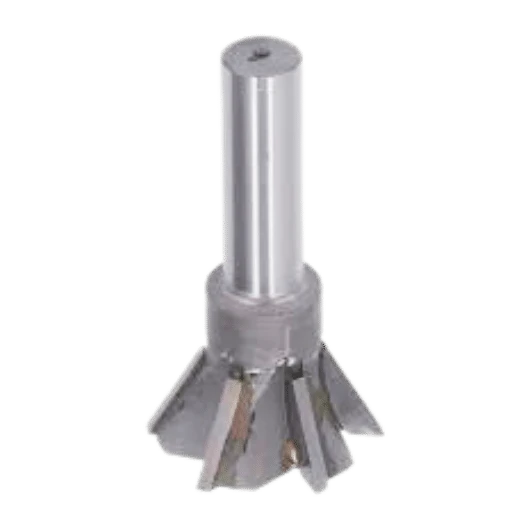

What is a Dovetail End Mill?

A Dovetail End Mill is a specialized cutting tool used in machining that features a trapezoidal or angular shape designed to create a dovetail slot into the workpiece. This type of end mill is essential for tasks that require high-strength joints, with its distinctive cutting geometry ensuring that the sides of the slot taper inwards, allowing for a tight-fitting assembly of parts. Dovetail End Mills are commonly produced from high-speed steel or carbide to maintain sharpness and durability while operating under challenging conditions. Precision in the angular cut is imperative as it directly impacts the integrity of the joint in various applications, such as in aerospace and die-casting industries.

Understanding the Design and Function

The design of a Dovetail End Mill integrates both the cutting diameter and the angle of the dovetail, which are critical for ensuring the precision of the joint. The angles must be compatible with the mating part to facilitate a secure fit. Typically, these tools have flutes — the deep helical grooves running up the cutter — that vary in number, affecting the tool’s finishing capabilities and chip removal efficiency. For optimal performance, the choice of flute count depends on both the material being machined and the rigidity of the setup. Further technical considerations include the tool’s substrate and coating, which contribute to its wear resistance and tool life under high-speed machining conditions. End mills with a carbide substrate, for example, are favored for their ability to maintain a sharp edge for more extended periods, particularly in cutting operations involving more rigid materials.

Key Features and Benefits

High-Dimensional Accuracy: The precision engineering of Dovetail End Mills offers exact cutting dimensions, which is crucial for creating precise joints in composite materials and metals with minimal tolerances.

Enhanced Joint Strength: Due to their design, Dovetail End Mills offer superior joint strength in machined parts, a vital aspect for the aerospace and automotive industries where safety and durability are paramount.

Optimized Chip Removal: The specialized flutes in Dovetail End Mills facilitate efficient chip removal, reducing heat buildup and preventing material wastage during the machining process.

Versatility in Materials: These tools are capable of handling a wide range of materials, from aluminum and steel to exotic alloys used in advanced engineering applications, enabling their use across various industries.

Extended Tool Life: The use of high-speed steel or carbide, along with optional surface coatings, extends the tool life of Dovetail End Mills under rigorous operational conditions, thus ensuring cost-effectiveness over time.

Customizable Cutting Angles: Dovetail End Mills are available with different cutting angles to match specific project requirements, ensuring a secure fit and compatibility with multiple designs and patterns.

By incorporating these key features, Dovetail End Mills has become an indispensable tooling solution for manufacturers requiring high precision and reliability in their machining operations.

Different types available in the market

Dovetail End Mills can be classified into several types based on their design characteristics, material composition, and intended application.

Standard Dovetail End Mills are widely used for general machining tasks, offering balanced performance in various materials.

Carbide-tipped Dovetail End Mills present enhanced durability and are preferred for more complex materials that would wear down high-speed steel options rapidly.

For specific applications requiring unique profiles, Custom Dovetail Cutters can be manufactured to precise specifications.

Indexable Dovetail Cutters offer the convenience of replaceable cutting inserts, which can significantly reduce downtime and maintain consistent machining quality.

Lastly, Coated Dovetail Cutters feature additional layers such as titanium nitride (TiN) or diamond-like carbon (DLC) to increase resistance to wear and extend tool life even further. These variations allow for a tailored approach in machining, ensuring optimal compatibility with the task at hand.

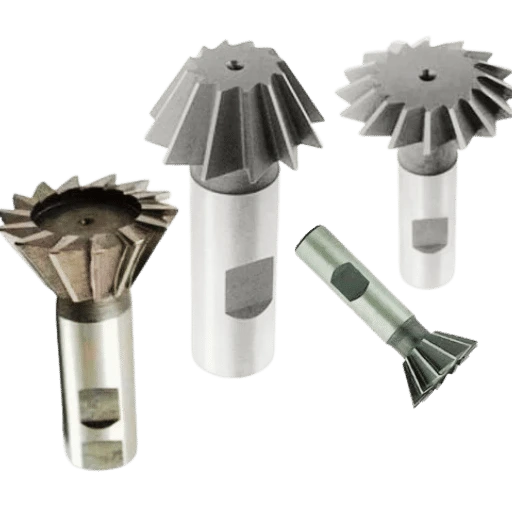

How do you choose the fitting dovetail end mill for your project?

Factors to consider when selecting a dovetail cutter

When selecting a dovetail cutter for your machining project, it is essential to consider a variety of factors that directly impact tool performance and longevity. Below is a list of considerations to ensure you choose the most appropriate dovetail end mill:

• Material Compatibility: Assess the compatibility of the cutter’s material with the workpiece. For example, carbide-tipped cutters are better suited for more rigid materials.
• Cutting Diameter and Angle: The diameter and angle of the cutter must match the specifications of the joint or part design.
• Coatings: Opt for coated cutters, like TiN or DLC, if you are machining abrasive materials or require extended tool life.
• Flute Count: Determine the number of flutes based on the material being cut and the desired finish. Fewer flutes typically allow for faster chip removal.
• Shank Type: Ensure that the shank type of the cutter is compatible with the tool holders available in your machine setup.
• Tolerance Requirements: Consider the precision level required for the project, as tighter tolerances may necessitate custom or higher precision tools.
• Manufacturer’s Reputation: Select a reputable manufacturer to ensure quality, reliability, and access to technical support.
• Tool Replacement Strategy: For continuous production, indexable dovetail cutters may be beneficial, whereas specific projects may favor the use of standard end mills.

By taking these factors into account, manufacturers and machinists can vastly improve their machining efficiency, accuracy, and overall operational productivity.

Comparing carbide vs. solid carbide options

When comparing carbide and solid carbide end mills, several key differences should be taken into consideration:

• Composition: Carbide end mills are typically made from a combination of carbide and a binder metal, whereas solid carbide end mills are made from pure carbide. This affects their performance and wear resistance.
• Rigidity: Solid carbide tools are more rigid, which can help reduce vibration and improve the surface finish on the machined part.
• Heat Resistance: Solid carbide can withstand higher temperatures, allowing for faster machining speeds without compromising the integrity of the tool.
• Durability: The absence of binder metal in solid carbide tools enhances their lifespan when cutting more rigid materials.
• Cost-effectiveness: Carbide tools are generally less expensive upfront, making them a cost-effective choice for short-run projects or those on a budget.
• Application: For precision machining that requires strict tolerances and longevity, solid carbide is the preferred choice. Conversely, standard carbide may suffice for less demanding applications.
• Sharpening and Reconditioning: Solid carbide tools can often be reconditioned more frequently, extending their useful life compared to their standard carbide counterparts.

Understanding these distinctions is crucial for machinists when selecting the appropriate tool for their specific machining requirements.

Matching the tool specifications with your machining needs

In the process of selecting the most appropriate end mill for a given machining task, it is crucial to match the tool specifications to the material being machined and the desired outcome. Criteria such as material hardness, machine power, the complexity of the part geometry, and finish requirements should guide the tool selection. For instance, solid carbide end mills are preferred for high-precision applications requiring long tool life and tight tolerances, particularly with hard-to-machine materials. On the other hand, standard carbide end mills might be more suitable for less critical applications or when working with softer materials. Additionally, considering the reconditioning ability of solid carbide, cost-benefit analysis over the tool’s lifecycle becomes a pivotal factor. Careful evaluation of these parameters will ensure optimal performance, cost-efficiency, and quality in the final machined product.

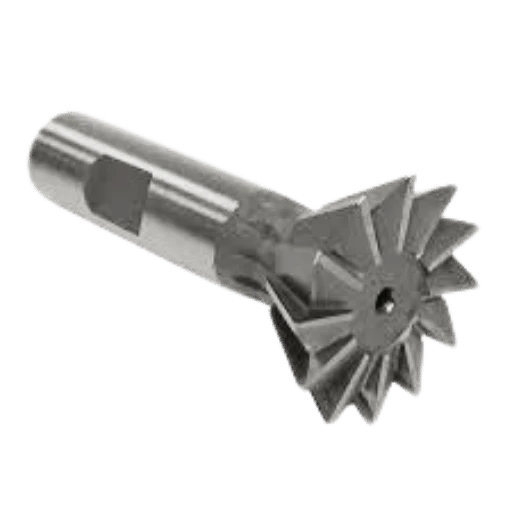

What Are the Common Applications of Dovetail End Mills?

Dovetail end mills are specialized cutting tools that are designed to create dovetail angled grooves, which are typically required for joinery in woodworking, metalworking, and, in some cases, plastic fabrication applications. The following list provides a detailed enumeration of the standard applications and relevant parameters that justify the use of dovetail end mills:

• Woodworking Joinery: For creating strong, interlocking joints in cabinets, furniture, and frames. The angle of the dovetail cutter must match the desired dovetail angle in the joint.
• Metalworking Operations: Employed in the automotive and aerospace industries to cut precise dovetail slides and grooves that facilitate component assembly, ensuring a secure interlock.
• Die and Mold Making: Utilized for shaping the cavities in dies and molds to hold components in place during manufacturing processes. The specific dimensions of the dovetail end mill will depend on the part geometry.
• Fixturing and Clamping: Dovetail grooves are often machined into parts to provide an anchor point for clamps and fixtures, offering reliable stability during machining or assembly procedures.

Each of these applications may require dovetail end mills with specific angles and sizes, which must be chosen based on the depth and width of the dovetail groove, the material hardness, and the desired surface finish. The cutting speed, feed rate, and helix angle of the dovetail end mill also play critical roles in the successful execution of these applications, as they affect the cutting efficiency, wearing propensity, and overall finish of the dovetail groove.

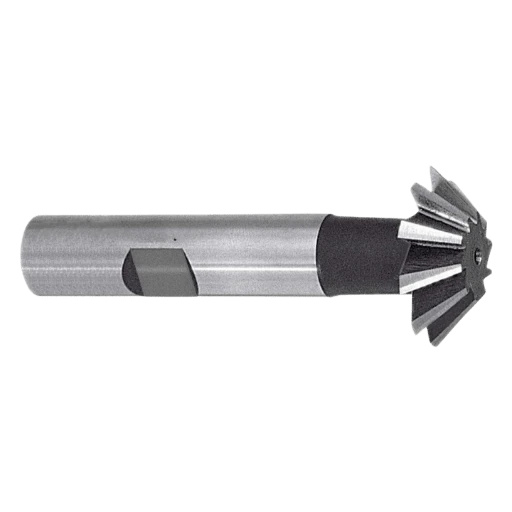

How do you maintain and extend the lifespan of Dovetail End Mills?

Proper cleaning and storage practices

To ensure optimal performance and longevity of dovetail end mills, it is essential to adhere to strict cleaning and storage protocols:

1. Cleaning After Use: Immediately after usage, dovetail end mills should be cleaned to remove any chips, coolants, or debris. Use a soft bristle brush or compressed air to clean the tool effectively, avoiding abrasive materials that could damage the cutting edges.
2. Lubrication: Applying a light layer of rust-preventive oil can protect the mill’s surfaces from corrosion, especially if stored in environments susceptible to moisture.
3. Tool Holders: Utilize appropriate tool holders designed explicitly for end mills to prevent damage during storage. These holders support the tool in a manner that prevents any unnecessary contact or collision with other objects.
4. Temperature and Humidity Control: Store the tools in a controlled environment where temperature and humidity levels are stable to prevent material degradation and dimensional instability.
5. Inventory Management: Keep a detailed inventory that includes the location and condition of each tool. This enables easier management and ensures that tools are inspected regularly for wear or damage.
6. Handling Practices: Personnel should be trained in proper handling to avoid dropping or impacting the tools, as even minor nicks or dents can significantly affect performance.
7. Periodic Inspections: Regularly inspect for signs of wear or damage that could compromise the tool’s integrity. If any flaws are detected, the tool should be relegated to less critical operations or recycled correctly.

By following these practices, the functional life of dovetail end mills is significantly enhanced, contributing to more efficient operations and cost savings over time.

Tips for re-sharpening and reconditioning the cutting edges

Re-sharpening and reconditioning end mills are nuanced processes that require precision and technical expertise. Here are some tips to ensure these processes are carried out effectively:

1. Inspection: Evaluate the mill for wear and damage with precise measuring tools to determine the extent of re-sharpening required.
2. Cleaning: Thoroughly clean the tool to remove all residues, as the presence of foreign materials can affect the precision of re-sharpening.
3. Re-sharpening Equipment: Utilize CNC grinding machines with the capability to produce consistent and accurate results. Ensure that the machines are well-maintained and calibrated.
4. Coolant System: Use a coolant system during re-sharpening to prevent overheating, which can alter the metallurgy of the tool and degrade its performance.
5. Re-grinding Angles: Pay close attention to re-grinding angles. Precisely restore the original cutting geometry for optimal performance.
6. Technical Expertise: Engage professionals with specialized training in tool re-sharpening. Their expertise is vital for maintaining the integrity and performance of the tool.
7. Quality Testing: After re-sharpening, conduct quality tests such as runout inspection and cutting performance assessments to ensure the tool meets the required standards.

Frequently Asked Questions

Q: What is a dovetail end mill?

A: A dovetail end mill is a cutting tool with a unique design that is commonly used for creating dovetail grooves in materials such as metal, wood, and plastic.

Q: What are the main features of a solid carbide dovetail end mill?

A: The main features of a solid carbide dovetail end mill include a neck design, flute length, and a 60-degree cutting angle, which allows for precise and efficient cutting.

Q: How do I determine the neck length of a dovetail end mill?

A: The neck length of a dovetail end mill refers to the distance between the bottom of the flute and the point where the neck transitions into the cutter diameter, typically measured in inches or millimeters.

Q: Can I purchase a dovetail end mill with a specific flute length?

A: Yes, you can select a dovetail end mill with a flute length that meets your requirements, enabling you to achieve the desired results in your machining applications.

Q: Where can I shop for high-quality dovetail end mills?

A: You can shop for high-quality dovetail end mills from reputable suppliers or online stores that offer a variety of materials, coatings, and sizes to suit your machining needs. You can contact us.

Q: How can I place an order for dovetail end mills?

A: You can place an order for dovetail end mills through the supplier’s website or by contacting their sales team directly to ensure a smooth and efficient ordering process.

Q: What is the overall length (OAL) measurement in relation to a dovetail end mill?

A: The overall length (OAL) of a dovetail end mill refers to the total size of the cutter, including the cutting portion, shank, and any additional features such as coatings or chamfers.
