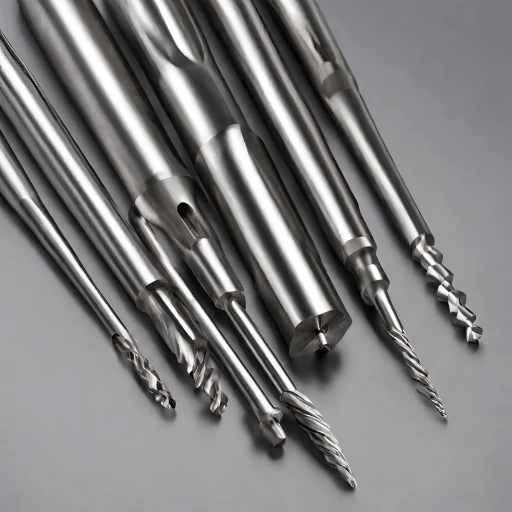

What are the different types of end mills available for stainless steel?
End mills for stainless steel can be classified into two main categories: High-Speed Steel (HSS) end mills and Carbide end mills. HSS end mills are versatile and suitable for milling various materials, including stainless steel. They can withstand high temperatures and are ideal for high-speed applications. On the other hand, Carbide end mills are highly durable, resistant to wear, and provide a longer tool life compared to HSS end mills. Despite being more expensive, their high-speed capabilities and precision make them an excellent choice for machining stainless steel. Additional specialized types, such as Roughing End Mills and Ball Nose End Mills, serve specific purposes in stainless steel machining tasks. Each style comes in different sizes and coatings to enhance performance.
Understanding the benefits of using solid carbide end mills for stainless steel
Solid Carbide End Mills offer several substantial benefits when machining stainless steel, which are outlined below:
- Extended Tool Life: Carbide end mills are known for their durability. They can withstand high-speed operations for extended periods without wearing down, ensuring a longer tool life compared to other types.
- High-Speed Capabilities: Solid Carbide End Mills can operate at very high speeds, allowing for quick machining and reduced production time.
- Higher Precision: These tools offer high precision when it comes to creating intricate and detailed patterns, providing superior performance in complicated milling tasks.
- Better Surface Finish: Carbide end mills often result in a better surface finish on the stainless steel, reducing the need for additional finishing processes.
- Versatility: They are suitable for different types of milling operations, whether it be slotting, profiling, or roughing.
These benefits make solid carbide end mills an excellent choice for stainless steel machining, offering efficiency, precision, and superior results.
Exploring the use of ball nose end mills for stainless steel cutting
Ball Nose End Mills are a type of end mill that has a rounded tip, which is ideal for 3D tooling. These tools are handy in stainless steel machining for several reasons:
- Contouring and 3D Work: The rounded edge of the ball nose end mill is perfect for machining three-dimensional contoured shapes in stainless steel without sharp corners that could cause unnecessary wear on the tool and damage to the material.
- Smooth Finish: The design of the ball nose end mill allows for a smoother finish, making it an excellent choice for finishing tasks. It leaves minimal tool marks on the stainless steel, reducing the need for post-process surface finishing.
- Precision: Due to their round cutting edge, ball nose end mills can accurately follow complex tool paths, making them ideal for detailed and precision milling tasks in stainless steel.
- Versatility: Ball nose end mills are versatile in their application as they can effectively perform pocketing, slotting, ramping, and plunging operations.
How corner radius end mills improve performance in stainless steel machining
Corner Radius End Mills provide exceptional performance in stainless steel machining due to several unique attributes:
- Durability: The reinforced corner radius design enhances the robustness of the milling cutter, reducing the risk of tool chipping or breakage during high-speed machining operations.
- Surface Finish: These tools offer a superior surface finish on stainless steel due to their smooth cutting action, minimizing the need for additional finishing processes.
- Efficiency: They exhibit improved feed rates when compared to traditional square-end mills, enhancing productivity by reducing the time required for machining tasks.
- Tool Life: The corner radius end mills have an increased tool life as the rounded corners distribute the cutting forces more evenly, which reduces wear and extends the longevity of the tool.
- Versatility: Lastly, corner radius end mills perform well in a variety of machining operations, including profiling, slotting, and roughing, while reducing stress on the tool.
Hence, corner radius end mills provide an effective solution for improving machining performance in stainless steel applications.
Factors to consider when selecting the number of flutes in stainless steel end mills
When selecting the number of flutes for stainless steel end mills, there are several factors to consider:
- Material Properties: Harder materials generally require end mills with fewer flutes for effective chip evacuation. In comparison, softer materials can accommodate tools with a higher number of flutes, which aids in achieving a better finish.
- Tool Rigidity: More flutes increase the rigidity of the tool, making it suitable for higher-speed operations and reducing the likelihood of deflection.
- Chip Evacuation: Fewer flutes provide more space for chip evacuation, a crucial factor when working with stainless steel, as it is susceptible to work hardening.
- Feed Rates: The number of flutes directly impacts the feed rates. End mills with fewer flutes allow for higher feed rates as there is more room for chip evacuation.
- Surface Finish: End mills with more flutes generally result in a better surface finish, as the increased number of cutting edges results in more minor chips.
- Tool Life: Tools with more flutes tend to have a longer lifespan, as the cutting forces are distributed across a more significant number of cutting edges, reducing individual wear.
Therefore, it is critical to consider the specific application when deciding on the number of flutes for stainless steel end mills.
Exploring the suitability of square-end mills for stainless steel
Square end mills are a versatile and efficient choice for working with stainless steel. They are specifically designed for precise square corner detailing and clean, sharp, flat-bottomed slots. With proper speed, feed management, and coolant use, they can effectively remove material while maintaining dimensional accuracy. Coatings like TiCN or TiAlN can enhance their longevity in stainless steel applications. Overall, square-end mills are a valuable tool for machinists due to their versatility, efficiency, and precision.

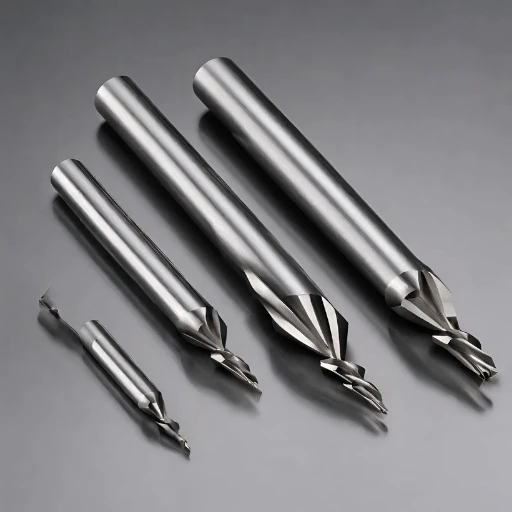

What are the key parameters to consider when choosing a suitable end mill for stainless steel?
Understanding the impact of coatings on stainless steel end mill performance
Coatings can significantly impact the performance and lifespan of end mills when working with stainless steel. They reduce friction and heat generation, thereby enhancing speed capabilities and improving chip evacuation. Some of the standard coatings include:
- Titanium Carbonitride (TiCN): TiCN is ideal for more complex materials like stainless steel due to its high surface hardness and good thermal stability. This coating is known to increase tool life and improve wear resistance, especially under high cutting speeds.
- Titanium Aluminum Nitride (TiAlN): TiAlN is a superior choice for high-temperature applications. Its excellent hardness and thermal stability allow it to form a layer of aluminum oxide during cutting, providing added heat and wear resistance.
- Titanium Nitride (TiN): This is a general-purpose coating that improves tool life and performance by reducing friction. However, it may not be as effective as TiCN or TiAlN for more complex materials like stainless steel.
When selecting a coating, it’s essential to consider the cutting speed, feed rate, and the material’s hardness. The suitable coating can dramatically enhance tool performance, increase tool life, and reduce the overall machining cost.
Recommended Reading: Square End Mill
Factors to consider when selecting the appropriate helix angle for stainless steel end mills
The helix angle of an end mill directly influences the performance and outcome of the machining process. Several factors should be considered when selecting the appropriate helix angle for stainless steel end mills:
- Cutting Force: A higher helix angle (like a 45-degree angle) reduces the cutting force, which can be beneficial when machining stainless steel, a material known for its hardness and toughness.
- Chip Evacuation: End mills with a high helix angle have excellent chip evacuation capacity, which prevents chip re-cutting, a common issue when machining stainless steel.
- Surface Finish: A high helix angle results in a smoother surface finish because it reduces vibrations during the cutting process.
- Tool Life: A lower helix angle can prolong tool life as it reduces the rubbing action on the tool’s cutting edges.
It’s crucial to balance these factors based on the specific machining requirements and stainless steel properties to select the most suitable helix angle for the end mill.
Exploring the importance of choosing the correct cutting tool grade for stainless steel
Choosing the correct cutting tool grade for stainless steel is critical to the success and efficiency of the machining process. The tool grade substantially determines the tool’s wear resistance, toughness, and thermal hardness, all of which are pivotal in handling stainless steel’s unique machining challenges.
Wear Resistance: High-grade tools offer increased wear resistance, which is essential when machining stainless steel due to its complex and abrasive nature. This resistance translates to less device wear over time, resulting in reduced tool replacement costs and downtime.
Toughness: Stainless steel is known for its toughness and tendency to work hard, which can lead to chipping or breaking of tools. Cutting tools made of a stricter grade can withstand these forces better, preventing premature failure and ensuring a smoother machining process.
Thermal Hardness: Machining stainless steel generates high temperatures that can degrade the tool’s cutting edge. Devices with a high grade offer improved thermal hardness, meaning they can maintain their hardness even at elevated temperatures, ensuring consistent performance.
The tool’s grade affects feed rate, cutting speed, and chip evacuation, directly impacting machining quality and efficiency. Selecting the right tool grade for stainless steel enhances machining performance, quality, and cost-effectiveness.
How machine parameters influence the selection of end mills for stainless steel
Machine parameters are crucial in choosing the appropriate end mill for stainless steel as they determine its machining performance, longevity, and efficiency. Below are some key parameters to consider.
Machine Power and Rigidity: The power and rigidity of the machine dictate the end mill’s size and type. High-powered and rigid machines can handle larger end mills and aggressive cutting conditions, significantly improving the machining efficiency and surface finish.
Spindle Speed (RPM): Spindle speed affects the choice of end mill’s material and coating. For high-speed machining, end mills made from solid carbide or coated with heat-resistant materials like TiAlN are preferred due to their superior thermal hardness and wear resistance.
Feed Rate: The feed rate determines the type of end mill’s flute design required. A high feed rate is best suited for end mills with fewer flutes, allowing for efficient chip evacuation, while a lower feed rate may accommodate end mills with more flutes, providing a smoother finish.
Coolant Supply: Whether the machine has a coolant supply or not influences the choice of end mill. For devices with a coolant supply, end mills with coolant holes are ideal as they facilitate internal cooling, reducing the cutting-edge temperature and prolonging tool life.
Workpiece Positioning and Clamping: Unstable workpiece positioning or clamping influences the end mill selection. In such cases, end mills with higher toughness are preferred to withstand irregular forces and prevent tool breakage or chipping.
Considering these machine parameters while selecting the end mill for stainless steel will contribute to optimal machining outcomes, enhance tool life, and minimize overall machining costs.
Optimizing tool life in stainless steel machining through proper chip and tool management
Managing chip formation and ensuring proper tool maintenance are equally critical factors in optimizing tool life during stainless steel machining.
Chip Formation: Proper chip formation is crucial for the longevity of the end mill. Improper chip formation can cause chip re-cutting, leading to increased heat and tool wear. Techniques like chip breaking and chip thinning can optimize chip formation and prevent re-cutting. Suitable flute designs in end mills also help with effective chip removal.
Tool Maintenance: Regular inspection and maintenance of the end mill are crucial to prevent premature tool failure. Monitoring factors like wear, chipping, and thermal cracks is essential, and taking prompt action to rectify any issues is necessary. Replacing the end mill when it reaches its wear limit is pertinent to avoid potential damage to the workpiece or machine.
Incorporating proper chip and tool management practices can significantly improve the tool life and production efficiency while machining stainless steel, ultimately leading to minimized operational costs.
What are the best practices for machining stainless steel with end mills?
Tips for selecting the appropriate flute end mills for stainless steel applications
Flute Count: Selecting the correct flute count is essential for machining stainless steel efficiently. A lower flute count (2 or 3) is recommended for stricter materials like stainless steel as it provides more excellent chip evacuation, thus reducing the risk of chip re-cutting and subsequent tool wear.
Flute Geometry: Consider end mills with a high helix angle. The steep slope allows for efficient chip evacuation and reduces heat buildup, which is critical for machining stainless steel.
Coating: When machining stainless steel, consider end mills with specific coatings designed to withstand high temperatures and abrasive materials. Titanium Carbonitride (TiCN) or Titanium Aluminum Nitride (TiAlN) are popular choices for stainless steel applications due to their high hardness and thermal stability.
Material: Carbide end mills are usually preferred for stainless steel machining because of their superior heat resistance and hardness. They can withstand the high heat generated during the machining process, thereby enhancing tool life and performance.
Adopting these practices in selecting the appropriate flute end mills can result in improved machining outcomes, extended tool life, and reduced machining costs when working with stainless steel.
Understanding the benefits of using uncoated end mills for cutting stainless steel
Coated end mills are commonly recommended for stainless steel machining, but uncoated end mills can also have advantages. They are more cost-effective, making them a cheaper option. In specific scenarios with low cutting speeds or light finishing operations, uncoated end mills can perform just as effectively as coated ones. However, in high-speed or high-feed applications, the absence of a coating can increase the risk of tool wear and damage. The choice between coated and uncoated end mills depends on the specific machining context and financial considerations. Optimizing the number of passes for rough and finishing cuts in stainless steel machining
Exploring the role of corner radius end mills in minimizing wear and ensuring high-performance machining
Corner radius end mills are essential for minimizing tool wear and maximizing machining performance, particularly with stainless steel. These tools have a radius at each corner, reducing stress concentration and prolonging tool life. They also enable smoother material removal for superior surface finishes. Machinists should carefully consider the radius size based on the specific application, as it affects precision, high-feed/high-speed operations and overall machining quality. Optimal selection ensures efficient and cost-effective performance when working with stainless steel.
Strategies for enhancing tool life and wear resistance in stainless steel machining
To enhance tool life and wear resistance when machining stainless steel, several strategies can be implemented. Choosing the suitable tooling material, such as carbide, is crucial for its wear resistance and high-cutting speed capabilities. Optimizing cutting parameters like feed rate, depth of cut, and cutting speed can minimize tool wear. Implementing a cooling or lubrication system can prevent tool overheating. Regular maintenance and inspections help identify and address issues early on, ensuring long-term tool reliability and efficiency.
What are the common challenges and solutions when machining stainless steel with end mills?
Addressing chip evacuation challenges in stainless steel machining with end mills
Effective chip evacuation is a common challenge in stainless steel machining. The high flexibility of the material leads to the formation of long chips that can clog the tool path. To address this, high-pressure coolant systems and specialized end mills with polished flutes or chip breaker geometries can be used. These solutions help break the chips into smaller pieces and prevent clogging, improving machining performance in stainless steel applications.
Strategies to minimize built-up edge and edge chipping when cutting stainless steel
To mitigate built-up edge and edge chipping when machining stainless steel, consider using a complex tools material like carbide or diamond-coated tools. Optimize cutting speed, use a suitable cutting fluid, and maintain sharp cutting edges for better surface finish and tool life. Regularly inspect the tool’s condition to minimize these issues. Optimizing cutting speeds and feeds for efficient stainless steel machining with end mills
Practical strategies for minimizing work hardening and improving surface finish in stainless steel machining
Work hardening in stainless steel machining poses challenges such as poor surface finish and tool wear. Consistent and aggressive machining, using tools with large rake angles, helps avoid re-cutting the hardened layer. Optimal tool selection, operating parameters, and cutting fluid usage improve surface finish. Regular inspection and tool replacement further enhance results. Implementing these strategies effectively minimizes work hardening and improves surface finish in stainless steel machining.
Addressing tool deflection and vibration issues in stainless steel machining with end mills
Tool deflection and vibration are common challenges in stainless steel machining with end mills, affecting machining accuracy and tool lifespan. To address these issues, operators can take strategic steps. This includes using solid carbide end mills for rigidity, employing roughing end mills for bulk material removal, using appropriate tool holding solutions, and optimizing machining parameters. These approaches help minimize deflection and vibration, resulting in improved machining quality.
How do we optimize end mill performance for specific stainless steel grades and applications?
Understanding the considerations for machining austenitic stainless steel with end mills
Machining austenitic stainless steel can be challenging due to its high work hardening rate and strength. To overcome this, using tools with a high positive rake angle and sharp cutting edge, along with slow speeds and high feeds, can reduce cutting forces and prevent excessive heat buildup. Regular use of cutting fluid helps regulate temperature. Opting for a high wear-resistant tool like a carbide end mill is recommended. Considering these factors enhances efficiency and quality in machining austenitic stainless steel.
Exploring the best practices for cutting ferritic and martensitic stainless steels with end mills
Ferritic and martensitic stainless steels possess lower work hardening rates and higher machinability than austenitic grades, which implies different machining strategies. Here are the best practices for machining these grades with end mills:
- Tool Selection: Choose carbide end mills with substantial rigidity and wear resistance. Specialized end mills, such as those with chip-breaker or wavy-edged designs, can also improve chip evacuation and reduce cutting resistance.
- Cutting Speed and Feed: Higher cutting speeds are generally preferable due to lower work hardening tendencies. However, it’s essential to maintain a balanced feed rate to prevent excessive heat generation and tool wear.
- Coolant Application: While these materials have better heat conductivity than austenitic grades, a constant supply of coolant is still crucial to regulate cutting temperatures, prevent tool wear, and ensure smooth chip evacuation.
- Tool Path Strategy: Opt for climb milling to reduce cutting forces and heat generation. Also, consider strategies like trochoidal milling or dynamic milling, which can enhance tool life and productivity.
By adhering to these practices, operators can optimize the end mill performance when machining ferritic and martensitic stainless steels, leading to improved productivity and part quality.
Strategies for machining duplex and super duplex stainless steels with end mills
Duplex and super duplex stainless steels present unique machining challenges due to their high strength and work-hardening rates. However, with the right strategies, successful machining can be achieved using end mills. Carbide tools with a high positive rake angle are recommended for their wear resistance. Optimizing cutting parameters and ensuring uninterrupted machining can result in efficient and high-quality machining of these stainless steels.
Addressing the unique challenges of machining precipitation-hardening stainless steels with end mills
Precipitation-hardening stainless steels present unique machining challenges due to their distinct metallurgical properties. To overcome these challenges, the use of carbide tools with reinforced cutting edges is recommended. Maintaining a continuous cut and applying a suitable coolant can help manage heat generation and prevent thermal deformation. Slower cutting speeds with higher feed rates promote efficient and precise machining of these steels.
Frequently Asked Questions
Q: What are the critical parameters for machining stainless steel?
A: The critical parameters for machining stainless steel include the cutting speed (SFM), feed rate, depth of cut, and the type of end mill used. These parameters are crucial to ensure the efficiency and quality of the machining process.
Q: How do I select the suitable end mill for stainless steel machining?
A: When selecting an end mill for stainless steel machining, consider factors such as the grade of stainless steel being machined, the type of operation (roughing or finishing), and the desired surface finish. It’s also essential to choose end mills specifically designed for stainless steel to ensure optimal performance and tool life.
Q: What are the advantages of using a four flute end mill for stainless steel?
A: A 4-flute end mill provides better chip evacuation and increased rigidity, which are beneficial for stainless steel machining. It also allows for higher feed rates and improved surface finish due to its ability to engage more of the cutting edge during milling.
Q: Can I use the same end mill for different grades of stainless steel?
A: It’s essential to match the end mill to the specific grade of stainless steel being machined. Different stainless steel grades have varying levels of hardness, abrasiveness, and work hardening tendencies, requiring the use of end mills with appropriate coatings, geometries, and cutting parameters for optimal results.
Q: What are the standard grades of stainless steel used in machining?
A: Common grades of stainless steel used in machining applications include 303, 304, 316, and 17-4PH. Each step has distinct properties that affect machinability, such as corrosion resistance, hardness, and thermal conductivity, influencing the choice of end mill and machining parameters.
Q: What are the key considerations when using high-performance end mills for stainless steel?
A: When using high-performance end mills for stainless steel, factors such as cutting speed, chip evacuation, tool material (e.g., cobalt steel or carbide), and coatings (e.g., TiAlN or AlTiN) play crucial roles in achieving efficient and reliable machining results, particularly in demanding applications like aerospace and medical device manufacturing.
Q: How do I optimize the tool life of end mills when machining stainless steel?
A: Optimizing the tool life of end mills during stainless steel machining involves the careful selection of cutting parameters, using the correct coolant or lubricant, and employing proper tool handling and maintenance practices. Additionally, utilizing high-performance end mills with advanced coatings and geometries can significantly extend tool life in stainless steel machining applications.
Q: Are there specific end mills designed for machining stainless steels with high nickel content?
A: Yes, certain stainless steels with high nickel content, such as Alloy 20 and Inconel, require specialized end mills designed to handle their unique properties, including high heat resistance and work hardening. Using end mills specifically engineered for high-nickel alloys ensures efficient material removal and extended tool life in these challenging machining applications.
Q: Can end mills designed for aluminum machining be used for stainless steel?
A: While end mills designed for aluminum machining have different geometries and coatings optimized for aluminum alloys, they are not ideal for stainless steel due to their higher hardness and abrasiveness. It’s recommended to use end mills specifically designed for stainless steel to achieve optimal performance, surface finish, and tool life.
Q: What are the advantages of using a ball end mill for stainless steel machining?
A: Ball end mills are suitable for contouring and profiling applications in stainless steel, providing smooth finishes and precise features. Their ability to create contoured shapes, fillets, and chamfers makes them versatile tools for various machining operations, contributing to enhanced precision and surface quality in stainless steel components.
