Top Strategies for Choosing the Right CNC End Mill

Top Strategies for Choosing the Right CNC End Mill
Top Strategies for Choosing the Right CNC End Mill

Understanding the Basics of CNC End Mills

Understanding the Basics of CNC End Mills

CNC end mills are precision cutting tools used in computer numerical control (CNC) machining to remove material from a workpiece. They come in various shapes, sizes, and materials, each suited to specific tasks, materials, and machine types. The geometry of an end mill is critically essential. It includes factors such as the number of flutes—the spiral-shaped cutting edges—and the helix angle, which determines the aggressiveness of the cut and the finish quality. Selecting the right end mill involves considering the workpiece material, the complexity of the design, the finish required, and the capabilities of the CNC machine in use. Thus, a thorough understanding of end mill characteristics is instrumental in optimizing machining processes for efficiency, precision, and surface quality.

What is an end mill, and how does it relate to CNC machining?

An end mill is a type of milling cutter, a cutting tool used in industrial milling applications. It is distinguished from the drill bit in its application, geometry, and manufacture. While a drill bit can only cut in the axial direction, a milling bit can generally cut in all directions, though some cannot cut axially. Specifically, end mills are used in CNC machining for the following reasons:

  • Material Removal: End mills are essential for cutting and removing material from a workpiece, shaping parts to the desired dimensions.
  • Versatility: They can perform a broad range of operations, such as plunging, milling, contouring, and slotting.
  • Precision: CNC machines guide end mills with extreme accuracy, allowing for the creation of complex shapes and fine details in a workpiece.
  • Variability: There is a wide variety of end mill types that cater to different machining needs, including other numbers of flutes, variable helix angles, and specialized coatings.
  • Compatibility: End mills are designed to work seamlessly with CNC machines, taking commands from computer inputs to execute precise cuts.

What are the different types of flutes in end mills?

End mills feature flutes — grooves running along the axis of the tool — which are integral to their cutting efficiency. The various types of flutes in end mills include:

  • Single Flute: Provides ample chip space and a higher removal rate, ideal for materials like aluminum or other non-ferrous metals where good chip clearance is necessary.
  • Two and Three Flutes: Offer a balance between chip clearance and strength, commonly used for finishing operations or cutting materials with higher tensile strength.
  • Four or More Flutes: Increase the strength of the end mill, which allows for higher cutting speeds and finer finishes but with less chip clearance. It is typically used for working with steel and more complex alloys.

These flutes not only dictate the chip removal rate but also impact the finish of the material surface and operational speeds. The selection of the appropriate number of flutes is determined by the material to be machined, the specific operation, and the desired finish on the workpiece.

How does a carbide end mill differ from other materials?

Carbide end mills are distinctive in their composition and performance when compared to end mills made from other materials, such as high-speed steel (HSS) or cobalt. Here are the key differences:

  • Material Composition: Carbide end mills are made from a composite of tungsten carbide and cobalt. The tungsten carbide provides hardness and wear resistance, while the cobalt acts as a binder to the carbide grains.
  • Hardness and Durability: Due to their tungsten carbide composition, these tools exhibit exceptional hardness and wear resistance, translating to longer tool life and the ability to maintain a sharp cutting edge.
  • Cutting Speed: With the increased hardness, carbide tools can operate at higher cutting speeds than HSS, improving productivity and reducing machining time.
  • Heat Resistance: The thermal properties of carbide allow it to withstand higher temperatures without losing its hardness, enabling it to excel in high-speed applications.
  • Cost: While the initial cost of carbide end mills is higher than HSS, the extended tool life and increased productivity often justify the investment over time.
  • Finish Quality: The rigidity and precision of carbide end mills deliver a better finish on the workpiece, making them suitable for demanding applications where surface finish is critical.
  • Application Specificity: Carbide tools are particularly effective for cutting through rigid materials like hardened steel, titanium, and nickel-based alloys, where HSS might not perform as well.

The benefits of using carbide end mills make them a preferred choice for high-performance and high-production machining applications.

Key Factors to Consider When Selecting an End Mill

Key Factors to Consider When Selecting an End Mill

  • Material Compatibility: Match the substrate material of the end mill to the workpiece material to ensure proper cutting and longevity. Specialty coatings can enhance performance in specific applications.
  • Flute Count: Determine the appropriate number of flutes based on the operation type and material machinability, considering that higher flute counts are generally beneficial for finishing operations and lower counts for material removal.
  • Helix Angle: The helix angle affects the cutting force and the finish of the workpiece; variable helix angles can reduce vibration and harmonics during cutting.
  • Tool Geometry: The overall length, flute length, and corner radius will determine the tool’s suitability for different types of jobs. End mills with different geometries can optimize for strength, reach, or detailed work.
  • Coating: Choose a coating that is suitable for the material being machined. Coatings such as TiAlN or AlCrN can reduce wear and provide thermal protection in demanding conditions.
  • End Mill Quality: Invest in high-quality, reputable brands that adhere to industry standards to ensure consistency and reliability.
  • Supplier Capabilities: The supplier’s ability to provide technical support, re-grinding services, and supply consistency should influence the selection process.
  • Cost Efficiency: Consider the total cost of ownership, which includes initial price, lifespan, and potential productivity gains, to evaluate the cost efficiency of the end mill.

Selecting the right end mill involves careful consideration of these factors to optimize cutting operations and achieve desired outcomes in terms of precision, finish, and efficiency.

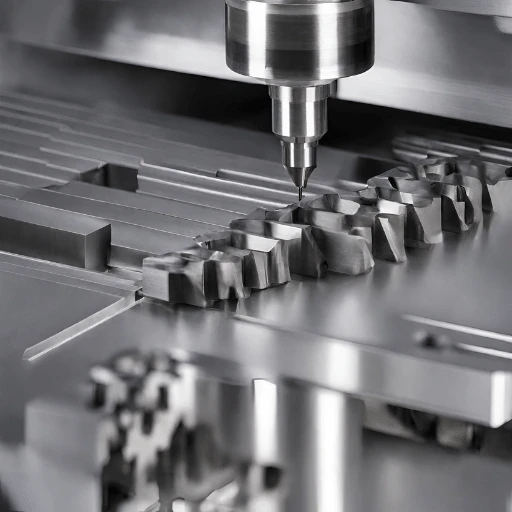

Optimizing End Mill Performance in CNC Milling

Optimizing End Mill Performance in CNC Milling

What role does the cutter play in determining the quality of a CNC end mill?

The cutter is a critical component in defining the capabilities and quality of a CNC end mill, as it directly engages with the material during machining. Precision-engineered cutters contribute to the overall tool performance by dictating aspects like feed rates, speed, and chip load capacity. Material composition, cutter geometry, and surface treatment play pivotal roles in determining wear resistance, thermal stability, and cutter longevity. A high-quality cutter will maintain a consistent cutting edge and minimize deflection, enabling accurate and repeatable cuts. Consequently, a superior cutter equates to enhanced productivity, dimensional accuracy, and surface finish quality, all essential factors in high-precision machining sectors.

How do you achieve the desired surface finish using end mills?

Achieving the desired surface finish with end mills requires meticulous attention to a combination of factors. These include selecting the appropriate end mill geometry, such as the number of flutes and helix angle, which are instrumental in determining the surface finish characteristics. Additionally, optimal cutting parameters, namely spindle speed (RPM), feed rate, and depth of cut, must be carefully calibrated based on the end mill’s specifications and the material being machined. The use of high-quality, sharp cutting tools and appropriate cutting fluid can also significantly influence the smoothness of the finished surface. Moreover, vibration control through proper machine setup and tool holding is crucial to prevent any detrimental effects on the surface finish. By integrating these considerations into the CNC milling process, machinists can consistently produce parts with the desired surface quality.

Maximizing tool life and material removal rates with proper end-mill selection

Maximizing tool life and material removal rates is a precise balancing act that hinges on selecting the suitable end mill for a specific task. Several variables, including the workpiece material, hardness, and machinability, govern this decision. High-performance end mills crafted from carbide or other advanced materials often provide superior wear resistance and enable higher machining speeds, which directly translate to increased material removal rates. It’s essential to match the flute count and geometry to the operation—fewer flutes for higher chip removal in roughing applications and higher flutes for finer finishes in finishing operations. Moreover, coatings such as TiAlN or AlCrN can be leveraged to minimize wear and thermal buildup, further extending the life of the end mill. When these tool attributes are methodically selected in concert with the machine tool’s capabilities, operators can achieve a harmonious interplay between longevity and efficiency.

Advanced Techniques for Specialized End Mill Applications

Advanced Techniques for Specialized End Mill Applications

How do you choose a suitable end mill for specific materials like wood or metal?

When selecting an end mill for specific materials such as wood or metals, consider the following key factors to optimize performance and results:

  • Material Composition: The material of the end mill should complement the workpiece. For instance, High-Speed Steel (HSS) end mills are suitable for wood, while carbide-tipped or solid carbide end mills offer the rigidity and wear resistance necessary for cutting metals.
  • Coatings: Choose a coating based on the workpiece material to reduce wear and friction. TiN (Titanium Nitride) works well for softer metals and wood, while TiCN (Titanium CarboNitride) and TiAlN (Titanium Aluminum Nitride) are better suited for harder metals.
  • Flute Count: Use fewer flutes for easy chip evacuation when cutting softer materials like wood and higher flute counts for metals, as they offer a finer finish and better control over the workpiece’s thermal management.
  • Helix Angle: A high helix angle, usually 40 degrees or more, creates efficient cutting conditions for softer materials like aluminum, whereas a lower helix angle is more stable and preferable for cutting harder metals.
  • End Geometry: For softer materials such as wood, an end mill with sharp cutting edges and deep flutes is preferred to prevent material from sticking to the tool. For metals, choose an end mill with a specific geometry designed for the type of metal, such as a variable helix end mill for reducing vibrations and harmonics during heavy material removal in steel.
  • Cutting Diameter and Tool Strength: The rigidity of the end mill is crucial, especially for metals. An enormous diameter tool can resist deflection but may require a lower feed rate or a less aggressive cutting strategy. Conversely, cutting wood may allow for larger diameters with aggressive feed rates due to the material’s lower density.

By meticulously evaluating these variables and aligning the end mill attributes with the machining task at hand, machinists can ensure optimal performance and longevity of the tool while producing precision parts.

Exploring the benefits of corner radius and square-end mills in different operations

Corner Radius End Mills: Benefits and Applications

  • Increased Durability: Corner radius end mills have rounded corners that significantly reduce the stress concentration during milling operations. This design enhancement prolongs the tool life and reliability compared to square-end mills, which have sharp corners subject to higher stress levels.
  • Versatility in Milling: The strength provided by the corner radius allows for versatile application, including roughing and finishing work. It enables the end mill to handle higher cutting loads, making them suitable for a diverse range of workpiece materials.
  • Improved Surface Finish: The transitional edge of a corner radius end mill promotes a smoother cutting action. This results in a better surface finish on the workpiece, especially during contouring and profiling operations.
  • Reduced Chatter and Vibration: The geometry of corner radius end mills provides enhanced rigidity, minimizing chatter and vibration. This leads to higher precision in the milled parts and increased stability during the machining process.

Square End Mills: Benefits and Applications

  • Sharp Corners for Detailed Milling: Square end mills offer sharp corners that are essential for producing solid and 90-degree edges and detailed features on a workpiece, critical in die and mold making.
  • Cost-Effectiveness: Given their more straightforward design, square-end mills can be more cost-effective to manufacture and purchase, providing an economical solution for various milling operations.
  • Broad Range of Materials: Square end mills are well-suited for a wide array of materials, from soft materials like wood and plastic to harder metals. Their versatility makes them a staple in many milling tasks.
  • Optimal for Slotting and Pocketing: The straight edges of the square end mill make it the preferred choice for applications involving slotting and creating pockets with right-angle corners.

Choosing between a corner radius and a square end mill largely hinges on the requirements of the operation and the workpiece material. Factoring in the advantages of each tool type, machinists can strategize the utilization of end mills to optimize their machining processes.

Understanding the importance of choosing the suitable cutting diameter and length

Selecting the appropriate cutting diameter and length of end mills is paramount to achieving the desired precision and efficiency in milling operations.

  • Material Engagement: The cutting diameter determines the amount of material that is engaged with each pass, affecting the load on the cutter. A larger diameter can remove more material but may require more power and potentially reduce the tool’s life.
  • Depth of Cut: The maximum depth of cut is limited by the cutting length of the end mill. A longer cutting length can reach deeper into the workpiece but can also introduce more deflection and vibration.
  • Tool Strength and Stability: Shorter end mills are generally more rigid and less susceptible to deflection, whereas more extended end mills can flex more, affecting part accuracy and finish.
  • Machining Reach: Length is also crucial when machining intricate parts with deep cavities or profiling far from the tool holder. The tool must be long enough to reach these areas without interference from the tool holder.
  • Surface Finish: Optimal cutting diameter and length contribute to the quality of the surface finish by ensuring the tool can operate at the correct parameters and with minimal vibration.

Overall, the consideration of cutting diameter and length is a balancing act, where the objective is to maximize productivity and part quality while minimizing wear and tear on the end mill.

Frequently Asked Questions

Frequently Asked Questions

Q: What factors should I consider when choosing a CNC end mill?

A: When choosing a CNC end mill, consider factors such as the material you are cutting, the type of cut you need (roughing or finishing), the desired surface finish, the number of flutes on the end mill, and the cutting speed and feed rate for your project.

Q: What is the difference between a ball nose end mill and a flat end mill?

A: A ball nose end mill is designed for 3D contouring and is ideal for creating rounded shapes and intricate designs, while a flat end mill is used for general milling applications where a flat surface is needed.

Q: How do I choose the best end mill for my project?

A: To choose the best end mill for your project, consider the material you are working with, the type of cut required, the desired finish, and the machining parameters such as cutting speed, feed rate, and depth of cut.

Q: What are the advantages of using a solid carbide end mill?

A: Solid carbide end mills are known for their high hardness, wear resistance, and heat resistance, making them ideal for cutting hard materials such as stainless steel, titanium, and high-temperature alloys.

Q: How many flutes should I look for in an end mill?

A: The number of flutes on an end mill affects chip removal, surface finish, and tool life. Generally, more flutes provide a better surface finish but may reduce chip clearance, while fewer flutes are better for chip evacuation in softer materials.

Q: Can I use a CNC end mill on a desktop CNC machine?

A: Yes, you can use CNC end mills on desktop CNC machines as long as the end mill shank matches the collet size of your machine. Make sure to adjust the cutting parameters to match the capabilities of your desktop CNC.

Q: What is the main difference between a drill bit and an end mill?

A: Drill bits are used to create cylindrical holes, while end mills are used for cutting and shaping materials. End mills have cutting edges on the sides and bottom, allowing for more versatile milling operations compared to drill bits.


  1. Optimized CNC end-milling: A practical approach: This academic article from Taylor & Francis Online discusses a practical approach to optimized CNC end-milling. It provides insights into the best strategies for finding a solution.
  2. An integrated evolutionary approach for modeling and optimization of CNC end milling process: Another scholarly article that proposes an integrated evolutionary approach for modeling and optimization of CNC end milling processes. It emphasizes the selection of appropriate cutting conditions.
  3. End mill tools integration in CNC machining for rapid manufacturing processes: simulation studies: This source offers a comprehensive survey of the integration of end mill tools in CNC machining. It discusses how to select a proper combination of end mill tool sizes for roughing.
  4. Experimental investigation on surface roughness in CNC end milling process by uncoated and TiAlN coated carbide end mill under dry conditions: This research on ScienceDirect investigates the surface roughness in CNC end milling processes. It highlights the use of the Taguchi strategy in deciding the best blend of the milling process.
  5. Multi-objective feed rate optimization method of end milling using the internal data of the CNC system: This Springer article presents a multi-objective feed rate optimization method for end milling. It suggests strategies for selecting the best-fit solution from a set of Pareto solutions.
  6. Critical factors in energy demand modeling for CNC milling and impact of toolpath strategy: This source from ScienceDirect discusses the essential factors in energy demand modeling for CNC milling and the effect of toolpath strategy. It provides insights into reducing energy demand in machining by the selection of appropriate methods.
  7. Optimal tool shape selection based on surface geometry for three-axis CNC machining: This Springer article explores the optimal tool shape selection based on surface geometry for three-axis CNC machining. It suggests strategies for determining the best cutter for specific tasks.
  8. Tool selection for rough and finish CNC milling operations based on toolpath generation and machining optimization: This paper discusses the problem of selecting a sequence of end milling cutters for different operations. It offers insights into achieving the best performance of the machine.
  9. Simulation-based cutting parameter selection for ball end milling: This ScienceDirect article presents strategies and algorithms for selecting cutting parameters for ball end milling. It discusses how to find the best solution in complex situations.
  10. Parametric optimization of CNC end milling using entropy measurement technique combined with the grey-Taguchi method: This source discusses parametric optimization of CNC end milling using entropy measurement technique combined with the grey-Taguchi method. It emphasizes the importance of proper selection of cutting process parameters.
