What is an End Mill, and Why is Size Important?

What is an End Mill, and Why is Size Important?

An end mill is a type of cutting tool widely used in industrial milling applications. It is characterized by its cylindrical shape and the cutting edges — or flutes — that extend along the body of the tool. Size is critical because it directly affects the performance and outcome of the machining process. End mills are manufactured in various sizes to accommodate diverse milling tasks ranging from detailed precision work to heavy-duty cutting. The size of an end mill is determined by several dimensions: the diameter of the cutting part, the length of the flutes, the number of flutes, and the overall tool length. Selecting the correct size is essential for optimizing cutting efficiency, ensuring dimensional accuracy, and prolonging the life of both the tool and the CNC machine.

Understanding the Anatomy of an End Mill

The anatomy of an end mill consists of critical components like the cutting end, flutes, helix angle, and shank. These components contribute to the mill’s functionality and performance during milling operations. The number of flutes and the helix angle affect the cutting efficiency and chip evacuation. Different materials and coatings, such as HSS, carbide, and TiN or DLC, offer unique characteristics to enhance the tool’s performance. Understanding these components is crucial for selecting the suitable end mill for specific milling applications.

Importance of Choosing the Right End Mill Size

Selecting the appropriate end mill size for a milling operation is not merely a detail; it has significant implications for the entire machining process and final product. The size of the end mill influences various factors, which include:

  • Surface Finish Quality: A correctly sized end mill will produce a superior surface finish that meets the specifications for the designed part. Using an incorrect size can result in a rough finish and additional post-machining work.
  • Cutting Efficiency: The diameter and length of the end mill affect its ability to remove material efficiently. A mismatch in size can lead to reduced cutting speeds, increased wear on the tool, and potential damage to the workpiece.
  • Tool Longevity: Utilizing the correct size ensures that the end mill is not overextended, which can lead to breakage or premature wear. It is imperative to match the end mill size with the material hardness and the intricacy of the task to extend tool life.
  • Machine Wear: An oversized tool may impose undue stress on the CNC machine, resulting in mechanical issues and a decrease in the life expectancy of the equipment.
  • Accuracy and Precision: The right end mill size is crucial for achieving the dimensional accuracy required for the workpiece. Deviations can lead to parts that do not meet tolerance requirements, leading to increased scrap rates.
  • Costs: Using the appropriate end mill size can result in cost savings, as it reduces the potential for tool replacement, machining errors, and unnecessary labor for corrections.

In summary, the precision in size selection for an end mill is integral to the machining process’s overall efficiency and effectiveness. It is a necessary consideration for achieving optimal performance and quality in CNC milling operations.

Factors to Consider When Selecting End Mill Sizes

When selecting the appropriate size for an end mill, one must take into account a series of technical factors that dictate the tool’s performance and contribution to the overall milling process:

  • Material Being Machined: Different materials vary in hardness and machinability, requiring end mills of specific diameters and lengths to handle the material efficiently without undue wear.
  • Type of Milling Operation: The required end mill size can differ for operations such as profiling, contouring, slotting, and finishing, each demanding precision tools tailored to the operation’s specifics.
  • Depth of Cut: This determines the flute length of the end mill necessary to perform the cut without imposing excess load on the tool, potentially causing deflection.
  • Machine Tool Capability: The capacity and rigidity of the CNC machine tool will influence the size of the end mill that can be utilized effectively without causing harm to the machine or compromising the final product.
  • Available Tool Holders: The size of available tool holders on a CNC machine sets a physical limitation on the shank diameter of the end mills that can be used.
  • Surface Finish Requirements: A smooth, high-quality surface finish may require end mills with specific geometries and dimensions to achieve the desired outcome.
  • Tolerances of the Final Part: Critical dimensions with tight tolerances necessitate end mills that can operate with high precision to produce parts within the specified limits.

It is essential to balance all these fundamental considerations, as they will guide one in choosing the most efficient end mill size for any given application.

Common End Mill Sizes and Standards

End mills are typically classified by their diameter, length, and flute characteristics and are available in a range of standard sizes. The most common diameters are found in increments starting from 1/64 inch (0.3969 mm) to 1 inch (25.4 mm) for precision to general milling applications. Metric sizes, ranging from 1 mm to 25 mm, are also widely used. Furthermore, end mills can be acquired with different lengths, such as stub, regular, long, and extra-long, which offer varying reach and stability during the milling process.

Industry standards, like those established by the American National Standards Institute (ANSI) and the International Organization for Standardization (ISO), provide specifications for end mill dimensions. This ensures interchangeability and consistency in tooling across global manufacturing operations. Hence, adherence to these standards is critical when selecting an end mill for a specific task, particularly when the operations require high levels of precision and repeatability.

How do you choose a suitable end mill for your project?

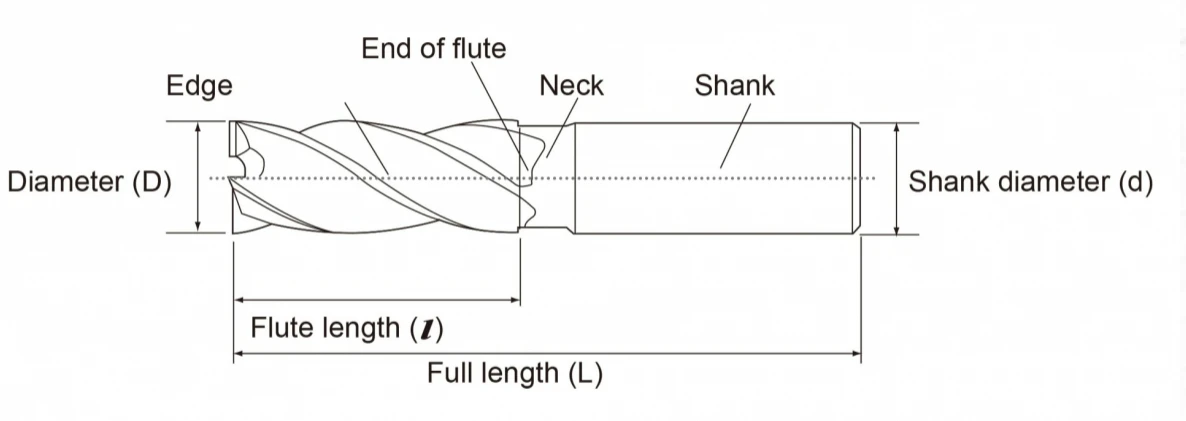

Detail of the end millImage
Detail of the end mill Image

Matching End Mill Profile with Project Requirements

Matching the end mill profile to specific project requirements is central to optimizing performance and outcome. End mills come in various profiles, including flat, ball-nose, and corner radius, each fulfilling distinct roles in the milling process.

  • Flat-end mills are typically employed for general-purpose milling and cutting slots and keyways. Their squared-off tips are ideal for producing 90-degree angles.
  • Ball-nose end mills have rounded tips, which provide a smoother finish and are essential for 3D contour work, providing great detail on the final part.
  • Corner Radius End Mills have a small, rounded corner that decreases stress concentration, which in turn increases tool longevity and reduces chipping risk in hard materials.

It is crucial to match the profile of the end mill with the complexity and finish requirements of the project for efficient milling operations. For instance, when a workpiece requires a contoured surface finish, choosing a ball-nose end mill would be appropriate. Conversely, for a part that requires sharp edges and flat surfaces, a flat-end mill would be the preferred choice. By aligning the tool’s characteristics with the project’s specifics, one can ensure a balanced application of the end mill, contributing to optimal cutting performance and extended tool life.

Considerations for Choosing the Right Flute Configuration

The flute configuration of an end mill significantly influences the performance and suitability of a particular material or application. The number of flutes, along with their shape and spacing, affect the chip removal rate, finish quality, and tool strength.

  • Two to Three Flute End Mills are optimal for machining softer materials or for applications that require high chip removal rates. The larger flutes provide excellent space for chip evacuation, reducing the risk of clogging and heat build-up.
  • Four or More Flute End Mills are designed for more complex materials and finishing operations. Additional flutes distribute the cutting forces more evenly, leading to better surface finishes and higher precision. However, they have less chip clearance, so operating parameters may need to be adjusted to prevent chip packing.

The proper flute count and helix angle are crucial factors in milling efficiency and success. High-speed machining centers benefit from higher flute counts and higher helix angles for precise cutting and smoother finishes. Lower flute counts and helix angles are better suited for less powerful machines or aggressive cuts in softer materials. By carefully considering the material, desired finish, cutting forces, and machine capabilities, a more informed flute configuration decision can be made to optimize milling efficiency and end mill longevity.

Understanding Square End, Ball End, and Corner Radius End Mills

End mills are classified based on their tip geometries, each serving a distinct purpose in the machining process.

  • Square End Mills exhibit a sharp 90-degree corner edge, which makes them a preferred choice for producing square slots, pockets, and edges. They are versatile and widely used for side milling, slotting, and profiling operations.
  • Ball End Mills possesses a hemispherical tip used to machine rounded details, such as fillets, along with 3D sculpted shapes. Their design allows for a smoother transition between the milled surface profiles, which is ideal for mold and die making, as well as for machining complex contours on a workpiece.
  • Corner Radius End Mills blends the attributes of square and ball end mills, having a radius ground on the corner edge. This radius increases tool strength and wear resistance by distributing cutting forces over a larger area, which is particularly advantageous when milling more complex materials or when the cutting edge is under significant stress.

Each type of end mill is employed based on the specific requirements of the application, such as desired geometry, material properties, and surface finish. Understanding the distinctions between these end mills is essential for selecting the right tool for the task at hand, ensuring both productivity and the longevity of the tool.

End Mills for Specific Works: CNC Machining, Slotting, Contouring, etc.

When selecting an end mill for a particular machining operation, it is critical to consider the workpiece material, the complexity of the design, and the required precision. Below, we detail the applications of end mills in various machining processes:

  • CNC Machining: Precision is paramount in CNC machining. Square end mills are instrumental for detailed flat surfaces and sharp corners. Meanwhile, ball end mills are the go-to tools for 3D contouring and complex surface machining.
  • Slotting: For this task, square-end mills are highly effective due to their sharp edges and ability to create clean slots with straight walls.
  • Contouring: Ball end mills excel in contouring operations. Their rounded tips reduce tool marks, resulting in smoother surfaces, and are ideal for creating complex geometries.
  • Rapplicationsications often use end mills with serrated edges or coatings coating to withstand the high-volume material removal rates, and corner radius end mills can be employed to strengthen the tool’s durability.
  • Finishing Operations require end mills that provide a high-quality surface finish. Here, a finely polished ball or corner radius end mill is beneficial, minimizing tool marks and producing a superior finish.

Using the correct end mill for the task not only optimizes the machining process but also extends the life of the tool and ensures the quality of the finished product.

Factors to Keep in Mind for Selecting Metric End Mills

When selecting metric end mills for machining tasks, it is essential to consider various technical specifications and factors to ensure optimal performance and longevity of the tool. Key considerations include:

  • Diameter: Choose a mill diameter that aligns with the required precision and the tightest area of the workpiece to be machined.
  • Flute Count: Higher flute counts increase the strength of the end mill and allow for higher feed rates, while lower flute counts provide better chip clearance when removing large volumes of material.
  • Material: The substrate material of the end mill plays a significant role in performance. Carbide end mills are preferred for their hardness and heat resistance, especially in high-speed applications.
  • Coatings: Various coatings can be applied to end mills to enhance their performance in specific materials. For example, Titanium Aluminum Nitride (TiAlN) is beneficial for machining steel, whereas Aluminum Titanium Nitride (AlTiN) is better suited for high-temperature alloys and titanium.
  • Length of Cut: The length of the cut needs to accommodate the depth of the slots or pockets being machined while minimizing the chance of deflection.
  • Helix Angle: The helix angle affects the cutting force, finish, and chip evacuation. A higher helix angle generally results in a smoother cut and is preferable for finishing operations.
  • Corner Geometry: The corner design of end mills, such as square, ball nose, or radius, depends on the cutting needs of the part. Radius corners can increase tool life and reduce chipping compared to sharp corners.

Selecting the suitable metric end mill requires an analysis of these factors in the context of the machining operation’s specific demands to achieve the desired result efficiently and effectively.

Factors Affecting End Mill Performance and Machining Quality

End mill cutter geometryImage
End mill cutter geometry

The Role of Material, Machine, and Cutter in End Mill Performance

The interplay between the material being machined, the machine tool, and the cutter itself is crucial for optimizing end-mill performance. Here are vital considerations for each component:

  • Workpiece Material: The hardness, toughness, and thermal properties of the material being machined dictate the choice of end mill. More complex materials require end mills with higher hardness levels, often achieved through specific coatings or substrate materials such as carbide.
  • Machine Tool Capabilities: The power, rigidity, and precision of the machine tool impact the performance of end mills. Machines with higher horsepower and stability can handle more aggressive cutting parameters without compromising tool life or part quality.
  • Cutter Design: End mill cutters must be chosen based on their ability to meet the demands of the machining task. This includes considering the number of flutes, material of the cutter, coatings, cutting geometry, and other design aspects that match the workpiece material and the desired finish.

Selecting the right combination of these three components is critical to achieving optimal machining performance, longevity of the end mill, and the quality of the finished product.

Optimizing Feed Rate, Coating, and Other Parameters for Better Results

Optimal feed rates are crucial for efficient machining and prolonging end mill life. Feed rates that are too low can result in rubbing and work hardening, while high rates can lead to excessive wear or breakage. Coatings should be chosen based on compatibility with the workpiece material, enhancing performance by reducing wear and friction. Other parameters, such as coolant use and tool path strategy, must also be optimized to achieve the best results.

Understanding the Impact of End Mill Size on Rigidity and Depth of Cut

The diameter of an end mill is crucial for its performance and part finish. Smaller diameters are suitable for detailed work but lack rigidity and may cause deflection. Larger diameters provide more rigidity but are not ideal for fine details. The depth of the cut should also be considered. Choosing the right end mill size is vital for optimal results without compromising the tool or workpiece.

Exploring High-Performance and Tapered End Mills for Specific Applications

High-performance end mills, engineered with specialized geometries and coatings, cater to demanding applications like those found in aerospace and medical industries. Tapered end mills, with their unique conical shape, offer added rigidity for deep cavity work in die and mold making, allowing higher feed rates and improved surface finishes in specific applications.

Preventing Damage to the End Mill: Proper Use and Maintenance Practices

To prevent damage to end mills, operators should adhere to recommended speeds and feeds, use the correct coolant or lubrication, and implement proper handling and storage. Regular inspection for wear and damage is essential for maintaining end mill effectiveness, and tool life can be extended through regrinding services when applicable. Implementing these maintenance practices ensures optimal tool performance and cost efficiency.

End Mill Size Varieties and Their Applications

End Mill Size Varieties and Their Applications

Exploring Different End Mill Shapes and Sizes Available in the Market

End mills are available in various shapes and sizes, each suited for specific purposes and materials. Flat-end mills are generally used for milling flat surfaces or to cut slots with a square bottom. Ball nose end mills feature a rounded cutting edge and are ideal for 3D contour work, providing smooth finishes on the workpiece. Corner radius end mills have a rounded corner to increase tool strength and reduce chipping. For intricate and detailed tasks, miniature end mills are the tools of choice due to their small sizes, allowing precision work on excellent features. Lastly, roughing end mills, or ripper cutters, are designed with serrations in the cutting area to remove large amounts of material quickly during heavy operations.

Understanding Specialized End Mills for Various Machining Requirements

Specialized end mills are crafted to cater to unique machining requirements, presenting optimized solutions for distinct material properties and operational intricacies. Carbide end mills are renowned for their durability and precision, making them suitable for working with hard materials that would wear down high-speed steel. High-helix end mills are designed to efficiently evacuate chips, which is particularly advantageous when machining aluminum or other non-ferrous materials. Moreover, variable helix end mills offer suppression of chatter and harmonics, thus enhancing surface finish quality and extending tool life. For machining tasks requiring thermal resistance, coated end mills such as TiAlN or AlCrN coated varieties augur well by resisting heat and reducing the likelihood of premature wear. Understanding the subtleties of each end mill category ensures that machinists can select the correct tool for their specific application, leading to reduced tool wear and optimized machining processes.

Application Considerations for Smaller and Larger End Mill Diameters

When choosing between smaller and larger end mill diameters, it’s essential to consider their applications and limitations. Smaller diameters offer precision but are less rigid and more prone to deflection, limiting their use in deep cutting. On the other hand, larger diameters provide strength and rigidity, allowing for aggressive material removal but potentially sacrificing detail in the finish. The choice should be based on specific requirements like material, design features, depth of cut, and desired outcome. Selecting the right end mill diameter is crucial for optimizing performance, efficiency, and tool longevity.

Utilizing End Mill Variety to Achieve Desired Surface Finish and Cutting Results

In the pursuit of achieving superior surface finishes and precise cutting results, it is imperative to utilize a diverse array of end mills, each tailored to particular materials and applications. Flute count is critically essential; higher flute counts are conducive to finer finishes and are preferable for materials that are easy to machine. Low flute counts are desirable for rigid materials and chip evacuation in slotting operations. Additionally, the application of corner radius end mills reduces stress concentrations and increases tool longevity, thereby ensuring a consistent surface finish over time. Ball nose end mills, with their hemispherical tip, are optimal for three-dimensional contour work, adding a smooth topography to the machined surface. Machinists must judiciously select from these varieties, considering factors such as workpiece material, desired geometrical precision, and overall finish quality to enhance operational outcomes.

Factors Affecting End Mill Size Selection: Spindle, HSS, and CNC Machining

When determining the optimal size for an end mill, several factors must be meticulously considered to ensure compatibility with the machining process and to achieve the required precision and surface finish. These factors include:

  • Spindle Power and Torque: The power and torque of the spindle play a pivotal role in selecting an end mill size. Larger diameter end mills require more torque and a robust spindle to manage the increased cutting forces. Conversely, smaller end mills demand less torque and can be utilized with less powerful spindles.
  • High-Speed Steel (HSS) Versus Carbide Construction: HSS end mills are typically used for softer materials or when lower production volumes are anticipated. They can be more forgiving than their carbide counterparts but offer less rigidity. Carbide end mills are preferred for their hardness and heat resistance, which are conducive to working with more rigid materials at higher speeds.
  • CNC Machine Capabilities: The capabilities of the CNC machine, such as maximum RPM and feed rate, are critical when selecting an end mill size. An appropriately chosen end mill maximizes the efficiency of these parameters without exceeding the machine’s operational limits, fostering precise control over the machining process.

Frequently Asked Questions

Frequently Asked Questions

Q: What is the function of a square end mill?

A: A square-end mill is designed to perform general milling applications, including slots and pockets. It is used to cut a workpiece, providing a smoother surface finish and the ability to remove material faster.

Q: What are the common types of end mills typically used for CNC machining?

A: End mills are used in a variety of shapes and sizes, including square-end mills, ball-end mills, and high-performance end mills. They come in a variety of configurations, such as three flutes or four flutes, and are available in a range of materials and coatings.

Q: How can I choose a suitable end mill for my CNC machining project?

A: To choose an end mill, consider the specific end mill types that can be used for the material and operation you require. Factors such as cutting diameter, number of flutes, and end mill size standards should also be taken into account. High feed rates and deeper cuts may require an end mill with fewer flutes, while a general-purpose end mill is suitable for a wide range of applications.

Q: What are the end mill size standards and available options?

A: End mills are available in metric sizes and follow end mill size standards to ensure compatibility with CNC machinery. An end mill size chart can help you quickly determine the cutting diameter and other dimensions of the tool.

Q: How are helix and flute related to end mill performance?

A: The helix, or spiral angle, of an end mill, can affect chip evacuation, while the number of flutes influences the tool’s performance. A 3-flute end mill, for example, may provide improved chip removal compared to a four-flute end mill in specific applications.

Q: What are the benefits of using a solid carbide end mill?

A: Solid carbide end mills offer high performance and durability, making them suitable for high-speed machining and other demanding applications. They are known for their ability to withstand heat and maintain sharp cutting edges.

Q: How do end mills contribute to CNC machining efficiency?

A: End mills are designed to remove material faster and more efficiently than other cutting tools, making them a crucial component in CNC machining operations. They enable high feed rates and can help achieve precision and productivity.

Q: What are the primary considerations when selecting an end mill for a specific application?

A: When choosing an end mill, consider factors such as the type of material being machined, the desired surface finish, the required precision, and the specific features of the CNC end mill that will contribute to optimal performance for the task at hand.

Q: What is the role of end mills in CNC milling operations?

A: End mills are used to cut, shape, and finish workpieces during CNC milling operations. They come in a variety of designs and are essential tools that can be used for a wide range of cutting tasks, from roughing to finishing and everything in between.

Q: How does the variety of end mill options benefit CNC machinists?

A: The variety of end mill sizes offers CNC machinists the flexibility to select the most suitable tool for a specific project. With the availability of different shapes, materials, and configurations, machinists can optimize their machining processes and achieve desired results efficiently.
