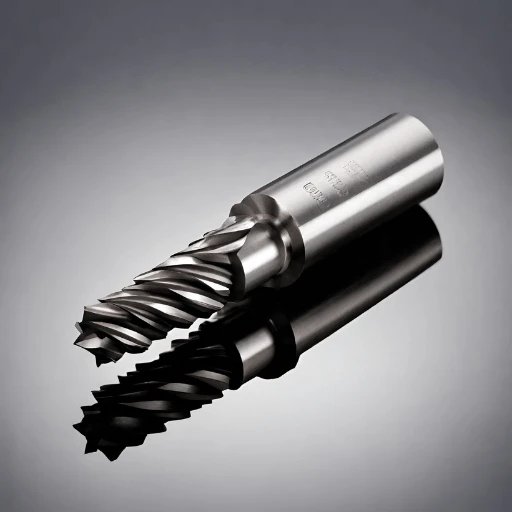

What are Carbide End Mills and Their Applications?

What are Carbide End Mills and Their Applications?

Carbide end mills, often referred to as end mills, are a type of industrial cutting tool used in milling applications. They are made from solid carbide, a material known for its toughness and capacity to handle high heat, thereby allowing for high-speed machining. Equipped with multiple cutting edges, end mills can achieve precision in complex part milling. The applications are vast and diverse; they are commonly used in industries like automotive, aerospace, and manufacturing for processes such as profile milling, tracer milling, face milling, and plunging. As technology advances, the versatility and capabilities of carbide end mills continue to expand, serving a critical role in the progress of industrial machining.

Understanding the Composition of Carbide End Mills

Carbide end mills are primarily composed of a rigid material known as tungsten carbide. Tungsten Carbide is a compound made up of equal parts tungsten and carbon atoms. In its most basic form, tungsten carbide is a fine-gray powder. For industrial purposes, it is often combined with a binder, typically cobalt or nickel, to create a composite material. This combination results in a tool that retains the hardness of carbide while possessing the strength and toughness of the binder material. The ratio of carbide to binder and the size of the carbide particles can impact the tool’s performance characteristics, such as its hardness, toughness, and resistance to wear. The specific composition is often chosen based on the particular application of the end mill.

Applications of Carbide End Mills in Different Materials

Carbide end mills are versatile and adaptable to a range of materials, each offering different milling experiences and outcomes. The list below provides insight into their applications in other materials:

  1. Aluminum: Due to its soft and sticky nature, aluminum requires sharp cutting edges and high cutting speed, both qualities inherent in carbide end mills. These tools provide efficient chip removal and prevent the material from sticking to the tool.
  2. Stainless Steel: Renowned for its toughness and work-hardening characteristics, stainless steel poses a challenge for most cutting tools. However, carbide end mills, with their high hot hardness, allow effective machining of this material without rapid wear.
  3. Titanium: Carbide end mills are ideal for titanium, a material known for its high strength-to-weight ratio and corrosion resistance. The tools’ durable cutting edges can withstand the pressure and heat generated during the cutting process.
  4. Cast Iron: The hardness of cast iron can cause rapid tool wear. Carbide end mills offer a solution with their exceptional wear resistance and high cutting speeds, ensuring a long tool life.
  5. Non-Ferrous Metals and Plastics: Carbide end mills are capable of effectively machining non-ferrous metals and plastics, thanks to their sharp cutting edges and high-speed machining capabilities. They ensure smooth and clean finishes, reducing the need for secondary operations.

Advantages of Using Carbide End Mills

Carbide end mills present an array of advantages that contribute to their popularity in various industrial applications:

  1. Superior Wear Resistance: Carbide end mills have an exceptionally high wear resistance, permitting prolonged usage before necessitating replacement. This trait is especially beneficial when working with abrasive materials.
  2. High-Speed Machining: Carbide’s inherent hardness allows these tools to operate at high cutting speeds without compromising on operational efficiency. This results in increased productivity.
  3. Excellent Surface Finish: Carbide end mills, due to their sharp cutting edges, ensure a smooth and refined surface finish. This can reduce or even eliminate the need for secondary finishing operations, further saving time and resources.
  4. Diverse Material Compatibility: The versatility of carbide end mills allows for efficient machining of a wide variety of materials, from soft non-ferrous metals to hard and abrasive materials.
  5. Heat Resistance: Carbide end mills can withstand high levels of generated heat during the cutting process. This heat resistance prevents tool deformation and maintains operational consistency, even in high-speed and high-load machining applications.
  6. Cost-Effectiveness: While the initial cost of carbide end mills can be higher than their high-speed steel counterparts, their extended tool life and enhanced performance ultimately deliver a higher return on investment over time.

Choosing the Right Carbide End Mill for Your Project

When choosing the suitable carbide end mill for your project, several factors need to be considered. The first is the material you’ll be working with, as different materials require varying end-mill characteristics for efficient machining. Similarly, the hardness of the material is also essential, as more complex materials generally necessitate an end mill with a higher degree of hardness.

The type of machining operation planned can also influence the choice of end mill. For instance, slotting operations often demand end mills with more flutes for superior chip evacuation, while roughing applications may require fewer flutes for effective material removal.

Lastly, consider the machine’s capabilities, such as its power and speed ranges. High-speed machining will require an end mill that can withstand higher temperatures and resist wear at increased cutting speeds.

Remember, the goal is to select an end mill that can deliver the desired results most efficiently and cost-effectively. Careful consideration of the above factors can guide you toward a suitable carbide end mill for your project.

Considerations for High-Performance Solid Carbide End Mills

Several considerations are paramount for achieving optimal results with high-performance solid carbide end mills. Coating selection is crucial, as specific coatings can enhance tool life and performance by reducing wear and tear, minimizing heat generation, and improving surface finish. For instance, Titanium Carbonitride (TiCN) coating is ideal for more complex materials due to its high hardness and excellent heat resistance.

The Helix angle is another important factor. A higher helix angle (45 degrees or more) offers better chip evacuation. It is suitable for high-speed machining, while a lower helix angle (around 30 degrees) provides better tool rigidity and is suited for more rigid materials.

Flute count also affects performance. Higher flute counts (5 or more) provide a smooth finish and are better suited for finishing operations, while lower flute counts (2 to 4) allow for more aggressive cuts and better chip evacuation, making them ideal for roughing operations.

Ultimately, the choice of a high-performance solid carbide end mill depends on a balance of these considerations, along with the specifics of your machining application. Always ensure that the selected tool aligns with the demands of your material, machine, and operation.

How do you select the best carbide end mills for different projects?

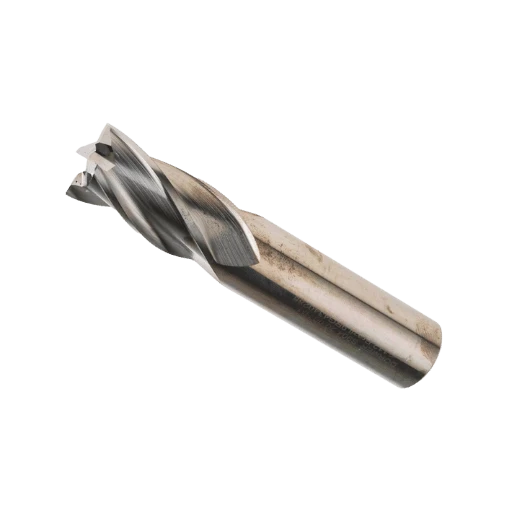

How to Select the Best Carbide End Mills for Different Projects?

Factors to Consider When Selecting Carbide End Mills

Here are some primary factors to consider when selecting carbide end mills for your projects:

  1. Material to be Machined: The hardness and composition of the material you are planning to cut play a crucial role in determining the type of carbide end mill required. For example, more rigid materials necessitate end mills with higher hardness ratings and specific coatings for longevity.
  2. Machining Application: Whether you’re performing a roughing operation, finishing operation, or both significantly impacts your end mill selection. End mills with fewer flutes are ideal for roughing operations due to better chip evacuation. In comparison, those with more flutes yield a smoother finish, making them more suitable for finishing operations.
  3. Tool Longevity and Performance: The coating of your carbide end mill can drastically affect its lifespan and performance. Certain coatings offer increased resistance to heat and wear, enhancing the tool’s durability, especially when working with hard materials.
  4. Machine Capabilities: It’s essential to select a carbide end mill that aligns with your machine’s speed, power, and tool-holding capabilities to achieve optimal results and avoid tool breakage.
  5. Cost-effectiveness: While not a performance factor, cost-effectiveness is a practical consideration. The aim should be to achieve the best balance between the cost of the end mill and its performance in your specific application.

While these considerations will guide you toward the most suitable carbide end mill, remember that each machining scenario is unique. Therefore, it’s always beneficial to start with a test cut to verify the end mill’s performance in the specific conditions of your project.

Understanding the Importance of Coatings on Carbide End Mills

The coating on carbide end mills serves several crucial functions that enhance performance, extend tool longevity, and increase efficiency. Below are a few types of commonly used coatings and their benefits:

  1. Titanium Nitride (TiN): A general-purpose coating that increases surface hardness, reducing wear and heat generation. It’s usually noted for its gold hue and is ideal for low-alloy steels, carbon steels, and stainless steel.
  2. Titanium Carbonitride (TiCN): Provides a higher hardness and can withstand higher temperatures than TiN. It is suitable for high-alloy steel, nickel-based materials, and titanium.
  3. Aluminium Titanium Nitride (AlTiN): Known for its ability to resist heat, it’s ideal for high-temperature applications. This coating can maintain hardness even at elevated temperatures, making it perfect for dry machining at high temperatures.
  4. Diamond: Best suited for non-ferrous materials, it offers excellent resistance to wear, making it ideal for long production runs.

The appropriate coating can significantly enhance your end mill’s performance and lifespan. However, choosing the right one depends largely on the type of material you are working with and the specific machining conditions. Remember, the wrong coating can adversely impact tool performance and cost efficiency, so it is crucial to make the correct selection.

Quality Metrics for Evaluating Carbide End Mills

In order to evaluate the quality of carbide end mills, several metrics can be taken into consideration:

  1. Wear Resistance: This determines how well the end mill can withstand friction and heat, which are inevitable during machining operations. A quality end mill will show minimal wear over time.
  2. Hardness: The hardness of the end mill impacts its ability to cut through materials without deforming. Harder-end mills can handle more rigid materials and high production runs.
  3. Toughness: This refers to the ability of the end mill to resist chipping or breaking under force. High toughness is needed when cutting more complex materials or when the mill is subjected to intermittent cutting.
  4. Precision: This indicates the end mill’s ability to produce accurate and consistent results. It depends on factors like the symmetry of the cutting edges and the balance of the tool.
  5. Heat Resistance: A suitable carbide end mill should be able to withstand high temperatures without losing its hardness or toughness.

Remember, these metrics are interdependent, and a balance among them is often sought based on the specific application. For instance, a high-hardness end mill might offer excellent wear resistance but could be more prone to chipping due to lower toughness. Therefore, making an informed decision requires an understanding of these metrics and the machining environment.

Tips for Maximizing the Performance of Carbide End Mills

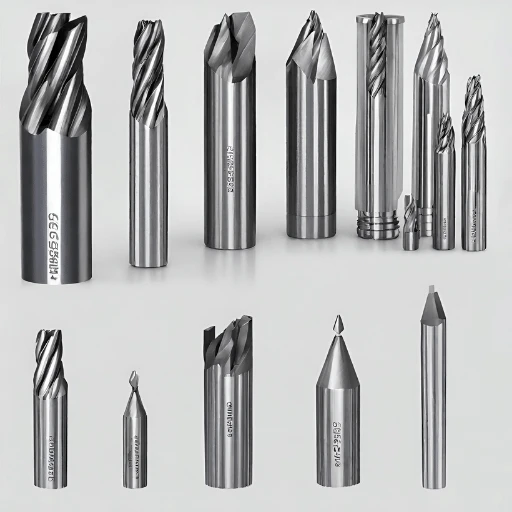

Tips for Maximizing the Performance of Carbide End Mills

Roughing and Finishing: Optimizing the Operation of Carbide End Mills

Roughing and finishing operations should be carefully managed to optimize the performance of carbide end mills. In the roughing stage, the aim is to remove as much material as possible without putting undue stress on the end mill. This could involve using a high-feed milling strategy, which can increase the material removal rate while reducing tool wear. Meanwhile, in the finishing stage, the goal is to achieve the desired surface finish and dimensional accuracy. This often requires a slower feed rate and a smaller depth of cut to ensure precision. Additionally, using coolant or a tool with a suitable coating can help to manage heat and further extend tool life. Therefore, understanding the demands of each stage and selecting the right strategy and tooling can significantly enhance the efficiency and longevity of carbide end mills.

Feed Rates and Speeds for Carbide End Mills

Optimizing feed rates and speeds for carbide end mills is crucial for efficient machining. Factors to consider include material type, hardness, cut dimensions, and end mill characteristics. While software tools can assist, experience and trial and error play critical roles in fine-tuning. Striking a careful balance is essential to prevent premature tool wear or failure.

Reducing Chatter and Vibrations with Carbide End Mills

Chatter and vibrations can impact machining quality when using carbide end mills, leading to stress on the tool and compromised surface finish. Mitigation strategies include proper machine setup, use of end mills with variable pitch, and adjusting operating parameters. Careful setup and tool selection can minimize chatter and optimize performance.

Choosing the Right Flute Design for Your Application

Choosing the right flute design for your application is a critical factor in determining the efficiency and finish of your machining process. The flute design can directly impact the tool’s ability to evacuate chips, the speed and feed capabilities, as well as the surface finish on the part. In general, tools with fewer flutes offer better chip evacuation but a slower feed rate, while tools with more flutes have a higher feed capacity but potential chip evacuation issues. For example, two or 3-flute end mills are optimal for softer materials and non-ferrous metals, which produce larger chips, while 4-flute mills are ideal for more complex materials and ferrous metals. However, each application is unique, and other factors, such as tool material, coating, and workpiece material, should also be considered when selecting the right flute design.

Exploring Metric Sizes and Applications for Carbide End Mills

Carbide end mills are available in a wide range of metric sizes, each suited to specific machining needs. Smaller diameters offer precision for delicate tasks, while larger sizes are ideal for heavy-duty applications. Choosing the right size depends on material, finish, and machine capabilities. Expert advice or manufacturer guidelines are recommended for selection.

Common Issues and Troubleshooting for Carbide End Mills

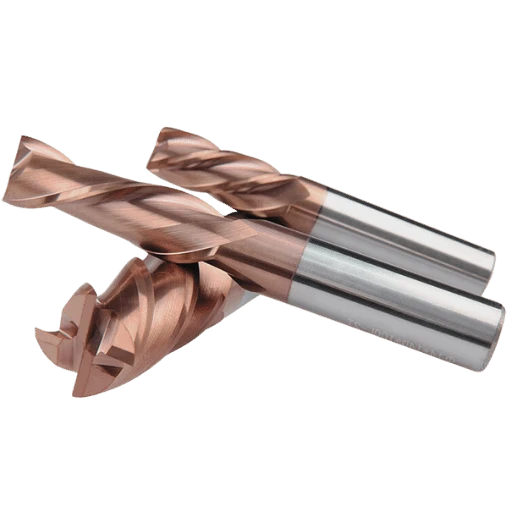

Common Issues and Troubleshooting for Carbide End Mills

Preventing Premature Wear and Breakage of Carbide End Mills

The key to extending the life of carbide end mills lies in proper handling and maintenance. This includes ensuring correct installation, maintaining optimal feed and speed rates, using appropriate lubrication, and avoiding thermal shocks. Regular inspection for wear and tear can also help prevent sudden breakages.

Optimizing Tool Life and Performance of Carbide End Mills

An optimized tool life not only increases productivity but also reduces the overall cost. To achieve this, it is crucial to choose the suitable coating for the tool, use it at optimal cutting speed, and ensure proper chip evacuation. Appropriate cooling methods can also preserve tool life.

Choosing the Correct Carbide End Mill for Hardened Steels

Hardened steels require end mills with high resistance to abrasion and heat. In this regard, carbide end mills with advanced coatings such as Titanium Nitride or Titanium Carbonitride can deliver optimal results. The shape and number of flutes should also be carefully chosen for efficient chip evacuation.

Solving Common Machining Issues with Carbide End Mills

To address common machining issues with carbide end mills, the following measures can be adopted:

  1. Chattering: This issue is often due to excessive tool overhang, low rigidity of the machine or tool holder, or a feed rate that is too high. Lowering feed rates, increasing rigidity, or using a tool with a smaller length-to-diameter ratio can help reduce chattering.
  2. Poor Surface Finish: This can be caused by excessive cutting depth, incorrect cutting angle, or worn-out end mills. To correct this, consider reducing the cutting depth, adjusting the cutting angle, or replacing the worn-out end mill.
  3. Premature Tool Wear: This issue could be due to a cutting speed that is too high, inadequate tool cooling, or poor tool material. Lowering the cutting speed, improving cooling, and selecting a different tool material can extend tool life.
  4. Inadequate Chip Evacuation: This often results from a low number of flutes on the end mill or an incorrect helix angle. Using a tool with more flutes or an appropriate helix angle can resolve this issue.

Remember, before implementing any solution, it’s essential to accurately diagnose the problem to ensure the appropriate corrective measures are taken.

Utilizing Variable Helix Designs for Specific Applications

Variable helix designs for carbide end mills offer a solution for minimizing vibration during the machining process. This design is especially effective in applications that involve large depths of cut or long tool overhang. By varying the helix angle along the flute, the variable helix design distributes the cutting forces unevenly, reducing vibration and improving surface finish and tool life.

Exploring the Future of Carbide End Mills and Innovations in the Industry

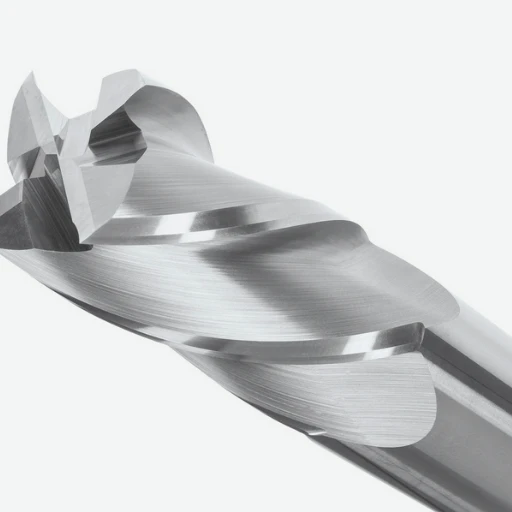

Exploring the Future of Carbide End Mills and Innovations in the Industry

New Designs and Series of Carbide End Mills for Enhanced Performance

With advancements in technology, the tooling industry is witnessing an influx of new designs and series of carbide end mills. These next-generation tools offer improved performance, featuring unique flute designs for optimal chip evacuation and higher helix angles for enhanced cutting speed and feed rate.

Advancements in Coatings and Materials for Carbide End Mills

The progression in coatings and materials for carbide end mills continues to redefine the metal-cutting industry. Emerging materials such as ultra-fine grain carbide offer superior hardness and heat resistance, while advanced coatings like Titanium Aluminum Nitride provide excellent wear resistance, reducing friction and heat generation.

Customization and Tailored Solutions with High-Performance Solid Carbide End Mills

Recognizing the varying requirements of diverse applications, manufacturers are offering customization and tailored solutions with high-performance solid carbide end mills. This entails designing tools specific to individual customer needs, thus optimizing cutting performance and prolonging tool life. It includes customization in terms of tool geometry, coating, and flute design.

Environmental Considerations and Sustainability in Carbide End Mill Production

Sustainability and environmental considerations have become a focal points in the carbide end-mill production process. Manufacturers are adopting cleaner production methods, reducing waste generation, and utilizing recyclable materials. This shift towards sustainable practices not only minimizes environmental impact but also boosts operational efficiency and cost-effectiveness.

Industry Trends and Future Applications of Carbide End Mills

The carbide end mill industry is poised for substantial growth, driven by trends such as automation, digitalization, and the rising demand for precision machining. Future applications of carbide end mills are expected to expand beyond traditional domains, tapping into sectors like aerospace and medical industries, where requirements for precision and material hardness are incredibly stringent.

Frequently Asked Questions

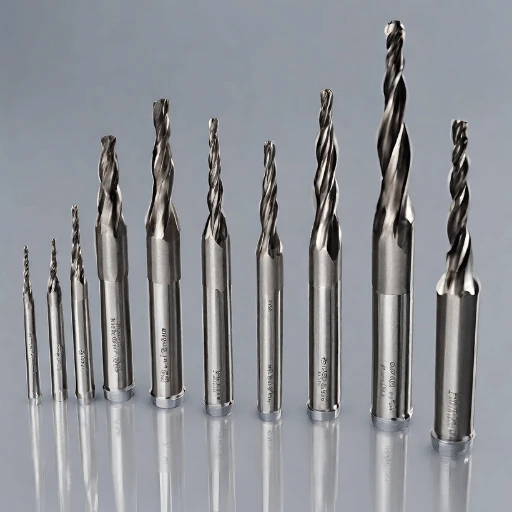

Frequently Asked Questions

Q: What are carbide end mills?

A: Carbide end mills are cutting tools used in milling applications to remove material from a workpiece. They are made of solid carbide and are known for their hardness and heat resistance.

Q: What is the significance of the coat on carbide end mills?

A: The coat, or coating, on carbide end mills serves to improve their performance by enhancing wear resistance, reducing friction, and aiding in chip evacuation during milling operations.

Q: What are the advantages of using square-end carbide end mills?

A: Square end carbide end mills are versatile and can be used for a wide range of milling applications. They are known for their ability to produce sharp corners and provide stability during milling operations.

Q: What does “high performance” refer to in the context of carbide end mills?

A: “High performance” indicates that the carbide end mills are designed to deliver superior cutting capabilities, extended tool life, and enhanced productivity compared to standard end mills.

Q: Can I find carbide end mills in stock at your store?

A: Yes, we strive to keep a wide range of carbide end mills in stock to ensure quick availability for our customers. Please check our online store or contact us for specific product availability.

Q: Do you offer four flute carbide end mills?

A: Yes, we offer a selection of 4 flute carbide end mills that are designed to provide efficient material removal and smooth surface finishes in various milling applications.

Q: What does CGS stand for in relation to carbide end mills?

A: CGS is an abbreviation for “Carbide Grinding Services,” a company known for producing high-quality solid carbide end mills and other carbide cutting tools.

Q: How do variable helix end mills help in milling operations?

A: Variable helix end mills are designed with varying helix angles along the flute length, which helps to reduce chatter and harmonics during milling, resulting in improved surface finishes and extended tool life.


  1. MediumUnleashing Precision: Demystifying Carbide End Mills in Milling: This article provides an in-depth understanding of carbide end mills and their impact on machining outcomes.
  2. MediumChoosing the Right Material for End Mills: An In-depth Exploration: This source highlights the pros of solid carbide as an end mill material, emphasizing its hardness, heat resistance, and wear resistance.
  3. LinkedInCarbide End Mill: A post from a manufacturer that offers high-performance carbide end mills, providing insights into the dynamic market of high-speed steel.
  4. KennametalBeginner’s Guide to End Mills: A comprehensive guide for beginners that covers the basics of end mills.
  5. CNCCookbookSquare End Mill: All You Need to Know: A detailed blog post exploring the world of square-end mills, with a focus on carbide square-end mills.
  6. HuanatoolsTop 5 Famous Carbide End Mill Brands: This blog post discusses the top five famous brands of carbide end mills and their advantages.
  7. LinkedInGlobal High-Performance Carbide End Mill Market Size: This article provides a forecasted outlook on the global high-performance carbide end mill market from 2023-2030.
  8. Fullerton Tool CompanyUnlock Precision & Performance With Fullerton’s End Mills: A manufacturer’s website showcasing their range of carbide end mills designed for precision and rapid performance.
  9. ResearchGateA Comparative Study of Carbide End Mills: An academic article comparing different types of carbide end mills in machining steel.
  10. Science DirectCarbide End Mills in Micro-machining: A scientific journal article discussing the role of carbide end mills in micro-machining.
