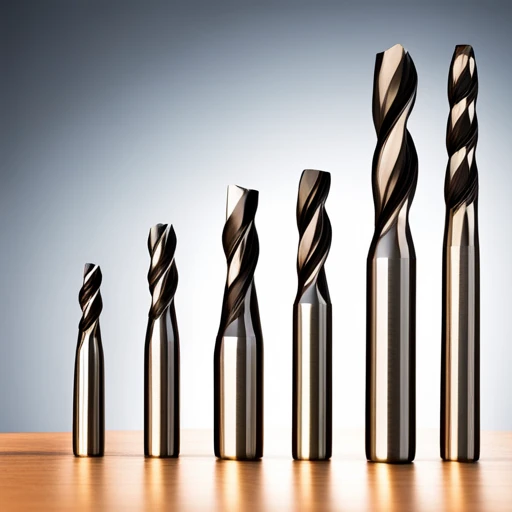

End Mill Bits: Everything You Need to Know

End Mill Bits: Everything You Need to Know
End Mill Bits: Everything You Need to Know

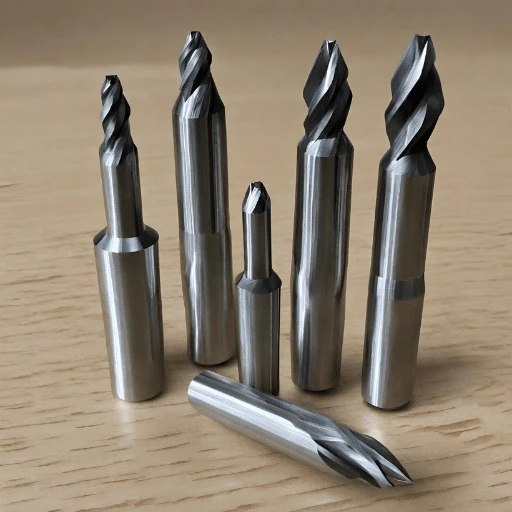

What are End Mill Bits?

What are End Mill Bits?

End Mill Bits are cutting tools that are used in milling machines or machining centers for performing milling operations. They are commonly made from High-Speed Steel (HSS) or Carbide and have one or more flutes. The flutes are the edges that cut the material, and they run along the length of the bit. The design and positioning of the flutes dictate the bit’s cutting characteristics. End mill bits are used in a wide range of applications, including slotting, profiling, and contouring, and they can be designed for specific materials such as aluminum, steel, or plastic.

Types of end mill bits

Several types of end mill bits are designed for various applications:

  1. Square End Mill Bits: These are used mainly for slotting and contouring. The square design allows for a maximum cutting surface.
  2. Ball Nose End Mill Bits: These have a rounded end for smooth contouring and sculpting. They are ideal for 3D relief sculpting.
  3. Corner Radius End Mill Bits: These are a hybrid of square and ball end mill bits with a slight corner radius. They are designed for increased strength and reduced chipping.
  4. Roughing End Mill Bits: These are used to remove large pieces of material quickly. They have unique serrations to enhance the cutting action and reduce the load on the machine.
  5. Drill Mills: A versatile option, drill mills incorporate the drilling ability of a drill bit and the side-cutting ability of an end mill.
  6. Tapered End Mills: These are used in specific applications that require angled cutting.

Each type is specialized in its operation and provides unique advantages in specific machining contexts. It’s crucial to select the right end mill bit for your particular task to ensure efficiency and precision.

Materials used in end mill bits

End mill bits are constructed from various materials, each chosen for its distinct properties and tailored to specific machining applications.

  1. High-Speed Steel (HSS): HSS is a popular material for end mill bits due to its resistance to wear, high temperature, and its economic viability. However, it’s less durable when compared to more robust materials, making it suitable for machining softer materials like plastic and aluminum.
  2. Carbide: Carbide end mills are significantly more complex and more durable than HSS, allowing them to maintain sharpness for a more extended period. Their high-temperature resistance and superior wearability make them ideal for machining more complex materials, including stainless steel and titanium.
  3. Cobalt: Cobalt end mills are an upgrade from HSS, offering better heat and wear resistance. They’re ideal for heavy-duty machining applications.
  4. Diamond: The extreme hardness of the diamond allows for exceptional durability and sharpness. Diamond end mills are typically used for machining highly abrasive materials.

Choosing the suitable material for your end mill depends on the specific machining task and the type of material being cut. Each offers unique advantages and trade-offs in terms of durability, heat resistance, and cost.

Advantages of using end mill bits

End mill bits offer several significant advantages in various machining processes:

  1. Versatility: End mill bits are incredibly versatile, capable of performing various milling operations, including slotting, profiling, and contouring, among others.
  2. Precision: End mills can create highly accurate and precise shapes and structures, which is crucial in industries such as automotive and aerospace.
  3. Efficiency: High-quality end mill bits can handle high-speed machining, which significantly reduces production time.
  4. Variety of Materials: End mill bits come in various materials, each suited to a specific task or type of material, allowing for flexibility and optimization in different machining contexts.
  5. Durability: Materials used in end mill bits, especially carbide and diamond, offer exceptional durability, maintaining sharpness over extended periods and resisting wear and tear.
  6. Cost-Effective: Despite the initial cost, the long lifespan and efficiency of end mill bits can result in overall cost savings in the long run.

Remember, the effectiveness of an end mill bit largely depends on choosing the right one for your specific task and material.

Applications of end mill bits

End mill bits are extensively utilized across a wide array of industries due to their versatile and efficient nature. Here are some of the critical applications:

  1. Automotive Industry: End mill bits are widely used for machining parts such as engine blocks, transmission gears, and brake systems. Their precision and efficiency make them ideal for the production of high-tolerance parts in this sector.
  2. Aerospace Industry: In the aerospace sector, end mill bits help in the fabrication of aircraft components, including airframes, turbine parts, and instrumentation systems. The ability to work with a variety of materials makes them particularly useful in this industry.
  3. Medical Industry: End mills contribute significantly to the production of surgical instruments, prosthetics, and implants. Their precision and ability to work with both soft and hard materials make them a vital tool in medical manufacturing.
  4. Electronics Industry: The intricacies of electronic components necessitate the use of end mill bits for tasks such as PCB milling and the creation of connectors and casings.
  5. Construction Industry: End mill bits are used in the creation of customized components, ranging from window frames to architectural elements, contributing to the evolving field of construction.

Choosing the appropriate end mill bit for each of these applications can significantly enhance machining performance and product quality.

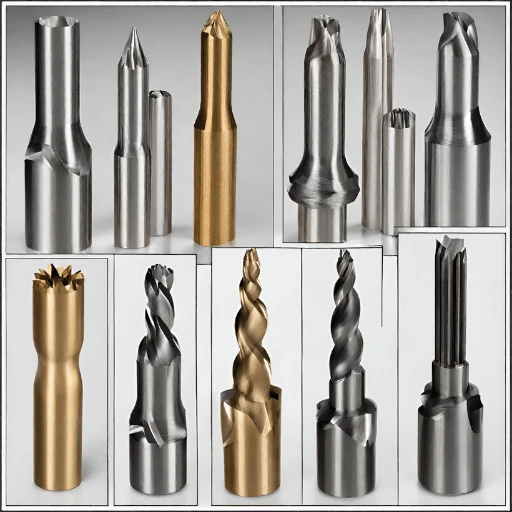

How do you choose the right end mill bits for your CNC machine?

How to Choose the Right End Mill Bits for Your CNC Machine?

Factors to consider when selecting end mill bits

When selecting end mill bits for your CNC machine, several critical factors come into play:

  1. Material: The type of material you plan to machine is a crucial determinant of the end mill bit you should choose. Different materials require different types of end mill bits. For instance, more rigid materials often require end mills made of durable materials like carbide, while softer materials can be machined with high-speed steel end mills.
  2. Coating: The coating of the end mill bit can affect its durability, heat resistance, and cutting ability. Options often include Titanium Nitride (TiN), Titanium Carbon Nitride (TiCN), and Aluminum Titanium Nitride (AlTiN), each suited for specific applications and materials.
  3. Flute Count: The number of flutes on the end mill affects the chip load per tooth and the tool’s speed and feed capabilities. While higher flute counts result in a smoother cut, they may not be ideal for materials that form long, stringy chips.
  4. Cutting Parameters: Consider your machine’s cutting speed, feed rate, depth of cut, and other operational parameters. These factors can influence the selection of end mill size, type, and material.
  5. Tool Length and Diameter: The length and diameter of the end mill bit can impact precision and accessibility. Shorter end mills can provide more stability and accuracy, but they may not be suitable for deep cuts. Larger diameters offer more strength but may not be ideal for intricate designs.

By taking these factors into account, you can select the right end mill bit for your CNC machine and optimize your manufacturing processes.

Best end mill bits for aluminum

When it comes to machining aluminum, specific characteristics of end mill bits tend to yield the best results. For this soft, pliable material, a two or three-flute end mill is often the best choice. These allow for larger chip flutes, preventing the material from sticking and clogging. Carbide is the preferred material due to its superior rigidity and heat resistance, which is critical when working with aluminum. As for the coating, a non-coated or ZrN-coated end mill is usually recommended. The non-coated option allows for sharper cutting edges, while the ZrN coating reduces the high temperature developed during machining, leading to longer tool life. Keep in mind, however, that the optimal choice may depend on the specific grade of aluminum and the complexity of your intended design.

End mill bit coatings for different materials

Different materials require different types of end mill bit coatings to optimize the cutting process. Here are some commonly used coatings:

  1. Titanium Nitride (TiN): A gold-like coating suitable for cutting a wide range of materials, including steel, aluminum, and iron. TiN provides excellent resistance to wear and elevates the hardness of the end mill bit.
  2. Titanium Carbonitride (TiCN): This coating is tough and provides excellent thermal stability. It is ideal for cutting more complex materials such as stainless steel and cast iron.
  3. Aluminium Titanium Nitride (AlTiN): This coating is suited for high-temperature cutting operations. It is often used for machining steel alloys, nickel-based alloys, and titanium.
  4. Diamond Coated: As the hardest known material, diamond coatings provide superior wear resistance, making them ideal for cutting non-ferrous and abrasive materials like aluminum and graphite.

Remember that the choice of coating can significantly impact the performance and longevity of your end mill bits, making it a critical aspect to consider in your machining processes.

Choosing the right end mill bit for specific operations

Selecting the proper end mill bit for particular operations is crucial for achieving the desired results in machining. To do this, one must consider the geometry of the end mill bit, which includes factors such as the number of flutes, the type of end (ball nose or flat), and the helix angle.

  1. Number of flutes: End mill bits with fewer flutes (2 or 3) allow for more oversized chip pockets and are thus ideal for high material removal rates, such as in roughing operations. Those with more flutes (4 to 6) have smaller chip pockets but yield better surface finishes, making them more suitable for finishing operations.
  2. Type of end: A flat-end mill bit is typical for general-purpose machining and can provide a smooth bottom finish. In contrast, a ball nose end mill bit is used for contouring and producing soft, intricate 3D shapes.
  3. Helix angle: End mills with higher helix angles (around 45 degrees) provide a shearing action that results in smoother cuts and less heat generation, ideal for materials prone to melting or deformation. Conversely, lower helix angles (around 30 degrees) are used for more complex materials as they provide more strength and rigidity.

Consider these factors in conjunction with the material you plan to cut and the coating of the end mill bit to optimize your machining operation’s efficiency and quality.

Performance considerations when selecting end mill bits

When evaluating the performance characteristics of end mill bits, it’s critical to examine factors such as cutting speed, feed rate, and tool life.

  1. Cutting Speed: This is the speed at which the cutting edge of the tool progresses through the material. High-quality end mill bits tend to have higher cutting speeds, enhancing productivity. However, this speed must be optimized based on the material type to prevent unnecessary wear or damage to the bit.
  2. Feed Rate: The feed rate, the speed at which the workpiece is fed into the cutter, significantly influences the quality of the cut and the tool life. A higher feed rate can lead to a rougher finish and potentially cause chipping, whereas a lower feed rate might result in tool deflection.
  3. Tool Life: The lifespan of an end-mill bit is another crucial consideration. Premium end mill bits crafted from robust materials like carbide and coated for heat resistance tend to have a longer tool life. This longevity can lead to cost savings over time despite a higher initial investment.

Keep in mind that these factors are interdependent, and a change in one can impact the others. Therefore, a holistic approach should be used when selecting end mill bits for specific machining operations.

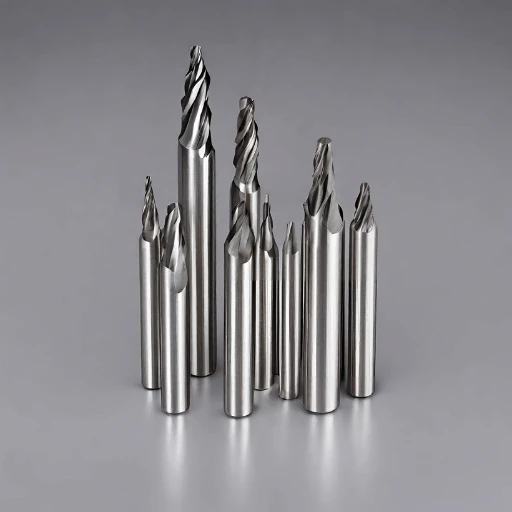

What Are the Different Types of End Mill Bits?

What Are the Different Types of End Mill Bits?

Understanding Square End and Ball End Mill Bits

Square end and ball end mill bits are two common types of end mill bits used in various machining operations.

  1. Square End Mill Bits: These bits feature a square or flat end, making them ideal for a wide range of applications. Their design allows for a high rate of material removal, and they are particularly effective for roughing and finishing operations. Square end mills are versatile and can be used for side milling, slotting, and shoulder milling.
  2. Ball End Mill Bits: Unlike square end mill bits, ball end mill bits feature a hemispherical tip. This design is suitable for machining three-dimensional contoured shapes in machining centers, for instance, in mold and die work. Ball end mills are commonly used for finishing operations and creating complex shapes with a smooth finish.

When choosing between square and ball end mill bits, it is crucial to consider the specific requirements of your machining operation. Factors such as the nature of the machining operation, the type of material being processed, and the desired finish can all influence the ideal choice. Ultimately, understanding the strengths and limitations of each type can help optimize your machining processes.

Types of end mill bit materials

End mill bits can be made from a variety of materials, each offering unique properties and advantages for different machining operations. Here are the most common types:

  1. High-Speed Steel (HSS): HSS end mill bits are durable and affordable. They are suitable for a variety of general-purpose machining tasks, particularly in softer materials like aluminum and plastic. However, they tend to wear faster than other types when used on hard materials.
  2. Carbide: Carbide end mill bits are made of a mixture of tungsten and carbon. They are more rigid and more heat-resistant than HSS. These properties make them ideal for high-speed and high-volume machining operations. However, carbide bits are brittle and can break easily if not handled correctly.
  3. Cobalt: Cobalt end mill bits are generally made of solid cobalt or high-speed steel infused with cobalt. They offer a balance between the durability of HSS and the hardness and heat resistance of carbide. These bits are ideal for machining rigid materials like stainless steel.
  4. Diamond Coated: These end mill bits are coated with a thin layer of diamond, the hardest known material. Diamond-coated bits are ideal for machining abrasive materials like graphite or composite materials and provide an excellent surface finish.

Remember to take the material properties and your specific machining requirements into account when selecting the type of end mill bit for your operation.

Specialized end mill bits for aluminum and steel

When machining aluminum and steel, specialized end mill bits are often the go-to choice to ensure optimal performance and longevity.

Aluminum: High-speed steel (HSS) or carbide end mills with a high helix angle are commonly used for aluminum. The high helix angle allows efficient chip evacuation, reducing the risk of chip welding. Coatings such as ZrN (Zirconium Nitride) can further enhance performance by reducing friction and preventing aluminum from sticking to the tool.

Steel: When machining steel, especially hardened ones, carbide end mills are the preferred choice due to their hardness and heat resistance. Specific geometries like corner radius end mills can enhance durability, while coatings such as TiAlN (Titanium Aluminum Nitride) can significantly improve tool life by increasing heat and wear resistance.

Selecting the right tool depends not only on the material being milled but also on the specific operation and machining conditions. Always consider factors like cutting speed, feed rate, and depth of cut when choosing an end mill for aluminum or steel.

End mill bits for CNC and router operations

When it comes to CNC and router operations, specific types of end mill bits are designed to maximize efficiency and precision. For CNC machining, carbide end mills are often a popular choice due to their durability and ability to withstand high cutting speeds. They come in a variety of forms, from ball noses to square-end mills, each suited to specific types of operations. Router operations, on the other hand, commonly utilize straight flute end mills. These are designed to cut in all directions, allowing intricate patterns to be carved efficiently. The choice of end mill bit will also depend on the material being worked on, with more rigid materials requiring more challenging, more resistant bits. Always consider the specific requirements of your CNC or router operation when choosing the right end mill bit.

Functional features of end mill bits

End mill bits come with functional features that enhance cutting prowess and effectiveness. The flute deep grooves along the cutting edge play a key role. Flutes can vary from two to six, with more providing a smoother finish. The helix angle determines cutting aggressiveness, with low angles ideal for delicate tasks and high angles for rapid material removal. Coatings like Titanium Nitride (TiN) and Titanium Aluminum Nitride (TiAlN) increase heat resistance. The end geometry (square, ball nose, or corner radius) determines task suitability. Shank and cutting diameter must match machine tool specs for compatibility and optimal performance. Choose an end mill bit that aligns with the material, operation, and machining conditions.

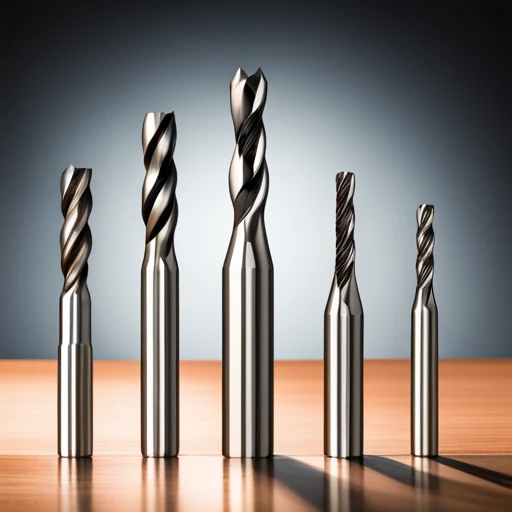

How to Use and Maintain End Mill Bits?

How to Use and Maintain End Mill Bits?

Proper techniques for using end mill bits

When using end mill bits, it’s essential to adhere to specific techniques to ensure optimal performance and longevity. Begin by confirming that the end mill bit is installed correctly and secured in the machine tool holder to prevent movement during operation. Always adhere to the manufacturer’s recommended speeds and feeds based on the material and type of operation. Too high a speed can cause undue wear and tear, while too low can compromise the cut quality. Additionally, ensure consistent chip evacuation to prevent heat buildup and potential bit breakage. This can be achieved by using coolant or compressed air during the milling process. Finally, please do not force the bit into the material; instead, allow the cutting tool to perform at its own pace.

Maintenance tips for extending end mill bit lifespan

The lifespan of end mill bits can be extended significantly with proper maintenance. Always clean the bit after each use, removing any lingering material that could potentially dull the cutting edge. Inspect the bit regularly for signs of wear or damage, paying particular attention to the cutting edges and flutes. Use a magnifying glass if necessary. If you notice any chipping or dulling, consider resharpening the bit. However, be aware that resharing can alter the bit’s parameters and may affect its performance. Store end mill bits in a dry, cool place and organize them by size and type for easy access and prevention of accidental damage. Finally, always handle the bits with care. Rough handling can cause micro-cracks that can lead to premature failure.

Storing and handling end mill bits safely

Safe storage and handling of end mill bits are crucial to ensure their longevity and optimal performance. Always place them in a protective case when not in use to prevent accidental chipping or damage. Make sure to store these cases in an area that is free from moisture or extreme temperature swings, as these conditions can degrade the material of the bits over time. Handling the bits with gloves can also help to prevent any potential injury. Never pick up the bits by the cutting edges, as they can be extremely sharp and may cause injury. When placing the bit in the machine tool holder, do it gently to avoid any unnecessary force or impact that could harm the bit. Make sure the bit is aligned correctly and secured before starting the operation. These simple safety measures can go a long way in preserving the quality of your end mill bits.

Common problems encountered with end mill bits

Despite the potential efficiency of end mill bits, operators often encounter common issues that can affect their performance. One problem is premature wear, which can result from inappropriate cutting speed or feed rate. Overheating is another issue, often caused by insufficient chip evacuation or inadequate cooling mechanisms. Tool breakage can occur due to excessive cutting force, improper tool setup, or worn-out tools. Inaccurate cuts could result from tool deflection or machine-tool misalignment. By understanding and addressing these issues, operators can enhance tool longevity and ensure optimal performance.

Optimizing performance through tool and machine setup

To optimize end mill bit performance, proper setup of both the tool and machine is crucial. Start by selecting the right tool based on material, desired cut, and machine capabilities. Secure the tool in the holder to reduce vibration and potential breakage. Align the machine tool precisely to avoid inaccurate cuts. Calibrate cutting speed and feed rate based on material and cut type. Ensure adequate cooling and efficient chip evacuation. By maintaining these setups, operators can minimize issues and optimize end mill bit performance and longevity.

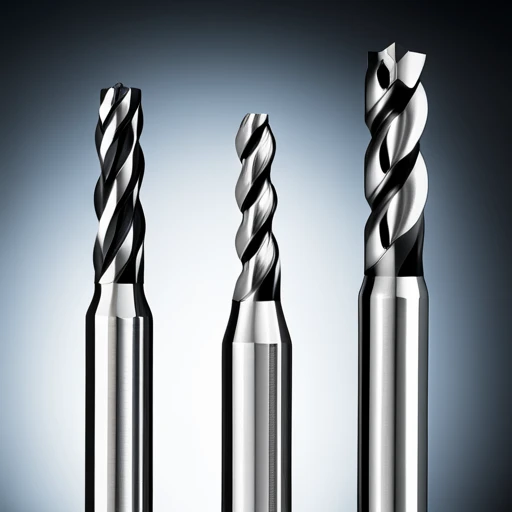

Frequently Asked Questions

Frequently Asked Questions

Q: What are end mill bits?

A: End mill bits are cutting tools used in industrial milling and machining processes. They are designed with rotating cutting edges to remove material from the surface of a workpiece.

Q: What are the different types of end mill bits?

A: End mill bits come in various types, including square end mills, chamfer mills, and drill mills, each designed for specific cutting applications.

Q: What materials can end mill bits cut?

A: End mill bits are capable of cutting a wide range of materials, such as metal, wood, and more. The choice of material depends on the specific end mill bit and its intended use.

Q: How do I choose the right end mill bit set?

A: When selecting an end mill bit set, consider factors such as the cutting length, material type, and the specific milling and machining applications for which the set will be used.

Q: What are the advantages of using chamfer mills?

A: Chamfer mills are designed to create angled cuts or chamfers in a workpiece, providing a more finished and professional look. They are instrumental in industrial and shop settings.

Q: How do I maintain end mill bits for long-lasting performance?

A: To ensure the longevity of end mill bits, it’s essential to use them at the correct speed and feed rates and to inspect and maintain the cutting edges regularly. Additionally, using high-performance cobalt steel end mill bits can enhance durability.

Q: How can I get customer support for end mill bits?

A: Many manufacturers and distributors of end mill bits offer customer support services to help you find the right tools and provide assistance with any issues or questions you may have.

Q: What are the critical features of spiral end mill bits?

A: Spiral end mill bits feature flutes that wrap around the bit, allowing for more efficient material removal and improved chip evacuation during cutting processes, especially in computer numerical control (CNC) machining.

Q: What safety measures should I follow when using end mill bits?

A: When using end mill bits, always ensure safety measures such as wearing appropriate protective gear, keeping hands and clothing away from the workpiece and the cutting edges, and following proper machining guidelines to avoid accidents.


  1. End Mills – The Essential Beginner’s Guide: This beginner-friendly guide provides an introduction to end mills, including their various applications in precision parts cutting.
  2. Router Bit or Endmill: A thread on the CNCZone forum discussing the differences between router bits and end mills, focusing on the design of their flutes.
  3. Bare End Mills Technical Information: This technical resource from MSC Direct offers basic information about end mills, including their use in shaping and hole-making in workpieces.
  4. Endmill Selection Guide: RedLine Tools provides a comprehensive guide on selecting end mills, explaining how they differ from drill bits.
  5. End Mill Cutting & End Milling – Technical Guide: Speed Tiger Tools offers a technical guide on end mill cutting, discussing the unique applications of end mills.
  6. Anatomy of an End Mill and Its Components: Huanatools provides a detailed breakdown of the components of an end mill, highlighting its uses in CNC machining.
  7. End mill: Wikipedia offers a comprehensive entry on end mills, detailing their industrial applications and distinguishing them from drill bits.
  8. End Mills: Types, Shapes, and Sizes: Thomasnet provides a detailed article on the types, shapes, and sizes of end mills, offering insights into their design and functionality.
  9. A Guide to Understanding End Mills: This Instructables guide provides a comprehensive understanding of end mills, including the different types and their uses.
  10. The Anatomy of an End Mill for Titanium: Machining Cloud offers an in-depth look at end mills designed explicitly for titanium, providing insights into material-specific tooling.
