What are the Types of Metal Cutting Tools?
There are several types of metal cutting tools, each designed for specific tasks and materials:
- Drill Bits: These are used in a drilling machine and are designed to create cylindrical holes in the metal piece. They come in various sizes and shapes for different applications.
- Milling Cutters: Designed for use in milling machines, these tools have several sharp teeth that rotate to remove material from the workpiece. They’re capable of producing shapes with a high degree of accuracy.
- Broaches: This type of tool is used for precision machining. Broaches are pushed or pulled through the workpiece to cut out complex shapes in a single pass.
- Reamers: These are used to enlarge or finish a hole that has already been drilled. They provide a higher degree of finish and accuracy than a drill bit.

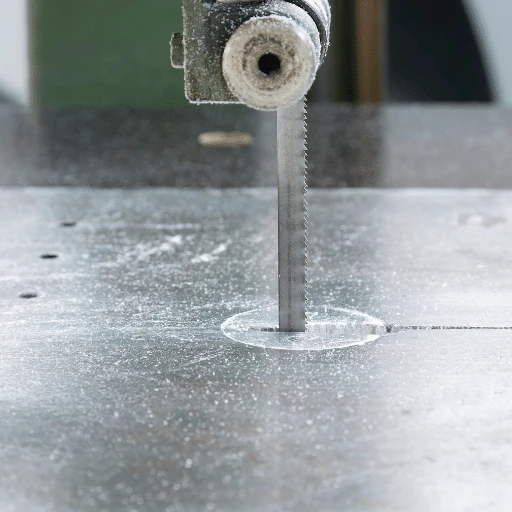

- Band Saws: Band saws use a continuous band of metal with teeth along one edge to cut material. They are often used for cutting large workpieces.
Remember, the choice of tool depends on the specifics of the task at hand, including the type of metal, the desired shape, and the precision required.
Understanding the Various Hand Tools for Metal Cutting
Hand tools for metal cutting are essential for precision work and tasks that require greater control. Let’s delve into some of the most widely used ones:
- Hacksaws: An indispensable tool for any metalworker, hacksaws feature a C-shaped frame attached to a handle, with a thin, toothed blade designed to cut through metal. The blades are interchangeable, allowing you to choose the right one based on the metal you’re working with.
- Chisels: These are often used for cutting or carving hard materials like metal. A chisel has a sharp edge at one end and a flat end for striking with a hammer.
- Files: A file is a tool used to remove satisfactory amounts of material from a workpiece. It is common in woodworking, metalworking, and similar applications. Files come in various shapes and sizes for a wide range of tasks.
- Snips: Similar to scissors, snips are used for cutting thin sheets of metal. They come in ‘left-cutting,’ ‘right-cutting,’ and ‘straight-cutting’ types.
- Nibblers: These are tools used for cutting sheet metal with minimal distortion. They are hand-operated and work by making a series of tiny cuts to avoid distorting the rest of the sheet.
The choice of hand tool will depend on the specific requirements of the task, including the type and thickness of the metal and the level of precision required.
Exploring Power Tools for Efficient Metal Cutting
In contrast to hand tools, power tools leverage electric or compressed air power to enable more efficient, quick, and effortless cutting of metals. Let’s examine some of the most commonly used power tools in metalworking:

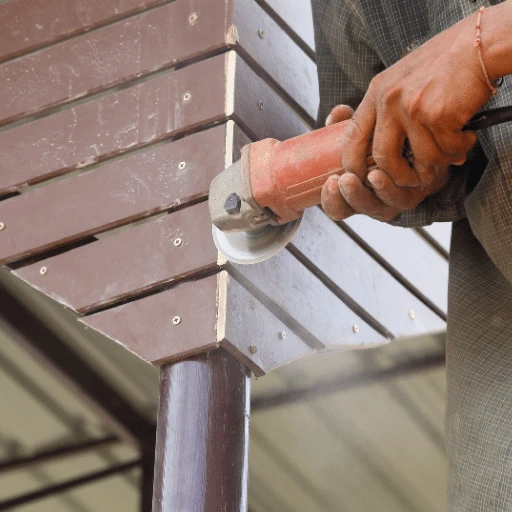

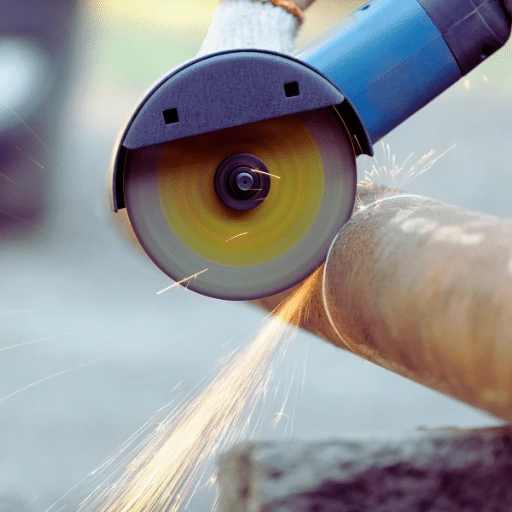

- Angle Grinders: Versatile and powerful, angle grinders can be equipped with a variety of discs for different purposes. They can cut through large pieces of metal quickly and are often used in fabrication and construction work.
- Circular Saws: Specially designed to cut through metal, these saws feature a round blade with a hard, abrasive surface. They are capable of cutting through even thick, tough metals efficiently.
- Band Saws: Featuring a continuous band of toothed metal, band saws are excellent for making precise cuts in metal. They are handy for cutting irregular shapes but can also be used for straight cuts.
- Plasma Cutters: For clean and fast cuts in conductive metals, plasma cutters are an excellent choice. They work by sending an electric arc through a gas, creating a plasma that cuts through metal.
- Chop Saws: Similar to circular saws but more robust, chop saws are used for straight cuts in metal. They are typically used in industrial settings for cutting large sections of metal quickly and accurately.
It’s important to remember that with power tools, safety is paramount. Always ensure you’re using the correct blades or discs for the type of metal you’re cutting, wear appropriate personal protective equipment, and follow all manufacturer’s instructions.
Comparing Saw Blades for Metal Cutting
When choosing a saw blade for metal cutting, several factors come into play.
Material: The material of the blade is a crucial consideration. High-speed steel (HSS) blades are highly durable and can withstand the heat generated during cutting, making them suitable for cutting light metals. Carbide-tipped blades, on the other hand, are more rigid and more heat-resistant than HSS, allowing them to cut through more rigid metals.
Tooth Design: The tooth design of a blade can significantly affect its cutting capabilities. For instance, blades with a high tooth count and small gullets, such as those used in band saws, excel at precise, clean cuts. In contrast, blades with fewer teeth and large gullets, such as those used in chop saws, are more suited for quick, rough cuts.
Diameter and Thickness: Larger-diameter blades can cut through larger sections of metal but may require more powerful tools to drive them. Thicker blades, meanwhile, are more resistant to warping and can hence withstand stricter cutting tasks.
Finally, it’s essential to consider the specific requirements of your project and the capabilities of your tools when choosing a blade. Different blades are better suited for other tasks, and selecting the right one can significantly impact the quality and efficiency of your work.
Choosing the Right Abrasive Tools for Metal Cutting
When selecting abrasive tools for metal cutting, several key factors must be evaluated.
Abrasive: Alumina and silicon carbide are the two most common abrasives used in cutting discs. Alumina, or aluminum oxide, is generally used for cutting carbon steel, while silicon carbide is better suited for cutting non-ferrous metals or non-metals such as stone or glass.
Grit Size: The grit size of an abrasive can significantly impact the smoothness of a cut. Coarse grits (lower numbers) cut faster but leave a rougher edge. Fine grits (higher numbers) cut slower but produce a smoother edge.
Bonding Material: The bonding material that holds the abrasive grains together can also affect the cutting performance. Resinoid bonds are the most common for metal cutting discs, as they provide a good balance between cutting speed and disc life.
Disc Diameter and Thickness: Larger-diameter discs can cut larger sections of metal but may require more powerful tools. Thicker discs are more durable and can withstand more rigorous cutting tasks. As with choosing a saw blade, it is crucial to consider the specific requirements of your project and the capabilities of your tools when selecting an abrasive tool. Different tools are better suited to other tasks, and the right choice can significantly enhance the quality and efficiency of your work.
Types of Metal Cutting Saws and Their Applications
There are several types of metal cutting saws, each tailored for specific applications and materials.
Band Saws: These are versatile tools used for both wood and metal cutting. They offer precise cuts, making them ideal for intricate designs or detailed work. Band saws work through a continuous band of toothed metal stretched between two or more wheels.
Chop Saws: Also known as cut-off saws, these are designed for making straight, clean cuts across a piece of metal. They often use an abrasive disc similar to those found on angle grinders rather than a toothed blade.
Circular Saws: These tools use a round, toothed blade to cut metal. Circular saws are typically handheld and are helpful for cutting sheet metal or pipes.
Reciprocating Saws: These saws use a push-pull motion to cut. They’re helpful for demolition work, as they can cut through nails and pipes with ease.
Cold Saws: These are stationary saws that use a circular blade to cut metal. As their name suggests, cold saws cut without generating much heat, reducing the risk of altering the metal’s properties.
Hacksaws: These hand tools use a thin, toothed blade stretched across a frame. They’re helpful for cutting pipes or tubes and are a standard tool in most workshops.
Each of these tools has its specific applications, strengths, and weaknesses. Selecting the right one depends on the nature of the task, the type of metal being cut, and the desired finish of the cut.
What Factors to Consider When Choosing a Metal Cutting Tool?
Determining the Purpose and Frequency of Metal Cutting: Consider what specific metal cutting tasks you’ll be performing and how frequently. Different tools are designed for varying applications and levels of usage intensity.
Considering the Thickness and Type of Metal to Be Cut: The nature of the metal, including its hardness, thickness, and type, can significantly influence the choice of cutting tool. Certain saws are better equipped to handle specific metals and thicknesses.
Comparing the Precision and Efficiency of Different Metal Cutting Tools: Evaluate the cutting precision required for your tasks. Tools like band saws offer high precision, whereas others like reciprocating saws are more suited for rough demolition work. Efficiency, in terms of cutting speed and ease of use, should also be considered.
Understanding Power and Portability Requirements for Metal Cutting: If your tasks require mobility, handheld tools like circular saws might be preferable. For stationary tasks, powerful options like cold saws may be more suitable.
Exploring Safety Features and Ergonomics in Metal Cutting Tools: Lastly, always consider safety features such as blade guards, automatic shut-off, and grip comfort. An ergonomic design can reduce fatigue and increase productivity, particularly for tasks of longer duration.
Keep these factors in mind to make an informed decision on choosing the right metal-cutting tool for your specific needs.
How to Effectively Use Metal Cutting Tools?
Proper Technique for Using Handheld Metal Cutting Tools
When using handheld metal cutting tools, it’s essential to prioritize safety and efficacy. Start by marking the cut line clearly on the metal, then position the tool correctly. Apply firm, steady pressure and let the tool’s sharpness and strength do the work. Maintain a steady pace for a clean cut and wear proper safety gear. With these techniques, you can effectively use handheld metal-cutting tools while minimizing risks.
Maximizing the Performance of Power Tools for Metal Cutting
Properly using and maintaining power tools for metal cutting is crucial for exceptional performance. Key steps include ensuring optimal working conditions, using the right blade, employing correct cutting speeds, and using recommended coolants. By following these steps, you can enhance the performance and longevity of your power metal cutting tools.
Tips for Achieving Clean and Accurate Cuts in Sheet Metal
- Use the Right Equipment: The first step in achieving clean and accurate cuts in sheet metal is to use the right cutting tools. Different tools are designed for varying thicknesses and types of metals. Using the wrong tool can lead to jagged edges and inaccurate cuts.
- Mark Your Cut Lines Clearly: Before beginning any cuts, it’s crucial to mark your cut lines clearly on the sheet metal. This will serve as a precise guide and help prevent any cutting errors.
- Employ Proper Technique: Ensure a firm and steady grip on the cutting tool. Apply constant pressure and let the tool do the work rather than forcing it, which can result in uneven cuts.
- Wear Safety Gear: Always wear appropriate safety gear when working with sheet metal. This includes gloves to protect against sharp edges and safety goggles to shield your eyes from metal fragments.
- Maintain Your Tools: Regular maintenance of your cutting tools is critical to their performance. This includes cleaning after each use and inspecting for any signs of wear or damage.
- Use Lubrication: Applying lubrication can make the cutting process smoother, reducing friction and helping achieve cleaner cuts.
- Sand the Edges: After cutting sheet metal, there are often rough edges left behind. Use a file or sandpaper to smooth these out for a clean, finished look.
Ensuring Safety Protocols When Operating Metal Cutting Tools
When operating metal-cutting tools, adherence to safety protocols is paramount to prevent injuries and accidents. These protocols extend beyond wearing the appropriate safety gear.
Firstly, the cutting environment should be well-lit and free of clutter to avoid tripping hazards.
Secondly, all operators should be adequately trained in the use of the tool, including understanding its limitations and potential risks.
Thirdly, never operate a tool while under the influence of substances that could impair your responsiveness and judgment, including certain medications.
Fourthly, it’s crucial to inspect the tool before use for any signs of damage or wear that could compromise safety.
Lastly, always ensure the tool is fully powered off and disconnected when not in use or undergoing maintenance.
Understanding Maintenance and Blade Changing Procedures for Metal Cutting Tools
Proper maintenance and understanding of blade-changing procedures are critical to the longevity and efficiency of metal-cutting tools.
Regular cleaning is crucial to prevent the buildup of debris on the tool. Using a mild detergent and soft brush, cleanse the tool, focusing mainly on the blade after washing, thoroughly dry to prevent rusting.
As for blade changing, always ensure the tool is unplugged or powered off before starting the procedure. Carefully remove the old blade, following the manufacturer’s instructions, and inspect the tool for any signs of wear or damage. When installing a new blade, ensure it is seated properly and securely fastened.
Remember, keep a regular schedule for changing blades; this depends on the frequency of use and the materials you’re cutting. Always inspect blades for signs of dulling or damage. A dull or damaged blade can compromise the quality of your cuts and also pose a safety hazard.
Every tool is unique; thus, always refer to your tool’s specific user manual for detailed instructions on maintenance and blade-changing procedures.
What are the Common Problems Faced When Using Metal Cutting Tools?
Dealing with Overheating and Blade Dulling in Metal Cutting Tools
Overheating of metal cutting tools may result from prolonged use, lack of cooling, or the usage of inappropriate cutting speeds. To mitigate this, use coolant or cutting fluids during operations and ensure appropriate cutting speeds are maintained. Blade dulling can be prevented by regular inspection and timely replacement of blades. Using a blade beyond its effective lifespan can lead to poor cutting results and potential safety risks.
Addressing Kickback and Vibration Issues in Power Tools for Metal Cutting
Kickback and vibrations can lead to loss of control over the tool, resulting in imprecise cuts or injuries. To prevent kickback, ensure the tool is held firmly, and the workpiece is secured correctly. Anti-vibration gloves can help reduce the impact of vibrations. Additionally, tools equipped with anti-kickback and vibration-reduction features should be used whenever possible.
Preventing Warping and Distortion in Metal During Cutting Processes
Warping and distortion might occur if the metal is heated unevenly during the cutting process. It can also be due to internal stresses in the metal being released. Good practice involves using a proper technique for the type of cutting being done and using cooling methods to ensure the metal doesn’t get overheated.
Minimizing Occupational Hazards Associated with Metal Cutting Operations
Strict adherence to safety guidelines, use of appropriate Personal Protective Equipment (PPE), ensuring proper training in tool usage, and maintaining a clutter-free workspace can significantly reduce occupational hazards. Regular tool maintenance and inspections also contribute to safer operations.
Troubleshooting Common Cutting Defects in Sheet Metal and Metal Components
Common cutting defects like burrs, trash, and kerf can be minimized by ensuring proper adjustment of cutting speed and feed rate, using high-quality blades, and adhering to regular maintenance schedules. Always refer to the tool’s operational manual for specific troubleshooting methods.
What are the Latest Innovations in Metal Cutting Tools and Techniques?
Exploring Advanced Metal Cutting Technologies Such as Laser Cutting and Waterjet Cutting
The advent of technology has led to remarkable advancements in the field of metal cutting, with Laser Cutting and Waterjet Cutting proving to be game changers.
- Laser Cutting: This technology uses a high-power laser beam focused on the material to be cut. The heat intensity of the laser beam vaporizes the material within the defined path, leaving a neat and smooth edge. Precise and consistent, laser cutting is suitable for a wide range of materials, including metal, plastic, and wood.
- Waterjet Cutting: This non-thermal process uses a high-pressure jet of water, sometimes combined with an abrasive substance, to cut through the material. Waterjet cutting is ideal for materials sensitive to high temperatures and offers a cold-cutting process that doesn’t affect the properties of the cut material.
Both technologies offer advantages such as precision, flexibility, and the ability to cut complex shapes. However, the specific application should determine the choice between them. Factors such as the type and thickness of the material, tolerance requirements, and production volume play significant roles in selecting the most appropriate cutting technology.
Understanding the Integration of Automation and Robotics in Metal Cutting Processes
The integration of automation and robotics in metal-cutting processes has revolutionized manufacturing. These systems offer unprecedented efficiency, accuracy, and three-dimensional capabilities. They are programmed using CAD and CAM software, allowing for customization. However, careful cost-benefit analysis is necessary before integrating these technologies due to the investment required.
Examining Eco-Friendly and Sustainable Approaches to Metal Cutting and Material Removal
As society places a greater emphasis on sustainability, it’s crucial to examine eco-friendly and sustainable approaches to metal cutting and material removal. One such method is Dry Cutting, which eliminates the need for coolant oils, reducing both environmental impact and manufacturing costs. Similarly, the Minimal Quantity Lubrication (MQL) technique uses a considerably smaller volume of coolant, significantly lowering waste. Technologies like laser and waterjet cutting, aside from their precision, also contribute to sustainability by minimizing waste due to their high cutting efficiency. Lastly, the adoption of recyclable abrasives in abrasive cutting methods, such as garnet in waterjet cutting, is another sustainable approach. These innovative methods not only meet environmental obligations but also can improve operational efficiency and reduce production costs.
Adopting Smart Cutting Solutions for Enhanced Precision and Production Efficiency
The adoption of intelligent cutting solutions has ushered in a new era of precision and production efficiency. These systems, often integrated with IoT and AI technologies, provide real-time monitoring and analytics, enhancing the predictability and control of metal-cutting processes. Machine Learning algorithms can process large volumes of data to predict tool wear, automate adjustments, and prevent machine downtime. With additive manufacturing techniques such as 3D printing, customized parts can be produced with complex geometries and tight tolerances, significantly reducing waste and production time. Moreover, these intelligent solutions enable remote operation and maintenance, providing unprecedented flexibility in managing manufacturing operations. As these technologies mature, they will continue to transform the landscape of metal cutting, offering greater precision, efficiency, and sustainability.
Future Trends and Developments in Metal Cutting Tools and Techniques
The future of metal cutting lies in the integration of high-tech trends such as automation, digital twins, and Industry 4.0. Automation is set to reshape metal cutting with the introduction of robots capable of performing tasks with high precision and speed, reducing human error and improving productivity. On the other hand, the concept of ‘digital twins’ – virtual replicas of physical systems – allows for real-time monitoring and predictive maintenance, minimizing downtime and ensuring optimal performance. Similarly, the advent of Industry 4.0, with its focus on interconnectivity, automation, machine learning, and real-time data, is poised to transform the metal-cutting industry. These advancements, coupled together, will not only enhance precision and efficiency but also usher in a new era of sustainability in the metal-cutting industry.
Frequently Asked Questions
Q: What are the different types of tools to cut metal?
A: There are various tools to cut metal, including grinders, circular saws, chop saws, plasma cutters, angle grinders, cutting wheels, power tools, hand-cutting tools, and many more.
Q: What factors should I consider when choosing a small metal cutting tool?
A: When choosing a small metal cutting tool, consider factors such as the specific application, cutting capacity, the type of metal to be cut, portability, safety features, and ease of use.
Q: How do I select the correct cutting blade for metal cutting?
A: To select the correct cutting blade for metal cutting, consider the thickness and type of metal you will be cutting, the required cutting speed, and the compatibility with your cutting tool.
Q: What are the best practices for using power tools to cut metal?
A: When using power tools to cut metal, it’s essential to wear appropriate safety gear, securely clamp the workpiece, use the correct speed and cutting blade, and follow the manufacturer’s guidelines and safety instructions.
Q: What are some common uses of metal cutting tools?
A: Metal cutting tools are commonly used in metal fabrication, construction, automotive repair, DIY projects, and various metalworking applications where precise and efficient cutting of metal is necessary.
Q: Can metal cutting tools be used to cut wood?
A: While metal cutting tools are designed specifically for cutting metal, some versatile tools, such as portable band saws and specific power tools, can be used with the appropriate blades to cut wood as well.
Q: How can I cut through thicker metal sheets or stock?
A: To cut through thicker metal sheets or stock, consider using specialized cutting tools such as plasma cutters, cutting torches, or heavy-duty metal cutting circular saws with appropriate blades and cutting capacities.
Q: What safety precautions should I keep in mind when using cutting tools?
A: When using cutting tools, always wear protective gear, keep the work area well-ventilated, secure the workpiece properly, avoid distractions, and follow all safety guidelines provided by the tool manufacturer.
Q: What are the advantages of using an angle grinder for metal cutting?
A: Angle grinders are versatile and powerful tools for metal cutting, offering high-speed cutting ability, easy maneuverability, and compatibility with various cutting wheels and attachments for different metal cutting needs.
Q: Can metal cutting tools be used to cut thin as well as thick metal?
A: Yes, metal cutting tools are designed to cut a wide range of metal thicknesses, from thin metal sheets to thick metal stock, providing versatility and precision in metalworking applications.
