What is a ball end mill?

What is a ball end mill?

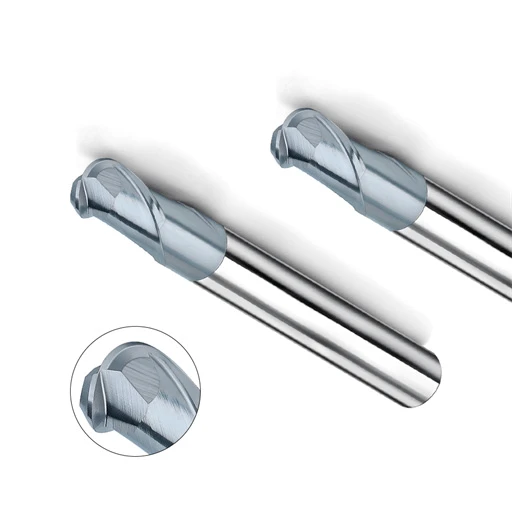

A ball end mill, often referred to as a ball nose milling cutter, is a cutting tool used in the machining industry. Primarily made from carbide or high-speed steel, it possesses a rounded nose. This distinctive design detail allows it to perform 3D carving tasks. It can create complex shapes and contours or undertake finishing tasks, such as creating a “scalloped” effect on the material. The unique sphere-shaped tip is perfect for hollowing out material in intricate patterns, making ball end mills an invaluable tool in the arsenal of any machinist or engineer.

Understanding the design and function of a ball end mill

The design and functionality of a ball end mill largely influence its performance in various machining tasks. Here are the key aspects to understand:

  1. Sphere-shaped tip: Gives the tool its distinctive name and ability, allowing it to carve intricate 3D patterns and contours.
  2. Flute design: Ball end mills can be single or multi-flute designs. Single-flute mills are ideal for high-speed machining and high-volume material removal, while multi-flute designs are preferable for finishing operations.
  3. Material: Primarily made from carbide or high-speed steel, these materials offer the hardness and heat resistance necessary for cutting through diverse materials.
  4. Coatings: Often, ball end mills will have a coating like Titanium Nitride (TiN) to increase hardness and thermal resistance, enhancing the tool’s longevity and performance.
  5. Applications: Ball end mills are typically used for milling operations like slotting, profiling, and contouring. They are invaluable in creating complex, three-dimensional shapes without the need for multiple operations.

Understanding these aspects gives a deeper appreciation of the ball end mill’s function and the significant role it plays in the machining industry.

Advantages and applications of using a ball end mill

Ball end mills are renowned for their versatility, precision, and effectiveness in various applications. Here are some notable advantages and common uses:

  1. Versatility: Ball end mills can work with different materials, including steel, aluminum, plastics, and even exotic metals, making them a versatile tool in any machinist’s collection.
  2. Precision: The spherical tip provides precise control over the tool’s contact with the workpiece, allowing for high-precision machining of complex shapes.
  3. Efficiency: The multi-flute design enables smoother and faster cutting, reducing machining time and increasing operational efficiency.
  4. Durability: The use of hard materials like carbide and high-speed steel, along with protective coatings, ensures the tool’s durability and long service life.
  5. 3D Profiling: Ball end mills are the tool of choice for 3D profiling due to their ability to create intricate shapes and curves.
  6. Slotting and Pocketing: They are also commonly used for slotting and pocketing operations, providing a smooth finish in these tasks.
  7. Surface Contouring: Often employed in mold and die-making industries, ball end mills are perfect for surface contouring and creating full radius profiles.

By understanding these advantages and applications, one can fully leverage the potential of ball end mills in various machining tasks.

Comparing ball end mills to other types of end mills

Comparing ball end mills with different types of end mills provides a clearer understanding of their unique capabilities:

  • Square End Mills: Unlike ball end mills, square end mills have a square or straight edge, making them ideal for creating sharp, straight edges. They are often used for roughing and finishing flat surfaces, but their design limits their ability to produce complex, contoured surfaces.
  • Corner Radius End Mills: These end mills have a rounded corner, providing a compromise between the sharp edge of square end mills and the round edge of ball end mills. They offer more significant tool life and heat resistance than square-end mills but lack the full-radius profiling capabilities of ball-end mills.
  • Roughing End Mills: Designed for a high material removal rate, roughing end mills have a unique tooth design that minimizes cutting forces. However, they lack the precision and finishing capabilities of ball-end mills.
  • High-Feed End Mills: These are designed for high feed rates in material removal applications. Their design reduces axial forces, allowing for increased feed rates but at the cost of finish quality. They are not suitable for intricate profiling like ball end mills.
  • Drill Mills: With their pointed tip, these are used for drilling, milling, and chamfering. However, their design limits their scope in terms of the complex, curved surfaces that ball end mills can handle.

Each of these end mills serves a specific purpose in a machinist’s toolkit. However, none offers the unique combination of versatility, precision, and contouring ability that ball end mills do.

Choosing the right size and type of ball end mill for your project

Selecting the proper type and size of a ball end mill hinges on several key factors. These include material type, machining operation, dimensional accuracy, and surface finish requirements. Here are some tips to guide your selection process:

  1. Material Type: Different end mill materials, such as high-speed steel (HSS), cobalt, and carbide, have particular performance characteristics and are suited to specific machining applications. Consider the hardness, toughness, and wear resistance of the mill in relation to your workpiece material.
  2. Machining Operation: The operation—whether it’s roughing, finishing, or contouring—plays a significant role in end mill selection. For example, a roughing operation would benefit from a coarse-toothed end mill, while a finishing operation might require a fine-toothed mill.
  3. Dimensional Accuracy: If your project needs high precision, opt for an end mill with a smaller diameter. However, remember that smaller end mills can break more easily.
  4. Surface Finish Requirements: The surface finish of your workpiece can dictate the type of end mill you use. Ball end mills, for instance, are excellent for creating contoured surfaces.
  5. Tool Life and Heat Resistance: If you are working on a project that requires long machining hours, consider an end mill with enhanced tool life and heat resistance.

In conclusion, remember that the selection of the correct ball end mill is crucial for achieving the desired results in your machining project. Always consider the specific requirements of your project and choose your tools accordingly.

Effectively utilizing carbide ball end mills for different materials

To effectively use carbide ball end mills for other materials, understanding the properties of both the material and the end mill is crucial.

Hardened steels and titanium alloys require carbide end mills with a high degree of hardness and abrasion resistance. Look for an end mill with a good balance of toughness and hardness, such as those made from ultra-fine grain carbide.

For aluminum and copper alloys, select an end mill with a sharp cutting edge and high rake angles to prevent the material from adhering to the tool. A polished flute surface can also be beneficial for these non-ferrous metals.

Machining stainless steel can be challenging due to its strength and work-hardening ability. A carbide end mill with a high helix angle and a coating that provides heat and wear resistance, such as Titanium Carbonitride (TiCN), can improve tool life and productivity.

Finally, when working with plastics and wood, it’s essential to choose an end mill that can produce a clean, burr-free surface. A single-flute or two-flute configuration can ensure efficient chip evacuation and prevent heat build-up, resulting in a smooth finish.

How do you select a suitable ball end mill for your project?

How to select the right ball end mill for your project?

Factors to consider when choosing a ball end mill

When choosing a ball end mill for your project, several factors need to be carefully considered to ensure optimal performance.

  1. Material Compatibility: Ensure that the end mill is suitable for the material you intend to work with. Some end mills are designed for specific materials, like hardened steel, aluminum, or plastic.
  2. Coating: End mills often feature different coatings designed to increase durability, heat resistance, or speed. The choice of coating can significantly impact the end mill’s performance and lifespan.
  3. Flute Count: The number of flutes on an end mill affects the speed of chip removal and the quality of the finish. A higher number of flutes allows for faster machining but may result in a rougher finish.
  4. Cutting Diameter: The diameter of the end mill determines the type of cuts you can make. Larger diameters are suitable for removing large amounts of material, while smaller diameters are better for detailed work.
  5. Shank Diameter: The shank diameter must fit the size of the collet or chuck on your machine. A larger shank diameter can also reduce vibration and provide more stability during cutting.
  6. Overall Length and Cutting Length: The overall length and cutting length of the end mill affect how deep you can cut into the material. Make sure to choose an end mill with appropriate sizes for your specific project.

By carefully assessing these factors, you can select the suitable ball end mill for your project, ensuring efficient and high-quality machining.

Determining the appropriate flute count for your ball end mill

Determining the appropriate flute count for your ball end mill largely depends on the material you are machining and the desired finish of the end product. For example, a higher flute count, such as 4 or 6 flutes, is often used for machining more complex materials where rapid chip removal is not critical. On the other hand, a lower flute count, like 2 or 3 flutes, is ideal for softer materials where efficient chip evacuation is needed. In addition, the finish of the final product can be influenced by the flute count: a higher number of flutes often results in a smoother finish, whereas a lower flute count may leave a rougher finish. Considering these factors and conducting test cuts can help in determining the optimal flute count for your specific project.

Tips for selecting the suitable material and coating for your ball end mill

When selecting the suitable material and coating for your ball end mill, consider these tips:

  1. Material Suitability: Choose a material compatible with the substrate being machined. For instance, carbide end mills provide excellent hardness and thermal resistance, making them ideal for machining most hard metals. High-speed steel (HSS) end mills, while less durable, are a cost-effective choice for machining softer materials.
  2. Coating Compatibility: Opt for a coating that complements the properties of the end mill material and the workpiece. Titanium Nitride (TiN) coating enhances tool life by providing heat and wear resistance, while Aluminum Titanium Nitride (AlTiN) coating is effective in high-temperature cutting operations.
  3. Evaluate Cutting Conditions: Consider the cutting conditions, such as speed, feed rate, and depth of cut. These factors can influence the performance of the material and coating.
  4. Cost-effectiveness: Analyze the cost-effectiveness. While certain materials and coatings may initially be more expensive, they may provide better performance and longer tool life, reducing costs in the long run.
  5. Trial and Error: Even with the proper selection, actual performance may vary. Therefore, it’s valuable to experiment with different materials and coatings under controlled conditions to find the most effective solution.

Understanding the importance of center-cutting and non-center-cutting ball end mills

Center-cutting and non-center-cutting ball end mills play crucial roles in milling operations, and it’s essential to understand their distinctions.

Center Cutting Ball End Mills are characterized by a small notch or depression at the tip center, enabling them to drill directly into a workpiece. They are primarily used in operations that require plunging, slotting, and profiling.

Non-center cutting Ball End Mills lack this central notch, disallowing them from drilling straight into the material. These end mills are typically used in operations that involve peripheral milling, where the tool’s edge cuts along the periphery of the workpiece.

Selecting between center-cutting and non-center-cutting ball end mills depends on the nature of your milling operations, and understanding their specific capabilities can significantly enhance machining efficiency and precision.

Exploring the benefits of using extra long ball end mills for specific applications

Extra Long Ball End Mills offer distinct advantages in specific applications. For instance, they are particularly beneficial in situations where the depth of the material being milled exceeds the cutting length of standard ball end mills. The extended length enables deeper reach and is advantageous when working on complex or intricate parts. Additionally, these types of end mills can effectively prevent tool deflection, which can degrade the surface finish and dimensional accuracy of the final machined product. However, it’s important to note that the use of extra-long ball end mills may require slower speeds and feeds to prevent tool breakage or excessive wear. As with any tool selection, understanding the specific application and material requirements is critical to optimizing performance and cost-effectiveness.

What are the common problems and solutions when using ball-end mills?

What are the common problems and solutions when using ball end mills?

Preventing Chipping and Breakage When Using Ball End Mills

Chipping and breakage can be prevented through proper tool selection and operating parameters. Selecting a ball end mill with the correct flute count and helix angle for your material is crucial. More rigid and heat-resistant tools could be beneficial when working with more complex materials. A proper feed rate and cutting speed can also help prevent chipping and breakage.

Addressing Issues Related to Surface Finish and Cut Quality

The surface finish and overall cut quality can be enhanced by optimizing cutting speeds and feeds, ensuring proper tool engagement, and maintaining a consistent chip load. Opt for a ball end mill with a higher helix angle for a superior surface finish.

Maximizing Tool Life and Performance

Tool life and performance can be maximized through appropriate tool maintenance, using quality cutting fluid, ensuring proper tool path strategies, and adopting climb milling techniques when suitable. Regular inspection of the tool for signs of wear can also extend the tool’s life.

Dealing with Tool Deflection and Vibration

Tool deflection and vibration can be mitigated by using shorter tools, maintaining correct speeds and feeds, and selecting the right tool path strategy. Ball end mills with higher rigidity or reinforced cores can also help minimize deflection.

Understanding Cutting Techniques and Strategies

The success of a milling operation greatly relies on understanding and implementing the proper cutting techniques and strategies. These may include ramping, pocketing, profiling, or contouring, each suited to different applications. Having a thorough understanding of these techniques can enhance the efficiency and accuracy of your milling operations.

How do you properly maintain and care for ball end mills?

How to properly maintain and care for ball end mills?

Best Practices for Cleaning and Storing Your Ball End Mills

Cleaning and storing your ball end mills properly can significantly extend their lifespan. Permanently remove any residual material from the tool after use. Mild solvents can be used to remove tougher grime. Store the tools in a dry, dust-free environment to prevent corrosion.

Performing Regular Inspections and Maintenance to Prolong the Life of Your Ball End Mills

Regular inspection of your ball end mills is crucial. Check for signs of wear, cracks, or chips before each use. Ensure that the tool is sharp and clean. Consider routine maintenance like regrinding, which can restore the tool’s performance considerably.

Properly Sharpening and Reconditioning Worn Ball End Mills

When ball end mills become dull, they can be reconditioned by sharpening. It’s essential to maintain the tool’s original geometry during the sharpening process. Professional re-sharpening services are recommended to ensure precision.

Guidelines for Safely Handling and Operating Ball End Mills

Always wear appropriate personal protective equipment when handling and operating ball end mills. This includes safety glasses, gloves, and sturdy footwear. Never reach into a running machine, and always follow the manufacturer’s instructions for operating the tool.

Exploring the Available Options for Regrinding and Re-coating Ball End Mills

Regrinding and re-coating can significantly prolong the life of ball end mills. Professional regrinding services can restore the original geometry of the tool, while re-coating can enhance the tool’s durability and performance. When re-coating, consider the material you’ll be cutting to select the most appropriate coating type.

Frequently Asked Questions

Frequently Asked Questions

Q: What are ball end mills?

A: Ball end mills are cutting tools used for milling contoured surfaces. They have a rounded end and are ideal for 3D machining and contouring.

Q: How are ball end mills different from other end mills?

A: Ball end mills have a rounded end, which allows them to create smooth, curved surfaces. This makes them suitable for finishing work and carving intricate designs.

Q: What materials are ball end mills made of?

A: Ball end mills are typically made of high-speed steel, solid carbide, or cobalt steel. These materials offer durability and high heat resistance for various milling applications.

Q: What are the common uses of ball end mills?

A: Ball end mills are commonly used for creating complex three-dimensional contours, smooth finishes, and sculpting surfaces in materials such as steel, aluminum, and plastics.

Q: How do I choose the suitable ball end mill for my project?

A: When selecting a ball end mill, consider factors such as the material you are cutting, the required surface finish, and the diameter size needed for your project. Consult with a supplier for recommendations based on your specific needs.

Q: What are the advantages of using ball end mills?

A: Ball end mills offer versatility in milling applications, providing the ability to create intricate contours, smooth finishes, and efficient material removal. They are essential tools for precision machining and intricate designs.

Q: Can ball end mills be used for general-purpose milling?

A: Yes, ball end mills are suitable for a wide range of general-purpose milling applications. They can be used for machining tasks such as slotting, profiling, and engraving, making them versatile tools in various industries.

Q: Are there different types of ball end mills available?

A: Yes, there are various types of ball end mills, including single-end and double-end designs, as well as solid carbide and high-speed steel options. Each type is suited for specific milling tasks and material types.

Q: What are some tips for using ball end mills effectively?

A: When using ball end mills, ensure that the cutting edges are sharp and the spindle speed and feed rates are appropriate for the material being milled. Additionally, consider using coolant or lubricant to prolong tool life and achieve high-quality finishes.
