What is a roughing end mill, and how does it work?

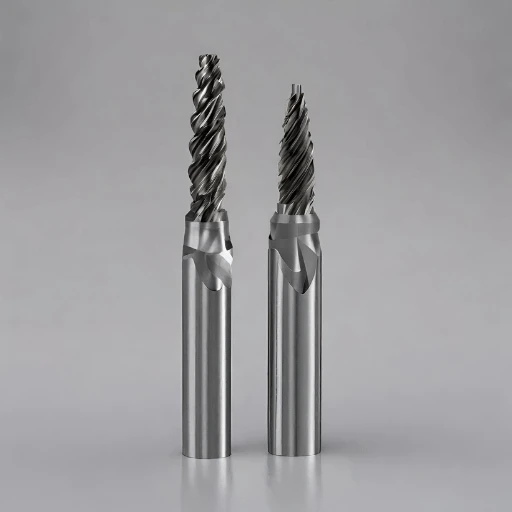

What is a roughing end mill and how does it work?

A Roughing End Mill, also known as a ripping cutter, is a cutting tool used predominantly in milling operations. It’s designed with multiple serrated cutting edges that disperse the force exerted on the mill, thereby reducing the chip load, optimizing chip evacuation, and minimizing the risk of tool failure. The roughing end mill works by removing large amounts of material quickly, preparing the workpiece for a finishing cutter to provide the final dimensions and surface finish. This tool is especially beneficial in CNC machining, where it can handle higher feed rates than standard end mills, increasing productivity and efficiency.

Understanding the structure and function of a roughing end mill

The roughing end mill is typically made up of the following key components:

  1. Shank: The shank is the side of the end mill that is secured into the CNC machine’s tool holder. The shank must be solidly constructed, as any instability can lead to inaccuracies in the milling process.
  2. Flutes: These are the deep helical grooves running up the cutter, where the chips form. Roughing end mills usually have more flutes than regular end mills, which supports the rapid removal of material.
  3. Cutting Edge: This is the sharp edge of the flutes that cuts into the workpiece. In roughing end mills, the cutting edges are serrated, which helps disperse the force exerted on the tool.
  4. End and Tip: The end of the mill would either be flat (square end mill) or rounded (ball end mill), while the tip determines its ability to plunge into the material (center cutting or non-center cutting).

Understanding these components can aid in selecting the suitable roughing end mill for your specific milling operation. It also helps to optimize the tool’s function, thereby enhancing the productivity and lifespan of the tool.

How are roughing end mills different from standard end mills?

Roughing end mills and standard end mills differ in several aspects:

  1. Design: The most striking difference lies in their design. Roughing end mills have serrated cutting edges, unlike the smooth edges of standard end mills. This unique design allows the tool to absorb more cutting forces, making it ideal for heavy-duty material removal tasks.
  2. Number of Flutes: Typically, roughing end mills have more flutes than standard end mills. More flutes mean more cutting edges, leading to faster material removal rates.
  3. Surface Finish: Due to their aggressive cutting action, roughing end mills often leave a rougher surface finish on the workpiece compared to standard end mills. Therefore, a finishing cutter is often necessary to provide the final dimensions and surface finish.
  4. Feed Rates: With their more robust design and higher number of cutting edges, roughing end mills can handle higher feed rates than standard end mills. This capability makes them highly effective in boosting productivity in CNC machining operations.
  5. Application: Roughing end mills are mainly used for bulk material removal in the initial stages of the milling process, while standard end mills are often used for both roughing and finishing tasks, depending on their specific design and material.

Understanding these differences is crucial for optimizing tool selection and milling operations, thereby maximizing productivity, cost-efficiency, and tool lifespan.

Choosing the suitable roughing end mill for specific materials

Selecting the suitable roughing end mill for particular materials involves understanding the strengths and flaws of different end mill materials.

High-Speed Steel (HSS): For general use, HSS end mills are a practical choice. They balance durability and cost-effectiveness, making them suitable for a broad range of materials, especially mild steel and non-ferrous metals.

Cobalt High-Speed Steel (HSCO): HSCO end mills are a step up from HSS. The addition of cobalt enhances heat and wear resistance, which is beneficial when machining stricter materials like stainless steel or exotic alloys.

Carbide: Carbide end mills offer superior hardness and heat resistance, making them the optimal choice for machining hard materials like hardened steel or cast iron. However, they can be brittle and may not be the best choice for high-shock applications.

Ceramic: Ceramic end mills offer excellent heat resistance and are suitable for high-speed machining of cast iron and hardened steels. However, they are brittle and may not perform well in unstable machining environments.

The choice of roughing end mill depends on the material being machined, the machine tool’s capabilities, and the required surface finish. It’s essential to match the end mill material’s hardness and toughness with the workpiece material’s machinability to achieve optimal tool performance and lifespan.

Key features to look for in a high-quality roughing end mill

Flute Count: One of the first features to consider is the flute count. End mills with fewer flutes (two or three) allow for larger chip loads and faster material removal. However, more flutes (four to six) create a smoother finish and are ideal for finish milling.

Coating: High-quality end mills often feature coatings that increase their durability and heat resistance. For instance, a titanium nitride (TiN) coating can enhance tool life and allow for faster feed rates.

Helix Angle: The helix angle affects the cutting force and temperature. A lower angle is ideal for materials that are difficult to machine, while a higher angle can improve surface quality and is suitable for easy-to-machine materials.

Cutter Diameter: The diameter of the cutter influences the strength of the tool and the surface finish of the workpiece. Larger diameters offer more stability but may not be suitable for intricate or precise tasks.

Length of Cut: The length of the cut affects both the finish and the tool’s ability to evacuate chips. A shorter length of cut allows for a higher feed rate but may not provide the desired depth of cut.

By considering these key features, you can select a high-quality roughing end mill that will deliver the best possible performance in specific applications.

Tips for maximizing the performance of roughing end mills

Use the Correct Toolpath Strategy: Implementing the proper toolpath is crucial for optimizing the performance of roughing end mills. Opt for a strategy that allows for constant cutter engagement, such as High-Efficiency Milling (HEM).

Properly Set the Feed and Speed: Accurate feed and speed settings based on the material, tool, and type of cut can enhance tool performance while preventing tool failure.

Opt for Climb Milling: In most cases, climb milling, which involves feeding the workpiece into the cutter in the same direction as the cutter’s rotation, can help reduce chip load and prolong tool life.

Regular Maintenance: Regular inspection and maintenance of the tool can help you spot wear and tear early and replace the tool before it fails.

Use Coolants Appropriately: The appropriate use of coolants can minimize heat and enhance chip evacuation, thus extending the tool’s lifespan.

Remember that maximizing the performance of roughing end mills depends not only on the tool’s features but also on how you use the tool.

How do you select the best roughing end mill for different materials?

How do you select the best roughing end mill for different materials?

Factors to consider when selecting a roughing end mill for aluminum

When selecting a roughing end mill for aluminum, several factors should be taken into consideration:

Type of Coating: Since aluminum is a non-ferrous metal, it’s best to use end mills that have a coating suitable for such materials. A non-coated, or a ZrN coated end mill, would be ideal due to their inherent non-reactivity with aluminum.

Number of flutes: End mills for aluminum typically have fewer flutes (two or three), which provide more oversized chip pockets and facilitate better chip evacuation.

Helix Angle: A high helix angle (usually 45 degrees or more) is recommended for aluminum as it helps in efficient chip evacuation.

Cutting Diameter: The cutting diameter should be chosen based on the scale of your operation and the depth of the cut you plan to make. Larger diameters allow for broader cuts but may require more powerful machinery to operate effectively.

End Mill Geometry: For aluminum, it’s often best to opt for a tool with a sharp and pointed edge rather than a radius or ball end, as a sharp edge reduces the risk of a built-up edge effect.

Remember, while selecting a roughing end mill for aluminum, it’s essential to align the tool’s features with the specific machining requirements of aluminum to ensure optimal performance and tool longevity.

What are the best roughing end mills for cutting steel?

When it comes to cutting steel, several types of roughing end mills outshine others due to their strength, heat resistance, and durability:

Coating Type: Titanium Nitride (TiN) or Titanium Aluminum Nitride (TiAlN) coatings are best suited for steel due to their excellent wear resistance and ability to withstand high temperatures. These coatings also prevent the tool from premature wear and tear, extending its lifespan significantly.

Number of Flutes: For steel, an end mill with four flutes is typically ideal. The added flutes provide more cutting edges, which enhance the cutting speed and finish. However, you may need a tool with fewer flutes for slotting or where chip evacuation is a concern.

Helix Angle: A lower helix angle, typically around 30 to 40 degrees, is recommended for cutting steel. It provides a better surface finish and stability, which is essential while working with more rigid materials like steel.

Cutting Diameter: Just like in the case of aluminum, the cutting diameter should align with your operation’s scale and the cut’s depth. Remember, larger diameters enable broader cuts but may require more powerful machinery.

End Mill Geometry: For cutting steel, a tool with a radius or ball end is often a better choice than one with a sharp edge. This design can withstand the rigors of cutting more complex materials and reduces the risk of tool breakage.

It’s crucial to remember that while these general recommendations can guide your choice, the best roughing end mill for cutting steel will always depend on your specific machining requirements and the properties of the steel grade you’re working with.

Choosing the suitable roughing end mill for high-speed machining applications

High-speed machining requires a specialized selection of roughing end mills to ensure efficiency and precision. Here are some essential factors to consider:

Material-Specific Tooling: The material being machined should primarily dictate the choice of the end mill. For instance, high-speed steel (HSS) mills are helpful for machining softer materials, while carbide end mills are optimal for more complex materials due to their higher heat and wear resistance.

Coating: Certain coatings like Titanium nitride (TiN) or Titanium carbonitride (TiCN) can be beneficial in high-speed applications. These coatings reduce friction and heat, thereby increasing the tool’s lifespan.

Cutter Geometry: A high-helix angle is advisable for high-speed machining as it improves chip evacuation, reducing the risk of chip recutting. Additionally, a tool with a corner radius can absorb the high cutting forces generated during high-speed machining, reducing the risk of tool breakage.

Flute Count: In high-speed machining, a higher flute count can increase productivity by facilitating faster feed rates. However, it’s essential to balance this with adequate chip evacuation to prevent tool damage.

Remember, choosing the suitable roughing end mill is a balance between the nature of the machining process, the material being machined, and the capabilities of your equipment. Always consider these factors in conjunction with one another to make the most appropriate selection.

Benefits of using carbide roughing end mills for various material types

The use of carbide roughing end mills presents significant benefits across material types, primarily due to their excellent hardness and heat resistance properties.

Hardened Steels: For hardened steels, carbide end mills offer superior cutting performance compared to HSS counterparts, allowing for faster machining speeds without excessive wear on the tool. This results in a more efficient machining process and a longer tool life.

Non-Ferrous Metals: Carbide end mills are also beneficial for non-ferrous metals like aluminum and copper. These metals are prone to sticking, which can cause build-up on the tool. Carbide’s resistance to wear and heat helps mitigate this issue, promoting cleaner cuts and smoother finishes.

Plastics and Composites: In plastics and composites, carbide end mills excel due to their sharp cutting edges and high-speed capabilities, leading to clean, precise cuts with minimal risk of melting or deformation.

High-Temperature Alloys: High-temperature alloys pose a significant challenge due to their strength and heat resistance. Here, carbide end mills’ superior heat resistance comes into play, allowing for high-speed machining without damaging the tool or the workpiece.

In conclusion, while carbide roughing end mills may require a higher initial investment, their durability, efficiency, and versatility across various materials can result in significant long-term savings and improved machining outcomes.

What are the essential features of a high-performance roughing end mill?

What are the important features of a high-performance roughing end mill?

Understanding the importance of helix angle in roughing end mills

The helix angle in roughing end mills plays a crucial role in determining the cutting forces, chip formation, and tool life. It is the angle formed between the cutting edge and the tool axis. A lower helix angle, typically in the range of 30 to 40 degrees, provides more strength to the cutting edge, making it suitable for rigid materials and heavy cutting loads. On the other hand, a higher helix angle, typically between 45 to 60 degrees, facilitates better chip evacuation, reducing heat and friction, and thus is more suited for softer materials and high-speed machining. Therefore, selecting a roughing end mill with a helix angle appropriate to the material and machining operation can significantly influence the efficiency and quality of the results.

Advantages of using end mills with specialized coatings for roughing applications

End mills with specialized coatings offer substantial advantages in roughing applications. Coatings like TiN (Titanium Nitride), TiCN (Titanium Carbonitride), and TiAlN (Titanium Aluminum Nitride) considerably increase the tool’s hardness, reducing wear and prolonging tool life, particularly when machining hard or abrasive materials. These coatings also exhibit excellent heat resistance, helping to protect the tool from high temperatures generated in high-speed roughing operations, thereby reducing thermal deformation and maintaining cutting accuracy. Furthermore, they reduce friction, enhance chip flow, and prevent chip adhesion, which can help avoid premature tool failure. Thus, the utilization of end mills with specialized coatings can result in improved machining efficiency, reduced tool changeover time, and a higher-quality finish on the workpiece.

Enhancing cutting efficiency with the right flute design in roughing end mills

The flute design in roughing end mills plays a pivotal role in enhancing cutting efficiency. With options ranging from two to multiple flutes, the design can significantly impact the rate of material removal, chip evacuation, and heat dissipation. Two-flute end mills provide larger flute areas for chip removal, making them ideal for slotting and drilling applications where chip evacuation is critical. However, they may struggle in heavy material removal scenarios. Conversely, end mills with more flutes possess a smaller chip load capacity but provide a higher surface finish. They are best utilized in finishing operations or when working with more rigid materials. Hence, judicious selection of the flute design, based on the specific machining operation and material characteristics, can optimize cutting efficiency and result in superior machining outcomes.

Importance of tooth geometry in achieving optimal chip removal

The tooth geometry of an end mill is another crucial factor influencing chip removal efficiency. It primarily includes two aspects: rake angle and relief angle. The rake angle, which is the orientation of the cutting edge from the radial line, affects the shearing action during cutting. A positive rake angle, for instance, makes the cutting action more smooth and less power-consuming, leading to more minor chips that are easier to evacuate. On the other hand, the relief angle, carved between the tool flank and the part being machined, prevents the non-cutting portion of the tool from rubbing against the workpiece, thus reducing heat generation. To summarize, an appropriate combination of rake and relief angles, tailored to specific material properties and machining requirements, can ensure efficient chip removal, thereby enhancing the lifespan and performance of the end mill.

Factors influencing the tool life and vibration resistance of roughing end mills

Several variables can impact the longevity and vibration resistance of roughing end mills.

Firstly, the material of the tool itself plays a significant role. High-speed steel (HSS) end mills are typically more resistant to heat, reducing wear over time, while carbide tools offer superior hardness and cutting speed but can be more susceptible to fracture.

Secondly, the coating used on the end mill can enhance its hardness, heat, and wear resistance, thereby extending tool life. For example, a titanium nitride (TiN) coating can significantly increase an end mill’s resistance to abrasion.

Thirdly, the feed rate and cutting speed also significantly affect tool life and vibration. A high feed rate can cause premature tool wear and increased vibration, while a slow feed rate may lead to inefficient cutting and heat accumulation.

Lastly, the rigidity of the machine and workpiece setup can influence vibrations. A rigid setup can minimize vibrations, leading to smoother cutting and extended tool life. In conclusion, understanding and controlling these factors can significantly improve the performance and lifespan of a roughing end mill.

Tips for maximizing the efficiency and tool life of roughing end mills

Tips for maximizing the efficiency and tool life of roughing end mills

Proper techniques for chip control with roughing end mills

Effective chip control is crucial for optimal performance with roughing end mills. Here are some fundamental methods:

  1. Optimized feed rates and cutting speeds: Adjusting these parameters based on material hardness and tool durability can result in more manageable chip sizes and shapes. Remember that a higher feed rate typically produces larger chips, which may require additional chip evacuation measures.
  2. Proper coolants: Using appropriate coolants can help in chip evacuation, especially in deeper cuts or when machining more rigid materials. They also prevent the chips from welding onto the cutting edges, thus increasing the tool’s lifespan.
  3. Tool path strategies: Implementing efficient tool path strategies like high-speed machining can lead to consistent chip thickness, improving the predictability of chip formation and making chip control easier.
  4. Chip breakers: Utilizing end mills with chip breaker geometry can promote more minor, more manageable chips, increasing the efficiency of chip evacuation and reducing the risk of chip recutting.

In conclusion, by incorporating these strategies, machinists can better manage chip production, ultimately improving the functionality and longevity of their roughing end mills.

How do we troubleshoot common issues with roughing end mills?

How to troubleshoot common issues with roughing end mills?

Dealing with Cutter Deflection and Chatter

Cutter deflection and chatter in roughing operations can significantly compromise the quality of the finished product. This issue can be addressed by using stiffer tools, decreasing the overhang length, implementing adaptive tool paths, or reducing the depth of the cut.

Strategies for Excessive Tool Wear and Premature Failure

Excessive wear can lead to premature tool failure. To mitigate this, ensure that the feed rate and cutting speed are optimized for the material being machined. Proper coolant usage can also reduce wear by keeping the tool cool and minimizing friction. Regular inspection of the tool for wear signs is recommended.

Troubleshooting Surface Finish Problems

If poor surface finish is a concern in end milling applications, consider modifying the cutting parameters. A slower feed rate or a higher spindle speed can often improve the finish. Additionally, a fine-pitch roughing end mill might be beneficial.

Addressing Chip Evacuation and Machining Residue Issues

Chip evacuation and machining residue can be problematic with roughing end mills. Coolant use, air blasts, or vacuum systems can help in chip removal. Moreover, efficient tool path strategies that distribute cutting forces uniformly can reduce the likelihood of chip recutting.

Dealing with Tool Breakage and Identifying Root Causes

In case of tool breakage, it is critical to identify the root cause. This could be due to excessive cutting forces, incorrect cutting parameters, or tool deflection. Once the cause is identified, appropriate corrective actions such as adjusting the speeds and feeds, using a different tool material or coating, or altering the tool path can be taken.

Frequently Asked Questions

Frequently Asked Questions

Q: What is a roughing end mill?

A: A roughing end mill is a cutting tool used in milling applications to remove large amounts of material quickly and efficiently. It is designed with coarse tooth geometry to break chips into smaller segments, resulting in lower cutting pressures and allowing for higher feeds and speeds.

Q: What are the advantages of using a roughing end mill?

A: Using a roughing end mill allows for the removal of large amounts of material quickly and more efficiently than standard end mills. It also helps reduce cutting pressures and prolongs tool life.

Q: What are the different types of coatings available for roughing end mills?

A: The different types of coatings available for roughing end mills include TiCN (Titanium carbonitride), TiAlN (titanium aluminum nitride), and AlTiN (aluminum titanium nitride). These coatings help enhance the tool’s performance and extend its lifespan.

Q: How does the tooth geometry of a roughing end mill differ from a standard end mill?

A: The tooth geometry of a roughing end mill is designed with a coarse pitch, which helps in breaking chips into smaller segments, resulting in lower cutting pressures. In contrast, a standard end mill may have a fine pitch for finishing applications.

Q: What materials are typically used to make roughing end mills?

A: Roughing end mills are commonly made from solid carbide, which offers high hardness and wear resistance. They may also be coated with different materials to enhance their performance and durability further.

Q: How does the helix angle of a roughing end mill impact its performance?

A: The helix angle of a roughing end mill, typically around 30° to 45°, affects the tool’s ability to evacuate chips effectively and provides stability during the cutting process, especially when removing large volumes of material.

Q: What are the typical applications of roughing end mills?

A: Roughing end mills are commonly used in high-speed milling applications, particularly in the aerospace, automotive, and mold and die industries, where efficient material removal is essential.

Q: What are the differences between standard length and stub length roughing end mills?

A: Standard-length roughing end mills have a longer flute length and reach, suitable for deeper milling operations, while stub-length roughing end mills are shorter and are ideal for shallower or limited-depth milling.

Q: How does the 4-flute design of a roughing end mill impact its performance?

A: The 4-flute design of a roughing end mill provides more excellent chip space and improved chip evacuation, allowing for more efficient material removal and better surface finishes in milling operations.

Q: What considerations should be made when selecting a roughing end mill?

A: When selecting a roughing end mill, factors such as material type, cutting parameters, coating options, and specific application requirements should be taken into consideration to ensure optimal performance and tool longevity.
