What Are Tapered End Mills?

What Are Tapered End Mills?

Tapered End Mills are precision cutting tools that are specifically designed to allow for precise milling in diverse materials. Equipped with a conical design at the cutting edge, these tools are characterized by their ability to handle angled surfaces, complex contours, and other intricate milling tasks. The taper in the mill provides a direction to the chip flow, preventing the tool’s deflection and enhancing the overall machining accuracy. Tapered End Mills are available in a range of sizes, coatings, and angles to cater to a wide spectrum of milling applications.

Understanding the Tapered Profile

The tapered profile of an end mill refers to the gradual reduction in diameter from the shank to the tip of the tool. This conical shape allows for greater support closer to the cutting action, ensuring stability during the milling process. The degree of the taper varies based on application requirements, with a higher angle providing better support and stability for deep milling operations, while a lower angle is ideal for shallow milling. It’s essential to choose the correct taper angle for the task at hand, as it directly influences the tool’s performance and the quality of the final product.

Applications in Mold and Die

Tapered End Mills are extensively used in the mold and die industry due to their unique ability to navigate complex contours and angled surfaces.

  1. Crafting Intricate Molds: Tapered End Mills are pivotal in shaping intricate molds, enabling precise cutting in areas with limited accessibility.
  2. Die Fabrication: The end mills’ conical design is advantageous in die fabrication, particularly in creating angular features and tapered walls.
  3. Die Repair and Modification: Tapered End Mills are also used in repairing and modifying existing dies that may have worn out or become damaged, thereby extending their usability.
  4. Surface Finishing: Finally, these tools are useful in surface finishing tasks, providing smooth, polished surfaces that are often necessary for mold and die applications.

Remember, selecting the right Tapered End Mill for your application can significantly impact the quality and efficiency of the operation.

Improved Tool Life and Performance

Tapered End Mills not only deliver precision and versatility in various applications but are also designed to enhance tool life and performance. The conical design reduces the tool’s overall contact area with the workpiece, thereby minimizing heat generation and tool wear. This, in combination with the use of high-quality materials in their construction, ensures that these tools are highly durable and can withstand the rigors of heavy-duty use. In addition, the unique geometry of Tapered End Mills promotes efficient chip evacuation, which not only maintains the tool’s sharpness but also improves operational efficiency and the quality of the final product. Therefore, investing in these tools can lead to significant long-term cost savings through reduced tool replacement costs and improved production efficiency.

Geometry and Flute Design

The geometry and flute design of Tapered End Mills are critical aspects that influence their performance. The geometry typically includes the taper angle and the tip radius. The taper angle is the angle of the cone, and it determines the degree of wall inclination the tool can create. The tip radius is the rounded point at the end of the tool; a smaller tip radius allows for more precise cutting. The flute design, on the other hand, dictates how the chips are evacuated during the cutting process. A high-flute-count end mill ensures better surface finishes and is suitable for finishing applications, while a low-flute-count end mill allows for efficient chip evacuation, making it ideal for roughing applications. It’s essential to choose the right geometry and flute design based on the specific requirements of your application.

Use in High-Speed Machining

Tapered End Mills are particularly beneficial in high-speed machining applications due to their structural design and durability. High-speed machining requires tools that can withstand high rotational speeds, intense heat, and continuous high impacts. The unique taper angle and rounded tip of these tools contribute to the absorption and distribution of these forces, allowing the end mills to maintain their structural integrity and performance even under such demanding conditions. Simultaneously, the flute design ensures efficient chip evacuation at high speeds, minimizing any potential heat buildup and tool wear. It’s essential to note that for optimal performance in high-speed applications, the choice of flute count should align with the material being machined and the specific machining operation.

How do you select the right tapered end mill?

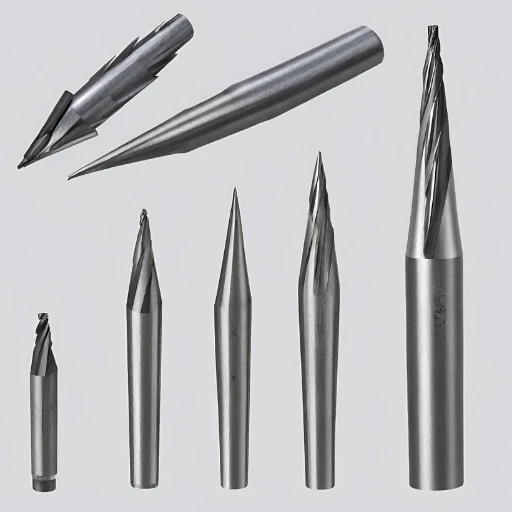

How to Select the Right Tapered End Mill?

Optimizing Speeds and Feeds

To maximize the efficiency and lifespan of your Tapered End Mill, it’s crucial to optimize your speeds and feeds according to the material you’re machining and the specific operation being performed. Each material has a recommended cutting speed, which, when paired with the tool’s diameter, will determine the optimal spindle speed. Feed rate, on the other hand, depends on the spindle speed, the number of cutting edges, and the chip load per tooth. Striking the right balance between these parameters can significantly enhance tool performance and longevity.

Tool Coating Options

Various tool coating options are available for tapered-end mills, offering enhanced performance under different conditions. Coatings such as TiN (Titanium Nitride), TiAlN (Titanium Aluminum Nitride), AlTiN (Aluminum Titanium Nitride), and others can massively impact tool life and productivity, depending on the work material and machining operation. For instance, TiN is excellent for increasing tool hardness and heat resistance, making it suitable for machining ferrous materials.

Performance in Different Materials

Tapered End Mills are versatile tools that can be used on a wide variety of materials. Hard materials, such as stainless steel and titanium, require end mills with high flute counts for a smooth finish. Softer materials like aluminum, on the other hand, can be machined efficiently with lower flute counts, allowing for better chip evacuation.

Considering Flute and Helix Geometry

When selecting a Tapered End Mill, it’s also essential to consider the flute and helix geometry. Flute geometry impacts chip evacuation and finish, while the helix angle determines how the tool engages with the material. A higher helix angle (around 45 degrees) is generally preferred for softer materials, whereas a lower helix angle (around 30 degrees) is more suitable for harder materials.

Customization and Specialized Options

In addition to standard tapered-end mills, many manufacturers offer customized and specialized options to cater to specific application needs. This could involve altering the tool’s dimensions, modifying the taper angle, or even designing a completely new tool from scratch. Customization can be beneficial in scenarios where a standard tool does not provide the desired results or where unique machining challenges need to be addressed. Always consult with your tool supplier to understand the available options and make an informed decision.

Benefits of Using Tapered End Mills

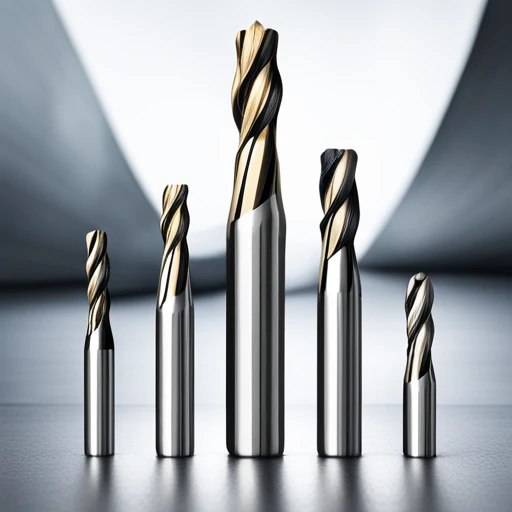

Benefits of Using Tapered End Mills

Improved Performance in Light Profiling

Tapered End Mills excel in light profiling operations due to their inherent design, which provides a gradual movement into the workpiece. This gradual introduction reduces tool forces and the risk of tool breakage, resulting in a smoother finish and increased tool life. Ideally suited to intricate profiling tasks, these end mills deliver precise and consistent results, enhancing the overall efficiency of your machining operations. Their usage in light profiling applications paves the way for more accurate component production and the streamlining of associated processes.

Efficiency in Finishing Applications

Tapered End Mills offer significant benefits in finishing applications. Their efficient cutting mechanics and tapered design facilitate the creation of fine, detailed features on the workpiece, resulting in a superior surface finish. Moreover, their ability to handle a variety of materials with reduced tool forces means less heat generation, thereby minimizing the risk of workpiece damage due to thermal expansion. It also results in lower wear and tear on the tool itself, extending its lifespan. These factors together contribute to enhancing the overall operational efficiency in finishing applications, making Tapered End Mills a preferred choice for industries demanding precision and cost-effectiveness.

Enhanced Tool Life and Reduced Cycle Times

Thanks to their uniquely tapered design, Tapered End Mills can reduce the amount of heat generated during milling operations, which in turn minimizes tool wear and extends tool life. Less heat means less thermal expansion of the workpiece and the tool, further reducing the risk of breakage and failure. Moreover, the efficient cutting mechanics of these end mills lead to a reduction in cycle times, facilitating a faster turnaround for machining operations. Therefore, using Tapered End Mills can lead to considerable savings in maintenance, replacement costs, and time, boosting the overall productivity and profitability of your machining operations.

Helpful in Running Optimal Cycle Parameters

Tapered End Mills’ unique design and efficient cutting mechanics contribute significantly to running optimal cycle parameters. Their ability to manage heat effectively reduces the risk of thermal expansion, which can otherwise distort the workpiece and compromise the precision of the machining operation. Furthermore, their reduced tool forces allow for a consistent feed rate and depth of cut, ensuring a more predictable and efficient machining process. This predictability enables operators to optimize the machining parameters, improving the overall operational efficiency and output quality. Thus, Tapered End Mills play a pivotal role in achieving optimal cycle parameters, reinforcing their value in precision-intensive industries.

High-Speed Machining and Harmonic Stability

High-speed machining is a technique employed in the manufacturing industry that leverages high spindle speeds and feed rates to achieve superior output. Tapered End Mills are particularly suited to this method due to their robust design and efficient heat management. The high-speed operation leads to the generation of significant heat. However, the unique design of these end mills effectively dissipates this heat, minimizing thermal expansion and enhancing tool longevity. Consequently, high-speed machining with tapered end mills results in a faster production rate without compromising quality or precision.

On the other hand, harmonic stability refers to the ability to minimize vibrations during machining operations. Any unwanted vibration can lead to machine tool chatter, resulting in inaccuracies in the final product and potential damage to the tool. The unique design of Tapered End Mills inherently dampens these vibrations, providing superior harmonic stability. This results in smoother operations, higher precision, and a reduction in unnecessary wear and tear on the tool. Therefore, the inherent harmonic stability of Tapered End Mills further strengthens their suitability for high-speed machining, making them a valuable asset in any high-production manufacturing environment.

Best Practices for Using Tapered End Mills

Best Practices for Using Tapered End Mills

Proper Tool Setup and Alignment Considerations for Die and Mold Applications

  1. Precision Tool Holding: Use high-quality, precision tool holders such as hydraulic or shrink-fit chucks that provide superior clamping force and runout accuracy. Consistent tool holding is vital for maintaining dimensional accuracy in die and mold machining.
  2. Accurate Alignment: It is essential to ensure that the tool axis aligns perfectly with the machine spindle. Misalignment can lead to uneven wear and tear on the Tapered End Mills and may cause defects in the workpiece.
  3. Rigidity of Setup: Rigidity is paramount; hence, a stable workholding system should be in place. Adequate support for the workpiece minimizes vibrations and helps maintain the geometric integrity of the mold or die.
  4. Correct Tool Selection: Select the appropriate Tapered End Mill with a suitable coating that can withstand the demands of the specific material being machined. The geometry of the end mill should match the intricacies of the die or mold profile.
  5. Optimized Cutting Parameters: Identify and apply the optimal cutting speed, feed rate, and depth of cut for the material and Tapered End Mill combination. Utilizing the correct parameters reduces wear and improves the surface finish.
  6. Tool Path Strategies: Utilize advanced CAM software to generate tool paths that promote efficient and harmonious cutting action. Strategies should prioritize constant engagement and minimal tool deflection to ensure the longevity of the Tapered End Mills.
  7. Regular Inspection: Conduct regular inspections of the Tapered End Mills for wear and ensure they are properly maintained. A worn tool can compromise the finish of the die or mold and potentially the product quality.

Adhering to these considerations will maximize the performance and lifespan of Tapered End Mills in die and mold applications, ensuring high accuracy and quality of the finished product.

Optimizing Speed and Feed Selection

Choosing the right speed and feed rate is essential for maximizing efficiency and product quality. Too high a speed can cause excessive heat and tool wear, while too low a speed may result in suboptimal performance. The feed rate should be adjusted according to the material being machined and the specific requirements of the task.

Maximizing Tool Life and Performance

To prolong tool life and enhance performance, consider using a tool cooling system to manage heat during high-speed machining. Regularly inspect the tool for signs of wear or damage, and always use the correct tool for the material and task at hand.

Advantages of Variable Flute and Pitch Designs

Variable flute and pitch designs offer several advantages in machining processes:

  1. Improved Cutting Efficiency: The variable geometry helps to distribute cutting forces evenly, reducing vibration and improving the efficiency of material removal.
  2. Enhanced Surface Finish: Variable pitch designs can play a significant role in achieving a superior surface finish, minimizing potential rework time and costs.
  3. Increased Tool Life: The differential flute spacing reduces the overall heat generated during the machining process, which can extend the tool’s lifespan.
  4. Reduction in Chatter: The variable pitch design can effectively absorb and dampen chatter, enhancing the stability of the machining process and reducing the risk of tool failure.
  5. Greater Versatility: Variable flute end mills can handle a wide range of materials and applications, making them a versatile choice for diverse machining needs.

Choosing the Right Tapered End Mill for Your Application

Choosing the Right Tapered End Mill for Your Application

Understanding Industry Standards and Options

When choosing tapered-end mills, it is critical to consider industry standards and available options. ANSI, ISO, and DIN are among the primary standards governing the dimensions and tolerances of cutting tools. Familiarity with these standards helps ensure compatibility with existing machinery and processes. Manufacturers often offer a range of options including various angles, flutes, and coatings tailored to specific operations, which can significantly influence machining performance and outcomes.

Technical Support and Selection Guidance

Selecting the appropriate tapered end mill demands a comprehensive understanding of the application and material. Reputable suppliers typically provide technical support to guide customers through this selection process, considering factors such as material hardness, machine capability, and the target geometry. This support extends to the correct handling and storage procedures to maintain tool integrity.

Performance Evaluation and Running Trials

Performance evaluation through running trials is pivotal in verifying the suitability of a selected end mill for a given operation. Trials allow for real-time assessment of tool wear, surface finish quality, and overall part accuracy. Adaptive measures can be taken based on trial outcomes, which might include adjustments in feed rates, speeds, or even tool geometry.

Improving Efficiency and Lowering Cost Per Part

To improve efficiency and reduce the cost per part, machining operations must optimize the use of tapered end mills by maximizing material removal rates, improving tool life, and minimizing downtime. Strategies to achieve this include employing advanced coatings, optimizing cutting parameters, and conducting regular preventative maintenance checks.

Optimizing Tool Selection for Different Machining Operations

Different machining operations, such as slotting, profiling, or finishing, require end mills with specific features for optimal performance. For instance, a larger taper angle may be preferable for profile milling to reduce tool deflection, while a smaller angle might be chosen for finishing operations to achieve fine surface finishes. Consideration of the specific demands of each operation will lead to the optimal tool selection, ensuring precision and efficiency in the machining process.

Frequently Asked Questions

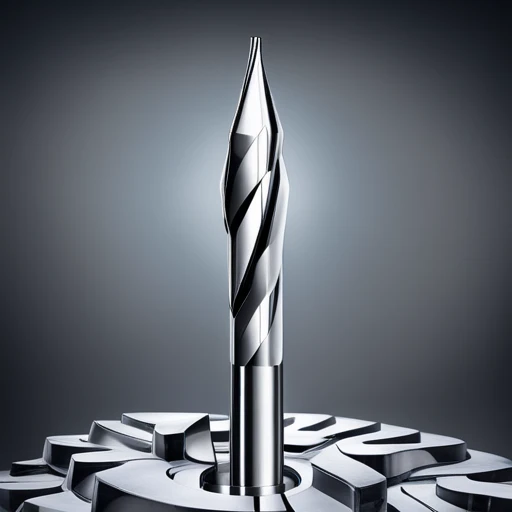

Frequently Asked Questions

Q: What are tapered end mills?

A: Tapered end mills are cutting tools with a conical or tapered cutting head, designed for various applications such as light profiling, finishing, mold and die pockets, and other tapered wall applications.

Q: What are the benefits of using solid carbide tapered end mills?

A: Solid carbide tapered end mills are engineered for excellent performance in light profiling and finishing applications, offering high wear resistance and improved chip evacuation.

Q: When should I use a ball or square tapered end mill?

A: A ball tapered end mill is suitable for use in mold and die pockets, while a square tapered end mill is ideal for finishing applications in mold and die pockets and other tapered wall applications.

Q: What are the advantages of using a 5-flute tapered end mill?

A: A 5-flute tapered end mill provides superior performance with its increased chip clearance and efficient stock removal, making it suitable for a wide range of applications.

Q: What makes tapered end mills suitable for use in mold and die pockets?

A: Tapered end mills are designed to reach and machine mold and die pockets effectively, providing precise and efficient cutting in these critical applications.

Q: What is the significance of the Aplus coating on tapered end mills?

A: The Aplus coating on tapered end mills offers enhanced lubricity and heat resistance, resulting in extended tool life and improved performance during machining operations.

Q: How can tapered end mills be used in light profiling applications?

A: Tapered end mills are engineered to deliver excellent performance in light profiling applications, providing efficient material removal and superior surface finish.

Q: What are the characteristics of solid carbide tapered end mills?

A: Solid carbide tapered end mills exhibit high hardness, wear resistance, and rigidity, making them well-suited for demanding machining tasks and prolonged tool life.

Q: Can tapered end mills be used for machining tapered walls?

A: Yes, tapered end mills are specifically designed to machine tapered walls effectively, ensuring precise and accurate cutting in applications requiring tapered geometries.

Q: What are the applications of helical tapered end mills?

A: Helical tapered end mills are versatile cutting tools suitable for a wide range of applications, including die and mold pockets, tapered wall machining, and various finishing operations.


  1. Harvey Performance Article: This article details the productivity benefits of tapered-end mills. It’s a credible source from an industry leader.
  2. Ssendmill Blog: This blog post provides a comprehensive overview of tapered end mills, discussing their design and usage.
  3. Hobby Machinist Forum: This forum thread discusses the applications of tapered end mills in mold-making and pattern casting.
  4. Practical Machinist Forum: A specific question about tapered end mills is discussed here, offering insights into practical usage and specifications.
  5. Kennametal Blog: This beginner’s guide to end mills includes a section on tapered end mills, explaining their use for creating tapered holes or channels.
  6. Conical Tool Manufacturer Website: This manufacturer provides detailed product information on carbide tapered end mills, highlighting their performance benefits.
  7. Huanatools Article: This article discusses solid carbide tapered ball-nose end mills, a specific type of tapered end mill used in deep CNC carving.
  8. MSC Direct Technical Information: This technical guide provides an overview of various types of end mills, including a section on tapered end mills.
  9. GlobalSpec Article: This article discusses the use of tapered end mills in 3D machining and mold making.
  10. Harvey Tool Product Catalogue: This product catalog offers a range of tapered end mills, providing detailed specifications and application information.

Recommended Reading: Exploring the World of Carbide End Mills
