Corner Rounding End Mills: Everything You Need to Know

Corner Rounding End Mills: Everything You Need to Know
corner rounding end mills

What is a corner rounding end mill?

What is a corner rounding end mill?

A corner rounding end mill is a type of rotary cutting tool used in machining that features ground concave radius tips designed to round the edges of workpieces. These end mills are employed when a rounded edge is necessary for the functionality or aesthetic of a part, particularly in mold-making, diework, and CNC metalworking. Fabricated from high-speed steel, carbide, or cobalt, corner rounding end mills can handle a range of material hardness and are available in a variety of sizes to accommodate different radii requirements. This tool is integral to operations where precision and finish are critical, and it contrasts with square-end or ball-end mills by specifically targeting edge curvature.

Understanding the functionality

Corner rounding end mills are meticulously engineered to optimize the rounding-off of sharp edges. Their functionality extends across several critical aspects:

  • Edge Profiling: The primary function of corner rounding end mills is to craft uniformly rounded edges on the corners of a workpiece. This process, known as edge profiling, is essential for parts requiring specific radii for functional clearances or to meet design specifications.
  • Material Versatility: These tools are capable of shaping a wide range of metals, including but not limited to aluminum, steel, and hardened alloys, thanks to the various available compositions of the end mills—high-speed steel for general applications, carbide for higher hardness, and cobalt for exceptional toughness.
  • Finish Quality: Corner rounding end mills contribute to the surface finish of a part, significantly reducing the need for secondary finishing operations by producing a smooth and consistent rounded edge.
  • Tool Longevity: By distributing cutting forces over a larger surface area compared to square-end mills, corner rounding-end mills often exhibit longer tool life, reducing replacement costs and downtime.

It is imperative to select the appropriate corner rounding end mill based on the specific parameters of the task, such as the desired radius, the material to be machined, and the nature of the machining operation being performed. Using the correct tool not only ensures the quality of the finished edge but also enhances the overall efficiency of the machining process.

Importance of corner rounding end mills in machining

Corner rounding end mills play a pivotal role in modern machining practices:

  • Aesthetics and Functionality: A significant reason for using corner rounding end mills is to enhance the aesthetics of the part without compromising its functionality. Rounded corners are often a design requirement for components to be fit and function within larger assemblies.
  • Stress Concentration Reduction: Sharp edges can be stress concentrators within machined components. By smoothing corner transitions, these tools reduce the chance of stress buildup leading to part failure, thereby improving the integrity and longevity of the part.
  • Standardization of Components: Corner rounding end mills assist in the standardization of parts production by ensuring consistent edge radii, which is crucial when multiple components must interface or assemble seamlessly.
  • Compliance with Safety Regulations: Rounding sharp edges is often a safety requirement in many industries to prevent injury from handling parts, making corner rounding an essential step in the production of consumer goods and industrial equipment.

Materials suitable for corner rounding end mills

Corner rounding end mills are designed to interact with various materials, each presenting its machining challenges:

  • High-Speed Steel (HSS): These end mills are most commonly used due to their suitability in machining traditional metals, including carbon steel, alloy steel, and cast iron. Their toughness allows for effective edge rounding on less abrasive materials.
  • Carbide: Carbide end mills are preferred for their hardness and thermal stability. They are ideal for rounding corners on more abrasive and more complex materials, like stainless steel and high-temperature alloys.
  • Cobalt (HSCO): Offering superior wear resistance compared to HSS, HSCO end mills are appropriate for machining harder steels and increasing the tool’s service life.
  • Ceramics and Polycrystalline Diamond (PCD): These advanced materials are used in corner rounding end mills for highly abrasive non-ferrous materials, providing longevity and maintaining precision in machining applications involving aluminum alloys, composite materials, and other non-metals.

Selecting the optimum material for the cutting tool is crucial, as it directly influences machining performance, finish quality, and part longevity. It is essential to match the material composition of the end mill with the workpiece material to achieve the desired outcomes.

Features and characteristics of corner rounding end mills

Corner rounding end mills exhibit a nuanced set of features and characteristics that distinguish them across applications:

  • Radius Size: These end mills are available in a range of radius sizes to achieve varied edge profiles and cater to different rounding requirements.
  • Flute Count: The number of flutes ─ typically ranging from two to four ─ affects surface finish, with higher flute counts yielding smoother results.
  • Helix Angle: The helix angle can influence chip evacuation and cutting forces. A higher helix angle generally offers an improved surface finish and reduced vibration.
  • Coatings: Surface coatings like Titanium Nitride (TiN) and Aluminum Titanium Nitride (AlTiN) improve wear resistance and thermal stability and can extend tool life, especially in more rigid materials.
  • End Cut Type: Different end cut types, such as single-end or double-end designs, determine the tool’s versatility and adaptability to various milling operations.

It is imperative to consider these features in selecting the appropriate corner rounding end mill to enhance the efficiency, accuracy, and quality of the machined product.

Choosing the correct type of corner rounding end mill

Selecting the appropriate corner rounding end mill necessitates a detailed analysis of the machining operation’s requirements. Critical considerations include:

  • Workpiece Material: Harder materials may require end mills with specific coatings for enhanced durability, while softer materials can be machined with uncoated tools.
  • Component Complexity: The intricacy of the part design dictates the radius size and the number of flutes; tighter spaces may require a smaller radius, and complex surfaces might benefit from a higher flute count.
  • Machining Process: High-speed operations may demand end mills with more flutes to ensure an acceptable finish, whereas lower speeds might utilize fewer flutes to optimize chip removal.
  • Tolerance Levels: Precision manufacturing necessitates end mills capable of producing tight tolerances, which may influence the selection of helix angle and end cut type.
  • Tool Longevity: For long production runs, choosing end mills with advanced coatings and appropriate substrate materials can reduce tool wear and increase intervals between tool changes.

Strategic selection based on the factors above will optimize the performance of the corner rounding end mill and contribute to a cost-effective and efficient milling operation.

How do you use corner rounding end mills effectively?

Proper setup and alignment

Achieving optimal results with corner rounding end mills begins with the precise setup and alignment of the tool in the milling machine. This process encompasses a series of steps to ensure accuracy:

  • Spindle Alignment: Verify that the spindle is perfectly perpendicular to the workpiece surface to prevent uneven wear and to achieve uniform corner radii.
  • Tool Centering: Accurate centering of the end mill is critical to prevent deviations in the profile of the rounded corners.
  • Clamping and Stability: Secure clamping of the workpiece is essential to avoid any movement during machining, which can result in inaccuracies and potential damage to both tool and workpiece.
  • Height Adjustment: Adjust the tool height to match the center of the radius with the portion of the workpiece needing the corner rounding, ensuring consistent application across the entire workpiece.
  • Speed and Feed Calibration: Optimize machine settings such as speed and feed rate according to the end mill’s specifications and the material being machined to maintain tool longevity and surface finish quality.

Adhering to these stipulated setup and alignment protocols is imperative to leverage the full capabilities of corner rounding end mills, enhancing the precision and quality of the machined parts.

Techniques for achieving precise corners

Techniques for achieving precise corners with corner rounding end mills are primarily focused on tool path optimization and the application of suitable cutting strategies. To facilitate this, the following technical approaches can be implemented:

  • Programming a Radius Offset: This involves manipulating the tool path to compensate for the tool’s radius in order to achieve the desired corner profile. By adjusting the CNC program, operators can ensure the end mill only removes the necessary material, thereby producing an exact radius.
  • Multiple Pass Strategy: For more complex materials or larger radii, using multiple progressive passes can minimize tool strain and improve finish quality. Incrementally, stepping down can help to preserve tool life and maintain dimensional accuracy.
  • Climb Milling: Leveraging climb milling processes, where the cutter engages with the material in the same direction as the workpiece is moving, can result in a smoother finish and reduced burring on the corners.
  • Patience in Fine Finishing: Employing slower feed rates and higher speeds during the finishing pass can reduce chatter and produce a higher surface quality on rounded corners.
  • Coolant and Lubrication Application: The use of coolants or lubricants is advised to prevent excessive heat buildup, which can affect material properties and dimensional accuracy, especially when working with metals prone to work hardening.

By applying these specialized techniques, machinists can exert greater control over the corner rounding process, enabling the production of parts with consistent and precise rounded edges that meet the technical requirements of their applications.

Maintenance and care tips for corner rounding end mills

To optimize the performance and extend the lifespan of corner rounding end mills, it is crucial to implement a consistent maintenance routine. Inspection and Cleaning should be performed regularly to prevent material buildup that can affect tool accuracy and surface finish. It is also essential to conduct regular Tool Wear Assessments to detect dullness or damage that could compromise the quality of the rounded edges. Implement a Lubrication System Check to ensure that the coolant or lubricant is being applied correctly to reduce friction and prevent overheating. Storage plays a pivotal role, too; tools should be kept in a Clean and Organized Environment to protect them from corrosion and accidental damage. Lastly, Sharpening Services should be utilized to restore cutting edges, but only by certified professionals to maintain tool geometry and performance. Adherence to these maintenance recommendations will ensure that corner rounding end mills perform effectively and reliably over time.

Troubleshooting common issues with corner rounding end mills

When utilizing corner rounding end mills, machinists may encounter specific issues that can impact production quality and efficiency. The following list outlines common problems and their potential solutions:

  • Inconsistent Edge Radius: This is typically a result of tool wear or an incorrect setup. Ensure that the end mill is correctly aligned and inspect the tool for wear, sharpening, or replacing it if necessary.
  • Poor Surface Finish: A suboptimal surface finish can be caused by excessive feed rates, inadequate lubrication, or a dull tool. Adjust feed rates according to material specifications, check lubrication systems, and maintain tool sharpness.
  • Chatter Marks: Chatter can emerge when there’s a lack of stability in the milling process. Review the tool holding and work holding methods to increase rigidity and fine-tune the cutting parameters to reduce vibrations.
  • Excessive Tool Wear: Accelerated wear may occur due to hard materials, high cutting speeds, or insufficient cooling. Optimize the cutting speed based on the tool material and workpiece and verify that the cooling system is functioning correctly.

By systematically addressing these issues, machinists can ensure that corner rounding end mills achieve the desired performance and part finish. Regular monitoring and preventive maintenance will also mitigate these common problems, guaranteeing efficient and high-quality milling operations.

Advantages of using corner rounding end mills in various applications

Corner rounding end mills are highly regarded in the machining industry for their versatility and precision. They are engineered to produce a uniform radius on the edges of a workpiece, thus enhancing its structural integrity and aesthetic appeal. The usage of corner rounding end mills can vastly improve product durability by reducing stress concentration points that may lead to material failure. Furthermore, they facilitate the production of parts that require specific radii for aerodynamic or fluid flow applications, ensuring that the final product adheres to strict sector-specific guidelines. These end mills also streamline the finishing process by eliminating the need for secondary operations, which optimizes the manufacturing workflow and reduces production costs. Their specialized design enables machinists to work with a broad range of materials, meeting the diverse needs of industries such as aerospace, automotive, and die/mold manufacturing.

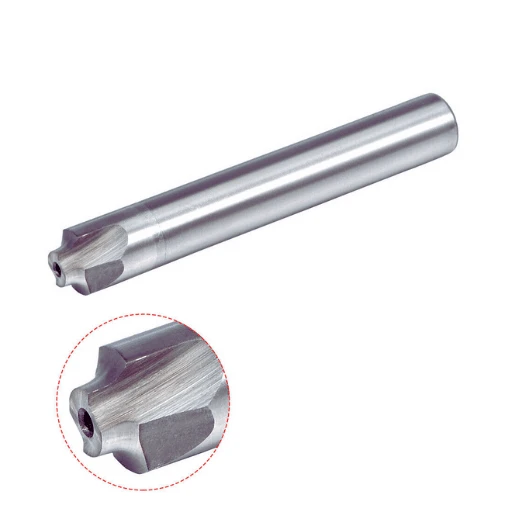

What are the different types and styles of corner rounding end mills?

What are the different types and styles of corner rounding end mills?

Exploring variations in flute designs

Corner rounding end mills are available in a range of flute designs, each tailored for optimal performance in specific scenarios. The number of flutes can vary, with single-flute designs being ideal for materials that form larger chips, allowing more space for chip removal. Conversely, multi-flute designs are better suited for more complex materials that produce more minor chips, as they offer more cutting surfaces, which result in a finer finish and increased feed rates. Additionally, differences in flute geometry, such as helix angle and pitch, can affect the tool’s performance. Variable helix end mills, for example, can reduce chatter and harmonics during milling operations, thereby enhancing the surface finish. Each of these design variations serves to optimize the performance of corner rounding end mills based on the material being machined, the desired finish, and production efficiency.

Comparison between solid carbide and carbide tipped corner rounding end mills.

Solid carbide and carbide-tipped corner rounding end mills serve distinct purposes within milling operations, with each offering advantages based on various applications. The following data list presents a technical comparison:

  • Material Composition:
  • Solid Carbide End Mills are manufactured entirely from carbide, which delivers high rigidity and thermal resistance, making them suitable for high-precision machining.
  • Carbide Tipped End Mills feature a steel body with carbide inserts on the cutting edges, offering a balance of toughness and wear resistance.
  • Performance & Durability:
  • Solid Carbide End Mills maintain a consistent hardness at high temperatures and thus can operate at higher speeds than carbide-tipped variants. They are suited for long production runs in more rigid materials.
  • Carbide Tipped End Mills are generally more economical and provide a longer tool life in softer materials where cutting forces are lower.
  • Cost Efficiency:
  • Solid Carbide End Mills tend to be more costly upfront due to the complete carbide construction but can offer cost savings in high-volume or high-precision machining.
  • Carbide Tipped End Mills are initially less expensive and are cost-effective for operations with lower production volumes or less stringent precision requirements.
  • Reusability & Reconditioning:
  • Solid Carbide End Mills can be resharpened multiple times, restoring their cutting capabilities and extending their life span.
  • Carbide-tipped end mills can also be reconditioned by replacing the worn carbide tips, which can be a cost-effective alternative to complete replacement.
  • Applications:
  • Solid Carbide End Mills are typically used for finishing operations requiring a high degree of precision or for machining difficult-to-cut materials.
  • Carbide Tipped End Mills are often favored for roughing operations and jobs involving a range of different materials without the need for extreme precision.

This comparison indicates the selection of a corner rounding end mill should be determined by the specific requirements of the application, considering factors such as the material being machined, production volume, precision needs, and overall cost constraints.

Understanding the impact of coatings and materials on performance

Coatings on end mills enhance performance by increasing hardness, reducing friction, and improving heat resistance. Titanium Nitride (TiN) increases tool hardness and provides a thermal barrier, extending tool life for cutting ferrous materials. Aluminum Titanium Nitride (AlTiN) offers superior heat resistance for high-temperature cutting. Diamond-like carbon (DLC) coatings are preferred for abrasive, non-ferrous materials due to low friction and high hardness. Understanding the synergy between tool substrate and coating optimizes milling for desired applications.

Specialized corner rounding end mills for specific materials or applications.

Specialized corner rounding end mills are crucial for addressing the diverse range of workpiece materials and machining challenges. Whether it’s stainless steel, titanium alloys, plastics, or superalloys, choosing the right end mill type can enhance surface quality, extend tool life, and optimize performance in specific applications. From carbide end mills for hardness and thermal stability to HSS end mills for cost-effectiveness, manufacturers can achieve exceptional results by selecting the appropriate tool for their needs.

Selecting the suitable radius sizes for different cutting tasks

Selecting the right radius size for a corner rounding end mill is crucial for achieving desired part specifications and maximizing tool performance. The size affects corner strength, surface finish, and stability during machining. Smaller radii offer intricate details but may be less stable, while larger radii provide strength but limit detail. Consider the material, machine setup, feed, and speed requirements, and end goals to strike an optimal balance and ensure quality parts.

How do you select the best corner rounding end mill for your project?

How to select the best corner rounding end mill for your project?

Determining the ideal corner rounding end mill based on material and hardness

To determine the ideal corner rounding end mill based on material and hardness, relevant factors such as material ductility, abrasiveness, and thermal resistance must be considered. For instance, materials with high hardness levels, like hardened steels and heat-resistant superalloys, necessitate the use of corner rounding end mills crafted from substrates such as carbide or cubic boron nitride (CBN), famed for their ability to maintain their hardness under high-temperature conditions. Conversely, softer materials, such as aluminum or brass, can be effectively machined using high-speed steel (HSS) end mills, providing sufficient durability at a more economical cost. A comprehensive understanding of the material’s properties leads to the selection of an end mill tailored to reduce wear, enhance precision, and maximize the lifespan of the tool.

Considering the geometry and type of cutting required for your project

When selecting a corner rounding end mill for your project, the geometry and type of cutting required are pivotal considerations. This involves analyzing the workpiece design for corner radii dimensions and the complexity of the features to be machined. Straight-flute end mills are typically suited for simpler geometries with minimal detailing, allowing for effective and efficient material removal. For more intricate projects that necessitate smooth transitions and fine finishes, a fluted design with helical cutting edges is preferable, as they reduce vibrations and chatter, thus enhancing the quality of the finish. Additionally, examining factors like the number of flutes is critical; a higher count can increase feed rates and productivity but may require more power and a rigid machine setup. By meticulously assessing the needs imposed by the project’s geometry and cutting types, one can select an end mill geometry that minimizes effort, maximizes efficiency, and yields a finished product of uncompromising precision.

Comparing the advantages and limitations of different corner rounding end mills

Choosing the right-corner rounding end mill depends on various factors, such as material construction, coating applications, and design aspects. Carbide-tipped end mills offer hardness and longevity, suitable for working with hardened steel or exotic alloys. On the other hand, HSS end mills are more forgiving and excel in applications involving softer materials like aluminum. Coated end mills extend operational life and reduce friction. Ultimately, the selection requires a balanced assessment of machinability, application complexity, and economic considerations.

Optimizing tool life and efficiency with the right corner rounding end mill

To optimize the performance of corner rounding end mills, it’s crucial to select the right tool geometry and substrate for the intended application. Factors like flute count, corner radius, and helix angle directly affect cutting performance and surface finish. Consider spindle capabilities and setup rigidity as well. Using a corner rounding end mill with a durable substrate and appropriate coating can enhance tool longevity and ensure consistent part quality.

Exploring available options and selections in the market for corner rounding end mills

Corner rounding end mills are essential tools in various industries, offering versatility and efficiency in rounding corners. They come in different materials like high-speed steel (HSS) and carbide, each suited for specific applications. Specialized coatings like titanium nitride (TiN) and aluminum titanium nitride (AlTiN) enhance performance. The number of flutes affects surface finish and chip evacuation. Custom options are available to match unique requirements, improving operational efficiency and precision.

Where can you find quality corner rounding end mills and how can you evaluate their performance?

Where to find quality corner rounding end mills and how to evaluate their performance?

Factors to consider when purchasing corner rounding end mills

When in the market for corner rounding end mills, several critical factors must be taken into account to ensure optimal selection. Material compatibility is paramount; the chosen end mill must be suited to work with the specific materials for which the tool will be used. Tool geometry, including the radius, flute count, and helix angle, is another important consideration, as it will directly influence the machining process and the end product finish. Additionally, the substrate material and any coatings used on the end mill affect its durability, thermal resistance, and overall performance in cutting operations. It’s advisable to compare multiple suppliers and analyze technical specifications to find the best fit for your machining needs.

Best practices for testing and validating the performance of corner rounding end mills

Testing and validating the performance of corner rounding end mills involves a structured process. Initially, a test cut should be conducted under typical operating conditions to assess essential compatibility. Subsequently, a series of controlled trials may be instituted to measure end mill longevity, wear rate, and the quality of the finish on the material. It is also crucial to perform consistent monitoring of the tool’s performance over time, including the assessment of any premature wear or breakage, to establish reliability. Documenting these results will help in creating a performance benchmark for future tool selection and process optimization.

Understanding the cost-effectiveness and value proposition of corner rounding end mills

The purchase price does not solely determine cost-effectiveness in corner rounding end mills; it includes the consideration of tool life, efficiency in machining cycles, and the quality of the end product. The value proposition of a particular end mill is enhanced by its ability to execute precise cuts with reduced chatter, thereby minimizing the need for secondary finish operations. Moreover, the selection of an end mill with appropriate substrate and coating materials can result in longer tool life and reduced downtime, which translates to savings on replacements and overall operational costs.

Ensuring compatibility and precision with the chosen corner rounding end mill

Compatibility and precision with corner rounding end mills are assured through meticulous machine setup and ensuring that all components are calibrated correctly. The end mill must fit securely within the tool holder, and the machine’s capabilities should align with the end mill’s specifications, such as its radius size and material construction. Precision is not only a function of the tool quality but also of the operational parameters set on the CNC machine, including feed rates, spindle speed, and toolpath strategies. Diligent planning and execution of these factors are essential to achieve the desired tolerances and surface finishes on machined parts.

Frequently Asked Questions

Frequently Asked Questions

Q: What are corner rounding end mills?

A: Corner rounding end mills are cutting tools used to create a rounded edge on the corner of a workpiece. They are typically used in milling operations to add a radius to the edge of a part.

Q: How are corner rounding end mills different from regular end mills?

A: Corner rounding end mills are specifically designed to mill a radius on the corner of a part, while regular end mills are not equipped to create rounded edges.

Q: What materials are corner rounding end mills made of?

A: Corner rounding end mills can be made of various materials, including solid carbide, cobalt, and tool steel, with each material offering different properties for specific machining applications.

Q: What are some typical applications for corner rounding end mills?

A: Corner rounding end mills are commonly used in machining operations where a fillet or rounded edge is required, such as in the production of dies, molds, and various metal or plastic parts.

Q: How do I choose the right-corner rounding end mill for my application?

A: When selecting a corner rounding end mill, consider factors such as the material being machined, the desired radius, the number of flutes, and the coating. It’s also essential to choose the appropriate size and pilot diameter for the specific task.

Q: What is the difference between a 3-flute and a 4-flute corner rounding end mill?

A: The number of flutes on a corner rounding end mill affects chip evacuation and surface finish. A 3-flute end mill may provide faster chip removal, while a 4-flute end mill can create a smoother surface finish.

Q: What is the purpose of the pilot on a corner rounding end mill?

A: The pilot on a corner rounding end mill serves as a guide to ensure that the tool follows the correct path and maintains the desired radius when milling the corner of a part.

Q: What is the significance of the coating on a corner rounding end mill?

A: Coatings like AlTiN (Aluminum Titanium Nitride) are applied to corner rounding end mills to improve tool life, reduce friction, and enhance the overall performance when machining rigid materials such as steel and other alloys.

Q: Can corner rounding end mills be used to create flares and tangents?

A: Yes, corner rounding end mills with pilot and shoulder designs are capable of creating flares that are tangent to the machined surface, adding versatility to their applications in various machining tasks.


  1. Harvey Performance Article: This article provides insights into the essential decisions involved in using corner rounding end mills.
  2. Harvey Tool Product Page: This page offers detailed information about Harvey Tool’s corner around end mills, including their applications and benefits.
  3. Practical Machinist Forum Thread: This forum thread offers helpful tips for using corner rounding end mills, focusing on speed and feed considerations.
  4. Hobby Machinist Forum Thread: This thread discusses how to set up a corner rounding end mill on CNC machines and provides G-code examples.
  5. Medium Blog Post: This blog post offers a comprehensive guide to corner rounding end mills, discussing their purpose and applications.
  6. Huanatools Article: This article discusses the advantages of choosing corner radius end mills, providing considerations for tool selection.
  7. MSC Industrial Direct Technical Information: This technical guide provides an overview of various types of end mills, including a section on corner rounding end mills.
  8. Regal Cutting Tools Article: This article offers a detailed explanation of corner rounding end mills, discussing their design and applications.
  9. Thomasnet Product Catalog: This product catalog lists various manufacturers of corner rounding end mills, allowing readers to compare specifications.
  10. Kyocera Unimerco Technical Guide: This technical guide provides detailed information on the use of corner rounding end mills, including tips for optimal performance.
