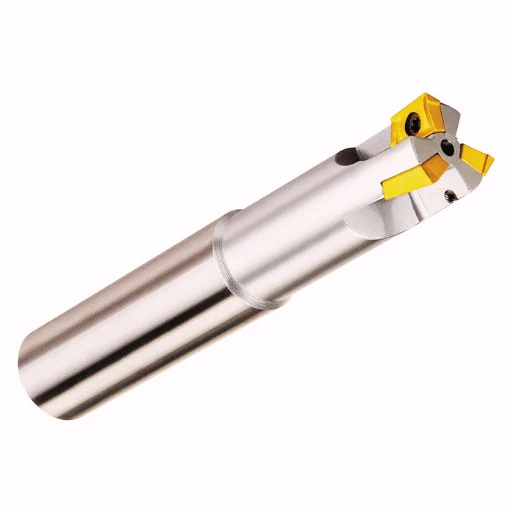

"Discover SAMHO's indexable end mills: comprehensive specifications, diverse applications, and usage tips. Learn more now!"

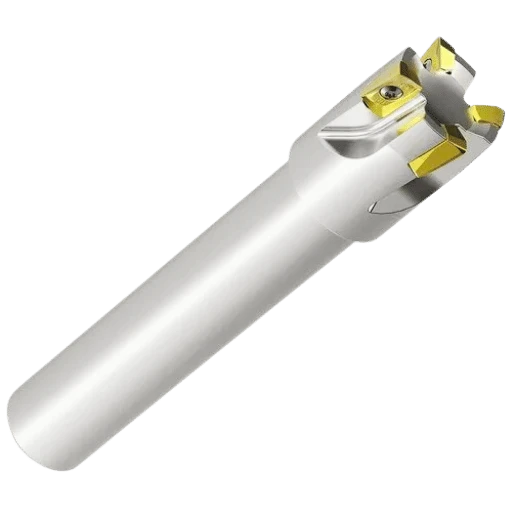

What is an Indexable End Mill and How Does It Work?

What is an Indexable End Mill and How Does It Work?

An indexable end mill consists of a cutter body with the capability to hold multiple inserts, which do the actual cutting. These inserts can be rotated to a new cutting edge without changing the position of the tool itself, thus yielding a multi-functional approach to milling tasks. The working mechanism involves inserting cutting edges and removing material as the mill rotates in the spindle of a milling machine. Compatibility with various insert shapes and sizes allows for an assortment of milling operations, maximizing both versatility and cost-efficiency. It is particularly advantageous for operations where uniform cutting action is beneficial, such as when smooth finishes are essential or when machining at high speeds.

Understanding the Basics of Indexable End Mill

Indexable end mills represent a category of cutting tools that are characterized by their efficiency and longevity in metalworking processes. These key elements distinguish these mills:

  • Insert Design: The inserts are crafted of hard-wearing materials such as tungsten carbide. Their geometry is optimized for a specific type of cut, influencing the finish and the efficiency of the milling operation.
  • Tool Holders and Bodies: The bodies are constructed to provide a stable and robust hold for the inserts, which can significantly affect precision in milling jobs. Additionally, these bodies come in various configurations to suit different machinery and project requirements.
  • Coolant Channels: Many designs include integrated channels for coolant, which is crucial for high-speed milling operations to both cool the process and clear away metal chips.
  • Compatibility and Versatility: A significant advantage of indexable end mills is the ability to interchange inserts, which can be aligned for various milling tasks without necessitating a complete tool change. This versatility extends the utility of each body across multiple applications.

Understanding these fundamental aspects enables one to make informed decisions when selecting indexable end mills for specific milling needs.

The Functionality of Indexable End Mills in Milling Applications

Indexable end mills are pivotal in performing a variety of milling applications, including face milling, shoulder milling, slotting, and profiling. The functionality of these tools is augmented by their insert design, which can be replaced or rotated to present a fresh cutting edge, thus maximizing tool life and minimizing downtime. Specifically:

  • Face Milling: This process involves cutting the surface of material flat and is typically performed with a high feed rate, utilizing indexable end mills with multiple inserts to remove material rapidly.
  • Shoulder Milling: When creating a 90-degree shoulder, indexable end mills are advantageous due to their precision and ability to handle high-load applications.
  • Slotting: The robust design of indexable end mills allows for efficient slotting operations, where narrow grooves or channels are machined into a part.
  • Profiling: The contouring or profiling capability of these tools is significant for achieving complex geometries on a workpiece.

The strategic use of coolant through internal channels assists in heat dissipation and chip evacuation, which is integral to maintaining the integrity of the cutting edges during these applications. These aspects emphasize the utility of indexable end mills and justify their standing as a favored tool in metalworking and precision engineering sectors.

Benefits of Using Indexable End Mills in Machining Operations

Indexable end mills present significant advantages in precision machining operations that contribute to both performance efficiency and cost-effectiveness:

  • Reduced Tool Replacement Cost: The ability to replace individual inserts rather than the entire tool body when a cutting edge becomes worn leads to a substantial reduction in tooling costs.
  • Versatility: Equipped with a wide variety of insert geometries and grades, indexable end mills can be adapted to work on a range of materials and applications, enhancing their utility in diverse machining conditions.
  • Time Efficiency: Quick insert changes facilitate minimal downtime, thereby increasing machine utilization and productivity.
  • Consistent Performance: As each insert can be precisely positioned to its original location, consistent dimensions and surface finishes can be achieved, even after insert replacement, ensuring repeatability in the machining process.
  • Inventory Reduction: The standardized nature of the inserts and holders for indexable end mills allows for a reduction in inventory complexity and storage space, as fewer unique tool bodies are needed.

These attributes underscore the role of indexable end mills as a valuable asset in various machining operations, securing their widespread adoption in industrial manufacturing workflows.

How to Properly Install and Set Up Indexable End Mills for Milling

Proper installation and setup of indexable end mills are critical for achieving optimal milling results. Adherence to the following technical procedures is recommended:

  • Spindle Cleaning: Prior to installing the end mill, clean the spindle and the tool holder to prevent any particulate matter from affecting the tool’s balance and concentricity.
  • Precise Insert Installation: Ensure that inserts are installed securely and accurately within the pockets of the tool body, following the manufacturer’s specified torque settings to prevent insert movement during operations.
  • Tool Holder Engagement: Mount the end mill into the tool holder, confirming that it is fully seated and secured with the appropriate retention mechanism, such as a collet or hydraulic sleeve.
  • Alignment Checking: Use precision measurement tools to confirm that the tool assembly is aligned correctly, minimizing runout and extending tool life.
  • Parameter Setting: Set the correct speeds and feeds for the end mill, considering factors such as the material being machined, insert grade, and cutter diameter to optimize the cutting process and prolong insert life.
  • Coolant Flow Adjustment: Adjust the coolant flow to ensure adequate chip evacuation and temperature control, which can significantly impact insert life and the quality of the finished workpiece.

Observing these steps during installation will support the attainment of precise dimensions and surface finishes, along with maximizing the tool’s lifespan and maintaining high levels of operational efficiency.

Common Materials Suitable for Indexable End Mill Machining

Indexable end mills are versatile tools commonly applied to machine a variety of materials. These include:

  • Aluminum: Known for its malleability and low density, aluminum is typically machined with high-speed steel or carbide inserts due to its non-abrasive nature.
  • Stainless Steel: Characterized by its corrosion resistance and toughness, stainless steel requires inserts with high wear resistance to contend with its strength and work-hardening properties.
  • Titanium Alloys: These materials are often found in aerospace applications and demand cutting tools that can resist heat and wear since titanium creates high cutting temperatures.
  • Cast Iron: Although brittle, cast iron is abrasive to cutting tools, necessitating robust carbide inserts to deal with its hardness and achieve favorable surface finishes.
  • Plastics and Composites: Vary in composition and may require specialized inserts to prevent material deformation and to ensure a clean cut.

Each material presents distinct challenges in machining and hence requires careful selection of end mill attributes, including the substrate of the insert, the coating, and the cutting geometry, to optimize the machining process efficiently and effectively.

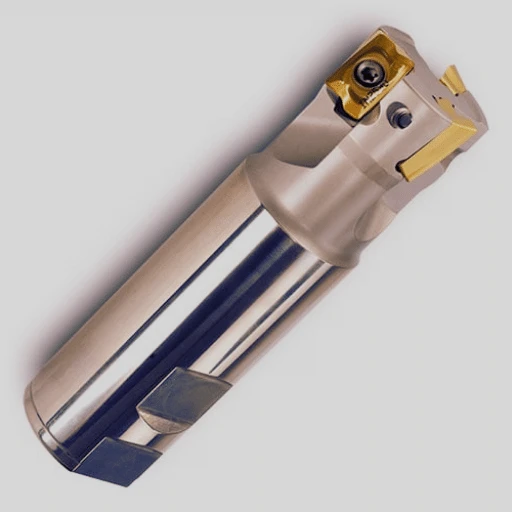

Factors to Consider When Choosing an Indexable End Mill

Factors to Consider When Choosing an Indexable End Mill

Understanding Different Cutter Geometries for Indexable End Mills

Cutter geometry in indexable end mills is a determining factor in tool performance, chip formation, and surface quality. Various geometries are designed to address the unique challenges presented by different materials and applications. High-helix angles, for example, are typically used for soft materials like aluminum to prevent clogging. Low helix angles are suited for more complex materials like stainless steel to resist force and heat during cutting operations.

Choosing the Right Indexable Inserts for Enhanced Cutting Performance

Selecting the appropriate indexable inserts is crucial for maximizing cutting performance. Inserts come in various grades and coatings, each tailored for specific material properties and operating conditions. Tool life, finish quality, and cycle times can be optimized by matching insert properties, such as toughness, wear resistance, and coatings like TiCN or AlTiN, to the machining task at hand.

Matching the Shank and Tool Holder for Indexable End Mills

The interface between the shank and the tool holder is pivotal to the overall stability and effectiveness of the end mill. Ensuring compatibility in dimensions, taper degrees, and flange sizes is essential to prevent runout and vibration during milling operations. Furthermore, hydraulic or shrink-fit holders can offer enhanced precision and gripping strength for challenging machine setups.

Optimizing the Indexable End Mill for Specific Milling Applications

Optimization of indexable end mills for specific applications involves an in-depth understanding of the operation’s requirements and constraints. This includes considering factors such as the depth of cut, feed rates, and the desired trade-off between speed and surface finish. Implemented adjustments may range from using inserts with various corner radii to altering the approach angle to accommodate material behavior.

Considering Indexable Face Milling Cutters for Specialized Machining Operations

Indexable face milling cutters are specialized tools designed to cover more expansive surface areas at once, thus enabling swift material removal rates. These cutters rely on an array of insert configurations and are suitable for operations such as square shoulder milling, high-feed milling, and finish milling. Their design allows for quick insert changes and precise adjustment to ensure consistent performance across varying machining tasks.

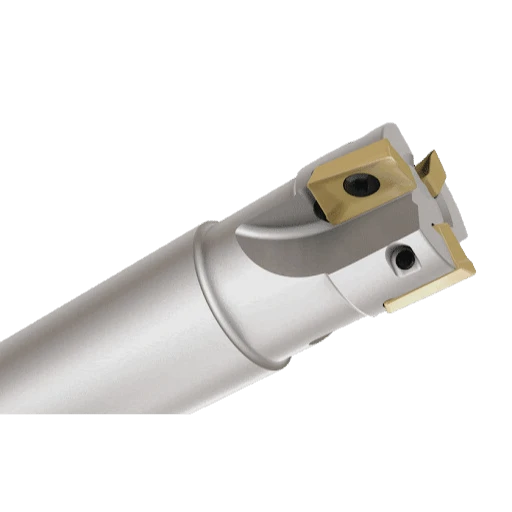

Tips for Maximizing the Performance and Lifespan of Indexable End Mills

Tips for Maximizing the Performance and Lifespan of Indexable End Mills

Proper Maintenance Practices to Extend the Tool Life of Indexable End Mills

To achieve optimal results, it is necessary to regularly inspect tool holders and inserts for signs of wear or damage, ensuring that replacements are made before a decline in machining quality occurs. By adhering to a practical maintenance schedule, premature tool failure can be avoided, and precise cutting outcomes can be sustained.

Optimizing Cutting Parameters for Enhanced Efficiency and Surface Finish

Selecting the appropriate cutting parameters is crucial for enhancing efficiency and achieving a superior surface finish. Careful adjustment of spindle speeds, feed rates, and depth of cut, in accordance with the material properties and desired result, can significantly improve the performance of indexable end mills while reducing excessive strain on the tool.

Effective Chip Evacuation Strategies During Indexable End Mill Machining

Effective chip evacuation is fundamental in preventing tool wear and achieving consistent cutting results. Utilizing appropriate coolant flow, chip breaker designs, and cutting techniques helps maintain a clear cutting area and avoid re-cutting chips, which can compromise cut quality and tool lifespan.

Utilizing Indexable End Mills for Long Reach and Deep Slot Machining

For long-reach and deep-slot machining applications, specific indexable end mills, designed with elongated flutes and suitable insert geometries, are employed to handle the increased overhang and vibration tendencies. The use of these specialized tools requires precise setup and parameter selection to ensure stability throughout the machining process.

Choosing the Right Indexable End Mill Set for Various Machining Requirements

The selection of an appropriate indexable end mill set is dictated by the varied machining requirements encountered in diverse applications. Factors to consider include the material to be machined, the complexity of the workpiece geometry, and the tolerance specifications. By choosing the correct set, one can achieve optimal tool performance and adaptability across a range of machining operations.

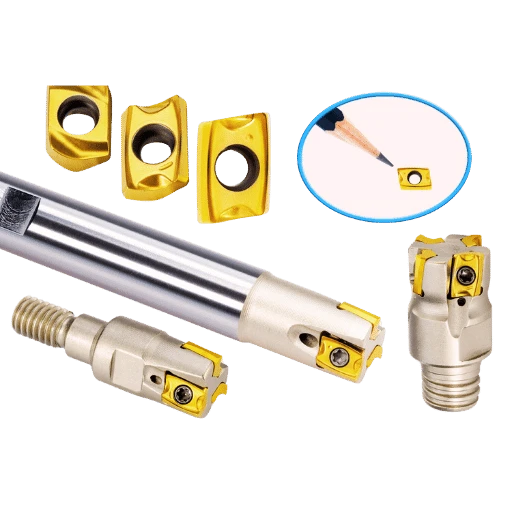

Exploring Advanced Applications and Innovations in Indexable End Mill Technology

Exploring Advanced Applications and Innovations in Indexable End Mill Technology

Latest Developments in Carbide Grades and Tool Coatings for Indexable End Mills

Advancements in carbide grades and tool coatings have significantly enhanced the performance of indexable end mills. New carbide substrates offer heightened toughness and wear resistance, particularly beneficial in extending tool life under challenging cutting conditions. Tool coatings, such as titanium aluminum nitride (TiAlN) and aluminum titanium nitride (AlTiN), provide a further increase in surface hardness and thermal protection, promoting durability and reliable machining in a variety of materials.

Specialized Indexable End Mills for Machining Aluminum, Steel, Titanium, and Stainless Steel

Industry developments have led to the creation of specialized indexable end mills tailored for the effective machining of aluminum, steel, titanium, and stainless steel. For instance, indexable cutters designed for aluminum incorporate polished flutes and high rake angles to reduce sticking and improve chip evacuation. Conversely, end mills intended for more complex materials like titanium and stainless steel feature robust carbide grades and reinforced cutting edges to mitigate the risk of chipping and to withstand the high temperatures generated during cutting processes.

Integrating Indexable Tools with CNC Machines for Precision Milling Solutions

The integration of indexable tools with CNC machines has revolutionized precision milling solutions. Advanced tooling systems are engineered for seamless compatibility with CNC controls, facilitating higher precision levels, optimum feed rates, and speed adjustments. This harmonization ensures maximal tool efficiency and dimensional accuracy, notably improving the milling outcomes across various industries.

Custom Solutions and Tailored Indexable End Mill Designs for Unique Milling Needs

Custom solutions and tailored designs are increasingly sought after to meet unique milling needs. Manufacturers are now offering services to design and produce bespoke indexable end mills that cater specifically to the client’s unique workpiece geometries and material considerations. This approach ensures the optimization of milling operations by providing tools that perfectly align with the specific production requirements.

Enhancing Productivity with Indexable Shell Mills and 90° Square Shoulder Cutters

To further enhance productivity, the use of indexable shell mills and 90° square shoulder cutters has become more prevalent. These tool variants are renowned for their swift metal removal capabilities and ability to produce precise, flat surfaces. Shell mills, with their high insert count, are ideal for face-milling operations. At the same time, the 90° cutters are indispensable for creating square shoulders, promoting efficiency and accuracy in large-scale production environments.

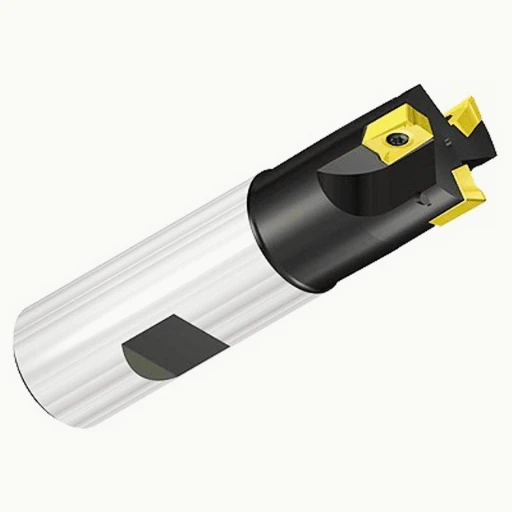

Frequently Asked Questions

Frequently Asked Questions

Q: What is an indexable end mill?

A: An indexable end mill is a type of milling tool that uses replaceable carbide inserts to perform cutting operations.

Q: What are the advantages of using indexable end mills?

A: The use of indexable end mills provides cost-effectiveness, easy replaceability of cutting inserts, and the ability to achieve a variety of cutting results by changing the inserts.

Q: How do I choose the best indexable end mill for my milling needs?

A: Consider factors such as the material to be machined, cutting conditions, desired cutting results, and the type of indexable milling cutter (e.g., face mills, end mills) to make an informed decision.

Q: What are carbide inserts in the context of indexable end mills?

A: Carbide inserts are replaceable cutting tips made of carbide material that are used in indexable end mills to perform various milling operations.

Q: What are the different types of indexable end mill screw configurations?

A: Common screw configurations include the Torx screw, Phillips screw, and hex socket screw, among others, which are used to secure carbide inserts in place within the end mill.

Q: Are indexable end mills compatible with R8 collets?

A: Yes, some indexable end mills are designed to be compatible with R8 collets, allowing for their use in milling machines with R8 spindles.

Q: What are the considerations for selecting the appropriate rake angle for indexable end mills?

A: Factors such as the type of material being machined, cutting speed, and desired chip control influence the selection of the appropriate rake angle for indexable end mills.


Here are ten reliable sources that provide valuable information about how to choose the best indexable end mill for your milling needs:
