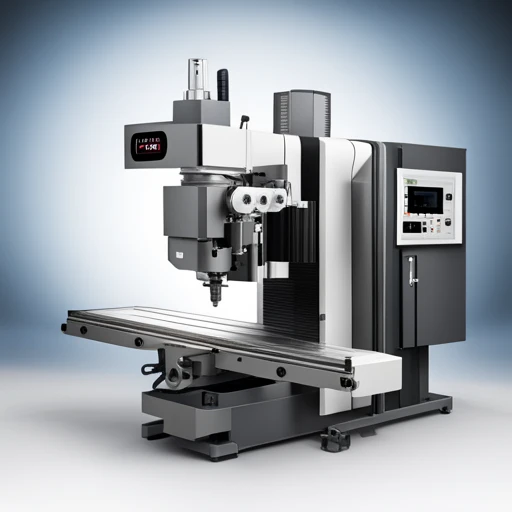

Everything You Need to Know About Milling Machines

Everything You Need to Know About Milling Machines
Everything You Need to Know About Milling Machines

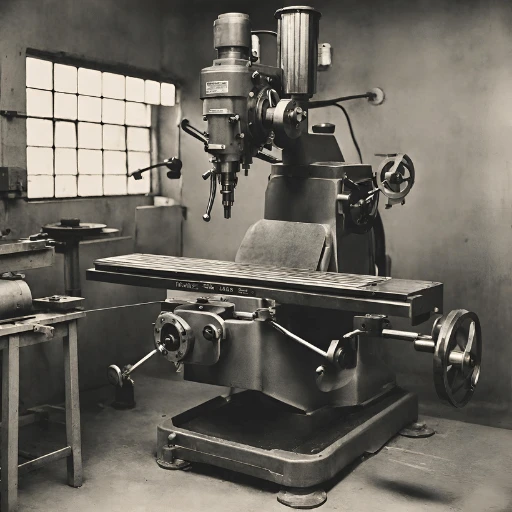

What is a milling machine?

What is a milling machine?

A milling machine is a versatile piece of equipment used in the metalworking industry to shape solid materials, primarily metal. It operates by removing material from a workpiece through the use of a rotating cutter with multiple cutting edges. Unlike a lathe, where the workpiece rotates, in a milling machine, the cutting tool rotates while the workpiece is mounted on a stationary bed. Milling machines can be classified into two main types: horizontal and vertical, referring to the orientation of the spindle, the component that holds and drives the cutter. They are capable of performing a wide range of tasks, including drilling, tapping, slotting, and contouring, and are essential for precision machining of parts and components in manufacturing processes.

Understanding the basics of a milling machine

  • Spindle Orientation: The spindle, holding the cutting tool, can be oriented vertically or horizontally, leading to two primary types of milling machines: vertical and horizontal.
  • Tool Selection: Various cutting tools are selected based on the material being machined and the type of operation—such as end mills for complex surface machining or drill bits for creating precise holes.
  • Speed and Feed Rate: Milling operations must consider the optimal speed of the rotating cutting tool and the feed rate of the workpiece to achieve the desired precision without overloading the tool.
  • Axis Movement: Modern milling machines often feature multi-axis capabilities, allowing movement along the X, Y, and Z axes for complex shapes and profiles.
  • Coolant System: The use of coolants to dissipate heat is critical, protecting the cutting tool and workpiece from excessive thermal stress and improving their longevity.
  • Computer Numerical Control (CNC): CNC milling machines use computerized controls to operate with high precision, providing repeatability and efficiency in high-volume tasks.
  • Workpiece Holding: Proper work-holding devices, such as vises and clamps, are required to secure the workpiece during machining operations to ensure accuracy and eliminate movement.

Importance of milling machines in different industries

  • Aerospace: Precision is paramount in the aerospace industry, and milling machines fabricate the high-strength, lightweight parts needed for aircraft structures and engines.
  • Automotive: Milling machines are used extensively in the automotive sector to create engine components, mold designs, and intricate chassis elements crucial for vehicle safety and performance.
  • Electronics: The miniaturization of electronic components requires the precision of milling machines to produce complex circuit boards and housings.
  • Healthcare: Milling machines provide the necessary precision for creating medical devices, such as implants and prosthetic devices, that adhere to stringent medical standards.
  • Energy: In the energy sector, whether for traditional power generation or newer sustainable technologies, milling machines are central to manufacturing robust and efficient turbine components.
  • Defense: The defense industry utilizes milling machines in the manufacture of critical equipment, from vehicles to munitions, necessitating strict adherence to specifications for durability and safety.

Evolution of milling machines over the years

The historical progression of milling machines is marked by significant technological advancements and adaptations that align with manufacturing needs across eras. Initially, manual milling machines defined the fabrication landscape, with operators directly controlling the machine tools via hand wheels and levers. The introduction of numerical control (NC) in the mid-20th century represented a substantial shift, allowing for the programming of machine tool paths and reducing the reliance on manual operation. This evolved into computer numerical control (CNC), providing greater precision, repeatability, and efficiency via computerized systems. Presently, advancements yield milling machines with sophisticated capabilities, such as multi-axis movement, high-speed machining, and adaptive control—improving production times and accuracy while expanding the complexity of achievable part geometries.

Significance of milling machines in modern manufacturing

In contemporary manufacturing, milling machines are indispensable due to their versatility and precision in machining a wide range of materials. From intricate aerospace components to large automotive assemblies, these machines facilitate the shaping of basic and complex parts while maintaining exceptional tolerance levels. The integration of automated tool changers, advanced software, and digital monitoring systems into modern milling equipment enhances production throughput. It minimizes human error, culminating in a substantial improvement in overall manufacturing efficiency. Furthermore, the adaptability to incorporate various materials – from metals to composites – is imperative in an era that demands material innovation for performance and sustainability. Consequently, milling technology continues to be at the forefront of manufacturing advancements, reflecting the industry’s ongoing commitment to quality, adaptability, and innovation.

Advancements in milling machine technology

Advancements in milling machine technology are revolutionizing manufacturing. Hybrid milling machines combine additive and subtractive processes for complex and precise manipulations. Integration of AI, machine learning, real-time data analytics, and IoT optimize operations, enhancing efficiency and reducing downtime. These advancements push the boundaries of part design and production, contributing to more innovative, connected factories. Types and Applications of Milling Machines

Types and Applications of Milling Machines

Types and Applications of Milling Machines

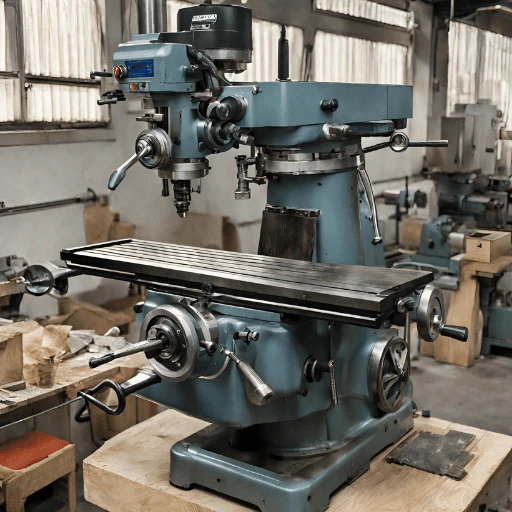

Exploring the various types of milling machines

Milling machines are categorized based on their orientation to the workpiece and spindle direction:

  1. Vertical Milling Machines: These are characterized by a vertically oriented spindle that holds and rotates the cutting tool against the stationary workpiece. Ideal for plunge cuts and drilling, vertical mills are predominantly used for small to medium-sized pieces.
  2. Horizontal Milling Machines: Distinguished by a spindle oriented horizontally to the worktable, these machines are typically used for heavier and larger workpieces. With their ability to perform more severe cuts, horizontal mills can efficiently handle challenging removal processes.
  3. Universal Milling Machines: Featuring a rotatable mill head, universal milling machines can operate both vertically and horizontally, providing greater flexibility and allowing for angular and helical milling operations.
  4. Turret Mills: Turret mills, also known as Bridgeports, are versatile vertical millers where the spindle remains stationary during cutting operations. At the same time, the table moves perpendicular and parallel to the spindle axis to position the material.
  5. Bed Mills: A more rigid alternative to a turret mill, bed mills feature a table that moves only perpendicular to the spindle’s axis. In contrast, the spindle itself moves parallel to its axis.
  6. CNC Milling Machines: CNC mills utilize computer numerical control to automate milling with remarkable precision and speed. They may be vertical or horizontal and are capable of creating complex 3D shapes, high-precision parts, and large-scale production components.
  7. Multi-Axis Milling Machines: Multi-axis machines expand upon the capabilities of CNC milling, offering additional rotary axes for greater freedom and complexity in machining. They can operate on several planes simultaneously, significantly reducing the need for multiple setups.

Distinguishing features of vertical milling machines

Vertical milling machines are characterized by their vertically oriented spindle, which holds and rotates the cutting tool against the stationary workpiece. One of the primary advantages of vertical mills is their ability to perform detailed work, as the spindle’s orientation allows for more precise alignment and depth control. Varying in size and capacity, these machines are handy for applications that require drilling, plunge cuts, and die-sinking, which can be performed with exactitude due to the vertical approach of the tool. Additional distinguishing features include their typically smaller footprint compared to horizontal machines, making them a practical choice for workshops with limited space, and their ease of operation and maintenance, which make them suitable for educational and small to medium-production environments. Vertical mills are usually classified into two categories: the turret mill and the bed mill, each offering a different degree of versatility and movement in the spindle or table.

Understanding the working principles of CNC milling machines

CNC milling machines use subtractive manufacturing to create precise and complex parts. A computer-aided design (CAD) model is translated into a computer-aided manufacturing (CAM) program, which generates instructions for the machine. The machine then removes material from a solid workpiece, shaping it according to the design. This process allows for high precision and repeatability, making it crucial for industries like aerospace, automotive, and medical device manufacturing.

Applications of different milling operations

Milling operations can be broadly classified into two categories: face milling and peripheral milling. In face milling, the cutting action occurs primarily at the end corners of the milling cutter. This operation is predominantly utilized for cutting a flat surface or a square edge on the workpiece and is distinguished by its ability to achieve high-quality surface finishes. Conversely, peripheral milling also referred to as slab milling, involves the cutting action on the circumference of the cutter, enabling the machining of the workpiece’s outer surface. This technique is particularly efficient for the quick removal of material, making it suitable for the initial roughing stage.

Additional specific types of milling operations include:

  • Profile milling: Employed for shaping and cutting complex contours in the workpiece.
  • End milling: Suitable for creating pockets, slots, and contours in the workpiece.
  • Chamfer milling: Applied to create beveled surfaces, prepare parts for welding, or deburr cuts.
  • Drilling: Employed to create straight, cylindrical holes in the material.
  • Boring: Used to enlarge holes or increase the precision of their diameters.
  • Reaming: Ideal for finishing drilled holes to a high degree of accuracy and surface finish.

Each of these operations leverages the unique capabilities of CNC milling machines to fulfill specific manufacturing needs and achieve desired geometries and finishes on various materials.

Considerations when selecting a specific type of milling machine

When choosing a milling machine, several factors must be taken into account to ensure the equipment meets the specific requirements of the task at hand. The material to be milled is a critical determinant, as different machines offer varying capacities for hardness and rigidity. The complexity of the part geometry is equally essential; for intricate shapes, a machine with higher precision and advanced software capabilities may be necessary. Size and weight capacity should align with the dimensions and mass of the workpieces to be handled. Additionally, the machine’s power and speed capabilities should be considered to match the production volume and deadline constraints. Spindle orientation—vertical or horizontal—further influences the suitability for particular milling operations, and tool-changing systems impact the overall efficiency of the machining process. Lastly, the availability of support and maintenance services can be crucial for the ongoing operation of the milling machine.

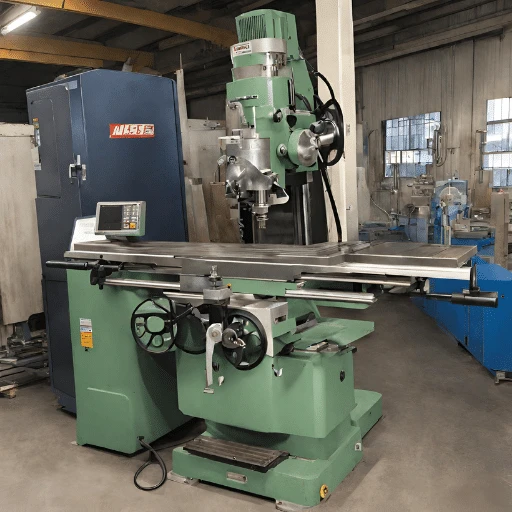

Milling Machine Operations and Techniques

Milling Machine Operations and Techniques

Understanding the key components and parts of milling machines

Understanding the key elements and parts of a milling machine is imperative for utilizing its full capabilities effectively. The major components include:

  • Base: Provides support for all other parts of the milling machine. It contains the coolant reservoir and the chip tray.
  • Column: Attached to the base, the column supports the knee, turret, and arm. It includes the spindle, gearbox, and motor.
  • Spindle: The principal axis of the machine that holds the tooling that performs the cutting operations. The spindle can be oriented vertically or horizontally.
  • Table: Mounted on the knee, the table holds the workpiece. It typically has T-slots for securing the work or work maintaining devices.
  • Knee: The knee moves vertically along the column and carries the saddle and table. It provides the up-and-down motion for the table.
  • Saddle: Positioned on the knee, the saddle slides in and out from the column to position the workpiece.
  • Overarm/Arbor support: On a horizontal milling machine, this component supports the outer end of the arbor and can be moved in and out along the cutter axis.

These components, in coordination, enable precise control of the cutting tool and workpiece, which is essential for effective milling operations. Understanding their functions and interactions is critical for operators aiming to optimize the milling process.

Exploring different types of cutting tools used in milling machines

Cutting tools are crucial in milling operations, each designed for specific functions and materials. The chief categories include:

  • End Mills: Employed for detailed cutting of slots, profiles, and complex contours. They come in a variety of profiles, including flat, ball-nose, and corner radius end mills.
  • Face Mills: Used primarily in cutting flat surfaces. They hold multiple inserts on the periphery and sometimes on the face of a cutting head.
  • Slab Mills: Designed for cutting broad horizontal or vertical surfaces with precision. Their large diameter and short width distinguish them.
  • Fly Cutters: Simple cutting tools used for machining large, broad surfaces by making successive passes across the material.
  • Hole-Making Tools: This category includes drill bits for creating cylindrical holes, boring tools for enlarging holes, and reamers for finishing drilled holes.

Each tool type has specific characteristics and is made from a variety of materials, such as high-speed steel or carbide, to meet different operational requirements. The choice of the cutting tool depends on factors like the type of material being milled, the complexity of the operation, the finish required, and production volume, all of which influence the overall efficiency and quality of the milling process.

Optimizing milling operations for efficiency and precision

To maximize milling efficiency, a multifaceted approach is essential. Key strategies include optimizing spindle speed, feed rate, and depth of cut and utilizing CNC technology for precise control. Coolant/lubricant reduces heat, while maintenance and tool path patterns enhance precision. Advanced techniques like vibration analysis and adaptive control systems maintain quality and minimize wear.

Challenges and solutions in milling machine operations

Milling machine operations face challenges such as tool wear, vibration, and workpiece material variations. To overcome these, implementing a maintenance schedule, employing vibration damping techniques, using multi-purpose cutting tools, and investing in operator training can improve efficiency and maintain quality. Embracing technological advancements enhances productivity in milling operations.

Best practices for using milling machines in multiple applications

To achieve optimal results in milling operations, it is essential to follow best practices. This includes selecting the appropriate machine type based on the task’s requirements and using the right tools for the job. Calibration, accurate setup, and proper use of fixtures and clamps are crucial for dimensional precision. Uniform cutting fluid application and leveraging CAM software can enhance efficiency and reduce errors. Consistent monitoring and scheduled maintenance help minimize downtime and preserve equipment integrity. By following these guidelines, milling operations can improve accuracy, prolong equipment life, and increase cost-effectiveness in various applications.

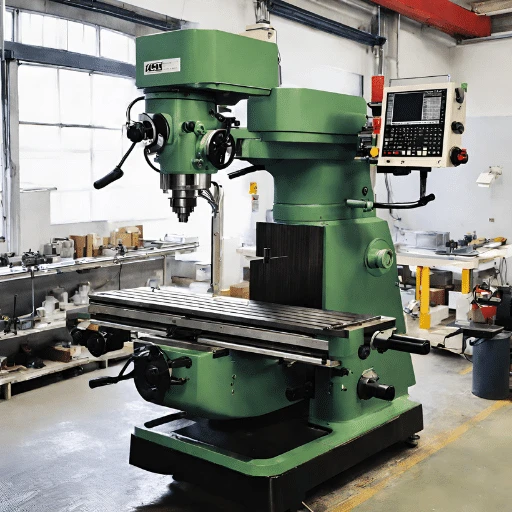

Safety and Maintenance of Milling Machines

Safety and Maintenance of Milling Machines

Ensuring operator safety while using milling machines

Operator safety is paramount in milling operations. To safeguard personnel, adherence to comprehensive safety protocols is mandatory. Effective strategies include implementing stringent lockout/tagout procedures to prevent accidental startups, enforcing the use of personal protective equipment such as safety glasses, gloves, and ear protection, and conducting regular safety training sessions. Additionally, integrating machine guards can provide a physical barrier between the operator and moving parts, substantially reducing the risk of injury. Ensuring all safety interlocks are functional and prominently displaying emergency stop buttons are essential measures. Compliance with these safety standards ensures a reduced risk of accidents and promotes a culture of safety within the machining environment.

Importance of regular maintenance and servicing of milling machines

Routine maintenance and servicing of milling machines are critical to ensure their optimal performance and longevity. The following points underscore the significance of maintenance:

  • Preventive Maintenance: Scheduled inspections and pre-emptive maintenance reduce the possibility of unexpected equipment failures that can cause costly downtime and production delays.
  • Accuracy and Quality: Routine calibration and alignment of milling machines guarantee that the tolerances and specifications of machined parts remain within the requisite precision levels, maintaining manufacturing quality.
  • Extended Equipment Lifespan: Consistent servicing helps in spotting wear and tear early, enabling repairs before they escalate into significant malfunctions, thereby prolonging the machinery’s operational life.
  • Safety Enhancement: Regular maintenance ensures that all safety devices and guards are functioning correctly, significantly reducing the likelihood of accidents and enhancing operator safety.
  • Efficiency Optimization: Well-maintained machines exhibit higher operational efficiency, which translates into faster production times and lower energy consumption.
  • Cost Reduction: Although maintenance incurs an upfront cost, it is instrumental in avoiding expensive repairs and machine replacements, ultimately leading to cost savings.

Incorporating a systematic maintenance program is fundamental to maintaining the performance and reliability of milling machines, thus sustaining productivity and safety in manufacturing operations.

Common issues and troubleshooting techniques for milling machines

Milling machines are subject to a variety of operational challenges that can impede production. Identifying common issues and implementing effective troubleshooting techniques is crucial for maintaining operational efficiency. Key issues include:

  • Tool Wear or Breakage: Regular monitoring of cutting tools for wear and damage can avert substandard finished products. Implementing appropriate feed rates and using correct tool materials are prevention strategies.
  • Vibration and Noise Issues: Often indicative of misalignment or unbalanced moving parts, these issues can be mitigated by ensuring all components are correctly installed and securely tightened.
  • Control System Malfunctions: Modern milling machines rely on sophisticated control systems. Routine software updates and hardware inspections can prevent unexpected control system failures.
  • Lubrication Failure: Adequate lubrication is essential for smooth operation. Checking and replenishing lubricant levels should be part of the standard maintenance routine to prevent overheating and excess wear.
  • Spindle Alignment Problems: Precise spindle alignment is paramount. Techniques like laser alignment can be employed to ensure the spindle’s accuracy, enhancing the overall quality of the machining process.

By systematically addressing these common problems using appropriate troubleshooting techniques, operators can ensure that milling machines maintain peak performance, thereby minimizing downtime and loss of productivity in manufacturing settings.

Implementing safety standards and protocols in milling machine workshops

Implementing stringent safety standards and protocols in milling machine workshops is not just a regulatory requirement but a fundamental aspect of operational excellence. A comprehensive safety program should include:

  • Personal Protective Equipment (PPE): Enforcing the use of safety goggles, ear protection, and steel-toed boots to safeguard against flying particles, noise, and heavy objects.
  • Training and Certification: Regularly scheduled training sessions that educate machine operators on the latest safety practices and emergency responses.
  • Machine Guards: Utilization of fixed or adjustable guards to protect operators from chips, sparks, and other potential hazards emitted during the milling process.
  • Emergency Stop Controls: Strategically placed emergency stop buttons for immediate shutdown of equipment to prevent accidents and injuries.
  • Exhaust Systems and Ventilation: Ensuring appropriate fume and dust extraction systems are in place to maintain air quality and prevent respiratory issues.
  • Regular Safety Audits: Periodic inspections conducted by safety officers to ensure continued compliance with safety standards and to identify potential risks for preemptive action.

By adhering to these protocols, milling workshops can significantly reduce the risk of work-related injuries and foster an environment that prioritizes the well-being of its personnel, thereby enhancing productivity and morale.

Factors to consider for safe and efficient operation of milling machines

To ensure the safe and efficient operation of milling machines, it is essential to consider the following factors:

  • Pre-Operative Checks: Instituting a checklist for pre-operative inspections can identify potential equipment malfunctions that may compromise safety or disrupt production.
  • Spindle Speed and Feed Rate: Properly setting the spindle speed and feed rate is crucial to match the material properties and milling cutter specifications, thereby reducing the risk of tool wear or breakage.
  • Workpiece Securing: Implement reliable work-holding devices and check the grip periodically to prevent the workpiece from shifting during the milling operation.
  • Machine Maintenance: Upholding a strict maintenance schedule to ensure machinery is in optimal working condition, which involves regular lubrication, part replacements, and calibration.
  • Tool Selection and Handling: Choosing the suitable milling cutter for the task, considering factors such as material, coating, flutes, and geometry while also employing correct tool handling procedures to minimize the risk of incidents.
  • Technological Enhancements: Utilize advanced software for computer numerical control (CNC) milling machines to control operations precisely and minimize errors.
  • Coolant and Lubrication Systems: Ensuring that coolant flow and lubrication are appropriately applied to reduce heat and friction, which can affect milling accuracy and tool longevity.
  • Operator Skill Level: Assigning tasks according to the proficiency level of operators, with complex operations handled by more experienced personnel.

By incorporating these factors into daily operations, milling machine workshops can achieve a balance between maintaining workplace safety and realizing high-efficiency output.

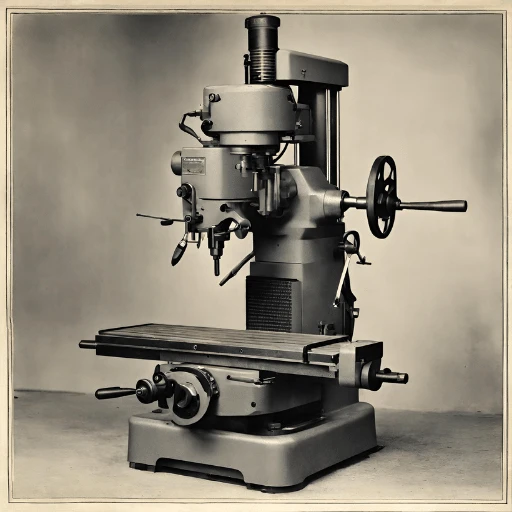

Frequently Asked Questions

Frequently Asked Questions

Q: What is the history of milling machines?

A: Milling machines have been used since the 19th century to shape solid materials. Initially, they were operated manually, but with technological advancements, computer numerical control (CNC) machines have become prevalent.

Q: How does the milling process work?

A: Milling involves using rotary cutters to remove material from a workpiece. The cutter is capable of moving along multiple axes, allowing for the creation of a variety of shapes, slots, holes, and more.

Q: What are the different types of milling?

A: There are various milling methods, including face milling, end milling, plain milling, and more, each catering to specific machining needs and producing distinct results.

Q: What are the different types of milling machines?

A: Milling machines come in many different types, including vertical, horizontal, and universal models. CNC machines offer automated precision, while manual machines require hands-on operation.

Q: What is industrial milling used for?

A: Industrial milling is employed in manufacturing processes to produce parts and components for various industries, including aerospace, automotive, and construction, among others.

Q: What should be considered when selecting a milling machine?

A: Factors to consider when choosing a milling machine include the type of material to be machined, production volume, required precision, and the level of automation needed.

Q: What is a CNC machine in the context of milling?

A: CNC machines, or computer numerical control machines, are automated milling tools that utilize pre-programmed computer software to execute precise machining operations.

Q: What is the significance of a rotary table in milling machines?

A: A rotary table enables milling operations to be performed at various angles, promoting versatility and allowing for the creation of complex geometries on workpieces.

Q: What are the key features of new milling machines?

A: New milling machines offer advanced technologies such as 5-axis capabilities, power feeds, and enhanced software integration, enabling more efficient and precise machining processes.

Q: Where can different types of milling machines be used?

A: Different types of milling machines can be utilized in machine shops, industrial milling centers, and manufacturing facilities for a wide range of applications, from simple drilling to intricate thread milling.
