Ultimate End Mill Selection Guide: Choosing the Right Type of End Mill

Ultimate End Mill Selection Guide: Choosing the Right Type of End Mill

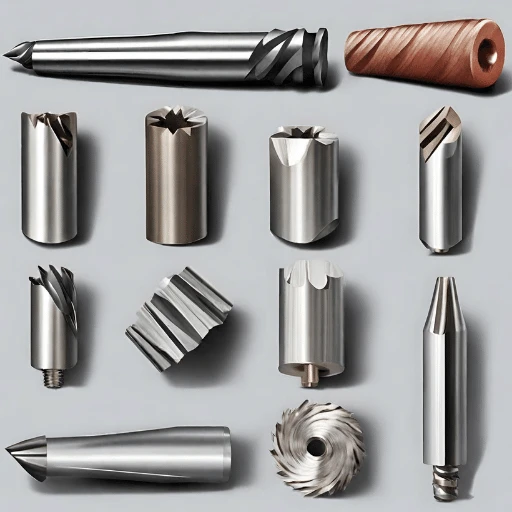

types of end mills

What Are End Mills and Their Types?

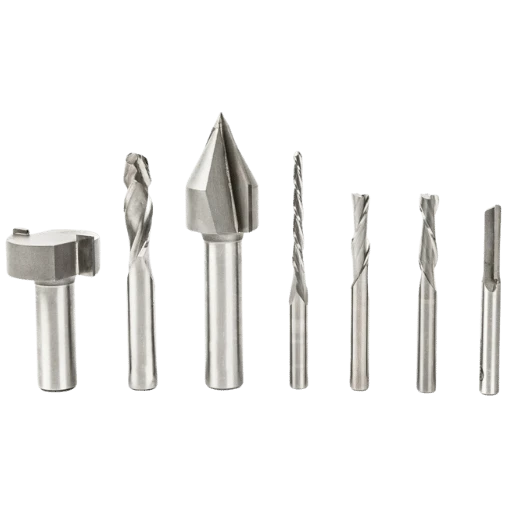

types of end mills

End mills are versatile cutting tools used in milling applications, designed to remove material from workpieces. There are several types of end mills, each suited for specific tasks and materials. Notable among them are:

  • Carbide End Mills: Known for their durability and precision, they are made from carbide. This material stands up well to high cutting temperatures and offers a high degree of wear resistance.
  • Solid Carbide End Mills: Constructed entirely of carbide, they provide superior rigidity and are ideal for high-speed milling operations and for cutting hard materials like titanium.
  • Corner Radius End Mills: These end mills have a radius ground on the corners of the cutting edges, which increases the tool’s strength and allows for higher cutting speeds.
  • Ball Nose End Mills: Featuring a full radius end, they are ideal for 3D contour work, offering high accuracy in curved surface milling.
  • Cobalt End Mills: Made from a high percentage of cobalt, these end mills are particularly effective at cutting tough metals like stainless steel and hardened alloys due to their increased wear and heat resistance.

How to Choose the Right End Mill

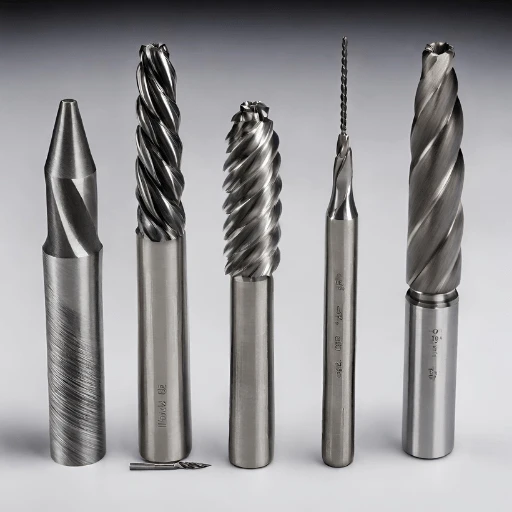

How to Choose the Right End Mill

End Mill Selection Guide

When selecting an end mill for a specific machining task, it is crucial to consider several parameters that directly influence performance and results. The choice of an end mill is dictated by the material being machined, the type of milling operation, the desired finish, and the machine’s capabilities. To aid in selection, here are key factors to evaluate:

  • Material Compatibility: Match the end mill composition to the workpiece material. For instance, carbide end mills are suited for high-hardness metals, while high-speed steel (HSS) may suffice for softer materials.
  • Coatings: Opt for coated end mills, such as TiAlN or AlCrN, when milling materials that generate significant heat or for extended tool life.
  • Flute Count: Choose fewer flutes for better chip evacuation in softer materials and a higher flute count for more complex materials to ensure a finer finish.
  • Helix Angle: A higher helix angle typically reduces cutting forces and offers a smoother cut, while a lower helix angle increases the rigidity of the tool.
  • Tool Geometry: Consider end mills with specific geometries like corner radius for enhanced strength or ball nose for 3D contouring capabilities.

By assessing the operational demands and aligning tool characteristics with them, manufacturers and machinists can optimize tool performance and extend tool life, ensuring efficient and precise milling operations.

Choosing the Right End Mill for Your Project

Choosing the right end mill for your project involves analyzing the specific requirements of the application and the capacities of the machining equipment. In precision machining, the correct end mill can significantly influence the quality, speed, and cost-effectiveness of the process. Here are steps to guide your selection:

Step 1: Define the Application

Identify the nature of the project. Is it a roughing operation or a finishing operation? Will you be profiling, slotting, or performing detailed 3D contouring? Each process will have its optimal tool type and characteristics.

Step 2: Material Considerations

Determine the material of the workpiece. Materials like aluminum demand different end-mill attributes compared to titanium or stainless steel. For abrasive materials, a tool with a coating designed for high wear resistance is preferable.

Step 3: Machine Specifications

Understand the power and rigidity of your CNC machine. This will affect the size of the end mill that can be used and the depth of cut it can handle.

Step 4: Operational Parameters

Establish the operational parameters such as cutting speed (RPM), feed rate, depth of cut, and the cutting environment, whether it will be dry or wet. Tailor your tool choice to these conditions to ensure peak performance.

Step 5: Vendor Selection

Research and select a reputable vendor with quality end mills that have consistent tolerances and performance characteristics.


Each step is essential in narrowing down the wide range of end mill choices to the one best suited for your specific project, ensuring the efficiency, longevity, and accuracy of the tool during the milling process.

Benefits of Using End Mills

End mills are utilized in milling applications due to their versatility and capability to perform complex cuts. Here are the quantifiable benefits they present:

  • Precision: End mills are manufactured to meet tight tolerances, enabling them to produce precise and intricate geometries in various materials.
  • Versatility: With a range of types, sizes, and materials, end mills can accommodate a vast array of milling operations, from slotting and profiling to trace milling and plunging.
  • Efficiency: The design of end mills allows for high rates of material removal, leading to shorter production times and reduced costs.
  • Surface Finish Quality: High-quality end mills can achieve superior surface finishes, often reducing or eliminating the need for subsequent finishing processes.
  • Tool Longevity: Advanced coatings and substrates enhance the durability and lifespan of end mills, even when used with challenging materials.
  • Customization: Manufacturers can produce end mills with specific attributes tailored to unique machining tasks, optimizing the tool for a given application.

Using End Mills for Different Milling Operations

End mills are versatile cutting tools imperative for various milling operations; these include:

  • Slotting: Often used for cutting rectangular slots or channels, flat-end mills are employed for this operation, ensuring straight side walls and flat bottoms.
  • Profiling: The contouring of the exterior of a part is achieved through profiling, with an emphasis on employing end mills that can navigate the part’s shape with precision.
  • Tracing: During trace milling, the tool follows a path or “trace” to create thin cuts or engrave detailed designs on the surface of the material.
  • Plunging: Plunge cutting requires end mills designed to enter and exit material vertically, whereas traditional milling involves moving horizontally.
  • Finishing: To produce smooth surfaces and refined features, end mills with high flute counts are preferred, ensuring minimal material removal per pass while maximizing finish quality.

Selecting the appropriate end mill based on these operations, material compatibility, and desired outcomes is critical to the success of the milling process. The utilization of optimized tool paths and operational parameters further enhances the efficacy and results of these diverse milling applications.

Selection Based on Material and Application

The selection of end mills depends on the material and application. Different materials like aluminum, steel, and titanium require specific cutting tools due to variations in toughness and thermal conductivity. For example, end mills for aluminum have higher flute counts to prevent sticking. When considering the application, the geometry and coating of the end mill should be tailored to the task. Coatings like Titanium Nitride (TiN) or Diamond-Like Carbon (DLC) can extend tool life. Machine capabilities should also be considered. By carefully selecting end mills based on these factors, milling operations can be optimized for efficiency and precision.

Understanding Different End Mill Designs and Functions

Understanding Different End Mill Designs and Functions

Essential Types of End Mills and Their Uses

  • Square End Mills: Often referred to as flat end mills, their squared corners and flat bottom characterizes them. They are typically used for general milling applications, including slotting, profiling, and plunge cutting. Square-end mills are versatile and are considered the industry standard for most milling needs.
  • Ball End Mills: These possess a hemispherical tip and are used for milling contoured surfaces, slotting, and pocketing. Ball end mills are ideal for producing three-dimensional shapes and semi-rounded edges and are frequently utilized in the die and mold industry.
  • Corner Radius End Mills: This variety of end mills has a rounded corner that strengthens the tool and thus increases tool life while reducing chipping during milling operations. The corner radius end mill is an optimal tool for milling fillets and is also beneficial when used on more complex materials where sharp corners can be more prone to chipping.
  • Flat-End Mills: Flat-end mills are synonymous with square-end mills and, therefore, share the same applications in producing flat-bottomed grooves and slots.
  • Chamfer End Mills: Chamfer end mills have angled edges, which are used for creating bevels and chamfers, performing countersinking, and deburring edges. The angled tip increases surface contact when compared to end mills with different geometries, which can improve finish and appearance.

Considering the diversity of milling operations, it is essential to select the end mill type that is best suited to the specific application and material being machined. Each end mill type offers a distinct advantage in its specialized area and, when chosen strategically, can significantly impact the efficiency and quality of the milling process.

Typical Applications and Uses of End Mills

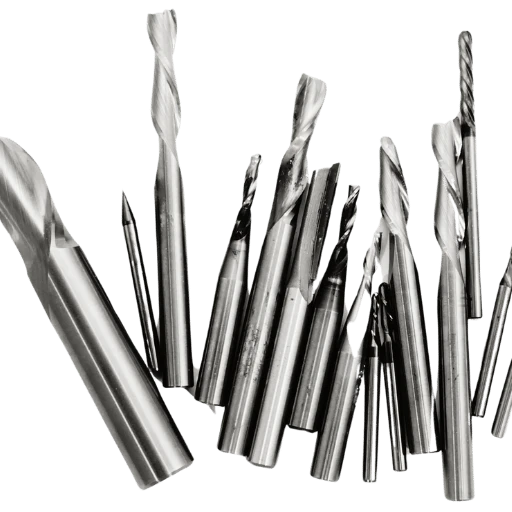

Typical Applications and Uses of End Mills

End Mills for Surface Finishing

Surface finishing end mills are designed with a high number of flutes, which ensures a better surface complete on the workpiece. Often made from carbide or other high-speed steel materials, these end mills produce a smoother, more precise cut that is ideal for the final touches on a machined part.

End Mills for Roughing and Profile Milling

End mills suitable for roughing and profile milling are typically made robust to withstand the high cutting forces encountered during the removal of large amounts of material. They often feature a specific geometry and high flute count to facilitate chip evacuation and provide efficient cutting across various materials.

End Mills for Slot Cutting and Face Milling

Slot-cutting and face-milling operations require end mills that can produce clean sidewalls and flat bottom cuts. Slot-cutting end mills have fewer flutes to allow ample space for chips to escape, while face-milling end mills are designed to produce a high-quality face finish on the workpiece.

Choosing the Right End Mill for Different Milling Operations

When selecting the appropriate end mill for differing milling operations, several critical factors should be considered to optimize performance and tool life. Here are the key considerations:

  1. Material Compatibility: Choose an end mill with a substrate material and coating that is compatible with the workpiece material. For instance, titanium nitride coatings can enhance hardness and reduce friction, making the end mill suitable for more rigid materials like stainless steel.
  2. End Mill Geometry: Geometry includes the number of flutes, helix angle, and the shape of the cutting edge. These attributes should be matched to the milling operation—for example, a higher helix angle reduces vibration. It provides a smoother cut, which is beneficial when working with metals that have a propensity to work harden.
  3. Size and Tolerance Requirements: The size of the end mill should correspond with the finest detail of the part’s design, with tolerances taken into consideration to ensure precision in the final machined product.
  4. Type of Milling Operation: Different end mills excel in various operations—ball nose end mills for contouring, corner radius end mills for longevity in pocketing, and roughing end mills for swiftly removing material. The operation determines the end mill selection.
  5. Tool Strength and Rigidity: Particularly in operations that involve high cutting forces or deep slots, the end mill must have sufficient core strength and rigidity to prevent deflection.
  6. Chip Evacuation Efficiency: Ample flute space for proper chip evacuation is crucial to prevent the re-cutting of chips, which can degrade the finish and cause premature tool wear.
  7. Speed and Feed Rates: One must also take into account the recommended speed (RPM) and feed rate (inches per minute) for the end mill, bearing in mind that exceeding these rates can lead to increased wear or tool breakage.

By considering these aspects, machinists can make well-informed end mill selections that lead to efficient, precise, and cost-effective milling operations.

Preventing Damage to End Mills and Workpieces

Minimizing the damage to end mills and workpieces starts with the correct end mill selection and extends to the optimization of feed rates, spindle speeds, and the use of suitable coolant or lubricant. Regular inspection of the end mill for wear and appropriate setup can also contribute to the longevity of the tool and the quality of the finished product.

Maximizing Performance and Longevity of End Mills

Maximizing Performance and Longevity of End Mills

Proper Maintenance and Sharpening Techniques

Proper maintenance of end mills is critical to extending their service life and ensuring consistent performance. Here are recommended procedures and tips for maintenance and sharpening:

  1. Regular Cleaning: After each use, clean the end mill to remove any chips, oil, or debris that could cause corrosion or build-up, and inspect for any signs of wear or damage.
  2. Protective Coatings: Consider applying protective coatings that can reduce wear and increase tool life. These coatings can also enhance performance in specific materials or applications.
  3. Expert Resharpening Services: Utilize professional resharpening services that have the expertise and equipment to restore end mills to their original specifications, ensuring that the cutting edges are precise and symmetrical.
  4. Precise Sharpening Angles: When sharpening the tool, it is vital to maintain the correct helix angles and cutting-edge geometries. Incorrect angles can compromise the tool’s performance and lead to increased wear or failure.
  5. Storage Solutions: Store end mills in a dry, organized environment where they are protected from impacts and corrosion. This often means using original cases, racks, or containers with protective sleeves.
  6. Lubrication and Coolants: Always use the recommended type of lubrication or coolant for the specific end mill and material being machined. This can prevent overheating and maintain cutting efficiency.

By adhering to proper maintenance and sharpening practices, the performance and longevity of end mills can be maximized, resulting in more reliable machining processes and better workpiece quality.

Best Practices for Maximizing Tool Life

To ensure the optimal performance of end mills, it is imperative to employ a comprehensive approach to their maintenance and handling. Here are some crucial best practices:

  1. Regular Inspection: Implement a systematic inspection schedule to detect potential issues before they escalate. Check for signs of dullness, chipping, or abnormal wear patterns.
  2. Controlled Handling: Handle end mills with care to prevent accidental damage. Dropping, clashing, or improper installation can compromise their structural integrity.
  3. Environment Control: Maintain a controlled environment where temperature and humidity are regulated to avoid material degradation and dimensional instability of the tool.
  4. Inventory Management: Keep a record of tool usage and performance. This helps in forecasting the need for replacements, managing inventory efficiently, and preventing unexpected downtimes.
  5. Usage Parameters: Adhere strictly to the manufacturer’s specifications for cutting speeds, feeds, and material compatibility to ensure the end mills are used within their intended operational parameters.

Incorporating these practices enhances the durability and effectiveness of end mills, ultimately contributing to a cost-efficient and productive machining operation.

Considerations for High-Speed and Heavy-Duty Operations

For operations that demand high speeds and withstand heavy-duty demands, it is crucial to consider several additional factors:

  1. Tool Material: Opt for end mills crafted from materials that can tolerate high temperatures and resist abrasion, such as carbides, cobalt, or powdered metals.
  2. Coatings: Utilize coatings that can reduce friction and increase hardness, which is essential when working at elevated speeds and feeds.
  3. Tool Geometry: Select end mills with geometries optimized for high-speed machining, including appropriate helix angles and flute counts, to facilitate efficient chip evacuation and heat dissipation.
  4. Rigidity: Ensure the entire tool setup, including the spindle, holder, and workpiece clamping, is as rigid as possible to minimize vibrations that can lead to tool deflection and premature wear.
  5. Coolant Usage: Implement an effective coolant strategy, either through flood coolant or minimum quantity lubrication, to prevent thermal shock and to provide lubrication, especially during heavy-duty cutting.

By taking these considerations into account, operations can achieve a balance between the productivity of high-speed machining and the robustness required for heavy-duty tasks.

Coolant and Lubrication for End Mill Operations

The implementation of coolant and lubrication in end mill operations plays a pivotal role in maintaining tool integrity, part quality, and machining efficiency. The primary functions of these fluids are to reduce cutting temperatures, minimize tool wear, and improve surface finishes.

Types of Coolant Delivery Systems:

  • Flood Coolant: This system delivers a high volume of coolant directly to the cutting area, which is effective for heat management and flushing away chips.
  • Through-Spindle Coolant: This advanced system directs coolant through channels within the tool holder and end mill, enabling precise cooling at the tool-workpiece interface.
  • Minimum Quantity Lubrication (MQL): MQL systems apply a fine mist of lubricant, reducing the quantity while still providing heat reduction and lubrication.

Coolant and Lubrication Selection Criteria:

Appropriate selection depends on various factors such as the material being machined, end mill geometry, operation type, and environmental considerations. Water-based coolants generally offer excellent heat dissipation, while oil-based coolants provide superior lubrication. Combining these properties strategically can yield optimal results across diverse machining operations.

Operators must diligently assess the requirements of their specific machining applications to select the most effective coolant and lubrication strategy, one that ensures operational excellence and extends the service life of their cutting tools.

Optimizing Speeds and Feeds for Different Materials

To achieve optimal machining outcomes when working with varying materials, it is critical to adjust speeds and feeds appropriately. These adjustments are contingent on the physical and thermal properties of the material, the geometry of the end mill, and the desired surface finish and tolerance requirements of the part.

  • Aluminum: Generally, aluminum can be machined at higher speeds due to its lower hardness and strength. Use sharp, polished end mills to prevent material adhesion and optimize chip evacuation.
  • Stainless Steel: This material necessitates lower speeds to mitigate work hardening. Employing end mills with high heat resistance and applying consistent feed rates prevent the formation of built-up edges.
  • Titanium: Titanium alloys require moderate speeds and feeds that balance the heat generated through cutting and the material’s tendency to gall. Tooling with excellent heat resistance and rigidity is preferred to minimize deflection.

Frequently Asked Questions

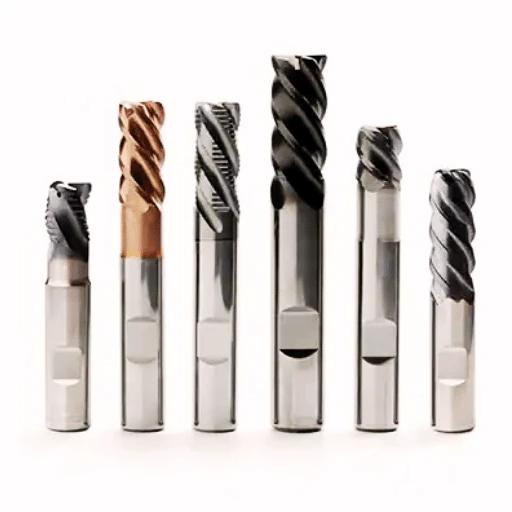

Frequently Asked Questions

Q: What are the different types of end mills?

A: The different types of end mills include square end, ball end, corner radius, flat end, and chamfer end mills.

Q: What is the purpose of using an end mill?

A: End mills are cutting tools used in the milling process to remove material from a workpiece. They are designed to be used with different types of milling machines to create various shapes and sizes.

Q: How do you choose the suitable end mill for a specific milling application?

A: When choosing an end mill, factors such as the material being machined, the desired surface finish, and the type of milling operation should be considered. It is essential to select the appropriate end mill based on these factors to achieve the desired cutting results.

Q: What are the advantages of using different categories of end mills?

A: Different categories of end mills offer specific advantages, such as increased cutting speeds, improved finish quality, and enhanced precision. For example, ball-end mills are suitable for creating contoured surfaces, while square-end mills are ideal for producing flat surfaces.

Q: What are some common types of end mills used in machining?

A: Some common types of end mills used in machining include up-cut and down-cut end mills, 3-flute end mills, general-purpose end mills, and v-bit end mills. These end mills are suitable for various milling applications, offering specific cutting capabilities.

Q: How do you prevent damage to the end mill during the milling process?

A: To prevent damage to the end mill, it is essential to use the appropriate cutting parameters, such as feeds and speeds, and to ensure proper tool and workpiece holding. Additionally, using the correct type of end mill for the specific application can help prevent damage to the cutting edges.

Q: What materials are commonly used to manufacture end mills?

A: End mills are often made from materials such as tungsten carbide, which provides high hardness, wear resistance, and heat resistance. Tungsten carbide end mills are widely used for various milling operations due to their durability and cutting performance.

Q: Can end mills be used for various milling applications?

A: Yes, end mills can be used for a wide range of milling applications, including milling flat surfaces, creating contoured shapes, drilling holes, and roughing or finishing operations. Different types of end mills are designed to accommodate various milling tasks.

Q: What are some best practices for using an end mill?

A: Best practices for using an end mill include using the correct cutting parameters, such as speed and feed rates, maintaining proper tool and workpiece holding, and selecting the appropriate type of end mill for the specific milling operation. Following these practices can help achieve optimal cutting results.

Q: Where can I learn more about end mills and their applications?

A: You can learn more about end mills and their applications through machining and tooling resources, industry publications, and online platforms that provide information on machining processes and tool selection. Additionally, consulting with tooling experts can provide valuable insights into using end mills effectively.


  1. Redline Tools: This resource provides a comprehensive list of different types of end mills, offering a good starting point for understanding the variety available.
  2. MSC Direct: This technical guide explains how end mills are used in various applications such as milling, profiling, contouring, and drilling, among others.
  3. Eternal Tools: This beginner’s guide offers insights into the number of flutes per bit and the use of chamfer mills.
  4. Kennametal: Provides an understanding of different types of end mills, focusing on square-end mills and their general milling applications.
  5. Mekanika: Details the wide range of end mill types available for different cutting operations.
  6. WayKen Rapid Manufacturing: Discusses the suitability of end mills for drilling holes into a workpiece, especially center-cutting end mills.
  7. Dohre CNC: Lists common types of end mills, including straight flute, up and down cut, ball-nose, roughing, and V-bit end mills.
  8. Xometry: Defines end milling and differentiates it from drilling, explaining the specific functions of end mills.
  9. BlackHawk Industrial Supply: This industrial supply site provides a list of different types of end mills, including square, ball end, corner radius, roughing, tapered, dovetail, and keyseat end mills.
  10. ThomasNet: Though not specifically about end mills, this article provides a broader understanding of CNC milling processes, within which the use of different types of end mills is crucial.
