How End Mill Holders Improve Your Machining Efficiency

How End Mill Holders Improve Your Machining Efficiency
How End Mill Holders Improve Your Machining Efficiency

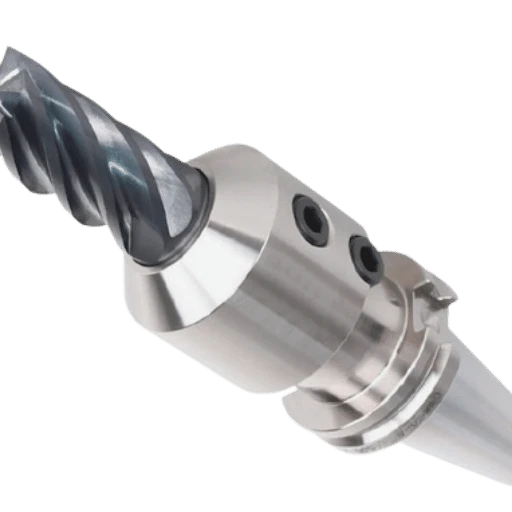

What is the purpose of end mill holders?

What is the purpose of end mill holders?

Understanding the role of end mill holders in machining

End mill holders serve a critical function in the machining process by adhering to the following roles:

  1. Precision Positioning: They precisely secure the end mill, ensuring that it is correctly positioned to maintain the desired tolerance levels during machining operations.
  2. Vibration Reduction: By providing a firm grip on the cutting tool, end mill holders reduce vibrations that could otherwise affect the surface finish and machining accuracy.
  3. Compatibility and Versatility: They are designed to be compatible with various types of end mills, which allows machinists to use a wide range of cutting tools without needing to change the holder frequently.
  4. Enhanced Productivity: With quicker tool changes and less downtime, end millholders contribute to an overall increase in the efficiency and productivity of machining processes.
  5. Tool Protection: End mill holders protect the shank of the cutting tool from wear and tear, extending the service life of the end mills.
  6. Torque Transmission: They effectively transmit the rotational torque from the machine spindle to the cutting tool, enabling effective cutting action.
  7. Thermal Stability: The holders are typically made from materials with good thermal stability, minimizing the impact of thermal expansion during prolonged machining tasks.

How to end mill holders enhance tool performance

End mill holders enhance tool performance primarily by providing a secure, stable interface between the machine spindle and the cutting tool. This stability ensures that the tool remains aligned with the machine’s intended cutting path, which is crucial for achieving high dimensional accuracy in the finished workpiece. The reduction of vibration, a consequence of the firm grip provided by the holder, also contributes to a superior surface finish and the prevention of tool chatter, which can degrade cutting efficacy and accelerate tool wear.

Furthermore, the holders facilitate the optimal transfer of rotational force from the spindle to the tool. This efficient torque transmission is imperative for maintaining consistent cutting speeds, which is critical for both tool longevity and the quality of the machining operation. The materials used in the construction of end mill holders, typically high-strength alloys with thermal stability, ensure that the holders can withstand the thermal rigors of high-speed machining without deforming, thus preserving the precision of the tool’s positioning over time.

Benefits of using end mill holders for precision cutting

The benefits of utilizing end mill holders for precision cutting are multifaceted and can be seen in various aspects of machining operations:

  1. Enhanced Accuracy: End mill holders provide a precise fit and minimal runout, leading to greater accuracy in cutting operations and adherence to strict tolerances.
  2. Vibration Reduction: The robust construction minimizes vibration, allowing for smoother cuts, better finishes, and improved overall precision.
  3. Increased Tool Life: By reducing vibration and ensuring stability, these holders prolong the life of end mills by mitigating premature tool wear.
  4. Improved Productivity: With more consistent tool performance and fewer adjustments required, there is reduced downtime, leading to increased machining productivity.
  5. Thermal Resistance: The thermal resistance of the materials used in end mill holders ensures that the tool maintains its geometry even under high-temperature conditions typical in high-speed cutting, thereby preserving precision.
  6. Versatility: End mill holders are designed to accommodate a wide range of tool sizes and types, making them suitable for various cutting tasks and materials.
  7. Ease of Use: The simplicity of the tool-changing process with these holders contributes to a more streamlined operation with less manual intervention needed.

Choosing the right end mill holder for your application

In selecting the appropriate end mill holder for a specific machining task, several criteria must be meticulously considered to achieve optimal performance. The key factors include the type of end mill, material compatibility, balance requirements at high RPMs, and the nature of the machining operation—such as heavy roughing or precise finishing. The holder’s taper size and runout tolerance are critical specifications that align with the spindle and cutting tool, directly impacting machining accuracy and efficiency. Furthermore, the coolant delivery system in certain holders augments their functionality for specific materials or applications. Therefore, a thorough evaluation of these parameters can significantly influence the success rate of machining operations, advocating for the selection of end mill holders that synergize with your operational requirements and the specifications of the cutting tools employed.

Key features to look for in high-quality end mill holders

When assessing the quality of end mill holders, it is crucial to consider the following key attributes:

  1. Material Composition: High-quality holders are typically made from heat-treated alloy steel that resists wear and deformation, maintaining dimensional stability under varying operating conditions.
  2. Precision Manufacturing: Look for holders with low runout (TIR) values, which are indicative of precision manufacturing, ensuring minimal tool deflection and improved surface finishes on machined parts.
  3. Balanced Design: Superior end mill holders are designed to be balanced, which is vital for maintaining the integrity of the spindle at high RPMs and prolonging the life of the machine tool.
  4. Taper Accuracy: The accuracy of the taper contact with the spindle must be within meticulous tolerances to ensure proper fit and minimize vibrations during milling operations.
  5. Coolant Channels: In holders designed for high-performance cutting that requires coolant, well-engineered internal coolant channels are essential for directed coolant flow to the cutting edge, preventing overheating and promoting chip evacuation.
  6. Surface Coating: A corrosion-resistant surface treatment can enhance the holder’s durability and performance by reducing the potential for rust and wear from repeated tool changes and exposure to coolants or environmental factors.
  7. Compatibility with Clamping Systems: The holder should be compatible with various clamping systems such as set screw, collet chuck, and hydraulic chuck systems to accommodate a broader range of machining scenarios.
  8. Ergonomic Features: Features that facilitate easy handling and tool changes, like knurling or precision-ground surfaces, contribute to efficient operation and reduced setup times.

Selecting an end mill holder with these features can substantially affect the quality and efficiency of milling processes, directly contributing to tool performance and longevity.

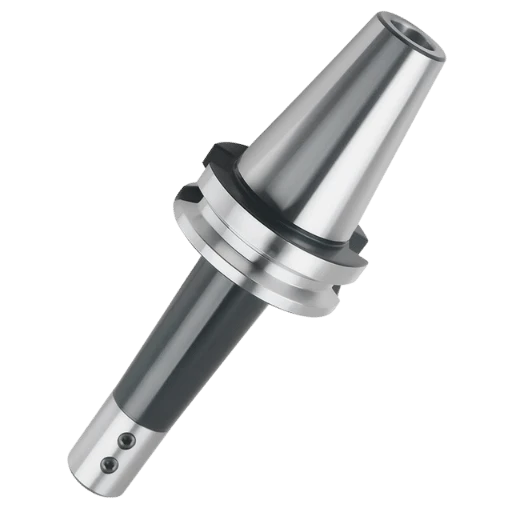

Types of end mill holders and their applications

Types of end mill holders and their applications

Exploring different end mill holder designs and their benefits

End mill holders come in various designs, each tailored to specific machining needs and applications:

  1. Integrated Shank Holders: These holders provide high rigidity as they are manufactured as one solid piece, reducing the potential for runout and enhancing precision. They are especially beneficial in high-precision machining where dimensional accuracy is paramount.
  2. Collet Chuck Holders: Offering versatility, collet chuck holders facilitate the use of different-sized tools without the need to change the holder. They are ideal for operations requiring frequent tool changes or those that use a variety of tool sizes.
  3. Shell Mill Holders: Designed for face milling operations, shell mill holders allow for secure mounting of shell mills and can offer better balance and concentricity than some other holder types.
  4. Hydraulic and Shrink Fit Holders: Known for their excellent gripping strength and balance, hydraulic and shrink fit holders reduce vibration and allow for high-precision machining. Their slim profiles are advantageous for accessibility in tight spaces.
  5. Side Lock Holders: These holders use a set screw on the side to hold the cutter’s flats, a direct method of clamping that can handle higher torque operations. However, precision may be less than that of other types because of potential runout.

Each of these holder designs has its strengths and caters to different milling scenarios, impacting tool life, machining velocity, and finish quality of the workpiece. The selection criteria for an end mill holder should be grounded in analyzing the demands of the specific application to ensure optimal performance.

How CAT, CAT40, and CAT50 end mill holders differ

CAT, CAT40, and CAT50 end mill holders are distinguished by their design specifications, which directly influence machine tool compatibility and application suitability:

  1. CAT: The term ‘CAT’ is a general reference to the Caterpillar V-flange standard, which encompasses a range of holder sizes, including the CAT40 and CAT50. These holders are utilized universally in CNC milling machines for their clamping strength and precision.
  2. CAT40: CAT40 holders are designed with a 40-taper specification, which is the angle of the taper that allows for secure attachment to the machine spindle. They are typically used in lighter-duty machines and are ideal for a wide variety of milling operations due to their outstanding balance and versatility.
  3. CAT50: In contrast, CAT50 holders have a 50-taper specification, making them larger and capable of handling higher force applications. These holders are suitable for heavy milling operations and are often employed in larger machinery where their robust construction enhances performance in demanding conditions.

The appropriate selection among CAT, CAT40, and CAT50 depends on factors such as the milling machine’s capabilities, the nature of the machining task, the desired precision, and the tool requirements of the operation.

Understanding the extended-length end mill holders

Extended-length end mill holders are designed to facilitate milling operations in deep or hard-to-reach areas where a more extended tool is required for optimal efficiency. These holders possess an elongated body that permits extended reach without compromising the rigidity necessary for precise milling. Considerations for their use include maintaining the integrity of the tool’s axial and radial runout to ensure precision, as well as accounting for potential deflection due to the increased length. Moreover, the selection of an extended-length holder must align with the load and torque requirements of the machining operation to prevent tool failure or degraded accuracy. The ample holders are frequently employed in aerospace, automotive, and die/mold industries where the depth of the component’s features necessitates such tooling solutions.

The significance of R8 and Morse Taper end mill holders

R8 and Morse Taper, end mill holders, are pivotal components in machining operations, offering distinct advantages based on their design and application. The R8 taper, known for its straightforward functionality, is widely used in manual milling machines, particularly within the realm of light-industrial and education settings. It is characterized by its self-releasing properties, which facilitate easy tool changes, thereby increasing productivity and efficiency in the machine shop environment.

Conversely, Morse Taper holders feature a self-holding design renowned for its high accuracy and alignment precision. These holders are categorized by their taper ratio, optimized for alignment and centered loading in high-torque applications. Morse Tapers are ubiquitously used in operations requiring exceptional alignment, such as drilling, reaming, and tapping processes. By selecting the appropriate taper for a given application, machinists can augment their machining capabilities, thereby influencing the quality, performance, and outcome of manufactured parts.

Adapter and accessory options for versatile end mill holder usage

Adapters and accessories for end mill holders enhance tool versatility and adaptability in machining operations. They include collet adapters for different shank diameters, shell mill adapters for secure attachment of shell mills, and extensions/reduction sleeves for modifying tool length and holder diameter. Specialty drive keys and retention knobs improve compatibility and performance. These options streamline machining and reduce the need for specialized tool holders, providing an economic advantage.

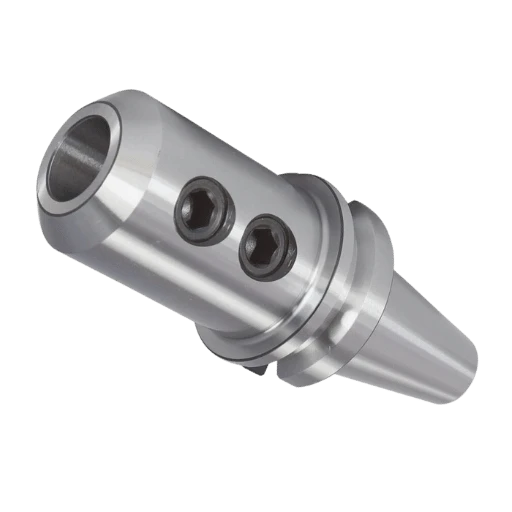

Key considerations when selecting end mill holders

Key considerations when selecting end mill holders

Ensuring Compatibility with Machine and Tooling Requirements

When selecting end mill holders, it is essential to ascertain their compatibility with the machine’s spindle interface and tooling specifications. Compatibility directly influences tool performance and operational safety. It is crucial to match the holder with the spindle taper, flange size, and drawbar thread type of the CNC machine. The holder’s design must accommodate the specific dimensions and characteristics of the tools intended for use, ensuring a seamless and secure fit.

Maximizing Performance with Coolant and Precision End Mill Holders

Coolant-through end mill holders are engineered to deliver coolant directly to the cutting edge, which is critical for high-speed applications that generate significant heat. Such holders maintain thermal stability and extend tool life while also enhancing chip evacuation. Selecting precision end mill holders can lead to superior surface finishes and higher tolerances in the final product due to the reduced runout and increased rigidity they offer.

Factors Impacting Tool Accuracy and Efficiency in End Mill Holders

Factors impacting tool accuracy and efficiency in end mill holders include:

  • Tool Holder Balance: Unbalanced holders can induce vibrations, leading to tool deflection and decreased accuracy during high-speed operations.
  • Runout Tolerance: Precision in the holder’s construction minimizes runout, thus enhancing the tool’s cutting precision and reducing wear.
  • Grip Strength: A secure grip ensures consistent performance and prevents slippage, which can affect dimensional accuracy and surface finish.
  • Thermal Expansion: Holders made of materials with a thermal expansion coefficient similar to the cutting tools can maintain tight tolerances despite temperature variations.
  • Maintenance and Handling: Regular maintenance and proper handling of the tool holders are crucial for preserving their precision and efficiency.
  • Compatibility with Tool Coatings: Certain coatings on cutting tools require compatible end mill holders to prevent chemical reactions or adherence issues.
  • Material Quality and Durability: The quality of the materials used to manufacture the holders affects their rigidity and longevity under strenuous machining conditions.

Addressing Common Issues Related to End Mill Holders and Tool Shanks

To mitigate common issues linked with end mill holders and tool shanks, the following strategies can be implemented:

  • Regular Inspection and Calibration: Schedule frequent checks to identify holder damage, wear, or imbalance, using precise calibration equipment to ensure accuracy.
  • Use of High-Precision Holders: Invest in high-precision end mill holders with better balance and lower runout to improve the quality of machining operations.
  • Proper Tool Holder Selection: Match the holder type and size with the machining operation and tool shank specifications to reduce potential problems.
  • Temperature Control: Implement climate control or compensate for thermal expansion in the machining process to maintain strict tolerances.
  • Invest in Quality Tooling: Utilize holders made from high-quality materials with resistance to corrosion, wear, and material fatigue to prolong the lifespan and performance of the holders.
  • Compatibility Checks: Ensure that tool coatings are compatible with holder materials to avoid reactions that may degrade the tool or holder.
  • Educate Operators: Train machine operators on the correct usage and handling of end mill holders to prevent unnecessary wear or damage.

Optimizing Spindle Speeds and Rigidity for Successful End Mill Holder Usage

Optimization of spindle speeds is predicated upon holder design and material properties. It is imperative to adhere to the manufacturer’s recommended speed ratings to prevent compromise in rigidity and accuracy. Adequate rigidity of an end mill holder facilitates effective cutting force transmission, reduces deflection under load, and contributes to the overall integrity of the machining operation.

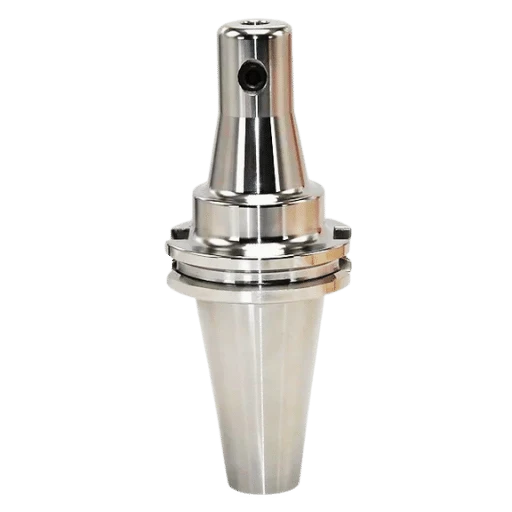

Advanced features and innovations in end mill holders

Advanced features and innovations in end mill holders

Dual-drive end mill holders enhance torque transmission and reduce slippage, improving tool performance. Rigid reach end mill holders offer extended reach and maintain precision with enhanced support mechanisms. Set screws to ensure secure clamping and minimize tool pullout for operational safety. End mill holders with Weldon flats provide added security against tool rotation. Precision end mill holders improve tool life and surface finish. Advancements include anti-vibration features and hydraulically actuated holders for consistent clamping. These innovations drive enhancement and innovation in machining technologies.

Frequently Asked Questions

Frequently Asked Questions

Q: How do end mill holders improve machining efficiency?

A: End mill holders provide secure clamping of cutting tools, ensuring precise and stable machining operations. They also allow for quick and easy tool changes, reducing downtime and improving overall efficiency.

Q: What are the benefits of using CAT 40 end mill holders?

A: CAT 40 end mill holders offer robust and reliable tool holding, making them suitable for heavy side loads and high-speed machining. They also provide responsive customer service and a wide range of related products to support machining needs.

Q: How are end mill holders different from standard tool holders?

A: End mill holders are explicitly designed to accommodate end mills, providing a secure grip on the tool shank. Standard tool holders may not offer the same level of clamping for end mills and could compromise machining precision.

Q: What is the significance of the bore in end mill holders?

A: The bore in end mill holders plays a crucial role in holding the cutting tool shank securely. It ensures that the tool remains stable during high-speed and heavy-load machining, contributing to improved machining efficiency.

Q: Can CAT 50 end mill holders be used in place of CAT 40 end mill holders?

A: CAT 50 end mill holders have a larger bore size than CAT 40 holders, and they are designed for heavier cutting applications. While they may offer compatibility with CAT 40 tools, it’s essential to match the holder to the specific requirements of the machining operation for optimal performance.

Q: What is the significance of the Weldon flat standard for secure clamping?

A: The Weldon flat standard provides a reliable surface for secure clamping of cutting tools within end mill holders. It ensures that the tools are held firmly in place, preventing slippage or vibration during machining and contributing to precision and stability.

Q: Are dual-drive end mill holders more advantageous than standard end mill holders?

A: Dual-drive end mill holders feature additional drive keys for enhanced tool security and stability. They are beneficial when dealing with heavy cutting forces and high-pressure machining, providing extra confidence in tool holding and performance.

Q: How do 40-end mill holders contribute to improved machining results?

A: 40 end mill holders use the Weldon flat standard for secure clamping, ensuring stable and precise tool positioning. This contributes to improved machining results by minimizing tool vibrations and enhancing cutting accuracy.

Q: What are the key factors to consider when selecting end mill holders?

A: When choosing end mill holders, it’s essential to consider factors such as the type of machining operation, tool shank diameter, cutting forces involved, and compatibility with the existing machine and tooling setup. Selecting the right end mill holder can significantly impact machining efficiency and accuracy.

Q: How can end millholders contribute to a more efficient and reliable machining process?

A: End mill holders provide a stable and secure platform for clamping cutting tools, mitigating the risk of tool slippage or displacement during machining. This reliability contributes to a more efficient and consistent machining process, enhancing overall productivity and part quality.


  1. Canadian Metalworking Article: Discusses five factors that contribute to high-efficiency milling, including the use of end mill holders.
  2. The Loupe Article Provides insights on how hydraulic and shrink-fit tool holders, including end mill holders, can extend the life of your end mill.
  3. MSC Direct Article: Offers tips for maximizing CNC machine output with more innovative practices involving your machine tool holders.
  4. Productivity Inc. Article: Discusses the High-Efficiency Milling (HEM) technique that helps spread the wear of a cutting tool across the cutting edge, dissipate heat, and reduce tool failure.
  5. The Loupe Blog Post Highlights the importance of securing connections between a tool holder and the tool’s shank for efficient performance.
  6. Big Daishowa Blog Post: Lists the four critical requirements for tool holders, including clamping force, concentricity, rigidity, and balance for high-spindle speeds.
  7. Triumph Tool Article: Talks about how high-performance end mills, held securely with end mill holders, can remove material quickly and efficiently.
  8. Article: Offers top tips for high-productivity machining, including the use of shrink-fit tools for moderate to heavy milling.
  9. Mind Setterz Article: Discusses how end mill holders can improve machining efficiency, resulting in smoother operations and higher quality.
  10. TechniksUSA Manufacturer’s Guide: Provides information on their range of end mill holders, highlighting their features and benefits that contribute to machining efficiency.
