The Ultimate Guide: End Mill vs Face Mill

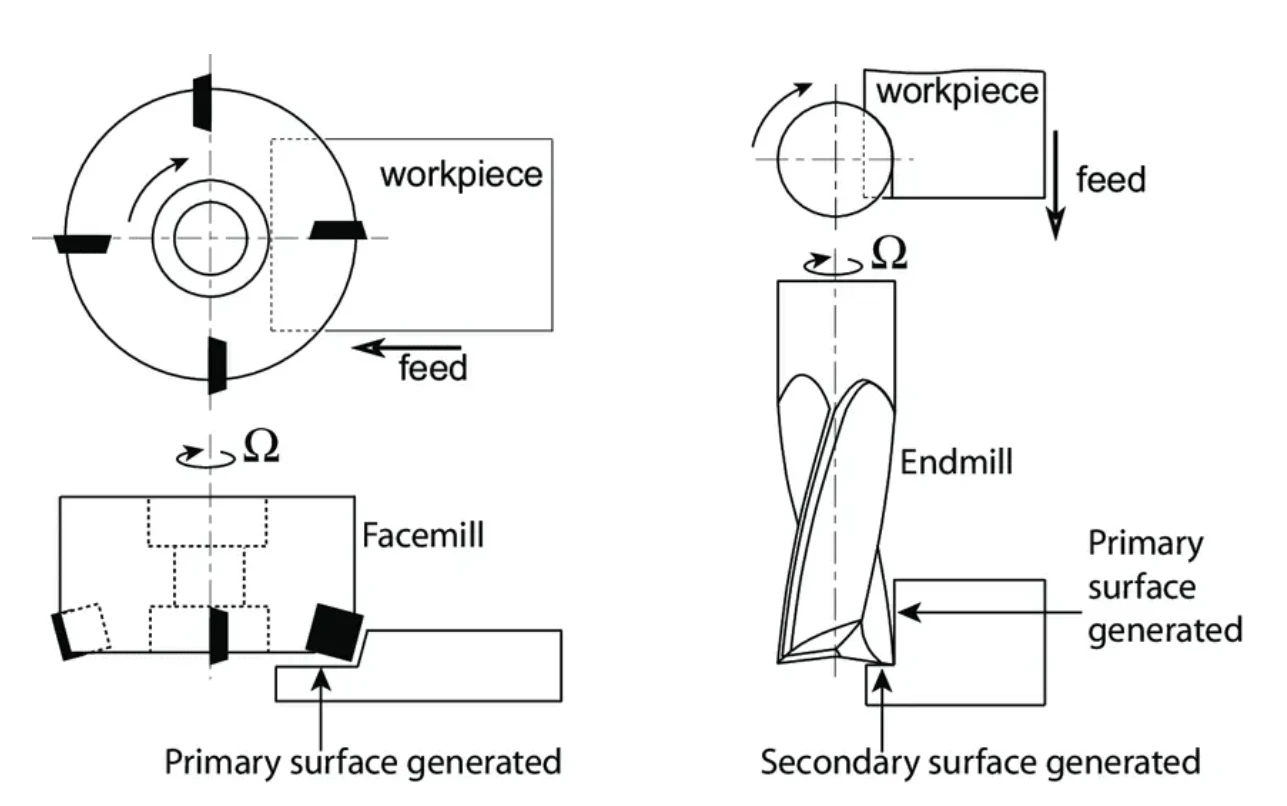

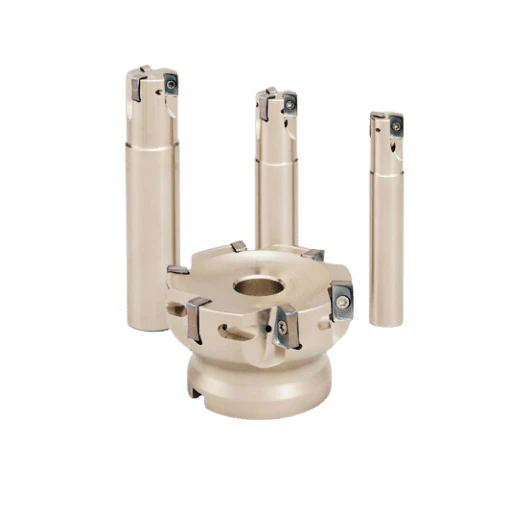

What is the Difference Between an End Mill and a Face Mill?

End mills and face mills are both essential tools in metalworking, each serving a distinct function. End mills are primarily utilized for cutting axial passes, meaning they cut along the workpiece’s length, making them ideal for applications such as profile milling, tracer milling, and plunging. Face mills, on the other hand, are typically used for removing material from the surface of a workpiece in a lateral direction to create a flat surface.

The following parameters can further elaborate on the differences between end mills and face mills:

1. Cutting Edges: End mills feature cutting edges at both the periphery and the face end, allowing them to perform a variety of cutting tasks. Face mills usually have cutting edges along the periphery and are used for facing and shoulder milling.
2. Direction of Cut: End mills can cut in both horizontal and vertical directions (axially and radially). Meanwhile, face mills are generally restricted to cutting horizontally across the top surface of the material.
3. Attachable Heads: Face mills use replaceable carbide inserts attached to a milling head. This aspect enables the rapid change of cutting surfaces and the ability to use the mill for various materials and finishes. In contrast, end mills are generally made as a single piece, and when the cutting edges are worn, the entire tool must be replaced.
4. Tool Size and Surface Finish: The larger diameter of face mills allows them to achieve a more expansive cut with a better surface finish over a larger area in a single pass. End mills are usually smaller in size and are valid for fine, detailed work.
5. Helix Angle: End mills often have a helix angle, which helps with cutting efficiency and chip evacuation, varying from low to high helix angles to suit different material types. On the contrary, face mills do not typically have a helix angle as they operate mainly on the surface.

By understanding these fundamental differences, professionals can select the appropriate milling tool for their specific manufacturing needs, optimizing their operations for efficiency and precision.

How do you choose between an end mill and a face mill for your machining operation?

Considerations for Material and Workpiece

When selecting the optimal milling tool for a specific material and workpiece, several critical factors must be taken into account:

1. Material Hardness: The hardness of the workpiece material directly influences the choice of the milling tool. Materials with higher hardness ratings may require end mills with a higher number of flutes and specialized coatings to withstand the stresses associated with cutting.
2. Material Brittleness: For brittle materials, tool selection must minimize the risk of chipping or fracturing the workpiece. In these cases, face mills may be preferable due to their broader cutting area, distributing the cutting force more evenly.
3. Complexity of the Part Design: The complexity and features of the part can dictate whether an end mill or a face mill is more suitable. Detailed, intricate parts may benefit from the precision capabilities of an end mill, while face mills may be used for more straightforward profiles that require flat surfaces.
4. Surface Finish Requirements: If the final part demands a high-quality surface finish, the choice between an end mill and a face mill can be significant. Generally, face mills provide a superior finish over a more extensive, flat surface.
5. Stock Removal Rates: High stock removal rates are often necessary in rough machining operations. Face mills are capable of removing more significant amounts of material quickly due to their larger diameter and multiple cutting edges.
6. Machine Tool Power and Stability: The capability of the machine tool itself must be considered, as face milling generally requires more power and stable setup due to the larger area of contact.

Professionals should weigh these considerations carefully to determine the most appropriate milling approach, ensuring both operational efficiency and accordance with the required specifications of the final product.

Optimizing Tooling for Specific Surface Finish

Optimizing tooling for specific surface finishes involves considering key factors like tool geometry, coatings, and tool path strategies. Choosing the suitable cutter with the appropriate number of flutes and helix angle can significantly impact surface quality. Techniques such as climb milling and using carbide cutters for rigid materials are essential for achieving a smooth finish. Consistent tool maintenance is crucial for peak performance and high-quality surface finishes on machined parts.

Selecting the Right Tool for Enhanced Productivity

Selecting the right tool for enhanced productivity in milling operations requires a systematic approach that includes the evaluation of the workpiece material, the complexity of the part geometry, and the type of milling operation being performed. The following considerations can guide the selection process:

1. Material Compatibility: Assess the compatibility of the tool material with the workpiece. For example, carbide tools are a superior choice for machining hard materials due to their high wear resistance and ability to maintain edge sharpness.
2. Tool Geometry: Opt for tools with geometry tailored to the specific operation. This includes the number of flutes, the helix angle, and the cutting-edge preparation, which can drastically influence chip formation and heat dispersion.
3. Coatings: Utilize coatings to extend tool life and performance. Titanium aluminum nitride (TiAlN) or diamond-like coatings can significantly reduce friction and protect against high temperatures during high-speed milling operations.
4. Cutting Parameters Optimization: Carefully select cutting speeds, feeds, and depths of cut to maximize efficiency without compromising the lifespan of the tool or the quality of the workpiece.
5. Machine Tool Capabilities: Align tool choices with the power, speed, and stability of the available machine tools to prevent tool or machine overload and maximize both productivity and tool life.
6. Industry Trends: Stay informed about advancements in tooling technology, including new materials and designs that can offer improved performance or exceptional capabilities for challenging milling tasks.

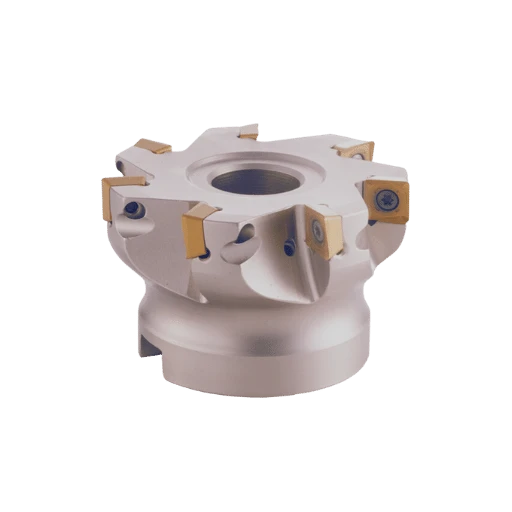

Exploring the Efficiency of End Mill and Face Mill in Various Milling Applications

Comparing Edge Quality and Integrity

The intrinsic quality of an edge produced during milling is influenced by several factors, including tool sharpness, material properties, and cutting parameters. Precise control over these aspects is paramount to achieving a finish with minimal surface irregularities and avoiding defects such as burrs, micro-chipping, and premature material wear.

• Surface Finish: A smoother surface finish achieved by an end mill can be indicative of a tool’s effectiveness in producing cleaner edges with higher dimensional accuracy.
• Tool Deflection and Wear: Lesser tool deflection and wear resistance are critical in maintaining edge integrity throughout the milling operation.
• Material Deformation: Evaluation must also consider how the milling process affects material deformation at the edge, with a keen analysis of the resultant strain patterns to ensure structural robustness.

Comparative analysis between end mills and face mills regarding edge quality must account for the variations in cutting-edge geometries and the interaction with the workpiece material. This assessment often involves using metrology equipment to capture quantitative data on edge profile and surface roughness, thereby allowing for a technically robust comparison of tool performance.

To further delve into the comparison of edge quality and integrity, the next section will focus on statistical data obtained from controlled milling tests.

Examining Performance in High-Speed Machining

High-speed machining (HSM) is characterized by its ability to achieve high material removal rates with precision and minimal tool wear. The technique utilizes elevated spindle speeds and feed rates, transcending conventional machining capabilities. This results in shorter production times and improved surface quality of the machined products.

• Spindle Speed and Feed Rate: In the realm of HSM, spindle speeds often exceed 10,000 RPM, coupled with proportionately high feed rates. These parameters necessitate the use of balanced tool holders and vibration analysis to prevent detrimental harmonics affecting the machined edges.
• Coolant and Lubrication: The selection of appropriate coolant and lubrication becomes critically crucial in HSM to manage the heat and friction generated at the interface. Ineffective thermal management can lead to tool degradation and compromised edge quality.
• Tool Path Optimization: Advanced algorithms are employed to optimize the tool path, ensuring consistent tool engagement and preventing tool dwell that can cause localized heat build-up, reducing the likelihood of material microstructural alterations.
• Surface Integrity: HSM often produces a workpiece with superior surface integrity, limited work-hardening, and reduced residual stress profiles. This is due to the swift removal of material, which reduces heat exposure and the attendant risks of edge quality degradation.

Data accrued from high-speed machining tests will typically include measurements of tool wear, surface roughness, and dimensional accuracy, providing a quantitative basis for assessing the performance of different tools and machining parameters and their effects on edge integrity.

Factors Affecting Tool Life and Cost-Effectiveness

Tool life in high-speed machining (HSM) is influenced by several factors that directly impact cost-effectiveness.

Material Hardness: Tools degrade faster when machining more complex materials, necessitating an investment in robust tool materials like carbide or polycrystalline diamond (PCD).

Coating Technology: Advances in coatings such as TiAlN or diamond-like carbon can significantly extend tool life by reducing wear and thermal load.

Tool Geometry: Optimized tool geometries that promote efficient chip evacuation and heat dissipation can reduce tool stress, thus enhancing longevity.

Machine Tool Rigidity: High precision and rigidity in machine tools minimize vibrations, preventing premature tool failure.

Cutting Environment: The controlled use of coolants and lubricants preserves cutting edges and can remove chips effectively, reducing the risk of built-up edge (BUE) formation.

Benefits of Choosing the Right Tool: End Mill or Face Mill

Enhanced Precision and Accuracy in Machining

Selecting the appropriate tool for specific machining processes is critical for achieving enhanced precision and accuracy. Precision directly influences the part’s conformity to its designed dimensions and tolerances, while accuracy refers to the degree to which the machined part reflects the intended design.

Consistent, high-quality surface finishes and adherence to tight tolerances are typically realized through the proper application of end mills and face mills. End mills are preferable for intricate features and smaller cavities, whereas face mills excel in achieving flat surfaces and high-quality finishes in larger areas.

Increased Efficiency and Productivity

Efficiency and productivity in machining operations are heavily reliant on the rate at which material can be removed and the reduction of machine downtimes. The right tool can maximize material removal rates (MRR), thus shortening production times. Equipped with the correct end mill or face mill, machines can operate at optimal speeds while maintaining the integrity of the tool and workpiece, leading to increased overall productivity.

Cost Savings through Optimal Tool Selection

Cost savings in machining are often a direct result of extended tool life and reduced need for tool replacement. Optimal tool selection contributes to lower production costs by decreasing the frequency of downtime for tool changes and reducing the cost-per-part. In addition, using tools that are well-suited to a particular material or application can minimize wear and tear on the machine tool itself, contributing to the long-term savings and sustainability of the manufacturing equipment.

Selecting the correct end mill or face mill is thus a balance of proficiency, which affects the part quality, duration of the machining cycle, and overall cost-effectiveness. By making informed tool selection decisions, manufacturers can ensure that they operate at the peak of their productive potential.

Frequently Asked Questions

Q: What is the difference between an end mill and a face mill?

A: End mills and face mills are types of milling cutters used in machining operations. End mills are used for milling applications where the cutting tool is fed in the direction of rotation. Face mills, on the other hand, are primarily used for face milling operations where the cutting tool is perpendicular to the workpiece.

Q: How does face milling differ from peripheral milling?

A: Face milling and peripheral milling are two common types of milling processes. In face milling, the cutting tool rotates perpendicular to the workpiece surface, while in peripheral milling, the cutting tool’s axis is parallel to the workpiece surface. Face milling is typically used for finishing operations, while peripheral milling is suitable for roughing and finishing.

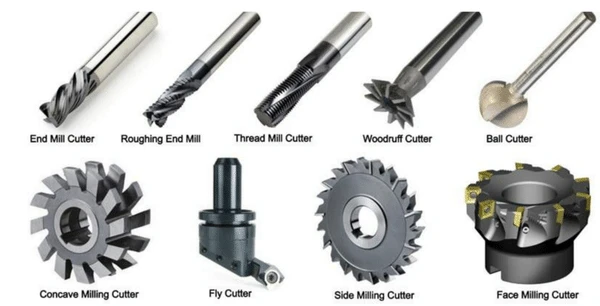

Q: What are the main types of milling cutters used in face milling?

A: In face milling operations, some common types of milling cutters include shell mills, fly cutters, and indexable end mills. These cutting tools are used to create flat surfaces on the workpiece by removing material in a face milling process.

Q: When should we use face milling as opposed to end milling?

A: Face milling is used when a large flat surface needs to be machined on the workpiece. End milling, on the other hand, is more suitable for creating slots, pockets, and other features on the workpiece. The choice between face milling and end milling depends on the specific requirements of the milling operation.

Q: How do face milling tools differ from other milling tools?

A: Face milling tools, such as face mills and shell mills, are designed specifically for face milling operations. These tools have cutting edges on the face that remove material from the workpiece in a perpendicular direction. Other milling tools, like end mills, are used for different types of milling operations based on the cutting tool design.

Q: What factors should be considered when choosing the right face milling tool?

A: When selecting a face milling tool, factors such as the material being machined, desired surface finish, cutting speed, and feed rate should be taken into account. Additionally, the specific geometry of the workpiece and the machining requirements will influence the choice between different types of face milling tools.

Q: What are the advantages of using face mills in milling operations?

A: Face mills offer several advantages in milling operations, including increased cutting speed, improved surface finish, and efficient chip removal. These tools are versatile and can be used in a variety of milling processes to achieve precise machining results on workpieces.
