End mills are crucial tools in machining, mainly when working with aluminum. Selecting a suitable end mill for the job can significantly impact productivity, efficiency, and the quality of the finished product. This guide aims to provide a comprehensive understanding of end mills for aluminum. It will delve into aspects such as their selection based on the alloy type, intended use, and specific needs. We will also discuss their application and how to use them effectively, drawing upon insights from top brands in the industry. This guide does not endorse any particular tool or brand but offers a technical perspective to help you make informed decisions.
What are End Mills for Aluminum?
——
End mills for aluminum are specialized cutting tools used in milling machines or machining centers to perform milling operations. They are designed specifically for working with aluminum, a material that’s known for its lightweight and high strength-to-weight ratio but also its challenging machining characteristics. These end mills are engineered with specific features such as flute designs, helix angles, coatings, and geometries to effectively cut aluminum without causing chip welding or premature tool wear.
What is the Role of Flutes in End Mills for Aluminum?
Flutes are the deep grooves or slots that spiral around the end mill. They play a significant role in determining the performance and suitability of an end mill for aluminum. The flutes provide a path for chip evacuation, ensuring efficient removal of material as the end mill cuts into the aluminum. More flutes mean a smoother finish but slower chip evacuation, while fewer flutes allow for faster chip removal but a rougher finish. Therefore, choosing the correct number of flutes depends on the balance between finish quality and chip removal rate.
How Does the Helix Angle Affect Aluminum Milling?
The helix angle of an end mill refers to the angle formed between the centerline of the tool and a straight line tangent along the cutting edge. This angle significantly impacts the cutting forces and the way chips are evacuated during aluminum milling. A higher helix angle, typically around 45 degrees, provides a shearing action that reduces cutting forces, resulting in smoother cuts and better surface finishes. However, it might compromise tool rigidity, potentially affecting tool life and stability in high-speed applications.
What Are the Best Coating Options for End Mills Used on Aluminum?
Coatings enhance the performance and longevity of end mills by reducing friction and increasing heat and wear resistance. For aluminum, uncoated carbide or polished carbide end mills are often a good choice as they prevent material from sticking to the cutting edges, a common issue when milling aluminum. Specialized coatings like diamond-like carbon (DLC) can also be used for increased tool life and performance, particularly in the high-speed machining of aluminum.
How Does the Number of Flutes Affect Aluminum Machining?
As mentioned earlier, the number of flutes on an end mill impacts the balance between finish quality and chip removal rate. End mills with fewer flutes, typically two or three, are commonly used for aluminum to ensure effective chip evacuation, which is crucial for preventing chip welding or built-up edge. However, these end mills might not deliver as smooth a finish as those with more flutes. Conversely, end mills with more flutes provide a better finish but might struggle with chip evacuation when used on aluminum.
What Are the Best Geometries for End Mills when Cutting Aluminum?

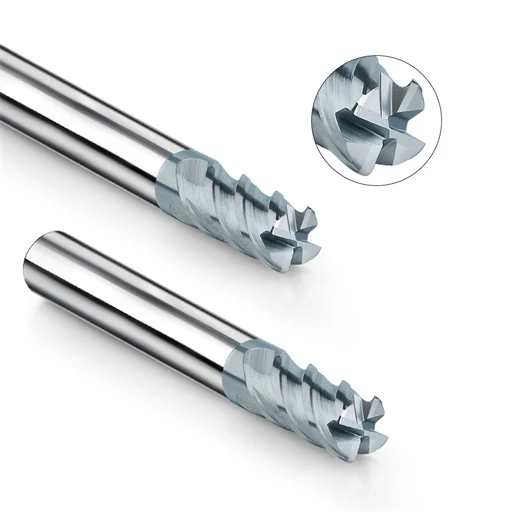

The geometry of an end mill refers to the design features such as the shape of the cutting edge, corner radius, and relief angles. For aluminum, end mills with sharp cutting edges and large relief angles are often preferred to minimize friction and allow for efficient chip removal. Additionally, a corner radius or ball nose end mill can help reduce tool wear and breakage, especially in complex contouring operations. However, the optimal geometry depends on the specific milling application and the type of aluminum alloy being machined.
Choosing the Right-End Mill for Aluminum
——
When it comes to machining aluminum, the selection of the right end mill can substantially impact the efficiency and quality of your work. Given aluminum’s unique properties, such as its lightweight nature and high thermal conductivity, it requires specific tooling considerations. This article aims to provide a comprehensive guide on how to choose the most suitable end mill for aluminum. It will discuss crucial factors to consider during selection, the role of tool coating, the impact of coolant, and recommendations on helix angles and flute designs.
What Factors Should Be Considered When Selecting End Mills for Aluminum?
Selecting the appropriate end mill for aluminum involves considering several critical factors. These include:
- Material: The end mill material should have high hardness and heat resistance. Carbide is commonly used due to its superior performance compared to high-speed steel (HSS).
- Coating: While uncoated tools can perform well on aluminum, certain coatings like diamond-like carbon (DLC) can enhance tool life and performance.
- Number of Flutes: A lower number of flutes (usually two or three) is preferred for aluminum to ensure efficient chip evacuation.
- Helix Angle: Higher helix angles (around 45 degrees) are recommended for aluminum due to their shearing action that reduces cutting forces.
- Tool Geometry: Sharp cutting edges and large relief angles are often preferred to minimize friction and allow for efficient chip removal.
What is the Impact of Tool Coating on Aluminum End Mill Performance?
Tool coatings play a pivotal role in enhancing the performance and longevity of end mills for aluminum. They reduce friction, increase heat and wear resistance, and prevent material from sticking to the cutting edges. For instance, a diamond-like carbon (DLC) coating can significantly improve tool life and performance, especially in high-speed machining of aluminum.
How Does Tool Life Vary Based on the Material and Coating of the End Mill?
Tool life can significantly vary based on the material and coating of the end mill. High-performance materials like carbide, coupled with specific coatings such as DLC, can considerably enhance tool life. These combinations offer increased hardness, heat resistance, and wear resistance, enabling the end mill to withstand the demanding conditions of aluminum machining for extended periods.
How Does Coolant Affect Aluminum End Milling?
Coolant plays a crucial role in aluminum end milling. It helps in heat dissipation, reduces friction between the tool and workpiece, and assists in chip evacuation. However, excessive coolant can lead to thermal shock, causing premature tool failure. Therefore, it’s essential to use the right amount and type of coolant for optimal results.
What Are the Recommended Helix Angles and Flute Designs for Aluminum Machining?
For aluminum machining, higher helix angles (around 45 degrees) are recommended. These provide a shearing action that reduces cutting forces and results in smoother cuts. As for flute designs, fewer flutes (typically two or three) are preferred to ensure effective chip evacuation. This is paramount in preventing chip welding or built-up edges when milling aluminum.
Optimizing End Mill Performance for Aluminum
——
Enhancing the performance of end mills for aluminum machining is a vital aspect of improving productivity, efficiency, and quality in manufacturing operations. This involves a combination of selecting the right tool characteristics, utilizing optimal machining parameters, and implementing effective machining strategies. This article delves into these aspects, providing insights into crucial optimization techniques for high-performance aluminum machining, efficient chip evacuation, tool balancing and vibration factors, achieving high-quality surface finishes, and essential design considerations for end mills.
What are the Critical Optimization Techniques for High-Performance Aluminum Machining?
High-performance aluminum machining requires a strategic approach that focuses on optimizing several factors:
- Tool Selection: Choose end mills specifically designed for aluminum, considering factors like material, coating, number of flutes, helix angle, and tool geometry.
- Cutting Parameters: Optimize cutting speed, feed rate, depth of cut, and other parameters based on the type of aluminum alloy and the specific machining operation.
- Machining Strategy: Employ strategies like high-efficiency milling (HEM), which utilizes a low radial depth of cut (RDOC) and a high axial depth of cut (ADOC) for efficient material removal.
- Coolant Management: Use appropriate coolant to reduce heat generation, minimize tool wear, and assist in chip evacuation.
How Do You Ensure Efficient Chip Evacuation In Aluminum Milling With End Mills?
Efficient chip evacuation is critical in aluminum milling to prevent chip welding or built-up edge. This can be achieved by using end mills with fewer flutes, allowing more space for chips to be evacuated. Additionally, applying adequate coolant can help flush away chips from the cutting zone. The use of tool paths that move away from the material, known as up-milling, can also assist in chip evacuation.
What are the Factors Affecting Tool Balancing and Vibration in Aluminum End Milling?
Several factors can influence tool balancing and vibration during aluminum end milling:
- Tool Holder Balance: An unbalanced tool holder can introduce vibrations that degrade the surface finish and tool life.
- Tool Overhang: Excessive tool overhang can lead to increased vibrations and reduced machining accuracy.
- Cutting Parameters: Incorrect cutting speed, feed rate, or depth of cut can result in unstable cutting conditions causing vibrations.
- Machine Condition: The condition and rigidity of the machine tool can also impact vibration levels.
How Do You Achieve High-Quality Surface Finishes When Cutting Aluminum With End Mills?
Achieving high-quality surface finishes when cutting aluminum with end mills involves several aspects:
- Sharp Cutting Edges: End mills with sharp cutting edges can produce smoother cuts, improving surface finish.
- Optimal Cutting Parameters: Selecting the correct cutting speed, feed rate, and depth of cut based on the type of aluminum alloy and the specific machining operation can enhance surface quality.
- Tool Path Strategy: Implementing effective tool path strategies like trochoidal milling can reduce tool engagement, minimize heat generation, and improve surface finishes.
What Are the Design Considerations for End Mills for Aluminum Applications?
When designing end mills for aluminum applications, several considerations come into play:
- Material: The end mill should be made of a material with high hardness and heat resistance, such as carbide.
- Coating: Certain coatings can enhance tool life and performance. For aluminum, uncoated or polished carbide tools are often suitable.
- Number of Flutes: Fewer flutes are generally preferred to ensure efficient chip evacuation.
- Helix Angle: Higher helix angles can provide a shearing action that reduces cutting forces, resulting in smoother cuts.
- Tool Geometry: Sharp cutting edges and large relief angles can minimize friction and allow for efficient chip removal.
Frequently Asked Questions
_
Q: What are end mills for aluminum?
A: End mills for aluminum are tools explicitly made to machine aluminum and its alloys. They possess unique features to handle the material’s distinctive properties, such as rigidity and high-speed performance.
Q: What is the significance of the flute end-in-end mills for aluminum?
A: The fluted end refers to the cutting edge of the tool that removes material. Its design in end mills for aluminum optimizes chip evacuation and prevents re-cutting, smoothing the cutting process.
Q: How are carbide end mills for aluminum different from other materials?
A: Carbide end mills for aluminum are engineered to handle specific challenges of machining aluminum, like material gumming up on the cutting edges. They are uniquely designed to maximize chip evacuation and prevent built-up edges.
Q: What is the role of a high helix end mill in aluminum machining?
A: High helix end mills exhibit high helix angles, enhancing chip removal and surface finish when machining aluminum and other non-ferrous materials. Their design reduces cutting forces and aids effective chip evacuation.
Q: What are the advantages of using 2-flute or 3-flute end mills for aluminum?
A: 2-flute and 3-flute end mills improve chip clearance and cutting action. Multiple flutes distribute the load evenly, allowing for higher feed rates and faster material removal.
Q: How do uncoated end mills contribute to aluminum machining?
A: Uncoated end mills allow for better heat dissipation and reduced friction during cutting. They help prevent built-up edge and extend tool life.
Q: What are the key factors to consider when selecting end mills for aluminum?
A: Flute design, helix angle, coating type, and the number of flutes are key considerations when choosing end mills for aluminum. Cutting length, shank diameter, and tool rigidity are also crucial for efficient machining.
Q: How does the design of CNC end mills impact aluminum cutting performance?
A: CNC end mill design, including flutes, helix angle, and rigidity, affects chip evacuation, cutting forces, and surface finish. Well-designed CNC end mills enhance speed and precision in aluminum cutting.
Q: What are the advantages of using extra-long end mills for aluminum?
A: Extra-long end mills offer reach to deep or narrow parts of the workpiece, facilitating complex aluminum part machining without multiple setups. They’re particularly useful for deep cavity milling.
Q: How do end mills for aluminum contribute to high-feed U-type machining?
A: End mills for high-feed u-type machining are optimized for aggressive material removal rates, enabling efficient aluminum cutting operations. Their design and flute geometry reduce cutting forces and facilitate effective chip evacuation.
