Understanding Different Types of CNC Milling Machines
————
CNC (Computer Numerical Control) milling machines are advanced tools used in manufacturing that enable precise control over the dimensions and shapes of parts.
Introduction to CNC Milling Machines
CNC machines use computer-controlled movement to manipulate materials in three dimensions. This technology enables manufacturers to create complex parts with a high degree of accuracy. The milling process involves the use of a rotating cutting tool that removes material from a workpiece to form the desired shape.
Types of CNC Milling Machines
- Vertical Milling Machines
- Horizontal Milling Machines
- Turret Milling Machines
- Bed Milling Machines
- Benchtop Milling Machines
Choosing the Right CNC Machine for Your Application
Selecting the correct CNC machine depends on various factors, such as the type of material to be processed, the complexity of the part, production volume, and budget. It’s essential to understand the capabilities and limitations of each machine type to ensure it’s suitable for your specific needs.
Factors to Consider When Selecting a CNC Milling Machine
- Machine Size and Weight
- Power and Speed
- Software Compatibility
- Material Compatibility
- Budget

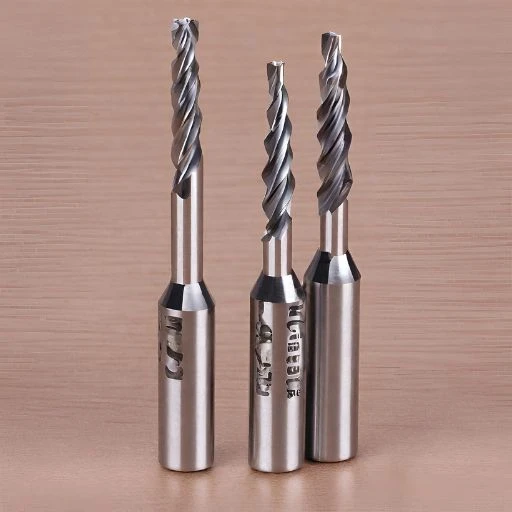

Optimizing CNC Performance with the Right Machine Tool
The performance of a CNC machine is significantly influenced by the type of machine tool used. By selecting the right tool for the job, you can increase efficiency, reduce waste, and improve the quality of the finished product.
Selecting the Right Milling Cutter for Specific Materials
————
Choosing the correct milling cutter is critical for achieving desired results in various materials. This guide provides insights into making an informed decision.
Understanding the Role of Material in Cutter Selection
The material of the cutter plays a pivotal role in determining its suitability for specific tasks. Some materials are more resistant to wear and tear, while others provide better heat resistance. The hardness of the workpiece also has a significant impact on the choice of cutter material.
Types of Tool Materials Suitable for Specific Materials
- High-Speed Steel (HSS) – Suitable for soft materials like aluminum and plastic.
- Carbide – Ideal for hard materials like stainless steel and cast iron.
- Diamond – Used for cutting rigid materials like ceramics and composites.
- Cubic Boron Nitride (CBN) – Perfect for hardened steels and superalloys.
Optimizing Cutting Speed and Feed Rate for Different Materials
The cutting speed and feed rate significantly impact the quality of the finished product and the life of the tool. More complex materials generally require slower speeds and feeds, while softer materials can be cut at higher rates.
Choosing the Right Cutter for Achieving Surface Finishes in Different Materials
The type of cutter used can affect the surface finish of the material. For example, ball end mills are ideal for producing a smooth finish, while roughing end mills are used when a fine finish is not required.
Maximizing Tool Life with the Right Cutter Material
Selecting the suitable cutter material not only ensures optimal performance but also extends tool life. For instance, carbide cutters are more durable than high-speed steel ones and are therefore preferred for long production runs.
Advantages of Different Types of Milling Cutters
————
Milling cutters are essential tools in machining processes. This article explores the advantages of various types of milling cutters.
Exploring the Benefits of Carbide Milling Cutters
- High Cutting Speeds: Carbide is more complex than most other materials, allowing for faster cutting speeds.
- Extended Tool Life: Carbide cutters are highly wear-resistant, leading to longer tool life.
- Consistent Performance: Carbide maintains its hardness at high temperatures, ensuring consistent performance.
Understanding the Applications of Insert Milling Cutters
- High-Speed Machining: Insert cutters are ideal for high-speed machining applications due to their replaceable tips.
- Versatility: They can handle a variety of materials and operations, from roughing to finishing.
- Cost-Efficiency: The replaceable nature of inserts reduces tool replacement costs.
Maximizing Efficiency with High-Speed Steel (HSS) Cutters
High-speed steel (HSS) cutters are known for their versatility and toughness. They can withstand higher temperatures without losing their hardness, making them suitable for machining a wide range of materials. Moreover, HSS cutters are less brittle than carbide cutters, reducing the risk of chipping and extending tool life.
The Versatility of Drill Bits in Milling Applications
Drill bits are not traditionally associated with milling; however, they offer unique advantages in specific applications. For instance, they can create holes with great precision. Additionally, specialized drill bits can perform tasks such as counterboring, countersinking, and reaming, making them versatile tools in milling operations.
Specialty Cutters for Unique Milling Operations
Specialty cutters are designed for specific milling operations that standard blades cannot handle effectively. For example, dovetail cutters are used to create dovetail slots, while T-slot cutters are designed to mill T-slots. These specialty cutters can significantly enhance productivity and precision in complex milling operations.
Factors to Consider when Choosing a Milling Cutter
————
Selecting the appropriate milling cutter is crucial for successful machining operations. This guide will help you make an informed choice.
Understanding Cutting Edge Geometries for Different Milling Operations
The geometry of a cutter’s cutting edge significantly affects its performance and the quality of the finished part. For instance, sharp-edged blades are ideal for producing a smooth finish on soft materials, while rounded edges are suitable for hard materials due to their strength and durability. Additionally, the number of cutting edges or flutes on a cutter impacts the feed rate and chip removal, with more flutes allowing for faster feeds but less space for chip evacuation.
Impact of Material Hardness on Cutter Selection
The hardness of the workpiece material has a direct influence on cutter selection. Hard materials require cutters made from robust materials such as carbide or diamond that can withstand the high cutting forces and temperatures generated during machining. Conversely, softer materials can be machined using cutters made from high-speed steel (HSS), which is less expensive and offers excellent toughness.
Optimizing Toolpath Strategies for Efficient Material Removal
Toolpath strategy plays a crucial role in ensuring efficient material removal and reducing tool wear. Procedures like climb milling, where the cutter moves in the same direction as the workpiece feed, can result in a better surface finish and less heat generation. On the other hand, conventional milling, where the cutter moves against the direction of the workpiece feed, can provide better tool life in specific applications.
Selecting the Right Cutter for Specific Workpiece Shapes
The shape of the workpiece also affects the choice of the cutter. For example, flat-end mills are suitable for creating flat surfaces or straight edges, while ball-end mills are used for milling contoured surfaces and complex shapes. Similarly, corner radius end mills are ideal for machining filleted corners, offering a balance between the cutting efficiency of a flat-end mill and the contouring ability of a ball end mill.

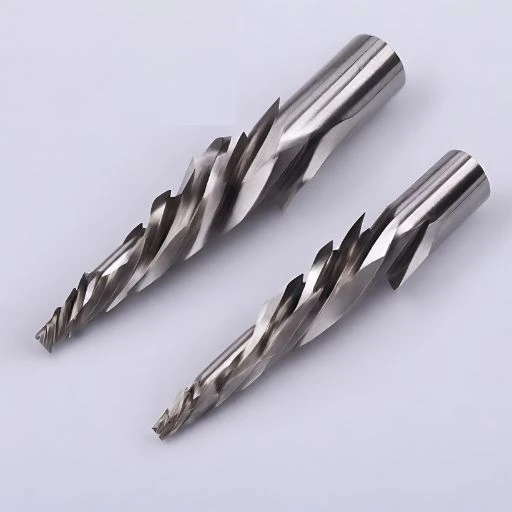

The Influence of Tool Coating on Cutting Performance
Tool coatings can significantly enhance the performance and lifespan of milling cutters. Coatings such as titanium nitride (TiN) improve hardness and heat resistance, enabling higher cutting speeds and feeds. Other layers, like diamonds, offer excellent wear resistance, making them suitable for machining abrasive materials. Therefore, understanding the benefits of different layers can help in selecting the suitable cutter for a specific application.
Optimizing CNC Performance with the Right Cutting Tool
————
The selection of cutting tools has a significant impact on CNC performance. This guide provides insights into optimizing CNC operations with the correct tool choice.
Maximizing Performance and Tool Life with the Right Cutting Tool
Selecting the right cutting tool is crucial for maximizing both machine performance and tool life. Devices made from robust materials such as carbide or diamond provide high cutting speeds and feeds, enhancing machining efficiency and productivity. Additionally, these tools offer excellent wear resistance, leading to extended tool life and reduced tool replacement costs.
Enhancing Machining Efficiency with Proper Tool Selection
Proper tool selection can significantly enhance machining efficiency. Understanding the material being machined and selecting a tool that is designed to handle its specific properties is essential. For instance, carbide tools are ideal for hard materials due to their hardness and heat resistance, while high-speed steel (HSS) tools are suitable for softer materials due to their toughness and lower cost.
Reducing Machining Time with High-Performance Cutting Tools
High-performance cutting tools can significantly reduce machining time. These tools, often made from advanced materials like carbide or coated with wear-resistant coatings, can operate at higher cutting speeds and feeds without sacrificing tool life or surface finish quality. This leads to shorter cycle times and increased productivity.
Improving Surface Finish with the Right Tool for the Job
The quality of the surface finish is directly influenced by the tool used. Tools with sharp cutting edges and smooth surfaces can produce a high-quality finish on soft materials. On the other hand, hard materials require tools with firm cutting edges that can resist the high cutting forces and temperatures generated during machining. Furthermore, the number of flutes on the device can also affect the surface finish, with more flutes generally leading to smoother finishes.

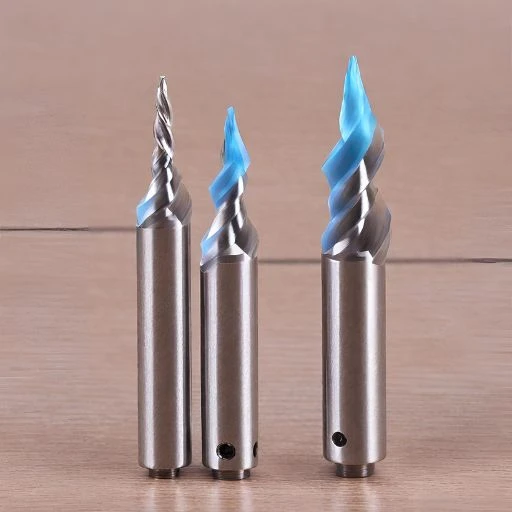

Choosing the Right Tool for Complex Milling Operations
Complex milling operations require tools designed to handle specific tasks. For example, ball end mills are ideal for machining contoured surfaces, while slot drills are used for creating slots or pockets. Similarly, specialty cutters like dovetail or T-slot cutters are designed for specific operations that standard blades cannot handle effectively. Therefore, understanding the requirements of the milling operation is critical to selecting the right tool.
Frequently Asked Questions
————
Q: What are the key factors to consider when choosing a CNC milling cutter?
When selecting a CNC milling cutter, crucial considerations include the work material, the nature of the cutting operation (roughing or finishing), the required finish quality, the cutter’s size, and the specific milling tool attributes such as flute count, coating, and tool material.
Q: What is the importance of the flute in a milling cutter?
The flute in a milling cutter is essential for chip evacuation during the cutting process. The flute count also influences the cutter’s material removal efficiency and the resulting surface finish.
Q: Can you explain the difference between roughing end mills and standard end mills?
Roughing end mills, with more flutes and aggressive cutting geometry, can remove larger material volumes quicker than standard end mills, making them ideal for roughing operations.
Q: What are the common materials used for CNC milling cutters?
CNC milling cutters are typically made from solid carbide, high-speed steel (HSS), or various coated carbide inserts. The material choice depends on the workpiece material, cutting speed, and specific application demands.
Q: How do I choose the suitable milling cutter for surface milling operations?
For surface milling cutter selection, consider the work material, desired surface finish, cutter size, flute count, and if a specific coating or tool geometry is necessary for efficient material removal.
Q: What are some commonly used materials in CNC milling tool construction?
Common CNC milling tool materials include micro-grain carbide, cemented carbide, and high-speed steel, offering varying hardness, wear resistance, and toughness levels to meet diverse machining needs.
Q: How do I determine the appropriate cutting speed for a CNC milling cutter?
The cutting speed for a CNC milling cutter depends on the work material, cutter material, cutting operation type, and machine capabilities. These variables must be considered to optimize machining efficiency and tool lifespan.
Q: What considerations should I keep in mind when selecting a roughing end mill?
When choosing a roughing end mill, consider the material to be removed, the desired material removal rate, cutter geometry, and chip evacuation potential. A suitable roughing end mill can significantly enhance roughing operation efficiency.
Q: How do I choose the appropriate milling cutter for slotting and profiling operations?
For slotting and profiling, consider factors such as the slot width, cut depth, work material, and the cutter geometry and length. Ensure the cutter’s features match the slotting or profiling operation requirements.
Q: What are the advantages of using solid carbide milling cutters for CNC machining?
Solid carbide milling cutters have high hardness, wear resistance, and heat resistance, making them ideal for high-speed machining and extended tool life. They can efficiently cut various materials like stainless steel, aluminum, and other alloys.
