Machining Drill Bits: Exploring the Variety and Applications

Machining Drill Bits: Exploring the Variety and Applications
Twist Drill Bit

What Are The Different Types Of Drill Bits For Machining?

Drill bits are integral components in the machining and manufacturing industries. They come in various types, each designed for specific applications and materials. Understanding the different types of drill bits is crucial for operators and engineers to ensure efficient and effective drilling operations. In this article, we will delve into the details of different types of drill bits used in machining, including twist bits, center bits, indexable drill bits, core drill bits, and spade drill bits.

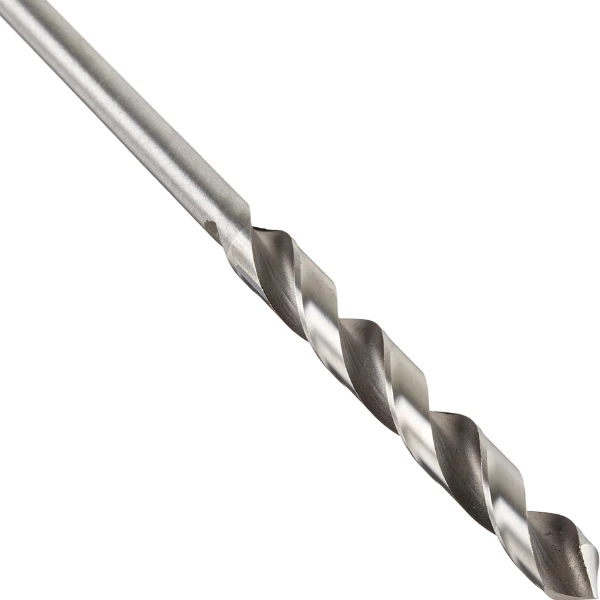

Understanding Twist Bits

Twist bits are one of the most common types of drill bits used in machining. They are characterized by a twisted shaft that ends in a point, which allows them to remove material as they rotate. This type of bit is versatile and can be used for a wide range of materials, from wood and plastic to metals.

Twist Drill Bit
Twist Drill Bit

Source

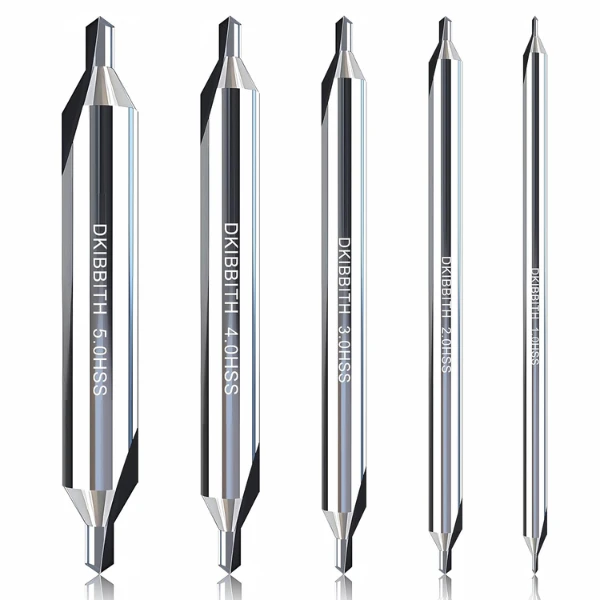

Exploring Center Bits

Center bits, as the name suggests, are used primarily for creating a centered hole before drilling with larger bits. They have a pointed tip and angled cutting edges, which help in positioning and starting the hole accurately. The use of center bits can significantly enhance the precision of drilling operations.

Center Bits
Center Bits

Source

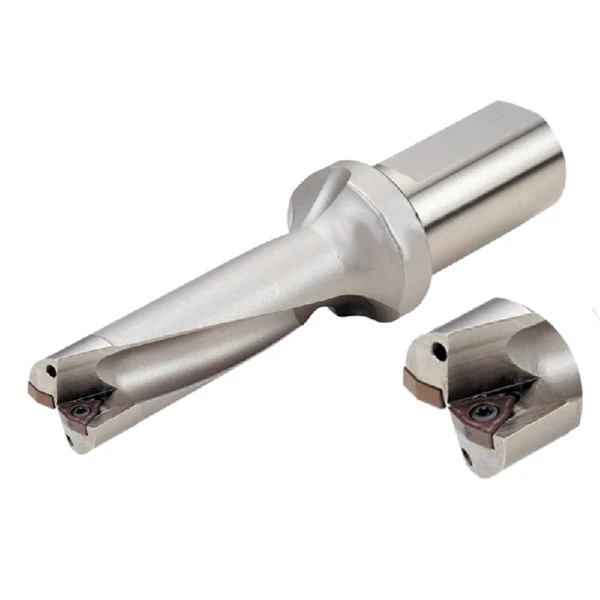

Overview of Indexable Drill Bits

Indexable drill bits are innovative tools that feature replaceable cutting edges, also known as inserts. These bits are highly beneficial for high-volume production environments as they eliminate the need for frequent sharpening. When the cutting edge becomes dull, the insert can be replaced, reducing downtime and increasing productivity.

Indexable Drill Bits
Indexable Drill Bits

Source

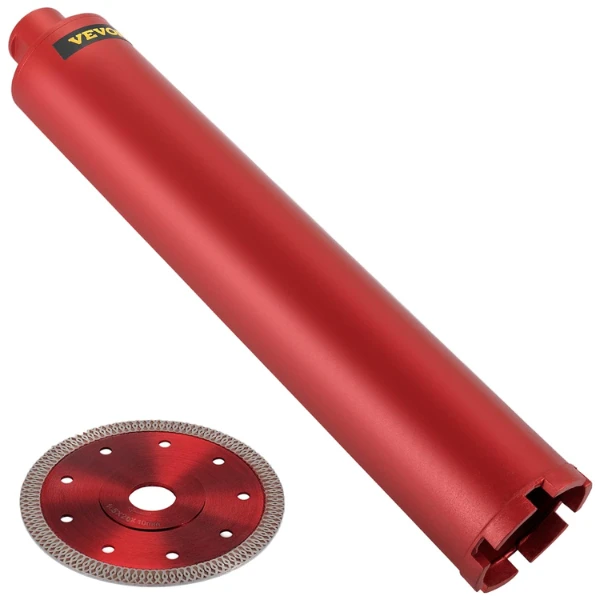

Investigating Core Drill Bits

Core drill bits are designed to remove a cylinder of material, the ‘core’, from the workpiece. They are often used when large diameter holes are required. The advantage of using a core drill bit is that it requires less power and time compared to solid drill bits of the same diameter, as it removes less material.

Core Drill Bits
Core Drill Bits

Source

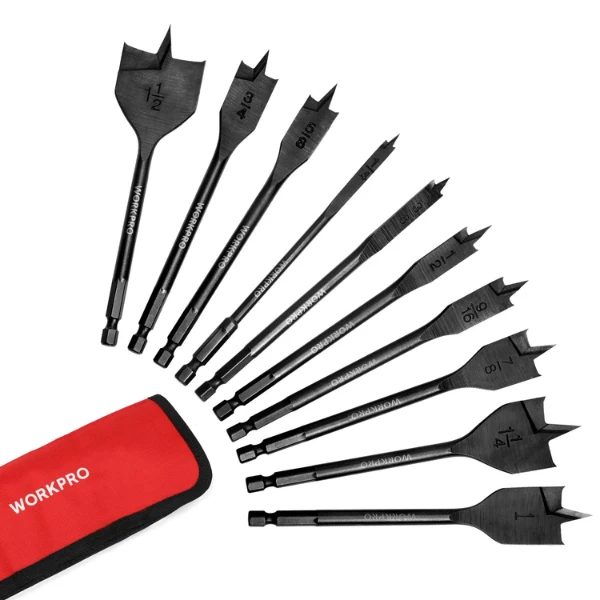

Examining Spade Drill Bits

Spade drill bits, also known as paddle bits, have a broad, flat blade with a sharp point. These bits are typically used for drilling large holes in wood or plastic. Despite their simple design, spade drill bits can deliver clean and accurate holes when used correctly.

Examining Spade Drill Bits
Examining Spade Drill Bits

Source

How Do You Choose The Right Drill Bit For Metal Machining?

The process of metal machining requires precision, efficiency, and the right tools to achieve optimal results. One of these tools, and perhaps one of the most critical, is the drill bit. Choosing the right drill bit for metal machining is not a task to be taken lightly, as the performance of the drill bit can significantly impact the quality of the final product. This article will explore the factors to consider when drilling through steel, the benefits of using carbide and cobalt drill bits, understanding high-speed steel (HSS) drill bits, and the importance of coatings in drill bits for metal.



Factors to Consider When Drilling Through Steel

  1. Type of Steel: Different types of steel have varying hardness levels, which can affect the choice of drill bit.
  2. Drill Bit Material: Certain materials are more effective at drilling through steel than others.
  3. Drill Bit Size: The size of the drill bit should match the intended hole size.
  4. Speed and Feed Rate: These parameters should be adjusted based on the type of steel and drill bit used.
  5. Cooling and Lubrication: Proper cooling and lubrication can prolong the life of the drill bit and improve the quality of the drilled hole.

Benefits of Using Carbide Drill Bits on Stainless Steel

  1. High Hardness: Carbide drill bits have a high hardness level, making them ideal for drilling through tough stainless steel.
  2. Heat Resistance: They can withstand high temperatures generated during the drilling process without losing their edge.
  3. Long Lifespan: Due to their toughness and heat resistance, carbide drill bits tend to last longer than other types of drill bits.
  4. Improved Productivity: Their ability to maintain sharpness even under intense conditions leads to reduced downtime and increased productivity.

Understanding High-Speed Steel (HSS) Drill Bits for Metal

High-speed steel drill bits are a popular choice for metal machining due to their combination of hardness and toughness. They can withstand the high temperatures generated during drilling, which makes them suitable for a wide range of metals, including steel and aluminum. In addition, HSS drill bits are generally more affordable than carbide or cobalt drill bits, making them a cost-effective choice for many applications.



Exploring the Use of Cobalt Drill Bits for Machining

  1. High Heat Resistance: Cobalt drill bits can withstand high temperatures without losing their sharpness.
  2. Durability: These bits are highly durable and resistant to wear, making them ideal for heavy-duty drilling tasks.
  3. Versatility: Cobalt drill bits can be used on a variety of materials, including hard metals like stainless steel and cast iron.
  4. Improved Accuracy: They maintain their sharpness for longer periods, resulting in more accurate drilling.

Importance of Coatings in Drill Bits for Metal

Coatings on drill bits serve several crucial functions. They reduce friction, which improves drilling speed and efficiency. Additionally, they increase the hardness of the drill bit, allowing it to cut through harder materials. Coatings also provide heat resistance, preventing the drill bit from losing its edge under high-temperature conditions. Some common types of coatings include titanium nitride (TiN), titanium carbonitride (TiCN), and diamond-like carbon (DLC).



What Are The Features And Qualities Of The Best Drill Bit Sets For Machining?

Machining operations often require different types of drill bits to handle a variety of tasks. The best drill bit sets for machining usually encompass a range of features and qualities that make them versatile, durable, and effective. These features include varied shank types, diverse bit set lengths, an array of diameters, different cutting edges, and specialized sets designed for specific tasks. In this comprehensive guide, we will delve into these features and qualities, providing an informative overview of what makes a drill bit set exceptional for machining tasks.



Comparing Different Shank Types in Drill Bit Sets

Shank Type Description
Straight Shank Commonly used due to its simplicity and ease of use. It provides a good grip and is suitable for most drilling tasks.
Tapered Shank Designed to fit into tapered holder, offering a strong hold for high torque operations.
Hex Shank Has six-sided shank which fits into a hexagonal socket. It prevents the bit from slipping in the chuck.
SDS Shank Specifically designed for hammer drills and provides a secure hold during high impact drilling.

Exploring the Importance of Bit Set Lengths in Machining

The length of the drill bit plays a significant role in its application. Shorter bits offer more rigidity and are less likely to wander or deflect from the target, making them suitable for precision tasks. On the other hand, longer bits are needed when deep holes are required. Having a variety of lengths in a drill bit set offers versatility and flexibility in machining operations.



Understanding the Variety of Diameters in Drill Bit Sets

Drill bit sets should also include a range of diameters to cater to different hole sizes. Small diameter bits are great for creating pilot holes or performing detailed work, while larger diameter bits are used for heavy-duty drilling or creating larger holes. As such, an ideal drill bit set should have a wide diameter range to accommodate various machining requirements.



Exploring Other Cutting Edges in Best Drill Bit Sets

The best drill bit sets also feature a variety of cutting edges. For instance, some bits have a split point design that starts on contact, eliminating the need for a center punch and reducing walking. Others feature a 135-degree angle that reduces the pressure required when drilling hard material. Understanding these different cutting edge designs can help you select the most suitable drill bit for your specific machining task.



Overview of Specialized Drill Bit Sets for Specific Machining Tasks

  1. Masonry Drill Bit Sets: These are designed for drilling into brick, concrete, and other masonry materials.
  2. Wood Drill Bit Sets: These are specifically designed for woodwork, featuring sharp cutting edges to cut through wood fibers.
  3. Metal Drill Bit Sets: Made from hardened steel or cobalt, these bits are designed for drilling through metal.
  4. Multi-purpose Drill Bit Sets: These sets contain a mix of bits suitable for wood, metal, and masonry.
  5. Glass and Tile Drill Bit Sets: These are designed with a spear point that reduces the risk of breakage when drilling into glass or tile.



How Do You Effectively Use Drill Bits For Technical Machining Tasks?

In the realm of technical machining, the importance of using the right drill bit cannot be overstated. Drill bits play a crucial role in determining the efficiency, accuracy, and quality of the machining process. Different types of drill bits are designed for specific applications, making them more suitable for certain tasks than others. To maximize their potential, it’s essential to understand the applications and uses of various drill bits such as masonry, spot, chamfer, spade, and flat-bottom drill bits. This article provides an in-depth exploration of how these drill bits can be effectively used in technical machining tasks.



Applications of Masonry Drill Bits in Machining

  1. Drilling into Concrete: Masonry bits are ideal for drilling holes in concrete due to their robust design.
  2. Brickwork: These drill bits can efficiently penetrate brick materials, making them useful in construction-related machining tasks.
  3. Stone Work: Masonry drill bits are also used in stone carving and sculpture works for creating precise holes.

Overview of Spot Drill Bits and Their Precision Machining Applications

Spot drill bits, also known as spotting drills, are primarily used for making starter holes that guide other drill bits. The main advantage of spot drill bits is their ability to create precise, shallow depressions that help prevent other drill bits from wandering off the mark. They are commonly used in precision machining applications where accuracy is of utmost importance.



Understanding the Use of Chamfer Drill Bits in Manufacturing and Machining

  1. Creating Angled Holes: Chamfer drill bits are often used to create angled holes in workpieces.
  2. Edge Finishing: These bits can be used to smooth or finish the edges of holes, enhancing the overall look and feel of the machined parts.
  3. Deburring: Chamfer bits are also excellent tools for deburring, i.e., removing the rough edges or ridges left behind after drilling or cutting.

Exploring the Ideal Applications of Spade Drill Bits in Machining

  1. Creating Large Holes: Due to their wide cutting edge, spade drill bits are excellent for creating large diameter holes.
  2. Woodworking: Spade bits are commonly used in woodworking for tasks such as furniture making and carpentry.
  3. Light Metal Drilling: Some spade bits can be used for drilling light metals, although they are primarily designed for wood.

Usage of Flat-Bottom Drill Bits for Specific Machining Tasks

Flat-bottom drill bits are unique in that they create flat-bottomed holes, unlike most other drill bits that create conical-bottomed holes. This makes them ideal for tasks where a flat bottom hole is necessary, such as counterboring or creating recesses for flat-head screws. They are also used in applications where a precise depth of hole is required without any taper at the bottom.



What Are The Top Brands And Suppliers For Machining Drill Bits?

In the machining industry, the quality of drill bits plays a vital role in ensuring precision, efficiency, and overall performance. Therefore, choosing a reputable brand or supplier for machining drill bits is a crucial decision. There are several top-notch brands and suppliers known for their high-quality products, innovative designs, and exceptional services. This article will delve into these leading brands and suppliers, exploring their offerings, comparing their services, and emphasizing the importance of reliability and precision in selection.



Highlighting Popular Brands for High-Quality Drill Bits for Metal Machining

  1. Max Winters: Known for their high-quality drill bits, Max Winters offers an impressive range of products suitable for various applications.
  2. Drill America: Recognized for their exceptional cobalt set, Drill America is a popular choice among professionals.
  3. Union Butterfield: Also known as Precision Twist Drill, Dormer Pramet, they offer a good range of HSS and cobalt drills.
  4. Milwaukee Shockwave: Renowned for their titanium bits, Milwaukee Shockwave is a trusted brand for wood applications.
  5. DEWALT: A well-known name in the industry, DEWALT offers versatile drill bits that cater to various materials, including metal.

Exploring the Variety of Machining Drill Bits Offered by Grainger Industrial Supply

Grainger Industrial Supply boasts a comprehensive catalog of machining drill bits suitable for a wide array of applications. Their offerings include high-speed steel (HSS) drill bits, cobalt drill bits, carbide-tipped drill bits, and others. They also provide sets that cater to specific applications, such as masonry, metal, wood, and multi-material drilling.



Understanding the Range of Services and Products Offered by Machining Drill Bit Suppliers

Machining drill bit suppliers offer a wide variety of services and products to cater to the diverse needs of their clients. These include providing different types of drill bits, offering custom solutions for unique applications, and delivering maintenance and after-sales services. Some suppliers also offer consulting services to help clients choose the most suitable drill bits for their specific machining tasks.



Comparing the Offerings of Different Suppliers for Drill Bits and Machining Accessories

Supplier Types of Drill Bits Additional Services
Grainger Industrial Supply HSS, Cobalt, Carbide-tipped Custom Solutions, Maintenance Services
MSC Industrial Supply Co. HSS, Cobalt, Carbide, Diamond Consulting, Custom Solutions
Fastenal HSS, Cobalt, Carbide, Masonry Custom Solutions, After-sales Services
Northern Tool + Equipment HSS, Cobalt, Carbide, Titanium Maintenance Services, After-sales Services

Importance of Reliability and Precision in Selecting Machining Drill Bit Suppliers

Reliability and precision are paramount when selecting a supplier for machining drill bits. A reliable supplier ensures consistent quality and timely delivery, which is crucial for maintaining operational efficiency. Precision, on the other hand, relates to the accuracy of the drill bits, which directly impacts the quality of the machining process. Therefore, it’s essential to choose suppliers who demonstrate a strong commitment to reliability and precision.



Frequently Asked Questions

_

Q: What are the common types of machining drill bits?

A: Machining drill bits typically come in forms like twist, center, spade, hole saw, and step drill bits.

Q: How do I choose the right drill bit for a specific task?

A: Selection of a drill bit depends on the material to be drilled, the hole size, and the drill type. Different tasks and materials necessitate different drill bits.

Q: What are the applications of reamer drill bits?

A: Reamer drill bits are primarily used for enlarging and finishing holes, ensuring precision and accuracy in engineering and machining.

Q: What is a multi-purpose drill bit and its advantages?

A: A multi-purpose drill bit can work on various materials, providing versatility. The advantage is in its multipurpose use, eliminating continuous bit changes.

Q: How do I maintain and prolong the life of drill bits?

A: Prolonging drill bit life involves cleaning, using the correct speed, and avoiding overheating during use.

Q: What are the key features of high-speed steel drill bits?

A: High-speed steel drill bits are durable, maintain hardness at high temperatures, and resist wear, ideal for drilling tough materials.

Q: Can I use machining drill bits for DIY projects and home improvement tasks?

A: Machining drill bits can be used for versatile tasks, including DIY projects and home improvements like installing shelves and cabinets.

Q: What are the common coatings used on drill bits?

A: Typical drill bit coatings include black oxide, titanium nitride, and cobalt, each offering benefits like enhanced durability, heat resistance, and lubrication during drilling.

Q: How are machining drill bits measured?

A: The measurement of machining drill bits typically involves diameter and length, using either inches or millimeters as the standard unit, depending on the region and standard.

Q: What are the different types of cutters used in machining drill bits?

A: Cutters used in machining drill bits include end mills, counterbores, countersinks, and reamers, each serving specific purposes such as creating holes, enlarging existing holes, and achieving desired surface finishes.

References

_

  1. The Ultimate Guide to Drill Bits – Practical Machinist: This source provides an in-depth look at drill bit anatomy, common terms, types, and uses.
  2. Beginner’s Guide to Essential Drill Bit Types – Drill Bit Warehouse: A comprehensive guide to essential drill bit types based on their shape like Twist Bit, Hole Saw, Core Bit, Spade Bit, Step Bit.
  3. Drill Bit Types – The Ultimate Guide – Tool Cobber: This guide covers the various drill bit types used in drilling power tools, including simple explanations, tips, and photos.
  4. Metal Drill Bits Guide: Choosing the Right Tool for the Job – Richconn CNC: This source offers a guide on choosing the right metal drill bits, including a section on machined surface finish in CNC machining.
  5. The Guide to Buying Carbide Drill Bits – Speedtiger Tools: This buying guide provides information on carbide drill bits, including an agreement among experts that carbide drill bits are the best choice.
  6. Drill Bit Selection Guide: Types, Uses, and Maintenance – TRDSF: This source provides a guide to choosing the right drill bit for the job, ensuring efficiency and safety. It discusses the types of drill bits, design features, and materials.
  7. Types Of Drill Bits Used in Part Manufacturing – Waykenrm: This source explains the types of drill bits used in part manufacturing. It also includes information about different shapes and sizes of drill bits.
  8. Choosing the Right Drill Bit – DirectIndustry: This source provides a guide to choosing the right material for a drill bit, including hard metal drill bits and high-speed steel (HSS) drill bits for higher speed machining.
  9. A Complete Guide to the Different Types of Drill Bits – Family Handyman: This source gives an overview of drill bit types and the projects for which they work best.
  10. Drill Bits: The Ultimate Guide – Tooluxe: This ultimate guide covers everything from the basics of drill bit types to their specific uses in different materials, making it an excellent resource for both beginners and experienced users.
