Tungsten Copper Ball Nose End Mill【2 Flutes Long Neck R0.1-R2】

Upgrade Your Tools with the High-Performance Tungsten Copper Ball Nose End Mill!

SAMHO is your reliable source for top-quality tools. We are excited to offer you the procurement of our cutting-edge Tungsten Copper Ball Nose【2 Flutes Long Neck R0.1-R2】end mill directly from China. Engineered with precision and excellence, this tool guarantees exceptional performance and longevity.

2-Flute Long Neck Ball Nose End Mill – Precision Cutter for Tungsten Copper Machining

Specifically engineered for high-precision machining of tungsten copper (WCu) alloys, this 2-flute long neck ball nose end mill is ideal for deep cavities, complex 3D contours, and fine electrode features. Its optimized geometry and premium materials deliver superior performance, accuracy, and tool life.The long neck design provides added reach and clearance in narrow or deep cavities, enabling precise machining of complex tungsten copper electrode geometries without tool interference or deflection.

Sharp 2-Flute Geometry for Smooth, Low-Resistance Cutting
The dual-flute design ensures efficient chip evacuation and minimizes cutting forces. Ideal for ductile, high-conductivity WCu materials, especially under minimal lubrication (MQL) or dry machining conditions.

Ball Nose Tip for Precision 3D Surface Finishing
The ball nose profile allows for accurate finishing of curved surfaces, small radii, and internal corners—perfect for micro-mold cavities and EDM electrodes that require fine detail and excellent surface quality.

Ultra-Fine Grain Carbide for Maximum Wear Resistance
Manufactured from ultra-fine grain solid carbide, the tool offers outstanding hardness and toughness, with superior resistance to wear and edge chipping—critical when machining dense, abrasive WCu alloys.

CNC Precision Ground to ±0.01mm Tolerance
Tight manufacturing tolerances ensure consistent dimensional accuracy and high-quality surface finishes. Suitable for applications that demand micro-scale precision and repeatability.

CGLR2-000【2 Flutes Long Neck R0.1-R2】
  • svg

    Highly recommend

  • svg

    Specialty

End Mills

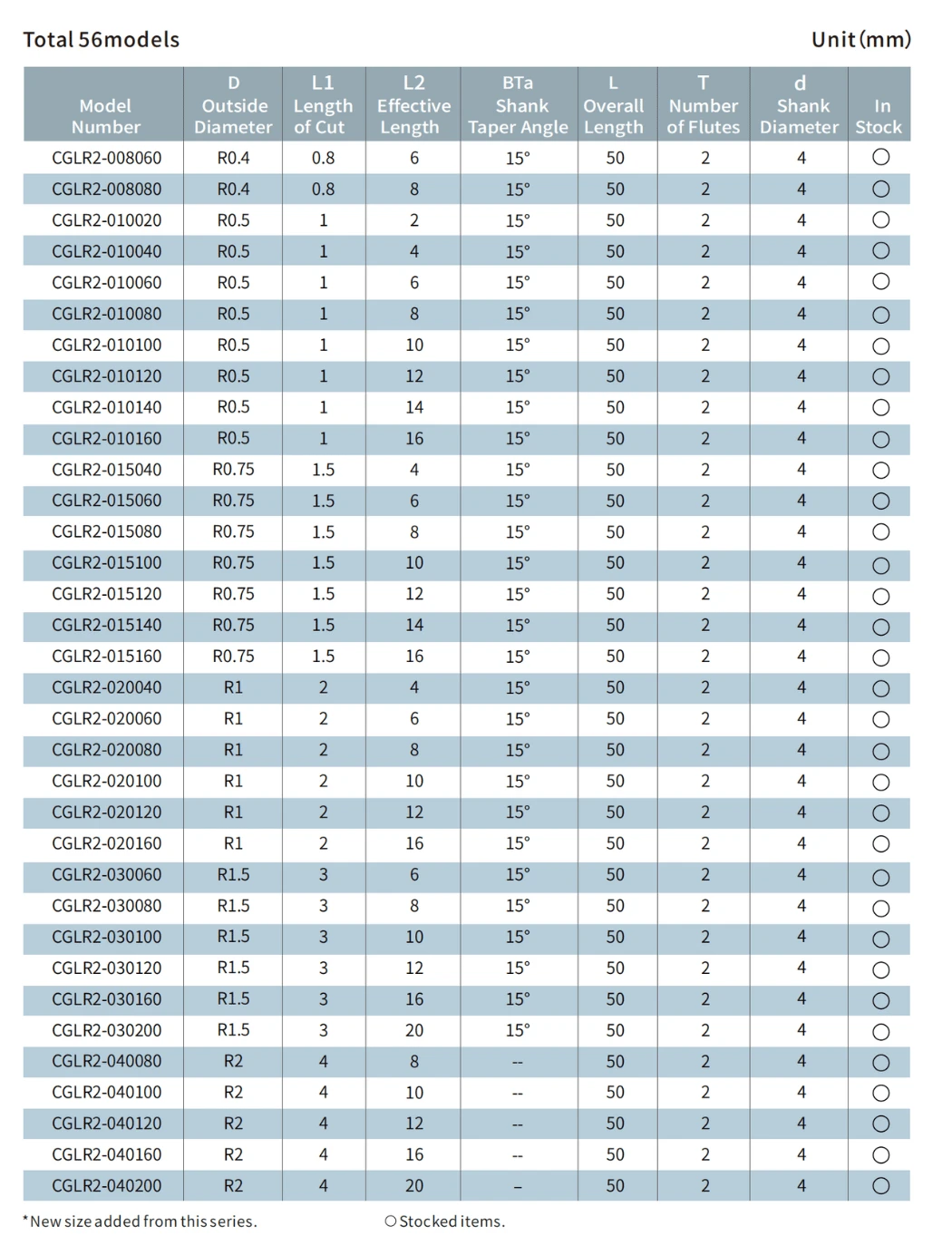

2 Flutes Long Neck Ball Nose End Mill Catalog

Total 56 Models-Unit(Mm)

  • svg

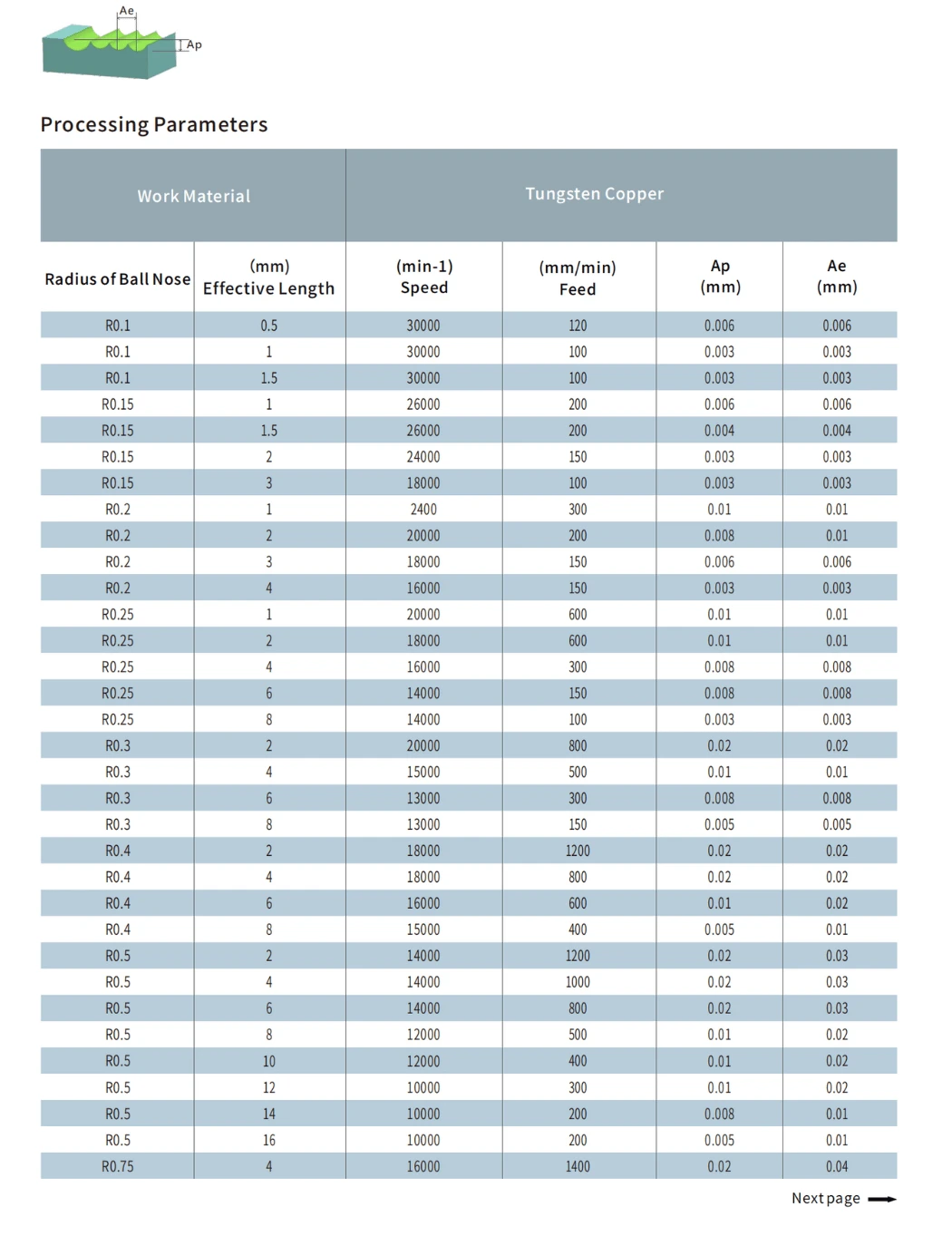

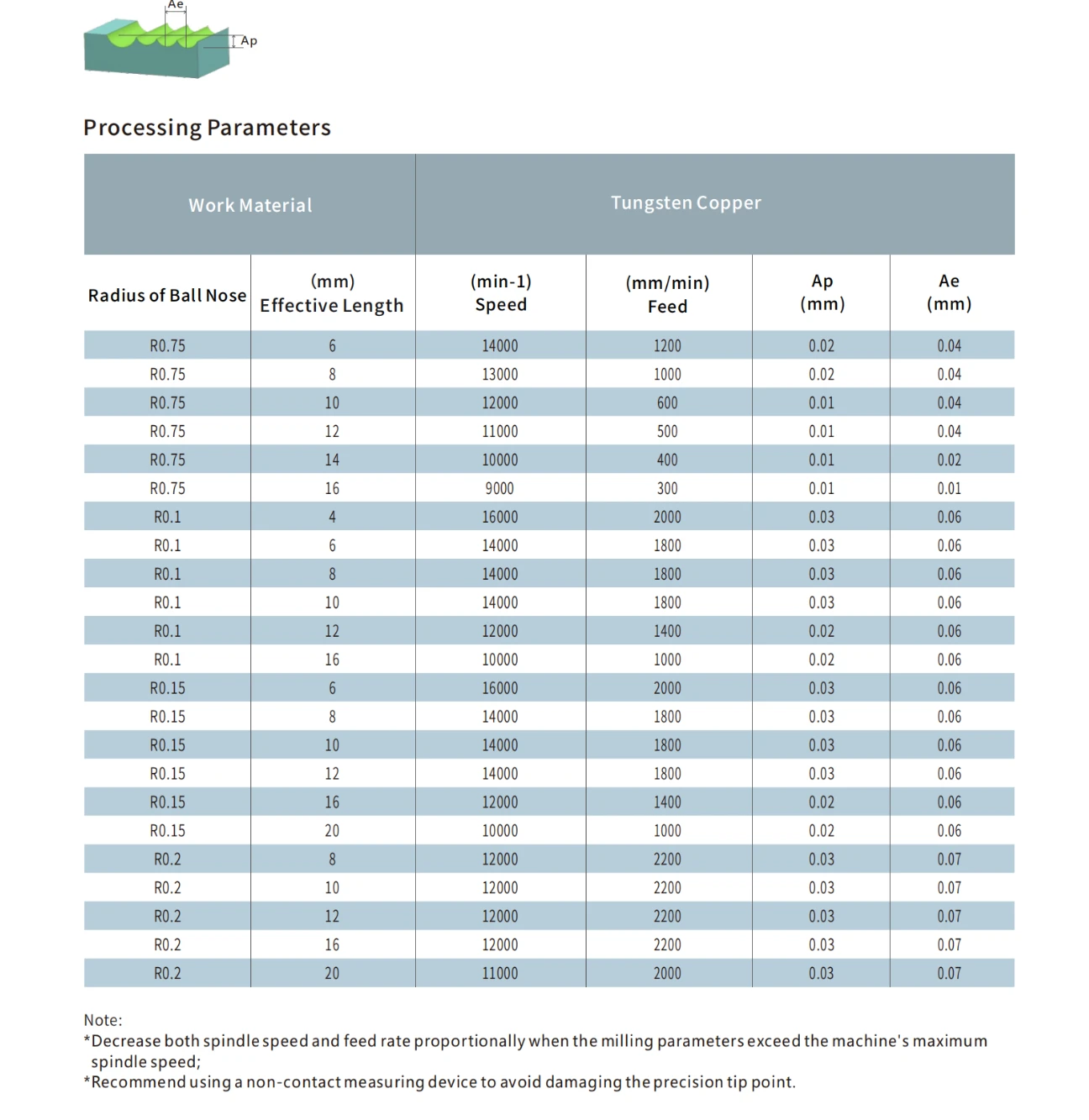

    CGLR 2-000 Milling Conditions
