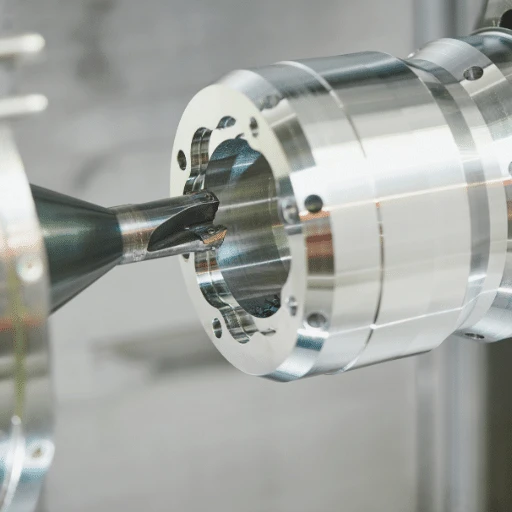

What are Cutting Tools, and How Do They Function?
Understanding the Cutting-Edge Principles
The principle of cutting-edge tools lies in their ability to remove excess material from a workpiece, resulting in a desired shape or finish. This cutting process is achieved through a sharp-edged tool, which generates a force that exceeds the shear strength of the material, facilitating a clean cut. The tool’s cutting edge must be more complex than the workpiece material, ensuring durability and efficiency during the operation. The angle and design of the cutting edge significantly influence the force distribution, heat generation, and overall performance of the cutting tool. Hence, selecting the right cutting tool with an appropriate cutting-edge design is pivotal for efficient and precise machining operations.
Exploring Different Types of Cutting Tools
Cutting tools can be broadly categorized into single-point and multi-point devices.
Single-Point Tools: These are used for turning, shaping, and planning operations where a single point comes in contact with the workpiece. Examples include the lathe tool and the dull tool.
Multi-Point Tools: These tools have more than one cutting edge engaged in the removal of material. Milling cutters, drills, and broaches are some common examples of multi-point tools.
The choice between single-point and multi-point tools depends mainly on the specific requirements of the machining operation, such as the desired finish, tolerance levels, and production rate. A nuanced understanding of the different types of cutting tools, their design, and their working principles can dramatically improve the efficiency and precision of your machining operations.
Applying Cutting Tools in Various Machining Processes
Cutting tools play a vital role in a variety of machining processes, each designed to create specific outcomes in the workpiece.

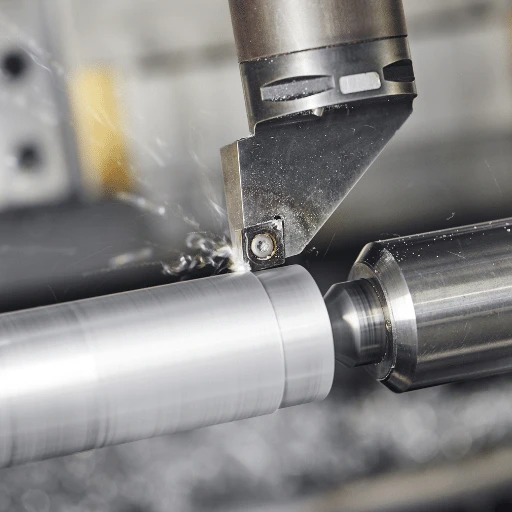

Turning: In this process, a single-point cutting tool is used to remove material from a rotating workpiece. The cutting tool moves in a linear motion while the workpiece rotates about its axis. This operation primarily produces cylindrical shapes.

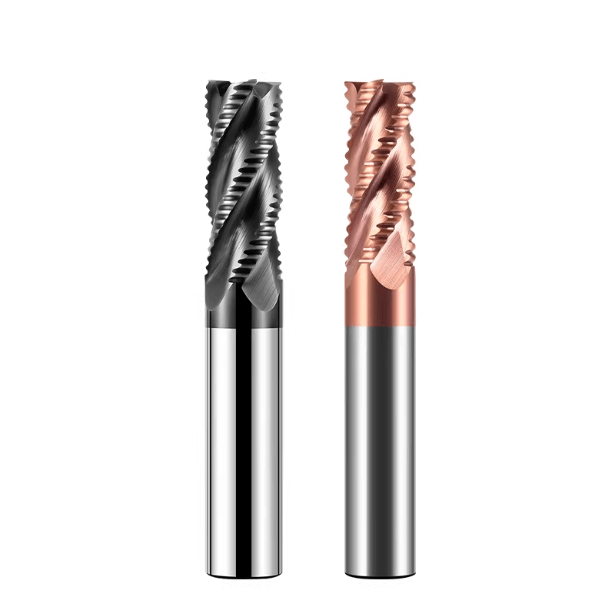

Milling: This is a multi-point operation where the workpiece is fed towards a rotating cutting tool with multiple cutting edges. Milling can produce a variety of features on a workpiece, including slots, pockets, and complex surface contours.

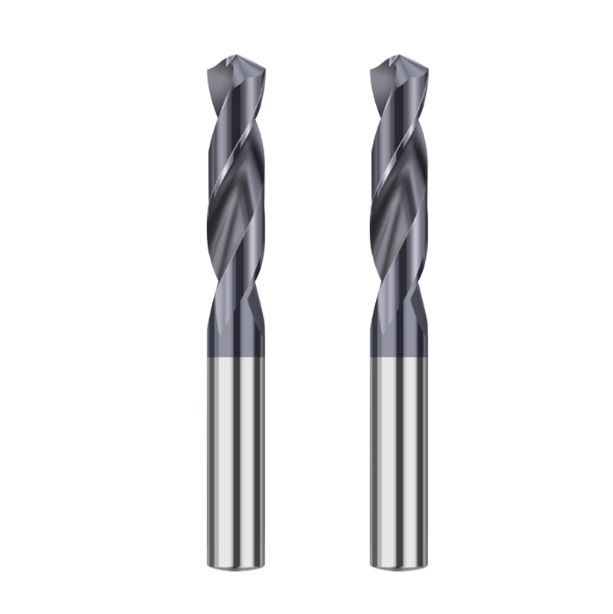

Drilling: In drilling, a multi-point tool (drill bit) rotates and moves into the workpiece, creating a round hole. The resultant hole may be cylindrical or conical, depending on the shape of the drill bit.
Broaching: Broaching employs a multi-point tool known as a broach, which removes material in a linear motion. This is typically used for precise machining of complex shapes and high-accuracy finishing.
By understanding where and how to apply different types of cutting tools in various machining processes, you can significantly improve the quality, efficiency, and precision of your operations. This insight can guide your tool selection process, ensuring you choose the right tool for every machining task.
Insight into the Classification of Cutting Tools
Cutting tools can be broadly classified into two categories: single-point tools and multi-point tools.
Single-Point Tools: As the name suggests, these tools have a single cutting edge that interacts with the workpiece. Examples of single-point tools include turning tools and shaping tools. Their primary function is to remove excess material from the workpiece to produce a desired shape.
Multi-Point Tools: These tools feature multiple cutting edges that simultaneously engage with the workpiece. Examples of multi-point tools include milling cutters and drills. They are commonly used to create a variety of features on a workpiece, such as holes, slots, and complex surface contours.
The choice between single-point and multi-point tools primarily depends on the machining process and the specific requirements of the workpiece. Understanding these categories and the appropriate application of each tool type is essential to optimize the efficiency and precision of your machining operations.

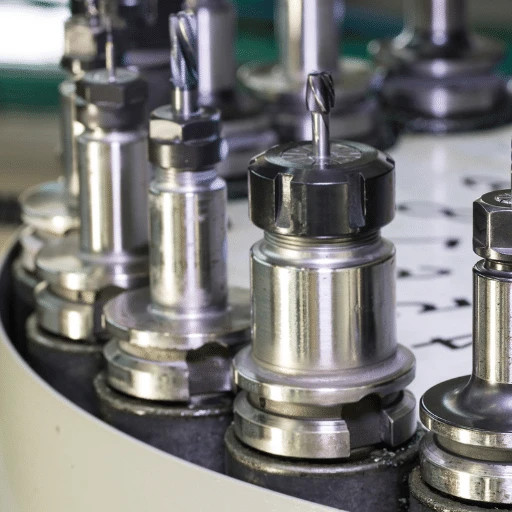

Types of Cutting Tools and Their Applications
Lathe: Essential Tool for Metal Cutting
A lathe is a critical tool in the realm of metal cutting, offering precision and versatility in creating symmetrical objects. Operating on the principle of rotating a workpiece against a single-point cutting tool, a lathe can execute a variety of operations, including turning, facing, and threading. The tool’s cutting edge removes material from the workpiece, enabling the production of cylindrical and conical shapes, screws, and drilled holes with impressive precision. Lathes are available in different types, such as engine lathes, turret lathes, and CNC lathes, each suited to specific applications. Engine lathes are ideal for individual tasks and prototyping, while turret and CNC lathes provide automated, high-speed machining for large-scale production. By selecting the appropriate lathe and cutting tool, you can significantly enhance the quality and efficiency of your metal-cutting processes.
Breaking Down Machine Tools and Their Materials
In breaking down machine tools and their materials, it’s crucial to consider the main types of materials used for these tools: high-speed steel (HSS), carbide, and ceramics. Each material type offers unique attributes that influence a tool’s performance and lifespan.
- High-Speed Steel (HSS): HSS is a robust alloy of steel, often used in the production of drill bits and cutting tools. Renowned for its heat-resistant properties, HSS allows agencies to retain their hardness even at high temperatures, enabling fast cutting speeds without compromising tool integrity.
- Carbide: Carbide tools are made of a compound of carbon and another element, often tungsten. They are more complex than HSS and can withstand higher cutting speeds and temperatures, thereby offering enhanced durability and precision. However, they are more fragile and prone to breaking under impact, making them less suitable for tasks involving heavy loads or unpredictable material properties.
- Ceramics: Ceramic cutting tools are typically composed of alumina, silicon nitride, or a combination of these materials. They offer superior heat and wear resistance, but they are brittle and can fracture under stress. Therefore, their application is often restricted to precise, high-speed cutting tasks with constant loads.
Understanding the properties and suitability of these materials for specific tasks can help in making informed decisions for tool selection, ultimately improving the efficiency and outcome of machining operations.
Functionality and Usage of Saws, Mills, and Drills
In the machining world, saws, mills, and drills are standard tools featuring distinct functionalities.
Saws: They are utilized for cutting through materials, mainly wood and metal, with their toothed edge. Saws come in various types, including hand saws for manual cutting and power saws like circular saws, band saws, and table saws, offering efficient, automated cutting for larger projects. The choice of saw type depends on factors like the material hardness, precision requirements, and scale of operation.
Mills: Milling machines, or mills, are employed for shaping solid materials, such as metal or wood. Through the use of a rotating cutting tool, they can perform a range of operations, from simple (like slot and keyway cutting, planing, and drilling) to complex (like contouring and diesinking). Mills are known for their versatility in producing custom-designed parts.
Drills: Drills are primarily used for making round holes or driving fasteners. They are fitted with drill bits of different sizes and materials, depending on the application. Drills can be manual, like hand drills, powered by electricity, or compressed air, like power drills and hammer drills. They are an essential tool in both home DIY tasks and industrial operations.
Understanding and selecting the right tool for your operation can lead to more efficient and quality output while also extending the lifespan of the devices.

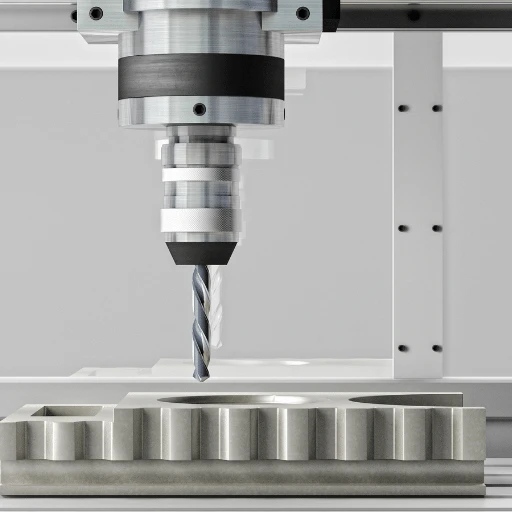

Choosing the Right Cutting Tools for Specific Tasks
Distinguishing Tools for Metal Cutting
When it comes to metal cutting, each tool has its own strengths and ideal applications. Here are some standard tools used in metal cutting:
- Band Saws: Band saws are excellent for creating irregular shapes or for cutting various types of metal. They work by using a blade consisting of a continuous band of metal with teeth along one edge to cut material.
- Chop Saws: Also known as cut-off saws, these are perfect for making quick, clean cuts in metal. They utilize an abrasive disc, similar to a thin grinding wheel, for chopping.
- Hacksaws: Featuring a fine-toothed blade, hacksaws are ideal for cutting pipes and tubes made of metal. They’re best for small-scale, manual operations.
- Angle Grinders: These handheld power tools, fitted with an abrasive disc, are suitable for cutting, grinding, or polishing metal.
- Milling Machines: As mentioned earlier, mills are versatile tools that can perform a variety of operations on metal, from simple tasks to more complex ones. They’re commonly used in machining custom-designed metal parts.
It’s crucial to match your tool to the task at hand. By doing so, you can increase efficiency, improve your results, and avoid unnecessary tool wear.
Understanding the Versatility of Shears
Shears are incredibly versatile tools, widely used in various industries for different applications. When it comes to metal cutting, they come in different types, each designed for a specific purpose. Here are notable examples:
- Tin Snips: Resembling a pair of scissors, tin snips are ideal for cutting through thin sheet metals. They are a must-have tool for HVAC workers or those dealing with ductwork.
- Aviation Snips: These are a step up from tin snips. There are three types: left-cutting, proper cutting, and straight-cutting aviation snips. They are color-coded for easy identification – red for left, green for correct, and yellow for straight cuts.
- Throatless Shears: These shears allow you to make straight, curved, or irregular cuts in sheet metal. Their design allows for significant flexibility, as the metal can be fed from any direction.
- Power Shears: For larger tasks, power shears provide the extra oomph needed. They come in two types – electric shears and pneumatic shears. A standard electrical outlet powers electric shears, while an air compressor powers pneumatic shears.
- Bench Shears: These are heavy-duty shears mounted on a workbench and are used for cutting tough metals. They leverage the user’s force to cut the material cleanly and accurately.
By understanding the versatility of shears, you can better decide which one to use for your specific task.
Exploring the Various Types of Cutters and Their Applications
Just as diverse as shears, cutters also come in many forms, each designed for a specific application, as outlined below:
- Wire Cutters: A handy tool for electricians and those in the electronics industry, wire cutters are designed to cut wires without damaging or deforming them.
- Bolt Cutters: These robust tools are used for cutting materials that are thick and hard, such as bolts, chains, and padlocks.
- Fiber Optic Cutters: These precision tools are used in the telecommunications industry to cut fiber optic cables without damaging the internal fibers.
- Tile Cutters: Tile cutters, often manual or electric, are used for making straight or diagonal cuts in ceramic, porcelain, or stone tiles.
- Glass Cutters: These are used in the glass industry to make a score line on the glass surface, which can then be broken along the bar for a clean cut.
By understanding the unique applications and capabilities of different cutters, you can ensure you have the right tool for your specific task, improving efficiency and accuracy in your work.

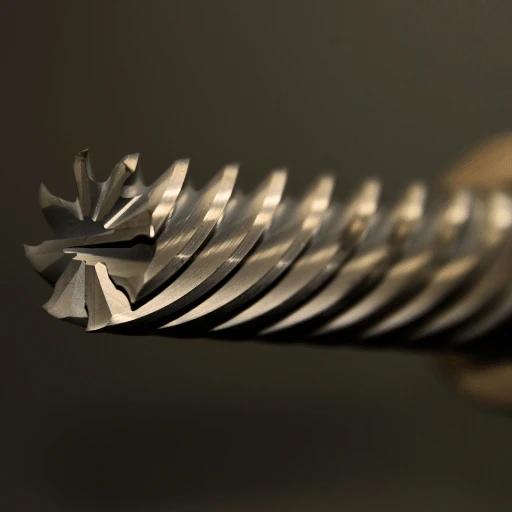

Materials Used in Cutting Tools and Their Properties
Understanding the Role of Carbide in Cutting Tools
Carbide, more specifically tungsten carbide, plays a significant role in the manufacture of cutting tools due to its exceptional hardness and resistance to wear. Tungsten carbide, a compound made from tungsten and carbon, exhibits a hardness that is close to that of diamond, making it an ideal material for tools that require high durability under strenuous cutting conditions. Additionally, carbide’s heat resistance allows the tools to maintain their sharpness even at high temperatures, which is common during metal-cutting operations. Thus, the use of carbide in cutting tools not only enhances their lifespan but also ensures consistent performance and precision in various cutting tasks. By choosing carbide-based tools, you can significantly improve the productivity and accuracy of your cutting work.
Exploring Reamers and Broaches for Material Removal
- Hand Reamers: Hand reamers are used for minor enlargement of holes. They provide an accurate size and finish to the spot. Their straight flutes make them suitable for use in most materials, including metal and wood.
- Machine Reamers: As the name suggests, machine reamers are used in a machining operation. These tools are used for the final finishing or sizing of a hole. They are more precise and faster than hand reamers.
- Tapered Reamers: These tools are used to enlarge or finish out conical holes. They are often utilized in assembly operations to align holes and remove burrs.
- Straight Broaches: Straight broaches are used for cutting operations in which the workpiece remains stationary while the broach is moved linearly. They are perfect for producing circular or non-circular holes, flat surfaces, or irregular shapes.
- Helical Broaches: These broaches are used when precision is required, as they offer a smoother cut and require less power to operate. They are ideal for cutting complex shapes and large workpieces.
- Rotary Broaches: Rotary broaches are used in a lathe or screw machine. They rotate with the workpiece, and the cutting takes place at each corner of the workpiece, thereby creating a hexagonal or square hole.
Each of these tools has unique properties and applications, allowing for the efficient and accurate removal of material in different scenarios. By leveraging the right tool for your operation, you can enhance your machining process’s productivity and precision.
Insight into the Application of Tungsten in Cutting Tools
Tungsten, due to its exceptional properties, has found widespread use in the manufacturing of cutting tools, including reamers and broaches. Its defining characteristic, high melting point, makes it resistant to deformation under high temperatures, a common occurrence in machining operations. This means tools made from tungsten can maintain their sharpness for longer, thus extending their service life and reducing the frequency of tool changes. Moreover, this rugged metal has a high hardness, even at elevated temperatures, which is beneficial in maintaining the precision of cuts.
Tungsten tools also exhibit enhanced wear resistance. This is particularly advantageous in manufacturing sectors where the materials being machined are hard and abrasive. Consequently, tungsten-cutting tools can significantly increase operational efficiency and reduce costs associated with tool replacement and downtime.
Enhancing the tungsten with carbide compounds can further improve the performance of these tools. Tungsten carbide, for instance, is renowned for its hardness and durability. Devices made from tungsten carbide can withstand higher cutting speeds, therefore increasing productivity. In essence, the application of tungsten in cutting tools has revolutionized the machining industry, providing a reliable solution that balances durability, efficiency, and precision.

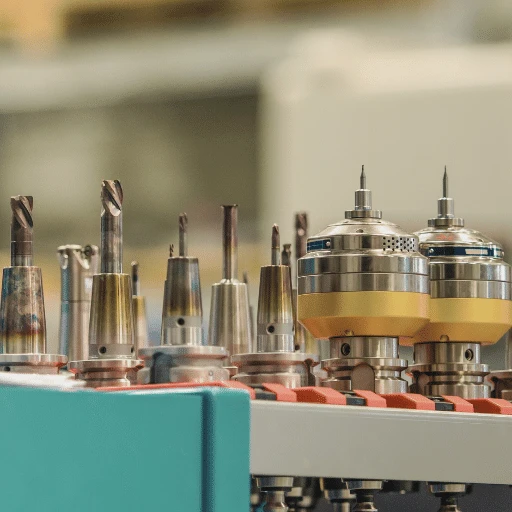

How to Choose the Best Cutting Tools for Your Project
Factors to Consider: Precision and Efficiency
- Material to be Machined: The hardness, flexibility, and abrasiveness of the material you’re working on greatly influence the choice of cutting tool. For instance, tungsten carbide tools are suitable for machining hard and abrasive materials due to their exceptional wear resistance.
- Cutting Speed and Feed Rate: These factors affect the efficiency of the cutting operation and the life of the tool. Tools made from materials like tungsten can operate at higher cutting speeds without losing their sharpness, thus increasing productivity.
- Precision Requirements: If your project requires high precision, choose a tool that can maintain its edge and form even under high machining temperatures. Again, tungsten tools are excellent in this regard.
- Tool Life Expectancy: The frequency of tool replacement can significantly affect operational efficiency. Tools made from durable materials like tungsten require less frequent changes, reducing downtime and associated costs.
- Cost of the Tool: While high-quality tools may have a higher upfront cost, their extended service life and improved efficiency can result in overall cost savings in the long run.
- Coolant Compatibility: Some cutting operations require coolants to reduce heat and friction. Ensure the tool material is compatible with the chosen coolant to prevent tool corrosion and degradation.
Selecting the Right Tools for Different Cutting Processes
The selection of the right tool for different cutting processes is critical for both efficiency and precision. Here are some standard cutting processes, along with the recommended tools:
Turning: Turning is a machining process that typically involves a lathe. High-speed steel (HSS) or carbide tools are common choices due to their versatility in cutting various materials.
Milling: The milling process requires robust, sharp cutting tools to carve out materials. Carbide cutters are a popular choice because of their hardness and ability to withstand high temperatures.
Drilling: Drilling involves creating holes in materials. Cobalt steel alloys are often chosen for drill bits due to their ability to retain hardness at high temperatures.
Boring: Boring is the process of enlarging drilled holes. Brazed carbide tools are typically used because of their high cutting speed and precision.
Reaming: Reaming is used to fine-tune the size of a hole. HSS reamers are preferred for their ability to provide a smooth finish.
Broaching: Broaching is used to remove material in a linear motion. Due to the high stress involved, high-speed steel tools are commonly used.
Remember, the tool selection could vary based on specific job requirements and the material being machined.
Cutting Tools for Specialized Tasks: Sheet Metal and Thread Cutting
When it comes to specialized tasks such as sheet metal and thread cutting, unique tools are necessary to ensure precision and efficiency.
Sheet Metal Cutting: Sheet metal cutting is a process that requires tools capable of shearing through varying thicknesses of metal. Snips, nibblers, and power shears are common choices for their ability to handle different gauge metals. Snips, similar to scissors, are manually operated and fit for smaller tasks. Nibblers and power shears, on the other hand, are powered tools that can cut through thicker gauge metals with less user exertion and higher precision.

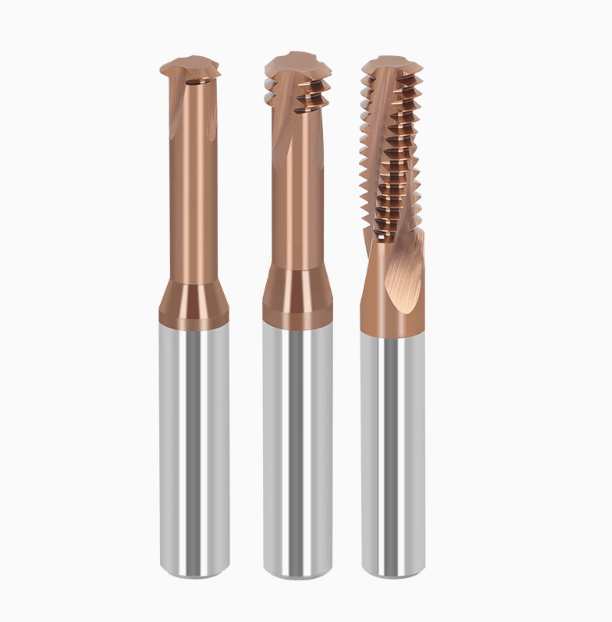

Thread Cutting: Thread cutting involves creating screw threads, often for fastening or assembly purposes. Taps and dies are the most common tools used in thread cutting. Taps are used to cut or form the female portion of the mating pair (e.g., a nut), while dies are used to cut or create the male part (e.g., a bolt). They come in a variety of sizes and thread patterns to fit specific applications.
As with any tool selection, understanding the task’s requirements and the material properties is critical to selecting the optimal cutting tool.
Frequently Asked Questions
Q: What are cutting tools, and what are they used for?
A: Cutting tools are tools used for cutting, shaping, or removing material from a workpiece. They are used in various machining processes such as drilling, milling, turning, and grinding.
Q: What are the main types of cutting tools available?
A: The main types of cutting tools available include end mills, drills, boring bars, reamers, taps, and insertable tooling. Each class is designed for specific cutting actions and materials.
Q: What are the leading cutting edge and shank of a cutting tool?
A: The leading cutting edge refers to the sharp edges of a cutting tool that facilitate the cutting action, while the shank is the part of the tool that connects it to the machine or holder.
Q: What are the different materials used in cutting tools?
A: Cutting tools are made from a variety of materials such as high-speed steel, tool steel, carbide, ceramic, and diamond. Each material has specific properties suitable for different cutting applications.
Q: How do cutting tools remove material from a workpiece?
A: Cutting tools remove material from a workpiece through a process that involves the application of cutting force at the tool-workpiece interface. This process generates a relative velocity between the device and the workpiece, resulting in material removal.
Q: What is multi-point cutting, and how is it different from single-point cutting?
A: Multi-point cutting involves cutting with tools that have two or more cutting edges, such as milling cutters, while single-point cutting involves cutting with devices that have only one cutting edge, such as lathe tools or turning tools.
Q: What are the main applications of cutting tools in manufacturing?
A: Cutting tools are mainly used in manufacturing processes like milling, drilling, turning, grinding, and hobbing. They are essential for shaping and machining various materials used in different industries.
Q: How are cutting tools classified based on the material being machined?
A: Cutting tools are classified based on the material being machined into categories such as high-speed steel tools, carbide tools, ceramic tools, and diamond tools. Each class is designed for machining different materials effectively.
Q: Can cutting tools be re-sharpened or reconditioned?
A: Yes, cutting tools can be re-sharpened or reconditioned to restore their sharpness and cutting efficiency. This process is essential for extending the tool’s lifespan and reducing machining costs.
Q: What are the essential factors to consider when selecting cutting tools for a specific machining operation?
A: When selecting cutting tools for a specific machining operation, factors such as the type of material being cut, cutting speeds and feeds, cutting forces, and tool geometry must be considered to ensure efficient and effective cutting processes.
