When milling graphite materials, efficiency and end mill tool life are the most important concerns. Based on years of CNC machining experience, choosing the right milling cutter is crucial. It’s not just a matter of finding a tool that can effectively remove material, but also finding one that can withstand the challenges that graphite processing throws at it. From material selection to tool geometry, coating technology to cutting parameters and other factors, every aspect must be carefully considered. As an experienced CNC engineer, I understand that optimizing these factors is critical to achieving high productivity and extending tool life.
In the field of graphite processing, milling cutter selection is about choosing the right tool for fine work preparation. This is a comprehensive choice for knife performance and durability. With a focus on material properties and machining strategies, coupled with advances in tool coatings and cooling systems, we strive to push the boundaries of what is achievable. By carefully developing machining methods and fine-tuning cutting parameters, we strive to maximize the use of existing tools and graphite materials. As we delve deeper into the complexities of graphite machining, we embark on a journey driven by innovation and precision, driven by a relentless pursuit of graphite material and tool performance and longevity.
Material Selection: Choosing the Right Tool Material
Choosing the right material for a milling cutter is very important to optimize the machining process, especially when working with graphite. In this section, I’ll dive into the importance of choosing a high-wear and high-temperature-resistant tool material,such as solid carbide, diamond coating, or silicon carbide coating.
Importance of High-Wear Resistance
Graphite is abrasive, which means it wears down cutting tools quickly during machining. Then, choosing materials such as solid carbide can ensure the wear resistance of the tool, enable the tool to maintain the integrity of its cutting edge for a long time, and avoid damaging the workpiece due to damage to the tool. This not only improves machining efficiency, but also reduces downtime for tool replacement, ultimately increasing productivity and saving production costs.
Significance of High-Temperature Resistance
During the machining process, graphite machining generates a large amount of heat due to the friction between the tool and the workpiece. Tools that are resistant to high temperatures, such as those coated with diamond or silicon carbide, can withstand these high temperatures without affecting their performance. This feature plays an important role in preventing excessive tool wear and maintaining workpiece dimensional accuracy and good surface finish during long-term machining.
Therefore, in graphite processing, it is very important to choose milling cutters with high wear resistance and high temperature resistance materials. Solid carbide, diamond or silicon carbide coatings are durable and thermally stable, ensuring extended tool life and consistent machining performance. By prioritizing material selection, CNC engineers can optimize the process and achieve very good results in graphite machining.
Tool Coatings: Enhancing Surface Hardness and Wear Resistance
Importance of Proper Coating Selection
Selecting the right coating technology is crucial in maximizing the performance and longevity of milling cutters used for graphite machining. Coatings such as titanium nitride (TiN), aluminum oxide (Al2O3), or diamond coatings play a pivotal role in enhancing surface hardness and wear resistance, thereby prolonging tool life and improving machining efficiency.
Benefits of Titanium Nitride (TiN) Coatings
TiN coating is widely used in cutting tools due to its excellent wear resistance and low friction coefficient. When applied to milling cutters for graphite machining, TiN coatings form a protective barrier that reduces tool wear and prevents chips from adhering. This results in smoother cutting action, reduces frictional heat generation, and extends tool life. In addition, TiN coating has good chemical stability, making it suitable for processing abrasives such as graphite.
Advantages of Aluminum Oxide (Al2O3) Coatings
Al2O3 coatings have excellent hardness and chemical stability, making them ideal for enhancing the wear resistance of milling cutters. When applied to tool surfaces, Al2O3 coatings form a hard protective layer that withstands abrasive wear and thermal degradation. This not only extends tool life, but also improves surface finish and workpiece dimensional accuracy of machined graphite parts. In addition, the Al2O3 coating has excellent thermal insulation properties, helping to dissipate the heat generated during processing, further improving tool performance and reliability.
Significance of Diamond Coatings
Diamond coatings stand out in demanding machining applications due to their exceptional hardness and wear resistance, and are particularly suitable for graphite machining. By depositing a thin layer of diamond on the tool surface, diamond-coated milling cutters exhibit unparalleled wear resistance and thermal stability. This allows for aggressive machining of graphite materials while maintaining a sharp cutting edge and minimizing tool wear. This makes diamond-coated milling cutters ideal for graphite processing, especially where high strength, precision and efficiency are required. In addition, diamond coatings are chemically inert, preventing material build-up and extending tool life in corrosive machining environments.
Milling cutter coating technology plays a vital role in optimizing the graphite machining process. TiN, Al2O3 and diamond coatings bring significant performance improvements and efficiency optimization to graphite processing with their unique advantages. By choosing the right coating technology, engineers can significantly improve the performance of milling cutters in graphite processing, extend tool life, reduce processing costs, and ultimately achieve efficient, high-precision graphite processing.
Unmatched Hardness and Wear Resistance
The emergence of diamond coating marks a revolutionary breakthrough in tool coating technology, giving tools unparalleled hardness and wear resistance. This exceptional hardness enables diamond-coated tools to handle the most demanding machining applications, including graphite machining where abrasive wear is high. The diamond coating is like a strong armor, effectively protecting the tool from wear and significantly extending the service life of the tool.
Extreme Cutting Force Resistance
Graphite machining often requires efficient cutting forces due to the abrasive nature of the graphite material. Diamond-coated tools perform well in such environments because they can withstand extreme cutting forces without being prone to wear or degradation. This resistance to cutting forces ensures that diamond-coated tools maintain their cutting edge integrity, resulting in consistent machining performance and workpiece dimensional accuracy.
Abrasive Wear Mitigation
It is well known that graphite causes abrasive wear on cutting tools during machining, leading to premature tool damage and increased tool costs due to constant tool replacement. Diamond coatings can effectively reduce this abrasive wear, providing a durable and wear-resistant surface that can withstand the aggressive effects of graphite machining. Therefore, diamond-coated tools are widely used over time, thereby reducing tool costs and improving machining quality.
Extended Tool Life and Cost Savings
One of the most significant benefits of diamond coating is its ability to significantly extend tool life. Because the graphite material reduces tool wear and increases resistance to cutting forces, diamond-coated tools last much longer than traditional tools. Extended tool life can lead to significant cost savings, because over time and experience, more efficient machining processes can be achieved and tool costs can be reduced.
Thanks to the excellent performance of diamond coating, diamond-coated tools can effectively overcome the wear problems in graphite processing, extend tool service life, improve processing accuracy, and reduce processing costs, making them an ideal choice in the field of graphite processing.
Tool Durability: Ensuring Longevity and Stability
In CNC machining, tool durability is critical to achieving excellent performance and extending tool life. Let’s delve into the many facets of tool durability, considering factors like wear resistance, thermal stability, and impact resistance to arrive at a tool that can withstand the demands of graphite machining.
Wear Resistance
One of the main considerations for tool durability is the tool’s wear resistance. Graphite is abrasive in nature and causes rapid tool wear during machining. Therefore, it is crucial to choose tools with high wear resistance, such as those made from solid carbide or coated with diamond-like carbon (DLC). These materials and coatings can effectively slow down abrasive wear, ensuring extended tool life and stable tool machining performance.
Thermal Stability
When machining graphite materials, the friction between the tool and the workpiece generates a large amount of heat. Tools with excellent thermal stability can withstand these high temperatures without compromising their integrity. Materials such as silicon carbide and coatings such as titanium aluminum nitride (TiAlN) exhibit excellent thermal conductivity and resistance, maintaining a good cutting edge even at high temperatures. This ensures consistent performance and prevents heat-induced tool failure during long machining operations.
Impact Resistance
In addition to tool wear and thermal stability considerations, impact resistance is another important aspect of tool durability, especially in high-speed machining environments. To withstand high cutting forces and sudden impacts, the tool must be tough enough to withstand these stresses so that the tool does not chip or break. Carbide tools with optimized microstructure and advanced coatings such as zirconium nitride (ZrN) offer high impact resistance, ensuring reliable performance and extended tool life even in demanding machining applications.
In summary, achieving long-term stability and good tool life in graphite machining requires a comprehensive consideration of the factors that affect tool durability. By selecting tools with good wear resistance, thermal stability and impact resistance, CNC engineers can ensure stable tool performance and extend tool life, ultimately increasing machining efficiency and productivity. Through strategic material selection and advanced coating technologies, we can maximize the value of your machining investment by providing resistance to wear, thermal degradation and the effects of impact.
Consideration of High-Temperature Stability
As CNC engineers, we need to know to consider the thermal stability of cutting tools, especially in high-temperature machining environments. Let’s delve into the many facets of thermal stability and discuss how choosing materials and coatings that maintain tool hardness and cutting edge sharpness at high temperatures is important for efficient machining of graphite materials.
Material Selection for High-Temperature Stability
Selecting a material with high temperature stability is the first step in verifying tool performance in a thermal processing environment. Materials such as tungsten carbide and ceramic composites exhibit excellent thermal stability, maintaining their hardness and strength even at high temperatures. These materials provide cutting tools with a solid foundation that can withstand the heat generated during machining.
Advanced Coating Technologies for Heat Resistance
In addition to selecting materials with high temperature stability, it is also necessary to combine advanced coating technology to enhance the heat resistance of the tool further. Coatings such as titanium aluminum nitride (TiAlN) and titanium silicon nitride (TiSiN) provide a protective barrier against thermal degradation, effectively protecting tool substrates from the adverse effects of heat. These coatings act as thermal insulators, maintaining the integrity of tool cutting edges and extending tool life in high-temperature machining environments.
Maintaining Cutting Edge Sharpness
One of the challenges posed by high-temperature machining is the propensity for cutting edges to lose their sharpness due to thermal softening and edge rounding. To mitigate this issue, selecting materials and coatings that can maintain cutting edge sharpness at elevated temperatures is crucial. Ultrafine grain carbide and diamond-like carbon (DLC) coatings offer exceptional hardness and edge retention properties, ensuring that cutting edges remain sharp and precise even in the presence of intense heat.
Processing in high-temperature environments poses severe challenges to the thermal stability of cutting tools. To achieve consistent, reliable machining performance, it’s critical to choose tools that can withstand high temperatures without sacrificing hardness and sharpness. High thermal stability tools have emerged, providing CNC engineers with a winning formula in the field of high-temperature machining. High thermal stability tools are essential tools in high-temperature machining, helping manufacturers achieve excellent machining quality, increase productivity and reduce machining costs.
Significance of Anti-Adhesion Properties
It is crucial for CNC engineers to select cutting tools with excellent anti-stick properties, especially when machining graphite materials. Graphite material has unique lubricity and softness, and it is easy to adhere to the surface of the tool and form nodules, resulting in reduced processing quality, increased tool wear and even breakage. Therefore, choosing the right anti-adhesion tool is one of the key factors for successful graphite processing.
Preventing Graphite Adhesion
Graphite machining poses unique challenges because graphite particles tend to adhere to the cutting tool surface during cutting. This adhesion can lead to accelerated tool wear, inconsistent surface finish, and increased machining resistance. In graphite machining, it is crucial to select cutting tools with effective anti-adhesion properties to minimize adhesion problems and ensure smooth and efficient machining operations.
Choosing Coatings for Anti-Adhesion
Coatings play a vital role in enhancing the anti-stick properties of cutting tools. Coatings such as diamond-like carbon (DLC) and titanium carbonitride (TiCN) are known for their low coefficient of friction and resistance to material adhesion. These coatings form a barrier to the cutting edge between the cutting tool and the graphite material, preventing adhesion and reducing the build-up of debris on the tool surface. By selecting coatings with superior anti-adhesion properties, CNC engineers can minimize tool wear and maintain consistent machining performance.
Selecting Materials with Inherent Anti-Adhesion Properties
In addition to coatings, tool machining performance can be further improved by selecting cutting tool materials with inherent anti-adhesion properties. Materials such as polycrystalline diamond (PCD) and cubic boron nitride (CBN) exhibit excellent resistance to material adhesion due to their ultrahard and chemically inert properties. These materials are less likely to adhere to graphite, thereby improving tool life and surface finish during graphite processing.
In graphite machining, selecting cutting tools with excellent anti-adhesion properties is a key factor in achieving optimal machining performance. The unique characteristics of graphite materials can easily lead to tool adhesion and wear, affecting processing quality and efficiency. By choosing a coating or material that can prevent graphite from adhering and reduce debris accumulation on the tool surface, CNC engineers should fully understand the advantages and effects of anti-adhesion tools and select appropriate anti-adhesion tools based on processing needs to achieve high efficiency and reliability Graphite material processing. By incorporating anti-stick tools into CNC machining operations, manufacturers can achieve superior results in graphite machining.
Understanding Cutting Forces: Unlocking the Mechanics of Machining
In the field of CNC machining, cutting force plays a vital role, which affects the optimization of machining processes and the design of cutting tools. An in-depth understanding of the various influencing factors of cutting force and the use of cutting force analysis technology to explore the mechanical characteristics of the cutting process are crucial to improving processing quality and efficiency.
Importance of Cutting Force Analysis
Cutting force analysis is an indispensable tool for CNC engineers. It helps engineers get rid of the fog of the machining process, accurately control machining parameters and tool design, and ultimately achieve comprehensive improvements in machining efficiency, tool life and machining quality.
Optimizing Cutting Parameters
A key application of cutting force analysis is the optimization of cutting parameters. By quantifying the forces exerted on the tool, engineers can adjust parameters such as cutting speed, feed rate and depth of cut to minimize cutting forces while maintaining or improving machining performance. This optimization process maximizes material removal rates, reduces tool wear and improves workpiece surface finish quality.
Refining Tool Design
Cutting force analysis also informs the design of cutting tools, allowing engineers to tailor tool geometries, materials and coatings to withstand the forces encountered during machining. By optimizing tool designs based on cutting force data, engineers can increase tool stiffness, reduce deflection and extend tool life in challenging machining environments. This process of continuous iteration and optimization is like carefully carving a handicraft, and ultimately creates customized tools for specific processing applications, maximizing processing efficiency and production benefits.
In summary, cutting force analysis is an important component in optimizing CNC machining processes and tool design. By understanding the mechanical characteristics of the cutting process through cutting force analysis, engineers can fine-tune cutting parameters and improve tool design to maximize machining efficiency, extend tool life, and machine workpiece quality. Integrating cutting force analysis technology into CNC machining helps manufacturers maintain a competitive advantage in the evolving manufacturing environment and create a better manufacturing future.
Optimal Cutter Edge Design: Enhancing Efficiency in Graphite Machining
which directly affects processing efficiency, surface quality and tool life. This section will delve into various aspects of cutting edge design to help you choose the milling cutter that best suits your application needs. Examples include flat edges, ball nose edges, radiused edges or specialized fluted edges, and how they ensure efficient material removal while minimizing chip buildup on the cutting edge.
Importance of Edge Design
The choice of blade design directly affects the effectiveness of material removal during graphite machining and the control to prevent chip accumulation. Each cutting edge design has unique advantages, demonstrating outstanding capabilities in terms of chip evacuation, surface finish and tool life. By selecting the most appropriate edge design, CNC engineers can optimize machining efficiency and take the machining process to greater heights.

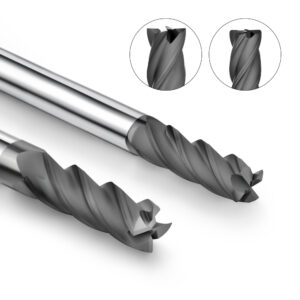

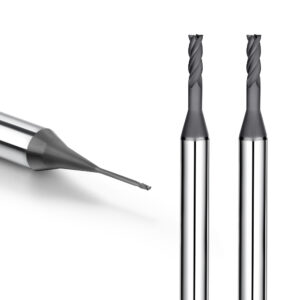

Flat Edge Design
Flat edge designs are often used for general purpose milling operations in graphite machining. They offer a large cutting surface area, are suitable for machining flat surfaces and straight walls, enable efficient material removal, and are particularly effective in roughing operations. However, flat edges can easily accumulate chips along the cutting edge, resulting in rough machined surfaces and accelerated tool wear, requiring careful chip evacuation strategies to maintain machining performance.

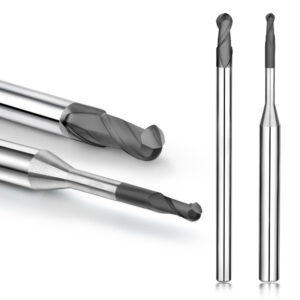

Ball-End and Radiused Edges
Ball ends and radiused edges are preferred for finishing operations in graphite machining. These edge designs can process curved surfaces and complex shapes. The contact area between the cutting edge and the workpiece is small, the friction is small, and the heat dissipation is good. It is suitable for processing curved surfaces, chamfers, cylinders, etc. Additionally, the rounded profile helps reduce chip buildup on the cutting edge, resulting in cleaner cuts and longer tool life. CNC engineers often utilize ball joints and radiused edges for contouring and finishing operations to achieve precise and high-quality surface finishes. However, the processing efficiency is relatively low, which increases working hours and production costs.
Specialized Grooved Edges
In some cases, specialized groove edges can be used to enhance chip evacuation during graphite machining and prevent chip accumulation, improving machining efficiency and extending tool life. These blades have carefully placed grooves or grooves along the cutting edge for efficient chip evacuation and reduce the risk of chip re-cutting. Special groove edges are particularly useful in high-speed machining applications where chip control is critical to maintaining machining performance and surface finish quality. However, the tool has a complex structure and high cost, and is not suitable for processing high-precision workpieces.
In summary, selecting the appropriate milling cutter edge design is crucial to optimizing the graphite processing process. Whether it’s a plain edge, ball nose edge, radius edge or specialized fluted edge, each design offers unique advantages in terms of chip evacuation, surface finish and tool life, as well as the disadvantages of each edge in machining. By carefully considering the specific requirements of each machining process, CNC engineers can select the most appropriate tool to ensure efficient material removal and high-quality workpiece surface finish in graphite machining applications, as well as minimize production costs.
Optimizing Tool Geometry Parameters for Graphite Machining
Fine-tuning tool geometry parameters is a key factor in optimizing the performance of graphite materials. Let’s look at various aspects of tool geometry optimization, including cutting edge angle, cutting edge length and cutting edge radius, to accommodate the unique machining characteristics of graphite. Achieve efficient, high-quality processing results.
Importance of Tool Geometry Optimization
The geometry of the cutting tool is like a sharp sword that cuts through the hardness of graphite, affecting all aspects of machining, including cutting performance, chip formation and surface finish. By optimizing tool geometry, CNC engineers can tailor cutting tools to effectively address the challenges posed by the abrasive properties of graphite, minimizing tool wear and ensuring consistent and efficient machining processes.
Cutting Edge Angles
The cutting edge angle is like a sharp sword, cutting through the hardness of graphite and affecting key factors in the machining process: cutting force, chip formation and tool wear. Smaller cutting edge angles reduce cutting forces and improve chip evacuation, improving machined surface finish. A larger angle can enhance the strength and stability of the tool, improve tool stability, and extend tool life. By carefully adjusting cutting edge angles, engineers can balance cutting efficiency and tool life to optimize machining performance in graphite applications.
Cutting Edge Length
Cutting edge length is one of the key factors affecting graphite processing efficiency and quality. Longer cutting edges help increase material removal rates and reduce the number of tool passes required to complete a machining operation, reducing machining time. However, an excessively long cutting edge may cause tool deflection, increase vibration, reduce machining accuracy, increase tool wear, and shorten tool life. On the contrary, it can improve tool rigidity, reduce vibration, improve machining accuracy, and extend tool life. By optimizing cutting edge length based on material hardness and cutting conditions, engineers can maximize machining efficiency while maintaining tool integrity.
Edge Radius
The edge radius or tip radius of a cutting tool affects chip formation, tool wear and surface finish quality in graphite machining. A larger blade radius can reduce cutting forces, reduce tool load, reduce the risk of tool breakage, and extend tool life. Additionally, a smaller edge radius reduces the appearance of tool marks and burrs, resulting in a smoother surface finish. However, a smaller blade radius will increase cutting forces, aggravate tool wear, increase the risk of tool breakage, and shorten tool life. By selecting the appropriate blade radius according to the processing requirements, efficient and high-quality graphite processing results are finally achieved, and a smooth surface comparable to a mirror is obtained.
In summary, optimizing tool geometry parameters is crucial to achieve optimal machining performance in graphite machining. By carefully optimizing parameters such as cutting edge angle, cutting edge length and cutting edge radius, engineers can tailor cutting tools to effectively address the machining challenges posed by the abrasive properties of graphite and achieve consistent, efficient machining results. Incorporating optimized tool geometry into CNC machining processes enables manufacturers to maximize productivity, extend tool life, and deliver high-quality machined parts.
In the field of CNC processing, graphite material poses severe challenges to the processing technology with its unique characteristics. In order to overcome these challenges and achieve efficient, high-quality graphite processing, we need to deeply understand and perfectly integrate key factors such as optimal coatings, tool geometry, material selection and cutting parameters. By optimizing these parameters based on machining requirements and material properties, CNC engineers can tailor graphite machining solutions to minimize tool wear, improve surface finish quality, and increase the overall productivity of graphite machining operations. This not only means efficient processing, but also high-quality machined parts and excellent manufacturing results.
In addition, graphite processing is not an easy task. In addition to tool geometric parameters, factors such as material selection, tool coating technology and cutting strategies are also crucial. Together, they form the key to successful graphite processing. From selecting high-wear and high-temperature-resistant tool materials to utilizing advanced coatings to improve thermal stability and anti-adhesion properties, every aspect must be carefully considered and optimized. This not only means faster processing speeds and lower costs, but also means higher-quality machined parts and better manufacturing results. With the continuous advancement of technology, the future of graphite processing is full of opportunities and challenges. With a relentless commitment to continuous improvement and a keen focus on optimizing every aspect of the machining process, the future of graphite machining promises to deliver superior results and drive advancements in precision manufacturing.
