Understanding the material properties and cutting requirements is crucial when selecting an end mill for Plastic. Plastics, characterized by their flexibility and low melting point, necessitate tools designed to minimize heat generation and prevent material deformation during machining. The end mill’s material, geometry, and coating are vital attributes to consider.
Firstly, solid carbide end mills are commonly preferred for their hardness and wear resistance, essential for achieving precision in cuts and extending tool life. The geometry of the end mill plays a pivotal role; tools with high rake angles and larger flute counts are beneficial for efficiently evacuating chips, reducing the risk of re-welding softened material onto the workpiece.
Furthermore, diamond-like carbon (DLC) coatings can significantly enhance tool performance when machining abrasive or corrosive plastics by reducing friction and preventing material build-up on the cutting edges. Buildup, selecting the appropriate end mill for Plastic involves balancing tool material, geometry, and coating to meet the unique challenges of plastic materials, ensuring both high-quality cuts and efficient machining processes.

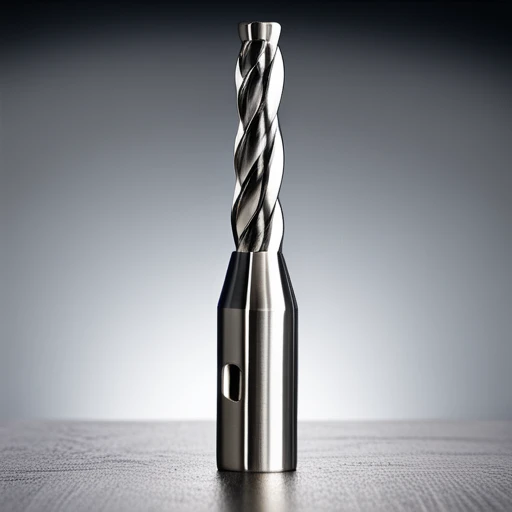

Why Choosing the Right End Mill for Plastic is Essential
Finding the Balance: Sharpness vs. Strength in End Mills for Plastics
When machining plastics, they achieve the optimal balance between the sharpness and strength of end mills, which is imperative for maintaining the tool’s structural integrity and achieving desired workpiece finishes. Though less challenging than metals, plastic materials can cause unexpected stresses on cutting edges, necessitating a careful selection of end mill characteristics.
- Sharpness: Sharp cutting edges are paramount in preventing the melting or smearing of Plastic during the cutting process. A sharper edge reduces the required cutting force, thus minimizing heat generation and the potential for material deformation.
- Strength: However, an overly sharp edge can be prone to wear and breakage, especially when dealing with more rigid plastics or those with abrasive fillers. An end mill’s strength resides in its material composition and structural design, including core diameter and edge design.
Understanding Flute Geometry: Plastic vs. Metal Cutting
The design of flute geometry significantly differs between end mills intended for plastic and those for metal due to the materials’ distinct materials’ for plastic.s: End mi, ls designed for plastics typically feature a higher rake angle and larger clearance angles. These design choices facilitate a smoother cutting action, efficient chip evacuation, and reduce the risk of re-welding or chip re-deposition. Additionally, more flutes might be avoided to prevent excessive heat accumulation and ensure ample space for chip evacuation.
- For Metals: Metal cutting end mills often have a lower rake angle and are constructed to withstand the higher temperatures and forces encountered. The focus is on durability and the ability to remove material rapidly, with flute designs optimized for these denser materials.
The Role of Materials: Carbide and Diamond in Cutter Life
- Carbide: Solid carbide end mills are favored for their exceptional hardness and thermal stability, making them an excellent choice for precision plastic cuts. Their rigidity significantly reduces the risk of edge rounding or deflection, ensuring consistent cuts over their lifespan.
- Diamond Coatings: Diamond-like carbon (DLC) coatings or polycrystalline diamond (PCD) tipped end mills elevate the performance to the next level, especially for abrasive plastics. These coatings reduce friction and protect the cutting edge from abrasive wear daily with filled or reinforced plastics, vastly extending cutter life.
In conclusion, selecting the suitable end mill for plastics involves a nuanced understanding of the balance between sharpness and strength, the specific flute geometries suited to minimize heat and improve chip evacuation, and the role of advanced materials and coatings in maximizing tool life. By considering these factors, manufacturers can achieve efficient, high-quality cuts in plastic workpieces.

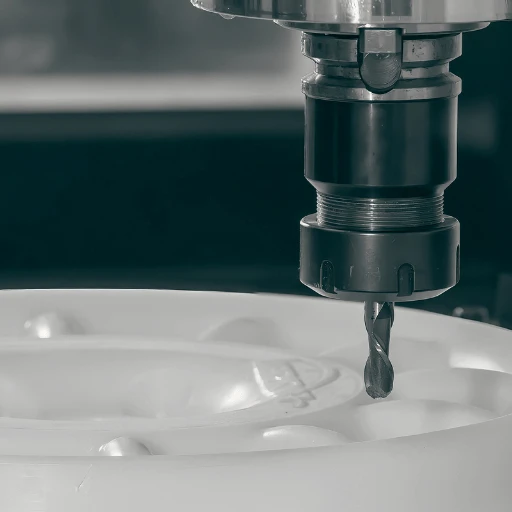

Deciphering the Types of Flutes: Which is Best for Your Project?
When comparing Single flute (o-flute) end mills to 2 flute end mills, several essential factors such as speed, heat, and chip removal need to be considered for optimal performance:
- Single-Flute End Mills: Ideal for plastics and other soft materials, the single-flute design allows for more considerable chip removal per revolution. This characteristic makes them particularly effective at reducing heat buildup, as the larger spacing between flutes ensures less friction and, thus, less thermal stress on the material. They operate excellently at high speeds, making them suitable for quick, efficient cuts with minimal risk of melting the workpiece.
- 2 Flute End Mills: These end mills strike a balance between the aggressive chip removal of single-flute end mills and the improved surface finish offered by multi-flute options. With two cutting edges, they can handle a higher feed rate than o-flutes but may generate more heat due to the reduced space for chip evacuation. They are versatile and can be used for various materials, including plastics when moderate speeds and feeds are applied.
When it comes to 3 Flute End Mills for Plastics, the decision to use these should be based on specific circumstances:
- Enhanced Chip Removal: The additional flute increases the chip removal rate, which is beneficial when working with plastic materials prone to melting or when a smoother finish is desired at higher feed rates.
- Balanced Heat Distribution: An extra cutting edge distributes the heat generated during the cutting process more evenly. This can help prevent localized heating and potential deformation of the workpiece.
Specialized Flute Designs for Acrylic and Other Plastics often incorporate strategies to minimize chip rewelding and ensure a polished finish:
- Polished Flutes: These are designed to produce a high-quality finish on materials like acrylic by efficiently evacuating chips and reducing the likelihood of chip rewelding to the workpiece.
- Helix Angles: Larger helix angles cut soft plastics, pulling chips away from the material and preventing heat buildup.
In summary, the choice of buildup of single, double, or triple flute end mills should be guided by your project’s specific requirements, including the type of Plastic, the desired speed and feed rates, and the importance of surface finish. Careful consideration of these factors will ensure optimal tool performance and workpiece quality.

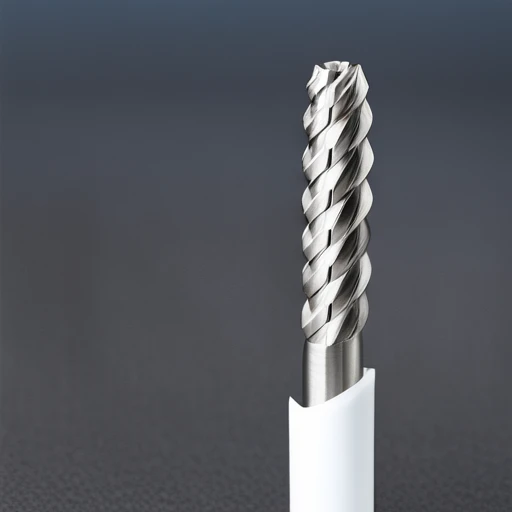

Achieving Superior Surface Finish on Plastics
The Critical Role of Helix Angle Selection
The selection of the correct helix angle in end mill cutters is paramount for achieving a smoother finish, particularly when machining plastics. A higher helix angle, generally between 35 and 45 degrees, creates a shearing action that produces smoother cuts and facilitates efficient chip removal. This reduction in cutting forces leads to less material deformation and a superior surface finish.
Strategies for Reducing Deburring Work
Selecting the right end mill cutter is crucial to minimize the necessity for post-machining deburring work. Tools with a higher number of flutes and polished surfaces can significantly reduce the occurrence of burrs by providing smoother cuts and better finish quality. Additionally, implementing the following strategies can aid in burr reduction:
- Optimize Feed and Speed Rates: Tailoring these parameters to the material being cut can prevent the formation of burrs.
- Sharp Tooling: Ensure sharp, well-maintained cutting tools to reduce material pull-out and tear.
- Climb Milling: This technique usually results in less burr formation compared to conventional milling.
Minimizing Heat Generation for Cleaner Cuts
Practical strategies to minimize heat generation during the machining process, thus ensuring cleaner cuts, include:
- Appropriate Coolant Use: Coolants can help dissipate heat from the cutting zone, preventing material melting and deformation.
- Tool Path Optimization: Implementing strategies such as trochoidal milling can reduce heat by limiting the tool’s engagement time with the material.
- Selecting the Right Coating: Certain coatings on end mills can reduce friction and heat generation.
- Maintaining Sharp Tools: Dull tools generate more heat due to increased friction; thus, keeping tools sharp is essential for heat management.
By carefully considering these factors and strategies, machinists can significantly improve the quality of their work, reduce the need for post-processing, and extend the life of their cutting tools.
Optimizing Feed Rate and Speed for Plastic Cutting
Setting the Ideal Feed Rate and Adjusting the RPM
For plastic cutting operations in CNC machining, setting an ideal feed rate and adjusting the revolutions per minute (RPM) is crucial for optimal performance and to prevent Plastic melting due to excessive heat. Here’s a detailed apprHere’sFeed Rate Adjustment: The feed rate needs to be optimized according to the type of machined Plastic. A higher feed rate can be beneficial for plastics to reduce heat by minimizing the frictional time between the tool and the material. However, it’s essential not to use a tool that can efficiently cut to avoid possible cuts and potential tool breakage.
- Optimal RPM Settings: RPM settings should be adjusted based on the tool diameter, material, and desired surface finish. Lower RPMs are often preferred for softer plastics to prevent melting and burning. A general rule is to start with the manufacturer’s recommemanufacturer and then tweak as necessary based on the observed cutting performance and material characteristics.
- Tools and Techniques for Consistency:
- Single-flute End Mills: These are preferred for Plastic because they allow chips to clear out of the cutting path quickly, reducing heat buildup.
- Coolant Systems: Always suitable for every type of Plastic, a mist coolant system can help dissipate heat without causing warping or environmental stress cracking.
- Peck Drilling: When drilling, a peck drill cycle can help break the cutting action into smaller segments, allowing heat to dissipate and preventing Plastic from melting around the drill bit.
By carefully adjusting these parameters and employing techniques suited for plastic cutting, CNC machinists can achieve consistent quality, minimize tool wear, and prevent material deformation due to heat buildup. This delicate balance requires ongoing adjustments and experience with specific materials and cutting conditions.

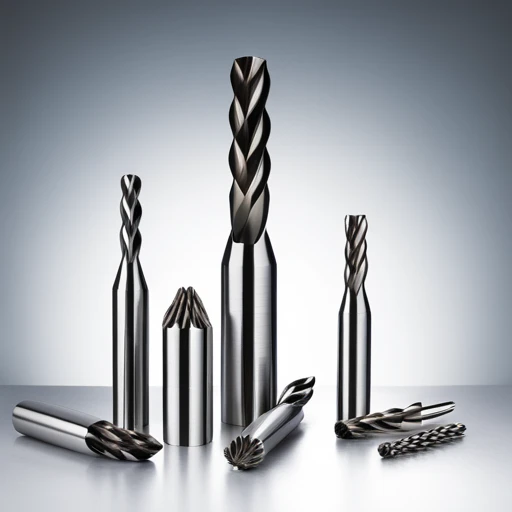

Solving Common Plastic Cutting Challenges with Specialty End Mills
Addressing the Issue of Lifting in Plastic Sheets with Upcut and Downcut Spirals
To mitigate the lifting of plastic sheets during cutting processes, it’s critical to understand the differences between up-cut and down-cut spiral end mills. Upcut spirals are designed to eject chips upwards, effectively clearing the cutting path, but can cause lifting or separation of the plastic sheet from the fixture. On the other hand, down-cut spirals push chips downward, helping to keep the material securely in place but potentially leading to chip re-cutting and heat buildup.
Selecting the appropriate type depends on several factors:
- Fixture Stability: Use downcut spirals to prevent lifting when the fixture does not securely hold the material.
- Material Thickness: For thinner plastics, downcut spirals can help minimize the risk of deformation.
- Cutting Depth and Strategy: Shallow cuts with multiple passes can benefit from upcut spirals for better chip evacuation. In contrast, down-cut spirals might better serve deeper cuts in a single pass to avoid lifting.
Choosing End Mills with Specialized Geometry for Soft vs Hard Plastics
The geometry of end mills plays a pivotal role in cutting different types of plastics. For soft plastics, tools with a high rake angle and sharp cutting edge are preferred to slice through the material cleanly, reducing the chance of melting or gumming up the tool. Conversely, hard plastics require tools with a low rake angle to produce a more robust cutting edge that can withstand the forces without chipping.
Key parameters include:
- Rake Angle: Higher for soft plastics, lower for hard plastics.
- Cutting Edge Design: Sharper edges are used for soft materials, and more robust edges are used for hard materials.
- Helix Angle: A higher helix angle (above 30 degrees) can improve the finish on soft plastics by reducing cutting forces, whereas a lower helix angle is better for hard plastics for increased tool strength.
Selecting Tools That Ensure Cleaner Edges and Reduce Post-Processing
The selection of cutting tools to ensure cleaner edges and minimize the need for post-processing involves considering tools that produce minimal heat and reduce the propensity for material melting or fraying. This involves tools with:
- Coatings: Choosing tools with appropriate coatings can reduce friction and heat and prevent Plastic from sticking to the cutter.
- Tool Material: Solid carbide end mills provide the rigidity and thermal conductivity preferable for plastics.
- Flute Count: Lower flute counts (1-2 flutes) are generally better for plastics, allowing ample space for chip evacuation and minimizing heat buildup.
By closely considering buildup parameters and employing end mills explicitly designed for the material being cut, machinists can achieve a high-quality finish on plastic components, significantly reducing or eliminating the need for post-processing steps like deburring or polishing.
The Future of Plastic Machining: Innovations in End Mill Design
The Role of Coatings and Surface Treatments in Extending Tool Life
Coatings and surface treatments on end mills play a critical role in extending the lifespan of the tool while ensuring the quality of the finish on machined plastics:
- PVD Coatings: Physical Vapor Deposition (PVD) coatings such as TiB2 (Titanium Diboride) offer low friction and hardness, preventing plastic adhesion and wear on the cutting edge.
- CVD Coatings: Chemical Vapor Deposition (CVD) technology provides thicker and even more complicated coatings than PVD coatings, suitable for a broad range of plastics.
- Diamond Coatings: A pinnacle in surface treatment for enhanced durability and performance, especially in abrasive plastic materials.
Exploring the Ultra-Precision Cutting Capabilities of Diamond-Coated End Mills
Diamond-coated end mills represent the forefront of technology for plastic machining, offering unparalleled precision and longevity. These tools are particularly adept at handling the most challenging plastics, including those with abrasive fillers that typically wear down standard tools rapidly. The benefits include:
- Extended Tool Life: Diamonds’ extreme hardness significantly reduces wear, extending tool life by multiples compared to uncoated or other coated options.
- Superior Surface Finish: The smoothness and sharpness of diamond coatings allow for ultra-fine finishes on the machined surfaces of plastics.
- Reduced Tooling Costs: Despite a higher initial cost, the extended lifespan and reduced need for tool changes compensate over time, resulting in lower tooling costs.
In conclusion, leveraging unique tool designs, the strategic application of advanced coatings, and the precision capabilities of diamond-coated end mills can significantly elevate the efficiency and quality of plastic machining processes.
References
1. Source: Journal of Manufacturing Processes – “Optimization of End M” ll Tool Geometries for Effective Machining of Plastics”
- URL: https://www.sci”ncedirect.com/science/article/pii/S1526612520304147
- Annotation: This peer-reviewed article from the Journal of Manufacturing Processes presents a comprehensive study on optimizing end mill tool geometries for machining plastics. The research focuses on identifying the design features of end mills that minimize defects such as burring and melting, which are common challenges in plastic machining. This source provides a scientific foundation for selecting end mills that enhance the quality of cuts in plastic materials by offering a detailed flute count, helix angle, and cutting-edge design analysis. It is an essential resource for professionals aiming to understand the technical nuances of end mill design relative to plastic machining efficiency.
2. Source: Modern Machine Shop – “Tips for Choosing the “Right End Mill for Plastic”
- URL: https://www.mms”nline.com/articles/tips-for-choosing-the-right-end-mill-for-plastic
- Annotation: Modern Machine Shop outlines practical guidelines for selecting end mills optimized for plastic machining in this article. It emphasizes the importance of considering material compatibility, tool coating, and the physical properties of the machined Plastic. The article explains how different end mill features, such as flute geometry and cutter material, can significantly impact the machining process’s outcome. Thiprocess’sis valuable for machining practitioners seeking actionable advice on enhancing their selection process for plastic machining applications, presented clearly and professionally.
3. Source: Harvey Performance Company – “Machining Plastics: T “e Best End Mills for Plastic Materials”
- URL: https://www.har”eyperformance.com/in-the-loupe/machining-plastics/
- Annotation: Harvey Performance Company provides an in-depth guide on the best practices and recommendations for selecting end mills for plastic machining. The guide covers various plastic types, detailing the specific challenges associated with each and the optimal end mill characteristics to address these challenges. It discusses critical factors such as cutting speed, feed rate, and tool material, offering a manufacturer’s perspecmperspecmanufactureron and efficiency in plastic machining. This source stands out for its comprehensive coverage and specificity, making it a crucial resource for professionals focused on maximizing the performance of their plastic machining operations.
Frequently Asked Questions
Q: What factors should I consider when selecting a bit for cutting plastic materials?
A: When selecting a bit for cutting plastic materials, it’s crucial to consider the Plastic you’re working with and apostate the bit’s required feature flutes, such as in a two-flutter-flute can, which in the efficient removal of chips, reduce melting, and prevent re-welding of the material. Bits made from solid carbide or HSS (High-Speed Steel) are commonly used, but carbide end mills are preferred for their sharper edge and longevity. Additionally, considering bits with a specific rake angle, specialized end geometry, and coatings designed for plastics can significantly increase the quality of the cuts.
Q: How do I determine Plastic’s best end mill bit geometry?
A: The best end mill bit geometry for plastic depends on the type of plastic used and the desired outcome. For softer plastics, a sharper edge and higher rake angle help produce clean cuts without deforming the Plastic. For more rigid plastics, choosing an end mill with a unique geometry designed for hard materials can reduce the force applied to the Plastic, preventing cracks. End mills designed with a high helix angle are generally better at evacuating chips, reducing heat buildup, and preventing the plabuildupom melting. Consideration of the end mill’s profile, such amill’sre or drill point ends, is also important based on the depth and type of cut required.
Q: Can I use traditional metal cutting end mills for Plastic?
A: While traditional metal-cutting end mills can be used for Plastic, they may not always yield the best results. Metals require different bit characteristics compared to plastics, such as cutting action, edge sharpness, and flute geometry. Plastics benefit from features that prevent excessive heating and melting, such as fewer flutes and a broader chip clearance. Specialized plastic cutting end mills, often featuring higher rake angles and sharper edges, are designed to produce smoother surfaces and reduce material deformation. For the best results in Plastic, opting for bits designed explicitly for Plastic is recommended.
Q: What makes solid carbide end mills preferred for plastic cutting?
A: Solid carbide end mills are preferred for cutting Plastic due to their superior strength, sharper edge, and resistance to wear. Carbide is a more rigid material than HSS, allowing for a sharper cutting edge that maintains its sharpness longer. This is crucial for achieving precise, clean cuts in Plastic without causing burrs or melting. Solid carbide end mills can also be designed with specialized coatings and geometries that further enhance their performance in Plastic, such as reducing chip welding and improving chip evacuation.
Q: How does spindle speed and feed rate affect plastic cutting with end mills?
A: Spindle speed and feed rate play critical roles in the quality of cuts when using end mills on Plastic. A correct spindle speed and feed rate combination will ensure smooth cutting action, minimize heat buildup, and prevent past buildup from ing or chipping. Generally, a slower spindle speed and a proper feed rate allow the cutter to perform effectively without generating excessive heat. However, the optimal settings depend on the type of Plastic, end mill features, and the desired finish. Performing test cuts and consulting with the end mill manufacturer can help determine your application’s best settings.
Q: Are there special considerations for chip removal when cutting Plastic?
A: Yes, chip removal is essential when cutting Plastic due to the material’s tendency tomaterial’sre-weld if not efficiently evacuated. Utilizing an end mill with fewer flutes allows more space for chips to escape, reducing the risk of heat buildup. Additionally, using a buildupacuum system to remove chips from the workpiece area continuously can significantly enhance the cutting process. A coolant system may also be beneficial in some cases, but it should be used cautiously to avoid shocking or warping the Plastic with sudden temperature changes.
Q: How often should I change or sharpen my end mill when cutting Plastic?
A: The frequency at which you need to change or sharpen your end mill depends on several factors, including the type of Plastic, cutting conditions, and the quality of the end mill. Solid carbide end mills, for instance, tend to stay sharp longer than HSS ones. However, dulling is inevitable and can result in poor finish quality, increased heat generation, and potential damage to the workpiece. It’s essential to monitor the performance closely and look for signs of wear, such as rough finishes or increased force needed to make cuts. Sharpening or replacing the end mill when these signs appear can help maintain optimal cutting conditions and prolong the life of your tool.
Recommended Reading: Exploring the World of 4 Flute End Mills
