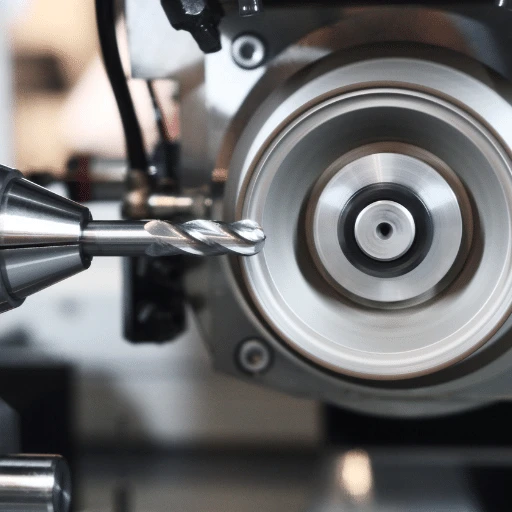

End mill sharpening is a critical skill that enhances the performance and longevity of cutting tools, which is crucial for efficient machining operations. This process involves meticulously reshaping the tool’s cutting edges to restore its sharpness, which deteriorates due to regular wear and tear. An adequately sharpened end mill ensures that materials are cut with precision, reducing the effort required for machining tasks and potentially extending the lifespan of the machine tool itself. To achieve optimal results, machinists must understand the geometry of end mills, selecting the appropriate angles for sharpening based on the tool’s application and material. Furthermore, employing the correct sharpening equipment, such as a bench grinder or a specialized sharpening fixture, is essential for maintaining the integrity and efficiency of the tool. This guide aims to demystify the processes and techniques involved in end mill sharpening, providing machinists with the knowledge to perform this task confidently and precisely.
Why Sharpen Your End Mills?
The Importance of Sharp Cutting Tools
Maintaining sharp cutting tools through regular end mill sharpening ensures efficiency in machining operations and is a strategic approach to achieving cost savings and enhancing the quality of work. Below are the pivotal aspects where sharp cutting tools make a significant difference:
Cost Savings: Sharpen vs. New Endmill
- Extended Tool Life: Regular sharpening extends the lifespan of an end mill, thereby reducing the frequency of purchasing new tools. This can result in considerable cost savings over time, especially for high-volume machining operations.
- Reduced Material Waste: A sharper tool means more precise cuts, translating into less material wasted due to inaccuracies or defects.
- Energy Efficiency: Sharp cutting tools require less force to cut through materials, leading to lower energy consumption by the machining equipment.
Improving Cutting Efficiency and Surface Finish
- Enhanced Cutting Speeds: Sharp tools can operate at higher speeds without compromising the integrity of the material being machined. This leads to faster completion of tasks and increased throughput.
- Improved Surface Finish: A finer edge on the cutting tool produces smoother surfaces, reducing the need for subsequent finishing processes.
- Reduced Heat Generation: Sharper tools generate less heat during cutting, which helps preserve the integrity of both the tool and the material. Excessive heat can cause wear on the tool and alter the properties of the material being machined.
By understanding the critical nature of tool sharpness, machinists can implement a proactive approach to end mill sharpening, ensuring that their operations are cost-effective and of the highest quality.
Choosing the Right Grinder for End Mill Sharpening
Comprehensive Comparison: Bench Grinder vs. Cutter Grinder
When selecting the appropriate grinding equipment for end mill sharpening, machinists must weigh the benefits and limitations of both bench grinders and cutter grinders.

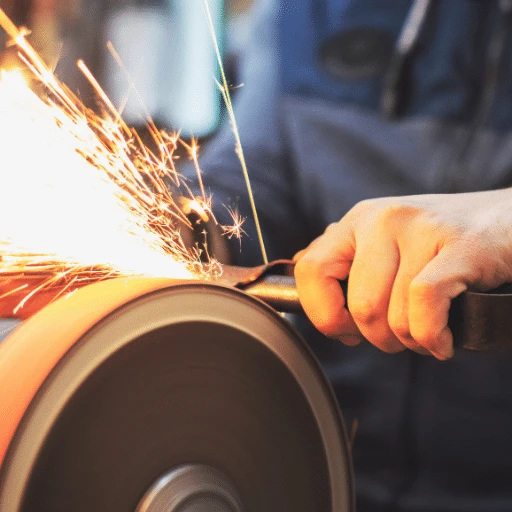

Bench Grinders are versatile tools used for various grinding tasks, not limited to sharpening end mills. They are more commonly available and generally less expensive than more specialized grinders. However, they may not always offer the precision required for sharpening complex cutting tools, potentially leading to suboptimal cutting performance or tool damage.
Cutter Grinders, specifically designed for sharpening cutting tools, provide higher precision and versatility. They are equipped with attachments and features aimed explicitly at tool sharpening, allowing machinists to achieve accurate and consistent edges. However, this precision comes at a higher cost in terms of initial investment and ongoing maintenance.
Tool and Cutter Grinders: The Ultimate Choice for Machinists
For machinists requiring high precision and versatility in sharpening, Tool and Cutter Grinders offer several advantages:
- Precision: They allow for adjustment in multiple axes, which can precisely shape the tool’s geometry.
- Versatility: It is capable of sharpening a wide range of tools beyond end mills, such as drills, reamers, and taps.
- Customization: Features like variable speed settings and numerous attachments enable custom sharpening processes tailored to specific tools.
Using a Surface Grinder for Precision Sharpening
Surface Grinders represent another option for precise tool sharpening, especially when flat surfaces or specific angles need to be achieved. They are handy for tools requiring high precision in flatness or angle consistency. However, surface grinders require skilled operation and are less versatile than tool and cutter grinders.
In the context of end mill sharpening, the selection between these grinding options should be informed by:
- Precision Requirements: The degree of precision required for the tools being sharpened.
- Type of Tools: The variety and complexity of tools that need sharpening.
- Volume: The number of tools to be sharpened regularly.
- Budget: Availability of financial resources for initial investment and maintenance.
By carefully evaluating these parameters, machinists can decide on the most appropriate grinding equipment for their specific needs, ensuring both cost-effectiveness and optimal tool performance.

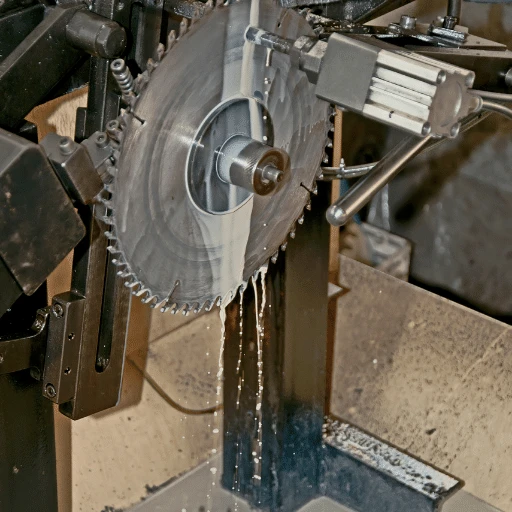

Preparing Your Tools: Setup for Successful Sharpening
Securing the End Mill: Collets and Fixtures
Securing the end mill properly is crucial for effective sharpening while preventing damage to the tool. The uPrecision collets and fixtures ensure the end mill is firmly in place, reducing the possibility of slippage or misalignment during the sharpening process. Critical parameters for selecting the right collets and fixtures include:
- Size Compatibility: Ensure the collets and fixtures are compatible with the size of the end mill to be sharpened.
- Material Grip: Choose materials that offer a firm grip without damaging the tool.
- Precision Alignment: Opt for collets and fixtures that allow for precise alignment of the end mill, ensuring even sharpening across all cutting edges.
Choosing the Correct Grinding Wheel
Selecting the appropriate grinding wheel is critical for achieving the desired finish and extending the life of the end mill. Consider the following factors:
- Abrasive Material: The grinding wheel should be chosen based on the end mill’s material. For example, diamond wheels are preferred for grinding carbide tools.
- Grit Size: The grit size affects the finish of the sharpened tool. A finer grit is used for finishing, while a coarser grit is suitable for initial shaping.
- Bond Type: The bond determines how the abrasive materials are held together and should match the sharpening requirements and the tool material.
Setting the Correct Angles for Sharpening the Periphery and Flutes
The angles at which the end mill is sharpened directly impact its cutting efficiency and longevity. Important angles to consider:
- Primary (Radial) Relief Angle: Determines the clearance angle on the periphery of the tool. This angle is critical for the tool’s cutting efficiency.
- Secondary Relief Angle: Provides additional clearance and helps to reduce friction.
- End Cutting Edge Angle: Affects the aggressiveness of the cut and material removal rate.
Adjusting these angles accurately ensures the end mill performs optimally, with factors such as the machining material and the type of milling operation influencing the ideal angles.
Sharpening Techniques for Different Types of End Mills
Sharpening Flute End Mills: 2-Flute vs. 4-Flute
Sharpening flute end mills requires understanding their unique geometries and intended uses. 2-Flute end mills are typically used for machining soft materials or for operations where a high degree of finish is not required. Due to their open flute design, they are easier to sharpen but require precision to maintain the cutting edge’s effectiveness. 4-Flute end mills, with their closer flute spacing, are preferable for more complex materials and high-precision operations. When sharpening 4-flute end mills, care must be taken to ensure that each flute’s geometry is consistent to provide balanced cutting forces and improve tool longevity.

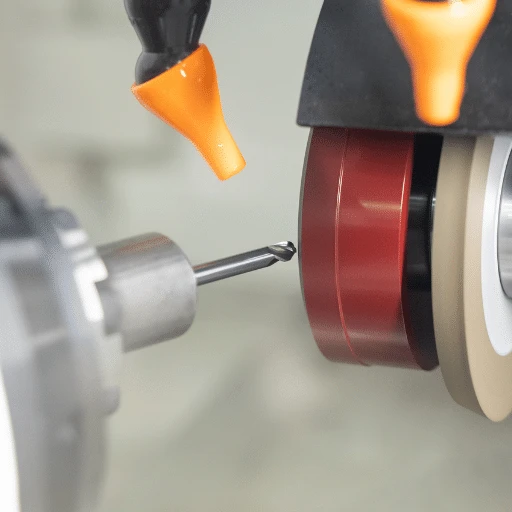

Special Considerations for Sharpening Carbide vs. HSS End Mills
Carbide End Mills present unique challenges and benefits in sharpening due to their extraordinary hardness and brittleness compared to High-Speed Steel (HSS). Special considerations include:
- Abrasive Material: Diamond wheels or CBN (Cubic Boron Nitride) are essential for effectively grinding carbide material.
- Coolant Use: Coolantlant in preventito preventg and potential microcracking.
- Lighter Feeds and Speeds: Lighter touches and slower speeds prevent chipping due to its brittleness.
HSS End Mills, being more ductile, can be sharpened using a more comprehensive range of grinding wheels and tend to be more forgiving. However, care should be taken to:
- Prevent Overheating: Overheating can lead to loss of hardness and, thus, tool performance.
- Regular Dressing of the Wheel: Ensures the abrasive is sharp and clean for the best finish.
Sharpening the Periphery and Cutting Edges of End Mills
When sharpening the periphery of end mills, it’s important to ensure that the wheel used is of the correct type and grit to achieve the desired finish and to preserve the tool’s geometry. A consistent process involves:
- Securing the End Mill: Properly align the tool to ensure uniform sharpening.
- Choosing the Right Grit: Coarser grit for material removal, finer grit for finishing.
- Coolant Application: Use coolant to prevent overheating, especially on finer finishes.
Sharpening the cutting edges involves:
- Correct Angle Settings: Correct the tool to maintain the intended cutting geometry.
- Light, Consistent Passes: Achieve a sharp edge without removing excessive material.
- Inspection: Regularly inspect the edge for uniformity and smoothness.
Understanding these nuances enables the maintenance of end mills to precise standards, directly influencing machining quality and efficiency.

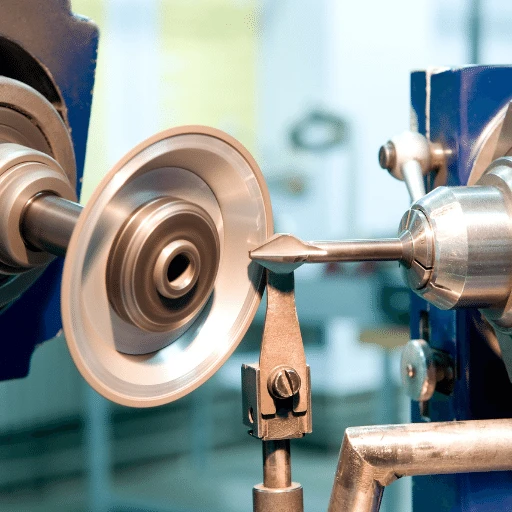

Pitfalls to Avoid When Sharpening End Mills
Common Mistakes in End Mill Sharpening: Understanding the Risks and Maintaining Efficiency
Sharpening end mills is a precision task that, if not carried out correctly, can lead to several common pitfalls, significantly affecting tool life and cutting efficiency. One of the most critical aspects to monitor is the Risk of Overheating. Excessive heat during the sharpening process can alter the molecular structure of the tool’s material. Overheated end mills may lose their hardness, leading to premature wear and decreased tool performance. Implementing proper coolant use and avoiding prolonged contact with the grinding wheel are vital strategies to mitigate this risk.
Another typical mistake involves Incorrect Maintenance of the Rake Angle. The rake angle plays a crucial role in determining end mills’ cutting efficiency and chip removal capability. Incorrectly set angles can result in suboptimal cutting forces, increased wear, and potential tool breakage. Maintaining the rake angle according to manufacturer specifications is paramount.
Tool Damage is often the consequence of ignoring the factors above. Physical manifestations include:
- Edge Chipping: Resulting from improper handling or excessive force during sharpening.
- Loss of Cutting Edge Integrity: Due to overheating or incorrect grinding practices.
- Alteration of Tool Geometry: Misalignment during sharpening can lead to uneven wear and inefficient cutting paths.
To ensure the longevity and performance of end mills, it is essential to:
- Use appropriate cooling techniques to prevent overheating.
- Select the correct grinding wheel type and grit.
- Accurately align the tool during sharpening to maintain the desired geometry, including the rake angle.
- Perform light, consistent passes with the grinding wheel to preserve tool integrity.
By avoiding these common mistakes and adhering to proven sharpening practices, the functionality and lifespan of end mills can be maximally extended, directly contributing to enhanced machining operations and output.
Maintaining Your Sharpening Equipment
Regular Care and Calibration for Sharpeners and Grinders
Proper maintenance of sharpening equipment is imperative to ensure precision in tool sharpening and extend the machines’ operational lifespan. Regular care procedures for sharpeners and grinders include:
- Calibration: Calibration should be performed periodically to ensure accuracy. Machines must be checked for alignment and adjusted according to the manufacturer’s specifications.
- Lubrication: Moving parts should be lubricated with the recommended lubricants to prevent wear and tear.
- Inspection for Wear: Components should be regularly inspected for signs of wear or damage, particularly the spindle and bearings, which are critical for operational stability.
Replacing Grinding Wheels and Parts: When and How
Grinding wheels and parts should be replaced following these guidelines:
- Visual Inspection: Look for signs of damage or wear, such as cracks, chips, or uneven wear patterns on the grinding wheels.
- Performance Decline: Replace components that contribute to a noticeable decline in performance or precision.
- Manufacturer’s Recommendations: Follow the manufacturer’s guidelines regarding the lifespan and replacement schedule for specific parts and wheels.
Creating a Cleaning and Maintenance Schedule for Your Sharpening Station
A well-defined cleaning and maintenance schedule is essential for the longevity and efficiency of your sharpening station. Consider the following in your schedule:
- Daily: Clean debris and metal filings from the machine. Inspect and clean air filters to ensure proper ventilation and cooling.
- Weekly: Check and clean coolant systems. Inspect grinding wheels for wear and tear.
- Monthly: Calibrate machines as required. Lubricate moving parts and inspect for any loose components.
- Annually: Conduct a comprehensive inspection and maintenance check. Replace any parts as necessary according to wear and performance.
By implementing these steps diligently, professionals can maintain their sharpening equipment in optimal condition, ensuring precision and efficiency in tool sharpening processes.

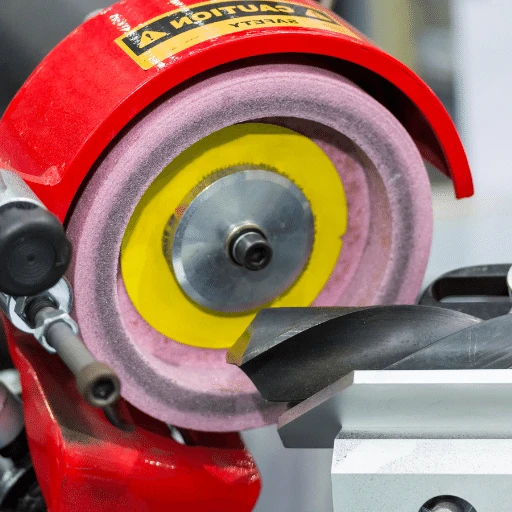

Frequently Asked Questions
Q: What is the best way for a home machinist to sharpen end mills?
A: The best way for a home machinist to sharpen end mills is typically to use a specialized end mill sharpener or cutter grinder machine. These machines are designed to regrind the cutting edges of endmills accurately. A grinding fixture is essential to hold the end mill correctly for precise sharpening. Some machinists also use a combination of a lathe and a tool grinder fitted with an aluminum oxide grinding wheel.
Q: Can you hand sharpen end mills effectively?
A: While hand sharpening end mills is possible, it’s generally not recommended, especially for precision work. Hand sharpening without the proper tools and fixtures can lead to uneven edges and compromise the endmills’ performance. Equipment like cuttermasters or other tool grinders designed for end mill sharpening deliver more accurate and consistent results.
Q: Are dull end mills worth sharpening, or should they be replaced?
A: Dull end mills are often worth sharpening, especially if they are made of high-quality materials like solid carbide. The cost of replacement can be significantly higher than the cost of regrinding. However, if the end mills are severely damaged or the cutting edges are chipped, replacing them might be more cost-effective. Assessing the condition of the end mills will help you decide the best course of action.
Q: What essential tools are needed and sharpen end mills in a home shop?
A: To set up for sharpening endmills in a home shop, you will need a tool and cutter grinder machine or a dedicated end mill sharpener, a grinding fixture to securely hold the end mills, and an appropriate grinding wheel, typically made of aluminum oxide. A spindle or collet system is also crucial for keeping the end mills in place during sharpening. Additionally, having a way to control the angle of the grind precisely is essential for achieving the correct cutting-edge geometry.
Q: How do you ensure that the two cutting edges of a four flute end mill are sharpened equally?
A: Ensuring that the two cutting edges of a four flute end mill are sharpened equally requires precise setup and measurement. Most end mill sharpeners and grinding fixtures have adjustments to ensure symmetrical sharpening. It involves correctly aligning the end mill in the collet or fixture, setting the correct angles, and carefully grinding each edge for an equal amount of time. Some machinists use visual aids or measuring tools to verify symmetry.
Q: Can all types of end mills be sharpened, including those for specific materials like aluminum?
A: Most types of end mills, including those designed for specific materials like aluminum, can be sharpened. However, the sharpening process might vary slightly depending on the geometry and material of the end mill. For example, end mills for aluminum typically have more flutes. They may require a different grinding wheel material, like a softer bond or other abrasive, to prevent clogging and preserve the sharpness of the cutting edges.
Q: What is the difference between sharpening solid carbide end mills and high-speed steel (HSS) end mills?
A: The primary difference between sharpening solid carbide end mills and HSS end mills lies in the hardness of the material and the type of grinding wheel required. Solid carbide is much more complex than HSS and, therefore, requires a diamond grinding wheel for the sharpening process to be effective. HSS, on the other hand, can be sharpened with more conventional abrasive materials like aluminum oxide. Moreover, the sharper angles on carbide end mills demand more precision during sharpening.
Q: Is it possible to sharpen center-cutting end mills as effectively as non-center-cutting ones?
A: It is possible to sharpen both center-cuttingand non-center-cutting end mills effectively. The critical difference in the sharpening process lies in handling the end mill’s central point. Center-cutting end mills have a cutting edge that extends into the center of the bit, which requires careful grinding to preserve the end mill’s geometry. With the correct fixtures and a precise grinding mechanism, both types can be sharpened to work fine.
Q: How often should end mills be sharpened?
A: The frequency of sharpening end mills depends on several factors, including the machined material, the feed and speed used during milling, and the quality of the end mills. In general, you should sharpen your end mills when you notice decreased cutting performance or visible wear on the cutting edges. Properly maintaining and routinely inspecting your end mills for dullness will help determine the right time to sharpen them.
