Micro End Mills, defined by their diminutive size, are precision cutting tools designed for detailed milling operations in both soft and hard materials. Their small diameter allows for high-precision machining with minimal risk of breakage, making them essential for industries requiring intricate detail, such as aerospace, medical, and electronics. These tools are engineered from high-grade materials, often including solid carbide or diamond coating, to offer exceptional wear resistance and tool longevity. Understanding the unique properties and applications of Micro End Mills is crucial for leveraging their capabilities to enhance machining efficiency and achieve superior surface finishes on miniature components. With advancements in CNC technology, the utilization of Micro End Mills has become increasingly sophisticated, enabling machinists to perform complex milling tasks with unprecedented precision and speed.
Understanding the Basics of Micro End Mills

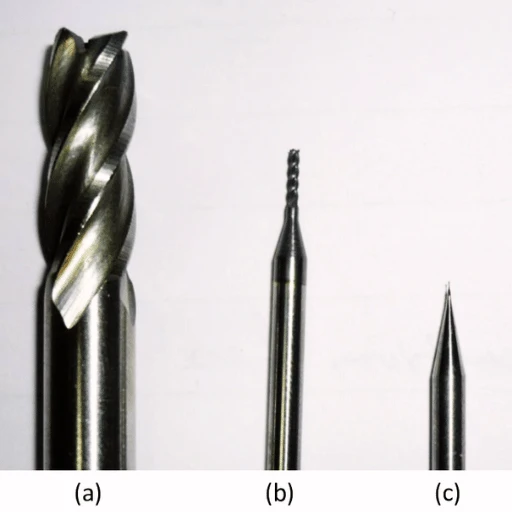

What Are Micro End Mills and How Do They Differ?
Micro End Mills are specialized milling tools with diameters typically ranging from just a few micrometers to one millimeter, making them significantly smaller than conventional end mills. What distinguishes these tools is not only their size but also their ability to perform detailed and precise cutting tasks that larger tools cannot achieve. They differ in various aspects, such as the number of flutes, material compositions, coating, and specific designs tailored to delicate and precise machining tasks.
Exploring the Variety of Materials Used in Micro End Mills
The effectiveness and durability of Micro End Mills depend heavily on the materials from which they are made. Here are the primary materials used:
- Solid Carbide: Known for its rigidity and durability, solid carbide is the most common material. It maintains sharpness longer than other materials, making it ideal for a wide range of applications.
- High-Speed Steel (HSS): Offers resilience against impact and is more cost-effective than solid carbide. It is suitable for less demanding machining tasks.
- Cobalt Steel: Provides better heat resistance than HSS, allowing it to perform well in high-temperature conditions.
- Diamond-Coated: These end mills are solid carbide tools coated with a thin layer of diamond to reduce friction and increase wear resistance, ideal for abrasive materials.
The Importance of Flute Design in Micro End Mills
The design and number of flutes on Micro End Mills play a significant role in their performance and are key parameters that need to be considered. Here’s why:
- Number of Flutes: Determines the balance between the material removal rate and the chip evacuation capability. Fewer flutes mean larger chip spaces which are better for chip evacuation, making them suitable for softer materials. Conversely, more flutes create a finer finish and are preferred for machining harder materials.
- Flute Geometry: Includes angles and shapes that are critical for performance across different materials. Variations in helix angle, for example, can improve cutting efficiency and surface finish.
- Coatings: Enhance performance by reducing wear and friction. Common coatings include Titanium Nitride (TiN), which extends tool life, and Aluminum Titanium Nitride (AlTiN), known for its thermal resistance.
In summary, the choice of material, the design and number of flutes, and the application of specific coatings are key factors that define the performance and suitability of Micro End Mills for precise and detailed machining operations.
Choosing the Right Carbide Micro End Mills for Your Project
The Role of Carbide in Enhancing Micro End Mill Performance
Carbide, primarily tungsten carbide, is a critical material in the construction of micro end mills due to its high hardness, wear resistance, and ability to withstand high temperatures. This material’s durability ensures that the end mills maintain their cutting edge sharpness for longer periods, thus providing consistent performance and reducing the need for frequent replacements. The high thermal stability of carbide allows the tools to operate at higher speeds, further enhancing productivity and efficiency in detailed machining operations.
How to Select the Perfect Carbide Grade for Your Application
Selecting the right carbide grade for your specific application involves considering several key parameters:
- Workpiece Material: The hardness and abrasiveness of the material being machined significantly influence the choice of carbide grade. Tougher materials require a more robust carbide grade with greater wear resistance.
- Machining Speed and Feed Rates: Higher speeds and feeds demand a carbide grade with excellent thermal resistance to prevent degradation of the tool.
- Coolant Use: The presence or absence of coolant can impact the thermal shock resistance required from the carbide grade. Dry machining conditions might necessitate a grade with higher thermal shock resistance.
- Finish Requirements: The desired surface finish of the final product can also dictate the selection of carbide grade. Grades that maintain sharpness longer can produce finer finishes.
Identifying the Ideal Flute Count for Efficient Cutting
The ideal flute count for efficient cutting with micro end mills depends on multiple aspects:
- Material to be Cut: Soft materials benefit from fewer flutes (typically 2 or 3), allowing for better chip evacuation. Hard materials, on the other hand, might require more flutes (4 or more) for a finer finish.
- Type of Operation: Roughing operations are best served by tools with fewer flutes, maximizing chip removal rate. Finishing operations, aiming for high-quality surface finishes, often require a higher number of flutes.
- Tool Diameter and Length: Smaller diameter tools may have fewer flutes due to space constraints, while longer tools might have more flutes to increase strength and stability.
- Chip Evacuation Requirements: Efficient chip evacuation is vital to preventing re-cutting of chips, which can damage both the workpiece and tool. Open flute designs with fewer flutes facilitate better chip clearance.
In summary, the choice of carbide grade and the ideal flute count for micro end mills are fundamentally driven by the specific requirements of the application, including the material being machined, desired machining speeds, requirements for surface finish, and overall tool performance expectations. Understanding these parameters allows for optimal selection of micro end mills, ensuring both efficiency and effectiveness in precision machining processes.

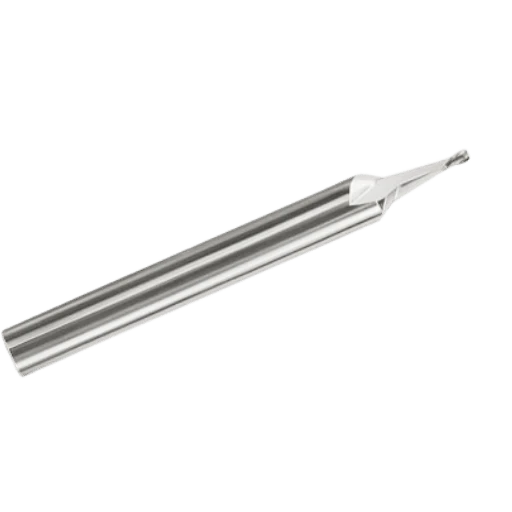

Maximizing Precision with High-Quality Cutting Tools
Achieving Superior Surface Finish with Advanced Coating Technologies
Advanced coating technologies play a pivotal role in enhancing the performance and longevity of micro end mills, contributing significantly to achieving superior surface finishes on machined parts. Coatings such as TiAlN (Titanium Aluminum Nitride) and AlTiN (Aluminum Titanium Nitride) offer improved wear resistance, enabling the tool to maintain its cutting edge sharpness over a longer duration. This is critical for achieving a fine finish on machined surfaces. Additionally, coatings reduce friction between the tool and the workpiece, facilitating smoother cutting actions and lesser heat generation. The benefits of advanced coatings include:
- Wear Resistance: Enhanced tool life and sustained performance under high-speed conditions.
- Thermal Protection: Coatings act as a barrier to heat, preventing tool degradation from high temperatures.
- Reduced Friction: Lowered friction coefficients result in smoother cuts and superior finishes.
Considering these parameters, the selection of a coated tool should be aligned with the specific machining application, material hardness, and desired final surface quality.
The Significance of Shank and Overall Length in Tool Stability
The stability of micro end mills during precision machining is fundamentally influenced by the shank and overall length of the tool. A well-designed shank ensures that the tool is securely held within the tool holder, minimizing vibrations that can lead to tool deflection and, consequently, poor surface finish or diminished tool life. The key parameters to consider include:
- Shank Diameter: A larger shank diameter generally offers greater stability but may be limited by machine tool specifications.
- Connection Type: Hydraulic, shrink fit, or mechanical grip systems each have distinct advantages in reducing slippage and vibration.
- Overall Length: Longer tools are necessary for deep cavity machining but are more prone to deflection. The optimal length should balance accessibility with minimal overhang to enhance rigidity.
- Tool Material: The selection of tool material contributes to the overall stiffness and damping properties, influencing stability during machining.
In essence, optimizing the shank and overall length of micro end mills is essential for maintaining stability during precision machining operations, directly impacting tool performance and the quality of the machined surface.
The Evolution of Micro End Mills in High Speed and High Performance Machining
High-Speed vs. High-Performance Micro End Mills: Understanding the Difference
The distinction between high-speed and high-performance micro end mills is critical for machining professionals to grasp, as it significantly influences tool selection based on the specific requirements of a machining task.
High-Speed Micro End Mills are designed to operate at elevated spindle speeds, surpassing the capabilities of conventional cutting tools. The primary focus here is on achieving high material removal rates through faster cutting speeds, which necessitates tools made from materials that can withstand the thermal effects of high-speed operations. Key characteristics include:
- Material: Often made from solid carbide or coated with PVD (Physical Vapor Deposition) to endure the heat.
- Geometry: Features such as sharp cutting edges and high helix angles to reduce cutting forces and heat generation.
- Application: Best suited for softer materials where the high-speed operation can be leveraged for efficiency.
High-Performance Micro End Mills, on the other hand, emphasize versatility and durability in challenging machining environments, including the cutting of hard or abrasive materials. These tools are engineered to offer superior wear resistance, edge strength, and vibration damping. Important attributes comprise:
- Material: Utilizes ultra-fine grain carbides, often with advanced coatings like TiAlN (Titanium Aluminum Nitride) for enhanced hardness and heat resistance.
- Geometry: Robust designs with reinforced core diameters and specific flute counts to balance strength and chip evacuation.
- Application: Ideal for machining hard materials, including stainless steel and aerospace alloys, where cutting forces and temperatures are extreme.
Adapting Micro End Mills for Challenging Materials like Stainless Steel and Aluminum:
Machining challenging materials such as stainless steel and aluminum requires a thoughtful selection of micro end mills that can address the unique properties of these metals. For stainless steel, which is known for its toughness and tendency to work-harden, opting for high-performance micro end mills with features like:
- Reduced Helix Angle: To increase cutting edge strength and reduce the risk of edge breakdown.
- Enhanced Coatings: Such as AlTiN (Aluminum Titanium Nitride) for its ability to resist thermal buildup.
- Chipbreaker Design: To manage chip formation and evacuation, reducing the possibility of recutting chips.
For aluminum, a material that is soft but sticky, the focus shifts towards preventing material adhesion and ensuring smooth chip evacuation. High-speed micro end mills suited for aluminum often include:
- Polished Flutes: To minimize material adhesion to the tool.
- High Helix Angles: To efficiently eject chips away from the workpiece.
- Uncoated or Special Coatings: Such as diamond-like coatings to prevent aluminum from sticking to the tool.
In summary, understanding the differences between high-speed and high-performance micro end mills, along with selecting the appropriate tool geometry and coatings, are paramount for successfully machining challenging materials like stainless steel and aluminum. This ensures not only the quality of the machined parts but also the longevity and performance of the cutting tools.

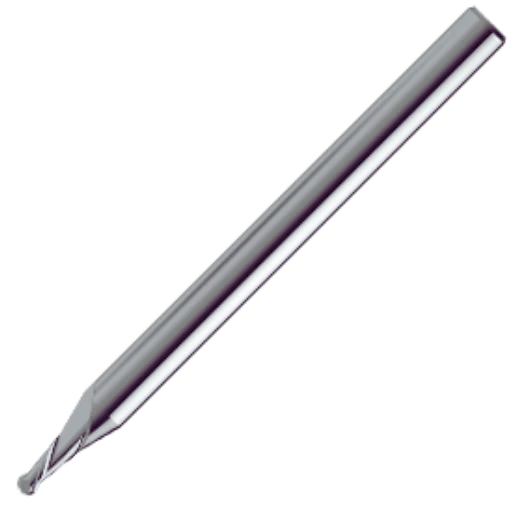

Specialized Applications of Micro End Mills in Industries
Utilizing Micro End Mills in the Aerospace Industry for Precision Components
The aerospace industry demands extreme precision and reliability in component manufacturing due to the critical nature of aerospace applications. Micro end mills play a pivotal role in fabricating tight-tolerance and intricate parts from advanced materials like titanium and Inconel. The key to success lies in selecting the right micro end mill features such as:
- Temperature Resistant Coatings: To maintain cutting efficiency in high-heat environments.
- Variable Helix/Flute Configurations: To minimize vibrations and harmonics for superior surface finishes.
- Robust Carbide Grades: To ensure durability when cutting through tough aerospace materials.
How Micro End Mills are Revolutionizing PCB (Printed Circuit Board) Manufacturing
In PCB manufacturing, precision and cleanliness of the cut are of utmost importance to maintain the integrity of the board and its functionality. Micro end mills revolutionize this process by enabling the precise milling of traces and the removal of excess material without damaging the board. Essential characteristics for micro end mills in PCB applications include:
- Ultra-Fine Diameters: To accommodate the minute features common in modern PCBs.
- Sharp Edge Geometry: For clean cuts that reduce the need for additional finishing processes.
- Diamond Coatings: To prevent material buildup and ensure longevity of the tool.
Exploring the Use of Micro End Mills in Medical Device Fabrication
The fabrication of medical devices requires tools that can meet stringent regulatory standards and produce biocompatible components with high precision. Micro end mills cater to these requirements through the careful machining of medical-grade materials, including titanium and stainless steel. Attributes critical for micro end mills in medical device fabrication encompass:
- High-Precision Geometries: For the accurate machining of complex, miniaturized components.
- Biocompatible Coating Options: Such as DLC (Diamond-Like Carbon) to prevent contamination.
- High Rigidity: To maintain dimensional stability and prevent deflection during the machining of delicate features.
By aligning micro end mill selection with the specific demands of these specialized applications, manufacturers can achieve exceptional quality, efficiency, and innovation in their products.
Shopping for Quality Micro End Mills: A Guide to Making an Informed Purchase
Finding a Reliable Supplier of High-Performance Micro End Mills
When sourcing high-performance micro end mills, it is essential to identify suppliers that not only offer a wide range of products but also demonstrate a deep understanding of your specific needs. Factors to consider include:
- Technical Expertise: Suppliers with a strong technical background can provide valuable advice on selecting the right tools for your application.
- Quality Assurance: Opt for suppliers that adhere to stringent quality control standards to ensure the tools meet your expectations.
- Supply Chain Reliability: Consistent availability and prompt delivery can significantly impact your operation’s efficiency.
- After-Sales Support: Comprehensive support services, including troubleshooting and technical guidance, are indispensable for maximizing tool performance.
- Product Range: A broad selection of micro end mills with various geometries, coatings, and sizes can accommodate diverse machining requirements.
Understanding the Cost-Benefit Analysis of Investing in Premium Quality Tools
Investing in premium micro end mills entails a higher initial cost but offers significant long-term benefits, including:
- Enhanced Durability: High-quality tools resist wear and tear better, reducing the frequency of replacements.
- Improved Precision: Superior manufacturing processes result in tools that achieve tighter tolerances and superior finishes.
- Increased Productivity: Reduced downtime for tool changes and maintenance contributes to higher operational efficiency.
- Cost Efficiency Over Time: Although the initial investment is higher, the extended lifespan and reduced failure rates of premium tools can lead to lower overall costs.
Tips for Maintaining Your Micro End Mills to Extend Their Life
Proper maintenance is key to extending the lifespan of your micro end mills. Consider these practices:
- Regular Inspection: Check for signs of wear or damage before and after use to prevent tool failure.
- Correct Usage: Use the tool as intended and within its performance limits to avoid undue stress.
- Proper Storage: Store tools in a dry, organized environment to prevent damage and corrosion.
- Cleanliness: Regularly clean the tools to remove debris and prevent material buildup, which can affect performance.
- Coolant Use: Proper use of coolants can reduce overheating and wear, extending the tool’s useful life.
By following these guidelines, you can maintain the performance of your micro end mills and achieve optimal results in your machining processes.
Frequently Asked Questions
Q: What type of micro end mills can enhance my machining performance?
A: High-performance micro end mills, such as solid carbide end mills, carbide end mills with a corner radius, or diamond coated for graphite, are designed to significantly enhance machining performance. Products come in various diameters, lengths, and types including ball end, square end, and 2 flute end mills, catering to a wide range of milling operations.
Q: How can I search for the right micro end mill for my project?
A: To search for the right micro end mill, you can use online catalogs or product search tools available on suppliers’ websites. Input parameters such as cutter type (e.g., ball, square, corner radius), material (e.g., solid carbide), and specific features like long reach or unique geometry, to narrow down the options and find the tool that best matches your requirements.
Q: Are carbide end mills better than other types of cutters for precision machining?
A: Yes, carbide end mills, especially solid carbide or micro carbide end mill types, are preferred for precision machining due to their exceptional hardness, wear resistance, and ability to cut at higher speeds compared to other materials. They are ideal for detailed work on metals and hard materials, offering superior finish and longevity.
Q: Can I customize my order of micro end mills?
A: Many suppliers offer the option to customize your order of micro end mills. This can include special lengths, diameters, coatings, or unique cutting geometries. Custom orders allow you to precisely match the tool to your specific machining needs, expanding the capabilities of your milling operations.
Q: What product features should I consider when selecting a micro end mill?
A: When selecting a micro end mill, consider features like cutter diameter, shank diameter, length (reach, long reach, stub, long shank), the number of flutes (2 flute, single flute), and the end design (ball end, square end, corner radius). Also, pay attention to the material, such as solid carbide or carbide tipped, and special coatings if cutting abrasive materials like graphite.
Q: How does the cutter geometry affect micro cutting operations?
A: Cutter geometry, including the number of cutting flutes, end design (e.g., ball end vs. square end), and flute design (e.g., standard vs. long flute), plays a critical role in micro cutting operations. It affects the material removal rate, surface finish quality, and tool lifespan. Optimal geometry selection depends on the material being machined and the type of milling operation, be it slotting, profiling, or finishing.
Q: Why are miniature end mills considered special in the machining industry?
A: Miniature end mills are considered special because they enable precision machining of very small features with high detail and accuracy. Their smaller diameter and unique geometries allow for machining intricate parts that larger cutters cannot achieve. They are often used in industries like aerospace, medical, and electronics, where small components with tight tolerances are required.
Q: Can I find micro end mills for specific materials, such as graphite?
A: Yes, you can find micro end mills designed specifically for certain materials, including graphite. These typically have a diamond coating to prevent wear and extend the cutter life since graphite is abrasive. When searching for these cutters, look for terms like “diamond coated” or “for graphite” to ensure the product matches your material requirements.
