Shell end mills are precision cutting tools used in various milling applications to produce large, broad surfaces with high efficiency. These cutters are characterized by their hollow construction and are typically mounted on shell mill arbors to perform operations ranging from facing and shoulder milling to slotting. One of the critical advantages of shell end mills is their ability to distribute the cutting force over a wider area compared to their solid counterparts, thereby reducing the heat generated during the milling process. This results in a smoother finish and extends the tool’s life span. Additionally, their design allows for the easy replacement of worn inserts, making them a cost-effective choice for high-volume milling tasks.

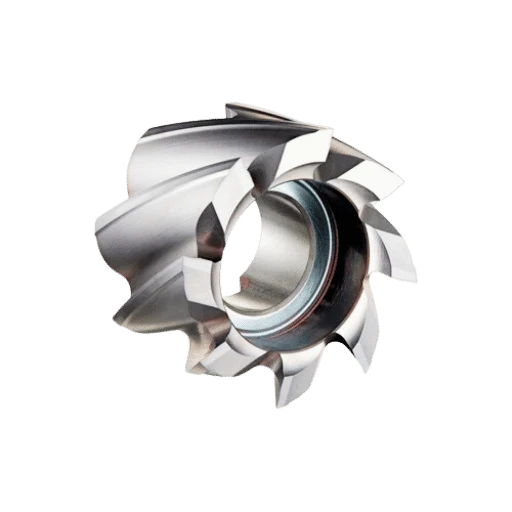

What Is A Shell End Mill and How Is It Different?
Understanding Shell End Mills and Their Unique Features
A Shell End Mill is a milling cutter designed to perform various milling operations, including face, shoulder, and slotting. It differentiates itself from traditional end mills through its distinctive construction. This hollow cutting tool allows a more efficient distribution of cutting forces across a broader surface area. This unique feature mitigates the heat generated during the milling process, ensuring a smoother surface finish on the milled part and significantly extending the cutter’s lifespan. The design of shell end mills also facilitates the swift replacement of worn inserts, which is particularly advantageous in high-volume milling environments where tool longevity and efficiency are paramount.
Comparing Shell End Mills to Traditional End Mills
When comparing shell end mills to traditional end mills, several vital differences come to the fore:
- Construction: Traditional end mills are usually solid cutters, whereas shell end mills have hollow bodies. This difference is crucial in how both tools distribute cutting forces and manage heat during milling.
- Efficiency: Due to their wide cutting surface, shell end mills are more efficient in machining large, flat surfaces. They distribute the workload over a larger area, minimizing tool wear and maximizing productivity.
- Heat Management: Shell end mills are superior in heat dissipation. Their unique construction allows for more efficient heat management, reducing the risk of overheating and damage to both the tool and the workpiece.
- Maintenance: Shell end mills are designed with replaceable inserts, making them more cost-effective in the long term. Traditional solid-end mills require complete replacement once worn out.
The Importance of Cutter Design in Shell End Mills
The cutter design in shell end mills is instrumental in their performance and versatility. Several design parameters are critical:
- Insert Geometry: The shape and size of the inserts determine the cutting characteristics, such as the material removal rate, finish quality, and the type of operations the mill can perform.
- Cutter Material: The material of the cutter body and inserts impacts the tool’s hardness, heat resistance, and wear life. Choices range from high-speed steel (HSS) for general applications to carbide and ceramics for high-precision and high-temperature milling.
- Flute Design: The number and shape of flutes affect the chip removal rate, finish, and overall milling process efficiency. More flutes mean a finer finish but may reduce chip removal capacity.
Understanding shell end mills’ unique features and design considerations can significantly influence milling operations’ efficiency, cost-effectiveness, and quality. Whether in high-volume production or precise, custom machining tasks, selecting the right shell end mill is a pivotal decision that combines knowledge of material science, engineering, and machining practices.
Choosing the Right HSS Shell End Mill for Your Project
When selecting an HSS (High-Speed Steel) shell end mill for your project, several critical factors must be considered to ensure optimal performance and cost efficiency. Understanding these factors can significantly impact the success of your milling operations.
- Diameter of the Mill: The diameter of the shell end mill directly influences the cutting speed and the material removal rate. A larger diameter allows for a higher material removal rate but may require lower spindle speeds due to the increased cutting-edge engagement. Conversely, smaller diameters can operate at higher speeds but might remove material more slowly. Therefore, the choice of diameter should be closely aligned with your specific milling requirements and machinery capabilities.
- Material Properties: The material you intend to mill plays a pivotal role in selecting the appropriate HSS shell end mill. HSS is renowned for its toughness and wear resistance at high temperatures, making it suitable for a wide range of materials, including both ferrous and non-ferrous metals. However, the specific type of HSS (e.g., M2, M35, M42) can further refine your selection based on the workpiece material’s hardness, toughness, and thermal properties.
- Cutting Efficiency: The choice of HSS is crucial for maximizing cutting efficiency. HSS tools are preferred to maintain sharp cutting edges at high temperatures, thus facilitating faster cutting speeds than carbon steel tools. The efficiency of an HSS shell end mill is also enhanced by its composition and heat treatment, which should be chosen based on the hardness and abrasion resistance required for your specific application.
Considering these factors ensures that the selected HSS shell end mill matches your project’s requirements and maximizes tool life and performance. The alignment of mill diameter and material properties of both the tool and workpiece, as well as an understanding of HSS’s unique advantages, form the foundation of a strategic approach to milling that promotes excellence in manufacturing.

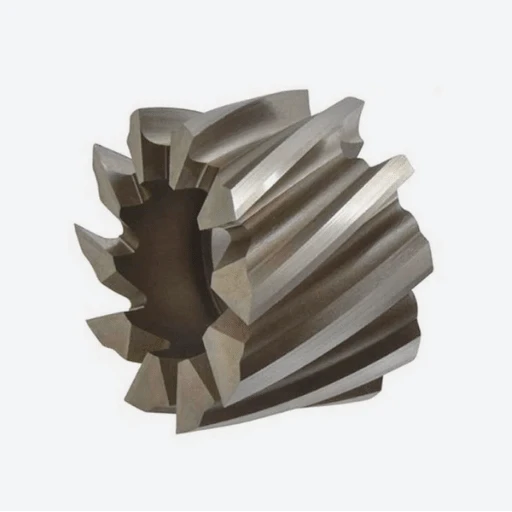

Maximizing Efficiency with Aluminum Shell End Mills
Benefits of Using Aluminum Shell End Mills in Milling Operations
Using aluminum shell end mills presents several advantages in milling operations, primarily due to aluminum’s inherent properties. Firstly, aluminum end mills are characterized by their lightweight, which minimizes tool deflection and vibration during milling. This is crucial for achieving high precision and surface finish quality. Secondly, aluminum’s high thermal conductivity allows effective heat dissipation, reducing the risk of overheating and prolonging tool life. Additionally, aluminum shell end mills can operate faster than their counterparts, significantly increasing productivity without sacrificing cut quality.
Optimizing Slot and Pocket Milling with Aluminum Shell End Mills
To optimize slot and pocket milling, several vital parameters need to be considered:
- Feed Rate: Adjusting the feed rate is essential for preventing tool breakage and ensuring a smooth cutting action. Higher feed rates can be utilized with aluminum due to its softer nature, allowing for quicker material removal.
- Spindle Speed: Aluminum shell end mills can withstand high spindle speeds. Increasing the spindle speed helps in achieving finer finishes and more efficient cutting.
- Depth of Cut: Due to aluminum’s lower cutting resistance, a more significant depth of cut can be employed, as well as facilialuminum’ster material removal while still maintaining the quality of the cut.
- Coolant Use: Although aluminum’s thermal properties help dissipate aluminum, an appropriate coolant further reduces heat buildup and prevents material adhesion to the tool.
Application Areas Where Aluminum Shell End Mills Excel
Aluminum shell end mills are particularly well-suited for operations requiring high precision and speed. These include:
- Aerospace Component Manufacturing: The aerospace industry frequently requires components made from aluminum and aluminum alloys due to their lightweight and robust properties. Aluminum end mills are ideal for fabricating intricate parts with tight tolerances.
- Automotive Industry: In automotive applications, aluminum shell end mills produce lightweight, high-strength components, contributing to vehicle efficiency and performance.
- Consumer Electronics: Aluminum shell end mills offer the necessary accuracy and surface finish quality to manufacture consumer electronics, where components are often miniature and require precise machining.
- Prototype Development: In prototyping, where speed and flexibility are critical, aluminum end mills can quickly shape and refine designs without sacrificing detail.
Integrating aluminum shell end mills into milling operations offers enhanced performance, efficiency, and versatility across various industrial applications, underscoring their value in modern manufacturing practices.

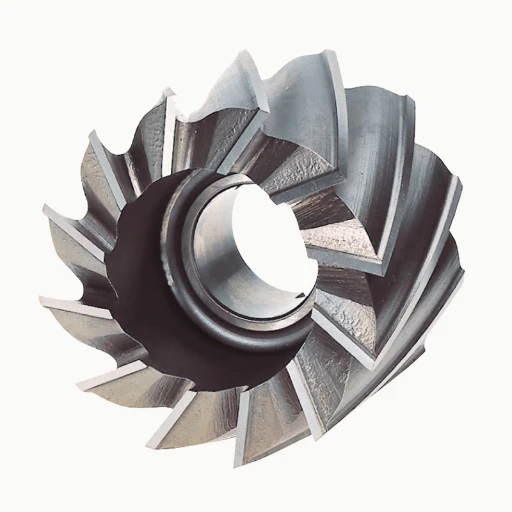

The Role of Geometry and Flute Design in Milling Cutters
How Geometry Affects the Performance of Milling Cutters
The geometry of milling cutters plays a pivotal role in determining the cutter’s performance, including the surface quality, the material removal rate, and the overall tool life. Key geometric parameters that influence performance include:
- Helix Angle: A higher helix angle offers better shearing action and smoother cutting, which is conducive to producing excellent surface finishes and reducing the load on the tool. However, it may compromise tool rigidity.
- Number of Flutes: The number of cutting edges or flutes affects the balance between material removal rates and the finish. Fewer flutes allow for faster material removal due to more significant chip clearance spaces, while more flutes result in a finer finish by reducing the chip load per tooth.
- Core Diameter: The core diameter impacts the cutter’s rigidity. An enormous core diameter increases the tool’s strength, enabling it to withstand higher cutting forces, which is particularly beneficial during rough machining.
The Significance of Flute Design in Material Removal
Flute design is critical for efficient chip removal, heat dissipation, and preventing tool clogging, especially during heavy material removal processes. Flutes serve two primary functions: cutting or slicing through the material and evacuating chips from the cutting area. The design aspects to consider include:
- Flute Space: Larger flute spaces provide greater capacity for chip removal, which is essential for rough milling tasks where large volumes of material need to be removed quickly.
- Flute Depth and Width: These dimensions directly impact the tool’s ability to transport chips away from the cutting zone. A deeper and broader flute design facilitates better chip evacuation.
Choosing the Right Geometry and Flute for Rough and Precision Milling
For Rough Milling operations, where the goal is to remove large amounts of material quickly without necessarily achieving a perfect surface finish, tools with fewer flutes, a larger helix angle, and a robust core diameter are recommended. This configuration allows for aggressive cutting action and effective chip removal, which is essential for efficiency in rough cutting.
For Precision Milling, where achieving a high-quality surface finish and dimensional accuracy is paramount, cutters with more flutes, a smaller helix angle, and a finer edge preparation are advisable. Such tools ensure smoother cutting action and reduced vibration, which is critical for producing precise and finely finished surfaces.
In conclusion, selecting the appropriate milling cutter geometry and flute design is essential for optimizing the milling process to meet specific application requirements. Understanding these factors enables manufacturers to enhance productivity, tool life, and, ultimately, the quality of the final product.

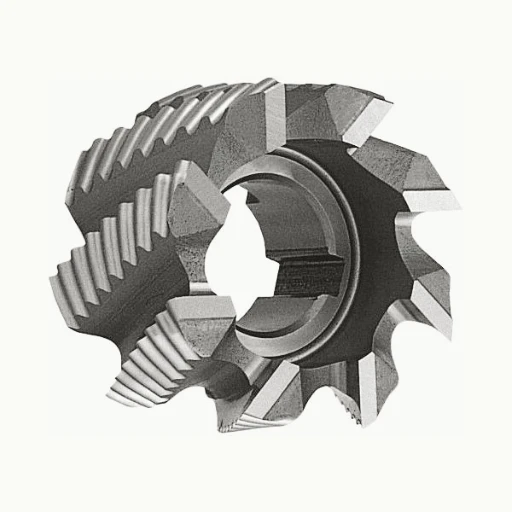

Understanding the Wide Range of Materials Suitable for Shell End Mills
Shell end mills are highly versatile cutting tools that effectively work on various materials, from soft metals like aluminum to harder metals like steel and even titanium. The key to achieving optimal results with shell end mills is selecting suitable materials and employing specific strategies for hard materials.
Identifying the Best Materials for Use with Shell End Mills
The ideal materials for use with shell end mills include:
- Aluminum: Known for its softness and easy cutting, aluminum is perfect for shell end mills, resulting in smooth finishes and reduced tool wear.
- Steel: A common material due to its strength and durability. Selecting shell end mills with appropriate coatings can enhance performance.
- Stainless Steel: Requires shell end mills with sharp edges and possibly specific coatings to manage the material’s toughness and reduce sticking.
- Tmaterial’snown for its high strength-to-weight ratio, machining titanium requires shell end mills that can handle high temperatures and resist wear.
Tips for Milling Hard Materials like Steel with Shell End Mills
When milling hard materials, such as steel, it’s crucial to consider several key factors’s enhance efficiency and extend tool life:
- Use Coated Tools: Tools coated with titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum titanium nitride (AlTiN) can withstand higher temperatures and offer increased durability.
- Optimize Cutting Parameters: Optimal feed rates, cutting speeds, and chip loads need to be determined and adjusted based on the hardness of the material.
- Apply Coolant Strategically: Coolant can reduce heat and facilitate chip evacuation, which is especially critical in long-lasting milling operations.
- Control Vibration: Employ strategies to minimize vibration, such as using side-lock holders for increased stability and choosing end mills with the correct helix angle for the material.
The Versatility of Shell End Mills in Handling Various Materials
Shell end mills stand out for their ability to handle many materials with precision and efficiency. Their versatility is enhanced by varying the cutting geometry, coating, and operating parameters to match the specific requirements of each material. By understanding and adjusting these variables, manufacturers can ensure high-quality results across different materials, reinforcing the indispensability of shell end mills in modern machining practices.

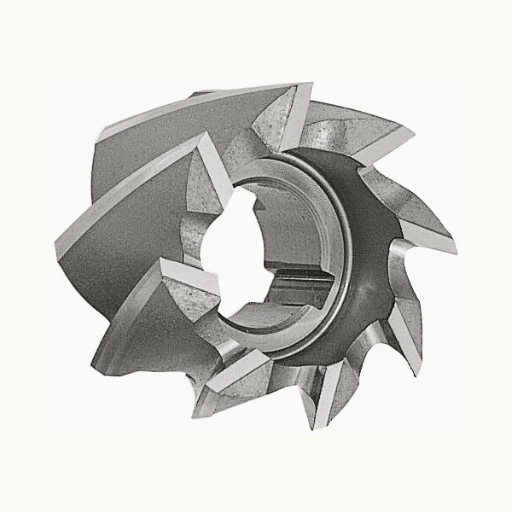

The Essential Guide to Maintaining and Extending the Life of Your Milling Cutters
Best Practices for the Care and Maintenance of Shell End Mills
To ensure the optimal performance and longevity of shell end mills, adhering to the following best practices for care and maintenance is crucial:
- Regular Inspection: Frequent checks for wear and damage, particularly after extensive use, can prevent the degradation of cutting performance.
- Proper Cleaning: After each use, cleaning the end mill to remove any residual material or coolant will prevent corrosion and buildup that could affect future performance.
- Sharpness Maintenance: Keep the cutting edges sharp. Dull tools require more power to cut, increasing the risk of breakage and decreasing efficiency.
- Storage Solutions: Store the end mills in a dry, organized manner to prevent damage from moisture or accidental impacts.
Solving Common Problems Faced When Using Milling Cutters
Operators frequently encounter specific issues when working with milling cutters. Here are solutions to some common problems:
- Premature Wear: If the tool wears out faster than expected, consider reducing the cutting speed or feed rate or switching to a tool with a suitable coating for machining material.
- Chipping or Breakage: This often results from excessive feed rates, inadequate support for the workpiece, or incorrect tool selection. Adjust the machining parameters and ensure the setup is stable.
- Poor Surface Finish: Check and adjust the tool’s alignment, reduce the feed rate, or use an end mill with more flutes to improve the surface finish.
Techniques to Maximize the Longevity of Your Shell End Mill Tools
Maximizing the longevity of shell end mills revolves around optimizing machining parameters and employing advanced strategies:
- Optimal Speed and Feed: Utilize manufacturer recommendations to set the appropriate speed and feed rates. Deviating beyond suggested parameters can lead to increased wear and tear.
- Gradual Engagement: Avoid abrupt engagement with the workpiece. Gradually entering the material can reduce shock and extend tool life.
- Use of High-Quality Coolants: High-quality coolants aid in temperature control and chip removal, significantly affecting tool longevity.
- Tool Path Optimization: Implement strategies such as climb milling and path optimization to distribute wear evenly across the cutter’s surface, thereby enhancing its lifcutter’sy incorporating these best practices, standard solutions, and longevity techniques, users can significantly improve the performance and durability of their shell end mills, ensuring a more efficient and cost-effective milling process.
References
-
Shell End Mill Market Size, Growth Potential
- Source: LinkedIn Article (https://www.linkedin.com/pulse/shell-end-mill-market-size-growth-potential-unleashing-dyh8f/)
- Summary: This article provides an overview of the shell end mill market, discussing factors driving its growth, such as the demand for precision machining across various industries. It highlights the technological advancements in shell-end mills that contribute to their efficiency and performance in complex machining tasks. The source is valuable for understanding shell end mills’ market dynamics and future growth prospects, making it relevant for industry stakeholders looking to invest in high-quality milling tools.
-
Unlocking the Potential: Choosing the Best End Mill for Machining Aluminum
- Source: Medium Blog Post (https://medium.com/@rimabeushq/unlocking-the-potential-choosing-the-best-end-mill-for-machining-aluminum-ea8eec41e931)
- Summary: Although focusing on end mills for machining aluminum, this blog post sheds light on the importance of selecting the right end mill geometry and coatings for specific materials and applications. It indirectly emphasizes the versatility of shell end mills in achieving high-speed machining and extended tool life, especially in aluminum projects. This source is insightful for readers interested in optimizing their milling operations by choosing appropriate end mill types, including shell end mills.
-
The Case For Copy Milling Cutters
- Source: Modern Machine Shop Online Article (https://www.mmsonline.com/articles/the-case-for-copy-milling-cutters)
- Summary: This article examines the use of copy milling cutters, a category encompassing shell end mills, for giant-diameter hole-making through helical interpolation. It discusses the efficiency and ease these tools offer in specific milling scenarios and advocates for their strategic application in manufacturing. The detailed analysis of techniques and benefits makes this source compelling for professionals aiming to leverage advanced milling strategies, including using shell end mills, for improved productivity and quality.
Frequently Asked Questions
Q: What is a Shell End Mill, and how does it fit into the milling product category?
A: A Shell End Mill is a specialized cutting tool within the milling product category designed for heavy cutting loads. It features a concave cutting surface and is typically mounted on the end of a spindle. Shell End Mills are used on a wide range of materials, including steel and aluminum, and are ideal for general-purpose milling, which includes profiling and cutting keyways and pockets. These versatile end mills offer a combination of rigidity and rapid cutting capabilities, making them a preferred item in the toolbox of many machinists and manufacturers.
Q: Can Shell End Mills be used for profiling and creating material pockets?
A: Shell End Mills can be used for general-purpose milling, including profiling and cutting keyways and pockets. These versatile end mills are designed to handle various operations, making them an excellent tool for creating detailed profiles and precise pockets in materials such as aluminum and stainless steel. Their design allows for efficient material removal, resulting in clean and accurate cuts every time.
Q: What materials are suitable for machining with Shell End Mills?
A: Shell End Mills can be used on a wide range of materials, including both ferrous and non-ferrous materials such as aluminum, stainless steel, and other metals. Their robust design and cutting edges are suitable for handling different industrial materials, offering versatility in machining operations. This makes them a valuable tool for various industrial and manufacturing applications.
Q: Are there different types of Shell End Mills available for specific applications?
A: Yes, Shell End Mills come in various types, including single-end and double-end designs, each with different coatings and cutting-edge configurations to enhance tool life and performance. For example, a double-end design offers twice the cutting life of a single-end mill by enabling users to flip the tool once one end wears out. Additionally, coatings such as TiAlN can be applied to increase resistance to wear and heat, further extending tool life for cutting rigid materials.
Q: How does the right-hand helix angle of Shell End Mills affect their cutting performance?
A: Shell End Mills’ right-hand helix angle plays a crucial role in their cutting performance by ensuring smooth and efficient material removal. This design feature helps to reduce the force exerted on the workpiece during cutting, minimizing chatter and vibration. Consequently, this results in better surface finishes and improved machined profile or pocket accuracy. It also aids in effective chip removal, preventing re-cutting and contributing to the tool’s overall efficiency.
Q: Can it be customized to meet specific customer requirements?
A: Many suppliers and manufacturers offer customization options for Shell End Mills to meet specific customer needs. Customization can include altering the mill’s size, angle, and width and applying specific coatings for enhanced performance in certain materials. This allows customers to obtain a milling solution tailored to their particular applications and materials, maximizing efficiency and results.
Q: How do I ensure the longevity of my Shell End Mills?
A: Ensuring the longevity of Shell End Mills involves proper maintenance, correct usage, and choosing the right tool for machining material. Correct cutting parameters, such as speed, feed rate, and depth of cut, are critical to avoid excessive wear or damage. Appropriate cooling and lubrication can significantly extend tool life by reducing heat and friction. Regular inspection and proper storage also contribute to maintaining the effectiveness and longevity of these cutting tools.
