In mold manufacturing, precision EDM electrodes, and the new energy sector, graphite materials are widely used in producing high-end components due to their excellent conductivity, high-temperature resistance, and machinability. However, the high hardness and strong abrasiveness of graphite pose severe challenges to CNC machining tools. Especially in high-precision and long-cycle production, standard carbide tools often struggle to balance machining efficiency and service life. Frequent tool changes not only affect productivity but also significantly increase overall processing costs.
In this context, diamond end mills have become the preferred solution for machining graphite materials, thanks to their excellent wear resistance, thermal stability, and superior surface treatment performance. Whether in fine machining of graphite electrodes or mold part manufacturing that demands high surface finish and dimensional consistency, diamond-coated or PCD tools offer unmatched advantages. This article deeply analyzes the key benefits of diamond end mills in graphite processing and explores real-world applications to help manufacturers make more cost-effective tool selection decisions.
Challenges in Machining Graphite Materials
Graphite is a non-metallic brittle material. Although it offers good machinability, its unique physical properties create challenges in CNC machining. Whether in high-precision mold production or graphite electrode fabrication, selecting the right end mills for graphite and addressing tool wear and chip removal remain top concerns for engineers.
High Hardness and Strong Abrasiveness
Graphite is composed of fine crystalline particles, resulting in significant abrasive wear on tools. During machining, it continuously causes micro-damage to cutting edges. Compared with metals, graphite wears down tools much faster, especially under continuous or high-speed cutting. Standard carbide end mills often suffer edge chipping or coating failure, drastically shortening tool life.
Thus, using diamond-coated end mills for graphite machining—renowned for ultra-high wear resistance—has become the mainstream solution. This is especially effective for stable, large-scale processing of medium- to high-density graphite (e.g., ISO G5-G7 grades).
Excess Dust and Tool Clogging
Graphite machining generates large volumes of fine dust. These particles not only contaminate the workspace but also accumulate in flutes, making chip evacuation difficult. This affects cutting efficiency and may cause surface burns or dimensional errors. Using dense-tooth or conventional flute designs often leads to poor chip evacuation, elevated cutting temperatures, and accelerated tool wear.
To address this, modern graphite end mills feature open flute designs, sharp cutting edges, and low-friction coatings to improve chip evacuation and reduce heat buildup. Additionally, dry machining or Minimum Quantity Lubrication techniques aid dust control and extend tool life. These designs have become mainstream in high-precision graphite electrode production.
Core Advantages of Diamond End Mills
Choosing the right end mills for graphite directly impacts cut quality, tool life, machining efficiency, and total production costs. Compared with standard carbide tools, diamond end mills (including CVD diamond-coated and PCD variants) outperform in high-precision electrode and mold machining. Here are four core advantages that set diamond tools apart.
Exceptional Tool Life
Diamond coatings offer extremely high surface hardness (up to HV8000+), delivering wear resistance far beyond that of carbide tools. Even in prolonged high-density graphite cutting, diamond end mills maintain stable performance. According to real-world data, diamond-coated end mills for graphite machining can last over 10 times longer than tungsten carbide tools—significantly extending tool-change intervals and reducing machine downtime.
This longevity reduces tool procurement frequency, improves overall cycle times, and increases equipment utilization—ideal for batch production and unattended night shifts.
Outstanding Wear Resistance and Stability
Diamond tools have ultra-low friction surfaces that reduce mechanical wear and thermal carbon buildup. Especially when machining small features, deep cavities, or high-precision molds, the diamond layer adheres well and resists peeling.
PCD end mills for graphite machining maintain sharp edges over long runs, preserving dimensional accuracy and contour fidelity. For applications with strict tolerances, diamond tools reduce scrap and rework rates.
Enhanced Surface Finish
With sharp edges and ultra-low friction coatings, diamond end mills lower cutting resistance and material adhesion. This improves graphite surface finish (lower Ra values) and minimizes burrs and step marks.
In micro-finishing scenarios, the best end mills for graphite electrodes can reduce or eliminate post-processing steps like polishing or manual deburring—critical in applications needing mirror-like finishes or fine mold cavity details.
Lower Processing Costs
Although the initial purchase cost of diamond end mills is significantly higher than that of traditional tools, from the perspective of total cost of ownership (TCO), their ultra-long life, stable processing performance and significantly reduced post-processing requirements make them the best choice for both cost and efficiency.
By reducing the number of tool changes, improving the yield rate and reducing the frequency of manual intervention, diamond-coated tools help companies optimize the overall manufacturing process, and are particularly suitable for high value-added scenarios such as precision graphite molds, consumer electronic structural parts or power battery pole piece molds.
Diamond End Mill Types and Selection Guidelines
Due to graphite’s abrasiveness and variability, tools with high wear resistance and thermal stability are essential. Among end mills for graphite, diamond tools dominate, mainly classified into CVD diamond-coated and PCD tools. Each type offers unique advantages depending on graphite properties and machining needs.

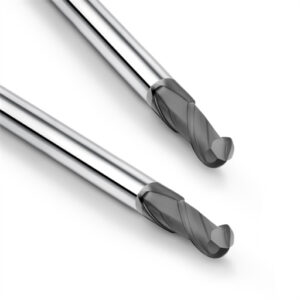

CVD Diamond-Coated Tools

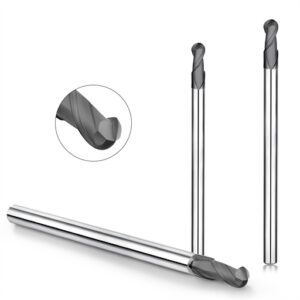

CVD diamond-coated end mills are made via high-temperature vapor deposition, bonding a true polycrystalline diamond layer to a carbide body. These tools have strong adhesion, ultra-high hardness, and are ideal for continuous graphite cutting.
Key advantages:
- Superior wear resistance, ideal for medium- to high-density graphite (ISO G6–G8).
- Smooth surfaces that lower cutting heat and dust buildup.
- Long tool life, perfect for finishing graphite electrodes and small molds.
CVD tools are cost-effective in environments requiring tight dimensional tolerances and tool longevity.
PCD Tools
PCD end mills for high speed graphite machining are made of sintered polycrystalline diamond material directly to form the cutting edge. Compared with coated tools, it has higher hardness, stronger toughness, and better thermal conductivity, and is suitable for large cutting depth, high feed, high-speed roughing and other working conditions.
Advantages:
- High chipping resistance for uneven blanks and complex geometries.
- Fast cutting speeds with high-speed spindles and 5-axis machines.
- Exceptional efficiency and cost benefits in large-scale roughing.
PCD tools are suited for large molds, electrode blanks, and high-volume machining tasks.
Selecting Tools Based on Graphite Grade and Application
Selecting the best end mills for graphite roughing and finishing requires considering graphite grade, particle size, density (e.g., ISO G4–G9), and tolerance requirements.
Finishing vs. Roughing:
- Roughing: Use PCD tools or large-flute CVD tools to handle high loads and rapid cutting
- Finishing: Choose micro-edge CVD diamond-coated tools for fine detail and superior finish
Tool Edge Design:
- Sharp edges improve surface finish and suit intricate electrode profiles
- Reinforced edges resist impact in high-speed cutting
Additionally, flute type, helix angle, shank diameter, and compatibility with machine rigidity and cooling systems (dry or MQL) must be considered to maximize tool performance and cost efficiency.
Diamond Tools Are the Inevitable Choice for Graphite Processing
Graphite machining for electrodes, molds, and precision parts demands tools that can withstand high abrasiveness, brittleness, and dust-related issues. Diamond end mills consistently outperform in tool life, cutting efficiency, surface quality, and consistency.
Compared with carbide or coated tools, CVD diamond and PCD tools offer superior wear, oxidation, and heat resistance. This extends tool life, reduces tool change frequency, and boosts machine uptime. Their ability to improve surface finish and reduce polishing time also enhances yield and process stability.
While diamond end mills involve higher upfront costs, their long-term benefits in tool performance, cost savings, and production efficiency far outweigh initial investments. They are the best choice for quality-driven, competitive manufacturing.
As reported by experienced manufacturers, selecting the right end mills for graphite machining optimizes processes and creates a competitive edge. CNC engineers and manufacturing teams should select diamond tool types and specs based on specific graphite grades and machining conditions. Doing so not only upgrades technology but also secures future competitiveness in a demanding market.
