Diamond Coated Milling Cutter vs PCD Tool: Which One is More Suitable for Ceramic Cutting?

In precision machining, ceramics are widely used in high-end manufacturing industries such as semiconductors, medical devices, and aerospace due to their exceptional hardness, brittleness, and high-temperature resistance. However, these outstanding properties also make ceramics a typical difficult-to-machine material, placing high demands on the tool’s wear resistance, strength, and cutting stability. Currently, diamond coated milling cutters and PCD tools have become the primary choice for machining engineering ceramics such as zirconia, alumina, and silicon nitride. Both offer excellent wear resistance and cutting life, but there are clear differences in processing efficiency, material compatibility, and surface quality.

This article will provide an in-depth comparison of the performance of diamond-coated milling cutters and PCD tools in ceramic processing from multiple angles, including material properties, tool structure, real-world performance, and cost-efficiency. This will help you choose the most suitable ceramic cutting solution based on your specific needs. Whether you’re focused on extending tool life, improving processing quality, or optimizing mass production efficiency, this article offers valuable insights.

Why is Ceramic Material Processing So Challenging?

Ceramic materials, known for their exceptional hardness and brittleness, have numerous industrial advantages, including excellent wear resistance, electrical insulation, and corrosion resistance. However, these properties introduce significant challenges in the cutting process. Unlike traditional metals, ceramics tend to undergo “brittle fracture” rather than “plastic deformation” during machining, requiring tools to have extremely high hardness, chip resistance, and thermal stability. Therefore, when selecting specialized tools such as diamond end mills for ceramic applications, it is crucial to have a thorough understanding of the material’s processing characteristics.

Typical Performance Characteristics of Ceramics

Ceramic materials such as zirconia (ZrO₂), alumina (Al₂O₃), and silicon nitride (Si₃N₄) are often chosen in engineering applications for their remarkable hardness (>1200 HV) and chemical stability. However, these materials also exhibit low fracture toughness and poor thermal conductivity, which make them prone to micro-crack propagation and thermal stress buildup during cutting. This combination of traits makes it impossible for traditional tools to effectively handle the impact loads and localized heat generated during ceramic processing.

When performing dry cutting or high-speed machining, heat dissipation is difficult, which can lead to local tool overheating. Only tools with high wear resistance and thermal stability, such as diamond-coated milling cutters or PCD tools, can achieve high-precision cutting and maintain surface integrity when machining ceramics.

The Three Main Challenges for Tools

• Rapid Wear: Ceramics have much higher hardness than steel or non-ferrous metals, leading to significant abrasive wear on the tool. Under continuous cutting or high-speed conditions, the lifespan of conventional carbide tools is extremely short.

• Prone to Chipping: Ceramic materials are highly susceptible to instant brittle fracture during processing, which can damage the tool edge. Stress concentration often causes micro-breakage or edge damage, severely impacting the surface quality of the workpiece.

• Difficult Heat Dissipation: Ceramics have low thermal conductivity, making it challenging for heat to dissipate through the workpiece or chips. This causes the tool edge to endure high temperatures for short periods, increasing the likelihood of thermal cracks, accelerated tool wear, or failure. This is why high-precision tools like diamond end mills for ceramic cutting are essential.

Therefore, in precision ceramic machining, tools must have exceptional heat resistance, anti-chipping properties, and an excellent geometric design to handle the dry cutting characteristics and fracture mechanisms of non-metallic materials.

Common Ceramic Materials

In practical machining, different types of ceramics have varying tool requirements:

• Zirconia: Known for its strength and toughness, zirconia is widely used in medical, dental, and structural ceramics. Due to its high strength and hardness, diamond-coated milling cutters are recommended for small feed rates and high-speed cutting to improve surface quality and extend tool life.

• Alumina: Common in electronic ceramics and insulators, alumina has high hardness and low thermal conductivity. It is highly sensitive to tool wear, making PCD tools ideal for high-efficiency rough machining in batch processing.

• Silicon Nitride: With strong thermal shock stability and impact resistance, silicon nitride is suitable for aerospace or engine components. For microstructure machining, diamond-coated end mills for ceramic precision machining are often used to control tolerances and microstructure morphology.

Introduction to Diamond-Coated Milling Cutters

Diamond coated milling cutters have become the mainstream choice in ceramic processing due to their outstanding wear resistance and cutting stability. Compared to traditional carbide tools, diamond-coated tools effectively extend tool life and enhance machining accuracy. These tools are particularly suitable for high-precision cutting of non-metallic materials such as ceramics, silicon carbide, glass, and quartz. When dealing with complex shapes or fine structures, diamond end mills for ceramic machining offer an ideal solution.

Manufacturing Process and Coating Types

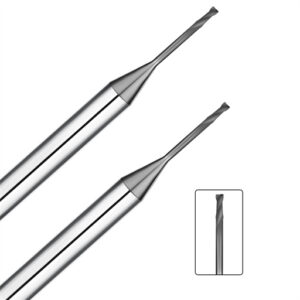

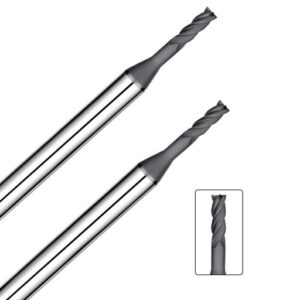

Diamond coating is primarily achieved using CVD (Chemical Vapor Deposition) technology, forming a dense diamond film on the tool substrate. This coating provides hardness exceeding HV 8000, far surpassing conventional coatings like TiAlN or AlCrN. The CVD process is commonly used for standard tool shapes such as 2-edge or 4-edge end mills, which are ideal for ceramic processing in stable dry cutting environments.

For applications requiring extremely small blade diameters, high-precision contours, and enhanced chipping resistance, nano-diamond coatings are a superior choice. This coating enhances adhesion and surface finish by optimizing grain structure, making it ideal for micro tools such as micro diamond end mills for fine ceramic milling, especially in the microelectronics industry.

Scope of Application and Advantages

Compared to PCD tools, diamond coated milling cutters offer broader applicability and greater geometric freedom. As the cutting edge is formed by coating, various complex shapes can be designed, such as ball-head, taper shank, long-neck, and extended-shank milling cutters, suitable for free-form surface and multi-angle inner cavity processing in five-axis machining centers.

Key advantages include:

• Exceptional wear resistance, making them ideal for high-speed, shallow cutting of ceramics.

• Strong heat resistance, suitable for handling high temperatures during dry cutting of ceramics.

• Sharp cutting edges that help prevent micro-cracking or edge collapse in brittle materials.

• Compatibility with high-speed spindles and micro tool holders, ensuring stable performance in complex microstructure machining.

Thus, diamond-coated end mills for ceramic machining are especially well-suited for applications requiring complex tool paths, fine contours, and shallow cutting depths.

Common Application Scenarios

Common applications for diamond-coated milling cutters in ceramic machining include:

• Electronic Ceramics: Grooving and drilling ceramic substrates (Al₂O₃), LTCC packaging shells, etc., which demand high surface quality and burr-free edges.

• Mold Industry: Precision machining of ceramic mold cores, commonly used in glass pressing molds, powder metallurgy molds, etc., with high accuracy requirements for tool shape.

• Medical and Dental Applications: Contour processing of zirconia dental models, requiring strong anti-chipping capabilities and cutting stability.

• Semiconductor Equipment: Precision trimming of silicon nitride ceramic brackets and insulating structural parts, emphasizing dimensional control and surface integrity.

• Microstructure Processing: Precision drilling and milling, using micro diamond end mills for ceramic to achieve high-precision sub-millimeter grooves and complex contours in ceramic substrates.

Introduction to PCD Tools

PCD tools, made by sintering fine diamond particles under high temperature and pressure, are widely known for their excellent wear resistance, thermal conductivity, and cutting longevity. PCD tools are the go-to choice for large-scale, high-repetitive machining of high-hardness and brittle materials, including ceramics, carbides, and quartz glass. While PCD tools lack the same flexibility as diamond-coated milling cutters in terms of complex shapes, they offer superior processing efficiency and consistency in plane machining, slotting, and linear outer contour cutting.

In contrast, diamond end mills for ceramic excel at precision machining of complex contours and fine features, while PCD tools are more advantageous for batch processing of standardized ceramic parts.

PCD Tool Structure and Forming Methods

PCD tools consist of a sintered diamond body and a cemented carbide tool body. The core material is formed by sintering diamond particles under high temperature and pressure, creating a cutting edge with a hardness exceeding HV 8000. PCD tool heads are formed through two primary processes:

• Sintering: Typically used for integral PCD sheets, which are then cut and ground into tool blades. They offer good structural stability and thermal conductivity but have limited adaptability to complex geometries.

• Laser Cutting: Used in high-precision tool manufacturing, such as micro PCD milling cutters or gear-shaping cutters. Laser cutting offers higher contour accuracy and freedom, making it suitable for applications that demand precise machining paths.

For large-area ceramic processing or surface finishing, laser-cut PCD tools can significantly improve surface flatness, dimensional consistency, and reduce the need for secondary grinding.

Scope of Application and Advantages

PCD tools have several notable advantages:

• Extremely Long Service Life: Suitable for repeated, high-stability processing tasks, particularly in batch operations.

• Superior Cutting Edge Integrity: Ensures smooth surface finishes on ceramic workpieces.

• Low Friction Coefficient: Reduces cutting forces and vibrations, improving dimensional stability and processing efficiency.

PCD tools are highly effective for processing large-volume ceramic parts like substrates and wear-resistant ceramic components, where consistent, stable performance is needed.

Common Application Scenarios

PCD tools are widely used in:

• Large-Volume Ceramic Parts Processing: For products like alumina ceramic shells and structural brackets, where standard sizes are ideal for efficient batch cutting.

• Linear Path Cutting: Such as grooves, chamfers, and outer contours, where PCD tools excel due to their stable cutting performance.

• High-Precision Ceramic Sheet Processing: For electronic ceramics, LED brackets, and circuit substrates, requiring low-stress processing with PCD tools.

• Rough Processing of Wear-Resistant Ceramics: For products like silicon carbide nozzles and ceramic linings, where PCD tools offer extended tool life and improved overall efficiency.

Core Comparison: Diamond-Coated Milling Cutters vs PCD Tools

In high-precision ceramic machining, selecting the right tool is crucial to ensuring both production efficiency and product quality. Diamond-coated milling cutters and PCD (Polycrystalline Diamond) tools are two of the most widely used superhard tools. While both are based on diamond materials, they differ significantly in terms of manufacturing processes, structural characteristics, machining methods, and suitable applications. This comparison will provide a detailed analysis to help users make an informed selection for various ceramic machining tasks.

Processing Performance Comparison

When machining high-hardness ceramics like alumina, silicon nitride, and zirconium oxide, tool wear resistance and chipping resistance are the most important performance indicators.

• Diamond-Coated Milling Cutters: These rely on high-adhesion CVD (Chemical Vapor Deposition) diamond films to deliver exceptional surface hardness and wear resistance. They excel in low-load, shallow cutting depth operations, making them ideal for fine ceramic surface finishing.

• PCD Tools: Featuring a sintered structure, PCD tools offer superior overall strength and chipping resistance. They are best suited for intermittent cutting, roughing, and high-load environments, providing significant efficiency gains during rough machining of ceramics.

In terms of cutting efficiency, PCD tools tend to perform better under high-feed and high-speed conditions due to their superior thermal conductivity and structural stability. Diamond-coated tools, on the other hand, maintain sharpness and processing consistency at high speeds and low cutting depths.

Adaptive Process Methods

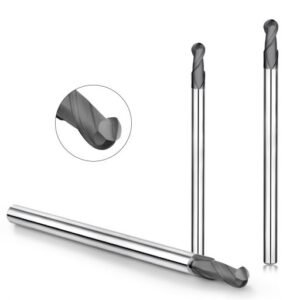

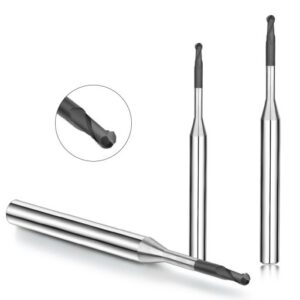

• Diamond-Coated Milling Cutters: These tools can be manufactured into complex shapes such as ball heads, long necks, and cones. Their versatility makes them highly adaptable to free-form surface machining, especially on 5-axis CNC machines. They’re ideal for applications requiring multi-angle processing, such as ceramic molds and medical components.

• PCD Tools: PCD tools typically feature a standard straight-edge design, making them more suitable for traditional 3-axis CNC machines or specialized equipment. They are most effective for high-repeatability tasks, such as batch grooving of ceramic shells or chamfering of insulating parts.

Tool Life and Cost Analysis

• PCD Tools: With their durable sintered body structure, PCD tools offer extended tool life. They are ideal for continuous cutting of large quantities of ceramic parts, minimizing tool change frequency and reducing unit costs for mass production.

• Diamond-Coated Milling Cutters: While generally more affordable with a variety of tool types, diamond-coated milling cutters are more prone to coating peel-off under extreme loads or impacts. They are more suitable for applications where tool life management is less critical and fine processing is required.

Comprehensive Cost Comparison

• Diamond-Coated Tools: Best for high-precision, low-load tasks. They offer cost-efficiency in small batches or non-repetitive machining operations.

• PCD Tools: Higher initial investment, but they are well-suited for high-volume, long-cycle production, offering a stable cost structure for continuous production runs.

When comparing tools for ceramic machining, it’s crucial to evaluate the “unit cutting cost” or “unit part cost” to make a more informed decision.

Comparison of Machining Shape and Complexity

As ceramic part structures become more complex, the ability of the tool to handle curved surfaces, holes, blind grooves, and microstructures becomes an important factor:

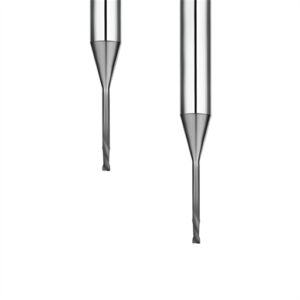

• Diamond-Coated Milling Cutters: These tools can be made into very small diameters (e.g., φ0.2mm), long blades, and other intricate shapes. They excel at machining fine structures such as special contours, packaging cavities, and stepped grooves.

• PCD Tools: The shape of PCD tools is limited by the difficulty of cutting and processing sintered material. They are usually flat, beveled, or R-radius tools, making them suitable for straight-line contours or chamfering tasks.

For complex profile cutting tasks, diamond-coated tools are far superior to PCD tools, particularly for ceramic mold machining.

Comparison of Surface Roughness and Cutting Quality

• Diamond-Coated Milling Cutters: These tools have sharp cutting edges and ultra-fine grain CVD coatings, offering excellent surface finishes with a Ra < 0.2 μm. This makes them ideal for applications requiring precise surface quality, such as electronic ceramics, capacitor housings, and medical zirconia dentures.

• PCD Tools: While they may have slightly inferior initial cutting quality, PCD tools maintain stable performance throughout their wear phase, providing stronger batch consistency and thermal stability in medium-precision applications.

When aiming for mirror-quality finishes, diamond-coated tools are the preferred choice. However, if cutting consistency and machining cycle stability are more critical, PCD tools may provide more advantages.

Recommended Solutions for Different Ceramic Materials

Given the wide variety of ceramic materials, which differ greatly in their physical properties, it’s important to tailor the tool selection strategy to each material’s unique characteristics. This section will explore the compatibility of diamond-coated and PCD tools with different ceramics, offering practical recommendations.

Zirconia: PCD vs. Diamond Coating

Zirconia, known for its high toughness, hardness, and biocompatibility, is widely used in dental and medical applications. Due to its strong plastic deformation and sensitivity to thermal shock, zirconia requires tools with excellent chipping resistance and thermal stability.

• PCD Tools: Ideal for rough machining zirconia, as they can handle high feed rates, large cutting depths, and high-speed cutting, making them highly effective in large-scale production.

• Diamond-Coated Milling Cutters: Perfect for finishing tasks, offering better surface finishes and contour accuracy, making them ideal for fine detail work on zirconia.

In practice, a combination of PCD tools for rough machining and diamond-coated tools for fine finishing often provides the best results.

Alumina and Silicon Nitride: Material Hardness and Tool Compatibility

• Alumina: With its high hardness and brittleness, alumina is extremely abrasive. Diamond-coated milling cutters are ideal for precision tasks such as micro-notching and chamfering.

• Silicon Nitride: Due to its high thermal stability and sensitivity to tool impact, diamond-coated tools are best for the complex path and thin-walled structure processing of silicon nitride. For standard linear or slotting tasks, PCD tools provide higher cutting efficiency and longer tool life.

Processing Suggestions for Composite Ceramics and Ceramic Matrix Composites

Ceramic matrix composites feature a multiphase structure, combining the hardness of ceramics with the stability of metals or fibers. These materials are used in aerospace, electronics, and mechanical components.

• Diamond-Coated Milling Cutters: These are ideal for thin-layer removal and surface finishing of composite ceramics, providing excellent sharpness and fine control.

• PCD Tools: Best for intermittent cutting or high-speed processing in fiber-reinforced ceramics, due to their superior structural strength.

In real-world applications, the decision to use diamond-coated tools or PCD tools depends on the specific composition of the ceramic matrix and the machining task.

Practical Advice: How to Choose the Right Tool for Your Processing Needs

Selecting the right tool for ceramic machining requires a comprehensive evaluation based on several factors, including the application, production capacity, equipment characteristics, and processing strategy. Here are four key considerations when choosing between diamond-coated and PCD tools.

Based on Processing Batch and Cost Evaluation

• Small Batches: Use high-precision diamond-coated end mills for ceramic micro-machining. They are cost-effective for one-time tasks or sample production.

• Mass Production: PCD tools, though more expensive initially, offer better cost efficiency over time due to their long service life and stable performance in continuous machining.

Selection Based on Equipment and Processing Strategy

• High-Speed Spindles (>20,000 rpm): Use nano-diamond coated milling cutters for high-speed, dry cutting or micro-lubrication tasks, especially for 5-axis or micro-structure machining.

• Rigid Equipment with Large Spindle Torque: PCD tools are better suited for roughing and linear cutting paths, as they can handle heavy loads and large feeds.

Based on Workpiece Shape and Tolerance Requirements

• Complex 3D Curves: Diamond-coated tools are ideal for fine-tuned work on curved surfaces, internal angles, or special-shaped structures.

• Standard Shapes: PCD tools excel in continuous cutting of regular contours, such as straight grooves and through-holes.

Evaluating Supplier Tool Quality and Support Capabilities

Choosing a reliable supplier goes beyond the product itself. Look for suppliers that offer:

• Advanced Coating Technology: High-quality CVD and nano-diamond coatings ensure better adhesion and thermal performance.

• PCD Manufacturing Capabilities: Check for capabilities in sintering and laser shaping, which affect tool customization and lifecycle.

• Technical Support: Ensure the supplier offers material-specific guidance for optimal machining.

Conclusion: The Best Tool is the One That Fits Your Needs

In precision ceramic machining, whether using a diamond-coated milling cutter or a PCD tool, there’s no one-size-fits-all solution. The key is selecting the tool that best matches your specific process parameters, material properties, and production requirements.

For small-batch, high-precision applications, diamond-coated tools offer superior edge accuracy and stability. For large-scale, linear path machining, PCD tools provide better efficiency and long-term cost savings.

By considering factors such as material type, machining complexity, equipment, and cost, you can make a more informed decision and achieve the best balance of quality, efficiency, and cost.
