In the field of modern high-precision machining, tool life has become one of the most critical factors influencing machining efficiency and cost control. Especially when working with high-hardness or high-brittle materials such as graphite electrodes, carbon fiber reinforced composites (CFRP), and ceramics, traditional carbide tools often lead to production inefficiencies, reduced surface quality, and frequent tool changes.

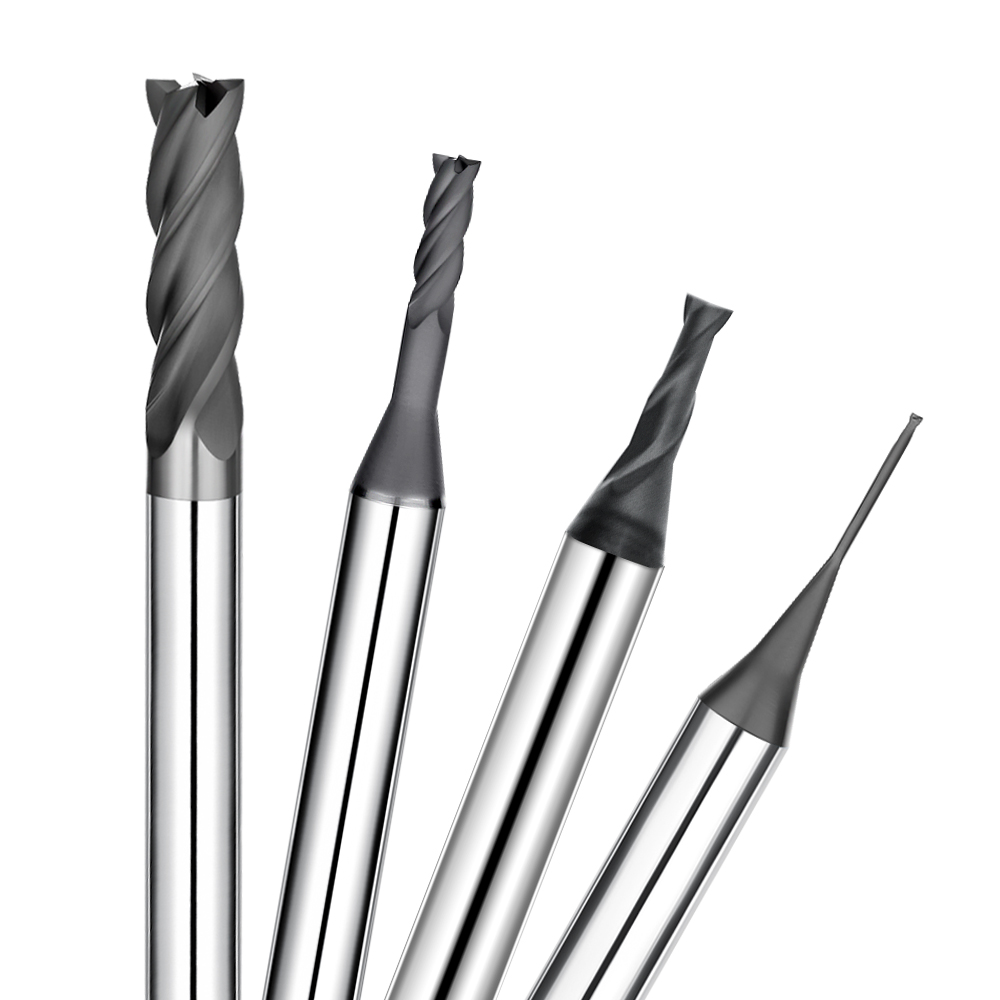

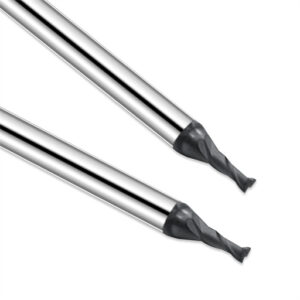

To address this issue, more CNC engineers and mold manufacturers are turning to diamond coated end mill cutters. These tools utilize CVD diamond coating technology to deposit a layer of high-hardness, wear-resistant microcrystalline or nano-diamond film on the tool’s surface, significantly improving wear resistance, thermal stability, and friction performance. While PCD (Polycrystalline Diamond) tools are also diamond-based, they have certain limitations regarding tool shape, application scenarios, and machining flexibility.
Why is Tool Life So Important?
In CNC machining, tool life directly impacts production efficiency, cost control, and the quality of the machined parts. Particularly in the manufacturing of materials like graphite and CFRP, excessive tool wear can not only lead to frequent tool changes and extended downtime, but also affect the consistency and surface quality of the products. Selecting high-performance tools, such as diamond coated endmill cutters, is key to improving process stability and optimizing the overall manufacturing process.
The Direct Relationship Between Processing Costs and Tool Change Frequency
Though tool cost is a small part of the overall production cost, the impact of frequent tool changes is far greater. Each tool change incurs additional costs related to programming adjustments, trial cutting tests, and machine downtime, leading to hidden losses. Traditional carbide end mills, when used in graphite or ceramic milling, experience significant wear, often leading to chipping and shortened tool life.
In contrast, diamond-coated milling cutters extend tool life and reduce the need for frequent tool changes. This helps lower the cost per piece and improves overall equipment utilization.
Tool Stability Requirements in High-Precision Machining
In mold manufacturing, aerospace components, and precision electronics, dimensional stability and surface accuracy are critical. A tool that experiences uneven wear or reduced sharpness fails to meet design tolerance requirements and may also cause issues such as burns, edge collapse, or abnormal surface roughness.
CVD diamond coated end mills provide consistent cutting performance thanks to their ultra-high hardness and wear resistance. They perform exceptionally well in long-cycle precision machining tasks, making them an ideal choice for high-precision CNC machining.
Main Wear Problems Faced by Traditional Tools
Traditional tools tend to blunt, crack, and shed coatings when subjected to high-speed or dry cutting environments. In the machining of abrasive materials like graphite, CFRP, or ceramics, these issues are exacerbated.
High-performance diamond-coated end mill cutters excel in these conditions, offering exceptional wear resistance and thermal stability. They significantly reduce tool wear, maintain excellent cutting performance, and are ideal for environments where coolants are not suitable, such as dry cutting processes.

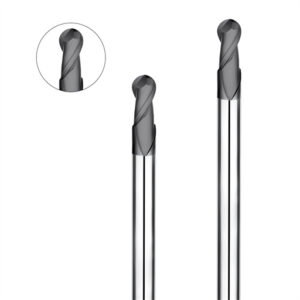

Basic Principles of Diamond Coated End Mill Cutters
Diamond-coated milling cutters are high-performance tools with a layer of synthetic diamond coating on a cemented carbide substrate. These tools are particularly effective for processing high-wear materials like graphite, ceramics, and CFRP. Compared to uncoated end mills, diamond-coated end mills offer superior hardness, wear resistance, chemical inertness, and heat resistance, maintaining stable operation under harsh conditions. The main types of diamond coatings on the market are CVD diamond coatings and PCD tools.
The Difference Between CVD Diamond Coatings and PCD Tools
CVD diamond coatings involve depositing microcrystalline or nano-scale diamond particles onto the tool surface through a gas-phase reaction, forming a high-density, continuous layer. This method significantly enhances the surface hardness and bonding strength of the tool, making it suitable for complex geometries, especially for graphite machining.
PCD tools, on the other hand, involve sintering diamond particles onto the tool substrate at high temperatures and pressures to form an integral cutting edge. While PCD tools perform well in non-metallic materials like aluminum alloys and wood, their inability to accommodate complex blade shapes limits their use in 3D curved surfaces and high-precision tasks.
Overall, CVD diamond-coated end mills are better suited for mold processing and electronic component machining due to their flexibility and precision.
How Diamond Coating Improves Surface Hardness and Wear Resistance
As the hardest natural substance, diamond offers exceptional hardness and a low friction coefficient, making it an ideal choice for cutting highly abrasive materials. When applied to tools using CVD technology, diamond coating significantly improves wear resistance, helping to prevent common issues like adhesion, cracking, and edge collapse.
Diamond coatings also have excellent heat resistance and oxidation resistance, maintaining a stable coating even in high-temperature dry cutting environments. This feature is particularly beneficial in applications like graphite milling, where coolants are unsuitable.
Thanks to advancements in coating technology, modern diamond-coated milling cutters achieve a balance between tool life extension, surface quality, and cutting efficiency.
5 Core Advantages of Using Diamond Coated End Mill Cutters
In modern manufacturing, which prioritizes efficiency, quality, and cost-effectiveness, selecting the right tool is crucial. Diamond-coated end mills are widely preferred in aerospace, mold manufacturing, and electronics for their outstanding performance. Here are five core advantages of using diamond-coated milling cutters.
Extremely High Wear Resistance, Significantly Extending Tool Life
Diamond coatings have an exceptional microhardness, far surpassing traditional carbide and TiAlN coatings. When used for cutting abrasive materials like graphite and ceramics, diamond-coated end mills resist boundary wear and chipping, significantly extending tool life. In some cases, their life expectancy can be five to ten times longer than traditional tools under similar conditions, reducing production interruptions and tool replacement frequency.
Excellent Thermal Stability, Suitable for Dry Cutting
High-speed cutting exposes tools to extremely high temperatures, and without sufficient thermal stability, tools can suffer coating peeling or edge degradation. Diamond-coated milling cutters excel in dry cutting applications, offering superior thermal conductivity and oxidation resistance, even in extreme conditions.
This makes them the ideal choice for dry cutting of materials like graphite and CFRP, as well as other environmentally-conscious processing tasks.
Lower Friction Coefficient, Improved Cutting Surface Quality
The friction coefficient of diamond coating is extremely low, typically under 0.1, which helps reduce chip adhesion and cutting resistance. This results in a smoother surface finish and reduces the need for additional polishing.
When using low-friction diamond end mills for graphite molds and CFRP panels, the surface roughness of the workpiece can be controlled more precisely, making it easier to meet high-precision requirements.
Reduced Tool Changes, Improved Processing Efficiency
Frequent tool changes reduce production capacity and may result in errors or fluctuations in cutting stability. Diamond-coated tools maintain consistent performance over longer periods, reducing the need for frequent changes and resets. This leads to lower machine downtime and more efficient production.
Suitable for Processing High-Hardness and High-Brittle Materials
Diamond-coated milling cutters are perfect for processing high-hardness, high-wear, or brittle materials, including graphite, ceramics, and CFRP. Their chemical inertness and anti-cracking properties enable efficient processing without damaging the tool.
CVD diamond end mills excel in processing graphite, avoiding common issues like chipping and wear, while diamond end mills for CFRP minimize fiber pull-out and delamination, improving part quality and tool life.
Which Industries Are Most Suitable for Diamond Coated End Mill Cutters?
Diamond-coated end mills are widely used in multiple high-precision, high-strength, and high-difficulty processing scenarios due to their excellent wear resistance, thermal stability, and friction performance. Especially in the following key industries, CVD diamond-coated tools are almost indispensable core process tools.
Graphite Electrode Manufacturing
Graphite is a typical highly abrasive material and is widely used in the manufacture of electrospark machining (EDM) electrodes. However, it is brittle, dusty, and difficult to process, which places extremely high demands on tool wear control.
CVD diamond milling cutters used for graphite electrode processing can effectively deal with the common edge cracking and rapid tool wear problems in graphite processing. The superhard coating and extremely low friction coefficient on its surface can significantly reduce dust adhesion and processing heat accumulation, extend tool life, and improve cutting accuracy.
Graphite electrode manufacturers generally choose diamond-coated tools to reduce unit costs and meet the needs of fine structure and high surface quality of mold electrodes.
Aerospace Composite Material Processing
Carbon fiber reinforced composite materials (CFRP) and glass fiber composite materials (GFRP) widely used in the aerospace field have the advantages of light weight, high strength and corrosion resistance. However, they are also very easy to cause tool wear, fiber delamination or burr defects.
The processing of such heat-sensitive materials has extremely high requirements for heat-affected zone (HAZ) control, boundary integrity and cutting temperature management. The use of diamond-coated end mills for aviation composites can effectively reduce burr generation and prevent delamination while maintaining the sharp cutting edge.
At the same time, these tools are suitable for dry cutting or minimum quantity lubrication (MQL) conditions, can meet the requirements of green manufacturing, and are key tools for efficient forming of aviation structural parts.
Precision Molds and Electronic Components Processing
In the electronics industry and precision mold manufacturing, many parts have extremely high requirements for dimensional accuracy and surface quality. It often involves the processing of microstructures, hard and brittle materials, and thermally conductive materials, such as zirconia ceramics, sapphire glass, silicon carbide, etc.
In this type of processing task, high-precision diamond end mills for small parts have significant advantages. Its stable micro-cutting edge, excellent coating adhesion and anti-breakage ability enable it to maintain high processing consistency at high speeds.
At the same time, the inertness of the diamond tool surface can prevent certain materials from chemically reacting during processing, improving the reliability of the workpiece. It is particularly suitable for the manufacture of complex geometric microstructures such as IC packaging molds, electrical connectors, and LED bases.
Usage Advice: How to Maximize the Performance of Diamond Milling Cutters
Diamond-coated milling cutters have excellent cutting performance, but in order to fully utilize their advantages, reasonable usage strategies and cutting conditions are essential. Here are a few key suggestions to help you maximize the performance of diamond-coated milling cutters, extend tool life, and improve machining accuracy.
Reasonable Selection of Cutting Parameters (Speed, Feed)
The setting of cutting parameters directly affects the tool life, machining efficiency, and surface quality. The cutting speed and feed rate of diamond-coated milling cutters need to be precisely adjusted according to the characteristics of the material being processed and the heat resistance of the tool.
For diamond end mills for high-performance machining, it is usually recommended to use a higher cutting speed and moderate feed rate to maintain the sharpness of the tool and reduce heat accumulation. High speed helps to reduce friction and reduce thermal damage to the tool during cutting, while a reasonable feed rate can ensure stable cutting force and prevent tool overload.
However, for some difficult-to-process materials, such as ceramics or CFRP, appropriate cutting parameters can effectively avoid tool chipping or poor surface quality caused by excessive heat and pressure.
Ensure Dry or Low Lubrication Environment
Diamond coated milling cutters perform particularly well in dry cutting or low lubrication conditions. Due to the extremely low friction coefficient of its surface, it can maintain high cutting efficiency and tool life in an environment without coolant or using only minimum quantity lubrication (MQL).
Especially when processing highly abrasive materials such as graphite and CFRP, the low friction performance of diamond milling cutters can significantly reduce the dependence of cutting fluid on the environment and avoid the secondary pollution that may be caused by coolant. Therefore, ensuring that dry cutting diamond milling tools are used during processing can optimize the production process while meeting green manufacturing and environmental protection requirements.
Avoid Processing Materials with Iron Elements
Diamond coated milling cutters are not suitable for materials containing iron elements (such as iron-based alloys and steel). Because iron elements will react with diamond coatings, resulting in rapid peeling or failure of the coating. Therefore, when using diamond end mills, try to avoid processing iron or other alloys containing high iron content.
For the processing of high-hardness metals, it is recommended to use PCD tools or other suitable coated tools to avoid tool performance degradation caused by material reaction. Diamond milling cutters are more suitable for processing non-ferrous metals and high-wear materials such as graphite, ceramics, and composite materials.
Diamond-Coated End Mill Cutters Are a Long-Term Investment to Improve Tool Life
Choosing diamond-coated milling cutters is not only a short-term technical upgrade, but also a long-term strategic investment to improve tool life, processing efficiency, and overall production efficiency. Through its excellent wear resistance, high-temperature stability, and low friction coefficient, diamond-coated milling cutters can significantly extend tool life, reduce tool replacement and processing downtime, and thus effectively reduce overall production costs.
In the long run, although the initial investment cost of diamond-coated milling cutters is high, its excellent durability and reduced tool change times bring about increased production efficiency. This investment can achieve a significant return on investment (ROI) in a short period of time. Especially in applications with high wear and high precision requirements, the efficient cutting performance and stable performance of diamond-coated milling cutters. Can help companies improve production consistency, reduce scrap rates, and ultimately bring higher profit margins to companies.
Not only that, diamond-coated milling cutters can effectively reduce dependence on cutting fluids in production environments with increasingly stringent environmental protection requirements, meeting the requirements of green manufacturing. They are highly adaptable, especially in the processing of hard and brittle materials such as composite materials, ceramics, and electrode graphite, showing incomparable advantages, and are an ideal choice for improving processing quality and equipment stability.
Diamond-coated milling cutters not only bring immediate production benefits to enterprises, but also provide guarantees for long-term sustainable development. Therefore, investing in high-performance diamond-coated milling cutters is essentially an optimization of the production process and an enhancement of future competitiveness. It is worth considering for every manufacturing company that pays attention to cost control and stable quality.
