In modern CNC precision machining, diamond milling tools are rapidly becoming the go-to solution for processing high-hardness and wear-resistant materials. Thanks to their exceptional wear resistance, thermal stability, and ability to deliver consistent results, these tools outperform traditional cutters in challenging applications such as graphite, ceramics, carbon fiber composites, and even under extreme conditions like dry or high-speed cutting.

By combining cemented carbide substrates with advanced diamond coatings, modern diamond milling cutters dramatically improve tool life, reduce machining costs, and ensure superior dimensional accuracy. As the demand for complex surfaces, higher efficiency, and environmentally friendly processing grows across industries, tools like diamond milling bits and diamond-coated milling cutters continue to expand their application scope—from mold and die manufacturing to electronics and aerospace components.

Diamond Milling Tools: From Carbide Base to Diamond-Coated Performance

What Are Diamond Milling Tools?

As the demand for high-efficiency and high-precision processing in advanced manufacturing continues to increase, the importance of diamond milling tools in the field of CNC machining has become increasingly prominent. As a tool dedicated to hard materials and high-precision surface processing, diamond milling cutters have extremely high hardness, wear resistance and thermal stability. It has become an ideal solution for difficult-to-process materials such as graphite, electrolytic copper, ceramics, and carbon fiber composites.

Definition and Common Classifications

Broadly defined, diamond milling tools are cutting tools with a diamond-based cutting edge—either made from synthetic diamond material or coated with a diamond film. Based on manufacturing method, application style, and tool structure, diamond milling tools can be classified as follows:

• Diamond Mill: A general term that includes both solid diamond tools and tools with composite diamond structures.

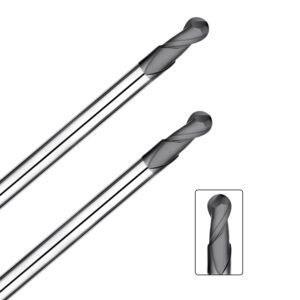

• Diamond Milling Cutter: Resembling a conventional round-shank end mill, it’s used in CNC centers for high-precision contouring or roughing of hard materials.

• Diamond Milling Bit: Often featuring a replaceable head, this tool is ideal for handheld devices or small CNC machines, offering high flexibility and adaptability.

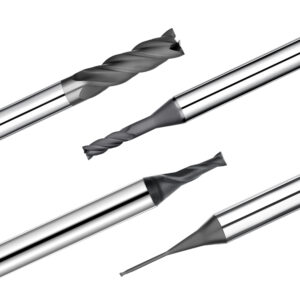

• Diamond-Coated Milling Cutter/Bit: Made from a carbide substrate, these tools are coated with synthetic diamond (commonly via CVD), offering an excellent balance of performance and cost-efficiency.

Why Choose Diamond Milling Tools?

Compared with traditional carbide tools, Diamond Milling Tools show significant advantages in processing high-hardness materials, high-wear workpieces and non-metallic high-performance composite materials. Its core performance advantages are mainly reflected in the following aspects:

• Superior Wear Resistance: Diamond is the hardest known material, making it ideal for machining graphite, ceramics, and carbon fiber, where tool longevity is critical.

• Excellent Surface Finish: At high speeds, diamond-coated tools minimize burrs and cracking, delivering smoother surfaces and higher precision.

• High Thermal Stability: Ideal for dry or near-dry cutting environments, reducing heat-related distortion and tool failure.

• Lower Total Cost of Ownership: Though the upfront cost is higher, the extended tool life and higher throughput lead to better overall economics.

For this reason, more and more manufacturing companies tend to use diamond coated milling bits and other diamond tool products to improve overall process stability and production capacity when facing hard and brittle material processing and batch high-precision production tasks.

Comparing Different Types of Diamond Milling Tools

With the development of diamond milling cutter technology, the main product forms on the market can be divided into solid PCD tools and diamond coated tools. Different types of Diamond Milling Tools have their own advantages and disadvantages in performance, cost and application scenarios. Reasonable selection helps to achieve the best balance between processing efficiency and cost control.

Solid PCD Tools vs. Diamond-Coated Tools

PCD tool is a superhard material formed by sintering micron-sized diamond particles, usually welded on a carbide tool body. It has extremely high wear resistance and anti-chipping ability, and is suitable for long-term, large-scale high-precision processing.

In contrast, diamond coated milling cutter usually uses a carbide substrate, and deposits diamond coating on the tool surface by CVD and other methods. It has good thermal stability and cost-effectiveness, and is suitable for medium-intensity continuous cutting tasks.

If you pursue extreme life and high-precision stability, you can give priority to PCD milling tool. If the processing tasks change frequently and the budget is sensitive, diamond coated milling bit provides a more flexible choice.

Comparison Aspect	Solid PCD Tool	Diamond Coated Milling Cutter
Tool Life	Very Long	Medium to Long
Wear Resistance	Excellent	Good
Cost	High	Moderate
Application	Mass precision machining	General machining, prototyping and trials
Workpiece Materials	Graphite, ceramics, carbon fiber	Graphite, aluminum-silicon alloys, hard non-metals

Selection Guidelines by Application Scenario

Different materials have different performance requirements for cutting tools. Therefore, when choosing diamond milling cutter, the material properties and processing methods should be fully considered.

Graphite processing: It is recommended to use diamond coated milling cutter. Its coating can effectively resist graphite dust wear, ensure surface quality and contour accuracy, and is suitable for batch processing of mold electrodes.

Carbon fiber composite materials: It is recommended to use PCD tools with sharp cutting edges and anti-chipping capabilities to reduce delamination and burrs and extend tool life.

Ceramics and glass ceramics: PCD milling bits are suitable. Its extremely high hardness can cope with the brittle characteristics of ceramic materials and maintain a good cutting edge.

Aluminum silicon alloy or SiCp reinforced materials: Diamond coated milling bits can be used to improve the anti-grinding ability of high-hardness particles while keeping costs under control.

Carbide finishing: For precision trimming or deburring tasks of high-hardness metal materials, it is recommended to use PCD tools combined with high-speed dry cutting technology to reduce the heat-affected zone.

Advantages and Applications of Diamond-Coated Milling Cutters

With the widespread use of high-hardness materials and difficult-to-process materials, diamond coated milling cutter is gradually becoming the mainstream choice in high-speed dry cutting applications due to its excellent wear resistance and thermal stability. It has shown strong application potential in high-end manufacturing fields such as electronics, automobiles, molds and aerospace.

Performance in Dry and High-Speed Cutting

One of the biggest advantages of diamond coated milling bit is that it still maintains excellent performance in dry cutting environment. Its surface CVD diamond coating can effectively resist high-temperature wear and avoid thermal cracks caused by lack of coolant, which is suitable for working conditions where liquid coolant cannot be used.

In high-speed cutting, diamond coating has extremely strong thermal stability and low friction coefficient, which can effectively reduce heat accumulation between the tool and the workpiece, extend tool life and improve machining surface quality. Especially in the processing of non-metallic materials such as graphite, carbon fiber, and ceramics, diamond coated milling cutter can achieve low-wear, high-efficiency and stable processing.

In addition, due to its high hardness and wear resistance, this type of tool is particularly suitable for automated batch manufacturing with extremely high requirements for dimensional accuracy and processing consistency.

Common Industry Applications

Electronics industry: In the processing of mobile phone molds, electrode graphite, and IC packaging substrates, diamond coated milling bits have won wide application with their micro-dimensional control capabilities and high surface quality.

Automotive industry: In the mass production of aluminum silicon alloy and composite parts, diamond coated milling cutter can effectively improve cutting efficiency, reduce tool change frequency, and reduce overall manufacturing costs.

Aerospace: When processing high-strength composite materials, this type of tool can significantly reduce quality problems such as burrs and delamination, and improve the structural integrity and reliability of the finished product.

Mold manufacturing: In the processing of mold parts such as high-precision graphite electrodes and ceramic cavities, diamond coated milling cutter can provide long life and high-precision cutting performance, especially suitable for complex three-dimensional surfaces and small details.

Overall, diamond coated milling cutter not only improves processing efficiency, but also provides important support in dry processing, high-speed processing and environmentally friendly manufacturing, and has become one of the key tools in modern precision manufacturing.

How to Choose the Right Diamond Milling Bit

In the processing of high-hardness materials or composite materials, choosing the right tool is the key to ensuring processing quality and efficiency. Diamond milling bits are widely used in precision cutting of materials such as graphite, circuit boards, carbon fiber, and ceramics due to their excellent wear resistance and high hardness. However, different application scenarios have different requirements for tool types and parameters, so reasonable selection is particularly important.

Key Selection Factors

To choose a suitable diamond coated milling cutter, the following core factors should be considered:

Material properties: For brittle materials such as graphite and carbon fiber, it is recommended to use CVD diamond coated tools to improve wear resistance and reduce burrs. For Si-reinforced materials such as aluminum silicon alloys, PCD milling cutters are recommended to obtain longer tool life.

Tool geometry and size: For complex surfaces or fine structures, diamond milling bits with small diameters and high cutting edge accuracy should be preferred. Larger sizes can be used in the roughing stage to improve feed efficiency.

Processing condition matching: For example, high-speed spindles and dry cutting are more suitable for diamond coated tools. Especially in high speed and high temperature environment, its thermal crack resistance and edge integrity are more advantageous.

When selecting tools, engineers also need to comprehensively consider cutting depth, feed speed and clamping rigidity to avoid early wear or tool breakage caused by parameter mismatch.

Common Failure Modes and Optimization Tips

Even if the diamond milling bit has excellent performance, if it is used improperly, a series of failure problems may occur, including the following common ones:

Local chipping of the tool: mostly caused by cutting impact or uneven cutting load. Optimizing path planning and avoiding sudden feed can help alleviate it.

Coating peeling or cracking: common in scenes with frequent thermal shock or unstable clamping. The spindle should be ensured to run smoothly to avoid thermal fatigue caused by alternating dry and wet coolants.

Abnormal wear intensification: If the wear is severe when processing silicon carbide particle reinforced materials, it can be considered to increase the tool grade or replace it with a PCD milling cutter.

The Future of Diamond Milling Tools

As high-end manufacturing industry puts forward higher requirements for precision processing and efficiency, diamond milling tools are constantly upgrading. From coating process to tool management system, this type of tool is developing towards higher performance and more intelligent direction, and gradually becoming a key tool in the field of hard material processing.

Coating Technology & Smart Manufacturing

In the future, diamond coated milling cutter will achieve greater breakthroughs in coating structure and process means. The development of nano-level CVD deposition technology has further improved the hardness and bonding force of the coating, effectively extending the tool life and reducing micro-chipping.

At the same time, the application of advanced technologies such as laser-assisted tool manufacturing, supersonic spraying, and plasma-enhanced CVD has given PCD milling cutter higher thermal stability and surface consistency, which is suitable for high-speed dry cutting of complex materials such as ceramic composites and high-silicon aluminum alloys.

These innovations not only improve the comprehensive performance of the tool, but also promote the implementation of high-precision and high-efficiency processing solutions in intelligent manufacturing systems.

Digital Tool Management in CNC Environments

Under the trend of intelligent CNC machining, diamond milling bits are no longer just “consumables”, but data nodes integrated into the overall manufacturing system. In the future, tools will be equipped with RFID tags or sensor chips to achieve tool life prediction, wear tracking and data closed-loop control, thereby improving equipment utilization and process stability.

For example, combined with MES system or tool library management system, manufacturing companies can grasp the use status of diamond coated milling cutter in real time to avoid unplanned downtime. At the same time, through the accumulation of historical data, engineers can optimize cutting parameters and tool change timing to achieve the optimization of processing cycle.

This development trend of tool intelligence and digital integration will make diamond milling cutter more in line with the efficient collaboration needs in the future intelligent manufacturing system.

Choose High Performance Diamond Milling Tools to Make Processing More Efficient

In the face of increasingly demanding high-hardness material processing tasks, choosing the right diamond milling tools has become a key link in improving processing quality and efficiency. Whether it is dealing with difficult-to-process materials such as graphite, ceramics, and carbon fiber, or pursuing higher surface finish and dimensional accuracy, diamond coated milling cutter Both show excellent wear resistance and thermal stability, especially in high-speed dry cutting environments.

By comparing solid PCD tools and coated tools, we can flexibly select according to actual processing conditions, while controlling costs and obtaining longer tool life. In terms of industry applications, from electronic precision parts to automotive molds, to aviation composite structural parts, diamond milling bits have become key tools in CNC processing.

Looking to the future, with the continuous advancement of coating technology and the accelerated advancement of intelligent manufacturing, diamond milling cutters with nano-level coating structures and digital life management will become an important part of smart factories. For enterprises, timely upgrading of tool systems and adopting digital tool management strategies will significantly improve overall processing efficiency and competitiveness.
