PCD vs CVD Diamond Tools: Choosing the Right Tool for Hard Materials

In modern manufacturing, the growing use of high-hardness materials has raised the bar for cutting tool performance. Whether in aerospace, electric vehicles, or precision mold making, materials such as graphite, silicon carbide, aluminum alloys, and ceramics present serious challenges in terms of wear resistance, cutting efficiency, and surface quality.

To meet these demands, diamond tools have emerged as essential solutions—particularly PCD tools and CVD diamond-coated tools, which are now the two mainstream options for machining hard and abrasive materials.

So how do you decide between PCD and CVD diamond tools for a specific application? The right choice affects not only tool life and surface finish but also impacts processing efficiency and overall cost. For example, PCD end mills excel in machining aluminum alloys and composite materials, while CVD diamond tools offer unique advantages in the high-precision micro-machining of graphite and brittle materials.

What Are PCD and CVD Diamond Tools?

Diamond tools are indispensable in modern manufacturing, particularly for machining non-ferrous metals, composites, carbon fiber, and other difficult-to-machine materials. Among them, PCD and CVD diamond-coated tools are the most commonly used due to their exceptional hardness and wear resistance. However, despite being categorized as superhard tools, they differ significantly in structure, manufacturing, performance, and applications.

PCD Tools: Structure, Manufacturing, and Performance Characteristics

PCD tools are made by sintering micron-sized diamond particles onto a tungsten carbide substrate under high pressure and high temperature. This produces a solid, block-like tool material with extreme hardness (HV > 8000), high thermal conductivity, and excellent wear resistance.

Common types include PCD end mills, PCD turning inserts, and custom PCD cutters, widely used for high-efficiency machining of aluminum alloys, graphite electrodes, and high-silicon aluminum alloys.

Key benefits:

• 5–10× longer tool life than carbide.

• Ideal for dry or minimum-quantity lubrication (MQL).

• Outstanding surface finish on non-ferrous and abrasive materials.

• Suitable for high-speed machining.

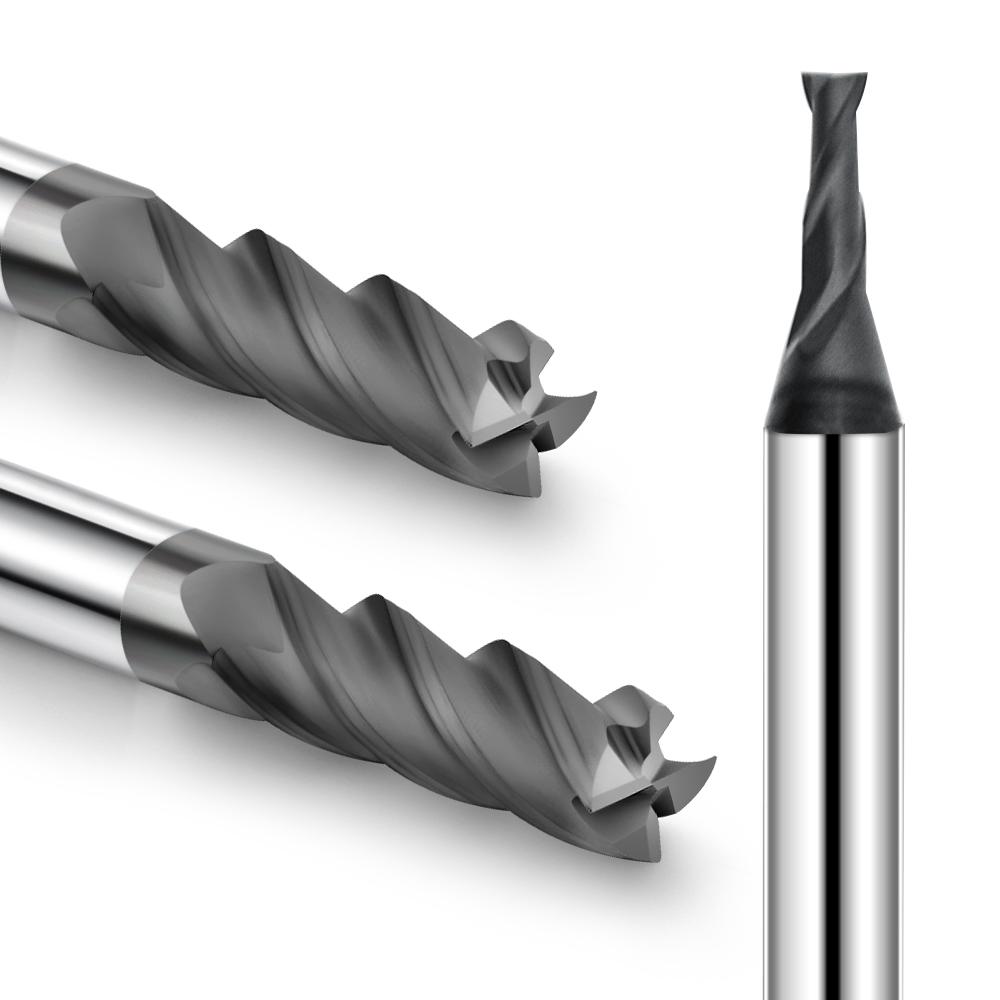

CVD Diamond Tools: Coating Process and Material Properties

CVD diamond tools are produced by depositing an ultra-pure microcrystalline or nanocrystalline diamond film onto a carbide or ceramic substrate using chemical vapor deposition. The resulting coating, typically 8–25 microns thick, delivers extreme hardness and excellent lubricity.

Unlike PCD, CVD tools are not sintered but coated. They are ideal for precision machining of hard and brittle non-metallic materials like graphite, ceramics, glass fiber, and silicon carbide.

Strengths:

• Higher surface hardness (HV > 9000)

• Extremely low friction coefficient

• Perfect for dry, high-speed, precision cutting

• Available in ultra-small sizes for micro-machining

Limitations:

• Weaker coating-substrate bond than PCD

• Not suitable for heavy or interrupted cutting

Fundamental Differences Between PCD and CVD Diamond Tools

Performance Comparison for Hard Material Processing

In the actual processing process, the selection of the appropriate diamond tool type depends not only on the tolerance requirements of the product drawing. It also requires a comprehensive judgment based on the physical properties of the specific processing material, the cutting method and the process environment. Especially in the processing of high-hardness or high-abrasive materials such as silicon carbide, ceramics, graphite, electrode materials and aluminum-silicon alloys, there are significant differences in the performance of PCD tools and CVD diamond tools.

Material Compatibility

In practical applications, PCD and CVD diamond tools each have their own typical applicable material types:

PCD Tools:

• Ideal for non-ferrous and soft-abrasive materials like:

  • Aluminum and high-silicon aluminum

  • Magnesium, copper alloys

  • CFRP, GFRP

  • Engineering plastics

CVD Diamond Tools:

• Best for hard, brittle, non-metallic materials:

  • Graphite, silicon carbide

  • Zirconia, sapphire, ceramics

  • Glass fiber composites

Tool Life and Wear Resistance

Diamond materials have extremely high hardness, but their durability depends on the tool structure and adaptability to working conditions:

PCD tools have excellent resistance to chipping and wear due to their block structure (sintered body). They are particularly suitable for continuous processing, heavy cutting or intermittent working conditions. The tool life can usually reach 10~25 times that of cemented carbide, which has obvious advantages in mass production environments.

CVD diamond tools have a higher coating hardness (up to HV9000+). However, because the coating is a micron-level film, its fracture resistance is relatively weak, and it is suitable for high-speed, low-load, and continuous finishing scenes. If used for strong impact processing, coating peeling or chipping is likely to occur.

Cutting Parameter Guidelines

Reasonable setting of cutting parameters is crucial to maximize the performance of PCD and CVD tools. The following are general parameter recommendations and selection guidelines:

PCD tool cutting parameter recommendations (such as pcd end mill for aluminum):

• Cutting speed (Vc): 600~3000 m/min.
• Feed speed (Fz): 0.05~0.3 mm/tooth.
• Cutting method: Supports dry cutting, MQL or jet cooling, which helps to keep the workpiece surface smooth.

CVD diamond tool cutting parameter recommendations:

• Cutting speed (Vc): 250~1200 m/min.
• Feed speed (Fz): 0.01~0.08 mm/tooth.
• Cutting method: Dry cutting or oil-free compressed air cooling is recommended to avoid thermal shock to the coating caused by water cooling.

Typical Applications and Advantages of PCD Tools

As modern manufacturing continues to advance towards high-precision, high-efficiency and green processing, PCD tools have become an important tool choice for the aerospace, automobile manufacturing, 3C electronics and mold industries with their excellent wear resistance, processing stability and surface quality control capabilities. Especially when facing highly abrasive non-ferrous materials such as high-silicon aluminum, carbon fiber, GFRP, and engineering plastics, PCD tools can provide cutting life and processing quality far exceeding traditional tools.

PCD End Mills for Aluminum and Composites

PCD end mill cutter performs particularly well in the finishing of aviation aluminum alloys and composite materials. Due to its extremely low friction coefficient and sharp edge geometry, it can achieve mirror-level surface quality (Ra＜0.2μm) under high-speed spindle conditions, greatly reducing subsequent polishing or finishing processes.

When processing dissimilar materials such as CFRP and aluminum-composite laminates (such as aluminum + GFRP), PCD end mill for composite materials has good edge stability and anti-chipping capabilities.

PCD Turning Tools for Non-Ferrous Metals

In the field of turning, PCD turning tools cutter is widely used in semi-finishing and finishing processes of non-ferrous metal materials such as high silicon aluminum, brass, copper alloy, magnesium alloy, etc. It is especially suitable for parts with strict requirements on surface finish, such as engine pistons, gearbox parts and motor housings.

PCD turning tools for non-ferrous metals have extremely high wear resistance and stable tool tip structure. It can maintain dimensional accuracy in long-term continuous cutting and can still work stably under high-speed cutting (Vc > 1000 m/min). Compared with traditional carbide or CBN tools, PCD tools show lower wear rate and longer tool change cycle when processing soft but abrasive metals, which greatly improves the OEE index of production lines.

In addition, PCD turning tools have excellent anti-chip adhesion performance, suitable for dry turning or minimal lubrication conditions, effectively avoiding chip built-up edge, and improving processing consistency and workpiece surface consistency.

Mass Production Use Cases

In mass production processing environments that require high efficiency, high repeatability and low downtime, PCD tools are gradually replacing traditional carbide tools. Taking the automotive industry as an example, PCD cutting tools in automotive mass production have been widely used in automated production lines and CNC machining centers in the processing of core parts such as engine cylinder heads, gearbox housings, compressor components, and reducer housings.

The customized PCD indexable face milling cutter can be used to increase the tool life from 800 pieces to more than 5,000 pieces when machining the plane of the aluminum alloy shell, reduce the tool replacement frequency by 80%, and reduce the overall cost by more than 30%. In addition, with the tool customization and coating technology optimization provided by the advanced pcd milling cutter manufacturer, the tool life can be further improved according to the specific working conditions.

This type of high-performance PCD tool has become a key tool resource in the modern lean manufacturing system because of its dry processing, long life, and short tool change cycle. It is particularly suitable for continuously running automated batch production lines.

Application Scenarios and Limitations of CVD Diamond Tools

CVD diamond tools are widely used in non-metallic material processing scenarios with extremely high requirements for surface quality and dimensional accuracy due to their extremely high surface hardness and excellent wear resistance. Unlike PCD block tools, CVD diamond is a pure diamond film with no metal binder, high purity and good thermal conductivity. Therefore, it is very suitable for micro-finishing and dry cutting applications of hard and brittle materials.

However, CVD diamond tools also have certain usage restrictions, such as low toughness, limited impact resistance, and high requirements for machine tool rigidity and spindle stability. The following will combine typical application scenarios with actual processing conditions to analyze the advantages and limitations of CVD diamond tools in detail.

Micro-Machining of Brittle Materials

CVD diamond tools are particularly suitable for micro-finishing of typical high-hardness and brittle materials such as zirconia ceramics, silicon carbide, sapphire, and GFRP. Because its coating hardness can reach above HV9000 and has an extremely low friction coefficient. CVD tools can achieve smaller cutting forces and lower temperature rise in micro-cutting, effectively inhibiting the propagation of cracks on the workpiece surface.

For example, in the grooving of ceramic substrates, the opening of LED sapphire substrates, or the contour processing of glass fiber reinforced shells of 3C products, cvd diamond cutting tools for brittle materials can stably maintain the machining contour accuracy. And reduce edge cracking and micro cracks, it is the preferred solution to replace carbide tools.

However, in these micro-finishing scenarios, it is more recommended to use a rigid, high-speed and high-precision spindle (>40,000 rpm) and a fixture system with excellent dynamic balance to release the maximum potential of CVD tools.

Graphite Electrode Machining

Graphite is a common material for EDM electrodes due to its strong conductivity and good thermal stability, but it is extremely abrasive and will quickly wear out traditional tools during processing. Therefore, CVD diamond coated tools have become an ideal solution for graphite processing.

In practical applications, diamond coated end mill for graphite electrode can achieve long-term stable processing under dry cutting conditions, maintaining excellent contour accuracy, edge clarity and dimensional repeatability. The high hardness of CVD diamond tools can effectively avoid dimensional drift caused by tool wear when processing small electrode grooves and micro-electrode columns, and is a standard configuration tool in the precision mold manufacturing industry.

In addition, compared with PCD tools, cvd diamond milling tools for edm graphite tool shapes are more flexible. It can realize the design of integral end mills with a small diameter below 0.3mm, which is suitable for high-precision micro-machining scenarios.

Limitations and Precautions

Although CVD diamond tools perform well in machining high-hardness materials, their biggest weakness is poor toughness and easy chipping. Because their coating structure is brittle crystals, they are prone to edge microcracks, peeling or overall fracture when subjected to excessive lateral force or impact.

Therefore, CVD diamond tool breakage risk usually occurs in the following scenarios:

• The irregular surface of the workpiece leads to intermittent cutting impact.
• The cutting parameters are too high, especially the feed rate exceeds the material’s tolerance range.
• The machining path is not optimized, resulting in excessive tool side pressure.

How to Choose Between PCD and CVD Diamond Tools?

With the continuous upgrading of hard material processing technology, PCD and CVD diamond tools have gradually become the first choice in the field of high-end manufacturing due to their excellent wear resistance and processing efficiency. However, the performance of the two is different. If they are blindly selected, not only will the advantages of the tool not be brought into play, but the cost may be increased or the life may be shortened.

Comprehensive Evaluation From Processing Materials, Precision Requirements and Tool Life

To select the right diamond tool, first of all, it is necessary to clarify the hardness, structural characteristics and processing requirements of the workpiece material:

Processing Materials:

• For non-ferrous materials such as aluminum alloy, copper, carbon fiber, composite materials, it is recommended to use pcd end mill for aluminum alloy or integral PCD tool. Because of its excellent adhesion resistance and low friction coefficient.
• For high-hardness and brittle materials such as graphite, ceramics, glass fiber, sapphire, it is more suitable to use cvd diamond tool for graphite cutting or CVD coated micro milling cutter.

Precision and Surface Quality Requirements:

• If the process needs to meet sub-micron dimensional control and mirror-level surface quality (such as MEMS component processing), it is more inclined to choose CVD diamond tools with sharp cutting edges and film uniformity.
• For general structural parts or complex contour processing, the comprehensive stability of PCD tools can be given priority.

Tool life and Repeatability:

• In large-scale, highly repeatable continuous production, PCD tools often provide more stable processing life and edge consistency.
• CVD diamond tools are suitable for occasions with short processing cycles but extremely high precision requirements.

Recommendations for Using PCD or CVD Tools in Different Application Scenarios

Based on different machining environments and typical use cases, the following recommendations can help guide the selection between PCD and CVD diamond tools:

These recommendations highlight the strengths of each tool type in real-world manufacturing tasks. For composites, carefully assess the cutting strategy—PCD vs CVD diamond tools each have their own advantages depending on the operation. And for non-ferrous metals, PCD tools remain the best diamond tool choice for durability and productivity in mass production.

Procurement Advice: How to Choose a Reliable PCD Milling Cutter Manufacturer?

In addition to paying attention to tool parameters and coating performance, it is also important to choose a manufacturer with stable production capacity and technical services when purchasing high-quality diamond tools.

• Process capabilities:
  A high-quality pcd milling cutter manufacturer should have core process equipment such as CNC EDM precision cutting, laser grinding, and CVD deposition to ensure the consistency and durability of the tool.
• Industry experience and customization capabilities:
  Experienced pcd turning tools cutter factories can usually provide customized tool solutions based on customer drawings or processing features, especially in industries such as aerospace, automotive molds, and electronic structural parts.
• Product stability and delivery guarantee:
  Cooperation with pcd cutting tools suppliers with an ISO quality management system can reduce the risk of batch differences and ensure continuous supply for long-term projects.
• Pre-sales/after-sales service:
  Excellent manufacturers are often equipped with a team of technical engineers who can provide professional guidance in tool selection, parameter setting, and usage precautions, significantly improving customer processing efficiency.

PCD and CVD Tools, Which One is More Suitable for Your Processing Needs?

With the growing demand for high-hardness materials and precision parts processing, PCD tools and CVD diamond tools have become important tool choices in the field of high-end manufacturing. They have their own advantages in tool life, processing efficiency, and application material range. In actual production, how to choose a more suitable diamond tool not only affects the processing quality, but also directly affects the overall manufacturing cost and efficiency.

In most batch non-ferrous metal processing scenarios, PCD tools such as PCD turning tools cutter and PCD end mill can provide good processing stability and long life, and are the preferred choice of most companies. In processes such as micron-level contour processing and precision graphite engraving and milling, CVD diamond tools perform better with their extremely high hardness and cutting edge accuracy.

Make Wise Choices Based on Your Own Production Needs

When formulating tool selection strategies, it is recommended that companies comprehensively evaluate the following aspects:

Material properties and processing characteristics

• If the workpiece is mainly made of aluminum alloy, copper alloy, or composite material, it is recommended to give priority to pcd cutting tools for cnc machining to obtain better chip removal effect and surface accuracy.
• If the main focus is on graphite molds, electrodes, or microstructure processing of high-hardness and brittle materials, it is recommended to use CVD diamond tools such as best diamond tool for graphite milling.

Equipment and processing technology capabilities

• CVD diamond tools have high requirements for spindle rigidity and vibration control. If the equipment conditions are not ideal, it is recommended to use PCD tools with stronger impact resistance first to avoid the risk of tool breakage.

Cost-effectiveness and tool supply guarantee

• Establishing a cooperative relationship with a stable and reliable pcd milling cutter manufacturer can not only ensure the consistency of tool quality, but also obtain more complete technical support and delivery guarantees.

Processing output and batch stability requirements

• In large-scale standardized production, PCD tools have more obvious advantages in life and unit cost.
• For small-scale high-precision products, CVD tools are more suitable to ensure yield.

Whether pursuing efficient batch cutting or focusing on high-precision micromachining, PCD and CVD diamond tools each have irreplaceable value. Only by reasonably combining their own product characteristics, equipment conditions and cost budget can the benefits of diamond tools be maximized in modern manufacturing.
