Different Types of Milling Cutters and Their Applications
Steel Milling Bit

In the realm of machining, milling cutters are indispensable tools. They come in a wide array of types, each designed for specific applications and materials. This article aims to classify and compare these different types of milling cutters, elucidate their distinct uses, and provide practical recommendations for their optimal use in various manufacturing processes. By understanding these tools better, professionals can enhance efficiency and precision in their operations.


What are the Different Types of Milling Cutters?


Milling cutters are specialized tools used in machining processes, specifically in milling machines, to perform various operations like slot cutting, drilling, or profiling. These cutters come in an array of types, each designed for a specific purpose and distinguished by their construction, applications, and the type of grooves or surfaces they generate. The following sections will delve into a few key types of milling cutters: end mills, face mills, radius end mills, side milling cutters, and thread milling cutters.


1. Flat End Mill

    • Characteristics: Flat-end mills have a square end with sharp corners that generate a flat-bottomed groove.
    • Advantages: They provide better stability during milling, resulting in more accurate parts.
    • Disadvantages: The sharp corners can wear out quickly, especially when milling harder materials.
Graphite flat end mill【2 Flutes Φ 0.2-6】
Graphite flat end mill【2 Flutes Φ 0.2-6】

2. Ball Nose End Mill

    • Characteristics: Ball nose end mills have a round end, which makes them ideal for 3D contour work.
    • Advantages: They can produce a smooth finish on the milled surface.
    • Disadvantages: They are not as efficient in removing material compared to other types.
Ball Nose End Mil
Ball Nose End Mill

3. Corner Radius End Mill

    • Characteristics: Corner radius end mills have rounded corners at the bottom edge.
    • Advantages: The rounded corners reduce wear and tear, prolonging the tool’s life.
    • Disadvantages: They may not be suitable for creating sharp-edged grooves.
Graphite Corner Radius End Mill【4 Flutes Φ 3-12】
Graphite Corner Radius End Mill【4 Flutes Φ 3-12】

4. Roughing End Mill

    • Characteristics: Roughing end mills have serrated teeth that break chips into smaller, manageable pieces.
    • Advantages: They can remove large amounts of material quickly.
    • Disadvantages: The finish left behind is usually rough and requires a finishing pass.
Roughing End Mill
Roughing End Mill


5. Drill Mill

    • Characteristics: Drill mills have a pointed tip for drilling and a side for milling.
    • Advantages: They offer versatility as they can perform both drilling and milling tasks.
    • Disadvantages: They might not excel in either task as compared to specialized tools.
Thread Mill and Drill Bit
Thread Mill and Drill Bit

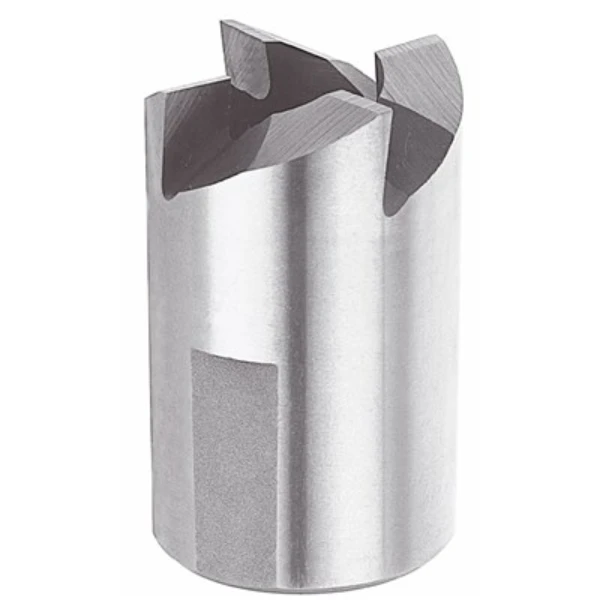

6. Hollow Mill

    • Characteristics: Hollow mills have a hollow cutting head for producing a specific diameter hole or outer profile.
    • Advantages: They can provide high accuracy in hole diameter and profile.
    • Disadvantages: They are usually limited to particular diameters or profiles.
Hollow Mill
Hollow Mill


7. Tapered Mill

    • Characteristics: Tapered mills have a cutting edge that tapers down to a point.
    • Advantages: They are excellent for milling in tight spaces or intricate designs.
    • Disadvantages: The tapered design might lead to decreased stability.
Tapered Mill
Tapered Mill

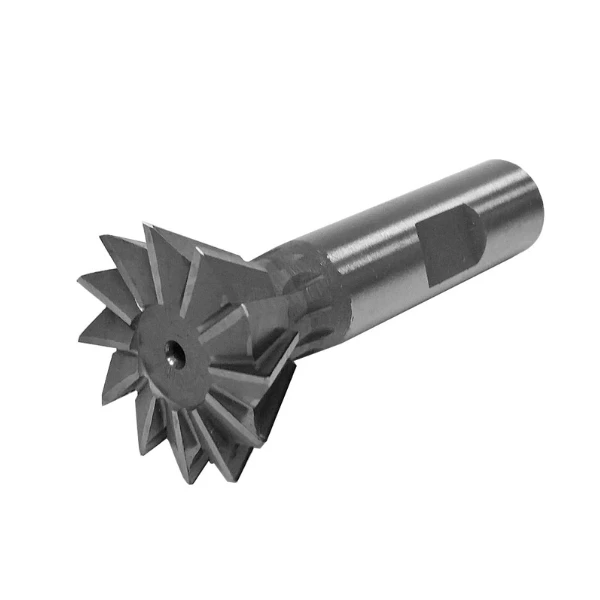

8. Dovetail Cutter

    • Characteristics: Dovetail cutters have an inverted cone shape for creating dovetail slots.
    • Advantages: They are the best choice for creating dovetail slots.
    • Disadvantages: They are highly specialized and not versatile.
Dovetail Cutter
Dovetail Cutter


9. Shell Mill

    • Characteristics: Shell mills are large hollow cutters typically used on horizontal milling machines.
    • Advantages: They can remove large amounts of material quickly.
    • Disadvantages: Their size makes them unsuitable for intricate or detailed work.
Shell Mill
Shell Mill

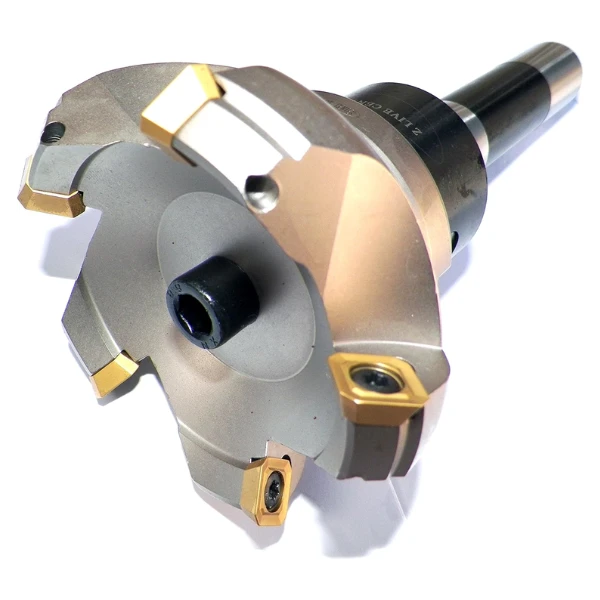

10. Face Mill

    • Characteristics: Face mills have multiple cutting edges and are primarily used for facing operations.
    • Advantages: They offer a high-quality surface finish and efficient material removal.
    • Disadvantages: They are primarily limited to planar surfaces.
Face Mill
Face Mill


How are Milling Cutters Used in Machining Processes?


Milling cutters play a pivotal role in machining processes, acting as the primary tool for material removal to create specific part geometries. Their usage spans across diverse applications, from simple shaping tasks to complex, high-precision operations. These cutters, with their varied designs and characteristics, facilitate different types of milling operations, contribute to the efficiency of machine operations, aid in material removal and surface milling, and enable high-performance machining in CNC environments. This article further explores these areas, elucidating the integral role of milling cutters in various machining processes.


Milling Operations and Processes

Milling operations typically involve the use of multi-point cutting tools to remove material from a workpiece. Common operations include face milling (creating a flat surface or face on the workpiece), peripheral milling (cutting along the contour of the workpiece), and slot milling (creating slots or channels). The selection of milling cutters is highly dependent on the specific operation and the desired outcome.


Cutting Tools and Machine Operations

In machine operations, the cutting tool’s design significantly impacts the efficiency and quality of the machining process. Milling cutters, being rotary cutting tools, allow for continuous cutting action, which can increase the speed of machining operations. Different types of milling cutters, such as end mills for detailed cutting or face mills for broad surface cuts, cater to diverse machining requirements.


Material Removal and Surface Milling

Material removal is a fundamental aspect of machining processes. Milling cutters, with their multiple cutting edges, excel in removing material efficiently. They can be used for roughing (removing large amounts of material quickly) or finishing (creating a smooth surface). In surface milling, the cutter’s diameter, the number of cutting edges, and the feed rate all influence the quality of the surface finish.


CNC Milling and High-Performance Machining

In CNC (Computer Numerical Control) milling, milling cutters are controlled by a computer, enabling high precision and consistency. High-performance machining often involves the use of advanced milling cutters that can withstand high cutting speeds and feed rates, improving productivity and part quality.


Milling Process and Tool Applications

The application of milling cutters varies depending on the machining process. For instance, end mills are used for contouring and slotting, while face mills are used for creating flat surfaces. Selecting the right milling cutter for the application is crucial for achieving the desired part geometry and surface finish.


What Are the Benefits of Different Types of Milling Cutters?


The usage of milling cutters in machining processes is integral to achieving desired outcomes in a wide range of applications. The benefits of these tools are manifold, ranging from efficient and precise material removal to versatility in machining operations, enhanced surface finishes, tool longevity, and their applicability in various processes. Furthermore, the categorization of these tools into high-performance and general-purpose tooling broadens their utility across diverse machining contexts. This article aims to provide an in-depth exploration of these benefits.


Efficiency and Precision in Material Removal

One of the primary benefits of milling cutters is their ability to remove material efficiently and precisely. The multi-point cutting edges of these tools allow for continuous cutting action, leading to higher productivity. The precision of material removal is dependent on the type of cutter used, with some designed for roughing operations and others for finishing operations, thus enabling both rapid material removal and fine detailing.


Versatility and Flexibility in Machining Operations

Milling cutters offer versatility and flexibility in machining operations owing to their varied designs. For instance, end mills can perform multiple types of milling operations, including profiling, slotting, and contouring. Similarly, face mills are excellent for creating large, flat surfaces. This versatility allows a single machine to perform a wide array of tasks, contributing to operational efficiency.


Enhanced Surface Finishes and Tool Longevity

The design of milling cutters also contributes to enhanced surface finishes. For instance, radius end mills with rounded corners can produce a smoother finish compared to sharp-edged cutters. Furthermore, certain milling cutters, such as those with coated or carbide inserts, offer extended tool life, reducing the frequency of tool replacement and thus minimizing downtime.


Applications in Various Machining Processes

Milling cutters find applications in various machining processes, from basic shaping tasks to complex, high-precision operations. The choice of cutter depends on the specific process – thread milling cutters for creating threads, dovetail cutters for dovetail slots, and so on. This wide range of applications makes milling cutters an indispensable part of any machining setup.


High-Performance and General-Purpose Tooling

Milling cutters can be broadly classified into high-performance and general-purpose categories. High-performance milling cutters are designed to withstand high cutting speeds and feed rates, offering improved productivity and part quality. On the other hand, general-purpose milling cutters are designed for a wide range of materials and operations, offering flexibility in machining tasks. The availability of both types of tooling ensures that milling cutters can cater to a broad spectrum of machining requirements.


Which Types of Milling Operations Require Specific Cutters?


The utilization of milling cutters in machining processes is a fundamental aspect of achieving desired outcomes. The type of cutter used often depends on the specific milling operation being performed, as different operations require unique tool configurations for optimal efficiency and precision. This article explores various milling operations such as plain milling, form milling, profile milling, thread milling, gang milling, side milling, and roughing end milling, shedding light on the specialized tooling required for each.


Plain Milling and Form Milling Operations

Plain milling, also known as surface milling or slab milling, is a common operation that involves removing material along the surface of a workpiece. It primarily uses plain or slab milling cutters with cylindrical shape and teeth on the periphery.


Form milling, on the other hand, involves creating contours and shapes on a workpiece. Form milling cutters, designed with a specific profile to match the workpiece, are employed for this operation. These cutters may have concave, convex, or any other predetermined shape to produce the required contour on the workpiece.


Profile Milling and Thread Milling Applications

Profile milling involves the production of intricate profiles along the edges or surface of a workpiece, which requires the use of end mills or ball nose mills. These cutters can create complex shapes with high precision.


Thread milling, as the name suggests, is the process of producing threads in a workpiece. Thread milling cutters, designed with multiple cutting edges to mimic the form of the desired thread, are utilized for this purpose.


Gang Milling and Side Milling Techniques

Gang milling involves the simultaneous use of multiple cutters mounted on the same arbor to produce complex parts in a single pass. This technique requires the use of special gang milling cutters designed to work in tandem.


Side milling, similar to plain milling, involves cutting along the sides of a workpiece. Side milling cutters, equipped with cutting teeth on their circumferential surface and sides, are the tools of choice for this operation.


Roughing End Mills for Material Removal

For operations involving substantial material removal, roughing end mills are typically used. These cutters, designed with multiple serrations or ‘rippled’ cutting edges, facilitate rapid material removal while reducing the load on the machine.


Specialized Tooling for Different Machining Tasks

Different machining tasks often require specialized tooling to achieve optimal results. For example, dovetail cutters are used to create dovetail slots, while T-slot cutters are used to mill T-slots. The choice of cutter is mainly dependent on the specific machining task at hand.


What Factors Determine the Selection of Milling Cutters for Machining?


The selection of milling cutters in machining processes is a critical decision that can significantly impact the efficiency, precision, and overall success of the operation. This decision is influenced by various factors, including cutting speeds and feeds, material properties, machining strategies, tool coatings, and the specific machining requirements at hand. Understanding these factors and their implications can guide the selection process, ensuring that the chosen cutter is well-suited to the task. This article provides an in-depth examination of these determining factors.


Cutting Speeds and Feeds in Milling Operations

The cutting speed, which refers to the speed at which the cutter moves relative to the workpiece, and feed rate, which denotes the rate at which the workpiece moves into the cutter, are crucial considerations in the selection of milling cutters. Different cutters are designed to operate optimally at different speeds and feeds. Therefore, it is essential to choose a cutter capable of withstanding the intended cutting speeds and feeds without compromising on tool life or machining quality.


Material Properties and Cutting Tool Considerations

The properties of the workpiece material, such as hardness, flexibility, and abrasiveness, also influence the choice of milling cutter. Some cutters are better suited for hard materials, while others are designed for softer or more ductile materials. Furthermore, the cutter’s material, such as high-speed steel (HSS) or carbide, should be selected based on the workpiece material to ensure effective cutting and prolonged tool life.


Machining Strategies and Tooling Applications

The machining strategy being employed, whether it’s conventional milling, climb milling, or high-speed machining, can dictate the choice of cutter. Each strategy has specific requirements concerning cutter geometry, material, and other parameters. Therefore, the cutter should be selected in alignment with the intended machining strategy.


Tool Coatings and Tooling Innovations

Tool coatings, such as titanium nitride (TiN) or diamond-like carbon (DLC), can enhance the performance and longevity of milling cutters. The choice of coating depends on the workpiece material and the machining conditions. Recent innovations in tooling, such as multi-flute end mills or indexable insert cutters, offer additional options for cutter selection based on specific machining requirements.


Adaptability to Specific Machining Requirements

Finally, the specific machining requirements, such as the desired part geometry, surface finish, and production volume, play a significant role in the selection of milling cutters. For instance, end mills might be selected for detailed contouring, while face mills might be chosen for significant surface cuts. Understanding these requirements can guide the selection towards the most appropriate cutter for the task.


Frequently Asked Questions


Q: What is a milling cutter?

A milling cutter is a type of cutting tool used in milling machines. It is designed with several cutting teeth to remove material from the surface of a workpiece. The cutting teeth help produce a variety of features on the workpiece, such as pockets, slots, and more.

Q: What are the common types of milling cutters?

Milling cutters come in many types, including end mills, face mills, ball cutters, slab mills, and fly cutters, among others. Each type is tailored for specific milling tasks.

Q: What are the applications of milling cutters?

Milling cutters serve a wide range of machining applications. They are suitable for various operations such as face milling, slot milling, contour milling, and specialized tasks like tracer milling and manual milling.

Q: What is the difference between climb milling and conventional milling?

Climb milling and conventional milling pertain to the rotation direction of the cutting tool and the movement of the workpiece. Climb milling involves the cutting tool advancing in line with the milling cutter’s rotation, while in conventional milling, the workpiece moves against the milling cutter’s rotation.

Q: How to choose the best milling cutter for a specific application?

The selection of a suitable milling cutter is contingent on several factors like the material to be machined, the milling operation type, desired surface finish, and the machine tool. It is crucial to align the cutter type and cutting edge geometry with the specific needs of the milling operation.

Q: What are corner radius end mills?

Corner radius end mills are milling cutters characterized by a rounded, non-sharp corner. They are employed for milling operations that require a smooth finish and reduced chipping risk. This type of cutter is often used when a specific corner radius is needed in machining applications.

Q: What are the advantages of using vertical milling cutters?

Vertical milling cutters are lauded for their ability to remove material rapidly and effectively. They are ideal for applications requiring high material removal rates and are typically used in vertical milling machines for efficient workpiece machining.

Q: What are ball cutters used for?

Ball cutters, also known as ball end mills, are milling cutters with a hemispherical cutting tip. They are often used for shaping and contouring complex surfaces and creating 3D features on workpieces, as they can produce smooth and accurate curved surfaces.

Q: What are the specialized milling cutters?

Specialized milling cutters include those designed for specific machining tasks like corner rounding cutters, tracer milling cutters, and face milling cutters. These cutters are customized to meet the unique requirements of the specific milling operations and materials.

Q: How to ensure the right milling technique is used?

Understanding the properties of various cutter types and their recommended applications is key to choosing the right milling technique. Factors such as tool geometry, cutting parameters, and workpiece material should be taken into account to ensure the most suitable milling technique, whether climb milling or conventional milling, is applied for optimal results.
