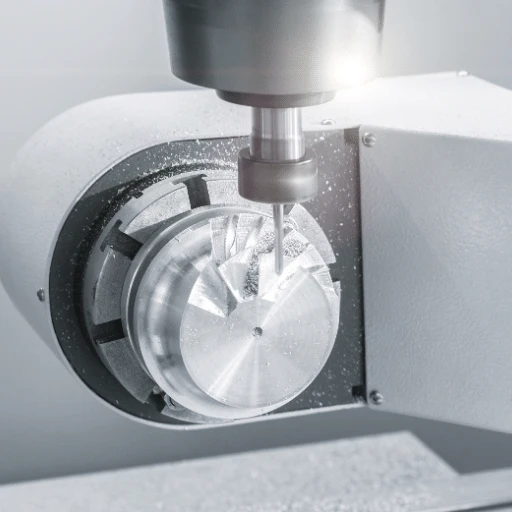

Discover the Latest End Mill Coatings in 2024

What Are the Different Types of Coatings Used for End Mills?

End mills, critical tools in machining, are subject to extreme wear and tear due to their interaction with various materials. Multiple coatings have been developed to mitigate this and extend the life of these tools while improving performance. Titanium-based coatings stand out for their ability to enhance the endurance and functionality of end mills.

Titanium Coatings

Titanium Nitride (TiN) is the most basic form of titanium coating, recognizable by its distinctive gold color. It’s favored for increasing hardness and resisting wear, translating to longer tool life. TiN is especially effective at operating temperatures up to 600°C. Its application isn’t limited to high-speed steel (HSS) tools; it’s also used on carbide tools to tackle operations in softer materials like aluminum and magnesium alloys.

AlTiN Coatings

Aluminum Titanium Nitride (AlTiN) coatings take the benefits of TiN a step further. They provide superior heat resistance, making them ideal for high-temperature applications. AlTiN excels in machining steel, titanium alloys, and other materials that generate significant heat during milling. Its thermal stability is adequate to temperatures of 800°C, ensuring optimal performance under demanding conditions.

TiCN Coatings

Titanium Carbonitride (TiCN) enhances hardness compared to TiN, providing even better wear resistance. This dark blue-colored coating is particularly suited for rigid materials that require sharper cutting edges. It is excellent for cutting hard metals such as stainless steel and cast iron but also performs well with non-metallic materials. The increased surface hardness increases feed and speeds, translating to more efficient machining processes.

In conclusion, selecting the suitable coating for an end mill depends on the specific application, including the machined material type and the operating conditions. Each coating mentioned provides unique benefits in hardness, wear resistance, and heat tolerance, extending the tool’s lifespan and enhancing performance.

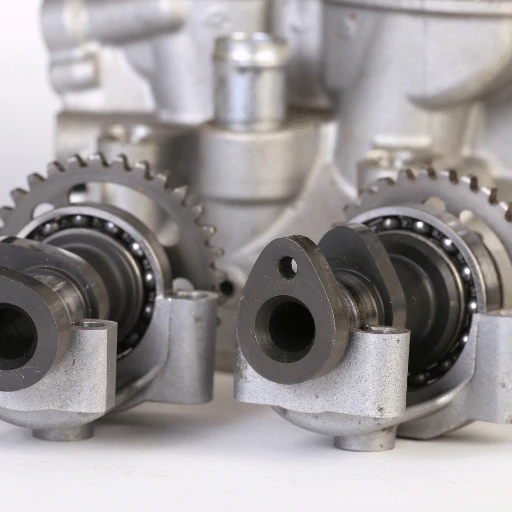

How Do Coatings Affect the Performance of End Mills?

The performance of end mills is significantly influenced by the coating type applied, which is a significant determinant in both tool longevity and effectiveness. Coatings primarily reduce friction, resist heat, and prevent the adhesion of materials on the tool, collectively contributing to more efficient machining processes. Here are the key parameters through which coatings affect the performance of end mills:

1. Friction Reduction: Coatings like TiN, AlTiN, and TiCN minimize the friction between the end mill and the workpiece. This reduction in friction leads to lesser heat generation and enables higher cutting speeds, thereby increasing overall machining efficiency.
2. Heat Resistance: Coatings are crucial for their thermal protection capability. AlTiN coatings, for example, can withstand temperatures up to 800°C. By providing a barrier against the extreme heat produced during milling, these coatings preserve the integrity of the end mill’s cutting edges, sustaining their sharpness and precision over extended periods.
3. Wear Resistance: Coatings offer a significant advantage in enhanced surface hardness. TiCN coating, being more complex than TiN, significantly boosts the end mill’s wear resistance. This results in the tool maintaining its cutting ability for longer, which is especially beneficial when working with complex, abrasive materials that would otherwise rapidly degrade uncoated tools.
4. Chemical Stability: Certain coatings improve the chemical stability of end mills, preventing reactions between the tool material and the workpiece. This is critical when machining specific metals that might otherwise corrode or chemically react with the tool, adversely impacting both the tool and the workpiece.
5. Material Adhesion Prevention: Coatings also play a vital role in preventing the adhesion of workpiece material to the tool, known as “built-up edge.” This occurrence can detrimentally affect machining, causing poor surface finish and dimensional inaccuracies. A suitable coating keeps the cutting edges clean, ensuring a better finish and more accurate cuts.

Applying coatings on end mills directly improves machining performance through reduced tool wear, enhanced thermal protection, and decreased friction. Each coating type brings unique advantages tailored for specific materials and operating conditions, enabling the selection of a tool optimally suited for any machining scenario.

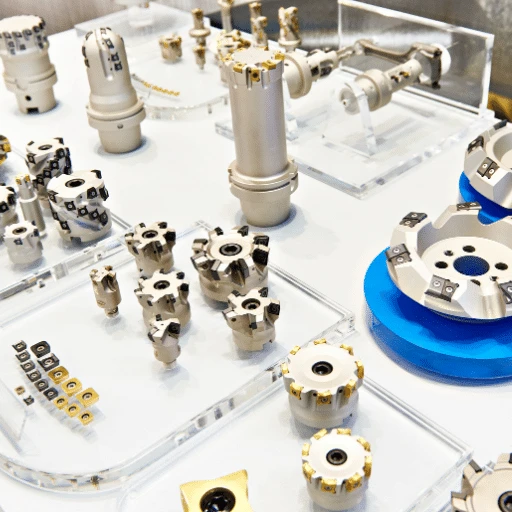

Which Coatings are Best Suited for Cutting Specific Materials?

Selecting the appropriate coating for cutting specific materials requires careful consideration of various parameters to match the tool’s performance with the material’s properties. Here’s an expert summary of commonly used coatings and their best-suited material applications:

1. TiN (Titanium Nitride): Recognized by its gold color, TiN is a general-purpose coating that increases tool life through enhanced wear resistance. It is especially effective for machining:

• Steel
• Stainless steel
• Cast iron
• Copper alloys

2. TiCN (Titanium Carbonitride): Offering a higher hardness than TiN, TiCN is particularly well-suited for cutting:

• Hardened steels (up to 55 HRC)
• High-temperature alloys
• Abrasive materials

This coating also reduces galling and workpiece material adhesion.

3. AlTiN (Aluminum Titanium Nitride): Known for its exceptional thermal stability, AlTiN excels in high-speed machining and is ideal for:

• Alloy steels
• Stainless steels
• Titanium alloys
• Nickel-based superalloys

AlTiN enables machining at higher temperatures without compromising tool integrity.

4. Diamond Coatings: Being the most challenging material, diamond coatings are unsurpassed in machining:

• Non-ferrous and abrasive materials, such as
• Aluminum alloys
• Graphite
• Composites

These coatings provide excellent wear resistance and prevent material buildup on the cutting edge.

By understanding each coating type’s unique benefits and applications, manufacturers and machinists can select tools precisely tailored to their specific material challenges, optimizing both the tool life and the quality of the finished workpiece.

What Are the Advantages of Using CVD and PVD Coatings?

Chemical Vapor Deposition (CVD) and Physical Vapor Deposition (PVD) are two paramount techniques for applying coatings to cutting tools. Their advantages span across several critical areas, enhancing the performance and durability of tools in rigorous machining environments:

1. Improved Wear Resistance: Both CVD and PVD coatings significantly extend the life of cutting tools by providing a hard layer that reduces wear. This is particularly beneficial when machining hard or abrasive materials, ensuring consistent performance over extended periods.
2. High-Temperature Stability: Coatings using CVD and PVD methods offer remarkable thermal stability. This characteristic is crucial for high-speed applications where heat generation is substantial. Tools coated with CVD and PVD can withstand higher temperatures without deteriorating, maintaining their cutting edge and precision.
3. Reduced Friction: One key benefit of these coatings is their ability to decrease friction between the cutting tool and the workpiece. Lower friction results in smoother cuts, reduced heat generation, and less wear on the tool, contributing to quality finishes and longer tool life.
4. Enhanced Corrosion Resistance: Tools coated with CVD and PVD methods exhibit improved resistance to corrosion and oxidation. This property is invaluable when working with materials that may cause tool corrosion or in environments where exposure to corrosive substances is possible.
5. Versatility: CVD and PVD technologies offer a broad spectrum of coating materials, including TiN, TiCN, AlTiN, and diamond, each suited for different applications. This versatility enables manufacturers to customize tool coatings based on specific machining needs and material types, optimizing performance across various conditions.
6. Eco-Friendly: PVD, in particular, is an environmentally friendly process, as it generates fewer harmful by-products than traditional coating methods. This attribute is increasingly essential in industries aiming to reduce their environmental footprint.

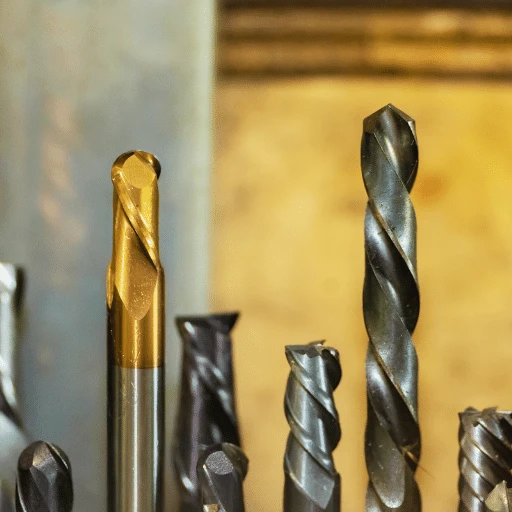

How Do Solid Carbide End Mills Perform with Various Coating Options?

Solid Carbide End Mills, when coupled with various coating options through CVD and PVD processes, exhibit significant performance, durability, and application range enhancements. Coated tools outperform their uncoated counterparts in several critical ways:

1. Increased Wear Resistance: The coatings substantially increase the tool’s lifespan by protecting against wear, ensuring consistent performance over a more extended period. This is especially noticeable in challenging materials, such as hardened steels or exotic alloys, where tool wear is rapid.
2. Improved Cutting Efficiency: Coatings’ thermal stability allows for higher machining speeds and feeds, improving cutting efficiency. The specialized coatings’ ability to operate at these enhanced parameters without compromising tool integrity or workpiece quality is a direct benefit.
3. Enhanced Material Compatibility: The versatility in coating materials means that specific coatings can be selected to optimize the cutting of particular materials. For instance, AlTiN coatings are excellent for high-temperature alloys, while diamond coatings are preferred for highly abrasive materials.
4. Reduced Galling and Chip Welding: The low friction characteristic of many coatings, such as TiCN, minimizes the galling and chip welding risk. This is particularly vital in machining sticky materials like aluminum or titanium, where such phenomena can severely impair tool function and finish quality.

In summary, the performance of Solid Carbide End Mills is markedly improved with the application of CVD and PVD coatings. These enhancements span wear resistance, cutting efficiency, material compatibility, and galling and chip welding prevention, making coated tools indispensable in modern precision machining environments.

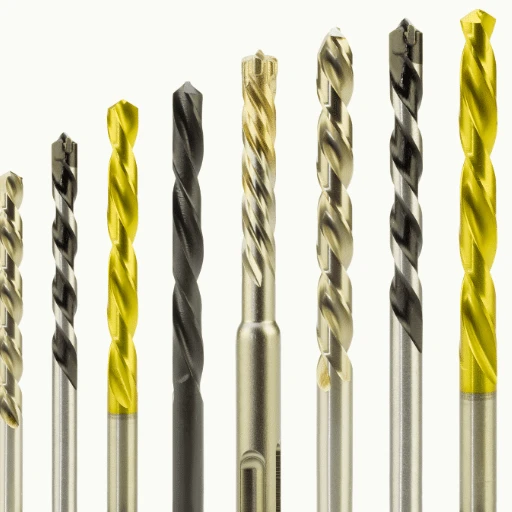

Which End Mill Coatings are Recommended for Aerospace Materials?

Optimal Coatings for Aerospace Alloys

For machining aerospace alloys like titanium, Inconel, and stainless steel, specific coatings significantly improve performance and lifespan by addressing the unique challenges posed by these materials. Consider the following coatings:

1. AlTiN (Aluminum Titanium Nitride) – Offers exceptional thermal resistance, making it ideal for high-temperature alloys common in aerospace applications. Its high hardness also provides excellent wear resistance.
2. TiCN (Titanium Carbonitride) provides increased hardness over TiN coatings, better wear resistance, and the ability to prevent adhesion, making it suitable for stainless steel and other sticky aerospace materials.

Enhanced Lubricity for Aerospace Composites

Reducing tool wear and preventing material pull-out is paramount when machining aerospace composites. Coatings that enhance the tool’s lubricity can significantly mitigate these issues:

1. Diamond – Offers unmatched hardness and low friction, dramatically increasing tool life and cutting speed while minimizing the risk of material pull-out in composites.
2. DLC (Diamond-Like Carbon) – Provides excellent surface smoothness and wear resistance, further reducing friction and preventing material buildup on the tool. Diamond and DLC coatings are often used in combination for the best results.

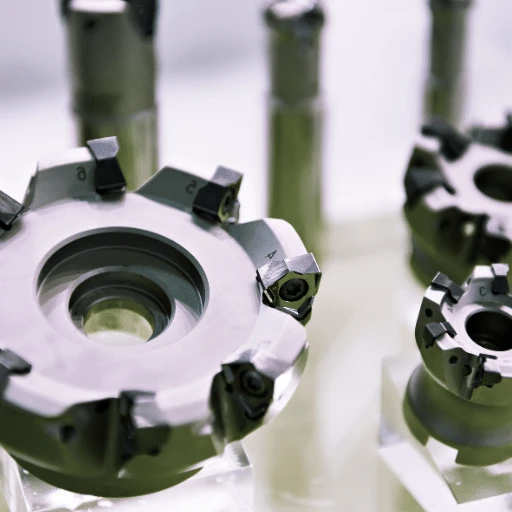

What Factors Determine the Right Coating for Specific Machining Applications?

Metal Removal Rates and Workpiece Material Compatibility

When selecting the appropriate coating for machining applications, considering the metal removal rates (MRR) and the compatibility with workpiece materials is crucial. High metal removal rates often require coatings with superior thermal stability and wear resistance to withstand the increased stress and temperature. For instance:

• AlTiN-coated tools are highly recommended for high MRR applications involving tough aerospace alloys like titanium and Inconel. The thermal stability of AlTiN allows it to retain hardness at elevated temperatures, thereby sustaining high metal removal rates without compromising tool integrity.
• TiCN and DLC coatings are preferable for stainless steel and aluminum alloys, where the material’s sticky nature can lead to buildup on the cutting tool. These coatings reduce adhesion and friction, allowing for higher MRR without sacrificing surface finish or causing tool failure.

Compatibility with the workpiece material also dictates the coating choice to ensure optimal performance and tool longevity. Each coating has distinct properties that make it suitable for specific types of materials:

• Diamond coatings are best suited for machining composites and aluminum alloys due to their extreme hardness and reduced friction. However, they are less effective on ferrous materials due to carbon diffusion at the interface.
• DLC coatings, which balance hardness and lubricity, are versatile and can be used across various non-ferrous materials, including titanium alloys, where they mitigate wear and prevent galling.

In conclusion, the selection of coatings requires a nuanced understanding of both the metal removal rates and material compatibility to optimize machining performance and tool life.

Frequently Asked Questions

Q: What are end mill coatings?

A: End mill coatings are various materials applied to the surface of end mills to improve their performance and increase their longevity. Standard coatings include titanium nitride (TiN), aluminum titanium nitride (AlTiN), titanium carbonitride (TiCN), and many others.

Q: How do end mill coatings help in machining?

A: End mill coatings help in machining by reducing friction, increasing tool life, improving chip flow, and enhancing heat resistance. They also provide better wear resistance and help cut various materials effectively.

Q: What are some common types of end mill coatings?

A: Some common types of end mill coatings include TiN, AlTiN, TiCN, AlCrN, ZrN, TiB2, and uncoated end mills. Each type of coating offers specific advantages for different machining applications.

Q: Which end mill coating is suitable for machining aluminum and aluminum alloys?

A: Aluminum titanium nitride (AlTiN) is the most suitable end-mill coating for machining aluminum and aluminum alloys due to its high heat and abrasion resistance.

Q: What are the benefits of using coated end mills over uncoated ones?

A: Coated end mills provide increased tool life, better performance in high-temperature applications, improved wear resistance, and enhanced chip evacuation compared to uncoated end mills.

Q: What factors should be considered when selecting an end mill coating?

A: When selecting an end mill coating, factors such as the type of material being cut, the cutting speed, the feed rate, and the desired surface finish should be considered. Choosing a suitable coating can significantly impact the cutting performance.

Q: How can end mill coatings improve the efficiency of machining operations?

A: End mill coatings improve the efficiency of machining operations by reducing tool wear, allowing for higher cutting speeds and feeds, enhancing chip evacuation, and providing better tool material compatibility, resulting in smoother and more precise cuts.
