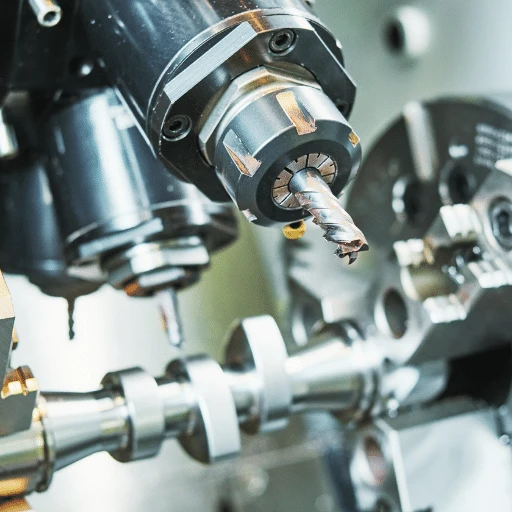

What is an End Mill Bit, and what are its Types?

An end mill bit is a cutting tool used predominantly in milling machines or machining centers to perform milling operations. It is essential in the manufacturing and metalworking industries, enabling precision cutting, shaping, and drilling of a wide range of materials. Unlike drill bits, which cut only in the axial direction, end mill bits can cut in all directions, making them incredibly versatile for creating complex shapes and surfaces.

End mill bits come in various types, each designed for specific milling tasks. The most common types include:

Flat-end mills: Ideal for creating flat surfaces and square edges.
Ball nose end mills: Used for milling contoured surfaces, slotting, and pocketing.
Corner radius end mills: Feature rounded corners to increase tool life and reduce chipping.
Roughing end mills: Also known as “ripped” or “hog” cutters, roughing end mills are used in roughing operations where large amounts of material must be removed quickly.

Each type of end mill bit is available in different sizes, materials, and coatings, which are selected based on the material being machined and the specific requirements of the task.

Different Types of Flutes in End Mill Bits

Flutes are the cutting edges found on an end mill bit, responsible for removing material as the bit rotates in a milling machine. The flutes’ number, shape, and configuration play a crucial role in the bit’s performance and the finish of the milled surface. Generally, end mill bits come with varying numbers of flutes, typically ranging from 2 to 8, each serving different machining purposes and materials:

2 Flute End Mills: Primarily used for machining soft materials like aluminum, these bits provide excellent surface finish and higher chip removal rates due to their larger flute areas.
3 and 4 Flute End Mills: These are the most versatile flutes, suitable for various materials, including steel and cast iron. They offer a good balance between the cutting-edge’s strength and the flute’s size for chip removal.
5 Flute End Mills: Designed for machining more complex materials, these bits provide higher feed rates and finer finishes. They are instrumental in high-efficiency milling applications.
6 to 8 Flute End Mills: With more cutting edges, these end mills are ideal for finishing operations, producing smoother surface finishes. However, due to the reduced space for chip evacuation, they are typically used in applications with a higher emphasis on finish than material removal rate.

Selecting the correct type of flute configuration is essential for optimizing the machining performance, tool life, and surface quality of the manufactured part.

Why Consider a 3/8 End Mill Bit?

Advantages of Using a 3/8 End Mill Bit

The 3/8 end mill bit presents several advantages for precision machining, making it a versatile tool for various applications.

Enhanced Precision: The size of the 3/8 end mill allows for greater precision in detailed machining tasks. Its diameter balances strength and accessibility, enabling it to create intricate details and tight geometries accurately.
Versatility: This bit size can perform well in roughing and finishing operations on various materials, from metals to plastics. This adaptability reduces the need for tool changes, saving time and enhancing efficiency in the machining process.
Increased Tool Life: The robust construction and optimal size of the 3/8 end mill contribute to longer tool life. This is due to its ability to dissipate heat effectively and handle cutting stresses, thereby reducing wear and tear.
Improved Surface Finish: The 3/8 end mill’s precise cutting capabilities allow it to produce high-quality surface finishes when used in finishing applications. This is beneficial for applications where aesthetic quality or detailed accuracy is paramount.
Cost-Effectiveness: The 3/8 end mill bit can be a cost-effective tool choice due to its durability and versatility. Its extended tool life and ability to perform multiple machining operations can lower overall tooling costs.

In summary, a 3/8-inch end mill bit offers significantly increased precision, versatility, and cost-effectiveness, making it an invaluable addition to the machining toolkit.

Factors Influencing the Choice of a 3/8 End Mill Bit

Several factors come into play when selecting a 3/8 end mill bit for machining operations. Understanding these considerations is crucial for optimizing tool performance and achieving desired outcomes in manufacturing processes.

Material Compatibility: The type of material being machined is a primary consideration. Different materials, ranging from soft plastics to hardened steels, require end mills with specific geometries, coatings, and substrates to efficiently and effectively cut without premature wear or damage to the tool or workpiece.
Type of Machining Operation: The specific machining operation—whether it is slotting, profiling, contouring, or finishing—has a significant impact on the selection of an end mill. The 3/8 end mill’s versatility allows it to perform well in various operations, but the optimal choice depends on the specific requirements of each task.
Machine Tool Characteristics: The capabilities of the CNC machine, such as power, rigidity, and available tool paths, also influence the choice of an end mill size and type. A 3/8 end mill requires a machine that can provide sufficient cutting forces without compromising precision or surface finish.
Cutting Parameters: Optimizing cutting parameters like spindle speed, feed rate, depth of cut, and coolant usage is essential for maximizing the performance of a 3/8 end mill. These parameters must be adjusted according to the end mill’s specifications and the characteristics of the workpiece material.
Cost Considerations: Cost plays a pivotal role in the selection process. While the 3/8 end mill is a cost-effective option due to its durability and versatility, the initial investment and operating costs should be evaluated against the expected tool life and performance benefits.

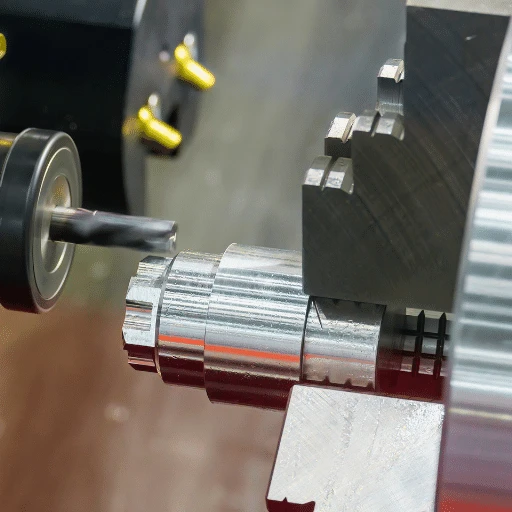

How to Choose the Right 3/8 End Mill Bit?

Factors to Consider When Selecting the Diameter

The diameter of an end mill directly influences its cutting performance and the finish of the machined part. Smaller diameters allow for tighter contours and finer details, while larger diameters provide increased strength and allow for more aggressive material removal rates. When selecting the diameter of a 3/8 end mill, consider the following:

Precision and Detail: A smaller diameter end mill may be preferable if the machining operation requires high precision and intricate details. However, the 3/8 inch size balances precision and strength, making it suitable for various applications.
Material Removal Rate (MRR): For operations where speed and efficiency are paramount, a larger diameter end mill can remove material more quickly. The 3/8 end mill can achieve a high MRR while maintaining a satisfactory surface finish and dimensional accuracy.
Surface Finish Requirements: The final part’s desired surface finish affects diameter choice. Smaller diameters generally produce finer finishes, but the 3/8 end mill can achieve impressive finishes with the correct cutting parameters and tool paths.
Tool Strength and Rigidity: Larger diameters provide greater strength and rigidity, reducing the risk of tool breakage and vibration during machining. The 3/8 end mill is robust enough for most materials and machining operations, balancing tool life and performance.

Exploring Different Flute Configurations for Specific Applications

Flute configuration is another critical aspect in selecting a 3/8 end mill. Flutes are the grooves or valleys cut into the body of the end mill that allows for chip removal, cooling, and the reduction of friction. Consider the following when selecting flute configurations:

Two—and Three-Flute End Mills: Ideal for machining softer materials like aluminum or plastic, these configurations provide excellent surface finishes and high chip removal rates. The fewer flutes allow for bigger chip gullets, facilitating efficient chip evacuation.
Four-Flute End Mills: A more versatile option, four-flute end mills are suitable for a broader range of materials, including steel and iron. They balance chip removal and strength well, making them ideal for roughing and finishing operations.
High-Performance Variants: For specific applications, high-performance end mills with variable flute counts, helix angles, and coating technologies are available. These are designed to tackle challenging materials and applications, providing superior performance, tool life, and finish.

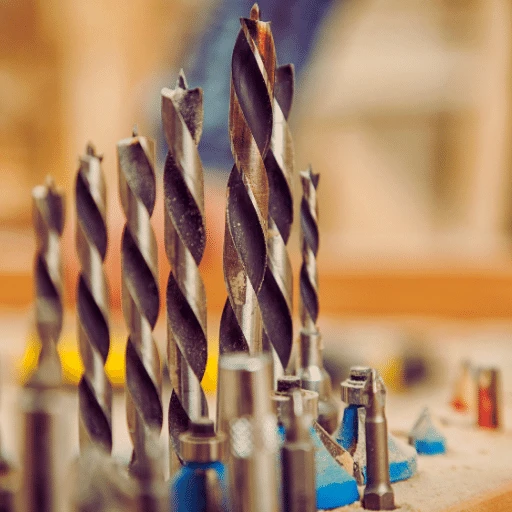

Tips for Maintaining and Extending the Life of Your 3/8 End Mill Bit

Proper maintenance is paramount in extending the operational life of a 3/8 end mill bit. Below are some techniques and practices that can help achieve this goal:

Cleaning After Use: Always clean your end mill bit after each use. Use a soft brush to remove chips and debris from the flutes gently. Avoid using compressed air, which can force particles into the tool holder or spindle, potentially causing damage.
Ultrasonic Cleaners: Ultrasonic cleaners can be used to clean more thoroughly. These devices use high-frequency sound waves to remove contaminants from hard-to-reach areas. Ensure that the cleaning solution used is compatible with the material of your end mill to prevent corrosion or degradation.
Storage Solutions: Store your end mill bits in a clean, dry, and temperature-controlled environment to prevent rust and corrosion. Original cases or protective sleeves are recommended to guard against physical damage. Consider using a desiccant or silica gel packet in your storage area to control moisture.
Avoiding Excessive Heat: Excessive heat during machining can significantly reduce the lifespan of your end mill bit. Ensuring proper coolant flow, optimizing cutting parameters, and using appropriate feed rates can help dissipate heat and reduce the tool’s thermal impact. Inspections: Periodically inspect your end mills for wear, chipping, or irregularities. Early detection of these issues can prevent further damage and extend the tool’s useful life. Use a magnifying glass or a microscope for a detailed examination.

Implementing these practices will extend the life of your 3/8 end mill bit and ensure optimal performance, reducing downtime and machining errors.

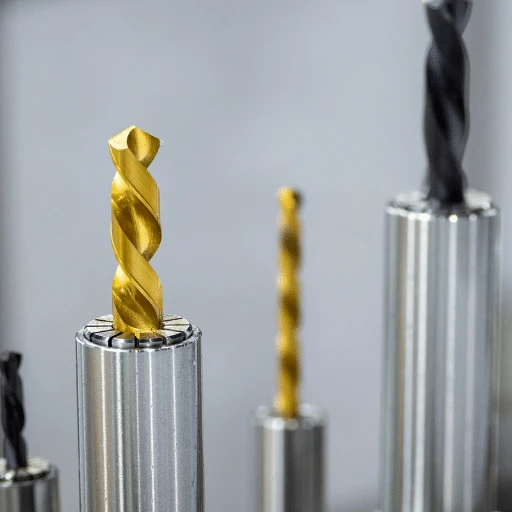

How to Use a 3/8 End Mill Bit for CNC Machining?

Optimizing Cutting Speeds and Feeds for Efficient Results

The selection of cutting speeds and feeds is critical in CNC machining to achieve efficient material removal while ensuring the longevity of the end mill bit. Proper optimization involves:

Understanding Material Properties: Different materials impose varying resistance levels during cutting. Hard materials typically require slower cutting speeds to minimize wear on the end mill bit, whereas softer materials can be machined faster without significantly damaging the tool.
Considering End Mill Specifications: The design and geometry of a 3/8 end mill bit, including the number of flutes, affects the optimal speed and feed rates. Higher flute counts are ideal for finer finishes at lower feed rates, while lower flute counts enable more efficient material removal at higher feed rates.
Implementing Chip Load Calculations: Chip load refers to the material removed per cutting edge per revolution. Maintaining an appropriate chip load is essential for preventing tool breakage and ensuring efficient machining. Calculators and manufacturer guidelines provide a starting point for these calculations, but adjustments may be necessary based on real-world results and machine capabilities.
Leveraging CAM Software: Modern Computer-Aided Manufacturing (CAM) software allows users to simulate and optimize cutting conditions before actual machining, fine-tuning speeds, and feeds based on the specific setup and material.

Utilizing Suitable End Mill Bit Materials for Different Workpieces

The choice of end mill material significantly influences performance and outcomes when machining different workpieces. Key considerations include:

Carbide End Mills: Offering excellent hardness and heat resistance, carbide end mills are suitable for various materials, particularly for machining metals such as steel and aluminum. However, carbide is more brittle than some alternatives, requiring careful handling to avoid chipping.
High-Speed Steel (HSS) End Mills: HSS offers superior toughness to carbide, making it more forgiving under suboptimal conditions. While not as durable at high temperatures, HSS is a cost-effective choice for machining softer materials or for operations where extreme precision is less critical.
Coated End Mills: Coatings such as titanium nitride (TiN), aluminum titanium nitride (AlTiN), or diamond enhance the performance and lifespan of end mill bits. These coatings provide increased hardness, thermal protection, and reduced friction, making them suitable for challenging materials, including stainless steel and titanium.
Selecting the Right Tool for the Material: Matching the end mill material and coating to the workpiece material is crucial. Consulting with tool manufacturers and leveraging industry experience can guide the selection process, ensuring that the chosen tool provides the best balance between performance, durability, and cost.

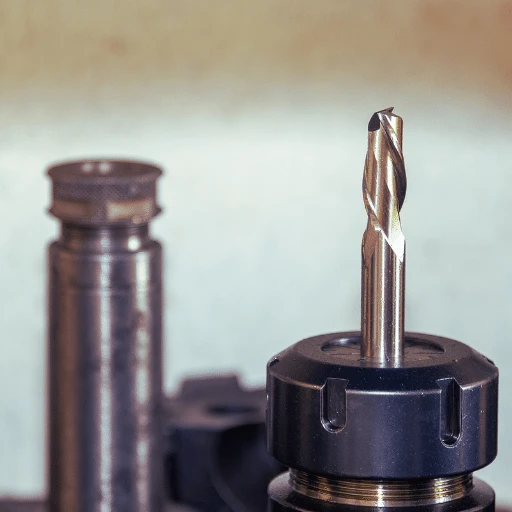

Frequently Asked Questions

Q: What are the top tips for choosing 3/8 end mill bits?

A: When choosing 3/8 end mill bits, consider the number of flutes, such as three or single-end options. Consider the length, material (solid carbide), coatings like TiCN or ZrN, and whether they are center cutting for versatility.

Q: How can I ensure I order the right end mill bit?

A: To ensure you order the right end mill bit, double-check the specifications, including size, flute count, material, coating, and type (center or non-center cutting).

Q: What are some typical applications for 3/8 end mill bits?

A: 3/8-inch end mill bits are commonly used for routing, slot cutting, and producing various shapes in wood, plastic, and metal.

Q: Are there any tips for using 3/8 end mill bits effectively?

A: When using 3/8 end mill bits, ensure they are correctly secured in the collet or chuck, use the appropriate speed and feed rates for the material being worked on, and always wear safety gear.

Q: Can you recommend related products that complement 3/8 end mill bits?

A: Related products that complement 3/8-inch end mill bits include router collets, end mill holders, cutting fluid, and spindle speed controllers.

Q: How do I determine if an end mill bit suits my project?

A: Determine if an end mill bit is suitable for your project by checking if it is the right size, material, and type (center or non-center cutting) and has the appropriate number of flutes.

Q: What should I do if I encounter excess vibration or chattering while using 3/8 end mill bits?

A: If you encounter excess vibration or chattering while using 3/8 end mill bits, try reducing the cutting speed, increasing the feed rate, or using a different type of end mill bit with more flutes to improve stability.
