Selecting the appropriate end mills is paramount to fully leverage the capabilities of your CNC (Computer Numerical Control) machinery. High-quality 3/16 end mills are instrumental in achieving precise cuts, optimal finish quality, and increased material removal rates. These end mills are specifically designed to meet the rigorous demands of CNC machining, offering unparalleled precision and durability. By integrating these specialized tools into your machining process, you can significantly enhance the efficiency and the quality of your manufacturing operations, ensuring consistent, high-quality output across a wide range of materials and applications.

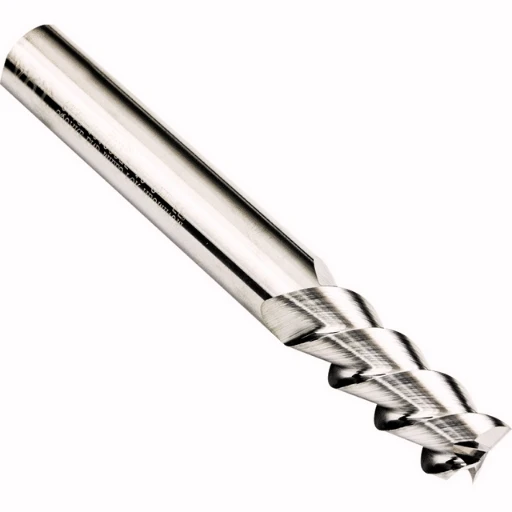

Choosing the Right Square End Mills for Precision Cutting
Understanding Square vs. Ball Nose End Mills
Square and ball nose end mills serve distinct purposes in CNC machining, catering to different geometries and finishing requirements. Square end mills have flat cutting edges and are primarily used for making square cuts and creating slots with straight walls and flat bottoms. Conversely, ball nose end mills feature a rounded cutting edge. They are optimal for producing three-dimensional contour shapes in materials, making them ideal for machining complex surfaces with a high-quality finish.
Factors to Consider When Selecting a Square End Mill
When choosing a square-end mill for precision cutting, several critical factors must be considered to ensure optimal performance and longevity of the tool:
- Material Compatibility: The end mill’s material should be compatible with the workpiece’s. Common materials for end mills include solid carbide, high-speed steel (HSS), and cobalt.
- Coating: Coatings like TiAlN (Titanium Aluminum Nitride) or AlTiN (Aluminum Titanium Nitride) can significantly increase the tool’s hardness and heat resistance, enhancing performance in hard materials.
- Cutting Diameter: The diameter of the end mill affects both the cutting speed and the resolution of the cut. Smaller diameters allow for finer, more detailed work, while larger diameters provide faster material removal rates.
- Shank Size: Ensure the size is compatible with your CNC machine’s collets or holders for a secure fit and precise operation.
- Flute Count: The number of flutes on an end mill affects the cut’s finish and the speed at which material can be removed. Flutes also impact the chip removal efficiency during the cutting process.
The Importance of Flute Count in Square End Mills
The flute count on square-end mills directly influences the tool’s performance in various materials and applications. Here’s a general guide:
- Two to Three Flutes: Ideal for aluminum and non-ferrous materials. Fewer flutes provide excellent chip removal space, reducing the risk of clogging and heat buildup.
- Four or More Flutes: This tool is suitable for steel, stainless steel, and other hard materials. A higher flute count increases the tool’s strength, allowing for higher feed rates and better finish quality on denser materials.
Choosing the correct flute count depends on the machined material, the desired surface finish, and the machining speed. Balancing these factors to achieve efficient, high-quality cuts without compromising tool life or workpiece integrity is crucial.
Exploring the Benefits of Carbide End Mills for Durable Machining
Why Choose Solid Carbide End Mills?
Regarding machining, the choice of tool material is paramount for achieving desired results. Solid carbide end mills are preferred for several reasons:
- Superior Wear Resistance: Carbide is much more complicated than High-Speed Steel (HSS), translating to a longer tool life. This means carbide end mills can maintain their cutting-edge sharpness far longer, reducing the need for frequent tool changes.
- High-Temperature Tolerance: Carbide can withstand higher temperatures than HSS. Hence, carbide end mills can operate at higher speeds without losing their cutting efficiency, making them ideal for high-speed machining applications.
- Better Finish Quality: Carbide’s rigid nature allows for higher precision and produces a better finish on the workpiece. This is critical in applications where surface finish is a priority.
- Versatility: Carbide end mills can cut through more complex materials more efficiently than HSS, including stainless steel and titanium, making them highly versatile across various industries.
Comparing Carbide and High-Speed Steel (HSS) End Mills
When debating between carbide and HSS end mills, key parameters to consider include:
- Tool Life: Carbide offers significantly longer tool life due to its hardness and wear resistance.
- Cutting Speed: Carbide’s ability to withstand higher temperatures allows for faster cutting speeds, which in turn results in more efficient machining.
- Material Compatibility: While HSS suits softer materials, carbide is the go-to for more rigid materials.
- Cost: Carbide end mills are initially more expensive than HSS. However, the longer tool life and higher productivity of carbide often offset the upfront cost.
Maximizing Tool Life with Carbide End Mills
To maximize the tool life of carbide end mills, consider the following strategies:
- Appropriate Tool Selection: Choosing the suitable end mill for the material and application is critical. Factors like flute count, coating, and geometry should align with the specific machining task.
- Optimal Feed and Speed Rates: Utilizing the correct feed and speed rates for the material can prevent excessive wear and tear on the tool.
- Proper Chip Evacuation: Ensuring efficient chip evacuation can reduce the risk of re-cutting chips, which can wear down the tool prematurely.
- Use of Coolant or Lubricant: While not always necessary, coolant or lubricant can help minimize heat buildup and prolong tool life in some applications.
In conclusion, while the choice between carbide and HSS end mills depends on specific project requirements, solid carbide end mills’ advantages in terms of durability, efficiency, and overall performance make them a superior choice in many machining applications.
How to Enhance CNC Machining with Coated End Mills
Overview of Popular Coatings: TiN, TiCN, and AlTiN
Coatings on end mills are pivotal in enhancing tool performance, extending service life, and maintaining cutting efficiency across diverse applications. Among the various coatings available, Titanium Nitride (TiN), Titanium Carbonitride (TiCN), and Aluminum Titanium Nitride (AlTiN) stand out due to their superior properties.
- Titanium Nitride (TiN): Recognized for its distinct gold color, TiN offers excellent hardness and lubricity, thus reducing friction and preventing wear. It’s ideally suited for general-purpose machining across a wide range of materials, improving tool life significantly under proper conditions.
- Titanium Carbonitride (TiCN): With a higher hardness than TiN, TiCN provides even better resistance to wear and has a reduced affinity for aluminum, making it ideal for machining abrasive and hard materials. Its application is optimal in situations demanding higher cutting speeds and feeds, contributing to increased durability and performance.
- Aluminum Titanium Nitride (AlTiN): Exhibiting an exceptional ability to resist heat, AlTiN is suitable for high-temperature cutting environments. It excels in machining hardened steels and aerospace alloys where thermal stability is essential. The coating significantly reduces wear and increases tool life in challenging applications.
Boosting Performance with the Right Coating for Your Application
Selecting the proper coating for your end mill depends on understanding the specific demands of your machining application, including material hardness, cutting speeds, and the presence of abrasive materials. Each coating type brings distinct advantages:
- Material to be machined: For instance, AlTiN is preferred for high-temperature alloys and hardened materials, while TiCN is excellent for more complex, more abrasive materials.
- Cutting environment: High-temperature scenarios leverage AlTiN’s superior thermal stability, whereas TiN offers versatility across various temperatures and materials.
- Desired lifespans and performance outcomes: TiCN can significantly extend tool life in the suitable applications compared to TiN, with AlTiN providing even more excellent durability in optimal environments.
The Role of Coatings in Extending the Life of End Mills
Applying the suitable coating to an end mill directly impacts its lifespan and efficiency in material removal. By minimizing wear and tear, reducing friction, and providing a barrier against the harsh machining environment, coatings enable end mills to maintain their cutting-edge sharpness longer, thus ensuring more consistent performance. The choice of coating can often be the determining factor in achieving economic and technical efficiency in CNC machining processes.
Maximizing Productivity with High-Performance 2-Flute and 4-Flute End Mills
The Difference Between 2-Flute and 4-Flute End Mills
Understanding the structural and functional differences between 2-flute and 4-flute options is paramount when assessing end mills. A 2 flute end mill is generally used for machining non-ferrous materials like aluminum because it provides an excellent balance between the speed of material removal and the finish, with its more extensive flute valleys ensuring efficient chip evacuation. On the other hand, four flute end mills are favored for ferrous material applications, such as stainless steel and titanium, because the additional flutes provide a finer finish and allow for faster feed rates, albeit with reduced chip clearance that demands more careful management.
Choosing the Best Flute Count for Specific Materials
For Aluminum and Non-ferrous Materials: A 2-flute end mill is typically recommended because it can operate at higher speeds and provides more extensive flute valleys for effective chip evacuation.
For Steel, Stainless Steel, and Titanium: A 4-flute end mill is generally preferred, as the extra flutes allow for a better surface finish and increased productivity due to higher feed rates. However, chip evacuation must be managed carefully to avoid clogging and tool failure.
Tips for Optimizing Feed and Speed Rates
- Material Hardness: Adjust feeds and speeds to accommodate material hardness; more complex materials typically require slower speeds and lighter feeds.
- Tool Condition: Regularly assess the condition of the tool. A sharp tool can operate at higher feeds and speeds, while a dull tool requires adjustments to prevent damage and ensure quality finishes.
- Depth of Cut: Shallower cuts can typically be performed at higher speeds, while deeper cuts may require a speed reduction to maintain tool life.
- Coolant Use: Coolant can affect feeds and speeds; for example, some applications may benefit from higher speeds with flood cooling to improve chip evacuation and reduce tool wear.
By considering these core differences and optimizing accordingly, machinists can improve operational efficiency and achieve superior machining outcomes.
The Essential Role of Shank Diameter and Overall Length in Selecting End Mills
How Shank Diameter Influences CNC Tool Compatibility
The shank diameter of an end mill plays a pivotal role in its compatibility with CNC machines, as it must match the machine’s collet or tool holder size. A mismatch can lead to improper tool clamping, causing inaccurate machining and potentially damaging the tool and workpiece. Ensuring a proper fit between the shank diameter and the machine’s tool holder is crucial for maintaining stability during machining processes, ensuring precision and preventing tool deflection or breakage.
Understanding the Impact of Overall Length on Machining Precision
The overall length of an end mill affects its machining precision in several ways. A longer end mill can reach deeper into the workpiece but tends to be less stable and more prone to deflection. This deflection can compromise the dimensional accuracy of the cut and result in a poorer surface finish. Conversely, shorter-end mills, while offering increased stability and reduced risk of deflection, may not be suitable for machining in deep cavities. Selecting an end mill with the correct overall length is vital for balancing machining precision with the requirement to reach the workpiece effectively.
Selecting the Correct Length of Cut for Your Project
The cut length needed for a project depends on the depth of the material to be removed and the specific machining operation being performed. Key parameters to consider include:
- Material Thickness: Thicker materials may require a longer cut to machine through in a single pass.
- Type of Machining Operation: Roughing operations can often be performed with a longer cut length, while finishing operations may benefit from a shorter cut length for enhanced precision.
- Tool Stability: Tools with a longer length of cut are more susceptible to vibration and deflection, which can affect machining accuracy and surface finish.
By meticulously selecting an end mill that harmonizes the shank diameter with your CNC machine’s capabilities, opts for an overall length that ensures stability and accuracy, and chooses a size of cut tailored to your material and machining needs, you can notably enhance machining efficiency, precision, and outcomes.
Finding Quality 3/16 End Mills for Your Next Project
Navigating Catalog Features and Specifications
When browsing through catalogs for 3/16 end mills, it’s essential to comprehend the various features and specifications to identify the right tool for your project. Look for specifications such as material composition (e.g., carbide, high-speed steel), coating (e.g., TiAlN, AlCrN) for increasing tool life and performance in specific materials, and flute geometry (e.g., number of flutes, helix angle) which can significantly impact the machining process. Additional key parameters include tolerance, shank diameter, and cutting edge length. Understanding these specifications will allow you to accurately match the end mill’s capabilities with the demands of your machining operation.
Why Quality Matters: Ensuring Longevity and Precision
The quality of the end mill directly influences both the machining operation’s precision and the tool’s longevity. High-quality end mills are designed to withstand machining stresses, reducing the risk of breakage and ensuring consistent performance. This consistency is crucial for maintaining tight tolerances and achieving superior surface finishes. Additionally, a higher quality tool can endure more uses before becoming dull, offering a better long-term investment by minimizing replacement costs and machine downtime.
Tips for Ordering the Right End Mill Online
To ensure you order the suitable end mill for your project, consider the following tips:
- Clearly Define Your Machining Needs: Understand the material you will be machining, the type of machining operation (roughing, finishing), and any specific challenges your project presents.
- Review Available Specifications Carefully: Match your project requirements with the tool’s specifications, paying close attention to material, coating, and geometry.
- Seek Expert Advice if Needed: When unsure, utilize the expertise of technical customer service or forums. Their insights can guide you to the optimal tool choice.
- Read Product Reviews: Feedback from other users can provide valuable insights into a tool’s performance and durability.
- Verify Compatibility with Your Machine: Ensure the selection harmonizes with your CNC machine’s capabilities, especially concerning shank diameter and power requirements.
By meticulously navigating catalog features, understanding the importance of quality, and following these tips for online ordering, you can significantly increase the likelihood of selecting end mills that enhance your machining efficiency, precision, and outcomes.
