Tapered ball nose end mills are highly specialized tools for precision 3D carving and complex contour milling in materials ranging from soft plastics and aluminum to hardwoods and metals. Featuring a unique tapered shape and precision-ground ball nose, these end mills enable machinists and hobbyists to achieve exceptional detail and smooth finishes on intricate three-dimensional surfaces. The tool’s geometry reduces the contact point with the material, which minimizes tool marks, yields a superior surface finish, and allows for more precise control over the milling process. Tapered ball nose end mills represent a critical component in the arsenal of advanced manufacturing and craftsmanship tools, ideal for applications requiring high levels of detail, such as mold making, sculpting, and prototype development.

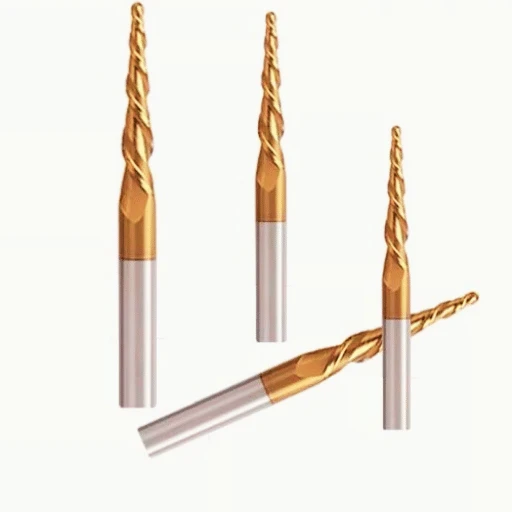

What Makes Tapered Ball Nose End Mills Essential for 3D Carving?
Understanding the Geometric Benefits of a Tapered Ball Nose Design
The geometry of a tapered ball nose end mill is meticulously designed to optimize the machining of complex 3D surfaces. This specialized geometry offers several distinct benefits when compared to standard end mills:
- Reduced Contact Area: The tapered design results in a smaller contact area with the material, significantly reducing the likelihood of tool marks. This is invaluable for achieving a high-quality surface finish on the final product.
- Increased Strength: The taper provides greater structural integrity to the tool. This enhanced strength allows for milling more complex materials without compromising the tool’s lifespan.
- Improved Detailing: The precision-ground ball nose efficiently removes material along intricate contours, enabling more detailed and accurate 3D Carving.
- Versatility: Tapered ball nose end mills can handle various materials and surface complexities, making them suitable for diverse applications, from aerospace components to detailed sculptural work.
Comparing Tapered Ball Nose End Mills to Standard End Mills
While standard end mills are efficient for various milling tasks, tapered ball nose end mills are specifically engineered for 3D Carving and complex contouring. The key differences are:
- Surface Finish: Tapered end mills often yield a superior surface finish on 3D surfaces due to their reduced contact area and optimized cutting geometry.
- Detailing Capability: The ball nose tip of these end mills allows for more detailed and precise Carving, especially in tight or intricate areas where standard end mills may not perform as well.
- Material Versatility: Thanks to their enhanced design, tapered ball nose end mills can efficiently work across a broader range of materials, maintaining effectiveness and durability.
The Role of the Taper Angle in Enhancing Detailing and Finish
The taper angle in tapered ball nose end mills is critical for several reasons:
- Control and Precision: The taper angle contributes to the overall power and precision during the milling process, creating complex geometries with high levels of detail.
- Minimizing Tool Marks: The taper angle facilitates a smaller contact area, drastically reducing the occurrence of tool marks, which is essential for a smooth and aesthetically pleasing finish.
- Optimizing Feed Rates: Proper taper angles enable machinists to optimize feed rates, balancing speed and precision to maximize efficiency and outcome.
In summary, the geometric design of tapered ball nose end mills, emphasized by the taper angle and the ball nose tip, makes these tools indispensable for high-precision 3D Carving and contour milling. Their ability to produce detailed work with minimal tool marks while maintaining structural integrity across diverse materials sets them apart in advanced manufacturing and craftsmanship.

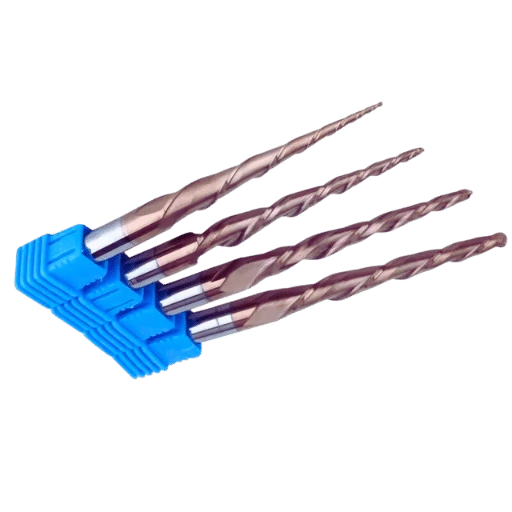

How to Choose the Right Tapered Ball Nose End Mill for Your Project
Assessing Material Compatibility: Wood, Plastic, and Metal
When selecting the suitable tapered ball nose end mill for your project, understanding the material compatibility is crucial. Wood, plastic, and metals pose distinct challenges and demand specific tool characteristics for optimal performance.
- Wood: Requires end mills that can evacuate chips efficiently to prevent clogging and burning. A larger flute count benefits smoother finishes, but care must be taken to avoid excessive heat.
- Plastic tends to melt or deform if not machined at appropriate speeds and feeds. Single or low flute count end mills with sharp edges and high rake angles are preferred to reduce heat and friction.
- Metal: Demands end mills made of materials like carbide for durability. The choice between high-speed steel (HSS) and carbide depends on the metal’s hardness. A higher flute count is essential for metal finishing operations to ensure precision and a fine surface finish.
Deciphering the Specifications
Understanding the specifications of tapered ball nose end mills is vital to match tool capabilities with project requirements.
- Shank Diameter: Determines the tool’s compatibility with the spindle holder of the machining center. Larger diameters offer more stability but require a machine capable of accommodating them.
- Flute Length: The depth of the cut can be impacted. Longer flutes allow for deeper cuts but may introduce more flex and reduce precision in intricate detailing.
- Angle: The taper angle influences the surface finish and detailing capability. Steeper angles are better for deep cavities in molds, while shallower angles provide finer surface details.
The Importance of Selecting the Correct Flute Count
The flute count of a tapered ball nose end mill directly affects its cutting performance and finish quality.
- Low Flute Count (2-3): Offers better chip removal and is ideal for roughing operations in softer materials like wood and plastic.
- High Flute Count (4-6): This provides a smoother finish by distributing the cutting force across more cutting edges. It is preferred for finishing operations, especially in more complex materials like metals.
Selecting the suitable tapered ball nose end mill involves balancing material properties, project requirements, and tool specifications. By carefully considering these factors, machinists and artisans can achieve precise and high-quality results in their machining operations.
Optimizing CNC Machine Settings for Tapered Ball Nose End Mills
Adjusting Feed Rates and Speeds for Optimal Performance
Achieving optimal performance with tapered ball nose end mills in CNC machining involves meticulous feed rates and speed adjustments. These parameters balance efficiency, tool longevity, and surface finish quality.
- Feed Rate: This is the speed at which the tool advances through the material and is measured in inches per minute (IPM). A slower feed rate often results in a finer finish but may increase machining time. Conversely, a faster rate speeds up the operation but can lead to subpar finish quality and increased wear on the tool. The ideal feed rate depends on the material hardness, tool size, and the desired finish.
- Spindle Speed: Measured in rotations per minute (RPM); this indicates how fast the end mill rotates. Higher speeds allow quicker cutting but can generate excessive heat, leading to premature tool wear and poor surface finish, especially in more rigid materials. It is finding a balance complements the feed rate, ensuring efficient machining without compromising tool integrity or workpiece quality.
Implementing Effective Tool Paths with Vectric and Other CNC Software
The choice of tool path strategies is pivotal in maximizing the efficiency and effectiveness of tapered ball nose end mills. Software like Vectric offers various tool path options tailored to specific project needs, enhancing the machining process and the result.
- Spiral or Ramp Movements: These tool paths gradually introduce the cutter to the workpiece, reducing initial shock and extending tool life. They are particularly useful for deep cuts or when working with brittle materials.
- 3D Adaptive Clearing: Adaptive clearing adjusts the cutting load on the fly for complex shapes or when working with mixed materials, optimizing material removal rates while protecting the tool and the machine.
- Finishing Passes: Implementing multiple finishing passes with reduced stepover can significantly improve surface finish. A smaller stepover leaves a smoother surface but requires more passes, affecting the total machining time.
Understanding the Impact of Cutting Depth and Stepover on Finish Quality
Cutting depth and stepover are critical factors that influence the finish quality of the machined product.
- Cutting Depth refers to how deep the tool cuts into the material with each pass. A deeper cut reduces the required passes to reach the desired depth, speeding up the machining process. However, it also imposes a more significant load on the tool, potentially affecting tool life and surface finish. Thus, a balance that suits the material and the desired outcome must be found.
- Stepover: The stepover is the lateral distance between each tool path pass. Smaller stepovers generally produce a higher-quality finish, as they leave behind less material and result in a smoother surface. The trade-off, however, is the increased time required to complete the project due to the more significant number of passes.
By carefully adjusting these parameters, machinists can significantly influence their CNC milling operations’ efficiency, surface quality, and overall success.

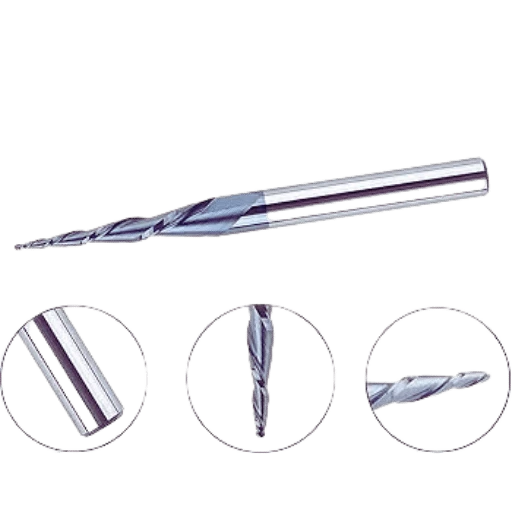

Maintaining Tapered Ball Nose End Mills for Longevity and Performance
Tips for Cleaning and Storing Your Tapered Ball Nose End Mills
Properly maintaining your tapered ball nose end mills ensures their longevity and performance in complex machining tasks. Here are essential tips for effective cleaning and storage:
- Cleaning: After each use, clean the tool to remove any residual material or coolant. Ultrasonic cleaning or blowing air is effective in dislodging trapped particles. Avoid harsh chemicals that may damage the tool’s coating.
- Storage: Store the end mills in a dry, cool place to prevent rust and corrosion. Use the original packaging or a protective sleeve to avoid physical damage and protect the cutting edges.
Recognizing Signs of Wear and When to Replace Your Tool
Monitoring the condition of your tapered ball nose end mills is crucial for maintaining the quality of your machining operations. Here are vital signs of wear to look out for:
- Dull Cutting Edges: A noticeable reduction in cutting performance or increased resistance during milling.
- Chipping: Small chips or breaks along the cutting edges.
- Discoloration: The tool’s color changes can indicate overheating or excessive wear.
- Fluting Wear: Wear along the flutes that reduce the efficiency of chip evacuation.
When these signs become evident, it’s time to replace the tool to ensure optimal machining performance and prevent damage to the workpiece.
Advanced Applications of Tapered Ball Nose End Mills in 3D Carving

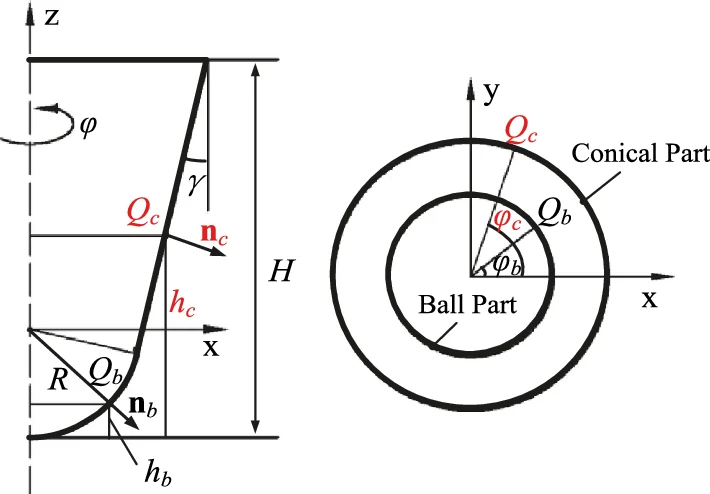

Image Source：www.researchgate.net
Tapered ball nose end mills achieve precision in intricate applications, ranging from detailed engraving work to creating complex 3D geometries. These tools are especially beneficial in 5-axis machining operations requiring the highest accuracy and flexibility. The unique geometry of tapered ball nose end mills allows efficient milling with optimal surface finish, making them ideal for sculpting precise 3D shapes in materials like metal, plastic, and wood.
Leveraging Tapered Ball Nose End Mills for 5-Axis Machining:
To maximize their potential in 5-axis machining, consider the following parameters:
- Tool Selection: Choose the correct taper angle and flute count based on the complexity of the design and material hardness. Smaller angles allow for more detailed work on steep or intricate surfaces.
- Feed Rate Adjustment: Optimize feed rates to balance between machining efficiency and surface finish quality. Lower rates may be required for fine detailing.
- Tool Path Strategy: Implement advanced tool path strategies, such as trochoidal or peel milling, to reduce tool wear and achieve smoother finishes.
Case Studies:
1. Engraving on Curved Surfaces: A renowned jewelry manufacturer utilized tapered ball nose end mills to engrave detailed patterns on curved metal surfaces. They achieved unparalleled detail without sacrificing efficiency by selecting a tool with a 1-degree taper and high spindle speed.
2. Complex 3D Sculpture: An artist specializing in large-scale wood sculptures adopted tapered ball nose end mills for their ability to carve intricate details and undercuts, impossible with standard tools. The selection of a tool with a 2-degree taper and multiple flutes allowed for smooth finishing and effective chip evacuation, significantly reducing the overall project time.
3. Aerospace Component Manufacturing: An aerospace company utilized tapered ball nose end mills to fabricate complex aluminum and titanium components requiring precision 5-axis machining. Carefully selecting a tool with a 0.5-degree taper angle and high-speed machining settings enabled them to meet tight tolerances and achieve a superior surface finish.
Manufacturers and artisans can significantly enhance the precision, efficiency, and quality of their 3D carving and machining projects by understanding and applying the specific characteristics and capabilities of tapered ball nose end mills.

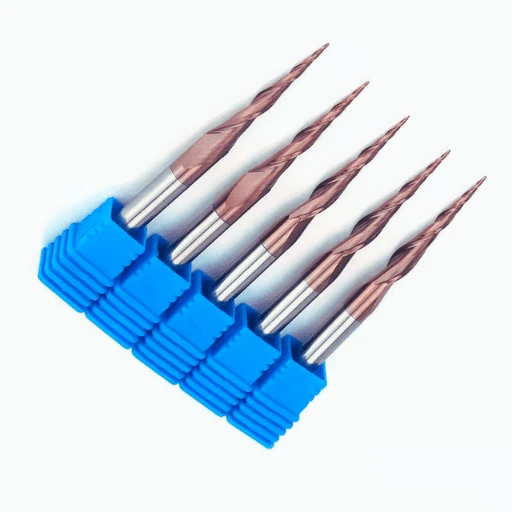

Common Problems and Solutions When Using Tapered Ball Nose End Mills
Addressing Common Challenges with Tapered Ball Nose End Mills
Chipping and Breakage
Chipping and breakage of the cutting tool are commonly encountered issues, primarily caused by improper feed rates, excessive tool load, and inadequate chip evacuation. To mitigate these problems:
- Adjust Feed Rate: Optimize the feed rate based on the machined material. Hard materials require slower feed rates to reduce tool stress.
- Tool Load Management: Ensure the tool load is consistent and does not exceed the manufacturer’s recommendations. Utilizing CNC software to simulate tool paths can identify potential overload conditions before actual machining.
- Optimize Chip Evacuation: Regularly clear chips from the cutting area to prevent re-cutting and excessive heat build-up, which can lead to tool breakage. This can be achieved by using compressed air, coolant systems, or chip fans.
Poor Finish on the Workpiece
A poor finish can result from several factors, including vibration, tool deflection, and inappropriate cutting parameters. To achieve a smoother finish:
- Ensure Rigidity: Increase system rigidity where possible by shortening the tool length, using thicker diameters, and ensuring a solid tool holder connection.
- Vibration Reduction: Implement vibration-damping techniques or materials to reduce chatter.
- Optimal Cutting Parameters: Fine-tune spindle speed, feed rate, and depth of cut based on the material and specific tool geometry. Higher spindle speeds and lighter cuts can often produce smoother finishes.
Excessive Wear
Excessive wear on tapered ball nose end mills negatively impacts tool life and machining accuracy. To prevent undue wear:
- Tool Material: Select the correct tool material for the job. For example, carbide end mills are better suited for more complex materials than high-speed steel.
- Coatings: Use tools with suitable coatings for the material being machined. For instance, titanium-aluminum-nitride (TiAlN) coatings can withstand high temperatures, making them ideal for machining rigid materials.
- Correct Parameters: Adhere to the manufacturer’s recommended cutting parameters for the specific end mill and material combination. Experimenting with slightly reduced feed rates or shallower depths of cut may also extend tool life without significantly impacting machining time.
By addressing these common challenges methodically and adjusting machining parameters carefully, the longevity and performance of tapered ball nose end mills in complex machining tasks can be significantly enhanced.
References
1. Vectric Customer Forum – Tapered Ball Nose Questions
- Source URL: Vectric Forum
Summary: The Vectric Customer Forum is an invaluable resource for CNC enthusiasts and professionals, offering a platform for sharing knowledge and experiences. This thread discusses the practical aspects of tapered ball nose end mills, including optimal settings for stepover, pass depth and clearance pass stepover. It’s a real-world view into how different users have approached their projects with these tools, making it an essential read for anyone looking to refine their 3D carving techniques.
2. Precise Bits – Carbide 2-flute Tapered Ball-nose 3D Carving Tools
- Source URL: Precise Bits Product Page
Summary: Precise Bits is known for its high-quality CNC tooling solutions, and its product page for carbide 2-flute tapered ball-nose end mills offers detailed information about the tools designed for 3D Carving in woods, plastics, and HDU (high-density urethane). The page lists specifications, applications, and guides you in choosing the right tool for specific materials and projects. This manufacturer’s insight is crucial for understanding the capabilities and limitations of tapered ball nose end mills, aiding in informed decision-making.
3. IDC Woodcraft – 3D Carving Taper Ball Nose End Mill Bit Set
- Source URL: IDC Woodcraft Product Listing
Summary: IDC Woodcraft offers a set of tapered ball nose end mill bits tailored for precision 3D carving. The product listing provides an overview of the set, which includes bits designed for fine and ultra-fine detail work. This direct source of product information is complemented by user reviews, offering insights into the performance and quality of the bits in real-world applications. This listing sheds light on one of the available options for readers interested in acquiring tools to enhance their CNC woodworking projects, highlighting the importance of selecting the right bit for achieving clean, detailed carvings.

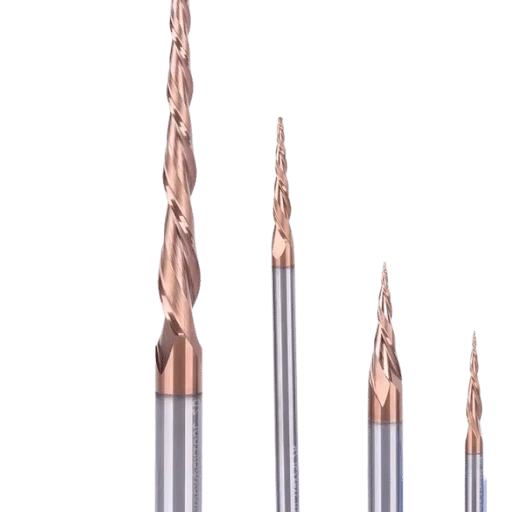

Frequently Asked Questions
Q: What is a tapered ball nose end mill?
A: A tapered ball nose end mill is a cutting tool for 3D Carving and machining. It features a rounded tip that tapers down to a smaller diameter at the end of the tool.
Q: How does a tapered ball nose end mill work on a workpiece?
A: An AA tapered ball nose end mill on a workpiece removes material by rotating and cutting with the rounded tip, allowing for intricate and detailed carving work.
Q: What are the advantages of using a tapered ball nose end mill for 3D Carving?
A: Tapered ball nose end mills provide high precision and accuracy in 3D Carving, allowing for smooth curved surfaces and intricate details on the workpiece.
Q: What materials can be machined using a tapered ball nose end mill?
A: Tapered ball nose end mills are suitable for machining various materials, including wood, plastic, aluminum, stainless steel, and high-temperature alloys.
Q: How does a tapered ball nose end mill differ from a standard one?
A: A tapered ball nose end mill features a rounded tip that tapers to a smaller diameter, allowing for more precise and intricate Carving than a standard end mill.
Q: Where can I purchase tapered ball nose end mills for 3D Carving?
A: You can shop online for various tapered ball nose end mills for 3D Carving from reputable manufacturers like SAMHO, offering high-quality cutting tools for your machining needs.
Q: Can a tapered ball nose end mill be used for hole drilling?
A: Tapered ball nose end mills are primarily designed for 3D carving and machining.. However, with the proper technique and tool setup They can also be used to drill holes in workpiecesp.
Q: How can I maximize the performance of a tapered ball nose end mill?
A: To maximize the performance of a tapered ball nose end mill, ensure proper tool selection, feeds, and speeds, as well as maintain sharp cutting edges for optimal results in 3D carving applications.
