End mills, crafted from high-speed steel, carbide, cobalt, or other materials, are engineered for precision in milling operations. Their design allows various applications, from creating intricate shapes and profiles to executing slotting and contouring processes. The cutting edges, which may be fluted for enhanced cutting capability, are integral to their versatility. Variations such as the number of flutes, the material composition, and the coating of the end mill directly influence machining efficiency, surface finish, and tool longevity. This specification diversity allows end mills to be meticulously selected for specific tasks in drilling, milling, and more, ensuring optimal performance in various materials, including metals, plastics, and composites.

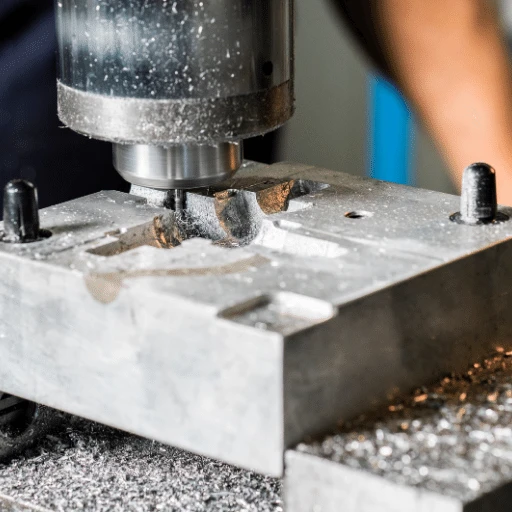

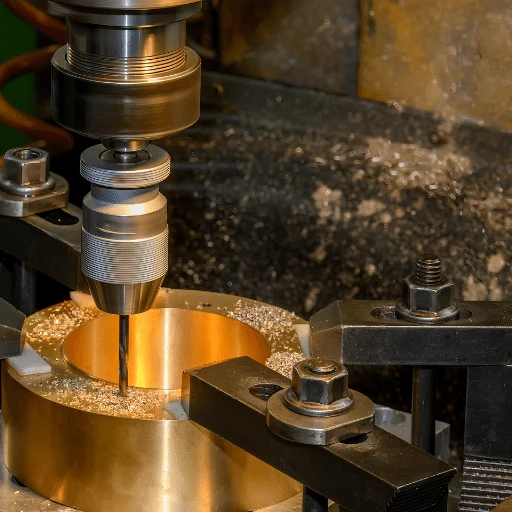

Understanding End Mills vs. Drill Bits: What’s the Difference?
Defining Key Characteristics of End Mills and Drill Bits
While seemingly similar, end mills and drill bits serve distinct purposes and exhibit different design features optimized for their specific tasks. End mills are primarily used in milling operations, characterized by their ability to cut in all directions—laterally and vertically. They come in various shapes, including flat, ball-nosed, and radius end mills, and are tailored for detailed milling tasks like profiling, contouring, and slotting. On the other hand, drill bits are designed to plunge directly into material to create cylindrical holes and are generally unsuitable for lateral cutting.
Exploring the Cutting Edge: Flute Differences
The flutes on both end mills and drill bits play a crucial role in cutting, but their designs serve different functions. End mills can have a wide range of flutes (anywhere from 2 to 8 is standard), affecting the cut’s finish and the chip removal speed. Fewer flutes ensure better chip ejection when cutting softer materials, while a higher number of flutes provide a finer finish and faster cutting speeds, ideal for more rigid materials. Drill bits, in contrast, typically have two flutes designed to efficiently remove chips upwards and out of the drilled hole, maintaining stability and speed during drilling tasks.
When to Use an End Mill and When to Use a Drill Bit
The choice between using an end mill or a drill bit depends on the specific requirements of the machining task.
Use an end mill:
- This is for complex milling tasks that require lateral cutting, such as profiling, slotting, and creating complex contours.
- When working on projects that demand precision and a fine finish.
- For materials requiring specific approaches, like aluminum or stainless steel, tool geometry, and feed speed are critical.
Use a drill bit:
- For creating deep, straight holes efficiently.
- When working with a broad range of materials, given that drill bit materials and coatings are versatile.
- In operations prioritizing speed over surface finish, drill bits can quickly penetrate most materials.
Selecting the right cutting tool involves considering the material, the desired outcome, and the machine’s capabilities. By understanding the key differences and applications of end mills and drill bits, machinists can optimize their tool selection for efficiency, precision, and longevity in their machining operations.

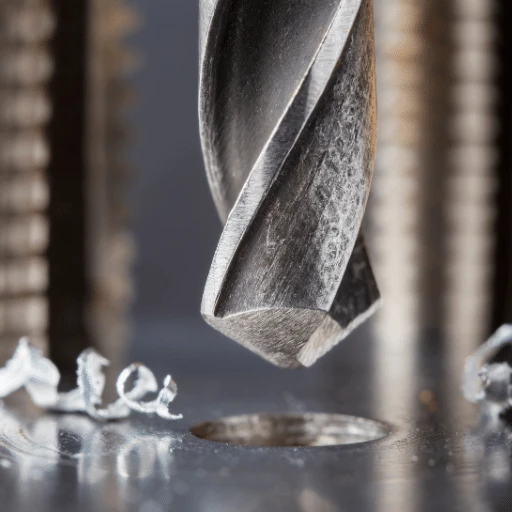

Choosing the Right End Mill for Your Drilling and Milling Needs
Types of End Mills: From Flat Bottom to Ball Nose
End mills are designed in various geometries to address many milling operations.
Flat bottom-end mills, characterized by their flat tips, are ideal for plunge-cutting and slotting operations. They produce a flat surface at the bottom of the cut, making them perfect for creating precise slots and pockets in a workpiece.
With a rounded tip ball nose end mills excel in contouring and finishing operations. Their unique geometry allows for smooth machining of complex surfaces and is often used in 3-D sculpting, mold making, and die sinking.
Material Matters: Carbide End Mills vs. Tungsten Carbide
Choosing the suitable material for your end mill affects performance, durability, and finish. Carbide end mills, made from solid carbide or carbide tips fused to steel bodies, are known for their hardness and heat resistance. They can operate at higher speeds than high-speed steel end mills and are preferred for their longevity and wear resistance, especially in challenging materials.
Tungsten carbide, a composite material containing equal parts tungsten and carbon atoms, is renowned for its extreme hardness and resistance to abrasion, which is even higher than solid carbide. This makes tungsten carbide end mills exceptionally durable, especiallyy for cutting rigid materials like stainless steel and titanium.
Selecting Flute Numbers for Optimal Performance
The choice of flute number on an end mill directly impacts its cutting performance and finish. Two- and three-flute end mills are commonly used for aluminum and other non-ferrous materials, offering efficient chip removal and good surface finish. In soft materials, fewer flutes allow for more oversized chip pockets, which translates to faster chip removal.
Four– or more fluted end mills are preferred for more complex materials. The higher flute count distributes the cutting force across more edges, reducing the chance of deflection and providing a finer finish. However, with more flutes, chip removal space is reduced, making them less ideal for slotting applications.
In summary, the optimal choice of end mill depends on the specific operation, the machining material, and the desired outcome. Understanding these parameters allows for selecting end mills that balance performance, precision, and longevity.

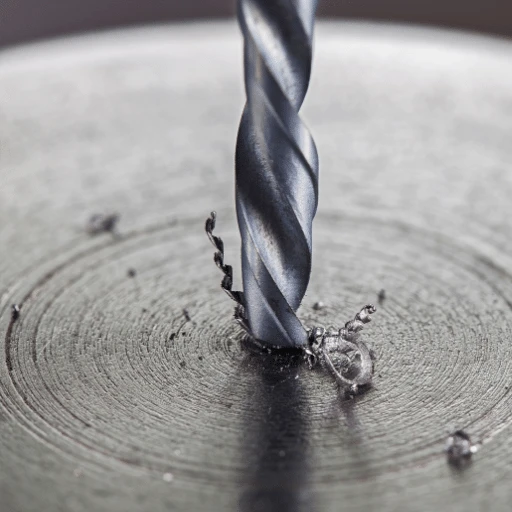

Best Practices for Using End Mills in a Drill Press or Milling Machine
Setting Up Your Machine: Drill Press vs. CNC Milling
When setting up machining operations, understanding the difference between a drill press and a CNC milling machine is crucial for achieving precision and optimal results. A drill press is typically used for straightforward drilling operations. Its strength lies in its ability to create precise holes quickly and easily. However, it lacks the versatility and precision in lateral movements that a CNC milling machine offers, which can precisely cut complex shapes and fine details in materials.
- Drill Press Setup
- Spindle Speed: Adjust according to the material and drill bit size. Refer to the manufacturer’s recommendations.
- Material Clamping: Use a vice or clamps to fasten the material, securely preventing movement during the operation.
- CNC Milling Machine Setup
- Tool Selection: Choose the appropriate end mill for the material and type of cut.
- Spindle Speed and Feed Rate: Set according to the end mill’s specifications and the material. CNC software often suggests optimal settings.
- Workpiece Clamping: Use precision clamps and ensure the workpiece is squared on the table. Consider using a vacuum table or fixture plates for additional stability for intricate operations.
Achieving Precision: Tips for Secure Clamping and Spindle Speed
- Secure Clamping: Regardless of the machine, the workpiece must be clamped securely to prevent movement. Inadequate clamping can lead to imprecision and even accidents. Use machine-specific clamps and always double-check the security of the setup.
- Spindle Speed: Correct spindle speed is critical to precision. Too fast, and you risk overheating or breaking the end mill. Too slow, and the material may not cut cleanly. Each material has an optimal speed range, which should be adhered to for best results.
Maintain Your Tools: Care and Storage of End Mills
- Cleaning: After each use, clean your end mills to prevent material build-up, which can affect performance. A simple brush or air blast can remove most debris. A solvent appropriate for the end mill material can be used for more challenging deposits.
- Storage: Avoid tossing used end mills into a bin where they can get damaged. Instead, store them in individual compartments or holders designed for cutting tools. This prevents chipping and keeps them readily accessible for their subsequent use.
- Inspection: Regularly inspect end mills for wear or damage. Dull tools require more force to cut, affecting precision and workpiece quality. Replace or re-sharpen tools as necessary to maintain optimal performance.
By carefully setting up your machine, whether a drill press or CNC milling, and applying best practices for secure clamping and proper spindle speed, you can significantly enhance the precision of your machining operations. Additionally, maintaining and properly storing your end mills ensures they remain in top condition and ready for the next task.

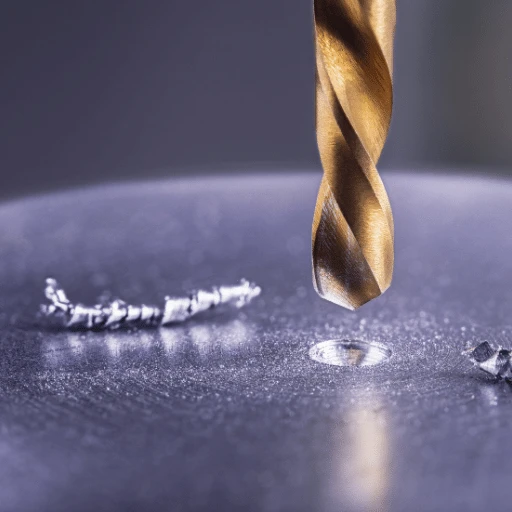

Advanced Techniques for Drilling with End Mills
Plunge Cutting with End Mills: How to Drill Holes Effectively
Plunge cutting with end mills is an effective method for drilling holes or creating pockets in a material. To maximize efficiency and precision, several steps and considerations are key:
- Tool Selection: Use an end mill designed explicitly for plunge cutting. These tools will have a center-cutting feature, allowing the end mill to drill straight into the material.
- Feed Rate: Adjust the feed rate according to the material’s properties and the size of the end mill. A slower feed rate may be necessary to prevent tool breakage, especially with more rigid materials.
- Peck Drilling: Implement a peck drilling strategy, where the end mill advances in small increments, then retracts to clear chips. This prevents overheating and reduces chip load.
- Coolant Use: Proper coolant or chip clearance techniques are essential to prevent tool wear and improve cut quality.
Slot Milling and Creating Flat Bottomed Holes with End Mills
Slot milling and creating flat-bottomed holes require precision and careful planning:
- End Mill Selection: Choose end mills with appropriate cutting lengths and flutes. More flutes offer a smoother finish but may reduce chip clearance.
- Programming Strategy: Programming the correct toolpath is crucial for CNC operations. A helical or ramping approach can reduce the load on the tool during initial entry.
- Depth of Cut: Adjust the cut depth to manage the end mill load. Multiple shallower passes may be more efficient than a single deep pass, especially in more rigid materials.
Using End Mills for Unconventional Drilling Tasks
End mills can perform unconventional drilling tasks, such as angled drilling or creating non-circular holes, with precision. Here’s how:
- Machine Capability: Ensure your machine can handle the complexity of the task, such as tilting the workpiece for angled holes.
- Tool Paths: Advanced CNC machines can be programmed with specific tool paths to create complex shapes and holes.
- Tool Selection: Use end mills with features suited to the specific task, like corner radius for smoother edges in irregular holes.
By understanding the capabilities and limitations of end mills for drilling and slotting tasks, machinists can achieve superior results in their machining operations. Planning, proper tool selection, and careful adjustment of parameters are essential to success.

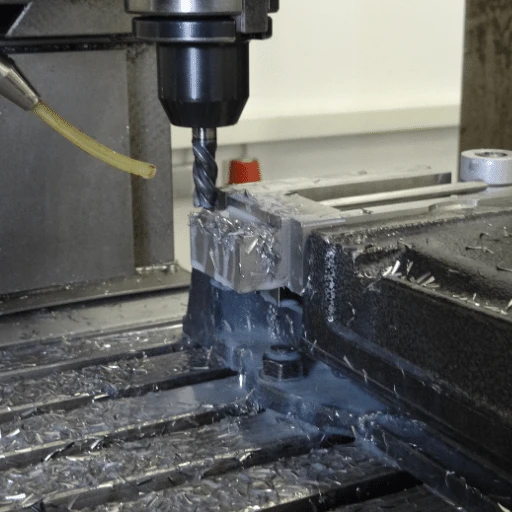

From Choosing to Using: Everything You Need to Know About End Mills
Decoding the Types of End Mills: An In-Depth Guide
When selecting the ideal end mill for your machining operations, understanding the differences between available types is critical. Two predominant materials used in constructing end mills are High-Speed Steel (HSS) and Carbide. HSS end mills are valued for their flexibility and durability. They are an excellent choice for projects requiring a wide variety of operations on materials that are not excessively hard. On the other hand, Carbide end mills are celebrated for their exceptional hardness and heat resistance, making them suitable for high-speed operations and cutting through more complex materials with greater precision and longevity.
Carbide vs. HSS End Mills: Finding the Best Tool for Your Application
Selecting between Carbide and HSS end mills hinges on several factors:
- Material Hardness: Carbide excels in cutting through hard materials.
- Operation Speed: High-speed operations demand hardness and heat resistance for carbide.
- Cost-Effectiveness: HSS offers cost savings without significant performance compromise for softer materials or less frequent use.
- Flexibility and Durability: HSS is less brittle than Carbide, reducing the risk of shattering under less-than-ideal conditions.
How to Extend the Life of Your End Mills: Maintenance and Handling Tips
To maximize the lifespan of your end mills and ensure cost-effective and efficient operations, consider the following tips:
- Proper Storage: Store end mills in a clean, dry environment and individual slots to prevent damage.
- Regular Cleaning: Remove any build-up of materials to maintain cutting efficiency.
- Sharpness Checks: Regularly inspect for dullness, which can lead to increased material wastage and reduce precision.
- Appropriate Coolant Use: Use the correct type and amount of coolant to reduce wear and prevent overheating.
- Correct Operation Parameters: Adhering to the recommended speeds and feeds for the material and end mill type can significantly reduce wear.
By integrating these considerations and maintenance practices into your operations, you can choose and maintain the end mills best suited for your machining tasks, ultimately achieving superior results and prolonged tool life.
References
1. “Unlocking the Potential: Choosing the Best End Mill for Machining Aluminum” – Medium Article
- Source URL: Medium
Summary: This article provides an insightful overview of selecting appropriate end mills for machining aluminum, emphasizing the importance of tool geometry, material, and coating for achieving optimal results. While it focuses on aluminum, the principles discussed apply to a broader range of materials, offering valuable guidance on maximizing the versatility and effectiveness of end mills in various machining operations. Detailed explanations and a clear understanding of machining dynamics support the credibility of the source.
2. “The Mechanics and Applications of Drill Mills: An In-depth Guide” – Medium Article
- Source URL: Medium
Summary: This comprehensive guide delves into the unique properties and applications of drill mills, a subset of end mills that combine drilling and milling functions in a single tool. It highlights how these versatile tools can simplify machining workflows and enhance efficiency, especially in complex or multi-step operations. The article’s depth of information and analysis makes it a valuable resource for novice and experienced machinists seeking to expand their tooling knowledge and capabilities.
3. “End Mills Explained – Complete Guide” – IMTS Manufacturing Blog
- Source URL: IMTS Exhibition
Summary: This extensive guide from the IMTS (International Manufacturing Technology Show) offers a thorough exploration of end mills, covering various types, geometries, materials, and coatings. It also addresses the strategic selection of end mills for specific machining tasks, including drilling, profiling, and 3D carving. The guide’s comprehensive nature and affiliation with a respected industry event lend it high credibility, making it an essential read for anyone looking to deepen their understanding of end mills’ versatility and applications in modern manufacturing.
Frequently Asked Questions
Q: What is the best end mill for a CNC machine?
A: A solid carbide end mill with the right number of flutes for the specific cutting task would be the best end mill for a CNC machine.
Q: What is the difference between a regular drill bit and an end mill?
A: A regular drill bit is designed for drilling straight holes, while an end mill is a cutting tool used for side milling, face milling, and profiling workpieces.
Q: How do end mills work in cutting materials?
A: End mills work by rotating and cutting into the material, creating various shapes, slots, and holes in the workpiece.
Q: What is the importance of choosing the right tool for machining?
A: Choosing the right tool, such as the best end mill, ensures efficient cutting, extended tool life, and high-quality results in machining operations.
Q: How does chip evacuation affect the performance of end mills?
A: Proper chip evacuation is crucial for the performance of end mills as it helps prevent chip buildup, reduces heat generation, and improves cutting efficiency.
Q: When is it recommended to use a ball nose end mill?
A: Ball nose end mills are ideal for creating contoured surfaces, rounded slots, and complex shapes in materials without a flat bottom hole.
Q: What are the benefits of using carbide-cutting tools like end mills?
A: Carbide cutting tools, such as solid carbide end mills, offer higher hardness, wear resistance, and thermal conductivity than traditional high-speed steel tools.
