Unlocking the Potential of Downcut End Mills for Precision Manufacturing

Downcut end mills, characterized by their spiraling flutes that rotate in a downward direction, serve a pivotal role in precision manufacturing, especially when dealing with laminates and surface-sensitive materials. This unique design facilitates a smoother top surface finish by pressing the material downwards during the cutting process, thereby minimizing tear-out and reducing the risk of surface imperfections. For industries focused on producing high-quality, aesthetically pleasing products, such as aerospace components or luxury woodwork, the application of downcut end mills presents an opportunity to enhance product quality significantly. Furthermore, when combined with the right CNC machining strategies, these tools can also contribute to improved operational efficiency and reduced waste, unlocking new levels of productivity and craftsmanship in manufacturing environments.

What sets downcut end mills apart from other milling tools?

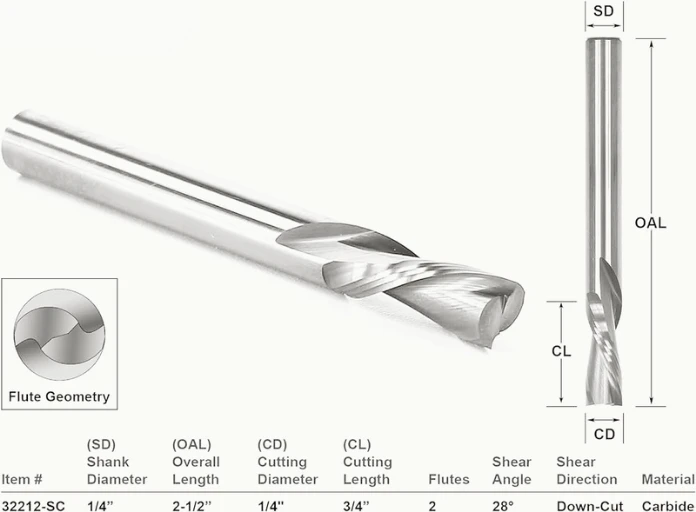

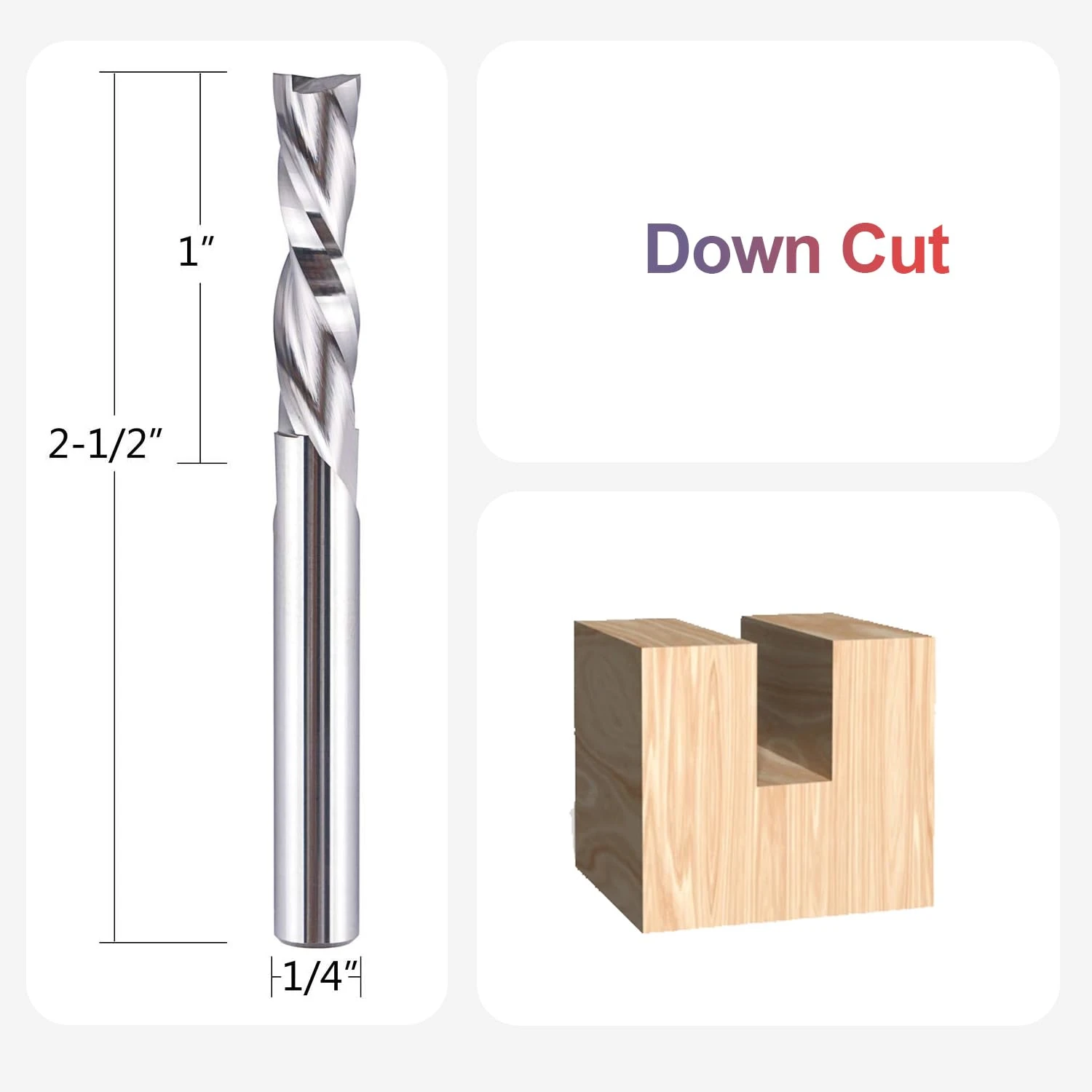

Understanding the Unique Design of Downcut End Mills

The distinctiveness of downcut end mills lies in their spiraled flute design, which operates contrary to the traditional upcut mills. While both are instrumental in milling operations, the downcut end mills have flutes that spiral downwards. This configuration ensures the workpiece material is pressed firmly against the milling table during cutting. It’s the downward trajectory of these flutes that plays a crucial role in producing a superior surface finish, particularly on the top layer of the material being worked on. This design is especially beneficial when machining delicate or thin materials that are prone to lifting or tearing, as it provides stability during the cutting operation.

The Importance of Flute Design in Downcut End Mills

The flute design in downcut end mills is essential for several reasons:

1. Surface Finish: The downward spiraling flutes press the material downward, leading to a smoother surface finish on the top side.
2. Chip Evacuation: Even though downcut end mills are not primarily designed for optimal chip evacuation, in certain materials, particularly in shallow cuts, they can effectively push chips into the cut, reducing clean-up time.
3. Reduced Tear-Out: The downward pressure minimizes the risk of material tear-out, which is crucial when working with laminates or veneer materials.
4. Material Holding: This design helps secure the material to the table, reducing the need for excessive clamping and the risk of material shifting during machining.

Comparing Downcut to Traditional End Mills

When comparing downcut end mills to traditional (uncut) end mills, several key differences emerge:

• Surface Finish: Downcut end mills typically produce a better top surface finish due to the downward force applied during cutting, whereas upcut end mills are better at evacuating chips from the cut, making them suitable for deeper cuts.
• Chip Evacuation: Upcut end mills excel in efficient chip removal, especially deep cuts, due to their design pulling chips upward and away from the workpiece.
• Material Lifting: Traditional end mills can sometimes lift the workpiece or thin materials during the cutting process, which is less of a concern with downcut end mills due to the downward force they exert.

In summary, the choice between downcut and traditional end mills depends on the specific requirements of the machining operation, including the type of material being machined, the depth of the cut, and the desired surface finish. Downcut end mills offer distinct advantages in producing high-quality finishes on the top surface of materials, making them a preferred choice for detailed work on surface-sensitive projects.

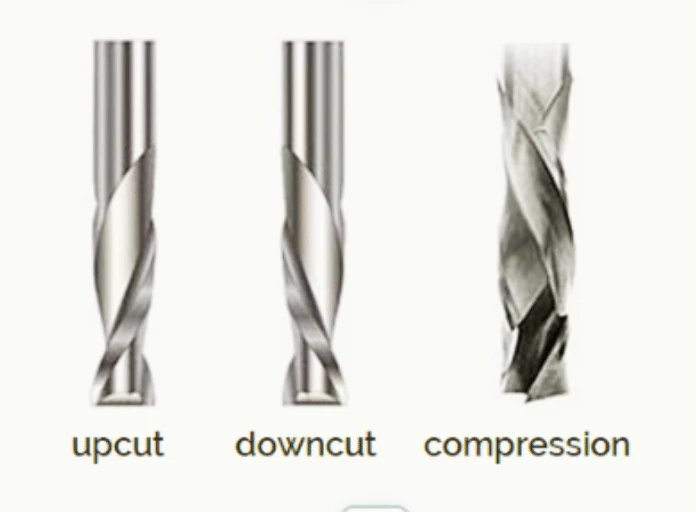

Choosing the right downcut end mill for your material

Best Downcut End Mills for Cutting Aluminum

When selecting downcut end mills for cutting aluminum, it’s essential to consider tools designed specifically to cope with the material’s properties. Aluminum is a soft, ductile metal that requires end mills capable of producing a clean cut while minimizing the buildup of material on the cutting edges. An optimal choice would be carbide downcut end mills with two or three flutes and a polished finish. This construction helps in:

• Reducing Heat Generation: The polished finish reduces friction, thereby decreasing the heat generated during cutting.
• Enhancing Chip Evacuation: Fewer flutes allow more space for efficient chip evacuation, which is crucial when machining aluminum.
• Preventing Material Buildup: The carbide material provides resistance to wear and prevents aluminum from sticking to the cutting edges.

Optimizing Downcut End Mill Selections for Wood and Plastic

For woodworking and plastic projects, selecting the right downcut end mill involves understanding the characteristics of both the material and the end mill. For these materials, opt for:

• High-Quality Carbide End Mills: Provides sharpness and durability, which are crucial for clean cuts in soft materials.
• Single or Two-Flute Designs: Ensures large chip removal capacity and reduces the risk of melting plastic materials.
• Specific Coatings (for Plastics): Certain coatings can minimize the sticking and melting of plastics, enhancing the finish quality.

Considerations for Carbide and HSS Downcut End Mills

When deciding between carbide and high-speed steel (HSS) downcut end mills, several factors need to be considered:

• Material Hardness: Carbide end mills are preferable for harder materials due to their superior wear resistance. HSS end mills can be an economical choice for softer materials or for operations where high cutting speed is not required.
• Tool Longevity: Carbide tools typically offer a longer lifespan due to their hardness and resistance to wear.
• Cost: HSS end mills are generally less expensive upfront but may not be as cost-effective in the long run due to more frequent replacements.
• Cutting Speed and Finish: Carbide end mills can operate at higher speeds, thus increasing productivity and potentially improving the surface finish.

In conclusion, the selection between carbide and HSS downcut end mills should be based on the specific requirements of the project, considering material hardness, expected tool life, project budget, and desired outcomes.

Maximizing efficiency with downcut end mills in CNC operations

Adjusting CNC Settings for Optimal Downcut Milling

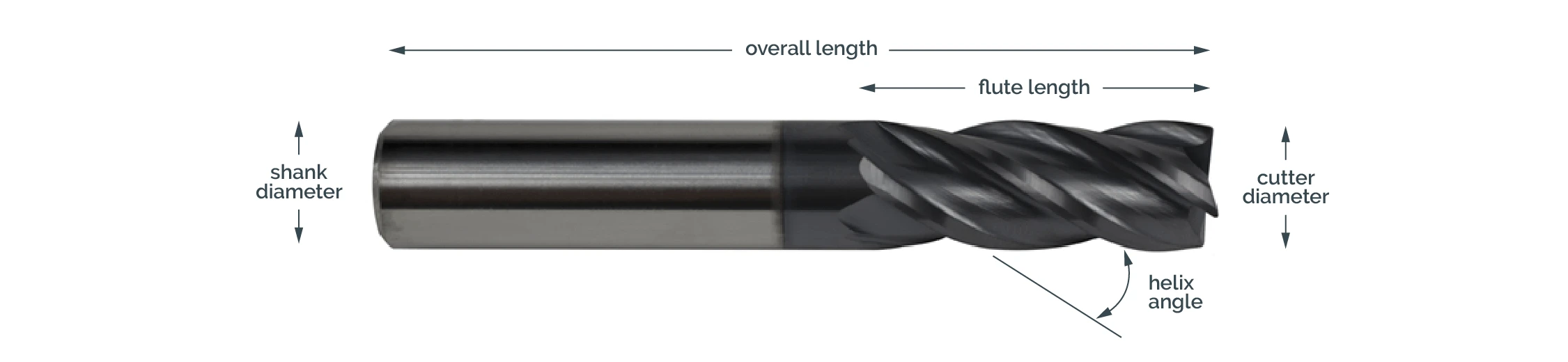

Achieving precision in downcut milling operations requires detailed attention to the CNC machine’s settings, particularly in regards to the shank diameter and overall length of the end mill, along with the manipulation of speeds, feeds, and pass depth. These adjustments play a crucial role in ensuring the quality and accuracy of the final product.

• Shank Diameter and Overall Length: The shank diameter should be chosen to fit the machine’s holder securely, minimizing vibrations and enhancing stability during the cutting process. A correct fit is essential for precision. The overall length of the end mill affects its rigidity and cutting reach. Opting for the shortest length necessary for the task can reduce chatter and improve the surface finish.
• Speeds and Feeds:
• Cutting Speed (RPM): The rotation speed of the end mill should balance between being fast enough to facilitate clean cuts and slow enough to prevent melting or degradation of the workpiece material, especially plastics. Each material has an optimal cutting speed; thus, adjustments are vital based on the material being machined.
• Feed Rate: This is the speed at which the workpiece is fed into the end mill and is crucial for preventing tool wear and workpiece damage. The feed rate should match the cutting speed and material properties to ensure efficient chip removal and minimal risk of melting or smearing in plastics.
• Pass Depth: This refers to the depth of each cutting pass and impacts both the cut’s quality and the cutting tool’s lifespan. Optimal pass depth depends on the material’s hardness and the end mill’s diameter and material. Shallower passes may be necessary for harder materials or when using finer-end mills to avoid breakage and ensure a high-quality finish.

By meticulously adjusting these settings, operators can significantly improve the efficiency and outcomes of downcut milling operations in CNC machining. These adjustments, tailored to the specifics of the material and the desired precision of the final product, are instrumental in achieving clean, accurate cuts and maximizing the lifespan of the cutting tools.

Advanced applications of downcut end mills

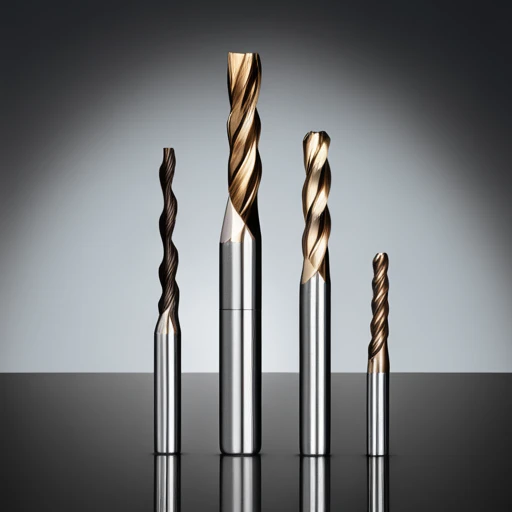

Extended Reach and Specialty Downcut Tools: When to Use Them

Extended reach and specialty downcut tools are engineered for precise machining tasks that standard end mills cannot accomplish. These tools are particularly useful in scenarios where the workpiece features deep cavities or complex geometries. The extended reach design minimizes tool deflection, ensuring accuracy even in hard-to-reach areas. Specialty downcut tools, on the other hand, are optimized for specific materials or applications, such as creating ultra-smooth finishes on the sides of walls or machining delicate parts without causing damage or deformation.

Creating Fine Finishes and Sharp Edges with Downcut End Mills

Downcut end mills are the preferred choice for creating fine finishes and sharp edges, primarily due to the downward force they exert on the workpiece surface during the cutting process. This downward action helps in the following:

1. Producing a smooth surface finish by pressing the material downwards.
2. Minimizing tear-out on the top edge of the material, resulting in sharper and cleaner edges.
3. Reducing the risk of lifting or warping in thin or flexible materials.

To achieve the best results, the following parameters should be carefully optimized:

• Tool Material: Choose a tool material that is appropriate for the workpiece to prevent premature wear.
• Cutting Speed: Adjust the RPM based on the material being machined to avoid burning or melting.
• Feed Rate: Match the feed rate with the cutting speed for consistent chip removal.
• Coolant Use: Implement appropriate cooling techniques to prevent heat build-up, especially in materials prone to melting.

Downcut End Mills in Complex 3D Milling Operations

Complex 3D milling operations, such as sculpting and engraving, require tools that can produce intricate details with high precision. Downcut end mills excel in these tasks, particularly in the following aspects:

• Depth of Cut: By using a shallower depth of cut, the tool can manage finer details without compromising the workpiece’s integrity.
• Tool Path Strategy: Implement advanced tool path strategies that gradually remove material to achieve the desired 3D shape without putting excessive stress on the tool or the workpiece.
• Material Considerations: Choosing the correct downcut end mill for the specific material being machined, considering factors such as hardness and melting point, can significantly affect the outcome.

In summary, extended reach and specialty down cut tools, along with proper parameter optimization, play a critical role in achieving high-quality finishes, sharp edges, and precise details in both standard and complex 3D milling operations.

Maintaining and extending the life of your down cut end mills

Proper care, handling, and usage are paramount in extending the life of downcut end mills and ensuring their optimal performance. Here are essential tips and practices:

Proper Care and Handling Tips for Downcut End Mills

1. Storage: Store end mills in a dry, organized environment. Individual slots or holders can prevent physical damage and corrosion.
2. Cleaning: Regularly clean the end mills to remove any residual material or coolant that could cause corrosion or affect performance.
3. Inspection: Before use, inspect for any signs of wear or damage. Even minor defects can lead to significant inaccuracies or failures in the machining process.

Identifying and Preventing Premature Wear in Downcut Tools

Premature wear often manifests as dull cutting edges, unusual vibrations, or changes in the sound produced during milling. Preventing this involves:

• Correct Operating Parameters: Utilize optimal feed rates, cutting speeds, and depths of cut specific to the material and end mill type.
• Adequate Cooling: Ensure proper lubrication and cooling based on the material’s heat sensitivity and the operation’s intensity.
• Material Compatibility: Select an end mill designed for the specific material being machined, considering factors such as hardness and abrasiveness.

When to Choose a Coated Downcut End Mill

Coated downcut end mills are advantageous in several scenarios:

1. Machining Abrasive Materials: Materials like fiberglass or carbon fiber benefit from coatings that resist wear and extend tool life.
2. High-Performance Requirements: When superior finish quality or longer tool life is essential, coatings can provide the extra durability needed.
3. High-Temperature Alloys: Machining materials that generate significant heat during milling can benefit from heat-resistant coatings like Titanium Aluminum Nitride (TiAlN).

In conclusion, the longevity and efficiency of downcut end mills significantly depend on proper selection, care, handling, and operating practices. Coated end mills, when chosen for the right applications, can substantially enhance performance and durability.
