Everything You Need to Know About Flat End Mills

Everything You Need to Know About Flat End Mills
Everything You Need to Know About Flat End Mills

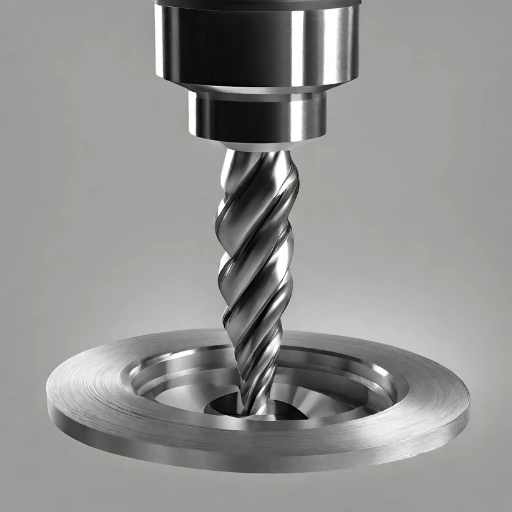

What is a Flat End Mill and How Does it Work?

What is a Flat End Mill and How Does it Work?

A flat end mill is a cutting tool used extensively in the milling process, characterized by its flat-bottomed geometry that delivers sharp, straight edges in machined workpieces. It is integral to operations in both manual and CNC milling machines, where it rotates at high speeds to cut and shape metals, plastics, and other materials. The flat bottom of the mill provides a high precision level and is suitable for creating slots, facing off edges, and producing fine finishes on flat surfaces. Its use is vital across multiple industries, including automotive, aerospace, and manufacturing, where precise flat surfaces are requisite. The effectiveness of a flat end mill hinges on several variables, including the material it is made of, the coating, the number of flutes, and the specific type of operation for which it is utilized.

Overview of flat end mill components

The anatomy of a flat end mill comprises several crucial components, each contributing to the tool’s functionality and performance. The key parts include:

  • Flutes: These are the deep helical grooves running along the end mill’s body, vital for the evacuation of chips from the cutting area during the milling process. The number of flutes varies and is chosen based on the material to be milled and the desired finish quality.
  • Cutting Diameter: This is the width of the cutting part of the mill and it determines the size of the cut made in the workpiece. Selecting the appropriate cutting diameter is essential for achieving the required dimension and precision in the machined part.
  • Shank: The shank is the portion of the tool that is clamped in the spindle of the machine, providing a secure attachment for high-speed rotation. It is typically cylindrical and must be compatible with the machine’s tool holder.
  • Helix Angle: This angle is associated with the flutes and has a significant influence on the tool’s cutting efficiency and the finish of the workpiece. The helix angle can affect the cutting forces, chip formation, and heat dissipation during machining.
  • End Geometry: The geometry here refers to the shape of the flat end mill’s bottom face, which is integral for the surface finish and the kind of milling operation to be performed.

High-quality flat end mills are often made from materials such as high-speed steel, cobalt steel, or carbide. Moreover, advanced coatings like titanium nitride (TiN) or aluminum titanium nitride (AlTiN) are applied to enhance the tool’s hardness and heat resistance, consequently extending the tool’s service life.

Professional selection of the above components is crucial for optimization in various milling operations, directly influencing the manufacturing process’s overall efficiency and outcome.

Working principle of flat end mills

The working principle of flat end mills centers around the removal of material through rotary-cutting actions. As the mill rotates, the cutting edges engage the workpiece and shear off chips from the material, which is facilitated by the fluted design of the tool. These flutes create channels for chip evacuation while also contributing to the stability of the cut by reducing vibration. The precise control of depth and direction of the cut allows for the production of flat surfaces, slots, profiles, and complex geometries with high tolerance and excellent surface finish. This cutting process is highly versatile and can be adjusted depending on the material being machined, the desired finish, and the production speed. Adequate selection and application of spindle speeds, feed rates, and cooling lubricants are also critical in maintaining tool integrity and achieving optimal milling results.

Applications of flat end mills

Flat end mills are utilized in a diverse array of machining tasks due to their versatility and effectiveness. Some of the primary applications include:

  1. Creating Flat Surfaces: By moving the tool over the workpiece in a planar path, flat end mills can produce smooth and precise flat surfaces.
  2. Slotting: These tools are ideal for cutting slots of various widths and depths, which are essential components in a multitude of engineering designs.
  3. Profiling: Flat end mills are adept at shaping the periphery of a workpiece to create specific profiles or contours that conform to the desired specifications.
  4. Producing Sharp Edges: The design of flat end mills is conducive to generating sharp edges and corners, a requirement in many precision parts.
  5. Facing Operations: Used for facing, where material is removed from the top surface of a workpiece to achieve a flat and smooth finish.
  6. Engraving: With careful control, flat end mills can also perform engraving tasks to etch designs or text into a material’s surface.

Each application necessitates the consideration of various factors, such as the type of material, milling speed, feed rate, and coolants used to optimize the milling process and ensure outstanding results.

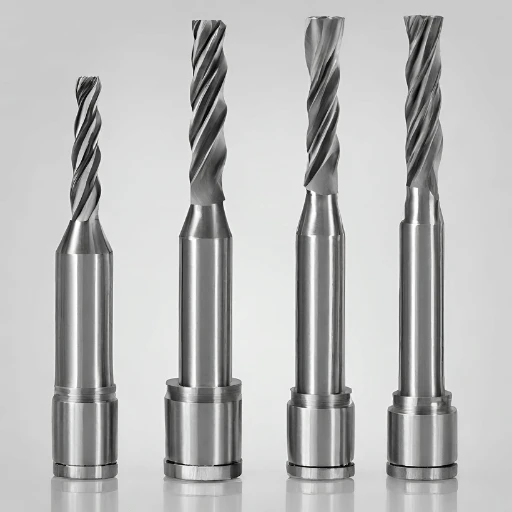

Types of Flat End Mills

Types of Flat End Mills

Exploring different flute configurations

The efficiency and performance of flat end mills are significantly influenced by their flute configurations. Flutes are the grooves or channels cut into the body of the tool, and they serve multiple purposes: evacuating chips from the cutting zone, reducing frictional heat, and providing paths for coolant to reach the cutting surfaces.

2-Flute End Mills

Ideal for machining on softer materials such as aluminum, 2-flute end mills provide excellent chip evacuation and a higher capacity for feed rates due to the larger flute space.

3-Flute End Mills

Offering a compromise between the chip removal ease of 2-flute designs and the surface finish quality provided by higher-flute models, 3-flute end mills are often used for both roughing and finishing applications.

4-Flute End Mills

4-flute end mills are generally used for harder materials like steel, providing a finer finish with more contact points, but typically require slower feed rates to prevent chip packing in the flutes.

Multi-Flute End Mills

Designed with more than four flutes, multi-flute end mills are used for special applications requiring a superior surface finish or higher feed rates in harder materials, albeit at the expense of chip removal.

Identifying the correct flute configuration for a given material and application is critical for optimizing the milling operation, and requires a comprehensive understanding of both the tool’s characteristics and the machining environment.

Comparison between square end and flat end mills

Square end mills and flat end mills share similar characteristics but are distinguished by subtle differences in their geometry and applications:

  1. Geometry:
  • Square end mills have sharp corners and flat bottoms.
  • Flat end mills also have flat bottoms but may have slightly rounded corners to increase tool strength and reduce chipping.
  1. Application Specificity:
  • Square end mills are typically used for making sharp corners, slots, and details in a workpiece.
  • Flat end mills are considered more versatile, suitable for a wider range of applications including general milling and slotting operations.
  1. Corner Sharpness:
  • The sharp corners of square end mills make them ideal for creating fine, detailed features.
  • The less sharp corners of flat end mills can improve tool longevity and reduce fragility.
  1. Surface Finish:
  • Square end mills generally produce a better surface finish on the bottom of the workpiece.
  • Flat end mills may slightly compromise the surface finish due to any corner radius.
  1. Cutting Parameters:
  • Square end mills require careful consideration of cutting parameters to avoid damaging the tool’s sharp edges.
  • Flat end mills can often be run at higher feed rates since the more robust design can withstand greater forces.

In summary, the choice between square end mills and flat end mills is largely dependent on the specific requirements of the operation, including the desired geometry of the finished workpiece and the cutting conditions being implemented. Proper selection can lead to improved efficiency, accuracy, and lifespan of the cutting tool.

Understanding solid carbide flat end mills

Solid carbide flat end mills are precision cutting tools known for their high hardness and heat resistance. They excel in producing clean-cut surfaces on hard materials, thanks to their rigidity that minimizes tool deflection. Coated with advanced materials like TiAlN or DLC, they offer enhanced performance. Machinists and engineers benefit from understanding these characteristics to optimize milling operations.

Choosing the Right Flat End Mill for Your Project

Choosing the Right Flat End Mill for Your Project

Factors to consider when selecting a flat end mill

  1. Material Compatibility:
    • Assess the material of the workpiece and match it with the end mill material and coating for optimal results and tool durability.
    1. Flute Count:
    • Choose a higher flute count for harder materials and finer finishes, but fewer flutes for better chip evacuation in softer or more malleable materials.
    1. Helix Angle:
    • Consider the proper helix angle for the job; a higher helix angle results in a better surface finish and higher cutting speeds, while a lower helix angle can increase strength and tool life.
    1. Coating:
    • Opt for coated end mills (like TiAlN or AlCrN) when working with hard materials to minimize wear and heat buildup.
    1. End Mill Size:
    • Ensure the end mill size is suited to the operation regarding the depth of cut and the reach necessary to perform the machining tasks.
    1. Corner Radius:
    • Although flat end mills are generally squared, some have a slight corner radius for increased strength—decide based on the need for sharp corners in the workpiece.
    1. Shank Size:
    • Confirm the shank size compatibility with the tool holders and the rigidity requirements of the machining operation.
    1. Overall Length and Cutting Length:
    • Select an end mill with appropriate overall and cutting lengths to avoid interference with the workpiece and fixtures while still being able to reach the required cutting depth.

    These factors must be considered in unison to ensure that the chosen end mill meets the requirements of the specific machining process, ensuring precision, efficiency, and tool longevity.

Benefits of using carbide end mills

Carbide end mills are a staple in precision machining due to their superior hardness and heat resistance characteristics, which directly translate into increased productivity and cost efficiency. Their robust construction from cemented carbide allows for high-speed machining, maintaining dimensional accuracy even under elevated temperatures that would compromise high-speed steel tools. The enhanced wear resistance ensures a prolonged service life, reducing the frequency of tool replacement and the associated downtime. This, combined with the ability to sustain tighter tolerances, makes carbide end mills an ideal choice for detailed and rigorous milling operations, particularly when machining hard and abrasive materials. The economic benefits are also noteworthy; the longevity and performance of carbide end mills contribute to a lower cost-per-part in the long term, despite the higher initial investment relative to other tool materials.

Optimizing the performance of flat end mills

To enhance the performance of flat end mills in precision machining, several strategies must be systematically implemented. Firstly, selection of cutting parameters like spindle speed, feed rate, and cut depth should be aligned with the tool’s specifications and the material being machined to minimize tool wear and improve surface finish. Accurate tool path programming is critical in avoiding unnecessary tool engagement and optimizing the cut pattern for efficiency. Proper cooling through the optimal application of cutting fluids can significantly reduce the thermal impact on the tool and the workpiece, preserving the integrity of both. Additionally, maintaining a stable machine setup and ensuring rigid clamping of workpieces can prevent vibrations that detrimentally affect tool life and the quality of the machined part. Utilizing advanced tool coatings can also provide an extra layer of thermal and wear protection, further extending the tool life of flat end mills. By following these practiced guidelines, machinists can achieve a balance between performance and longevity in their milling operations.

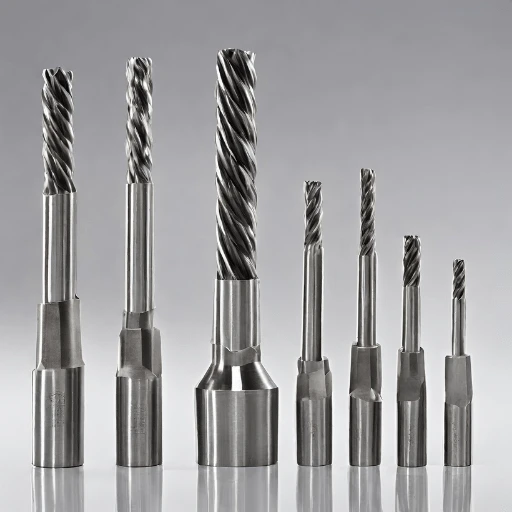

Best Practices for Using Flat End Mills

Best Practices for Using Flat End Mills

Tips for achieving precision with flat end mills

  1. Tool Inspection: Regularly inspect the flat end mills for signs of wear or damage, ensuring that only tools in optimal condition are used for precise operations.
  2. Workpiece Stability: Secure the workpiece with sufficient clamping force to eliminate movement or vibration during machining processes.
  3. Precise Tool Holding: Use high-quality tool holders with minimal runout to maintain dimensional accuracy and surface finish quality.
  4. Machine Calibration: Periodically calibrate CNC machines to ensure that axes are perfectly aligned and motion is smooth across all planes.
  5. Optimal Speeds and Feeds: Refer to the manufacturer’s recommendations for spindle speeds and feed rates, and adjust according to the material hardness and tool diameter for precise cutting and minimal tool deflection.
  6. Use of Cutting Fluids: Apply cutting fluids judiciously to improve tool life surface finish, and to reduce the heat generated during cutting operations.
  7. Toolpath Optimization: Leverage CAM software to create optimized toolpaths that reduce air cutting time and tool engagement, thus improving efficiency and precision.
  8. Layered Approach: Adopt a multi-pass strategy, using a combination of roughing and finishing passes to gradually achieve the desired dimensions and surface quality.
  9. Vibration Damping: Implement anti-vibration technologies and strategies to dampen harmonics and improve the stability of the milling process.
  10. Data-Driven Adjustments: Utilize data analytics to monitor cutting forces and tool wear in real time, allowing for data-driven adjustments to machining parameters that enhance precision.

Maximizing tool life with proper end mill techniques

To optimize end mill lifespan, follow recommended practices like selecting durable coatings such as titanium nitride (TiN) and diamond-like carbon (DLC). Proper chip evacuation and helix angle choice (35-40 degrees) are key for efficient machining. Maintenance, inspections, and timely replacements are essential for peak performance and durability.

Common mistakes to avoid when using flat end mills

  1. Incorrect Cutting Depths: Avoid excessively deep cuts which can lead to tool deflection, increased wear, and potential breakage. Instead, adopt a conservative depth of cut relative to the tool diameter.
  2. Improper Feed and Speed Rates: Operating at incorrect feed and speed rates can cause premature tool wear or failure. Adhere to the tool manufacturer’s specifications and adjust for the material being machined.
  3. Lack of Rigidity: Ensure that the workpiece and tool holder are rigidly secured. Insufficient clamping can lead to vibration and poor surface finishes.
  4. Suboptimal Tool Selection: Using an end mill with unsuitable flute count or geometry for the task can result in poor performance. Select a tool that matches the material characteristics and milling operation requirements.
  5. Overlooking Tool Wear: Continued use of worn end mills can result in diminished accuracy and surface quality. Regularly inspect and replace tools as needed to maintain optimal cutting conditions.
  6. Ignoring Material Characteristics: Not taking into account the material properties can lead to improper tool choice and cutting parameters, adversely affecting tool life and part finish.
  7. Inadequate Use of Coolant: Failure to use or incorrect application of coolant can increase heat buildup, affecting tool life and workpiece integrity. Use coolants appropriately for the specific material and cutting operation.
  8. Inconsistent Chip Evacuation: Poor chip evacuation can lead to re-cutting of chips, increased heat, and tool wear. Ensure chips are cleared efficiently from the cutting path.
  9. Utilizing Worn Machine Spindles: Operating with a worn spindle can reduce cutting accuracy and precision. Keep machinery in good condition to uphold stringent machining standards.

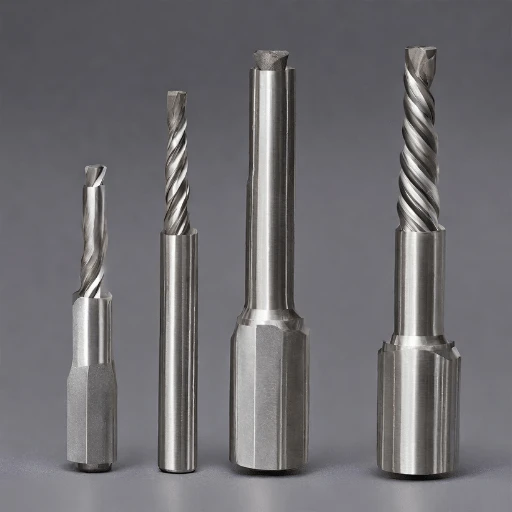

Frequently Asked Questions

Frequently Asked Questions

Q: What is a flat end mill?

A: A flat end mill is a type of milling cutter with a flat cutting end used for milling operations in a variety of materials. It has cutting teeth at the bottom face to create flat surfaces or pockets.

Q: What are the common applications of flat end mills?

A: Flat end mills are commonly used for side milling, face milling, profile milling, and plunging. They are versatile tools that can be used for a wide range of milling applications.

Q: What are the advantages of using flat end mills?

A: Flat end mills offer high-performance precise cutting capabilities and allow for chip formation during machining. They are great for creating holes, cavity milling, and finishing operations.

Q: What is the difference between HSS and carbide flat end mills?

A: Carbide flat end mills are more expensive than HSS (High-Speed Steel) end mills but offer higher performance and longer tool life. HSS end mills are more economical and suitable for general-purpose milling.

Q: How do I choose the right flat end mill for my milling operation?

A: Consider factors such as material type, cutting end geometry, flute count, coating (uncoated or coated), and speed capabilities when selecting a flat end mill for your specific milling application.

Q: Can I use a flat end mill for drilling operations?

A: Flat end mills are not specifically designed for drilling but can be used for creating holes in solid materials. For drilling operations, it is recommended to use drill bits with appropriate geometry.

Q: What are the different types of cutters that can be used in conjunction with a flat end mill?

A: Other milling cutters that can be used with a flat end mill include roughing end mills, high-performance end mills, and general-purpose end mills. Different cutters can be used for specific milling tasks to achieve desired results.
