Mastering the intricacies of carbide end mill feeds and speeds is paramount in optimizing efficiency, precision, and tool longevity in machining operations. This process involves determining the optimal rate at which the end mill rotates (speeds) and the rate at which it advances through the material (feeds). Several factors influence these parameters, including the carbide material, the end mill’s coating, the machined material’s hardness and type, and the tool’s geometry. By meticulously calibrating the feeds and speeds to align with these considerations, machinists can significantly enhance surface finish quality, reduce tool wear, and increase production throughput. This chapter aims to demystify the calculation processes and offer best practices for achieving optimal milling outcomes.

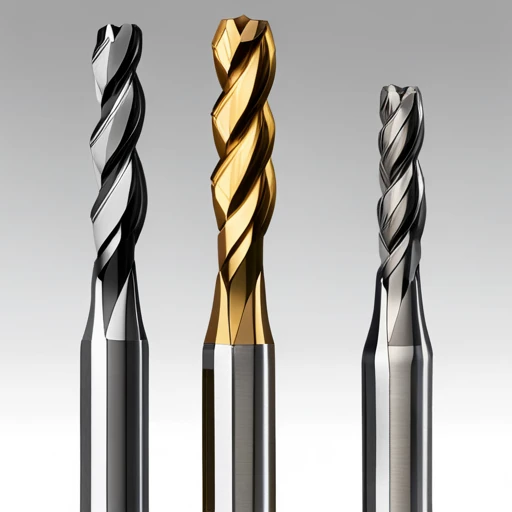

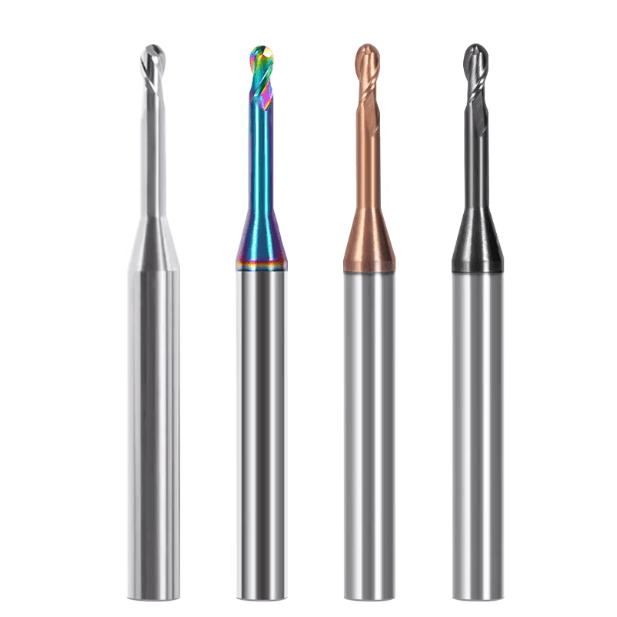

Understanding the Basics of Carbide End Mills
What Defines a Carbide End Mill?
Carbide end mills are distinguished by their composition of tungsten carbide and cobalt. This combination yields an end mill that is exceptionally hard, resistant to wear, and capable of functioning at high temperatures. These characteristics make carbide end mills ideal for cutting through rigid materials precisely and quickly, translating to efficiency in high-volume production settings. The geometry of these tools, including factors like flute count, angle, and coating, further refines their application for specific materials and cutting conditions.
The Importance of Speed and Feed in Milling Processes
Speed, measured in rotations per minute (RPM), and feed, quantified as the speed at which the end mill moves through the material per revolution, are critical parameters in the milling process. These factors directly influence the quality of the finished product, tool life, and overall productivity.
- Speed (RPM): Determines how fast the tool rotates, influencing temperature and finish quality. Incorrect speeds can lead to suboptimal surface finishes or excessive wear on the tool.
- Feed: Dictates the advancement of the tool through the material, impacting the chip load and the efficiency of material removal. An optimal feed rate ensures efficient cutting with minimal risk of tool breakage.
Balancing these components is essential to preventing tool failure, achieving superior surface finishes, and maximizing efficiency in material removal rates.
Differences Between Carbide and Other End Mill Materials
Carbide end mills offer several advantages over those made from other materials, such as high-speed steel (HSS) or cobalt.
- Hardness and Wear Resistance: Carbide’s superior hardness maintains sharp cutting edges at high temperatures, resulting in longer tool life and consistent performance.
- Heat Resistance: Carbide’s high thermal capacity enables it to withstand the heat generated during machining, reducing the likelihood of tool failure due to overheating.
- Speed Capability: Due to their hardness and heat resistance, carbide end mills can operate at significantly higher speeds than their HSS or cobalt counterparts, increasing productivity.
However, carbide end mills can be more expensive and brittle, necessitating careful handling to prevent chipping or cracking. Understanding these differences aids in selecting the right end mill material for specific machining applications and efficiently balancing cost and performance.
Calculating the Optimal Feeds and Speeds for Your Carbide End Mills
Tools and Calculators for Precise Speed and Feed Measurements
Industry professionals can leverage specialized software tools and calculators to accurately determine the correct RPM (Revolutions Per Minute) and feed rate for carbide end mills. These tools consider various parameters, including:
- Material Properties: The hardness, flexibility, and thermal properties of the workpiece material significantly influence the cutting speed and feed rate.
- End Mill Features: The diameter, number of flutes, and material of the end mill affect how fast it can cut through the workpiece material without overheating or breaking.
- Machining Operation: Different operations (e.g., roughing, finishing) require adjustments to speed and feed to achieve optimal results.
- Machine Tool Capabilities: The power and rigidity of the milling machine impact the achievable cutting speeds and feeds.
How to Determine the Right RPM and Feed Rate
- Identify the Material: Classify the workpiece material to find its specific cutting speed (Vc), which is usually measured in surface feet per minute (SFM) or meters per minute (M/min).
- Select the End Mill: Choose the appropriate end mill for the material and operation, noting its diameter and the number of flutes.
- Calculate the Cutting Speed: To find the optimal spindle speed, use the formula RPM = (SFM x 3.82) / End Mill Diameter (in inches) for imperial units or RPM = (1000 x Vc) / (π x End Mill Diameter in mm) for metric units.
- Determine the Feed Rate: To establish the ideal feed rate, apply the formula Feed Rate = RPM x Number of Flutes x Chip Load (the desired thickness of material removed per tooth).
Applying Formulas and Charts for Accuracy
Utilizing the above formulas ensures a calculated approach to determining feeds and speeds. Still, industry charts and software calculators can provide more nuanced guidance by accounting for additional variables such as tool path, coolant presence, and chip evacuation efficiency.
Professionals must carefully consider these various factors and adjust based on their experience and the specific conditions of the machining task. Proper application of these tools and formulas allows for the efficient use of carbide end mills, maximizing their performance and lifespan in the machining process.
Maximizing Metal Removal Rates with Carbide End Mills
Strategies for Improved Metal Removal Efficiency
Improving metal removal rates (MRR) is pivotal for enhancing productivity in milling operations. Key strategies include:
- Choosing the Right Carbide End Mill for Your Material: Selecting an end mill is crucial for optimizing performance and MRR. Consider the material’s hardness, toughness, and machinability. For more complex materials, end mills with more flutes and made of ultra-fine carbide grades ensure durability and efficiency.
- Optimizing Chip Load: Chip load—the thickness of the material removed by each tooth of the cutter—plays a significant role in MRR. Optimizing chip load ensures balanced wear, extends tool life, and improves surface finish. A higher chip load can increase MRR but also stresses the tool more. The ideal chip load varies based on material and end mill type but generally falls within manufacturer-recommended ranges.
- Adjusting Flute Count: The number of flutes on an end mill affects chip removal and finish quality. Fewer flutes allow for a higher chip load, which benefits softer materials. Conversely, more flutes result in a finer finish, suitable for more complex materials but requiring adjustments in feed rate to prevent tool overload.
- Implementing Efficient Tool Paths: The tool path strategy, including high-efficiency machining techniques such as trochoidal or dynamic milling, can significantly increase MRR by allowing for higher feed rates and reduced tool wear. These methods promote constant tool engagement and optimal chip thickness.
Manufacturers can significantly improve metal removal rates by selecting the end mill based on material properties, optimizing chip load, adjusting flute count according to the desired finishing and application, and adopting advanced tool path strategies. Such improvements not only boost production efficiency but also enhance the quality of the machined parts.

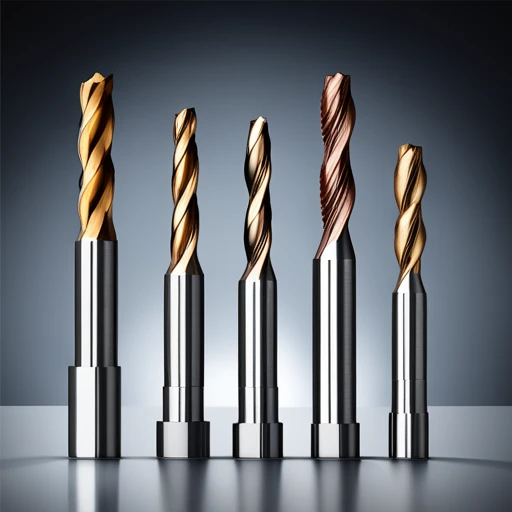

Optimizing Carbide End Mill Performance in Different Materials
Feeds and Speeds Recommendations for Aluminum, Stainless Steel, and Titanium
When machining different materials, adjusting feeds and speeds is crucial to optimize performance and ensure the longevity of your cutting tools. Here are specific recommendations for popular materials:
- Aluminum: Typically softer and less abrasive, aluminum allows for higher speeds and feeds. A good starting point is a spindle speed of around 2500 RPM and a feed rate of 0.005 inches per tooth. For solid carbide end mills, you can push this to higher speeds due to their increased strength and heat resistance.
- Stainless Steel: Known for its toughness and tendency to work harden, stainless requires more conservative feeds and speeds. Aim for a spindle speed of approximately 400 RPM with a feed rate of 0.002 inches per tooth. Due to its abrasiveness, a lower flute count may be beneficial to manage heat and prevent work hardening.
- Titanium: This material combines the attributes of aluminum and stainless steel—being assertive and relatively soft—but it’s very heat-resistant. Start with a spindle speed of around 800 RPM and a feed rate of 0.002 inches per tooth. High heat tolerance allows the effective use of solid carbide end mills here.
Adjusting Parameters for Solid Carbide and Non-Ferrous Materials
Leveraging their strength and heat tolerance for solid carbide end mills means you can generally operate at higher feed rates and spindle speeds across materials. This is especially true for non-ferrous materials like aluminum and brass, where higher feed rates prevent the material from sticking to the tool. In these cases, speeds as high as 3000 RPM and feeds up to 0.010 inches per tooth can be adequate.
Understanding the Influence of Hardness and Material on Cutting Conditions
The hardness of a material significantly influences cutting conditions. More complex materials require slower speeds to reduce tool wear, while softer materials can be machined at higher speeds to enhance productivity. The material properties—including ductility, abrasiveness, and thermal conductivity—also dictate optimal cutting conditions. For example, abrasive materials like stainless steel wear down tooling quicker, necessitating slower speeds and feeds. In comparison, thermally conductive materials like aluminum allow faster speeds due to efficient heat dissipation.
These recommendations serve as a starting point. Material specifics, tooling, and machining conditions (such as coolant use and machine rigidity) can further influence optimal parameters.
Common Problems and Solutions in Carbide End Milling
Preventing Chatter and Improving Surface Finish
Chatter during milling operations can detrimentally impact the tool life and the surface finish quality. To mitigate chatter, consider the following strategies:
- Optimizing Tool Path: Employing a climb milling strategy, where the cutter engages the material with maximum thickness first and finishes with the minimum, can improve cut stability.
- Increasing Rigidity: To enhance the system’s rigidity, reduce tool overhang and use holders with maximum contact area on the tool shank.
- Adjusting Speeds and Feeds: Experiment with spindle speeds and feed rates, as increasing or decreasing these values can transfer the vibrating frequency to a less impactful range.
- Using Variable Helix/Variable Pitch End Mills: These tools are designed to break up harmonic vibration patterns, leading to smoother operations.
Addressing Deflection and Tool Breakage
Deflection and tool breakage undermine machining accuracy and efficiency. Effective countermeasures include:
- Shortening Tool Stickout: Minimize the length of the tool protruding from the holder to improve rigidity.
- Selecting the Appropriate End Mill: Use an end mill with the correct balance of diameter and flute count for the material and type of cut, ensuring it can withstand the forces encountered.
- Optimizing Flute Geometry: Some materials benefit from specific flute designs that reduce the chances of deflection and breakage.
- Applying the Correct Coolant: The strategic use of coolants can reduce heat buildup, impact tool life, and minimize material weldment on the tool.
Troubleshooting Poor Metal Removal Rates
Ensuring optimal metal removal rates is critical for efficient machining processes. To troubleshoot issues in this area:
- Assess Feed Rates: Verify that the feed rates are aligned with the tool’s capacity and the material’s characteristics.
- Check Spindle Speed: Adjustable depending on the material hardness and tooling, ensuring it’s not too low to hinder metal removal efficiency.
- Evaluate Depth and Width of Cut: Adjust these parameters to optimize the material engaged with each pass, considering tool capabilities and material characteristics.
- Inspect Tool Wear: Dull or worn tools significantly reduce removal rates. Regular inspection and replacement when necessary maintain efficiency.
Implementing these strategies will mitigate common problems encountered in carbide end milling, enhancing overall productivity and surface quality.
Advanced Techniques and Tips for Carbide End Mill Users
Exploring High-Efficiency Milling (HEM) Strategies
High-efficiency milling (HEM) strategies target maximizing material removal rates while extending tool life and minimizing cycle times. Critical elements of HEM include:
- Utilizing a Lower Radial Depth of Cut (RDOC) ensures consistent tool engagement, reducing shock and deflection, which are critical for tool longevity.
- Higher Axial Depth of Cut (ADOC): HEM leverages the full flute length by taking deeper cuts along the tool’s e length, distributing wear evenly, and increasing tool life.
- Optimized Path Strategies: Implementing dynamic milling paths reduces the tool’s radial engagement, allowing for higher feed rates without sacrificing surface finish or tool integrity.
The Role of Coolant and Lubrication in Prolonging Tool Life
Coolant and lubrication play pivotal roles in the machining process by:
- Reducing Heat Generation: Effective cooling directly impacts tool life by preventing overheating, which can lead to premature wear and breakage.
- Minimizing Friction: Lubricants reduce the friction between the tool and the material, reducing heat and wear on the cutting edge.
- Expelling Chips: Proper coolant flow helps in chip evacuation, preventing re-cutting of materials, which can degrade tool and workpiece quality.
Tailoring Feeds and Speeds for Complex Shapes and Operations
Adjusting feeds and speeds is essential for precision and tool longevity when machining complex shapes or engaging in intricate operations. Considerations include:
- Material Properties: Harder materials require slower speeds to reduce wear, while softer materials can be machined at higher speeds.
- Tool Geometry: Tools designed for specific materials or operations may require adjustments to feeds and speeds to optimize performance.
- Coolant Use: The availability and type of coolant can impact optimal speeds and feeds. For example, operations with high-pressure coolant can often run at higher speeds due to better cooling and chip removal.
- Machine Dynamics: The stability and power of the machining center impact the achievable feeds and speeds, with more robust machines capable of higher rates without compromising quality or tool life.
Leveraging these strategies and considerations contributes significantly to carbide end milling operations’ efficiency, accuracy, and quality.
References
-
Feeds and Speeds: The Definitive Guide (Updated for 2024)
- Source: CNC Cookbook (https://www.cnccookbook.com/feeds-speeds/)
- Summary: This guide is an extensive resource for understanding and applying the concepts of feeds and speeds in milling operations using carbide end mills. It covers critical factors influencing tool life, machining time, and surface finish, offering a detailed approach to calculating optimal feed rates and spindle speeds for various materials. The guide also includes practical tips and software tools to simplify the process, making it an essential resource for novice and experienced machinists seeking to optimize their milling processes.
-
Carbide End Mill Coated: A Comprehensive Guide
- Source: HUANA Tools (https://huanatools.com/carbide-end-mill-coated-a-comprehensive-guide/)
- Summary: This comprehensive guide focuses on the wear mechanisms of carbide end mills, including the impact of coatings on tool longevity and performance. By understanding how different coatings can mitigate wear and extend tool life, users can decide to select suitable end mills for their specific applications. The guide also touches on the implications of tool wear for feeds and speeds, providing a holistic view of how tool selection and operating parameters interplay in precision manufacturing.
-
Milling Surface Finish: Complete Guide [Tips & Secrets]
- Source: CNC Cookbook (https://www.cnccookbook.com/milling-finish-complete-guide-feeds-speeds-master-class-lesson-7/)
- Summary: This article offers a deep dive into achieving superior milling surface finishes, emphasizing the critical role of feeds and speeds. It presents a series of tips and secrets for reducing post-machining finish work and meeting stringent finish specifications. The article highlights how adjustments in feeds and speeds can significantly affect surface quality, providing actionable advice for machinists aiming to enhance their machined parts’ aesthetic and functional attributes.
Frequently Asked Questions
Q: What is an alloy, and how does it relate to carbide end mill feeds and speeds?
A: An alloy is a mixture of metals or a metal and another element. When selecting carbide end mill feeds and speeds, it’s essential to consider the alloy of the material being cut, as it can impact the cutting parameters.
Q: How do I determine the spindle speed for my carbide end mill?
A: To determine the spindle speed for your carbide end mill, you can use the recommended surface feet per minute (SFM) for the material being cut and the diameter of your mill to calculate the spindle speed in revolutions per minute (RPM).
Q: What factors should I consider when selecting the number of flutes on a carbide end mill?
A: When selecting the number of flutes on a carbide end mill, consider the cut material, the machine’s RPM capabilities, and the desired finish. Different numbers of flutes can impact the chip load and chip evacuation.
Q: Why is it important to correctly set the feed per tooth using carbide end mills?
A: Setting the feed per tooth correctly when using carbide end mills is crucial for achieving optimal cutting performance. This parameter affects the machined part’s chip load, tool life, and surface finish.
Q: How can I adjust the feeds and speeds for different materials when using carbide end mills?
A: When working with different materials, you may need to adjust the feeds and speeds of carbide end mills. Consider factors like the material family, hardness, and recommended cutting parameters to optimize your machining process.
Q: What precautions should I take when setting up feeds and speeds for carbide end mills on a CNC machine?
A: When setting up feeds and speeds for carbide end mills on a CNC machine, exercise caution and follow the recommendations provided by the tool manufacturer. Input accurate cutting parameters to avoid tool breakage or poor machining results.
