High-feed end mills represent a pivotal advancement in modern machining, designed to tackle the most robust materials and complex milling operations with unparalleled efficiency. Characterized by their distinctive geometry, these cutting tools feature a slight lead angle and large core diameter, reducing radial forces and enabling higher feed rates without compromising tool integrity. This unique configuration facilitates the swift removal of material, significantly diminishing cycle times while enhancing surface finish quality. High-feed end mills are instrumental in achieving precision and productivity in today’s fast-paced industrial environments, and they are ideal for a wide spectrum of high-feedlications, including but not limited to die and mold-making, aerospace engineering, and automotive manufacturing.

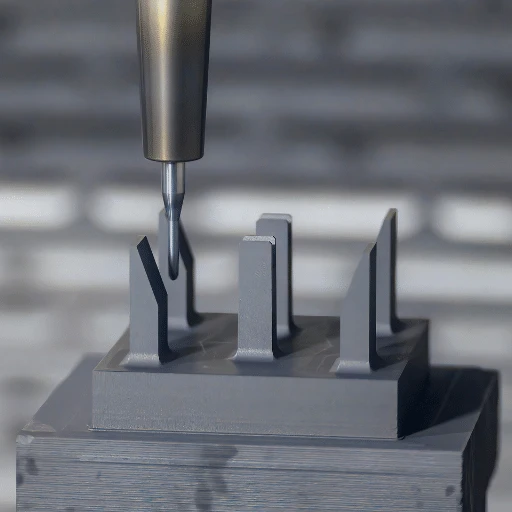

What Sets High Feed End Mills Apart?
Understanding the Geometry of High Feed End Mills
The geometry of high-feed end mills is engineered to prioritize efficient material removal and minimize lateral stress on the tool. The distinctive slight lead angle plays a crucial role, directing forces axially toward the spindle and away from the workpiece, thereby reducing the potential for tool deflection and enabling higher feed rates. This configuration includes a larger core diameter, enhancing the tool’s rigidity and stability during demanding machining operations. Combining these geometric features allows high-feed end mills to operate under conditions that challenge conventional end mills, facilitating rapid material removal, especially in challenging materials.
The Role of Insert Design in High Feed Mill Efficiency
Insert design is fundamental to the performance and efficiency of high-feed end mills. These inserts, often crafted from ultra-durable materials like carbide, are tailored to withstand the intense conditions of high feed-rate machining. Key parameters include:
- Insert Shape: The shape dictates the insert’s engagement with the material and can affect chip formation and evacuation.
- Coating: Advanced coatings enhance wear resistance and reduce friction, contributing to longer tool life and consistent performance.
- Substrate Material: The choice of substrate affects the insert’s toughness and heat resistance, essential factors in high-speed applications.
- Edge Preparation: This influences the insert’s durability and ability to withstand high feed conditions without chipping or breaking.
These elements ensure that the inserts contribute to the overall efficiency and longevity of the high-feed end mills, enabling them to perform optimally across various materials and applications.
Comparing Edge and Cutter Performance Between High Feed and Standard End Mills
When comparing high feed and standard end mills, two main differences emerge in terms of edge and cutter performance:
- Feed Rate: High-feed end mills are designed to support significantly higher feed rates than standard end mills due to their geometric and insert design that minimizes radial forces on the tool.
- Surface Finish and Stability: The unique geometry of high-feed end mills, with their slight lead angle and robust core, contributes to improved surface finish by reducing vibration and tool deflection.
- Tool Longevity: The specialized design also translates to increased tool longevity, as the stress on the cutting edges is distributed more evenly, and the high-quality insert materials are chosen for durability under high feed conditions.
In summary, high-feed end mills outperform standard end mills’ efficiency, speed, and durability, especially in challenging materials and complex milling tasks, making them invaluable tools in modern manufacturing industries.

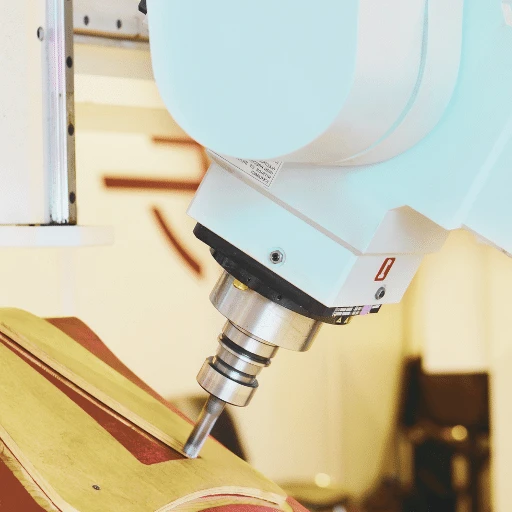

Maximizing Material Removal Rates with High Feed End Mills
Increasing Feed Rates Without Compromising Quality
High-feed end mills are ingeniously designed to elevate feed rates while maintaining the quality of the machined surface, a critical factor in high-speed manufacturing practices. This balance is primarily achieved through two fundamental mechanisms: chip thinning and managed axial depth of cut. Below, we dissect these mechanisms to understand their roles in enhancing machining efficiency without sacrificing quality.
- Chip Thinning: Chip thinning occurs due to the unique geometry of high-feed end mills, which feature a small lead angle. This slight angle reduces the chip load per tooth, allowing for higher feed rates without increasing the cutting forces. Consequently, chip thinning effectively increases tool life and productivity by enabling higher speeds while ensuring material removal remains consistent and manageable.
- Axial Depth of Cut: High-feed end mills are characterized by their ability to operate effectively at shallow axial depths of cut, often less than the tool’s radius. This shallow depth, in turn, facilitates the utilization of the tool’s full cutting-edge length, distributing wear evenly and extending tool life. Additionally, the reduced axial depth minimizes the amount of material engaged with the tool at any given time, lowering cutting resistance and generating heat, further contributing to the integrity of the tool and the workpiece.
By leveraging these parameters, high-feed end mills can significantly increase productivity by maximizing material removal rates (MRR) without compromising the quality of the machined parts. The strategic application of chip thinning and controlled axial depth of cut ensures that these tools remain indispensable in high-efficiency machining operations, offering a blend of speed, precision, and durability that is critical in meeting the demands of modern manufacturing environments.
Choosing the Right High-Feed End Mill for Your Application
End Profile and Cutter Diameter: Tailoring to the Task
Selecting the right end profile and cutter diameter is crucial for optimizing high-feed mill performance. The end profile, whether square, ball-nose, or corner radius, should be chosen based on the task’s requirements. Square end profiles are suitable for general-purpose milling, offering clean, sharp edges. Ball-nose end mills are ideal for 3D contouring or working on complex surfaces where smoothness is essential. Corner radius end mills combine both advantages, providing durability and resistance to chipping at the corners.
Cutter diameter plays a vital role in determining the tool’s rigidity and operation efficiency. Larger diameters offer increased strength and stability, reducing vibration and allowing for higher feed rates. However, smaller diameters may be required for detailed work in tight spaces. The balance between tool strength and access must be carefully managed to achieve optimal results.
Indexable vs. Solid Carbide High Feed End Mills
When choosing between indexable and solid carbide high-feed end mills, several factors must be considered:
- Application Specificity: Indexable end mills are versatile, allowing quick and cost-effective insert changes. They are preferable for various materials and applications, particularly when the tool experiences wear in specific areas. Solid carbide end mills, on the other hand, are highly consistent and usually provide better performance in terms of finish and precision, making them ideal for specific, high-precision tasks.
- Material Hardness: Solid carbide end mills are typically more efficient in machining more complex materials due to their increased rigidity and resistance to wear. Indexable end mills, with their replaceable inserts, can be tailored with specific grades and geometries for different materials but may not always match the performance of solid carbide in very hard substrates.
- Cost Efficiency: Indexable end mills offer a more cost-effective solution with replaceable inserts for operations where tool wear is high. However, for operations requiring the utmost precision and finish, the higher initial cost of solid carbide end mills can be justified by their superior performance and lifespan.
- Machining Environment: The choice between indexable and solid carbide often depends on the specific machining environment, including the available machinery, the machining material, and critical performance requirements. Each option has its place, with the decision heavily influenced by the specifics of the application and desired outcomes.
In summary, optimizing high-feed mill performance involves careful consideration of the end profile, cutter diameter, and the choice between indexable and solid carbide end mills. These decisions should be guided by the specifics of the task at hand, including the material to be machined, the required precision, and the overall objectives of the operation.

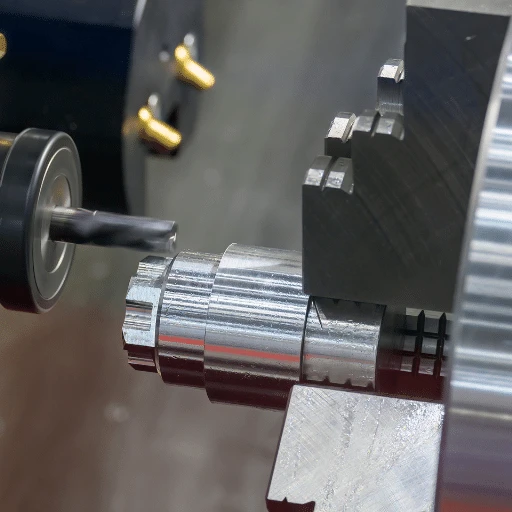

Techniques for Implementing High-Feed Milling Strategies
Setting Up for Success: Tool Path and CAM Considerations
Special attention must be given to tool path programming and CAM (Computer-Aided Manufacturing) considerations to effectively implement high-feed milling strategies. Successful high-feed milling operations are characterized by their ability to achieve high metal removal rates through optimized tool paths that minimize tool wear while maximizing efficiency. Below are practical machinist tips and relevant parameters critical to setting up for success in high-feed milling:
- Optimized Tool Paths: It is crucial to create tool paths that maintain a consistent load on the cutter. Tools should enter and exit the workpiece material in a manner that prevents shock loading and excessive wear. Techniques such as ramping or helical interpolation can be beneficial.
- Chip Thinning: High-feed milling often leverages the principle of chip thinning to increase feed rates without overloading the tool. Understanding how to adjust feed rates for the specific cutter geometry is crucial in maximizing the efficiency of chip thinning practices.
- Tool Engagement Angle: Managing the tool engagement angle is critical to preventing tool overload and ensuring smooth machining operations. The engagement angle should be controlled to keep the load on the tool consistent and predictable.
- CAM Software Optimization: Using CAM software to simulate tool paths is invaluable for identifying potential issues before machining. Advanced software features can help optimize tool paths for high-feed milling, allowing for adjustments in strategy such as adaptive clearing or dynamic milling.
- Coolant and Lubrication: Proper coolant and lubrication application can significantly impact tool life and surface finish. High-feed milling strategies may require different approaches, such as through-spindle coolant, to efficiently remove heat from the cutting zone.
- Machine Dynamics and Capabilities: Understanding the dynamic capabilities and limitations of the CNC machine tool is essential. High-feed milling demands precise control over feed rates and spindle speeds, which must be within the operating capabilities of the machine to avoid excessive wear or damage.
Implementing these considerations into your high-feed milling operations can significantly increase productivity and efficiency. Each parameter and tip aims to ensure the milling process is practical and sustainable, reducing tool wear while achieving desired metal removal outcomes.
Overcoming Common Challenges in High Feed Milling
Managing Heat and Force in High Feed Applications: Avoiding Common Pitfalls
In high-feed milling, managing heat and force is pivotal to maintaining tool integrity, workpiece quality, and operational efficiency. The critical challenges often encountered include excessive heat generation, the accompanying tool wear, and the handling of forces that can lead to tool deflection or breakage. Addressing these challenges involves a comprehensive strategy that encompasses several key parameters:
- Heat Dispersion Techniques: Given the rapid heat generation in high-feed operations, effective heat management is crucial. Techniques such as through-spindle coolant delivery can directly cool the cutting zone, enhancing tool life and surface finish by reducing thermal stresses on the tool and workpiece.
- Tool Path Optimization: Modern CAM software offers sophisticated algorithms that optimize tool paths, distributing the workload evenly across the cutting tool. This reduces localized heat buildup and minimizes the risk of tool failure due to thermal overload.
- Advanced Tooling Solutions: Utilizing high-feed milling tools that might feature specific geometries and coatings can significantly improve heat resistance and force handling. These tools are engineered to cope with high-feed operations’ high mechanical loads and thermal stresses.
- Controlled Engagement Strategies: Maintaining a consistent and controlled tool engagement angle helps manage the forces encountered during slotting and other challenging operations. This approach reduces sudden impacts or loading changes that could destabilize the tool or damage the workpiece.
- Speed and Feed Rate Adjustments: The optimal selection of spindle speeds and feed rates, per the tool’s specifications and the material’s characteristics, is fundamental. These parameters must be tailored to effectively manage the mechanical forces and heat generation, preventing tool wear or failure.
Systematically addressing these aspects can substantially mitigate the common pitfalls of heat and force in high-feed milling applications. Implementing these strategies not only ensures the longevity of the tools but also contributes to the overall success and efficiency of the milling process.

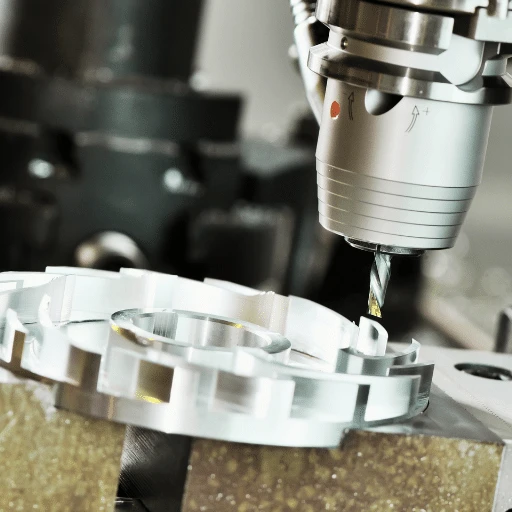

The Future of Fabrication: Advantages of High Feed End Mills
High-feed end mills are revolutionizing CNC machining by offering substantial benefits in terms of efficiency and quality. Implementing high-feed end mills translates into markedly reduced machining time and an improved surface finish, two critical parameters in the manufacturing industry. Here’s how these advantages are achieved:
- Reduced Machining Time: High-feed end mills are designed to remove material faster thanks to their unique geometry and cutting dynamics. This allows for:
- Increased feed rates without compromising tool life.
- The capability to perform roughing and semi-finishing operations at higher speeds.
- Minimized need for multiple passes over the same area, thus saving time.
- Improved Surface Finish: The design of high feed end mills, with their smaller lead angles and optimized cutting edge, results in:
- A smoother interaction with the material surface reduces burr formation and surface irregularities.
- Achieving finer finishes in fewer passes enhances the final product’s aesthetic and functional qualities.
- We have reduced the workpiece’s thermal distortion and mechanical stress, contributing to a higher-quality finish.
By focusing on these parameters, manufacturers utilizing high-feed end mills can achieve faster production rates and superior product quality. This strategic approach elevates the machining process and provides a competitive edge in the fast-paced manufacturing landscape.
References
-
A multi-tier design methodology for reconfigurable milling machines
- Source: ASME Digital Collection (Link)
- Summary: This academic article discusses a design methodology for reconfigurable milling machines, emphasizing the importance of high feed-rate capabilities in meso-milling applications. While the focus is broader than solely on high-feed end mills, it provides valuable insights into the mechanical requirements and performance benefits of high-speed machining. The study’s findings on achieving high stiffness at elevated feed rates are particularly relevant for manufacturers and engineers seeking to optimize the use of high-feed end mills in precision machining.
-
Ionizing radiation and polymers: principles, technology, and applications
- Source: Google Books (Link)
- Summary: Although primarily focused on the application of ionizing radiation in polymers, this source delves into technological advancements and principles that indirectly relate to the efficiency and capabilities of modern machining tools, including high-feed end mills. The discussion on electron-beam curing and material processing techniques offers a peripheral view of the technological context within which high-feed end mills operate, providing a background understanding of the material sciences that influence machining performance.
-
Raising forest revenues and employment: unlocking the potential of small and medium forest enterprises in Guyana
- Source: Google Books (Link)
- Summary: While this source discusses the forestry sector, its emphasis on optimizing production processes and improving revenue through technological and methodological advancements can be analogously applied to manufacturing and machining contexts. Insights into maximizing resource efficiency and productivity through strategic planning and tool selection echo the considerations necessary for effectively utilizing high-feed end mills in machining operations to enhance output and reduce waste.
Frequently Asked Questions
Q: What is a high-feed end mill?
A: A high-feed end mill is a cutting tool with a specialized end profile that allows it to utilize chip thinning, resulting in better performance and efficiency.
Q: How does the curve in a high-feed end mill affect its performance?
A: The curve in a high-feed end mill’s design allows the tool to utilize chip thinning, which optimizes cutting forces and increases tool life.
Q: When should I use a high-feed end mill with a specialized end?
A: You should use a high-feed end mill with a specialized end when you require reliable performance, especially in applications with deep pockets or when you desire optimal cutting efficiency.
Q: What are some benefits of using a high-feed end mill for stainless pocket milling?
A: Using a high-feed end mill for stainless pocket milling allows you to take advantage of the chip-thinning effect, resulting in precision machining and long tool life.
Q: Which manufacturers are known for producing high-quality, high-feed end mills?
A: Manufacturers like Kennametal, Kyocera, and others are well-regarded for their high-quality, high-feed end mills, which offer optimal performance and reliability.
Q: How can I select a suitable high-feed end mill for my machining needs?
A: To select the suitable high-feed end mill, consider factors like the machined material, desired cutting parameters, and the type of curve or profile that allows for efficient chip removal.
Q: Why is using a high-feed end mill critical for roughing operations?
A: Using a high-feed end mill for roughing operations allows for faster material removal, reduced cutting forces, and improved efficiency in handling deep pockets and volume machining.
