Finding the most suitable end mill drill bits for CNC applications involves understanding the unique requirements of your machining tasks, including the material being processed, desired finish quality, and production speed. Key factors to consider include the end mill’s material composition, such as carbide, high-speed steel (HSS), or cobalt, each offering distinct advantages in durability, cutting speed, and finish quality. Additionally, the bit’s geometry—including flute count, length, and the shape of its cutting end—plays a crucial role in determining the efficiency of material removal and the smoothness of the finished product. Optimal selection requires balancing these considerations with cost to arrive at a choice that not only enhances cutting efficiency but also prolongs the lifespan of your CNC equipment.
Understanding the Basics: What is an End Mill Drill Bit?
Defining the End Mill Drill Bit and Its Various Applications
An end mill drill bit is a cutting tool used predominantly in milling applications. Unlike standard drill bits, primarily designed to plunge into the material to create cylindrical holes, end mills are crafted to cut in all directions. This versatility allows them to perform various tasks, such as milling profiles, slotting, and creating complex shapes and surfaces in different materials, from metals to plastics and composites. End mills are integral in automotive, aerospace, and electronics manufacturing industries, where precision and efficiency in material removal are paramount.
Comparing End Mills and Traditional Drill Bits: Spotting the Differences
While both end mills and traditional drill bits play crucial roles in machining, several key differences separate the two:
- Cutting Direction: Traditional drill bits are cut in a single direction—vertically into the material. End mills, however, can cut in multiple directions, including laterally and vertically, enabling more intricate cutting tasks.
- Design and Application: Drill bits are primarily designed for drilling holes. In contrast, end mills are used for drilling and milling surfaces, cutting slots, and creating complex shapes.
- Geometry: End mills come in various shapes and designs, including flat, ball-nosed, and radius end mills, each suited for specific applications. Drill bits typically have a more straightforward design aimed at efficient hole drilling.
The Role of Carbide in End Mill Bits: Why Material Matters
Material composition is a critical aspect of end-mill performance. Carbide, a compound of carbon and tungsten, is one of the most common materials used for end mill bits due to several advantages:
- Hardness and Durability: Carbide is significantly more complex than high-speed steel (HSS), allowing for higher cutting speeds and a longer tool life.
- Heat Resistance: It maintains its hardness at higher temperatures, enabling it to cut at faster speeds without losing its cutting edge.
- Versatility: Carbide end mills can efficiently cut through various materials, from soft aluminum to harder metals such as stainless steel.
The appropriate end mill material is essential for achieving the desired balance between cutting efficiency, finish quality, and tool longevity. Carbide end mills, while more expensive upfront than their HSS counterparts, offer superior performance and longer tool life, making them cost-effective for high-volume and precision-demanding CNC applications.
Choosing the Right Tool: Types and Features of End Mills
Exploring the Various Types of End Mills: From Ball Nose to Roughing

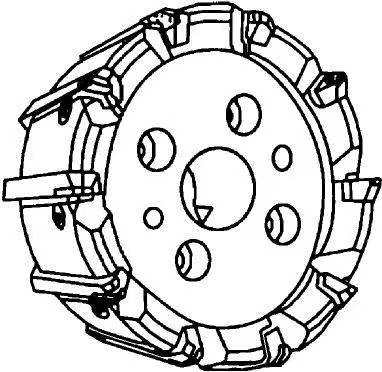

End mills are categorized based on design, which impacts their functionality and suitability for specific cutting operations. Here are the primary types:

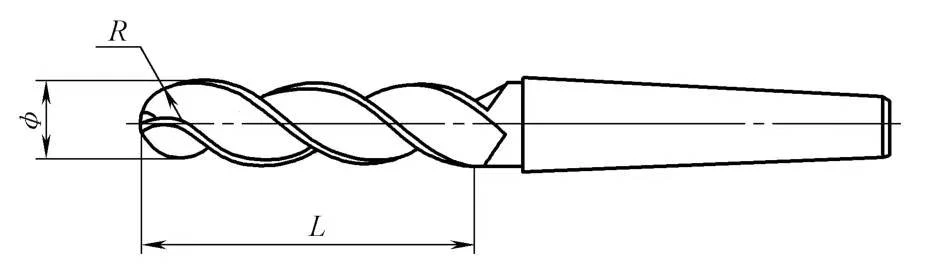

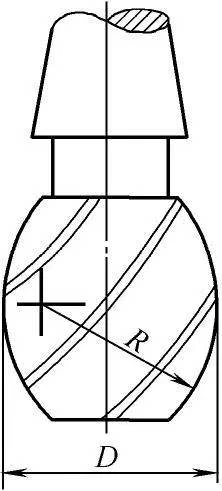

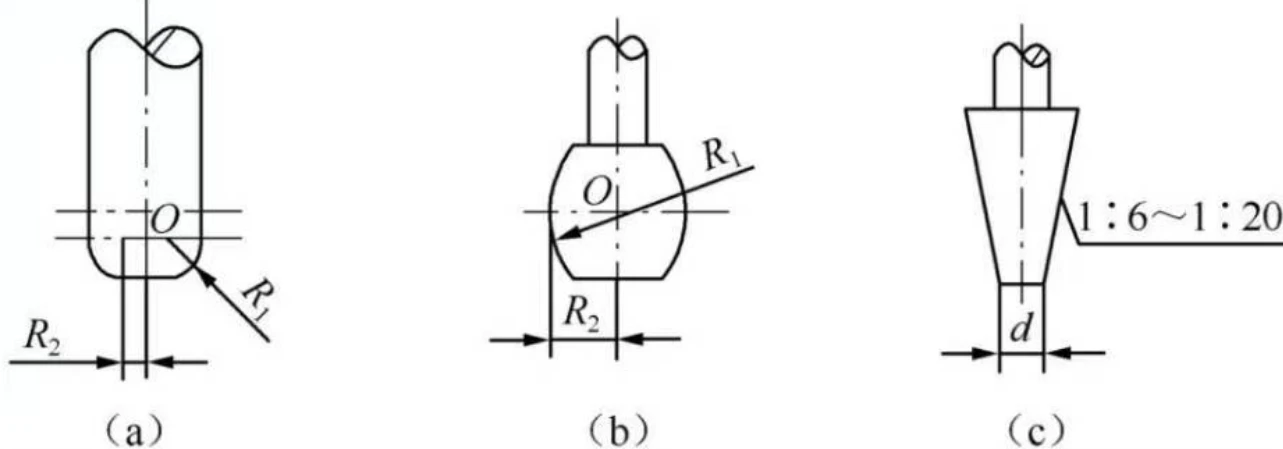

- Ball Nose End Mills: Ideal for 3D contour work, ball nose end mills have rounded ends that produce top-notch surface finishes but are unsuitable for high-detail work on corners.
- Square End Mills: These are used for general milling applications and for creating sharp, unrounded edges.
- Roughing End Mills: Also known as “ripped” or “hog” cutters, these are used in rapid material removal scenarios where a rough finish is acceptable. Their serrated design breaks the cutting chips into smaller, manageable pieces.
- Specialty Cutters: This category includes tools for specific materials or applications, such as aluminum.
Flute Considerations: How to Decide Between 2, 3, or 4 Flutes
The number of flutes on an end mill affects the cut’s finish and feed rate. Here are vital factors to consider when choosing:
- 2 Flute End Mills: Excellent for machining soft materials like aluminum. They allow for larger chip loads, making them ideal for roughing work.
- 3 Flute End Mills: These end mills provide a good balance between the chip removal capacity of 2 flutes and the surface finish quality of 4 flutes. They are instrumental in slotting applications.
- 4 Flute End Mills: These are best for producing a high-quality surface finish on harder materials. However, the increased number of flutes reduces chip space, making them less suitable for materials prone to generating large chips.
Understanding the Importance of Coatings Like AlTiN on Cutting Performance
Coatings on end mills are critical for extending tool life, improving lubricity, and enhancing performance across various materials. The most common types include:
- AlTiN (Aluminum Titanium Nitride) is known for its high heat resistance, making it ideal for high-temperature cutting operations on materials like steel and titanium.
- TiCN (Titanium Carbonitride) Offers increased hardness and better wear resistance than TiN, making it suitable for stainless steel and iron.
- TiN (Titanium Nitride): Improves tool life and can be easily recognized by its gold color. Suitable for a wide range of materials but particularly beneficial for softer metals.
Selecting the right end mill type, flute count, and coating is essential for maximizing efficiency and achieving the desired outcome in any milling operation. The choice depends on various factors, including the machining material, the machining operation’s specifics (e.g., roughing, finishing), and available machinery capabilities.
Maximizing CNC Machine Performance with Quality Carbide End Mills

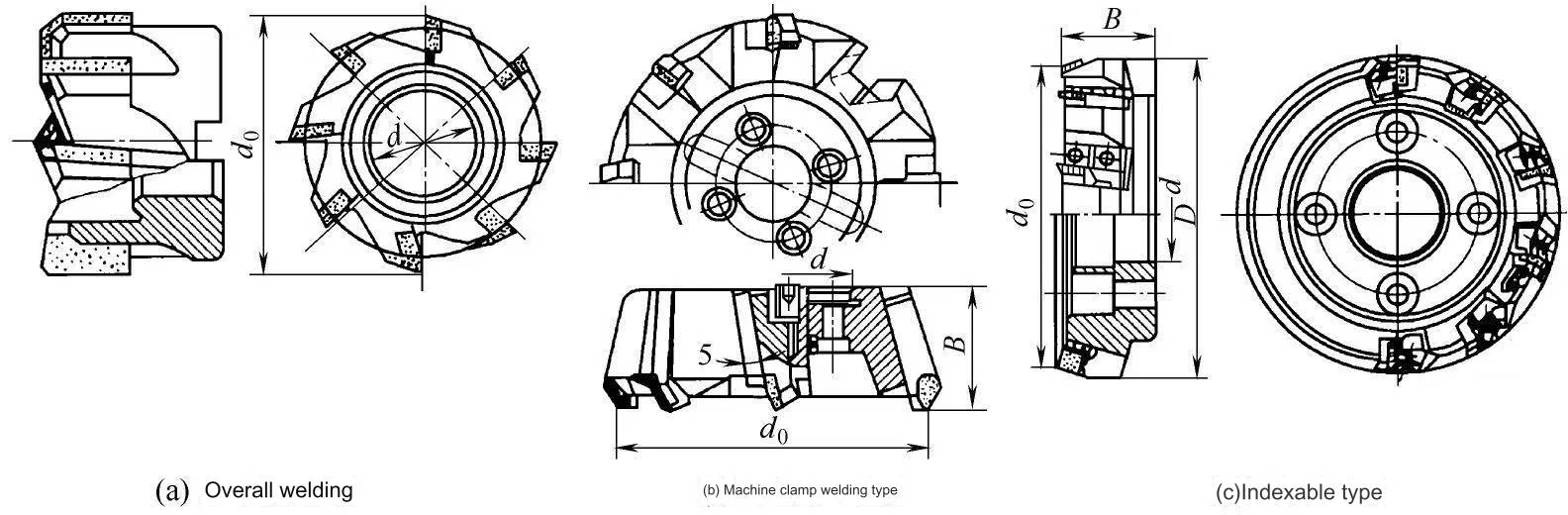

The Benefits of Opting for Solid Carbide End Mills in CNC Operations
Choosing solid carbide end mills for CNC machining operations brings significant advantages, primarily due to the material’s superior strength, heat resistance, and precision:
- Durability and Wear Resistance: Solid carbide end mills withstand higher temperatures and offer more excellent wear resistance than high-speed steel (HSS) tools. This means they maintain their cutting-edge sharpness for more extended periods, reducing the need for frequent replacements and ensuring consistent machining quality.
- Improved Precision: Carbide’s rigidity allows for tighter tolerances and superior finishes. This material’s stiffness minimizes tool deflection, leading to increased accuracy in machining.
- Versatility Across Materials: Solid carbide tools can effectively machine a wide range of materials, from aluminum and steel to exotic metals like titanium, thanks to their hardness and thermal stability.
Helix Angle and Chip Evacuation: Tailoring Tools for Efficiency
The helix angle of an end mill plays a crucial role in chip evacuation and overall machining efficiency:
- Optimal Helix Angle Selection: A higher helix angle, generally around 40° to 45°, can improve surface finish and assist in efficient chip evacuation, particularly in non-ferrous materials. Conversely, a lower helix angle, around 30°, might be preferable for machining more challenging materials as it offers increased tool strength.
- Chip Evacuation Efficiency: Efficient chip removal is paramount in preventing chip re-cutting and reducing heat buildup, which can diminish tool life and surface finish quality. The right helix angle helps produce a smoother cut and reduces the load on the tool, extending its lifespan.
Why the Right End Mill Can Make All the Difference in Machining Precision and Speed
Selecting the appropriate end mill for specific CNC operations can drastically impact machining precision and speed:
- Material Compatibility: The tool material, such as solid carbide, should match the workpiece material to minimize wear and optimize performance.
- Tool Geometry: Factors like flute count, helix angle, and cutting-edge design are tailored to specific types of operations (e.g., roughing, finishing) and materials, dictating the efficiency of the machining process.
- Coatings and Enhancements: Surface treatments such as AlTiN coating can significantly increase an end mill’s thermal resistance and lubricity, enhancing machining speeds and prolonging tool life.
By meticulously selecting end mills based on the discussed parameters—material, geometry, and enhancements—users can achieve more efficient, precise, and cost-effective machining processes.
Advanced Applications: Router Bits vs. End Mill Bits
Deciphering When to Use Router Bits Over End Mill Bits
Router bits and end mill bits play significant roles in CNC machinery; understanding their unique purposes is crucial for optimizing machining operations.
Router Bits in CNC Machinery: Primarily designed for woodworking and engraving applications, router bits are preferred when cutting non-ferrous materials like aluminum, plastics, and composites. The key reasons include:
- High Speed and Sharpness: Router bits are engineered to cut at high speeds with minimal resistance, ensuring a clean finish on softer materials.
- Variety of Shapes and Sizes: They come in many profiles, such as round-over, ogee, and straight bits, allowing for intricate designs and finishes.
- Cost-Effectiveness for Specific Materials: They are typically more cost-effective for specific applications, like woodworking or plastic machining, where high precision isn’t the primary concern.
Slot Drills and Their Unique Advantages in Milling Operations: Slot drills, a subset of end mills, are characterized by their ability to plunge directly into the material and create slots without pre-drilling. Their unique advantages include:
- Center Cutting Design: These tools can perform drilling and milling operations, reducing tool changeover times.
- Versatility: While especially useful in metalworking for creating slots, they can also perform various end-milling tasks.
- Material Compatibility: Slot drills are made from high-grade materials suitable for cutting a wide range of materials, from metals to plastics, enhancing their utility in diverse machining processes.
When comparing router bits to end mill bits, including slot drills, the selection largely depends on material type, desired finish, and specific operation requirements. Router bits excel in high-speed applications on softer materials and intricate designs. In contrast, with their robust design, end mill bits are more suited for heavy-duty milling operations in a broader range of materials, offering versatility and precision.
Expert Tips: Selecting the Best End Mill for Specific Materials and Projects
Material Matters: Choosing the Right Carbide Drill for the Job
Selecting the correct carbide drill for your machining project is critical for efficiency, precision, and overall success. The key parameters in making this selection involve understanding the hardness, toughness, and thermal properties of the material you intend to machine. For example, while machining hard materials such as stainless steel or titanium, a robust and abrasion-resistant carbide-grade drill is essential to withstand the significant wear and heat generated during the process. Additionally, the drill’s geometry, including the point angle and flute design, should match the material’s properties to optimize chip evacuation and reduce the risk of tool failure.
Project Profiles: Matching End Mill Types to Your Cutting Needs
Matching the end mill type to your cutting needs is imperative for effective milling. Here’s a brief overview to guide your selection:
- For Roughing Operations: Consider end mills with large flutes and a roughing profile. These are designed to quickly remove large amounts of material, ideal for your project’s initial stages.
- For Finishing Operations, high-precision end mills with finer flutes and a flat or ball nose are preferred. These provide a smoother finish and are essential for the final touches.
- For Hard Materials: Choose end mills made of ultra-fine grain carbide grades, which offer increased hardness and heat resistance.
Depending on the complexity and stages involved in the machining process, each project may require a combination of these end mill types.
From Aerospace to Woodworking: Tailoring Your End Mill Choices for Industry Requirements
The industry you’re in significantly influences your end mill choices, as materials, precision requirements, and production volumes vary widely:
- Aerospace: Materials like titanium and heat-resistant superalloys are common in this field. High-performance carbide end mills designed for hard materials, featuring geometric enhancements to minimize vibration, are essential.
- Automotive: High-volume production demands end mills that balance speed and precision. Tools coated with titanium aluminum nitride (TiAlN) can offer durability and performance.
- Woodworking: The focus is on achieving intricate designs and smooth finishes. Carbide end mills with sharp edges and specific geometries for wood are optimal.
Understanding these parameters and matching them to your specific project needs ensures the selection of the most appropriate carbide drill or end mill, leading to successful outcomes in any machining application.
References
-
Predictive modeling of drilling operation for optimum MRR, machine power, and estimated tool life using fuzzy logic and regression analysis
- Source: Journal of Intelligent and Fuzzy Systems (https://content.iospress.com/articles/journal-of-intelligent-and-fuzzy-systems/ifs222768)
- Summary: This academic paper presents a detailed study on optimizing machining parameters for drilling operations, including material removal rate (MRR), machine power, and tool life expectancy. The research offers insights into selecting the right end mill drill bits to improve cutting efficiency in CNC machining using advanced methodologies like fuzzy logic and regression analysis. The findings are particularly relevant for engineers and machinists seeking to enhance productivity and extend the lifespan of their cutting tools through precise parameter optimization.
-
Zero to Maker: Learn (Just Enough) to Make (Just About) Anything
- Source: Google Books (https://books.google.com/books?hl=en&lr=&id=zRdmAgAAQBAJ&oi=fnd&pg=PT3&dq=Unlocking+the+Secrets+of+Cutting+Efficiency:+Finding+the+Best+End+Mill+Drill+Bits+for+Your+CNC+Needs&ots=IV15yIrb7l&sig=XpOYm6cTzOeM_u1FsEPOzSN9Q8c)
- Summary: Although not solely focused on CNC machining or end mill drill bits, this guide provides a broad overview of the maker movement, including insights into various tools and technologies that drive innovation in manufacturing and DIY projects. Its discussions on CNC machines and related tools indirectly highlight the importance of selecting appropriate end mill drill bits for specific applications. It offers a foundational understanding for hobbyists and professionals looking to improve their cutting efficiency.
-
Intellectual Capital: The New Wealth of Organization
- Source: Google Books (https://books.google.com/books?hl=en&lr=&id=CIwxhVIrT30C&oi=fnd&pg=PT4&dq=Unlocking+the+Secrets+of+Cutting+Efficiency:+Finding+the+Best+End+Mill+Drill+Bits+for+Your+CNC+Needs&ots=YqWOSyJkZV&sig=PF-hPWveq3m26ZMVCTMeE8b7_fk)
- Summary: While this source primarily explores the concept of intellectual capital within organizations, it touches upon the technological advancements that have revolutionized industries, including CNC machining. The reference to CNC machines and microprocessor-guided tools implicitly underscores the importance of choosing the right end mill drill bits to harness the full potential of modern CNC technology. This book offers valuable context for understanding how strategic tool selection contributes to the efficient and innovative use of CNC machines in today’s competitive landscape.
Frequently Asked Questions
Q: What is an end mill?
A: An end mill is a cutting tool used in milling applications, typically made of tungsten carbide or high-speed steel with cutting edges on the end of the tool. It can be used to make holes, profiles, or pockets precisely.
Q: What are the different types of end mills available?
A: End mills come in various types, including ball nose end mills, roughing end mills, flute end mills, and solid carbide drills, each designed for specific cutting tasks and materials.
Q: How does the number of flutes on an end mill affect cutting efficiency?
A: The number of flutes on an end mill, such as two flutes or four flutes, determines the number of cutting edges on the tool. More flutes generally result in better surface finish and chip evacuation but may reduce the tool’s strength.
Q: What is the purpose of plunge cutting with an end mill?
A: Plunge cutting refers to cutting straight down into the material with the end mill, which is helpful for making grooves, slots, or starting holes without pre-drilling.
Q: How can chamfer and radiused end mills improve machining results?
A: Chamfer and radiused end mills feature angled or rounded cutting edges, respectively, which can help reduce burrs, improve surface finish, and prevent part damage during cutting operations.
Q: Can end mills be used for drilling operations?
A: Yes, certain types of end mills, such as drill mills or center-cutting end mills, can also function as drills, allowing users to drill holes with precision using the same tool.
Q: What are the advantages of using end mills for milling applications?
A: End mills offer versatility, accuracy, and efficiency in machining tasks, making them ideal for creating complex shapes, profiles, and features in various materials.
