3 Flute End Mills represent a crucial advancement in machining technology, striking an optimal balance between the swiftness of 2 flute end mills and the stability of 4 flute models. These tools are specifically engineered to excel in both the efficient removal of material and in finishing applications. The design integrates a unique geometry that reduces vibration, increases chip removal efficiency, and enhances surface finish quality while maintaining structural integrity. This makes 3 Flute End Mills exceptionally versatile and suitable for various materials, including aluminum, steel, and exotic metals. Adopting such tools can significantly optimize machining workflows, reduce processing times, and increase the longevity of the tooling, making them an indispensable asset in any manufacturing or machining operation.
Why Use 3 Flute End Mills?
Comparing the 3 Flute Design to Other Mill Types
The distinct advantages of using 3 Flute End Mills, especially in CNC machining, become apparent when we compare their design and operational efficiencies against other mill types.
- Efficiency: 2 Flute End Mills are widely recognized for their impressive material removal rates due to their larger flute space, accommodating more chip removal per revolution. However, they often lack the finishing capabilities and stability found in mills with more flutes. On the opposite end, 4 Flute End Mills provide enhanced strength and finer finishes due to their increased contact points. However, they can struggle with chip removal in slotting operations and materials that produce large chips. The 3 Flute End Mill bridges this gap effectively, offering a blend of efficient chip removal, stability, and finish quality that is often unmatched.
- Superior Finish: The geometry of 3 Flute End Mills is tailored for optimal chip evacuation and excellent surface finishes. This is crucial in operations where the surface finish quality is paramount and can reduce the need for secondary finishing processes.
- Versatility: Unlike its counterparts, the 3-flute design excels across a broader spectrum of materials. Its balanced attributes make it a go-to choice for machining a wide range of materials, from soft aluminum to more rigid steel. This versatility simplifies tool selection and inventory management for manufacturing operations, contributing to overall workflow efficiency.
- Increased Tool Longevity: The design of 3 Flute End Mills also contributes to their durability. The distribution of forces across three flutes, as opposed to two or four, allows for more even wear over the tool’s life. This, combined with the possibility of operating at higher speeds without sacrificing finish quality, means these tools can often last longer than their counterparts before needing replacement or resharpening.
In conclusion, selecting a 3 Flute End Mill in CNC machining can improve efficiency, finish, and tool longevity. This choice supports an optimized machining workflow, ensuring that manufacturing processes are faster, cost-effective, and produce high-quality results.
Choosing the Right Material for Your 3 Flute End Mill
Carbide vs. HSS: What’s Best for Your Application?
When choosing between Carbide and High-Speed Steel (HSS) for your 3 Flute End Mills, several factors must be considered to determine the best suited for your specific application.
Carbide End Mills are renowned for their hardness and durability, leading to higher cutting speeds and a longer tool life. They are especially beneficial in machining hard materials and for applications where high production rates are desired. However, Carbide is more brittle than HSS, making it more susceptible to chipping in certain conditions.
On the other hand, high-speed steel (HSS) End Mills are preferred for their flexibility and toughness. They absorb shock and vibration better than Carbide, making them suitable for applications with varying depths or less rigid setups. While they operate slower and may wear faster, HSS tools are generally less expensive and can be cost-effective for short runs or softer materials.
Understanding the Role of Coating Options Like AlTiN and TiN
End mills are coated with Aluminum Titanium Nitride (AlTiN) and Titanium Nitride (TiN) to enhance their performance and longevity.
AlTiN is well-suited for high-temperature operations and provides excellent resistance to wear and abrasion, making it ideal for machining hard materials at high speeds. Its high thermal stability increases the tool’s life even under extreme conditions.
TiN, recognized by its gold color, is known for its ability to reduce tool wear and increase hardness. It is suitable for a wide range of applications, particularly in softer materials, and extends tool life by reducing friction and preventing material from sticking to the tool.
Selecting Between Solid Carbide and Carbide Tipped End Mills
The choice between solid Carbide and carbide-tipped end mills largely depends on the application’s demands and cost considerations.
Solid Carbide End Mills provide superior rigidity, making them the best option for high precision and high-speed operations. They are particularly effective in producing clean finishes on hard materials.
Carbide-tipped end Mills consist of a steel body with Carbide brazed to the cutting edges. This design combines steel’s toughness with Carbide’s hardness, making it a cost-effective choice for cutting through more complex materials without the expense of a solid carbide tool. They are best suited for large-scale milling operations with high cutting force.
Optimal Applications for 3-Flute End Mills
Perfect Materials to Machine with 3-Flute End Mills
3-flute end mills are particularly adept at machining aluminum and non-ferrous metals due to their unique design, balancing chip removal efficiency, and surface finish quality. The configuration of these mills allows for rapid chip evacuation in softer materials, which is essential in preventing the build-up of material on the cutting edge that can lead to tool failure. The reduced contact area minimizes heat generation, preserving tool integrity and material properties.
General Purpose vs. Specialized: When to Choose a 3-Flute End Mill
General Purpose: A general-purpose 3-flute end mill is a practical choice for most applications in aluminum and non-ferrous metals. These mills are designed to handle various materials and cutting conditions efficiently. Key parameters to consider include:
- Material Softness: Ideal for softer materials where rapid chip evacuation is necessary.
- Speed Requirements: High-speed milling operations benefit from the balance of chip removal rate and heat management.
- Versatility: When the same tool is needed to perform multiple operations (e.g., slotting, profiling, and finishing).
Specialized: For specific applications that demand higher performance or have unique requirements, choosing a specialized 3-flute end mill might be justified. Consider specialized end mills in scenarios where:
- Exceptional Finish Is Required: Specialized coatings and geometries can reduce tool wear and enhance finish on delicate parts.
- Unique Material Properties: Some alloys and composite materials may benefit from the enhanced performance features of specialized 3-flute end mills.
- Extreme Conditions: High feed rates, deep slots, or challenging geometries might necessitate end mills designed for specific conditions to maintain precision and tool life.
In summary, selecting a 3-flute end mill is often governed by the material to be machined, the desired finish, and the specific requirements of the machining operation. For general applications in aluminum and non-ferrous metals, a standard 3-flute end mill will often suffice. However, selecting a 3-flute end mill with particular features designed for the specific scenario at hand may be necessary for more demanding or specialized tasks.

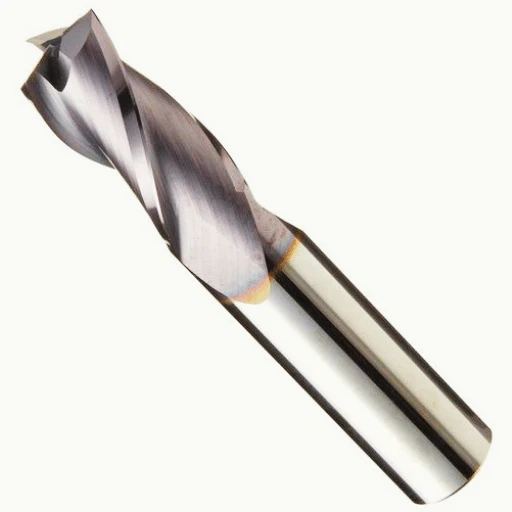

Maximizing Performance with 3-Flute End Mill Design Features
Understanding Corner Radius and Tool Geometry for Better Results
The corner radius and tool geometry of 3-flute end mills are essential factors influencing machining outcomes, leading to improved durability, surface finish, and operational efficiency.
- Corner Radius: Incorporating a corner radius can significantly enhance tool strength and durability by distributing stress evenly across the cutting surface. This reduces the likelihood of chipping and breakage, especially in hard materials. A larger corner radius can also help achieve a smoother finish on the part, though it may limit the ability to produce sharp internal corners on the workpiece.
- Tool Geometry: The design of the tool’s geometry, including the rake angle, relief angles, and cutting-edge preparation, plays a crucial role in its cutting performance and lifespan. An optimized tool geometry ensures efficient cutting dynamics, reduces cutting forces, and minimizes heat generation. This results, in turn, in smoother cutting, lower power consumption, and better surface quality.
How Helix Angle Affects Cutting Efficiency and Chip Removal
- Helix Angle: The helix angle of a 3-flute end mill affects how efficiently it can engage with the material and remove chips. A higher helix angle, typically between 45° and 60°, creates a more substantial shearing action, facilitating smoother, quieter cutting and more efficient chip evacuation. This is particularly beneficial in slotting and roughing applications where chip removal can become a bottleneck. However, higher helix angles may reduce the tool’s rigidity, increasing the risk of deflection in some scenarios.
Length, Diameter, and Profile: Tailoring Your End Mill to the Task
- Length: The length of the cutting flutes affects the end mill’s reach and its ability to remove material efficiently. Longer cutting lengths provide deeper cutting capabilities but may reduce the tool’s overall rigidity.
- Diameter: The end mill’s diameter determines the cut size it can make in a single pass and its stability during machining. Larger diameters offer increased stability but may not be suitable for machining finer details.
- Profile: The end mill’s profile, including whether it has a square or ball end, dictates the shapes and features that can be machined. Square end mills are ideal for slotting and peripheral milling, whereas ball end mills excel in contouring and finishing surfaces.
By carefully selecting a 3-flute end mill with the appropriate corner radius, helix angle, and tailored length, diameter, and profile parameters, machinists can optimize their milling operations. This ensures the efficiency of their machining process and the quality of the finished product.
Ensuring Longevity and Performance: Maintenance Tips for 3-Flute End Mills
Proper care, handling, and operational practices are critical to maximizing the life span of 3-flute end mills. The longevity of these tools can be significantly extended by adhering to the following guidelines:
- Proper Care and Handling: Always store end mills in a protective case when not in use to avoid chipping or dulling of the cutting edges. Avoid dropping the tools or knocking them against hard surfaces.
- Optimal Speeds and Feeds: It is paramount to utilize the correct speeds (RPM) and feeds (inch per minute). These should be adjusted based on the machined material, the end mill’s diameter, and the cut’s depth and width. Incorrect speeds and feeds can lead to suboptimal performance, increased wear, or tool breakage.
- Material: Harder materials typically require slower speeds and lighter feeds.
- Tool Diameter: Larger-diameter tools can handle higher speeds due to increased rigidity.
- Depth and Width of Cut: Greater depths and widths of cut may necessitate reductions in speed and feed to prevent overloading the tool.
- Use of Coolant: Applying coolant or cutting fluid can help reduce heat buildup, significantly contributing to tool wear. In some materials, like aluminum, a specific type of coolant may also prevent material from sticking to the cutting edges.
- Tool Replacement vs. Re-sharpening:
- When to Replace: An end mill should be replaced if it is cracked, significantly chipped, or worn down to a point where reshaping would alter its geometry too much. Excessive wear can also lead to poor surface finish or dimensional inaccuracies in the machined part.
- When to Re-sharpen: Re-sharpening is recommended when the cutting edges are dull, but the overall tool geometry remains intact. However, it’s important to note that each re-sharpening slightly reduces the tool’s diameter.
Implementing these practices will ensure the efficiency of your milling operations and contribute to superior manufacturing outcomes. Considering these factors will help make informed decisions regarding end-mill care, ultimately extending the tool’s operational life and enhancing your investment’s return.
References
-
ALU-POWER HPC’s Highly Polished 3-Flute Design
- Source: YG-1 USA (Link)
- Summary: This manufacturer’s brochure details the ALU-POWER HPC series, which features a highly polished 3-flute design engineered explicitly for balanced cutting performance. The document elaborates on the tool’s ability to prevent excessive heat buildup, making it ideal for machining aluminum and other non-ferrous materials. The brochure is valuable for understanding the engineering behind three flute end mills and their application in high-performance cutting environments.
-
CNC End Mill Guide
- Source: CNC Cookbook (Link)
- Summary: This comprehensive guide presents an overview of end mills, focusing on selection and usage across CNC milling machines and routers. While it covers various types of end mills, the sections discussing the advantages of different flute counts offer insights into the specific scenarios where a three-flute end mill excels. This article is a foundational resource for machinists and engineers seeking to optimize their tool selection based on material, cutting efficiency, and desired finish.
-
The Ultimate Guide to Carbide End Mills Updated in 2024
- Source: SSENDMILL (Link)
- Summary: This updated guide provides an in-depth exploration of carbide end mills, including technological advancements and application-specific recommendations for 2024. It addresses the unique properties of 3 flute end mills, such as their suitability for specific materials and operations. It looks at the latest trends and best practices in end-mill utilization. The guide is particularly relevant for professionals looking to stay ahead of industry developments in tooling technologies.
Frequently Asked Questions
Q: What is a carbide end mill?
A: A carbide end mill is a cutting tool used for milling operations. It is made of carbide material, providing durability and heat resistance, making it suitable for various machining applications.
Q: How does the number of flutes in an end mill affect its performance?
A: The number of flutes in an end mill determines its chip load capacity and ability to evacuate chips during cutting. For example, end mills with three flutes offer a balance between chip removal and tool rigidity, making them versatile for various machining operations.
Q: What are the advantages of using a 3-flute end mill compared to other options?
A: A 3-flute end mill typically provides a good balance between material removal rates and tool stability. It is well-suited for efficient chip evacuation, high-speed cutting, and increased productivity in machining processes.
Q: How can I choose the right end mill style for my machining needs?
A: When selecting an end mill style, consider factors such as the material to be machined, cutting depth, surface finish requirements, and machining operations. Consult with tooling experts or refer to manufacturer recommendations to choose the best end mill style for your application.
Q: What are some typical applications for 3-flute end mills?
A: 3-flute end mills are commonly used for slotting, profiling, contouring, and finishing operations in steel, aluminum, and composites. They are suitable for both roughing and finishing cuts in different machining setups.
Q: How can I optimize the performance of 3-flute end mills during milling operations?
A: To optimize the performance of 3-flute end mills, ensure proper tool speeds and feeds, use coolant or lubricant if needed, securely clamp the workpiece, and monitor tool wear regularly. Best tooling setup and maintenance practices can enhance cutting efficiency and tool life.
Q: What are some key features when choosing a 3-flute end mill?
A: When selecting a 3-flute end mill, consider features such as coating options (e.g., ZRN coating for increased tool life), geometry (e.g., reduced neck for improved clearance), and cutting edge profiles (e.g., ball profile for contouring). Choose an end mill that matches your specific machining requirements for optimal results.
