Flute end mills are essential tools in the arsenal of CNC machining, offering unparalleled precision and efficiency in cutting operations. Central to their effectiveness is their design, which incorporates multiple flutes or cutting edges that spiral along the tool’s body. This configuration allows for the simultaneous engagement of several cutting edges with the material, reducing working time and enhancing surface finish quality. Furthermore, the variety of flute configurations, ranging from two to eight flutes, enables machinists to select the optimal tool based on the material being machined and the specific machining operation, be it roughing, finishing, or contouring. By understanding the characteristics and applications of different flute end mills, machinists can significantly improve their machining strategies, leading to higher productivity and lower tool wear.

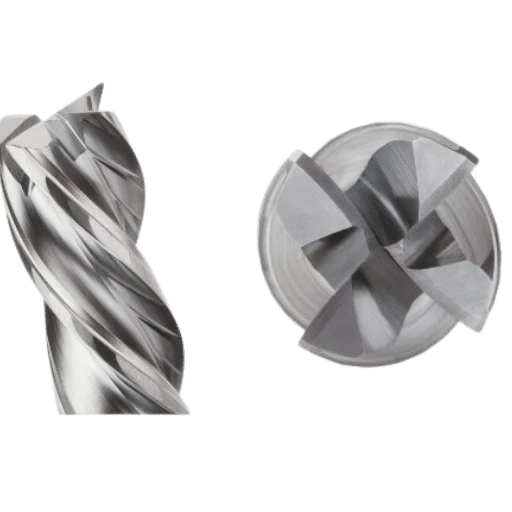

What is a Flute End Mill and How Does It Differ from Other Mill Cutters?

Defining the Flute End Mill

A flute end mill is distinguished by its design, featuring spiraled grooves or flutes along the side of the tool. These flutes are instrumental in the cutting process, facilitating efficient metal removal by allowing chips to escape, reducing heat, and minimizing tool wear. Flute end mills can be made from various materials such as high-speed steel, carbide, cobalt, and others, depending on the application’s requirements. The choice in the number of flutes ranges from two to eight, with each configuration offering unique benefits in terms of finish, speed, and material compatibility.

Comparison with Other Cutting Tools

Unlike single-point cutting tools, flute end mills engage with the workpiece across multiple points simultaneously. This contrasts markedly with tools like drills, which primarily operate along a single axis and are used for creating holes. Other milling cutters, such as ball nose end mills or corner radius cutters, specialize in specific types of milling operations like 3D contouring or achieving specific corner radii, respectively. The primary distinction lies in the flute end mill’s versatility and efficiency in performing a broad range of machining tasks, including side milling, slotting, and profiling.

Core Benefits of Using Flute End Mills

Versatility in Application: Flute end mills are suitable for a wide range of materials and operations, from roughing to finishing.
Improved Efficiency: Multiple cutting edges engage the material simultaneously, reducing machining time.
Superior Surface Finish: The design and number of flutes can be selected to achieve optimal surface finishes, minimizing the need for subsequent finishing processes.
Heat Dissipation: The flutes facilitate effective chip removal, which in turn helps in dissipating heat from the cutting area, extending tool life.
Cost-Effectiveness: Despite their higher initial cost, the longevity and multipurpose nature of flute end mills can reduce the overall cost of tools in the production environment.

Understanding these aspects allows machinists and engineers to select the most appropriate end mill for their specific milling operations, optimizing their machining process for speed, efficiency, and precision.

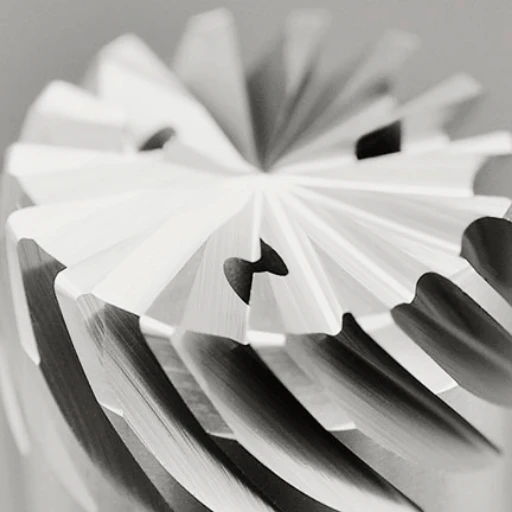

Exploring the Varieties: From 3-Flute to 4-Flute End Mills

Understanding the Differences: 3-Flute Vs. 4-Flute End Mills

When comparing 3-flute and 4-flute end mills, the primary difference lies in their respective flute counts, which significantly affects their performance in various machining operations. Here’s an in-depth look at these differences and their implications:

Material Removal Rate (MRR): 3-flute end mills generally allow for higher feed rates compared to 4-flute end mills due to the larger flute space, facilitating better chip evacuation. This makes 3-flute end mills preferable for high-efficiency machining, especially in softer materials like aluminum.
Finish Quality: 4-flute end mills offer a finer surface finish due to the increased number of cutting edges engaging the material. This capability makes them ideal for final passes where a superior surface finish is critical.
Versatility: While 3-flute end mills are particularly beneficial in side milling and slotting operations for a wide range of non-ferrous materials, 4-flute end mills provide a higher versatility across a broader range of materials, including both ferrous and non-ferrous types. The additional flute helps in distributing the cutting forces more evenly, enhancing stability and wear resistance in tougher materials like stainless steel and titanium.
Heat Management: The reduced flute count in 3-flute end mills facilitates better chip evacuation and heat dissipation, which is crucial when working with material’s prone to welding or when operating at higher speeds. Meanwhile, 4-flute end mills, with their tighter flute space, are more prone to heat accumulation, necessitating careful monitoring of cutting parameters to avoid premature tool wear or failure.

When to Use a Higher Flute Count

Using a higher flute count is advantageous when:

Machining harder materials: The increased number of cutting edges and the resultant distribution of cutting forces make 4-flute end mills more effective in handling harder materials.
Requiring a finer finish: For applications demanding high-quality surface finishes, 4-flute end mills are superior due to their additional cutting edges.
Performing detailed contouring work: The enhanced stability of 4-flute end mills makes them better suited for intricate contouring or detailed 3D modeling in materials of all hardness levels.

Understanding these variables and their impact on machining performance allows industry professionals to select the most suitable tool for their specific application, optimizing both the efficiency and quality of the machining process.

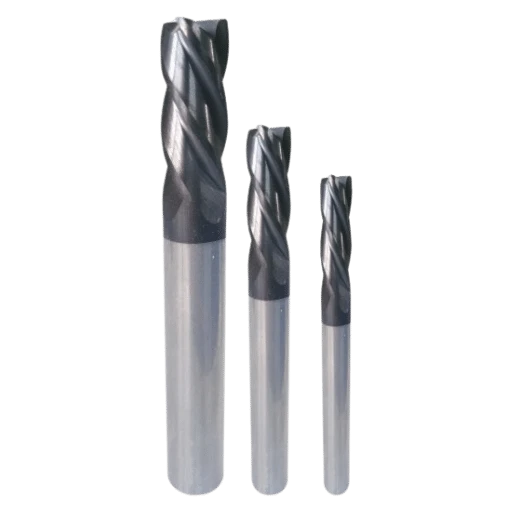

The Importance of Material and Coating in Flute End Mills

Choosing the correct material for end mills is crucial for the success of machining operations. Here are the main considerations:

Choosing between Carbide and Steel End Mills

Carbide End Mills are preferred for their hardness and heat resistance, making them ideal for high-speed machining and for working with tough materials like stainless steel and titanium. They offer longer tool life and allow for faster cutting speeds, but they are more brittle and expensive.
High-Speed Steel (HSS) End Mills are more flexible and less prone to chipping, making them suitable for a variety of general milling applications, especially with softer materials. They are cost-effective but cannot operate at the same high speeds as carbide tools without losing their edge.

The Role of Coatings like AlTiN in Extending Tool Life

Coatings such as Aluminum Titanium Nitride (AlTiN) play a significant role in extending the life of end mills by:

Increasing Hardness: Enhancing surface hardness, allowing the tool to cut harder materials without wear.
Reducing Friction: Lowering the friction between the tool and the material, which reduces heat buildup and wear.
Enhancing Heat Resistance: Improving the tool’s ability to withstand high temperatures without losing hardness or suffering from oxidation.

Solid Carbide vs. Carbide Tipped: Which is Better?

Solid Carbide End Mills are made entirely of carbide, offering the highest hardness, heat resistance, and speed capabilities. They are best for high precision and high-speed applications but are more prone to breakage in heavy-duty operations.
Carbide-Tipped End Mills have a steel body with carbide cutting edges welded or brazed on. They combine the toughness of steel with the hardness of carbide edges, making them more durable and resistant to shock and vibration. However, they may not offer the same level of precision as solid carbide tools in high-speed applications.

Each of these choices has its own set of benefits and limitations which must be considered in the context of the specific machining application, material, and desired outcome.

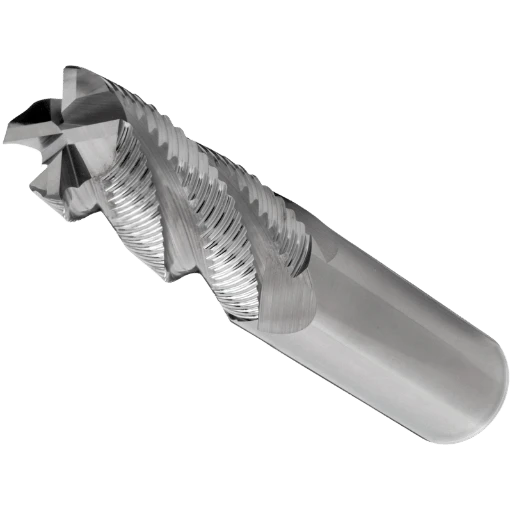

Optimizing Milling Operations with Ball Nose and 4-Flute End Mills

Benefits of Ball Nose End Mills in Detailed Machining

Ball nose end mills are uniquely designed to produce fine detail and intricate shapes in machining projects. They offer several key benefits for detailed machining:

Complex Contouring Ability: Their distinctive spherical end allows for efficient machining of complex three-dimensional contours, particularly useful in mold making, automotive, and aerospace industries.
Smooth Surface Finish: Due to their shape, ball nose mills create a smoother finish on the surface of the material, reducing the need for subsequent finishing operations.
Versatility: They can be utilized for slotting, pocketing, and finishing operations across a wide range of materials, enhancing their utility in precision machining.

Maximizing Efficiency with 4-Flute End Mills

4-Flute end mills are designed to optimize the milling process, offering increased efficiency and productivity through:

Higher Feed Rates: With four cutting edges, these mills can remove material at a faster rate, significantly reducing machining time.
Improved Surface Finish: The additional flutes ensure a finer finish on the workpiece, making them ideal for finishing operations.
Better Chip Removal: The design of 4-flute mills facilitates more efficient chip removal, preventing the tool from clogging and overheating.
Versatility in Material Compatibility: These mills are suitable for working with a variety of materials, including steel, aluminum, and thermoplastics, making them a versatile tool in any machine shop.

Strategies for Selecting the Right End Mill Geometry

Choosing the correct end mill geometry is crucial for optimizing machining operations. Consider the following strategies when selecting an end mill:

Identify the Material: Different materials require different end mill types. For example, harder materials may necessitate a tool with fewer flutes to ensure adequate chip space.
Understand the Machining Application: Consider whether the operation involves roughing, finishing, or contouring, as each process might benefit from a different end mill geometry.
Consider the Depth of Cut: Deep cutting operations may require tools with fewer flutes to facilitate better chip evacuation, whereas shallow cuts might benefit from higher flute counts for a finer finish.
Tool Strength and Rigidity: For operations involving significant material removal or where vibration is a concern, opt for tools with larger core diameters and fewer flutes to ensure stability.
Surface Finish Requirements: If a high-quality surface finish is critical, choose an end mill geometry that promotes smooth cutting action and minimal tool marks.

In summary, selecting the right end mill geometry involves a careful assessment of the material, machining application, depth of cut, tool strength, and desired surface finish. By considering these parameters, machinists can optimize their milling operations for efficiency, precision, and tool longevity.

Machining Challenges: How to Overcome Them with Flute End Mills

Addressing Tool Deflection and Its Impact on Quality

Tool deflection—a common challenge in machining operations—can significantly compromise the dimensional accuracy and surface finish of the machined part. This phenomenon occurs when the cutting forces exerted on the end mill cause it to bend away from the intended cutting path. To mitigate tool deflection and its adverse effects:

Select the Correct End Mill Geometry: Opt for end mills with larger core diameters to increase rigidity and reduce deflection. Additionally, consider using tools with fewer flutes for increased chip space, which can help lower the cutting forces.
Adjust Milling Parameters: Lowering the depth and width of cut can reduce the force on the tool, thereby minimizing deflection.
Tool Path Optimization: Implementing climb milling can also help minimize deflection due to the nature of the cutting forces being directed towards the spindle.

Adjusting Feed Rate and Spindle Speed for Optimum Results

Optimizing feed rate and spindle speed is crucial for achieving the desired machining outcomes while minimizing tool wear and breakage. The following strategies can be implemented:

Material and Tool Considerations: Base feed rate and spindle speed adjustments on the material being machined and the tool material. Harder materials typically require slower spindle speeds and feed rates to reduce tool wear.
Tool Geometry: The number of flutes on the end mill also dictates optimal feed rates and spindle speeds. More flutes allow for higher feed rates due to the increased amount of cutting edges.
Machining Strategy: Depending on whether roughing or finishing, adjust these parameters accordingly. Finishing operations often require higher spindle speeds and lower feed rates for a superior surface finish.

Preventing Premature Wear and Breakage

Premature tool wear and breakage not only affect part quality but also significantly increase operational costs. To prevent these issues:

Use Coated Tools: Tool coatings such as TiAlN or AlCrN can dramatically increase tool life by reducing the operating temperature and providing a protective barrier against wear.
Optimize Coolant Use: Proper coolant application reduces tool temperature and friction, leading to lesser wear and extended tool life.
Implement Tool Path Optimization: Avoiding aggressive tool paths and implementing strategies like trochoidal milling can reduce shock to the tool, minimizing the risk of breakage.

By understanding and applying these strategies, machining operations can achieve not only optimum results in terms of quality and precision but also enhance tool longevity and reduce production costs.

Selecting the Perfect Flute End Mill for Your Project

Choosing the right end mill for your machining project involves several critical factors to ensure efficiency, quality, and cost-effectiveness in your manufacturing process. Two of the key aspects to consider are the helix angle and the flute depth of the end mill:

Helix Angle: The helix angle refers to the angle between the centerline of the tool and a straight edge along the flute. A higher helix angle, typically between 40° to 60°, results in a smoother cutting action, beneficial for finishing operations and for materials prone to chipping or burring. Lower helix angles, on the other hand, offer increased strength and are more suitable for roughing operations or machining harder materials.
Flute Depth: Flute depth impacts the tool’s strength and the chip removal capacity. Deep flutes provide enhanced chip evacuation, crucial for high-feed or high-speed machining, particularly in softer or more ductile materials. Shallow flutes, conversely, increase the core strength of the tool, making them more suitable for machining harder, more brittle materials.

Case Studies: Successful Applications of Flute End Mills

Aerospace Industry: A manufacturer utilized high-helix end mills for machining complex aluminum parts. The higher helix angle reduced the load on the tool, delivering a smoother finish and extending tool life, crucial for the precision and quality demands of aerospace components.
Automotive Industry: In the production of engine blocks made of cast iron, a company deployed end mills with shallow flutes and a low helix angle. The increased strength of the end mill allowed for effective roughing operations, removing large volumes of material efficiently while maintaining tool integrity.
Medical Devices: A medical device maker adopted deep fluted end mills for machining titanium implants. The deep flutes facilitated efficient chip removal in a material known for its toughness and tendency to adhere to the cutting tool, thereby improving the surface finish and preventing premature tool wear.

In each case, the successful application of flute end mills was predicated on a thorough understanding of the tool’s characteristics and how they matched the specific requirements of the material being machined and the end-product’s desired attributes.

References

“Fundamentals of Metal Machining and Machine Tools” by Winston A. Knight and Geoffrey Boothroyd
- Source: Taylor & Francis (Link)
- Summary: This book is a comprehensive resource on the principles of machine tools and metal machining, offering in-depth discussions on various machining operations, including those involving flute end mills. It serves as an essential textbook for academia and a useful reference for industry professionals, providing foundational knowledge that underpins the effective application of flute end mills in precision CNC machining.
“Finishing of Fused Deposition Modeling Parts by CNC Machining”
- Source: ScienceDirect (Link)
- Summary: This research article explores the use of CNC milling systems equipped with specialized tooling, such as two flute solid carbide ball-end mills, for the finishing of parts produced through fused deposition modeling (FDM). The study’s focus on the integration of additive manufacturing with precision CNC machining highlights the critical role of flute end mills in achieving desired surface finishes and dimensional accuracies, making it a valuable resource for professionals looking to enhance their machining strategies.
“A multi-tier design methodology for reconfigurable milling machines”
- Source: ASME Digital Collection (Link)
- Summary: This academic article presents a novel design approach for reconfigurable milling machines, emphasizing the importance of tool selection, including flute end mills, in optimizing machining operations. The discussion on the relationship between tool flutes, cutting conditions, and machine capabilities offers practical insights for engineers and machinists aiming to unlock the full potential of flute end mills in custom or adaptable CNC machining environments.

Frequently Asked Questions

Q: What are the different types of end mills commonly used in precision CNC machining?

A: The most common types of end mills used in precision CNC machining are carbide end mills, featuring various end geometries such as square end mills, as well as tools with multiple cutting edges.

Q: How does the flute count of an end mill affect its performance?

A: End mills with lower flute counts, such as single flute or two flute tools, provide larger flute valleys and less tool deflection, making them suitable for high efficiency milling and cutting soft materials like aluminum.

Q: What are some key features to consider when selecting an end mill for CNC milling?

A: When choosing an end mill, factors to consider include the material being machined, the desired surface finish, cutting speed and feed rate requirements, as well as the end mill’s coating and hardness.

Q: How does the flute design of a carbide end mill impact machining performance?

A: Carbide end mills with long flute lengths and core diameter ratios, as well as smaller flute valleys and helix angles, are designed for high-performance machining in tough materials like alloy steel and hardened tool steel.

Q: What is the significance of coatings on end mills?

A: Coatings such as altin are applied to end mills to increase tool life, reduce cutting forces, and improve chip evacuation, especially when machining abrasive materials like cast iron or carbon steel.

Q: How does flute depth affect the cutting capabilities of end mills?

A: End mills with deeper flute depths are suitable for heavy-duty machining operations, providing more chip space and reducing the risk of chip recutting, resulting in higher material removal rates (MRR).
