Discover the Versatility of Carbide Undercutting End Mills

Discover the Versatility of Carbide Undercutting End Mills
Discover the Versatility of Carbide Undercutting End Mills

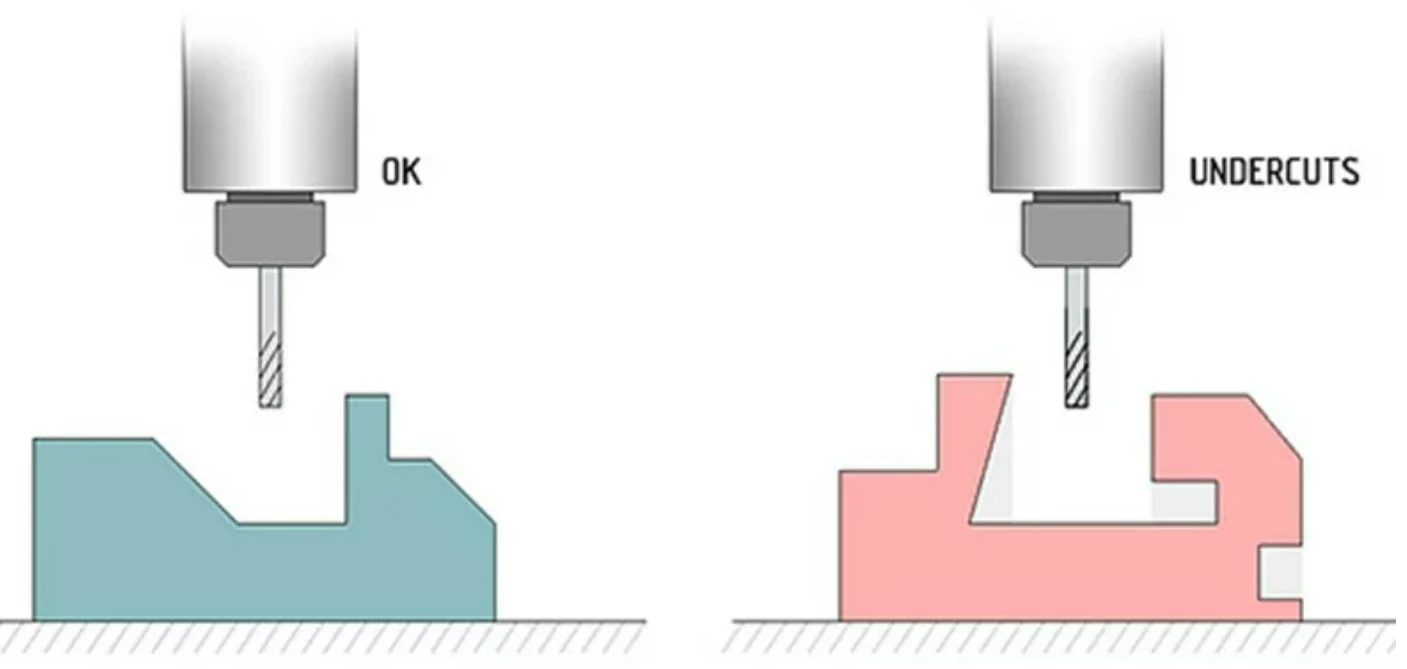

What is an Undercut End Mill?

Image Source:waykenrm
Image Source: walker

Definition and Function of Carbide Undercutting End Mills

Carbide undercutting end mills are precision tools designed for machining undercut geometries. An undercut feature is a recess or groove positioned at a difficult angle, inaccessible to standard end mills, thereby necessitating the distinct profile of undercutting end mills for proper machining. These tools are characterized by their 270-degree spherical cutting edge, which allows for undercutting, deburring, and multi-axis machining in various materials, including but not limited to aluminum, steel, and hardened metals.

The primary function of carbide undercutting end mills is to produce a high-quality surface finish in complex profiles and hard-to-reach areas. Their unique design enables the machining of undercuts with exceptional surface finish and precision, making them indispensable in the aerospace, automotive, and medical industries where complex geometries are standard. The properties that distinguish these tools include:

  1. Material Composition: Carbide, a compound of carbon and tungsten, is favored for its high hardness and resistance to wear and high temperatures, offering longevity in tool life.
  2. Cutting Diameter: This refers to the diameter of the end mill’s missing part and determines the undercut feature’s resolution.
  3. Flute Count: Typically, undercutting end mills have fewer flutes to provide ample space for chip evacuation while ensuring the tool’s strength.
  4. Coatings: To enhance performance, these end mills may be coated with materials such as titanium aluminum nitride (TiAlN) to reduce wear and protect against the high temperatures generated during machining processes.

Understanding these parameters is crucial when selecting the appropriate undercutting end mill for specific machining applications, ensuring efficiency and quality in the final product.

Applications of Undercut End Mills in Machining

Undercut end mills are utilized in many machining operations, demonstrating their versatility across various industries. The applications of these tools include but are not limited to:

  1. Aerospace Components: For the precision machining of complex, contoured surfaces found in aircraft parts, including airframe structures and engine components, where durability and resistance to extreme conditions are paramount.
  2. Automotive Industry: Utilized in fabricating automotive parts that require intricate detailing and high-strength materials, such as engine blocks and transmission cases.
  3. Medical Devices: Essential in producing medical implants and surgical tools, where the necessity for bio-compatibility, precision, and smooth surface finishes are critical.
  4. Mold Making: In creating injection molds and die-cast molds, undercut end mills facilitate the machining of complex geometries and narrow cavities with high accuracy.
  5. Electronics: Employed in manufacturing components for electronic devices, including connectors and enclosures, where precision and miniaturization are key.
  6. Jewelry Making: For detailed engraving and the creation of intricate designs in precious metals, where exceptional surface finish and detail are desired.

These tools are distinguished by their ability to access machine areas that are difficult to reach with standard end mills, thus broadening the scope of possible machining operations and contributing significantly to the efficiency and refinement of the manufacturing process.

Advantages of Using Undercutting End Mills

Undercutting end mills in machining operations presents several strategic advantages, crucial for optimizing production efficiency and product quality. Firstly, these specialized tools enable Enhanced Precision and Reach; their unique design allows for the accurate machining of undercuts, pockets, and cavities that standard tools cannot access, significantly improving the versatility of machining operations.

Secondly, undercutting end mills are designed for Superior Surface Finish; this is particularly beneficial in industries where surface aesthetic and functional quality is paramount, such as aerospace components and medical devices. Achieving smooth finishes reduces the need for secondary finishing processes, thus saving time and reducing production costs.

Another significant advantage is the Increased Tool Longevity; undercutting end mills are often made from high-quality carbides and coated with advanced materials that withstand high temperatures and wear, contributing to longer tool life and consistency in production quality.

Furthermore, the reduced cycle times are an essential benefit, as the versatile functionality of undercutting end mills allows for the execution of complex machining tasks without the need to change tools frequently. This capability speeds up the manufacturing process and minimizes tool switch downtime, enhancing overall productivity.

Finally, these tools offer Material Versatility; they can efficiently cut a wide range of materials, from soft aluminum to harder metals like titanium and stainless steel. This adaptability makes undercutting end mills a valuable asset across various sectors within the manufacturing industry, allowing for flexibility in production capabilities.

In summary, the advantages of undercutting end mills—from enhanced precision and surface finishes to increased tool longevity and material versatility—play a pivotal role in refining and advancing manufacturing processes across multiple industries.

How to Choose the Right Undercutting End Mill

How to Choose the Right Undercutting End Mill

Factors to Consider, such as Flute Count and Shank Diameter

When selecting the appropriate undercutting end mill for a specific application, several key factors must be considered to ensure optimal performance and output quality. These factors include:

  • Flute Count: The number of flutes on an undercutting end mill affects the workpiece’s finish and the tool’s overall cutting speed. A higher flute count typically offers a finer finish. He is better suited for finish machining operations, while a lower flute count allows for more aggressive material removal rates, making it ideal for roughing applications.
  • Shank Diameter: The diameter of the shank is crucial for tool stability and compatibility with the machine’s tool holder. A larger shank diameter can provide better tool rigidity, thus reducing vibration and improving the precision of the cut. However, ensuring that the shank diameter matches the machine’s specifications is essential to avoid any compatibility issues.
  • Material and Coating: The material from which the undercutting end mill is made and any coatings applied to the tool significantly impact its performance and longevity. Carbide tools coated with titanium nitride (TiN), titanium carbonitride (TiCN), or aluminum titanium nitride (AlTiN) can offer increased hardness, temperature resistance, and wear resistance, making them suitable for cutting a wide range of materials.
  • Helix Angle: The helix angle of the flutes contributes to the cutting efficiency and the type of chips produced during the machining process. A higher helix angle results in smoother chip evacuation and is preferred for machining soft, sticky materials, while a lower helix angle is more suitable for cutting more rigid materials.
  • Cutting Diameter and Length: The undercutting end mill’s cutting diameter and length determine the maximum cut and reach depth. Selecting the correct cutting dimensions is essential for achieving the desired contour and features on the workpiece while considering tool strength and flexibility.

By carefully considering these factors, manufacturing professionals can select the most suitable undercutting end mill for their specific machining tasks, enhancing productivity, optimizing tool performance, and achieving superior workpiece finishes.

Understanding Carbide Options and Mill Diameter

Carbide, known for durability and hardness surpassing high-speed steel, is crucial for high-precision machining—different carbide grades impact machining performance. Ultrafine carbides enhance cutting speeds, while medium and coarse grades prioritize toughness. Mill diameter selection balances precision and strength. Understanding carbide properties and choosing mill diameters strategically can boost machining efficiency and product quality.

Neck Length and Shank Design for Specific Machining Needs

The neck length and shank design of an undercutting end mill are critical factors that directly influence machining accessibility and stability. The neck length should be carefully selected to ensure that the tool can reach deep cavities or intricate profiles without interference from the tool holder. A longer neck length allows for deeper machining but can reduce the tool’s rigidity, potentially leading to vibration or deflection during cutting. Thus, balancing the need for reach with maintaining tool integrity is paramount.

On the other hand, the shank design pertains to the part of the tool that is clamped into the machine. The shank must have sufficient diameter and strength to transmit the cutting forces without deformation. The shank’s material and geometry should also be compatible with the tool holder to prevent slippage and ensure accurate tool positioning. High-quality undercutting end mills often feature shanks with h6 tolerance, ensuring a tight fit and minimal runout, thereby improving the workpiece’s overall machining precision and surface finish.

Manufacturers can optimize tool performance, extend tool life, and achieve precise and efficient material removal by meticulously selecting the neck length and shank design according to the specific machining requirements.

Utilizing Undercutting End Mills in Various Machining Operations

Utilizing Undercutting End Mills in Various Machining Operations

Exploring End Mill Materials and Tooling Options

The selection of material and tooling options for undercutting end mills is paramount for optimizing performance, wear resistance, and tool life. Critical materials used in manufacturing these tools include High-Speed Steel (HSS), Carbide, and Cobalt.

  • High-speed steel (HSS) is renowned for its toughness and resistance to abrasion. It can withstand high temperatures without losing its hardness, making it suitable for general machining operations, particularly in non-tough materials.
  • Carbide, composed of tungsten carbide particles bonded with metal cobalt, offers superior hardness and thermal conductivity compared to HSS. This makes carbide end mills especially effective in cutting more complex materials with higher efficiency and speeds, significantly enhancing productivity and tool longevity. However, carbide’s increased hardness comes at the cost of lower toughness, making it more susceptible to chipping under incorrect usage or extreme conditions.
  • Cobalt end mills, often called HSS-Co, are constructed from HSS with 5-8% cobalt added. This inclusion improves the tool’s hardness and heat resistance beyond that of ordinary HSS, offering a compromise between the toughness of HSS and the wear resistance of carbide, suitable for machining complex materials over an extended lifetime.

Innovative Tool Designs for Multi-Axis Machining and Deburring

The evolution of manufacturing technologies and the increasing complexity of component designs call for innovative tool designs that cater specifically to multi-axis machining and deburring processes. These designs integrate features that allow precise control and flexibility, essential for achieving the intricate geometries and fine finishes demanded in today’s advanced manufacturing sectors.

  • Lollipop End Mills: These specialized tools are designed with a spherical end, resembling a lollipop, ideal for machining undercuts, complex geometries, and hard-to-reach areas in multi-axis machining operations. Their unique shape enables effective deburring and finishing processes, reducing manual intervention and improving the consistency of the final parts.
  • Samho: Known for their specialized geometries, SAMHO offers a range of end mills engineered for specific materials and applications, including multi-axis machining. These tools are crafted to deliver high precision and minimize vibration while machining complex features, enhancing tool life and part quality.
  • Variable Helix End Mills: These end mills are designed to reduce chatter and harmonics during machining by incorporating varying helix angles and pitch configurations. This leads to smoother surface finishes and higher precision in parts requiring multi-axis machining, making them highly effective for material removal and deburring applications.

Frequently Asked Questions

Frequently Asked Questions

Q: What are Carbide Undercutting End Mills?

A: Carbide undercutting end mills are cutting tools with a unique profile designed for machining hard materials such as metal, plastic, and composites. They are famous for their ability to reach difficult-to-access areas and perform precise slotting, contouring, and profiling tasks.

Q: How are Carbide Undercutting End Mills different from regular end mills?

A: Carbide undercutting end mills have a specialized design with a reduced shank diameter, allowing them to access tight spaces and create intricate features that a regular end mill cannot reach. They are ideal for undercutting, deburring, and other complex milling operations.

Q: What makes SAMHO’s Carbide Undercutting End Mills unique?

A: Samho offers various carbide undercutting end mills with features like 270° and 220° spherical ball ends, multiple flutes, and different cutting diameters and lengths. These tools are designed for maximum versatility and precision in machining applications.

Q: How can I effectively use Carbide Undercutting End Mills in my machining projects?

A: To maximize the performance of carbide undercutting end mills, it is essential to choose the right tool for the job based on the material, cutting parameters, and desired finish. Proper tool selection and operating conditions will ensure efficient and accurate machining results.

Q: What are the advantages of using 220° spherical ball end mills for undercutting?

A: 220° spherical ball end mills offer increased access and maneuverability in undercutting applications, making them ideal for creating intricate designs and precise contours. Their unique design helps reduce the need for multiple tool changes during complex machining tasks.

Q: How can I find more products related to Carbide Undercutting End Mills?

A: On their official website, you can explore Samho’s wide selection of undercutting end mills and related products. We offer a comprehensive range of tools for various machining applications, including slotting, profiling, and contouring tasks.

Q: What are the benefits of using solid carbide construction in undercutting end mills?

A: Solid carbide construction ensures the durability and precision of undercutting end mills, allowing for consistent performance in challenging machining conditions. Solid carbide tools offer excellent wear resistance, prolonged tool life, and high cutting speeds for efficient material removal.
