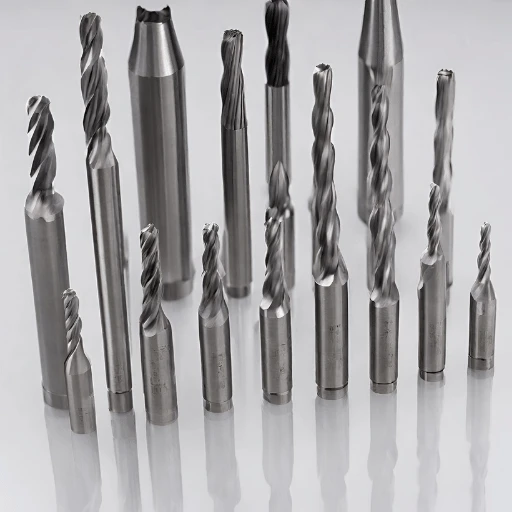

What is a Solid Carbide End Mill?

What is a Solid Carbide End Mill?

A Solid Carbide End Mill is a precision cutting tool used predominantly in metalworking to shape and carve materials ranging from soft plastics to hard metals like titanium. Constructed entirely from carbide, a durable, high-strength material made from tungsten carbide and cobalt, these end mills are designed to withstand high temperatures and resist wear, enabling longer tool life and consistency in performance. They are distinguished by their capability to perform at high speeds, significantly reducing manufacturing time while maintaining the precision and quality of the finish.

Key parameters that define a Solid Carbide End Mill include:

  • Flute Count: Refers to the number of cutting edges on the tool. While end mills can range from as few as one flute to as many as eight or more, the choice depends on the application, material type, and desired finish. Fewer flutes allow for better chip ejection in heavier cutting operations, whereas higher flute counts are suited for finer finishes and lighter material removal.
  • Coatings: Various coatings are applied to carbide end mills to enhance their performance in specific materials or operations. Standard coatings include Titanium Nitride (TiN), Titanium Aluminum Nitride (TiAlN), and Diamond-like Carbon (DLC), each offering benefits such as increased hardness, improved thermal stability, and reduced friction.
  • Geometry: The geometry of an end mill refers to the design aspects that influence how the tool will interact with the workpiece. This includes the helix angle, which affects the cutting efficiency and chip evacuation, and the end profile, which determines the tool’s suitability for plunge cutting or side milling.
  • Size and Shank Diameter: The overall length and diameter of the end mill affect its application suitability in terms of depth of cut, reach, and rigidity. The shank diameter, the part of the tool clamped into the machine, is crucial for ensuring the tool can be securely held without bending or vibration during high-speed operations.

Understanding these parameters is essential for selecting the suitable solid carbide end mill for a given application, ensuring the finished piece’s quality and the machining process’s efficiency and cost-effectiveness.

Advantages of Using Solid Carbide End Mills

Solid carbide end mills present several benefits in precision machining operations, distinguishing them as the preferred choice for a wide range of applications:

  • Enhanced Durability: Solid carbide end mills are highly durable due to the strength and toughness of the material. They can withstand high temperatures and resist wear, making them suitable for extended use in demanding machining environments.
  • Superior Cutting Performance: The hardness of carbide allows these end mills to maintain a sharp cutting edge for extended periods, providing consistent, high-quality finishes and precise cuts. This is particularly advantageous when working with hard materials or conducting intricate detailing work.
  • Increased Efficiency: Due to their ability to maintain sharpness and resist wear, solid carbide end mills can operate at higher speeds compared to their high-speed steel (HSS) counterparts. This results in faster material removal rates, reducing machining time and increasing production efficiency.
  • Versatility: With various coatings, geometries, and configurations, solid carbide end mills can be optimized for a broad spectrum of materials and applications, from aluminum and steel to composites and hardwoods. This versatility makes them valuable tools across different industries.
  • Improved Surface Finish: The precision and sharpness of solid carbide end mills contribute to superior surface finishes on the workpiece. This is critical for applications that require a high degree of aesthetic appeal or meet strict dimensional tolerances.
  • Cost-Effectiveness Over Time: While the initial investment in solid carbide end mills may be higher than in other end mills, their longevity and performance can lead to lower overall tooling costs in the long run. This extends tool life, minimizes the need for frequent replacements, and ensures steady production flows.

By understanding these advantages, manufacturers and machinists can make informed decisions about tool selection, optimizing their machining processes for efficiency, cost-effectiveness, and high-quality outcomes.

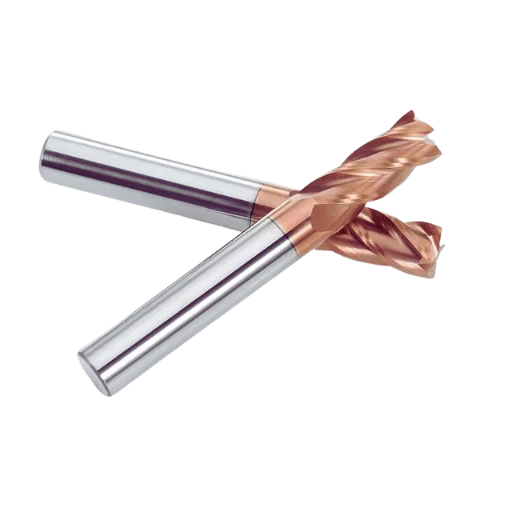

How do you choose the suitable solid carbide end mill?

How do you choose the suitable solid carbide end mill?

Factors to Consider When Selecting an End Mill

When selecting a solid carbide end mill, several critical factors need to be considered to ensure optimal performance and cost efficiency:

  • Material Compatibility: Evaluate end mills’ compatibility with the machined material. Different materials require different end mill characteristics for efficient cutting. For instance, some end mills are specifically designed for aluminum and non-ferrous materials, while others are suited for steel, titanium, and hard-to-machine alloys.
  • Coating: The choice of coating can significantly affect the end mill’s performance and longevity. Coatings such as TiAlN (Titanium Aluminum Nitride) or AlTiN (Aluminum Titanium Nitride) provide heat resistance, reduce wear, and increase tool life, especially when machining more rigid materials.
  • Geometry: The geometry of an end mill, including the number of flutes, helix angle, and cutting-edge design, influences its cutting efficiency, chip evacuation, and the finish of the workpiece. For example, tools with more flutes are preferred for finishing operations, while fewer flutes are better for roughing.
  • Size and Tolerance Requirements: The end mill’s dimensions must match the job’s requirements. This includes considering the diameter, cut length, and overall size to ensure the tool can reach the desired depth without interference and maintain the necessary tolerances.
  • Machine Tool Capability: It’s crucial to select an end mill compatible with the capabilities of the CNC machine or milling machine being used. This includes maximum spindle speed, torque, and tool holding capacity considerations.

By carefully evaluating these factors, manufacturers and machinists can select the most suitable solid carbide end mill for their specific applications, balancing performance, wear resistance, and cost.

Matching End Mill Types to Materials and Applications

A systematic and informed approach is paramount when matching end mill types to materials and applications. The selection process hinges on understanding the material properties, such as hardness, malleability, and thermal conductivity, alongside the application’s specific requirements, including the desired surface finish, precision, and production speed.

  • For Aluminum and Non-ferrous Metals: High-speed steel (HSS) end mills, or those with a specific aluminum cutting design characterized by polished flutes and a high helix angle, are optimal. The properties of these end mills prevent material build-up on the cutting edge, ensuring a cleaner cut and extended tool life.
  • For Steel, Stainless Steel, and Iron, Carbide end mills equipped with TiAlN or AlTiN coatings are typically recommended. These materials and coatings offer the hardness and heat resistance necessary to tackle these more rigid materials, particularly in high-feed or high-speed applications.
  • For Titanium and Heat-resistant Alloys, End mills designed for these materials often feature fewer flutes and a more substantial core to withstand the challenging cutting conditions. Coatings like AlTiN or nACo (nano-composite) can provide the extra heat resistance and durability required for these demanding applications.
  • For Plastics and Composites: The selection here leans towards end mills with a sharp cutting edge, high rake angles, and fewer flutes. This geometry reduces the heat generated during machining, preventing the melting of the plastic and ensuring a high-quality finish.
  • For Hardened Materials: When dealing with pre-hardened materials or requiring finishing post-hardening, end mills with CBN (Cubic Boron Nitride) or coated carbides designed for hard milling are optimal. These tools can handle high levels of abrasion while maintaining precision.

Incorporating these guidelines into the selection process ensures that manufacturers and machinists can optimally match end mill types to materials and applications, achieving desired results efficiently and effectively.

Understanding End Mill Geometry for Specific Machining Tasks

Understanding the geometry of an end mill is crucial for selecting the correct tool for your specific machining tasks. The geometry of an end mill can significantly influence its cutting performance and the quality of the finished workpiece. Critical aspects of end mill geometry include the number of flutes, helix angle, and the shape of the cutting edges.

  • Number of Flutes: End mills can have varying flutes (cutting edges) ranging from 2 to 8 or more. The choice of the number of flutes impacts the chip load capacity and the finish of the cut. Fewer flutes allow for larger chip loads, ideal for roughing applications. In contrast, more flutes are preferred for finishing operations due to their ability to produce a smoother surface finish.
  • Helix Angle: The helix angle of the flutes influences the direction of cutting force, heat distribution, and chip evacuation efficiency. A higher helix angle, typically over 40 degrees, offers better shearing action and smoother cuts, making it suitable for materials that are easy to deform or smear. Lower helix angles are more effective for more complex materials, providing a more robust cutting edge.
  • Cutting Edge Shape: The cutting edge of an end mill can be square, ball nose, corner radius, or a variety of other shapes, each tailored for specific applications. Square end mills are suitable for many applications, providing sharp corners. Ball nose end mills generate smooth contoured surfaces and are ideal for 3D contour work, while corner radius end mills combine the strength of a square end mill with the wear resistance of a ball nose mill.

Engineers and machinists can select the most appropriate end mill geometry for efficient and precise machining tasks by considering these geometrical attributes in relation to the workpiece material and the machining process requirements.

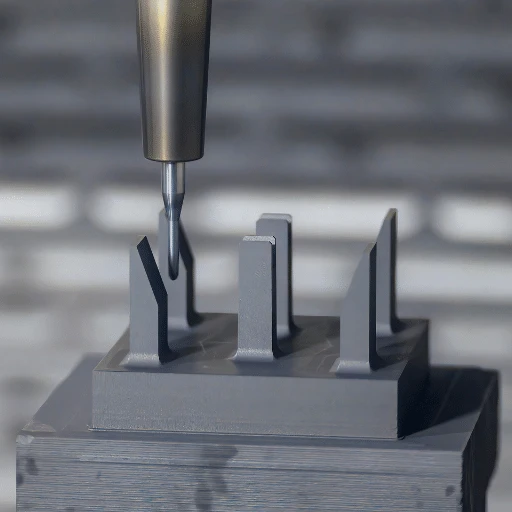

Benefits of High-Performance Solid Carbide End Mills

Benefits of High-Performance Solid Carbide End Mills

High-performance solid carbide end mills offer substantial advantages over standard end mills, contributing to their widespread adoption in precision machining operations:

  • Improved Tool Life and Wear Resistance: These end mills are fabricated from premium carbide, significantly enhancing their durability and wear resistance. This robust construction allows them to withstand the stresses of high-speed machining, aggressive feed rates, and challenging materials, ultimately extending tool life and reducing the need for frequent replacements.
  • Enhanced Surface Finish and Accuracy: The precision engineering of high-performance end mills results in a superior surface finish, ensuring the machined parts meet strict dimensional tolerances and surface quality requirements. The meticulous design of flute geometry and cutting edges minimizes vibrations and deflection, further improving the accuracy of the machining process.
  • Increased Productivity and Cost Savings: By improving tool life and enabling higher machining speeds and feeds, these end mills contribute to increased productivity. Their wear-resistant characteristics and the ability to produce precise parts with fewer passes reduce downtime and material waste, leading to significant cost savings over the tool’s life.

Adopting high-performance solid carbide end mills can substantially benefit machining operations by enhancing tool longevity, ensuring superior surface finishes and accuracy, and contributing to increased overall productivity and cost efficiency.

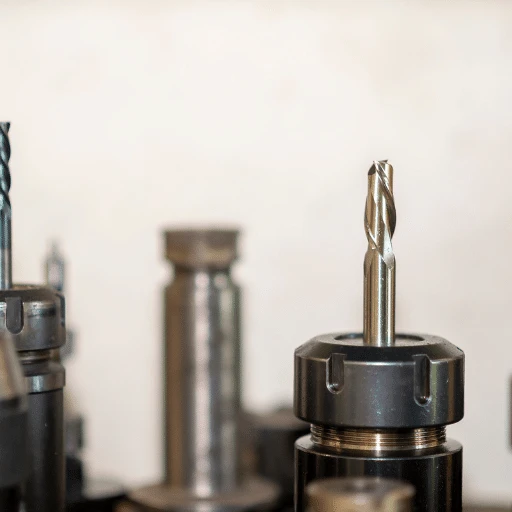

Common Applications of Solid Carbide End Mills

Common Applications of Solid Carbide End Mills

Effective Machining in Aluminum and Non-Ferrous Materials

Solid carbide end mills exhibit exceptional performance in machining aluminum and other non-ferrous materials. The inherent properties of these materials, including their softer nature and tendency to stick to the cutting tool, require specific tool geometries to minimize material welding to the cutting edges. High-performance end mills designed for non-ferrous materials often feature polished flutes and clear coatings that reduce built-up edge formation, enabling cleaner cuts, higher feed rates, and smoother finishes.

Precision Cutting in Stainless Steel and High-Temperature Alloys

Machining stainless steel and high-temperature alloys present distinct challenges due to their hardness and tendency to work harden. Solid carbide end mills engineered for these materials are characterized by their robust construction and thermal resistance. These tools often incorporate advanced coatings capable of withstanding the high temperatures generated during cutting. Additionally, their cutting-edge geometries are optimized to reduce cutting forces, minimize tool deflection, and prevent work-hardening of the material, ensuring precise and efficient machining operations.

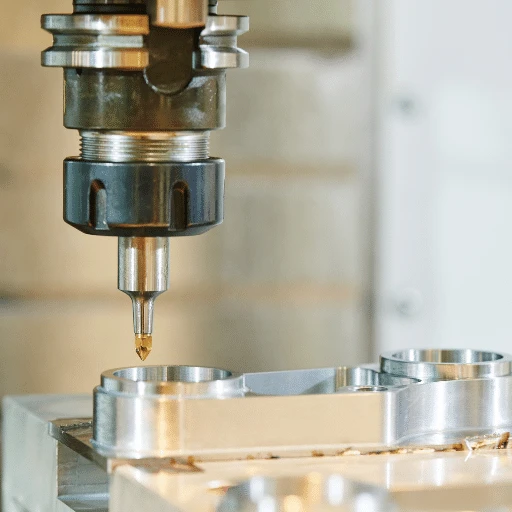

Frequently Asked Questions

Frequently Asked Questions

Q: What are solid carbide end mills?

A: Solid carbide end mills are cutting tools used in machining applications made from solid carbide material. They are known for their durability and ability to perform in the most demanding milling applications.

Q: How do high-performance solid carbide end mills differ from regular ones?

A: High-performance solid carbide end mills are designed to deliver superior performance compared to regular end mills. They are engineered to provide longer tool life, increased cutting speeds, and improved precision in machining operations.

Q: What factors should be considered when selecting solid carbide end mills?

A: When selecting solid carbide end mills, factors such as flute count, coating type, cutting diameter, and overall length should be considered. Choosing the suitable end mill for the specific machining application is essential.

Q: Can solid carbide end mills be used for chamfering operations?

A: Solid carbide end mills can be used for chamfering operations. Some end mills are designed explicitly with chamfering capabilities, making them versatile tools for various machining tasks.

Q: What are some benefits of using high-performance end mills from Kennametal?

A: High-performance end mills from Kennametal offer benefits such as increased productivity, longer tool life, and improved surface finish. They are designed to help customers achieve better results in their machining operations.

Q: Are solid carbide end mills available in metric sizes?

A: Solid carbide end mills are available in metric and imperial sizes to accommodate different machining requirements. It is essential to select the appropriate size based on the specific dimensions of the workpiece.

Q: How can I improve the performance of my milling applications with solid end milling cutters?

A: To enhance the performance of your milling applications, you can consider using solid-end milling cutters with advanced features such as specialized coatings, variable flute designs, and high-quality carbide materials. These improvements can help optimize cutting processes and increase efficiency.


  1. Simulation-based solid carbide end mill design and geometry optimization – This academic article from Springer discusses the design and geometry optimization of solid carbide end mills. It offers valuable insights into the technical aspects of end mill design.
  2. A comparative analysis of ceramic and cemented carbide end mills – This source compares the performance of ceramic and cemented end mills, highlighting the advantages of high-performance ceramics in specific applications.
  3. High-speed end milling of hardened AISI D2 tool steel – This ScienceDirect article focuses on the high-speed milling of hardened tool steel using indexable insert and solid carbide formats, providing practical insights into using solid carbide end mills.
  4. An experimental investigation on the machining characteristics of Nimonic 75 using uncoated and TiAlN coated tungsten carbide micro-end mills – This article investigates the machining characteristics of a specific material using coated and uncoated tungsten carbide micro-end mills, giving readers an understanding of the effects of coating on performance.
  5. High-speed machining of molds and dies for net-shape manufacture. This source discusses the application of high-speed machining in manufacturing molds and passes, highlighting the use of coated tungsten carbide end mills.
  6. A study on the quality of micro-machined surfaces on tungsten carbide generated by PCD micro end-milling – This article studies the quality of surfaces machined by PCD micro end-milling on tungsten carbide, providing insights into the performance of different types of end mills on specific materials.
  7. Tool life when high-speed ball nose end milling Inconel 718™ – This source examines the tool life of coated tungsten carbide end mills during high-speed machining of a specific material, offering valuable information about tool longevity.
  8. Research on high-performance milling of engineering ceramics from the perspective of setting cutting variables – This MDPI article discusses the process of milling tungsten carbide with PCD tools, giving readers an understanding of the impact of cutting parameters on performance.
  9. Tribological adaptability of TiAlCrN PVD coatings under high-performance dry machining conditions – This article studies the tribological adaptability of a specific coating under severe conditions of dry high-performance end milling, providing valuable insights into the role of coatings in end mill performance.
  10. Axial contact points method for improving end-milling productivity – This ScienceDirect article discusses methods to increase productivity in end-milling, explicitly focusing on using solid carbide mills. It provides practical advice for maximizing efficiency in machining operations.
