What is a 1/4 End Mill?

What is a 1/4 End Mill?

A 1/4 end mill is a cutting tool used extensively in manufacturing and machining processes. Characterized by its cylindrical shape, the tool has cutting edges on its end and sides, allowing it to cut in all directions. The “1/4 inch” specification refers to the diameter of the cutting part of the tool, indicating it is one-fourth of an inch in width. This site is exceptionally versatile, making the tool suitable for various materials and applications.

Key parameters that define a 1/4 end mill include:

  • Material: Commonly made from solid carbide or high-speed steel (HSS), carbide is preferred for its hardness and durability.
  • Flute Count: Ranging typically from 2 to 4 flutes, where more flutes increase the finishing capability but may reduce chip removal efficiency.
  • Coating: Varieties may include Titanium Nitride (TiN), Aluminum Titanium Nitride (AlTiN), and others that enhance performance and increase tool life by reducing wear.
  • Length: Can vary, with options for short, standard, or long length, affecting the tool’s reach and stability during cutting operations.
  • Cutting Geometry: Includes variations like the square end, ball nose, and corner radius end mills, each offering distinct advantages for specific cuts and finishes.

Understanding these parameters is crucial for selecting the suitable end mill for specific machining tasks, optimizing efficiency, and achieving the desired outcomes in manufacturing projects.

Materials Suitable for Cutting

The versatility of a 1/4 end mill extends to its ability to machine a wide range of materials, each exhibiting unique properties and machining requirements. These materials can be broadly categorized into:

  • Metals: This category includes both ferrous metals, such as steel and cast iron, and non-ferrous metals, like aluminum, brass, and copper. The choice between solid carbide and HSS end mills largely depends on the metal being machined, with carbide end mills typically preferred for their ability to maintain sharpness and resist wear in more rigid materials.
  • Plastics and Composites: These materials require sharp cutting edges to prevent melting and burning. A higher flute count is often beneficial for achieving a smooth finish on plastics, while the appropriate selection of cutting geometry can minimize fraying in composite materials.
  • Wood and Wood Products: Machining wood with a 1/4 end mill demands sharpness to achieve clean cuts and detail. The tool’s material and coating should be chosen to withstand the abrasive nature of wood fibers, especially in denser woods or when working with engineered wood products.

Understanding the material properties, such as hardness, brittleness, and thermal conductivity, is essential for choosing the right end mill features—such as flute count, coating, and cutting geometry—to optimize cutting efficiency, tool life, and surface finish quality.

Advantages of Using a 1/4 End Mill

The utilization of a 1/4 end mill in machining operations presents numerous benefits:

  • Precision and Accuracy: The relatively small diameter of a 1/4-inch end mill facilitates high-precision cuts, enabling the machining of intricate features and fine details in workpieces.
  • Versatility: Capable of handling a variety of materials, from metals to plastics and wood, a 1/4-inch end mill is a versatile tool for diverse machining needs. This adaptability reduces the necessity for changing tools frequently, enhancing operational efficiency.
  • Cost-Effectiveness: Smaller end mills, like the 1/4 inch variant, tend to be more economical than more extensive diameter tools. This cost advantage benefits operations focusing on precision rather than bulk material removal.
  • Improved Surface Finish: A 1/4-inch end mill design often allows for higher flute counts, contributing to a better surface finish on the machined part. This is especially important for applications where aesthetic quality is as critical as dimensional accuracy.
  • Reduced Tool Breakage Risk: The solid construction and optimal size of the 1/4 end mill contribute to its resilience and durability. Smaller end mills inherently possess less bending moment, which reduces the risk of breakage during operation, thereby extending tool life.

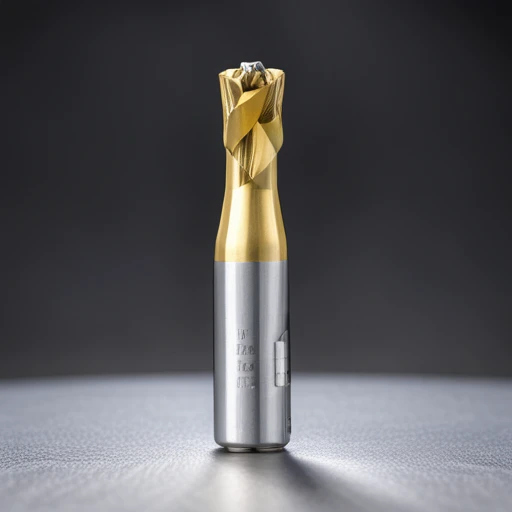

Types of 1/4 End Mills

Types of 1/4 End Mills

Square End vs. Ball End

In the realm of 1/4 inch end mills, two primary geometries dominate: square end and ball end, each serving specific purposes based on their unique designs.

Square End Mills are characterized by their flat tip and are used primarily for making square cuts and slots. They excel in functions such as side milling, contouring, and plunging. The geometry of square-end mills provides the advantage of producing sharp, straight edges and flat-bottomed grooves, making them ideal for precision machining where clean, angular boundaries are required.

On the other hand, Ball End Mills features a hemispherical tip that renders them capable of machining smooth, contoured surfaces. This design is optimal for 3D contour work, where the smooth transition between surfaces is crucial. Ball end mills are particularly advantageous in aerospace and mold-making industries, where they sculpt complex geometries with a high-quality surface finish.

The choice between square-end and ball-end mills fundamentally depends on the specific requirements of the machining task at hand. Square end mills are preferred for detailed, angular cuts, while ball end mills are selected for their ability to produce delicate, curved surfaces with consistent quality.

Carbide End Mills vs. High-Speed Steel (HSS) End Mills

When choosing between carbide and high-speed steel (HSS) end mills, several critical factors must be considered to align with the specific requirements of the machining project.

Carbide End Mills are made from a composite material of ceramic particles bonded with cobalt. They are renowned for their exceptional hardness and heat resistance, allowing them to operate faster than HSS end mills. This makes carbide end mills suitable for high-volume production and machining hard materials such as stainless steel and titanium—additionally, their durability results in a longer tool life, reducing tool replacement frequency.

High-speed steel (HSS) End Mills, made from high-speed steel, offer the advantage of flexibility and are more resistant to impact than carbide end mills. This makes them a preferred choice for operations involving changing loads, such as manual milling operations or where equipment limitations exist. HSS end mills are also more cost-effective upfront, making them suitable for small-batch productions or materials that do not require the extreme hardness or speed of carbide.

The decision between carbide and HSS end mills should be based on considerations such as the material to be machined, the machining speed required, tool longevity, and the cost implications of the tooling. Carbide end mills, while more expensive upfront, offer performance benefits in high-speed and complex material machining. Conversely, HSS end mills provide a more cost-efficient solution for softer materials and operations where higher flexibility and resistance to impact are critical.

Different Flute Configurations and Their Applications

Flute configurations in end mills are pivotal in determining the tool’s performance, finish quality, and chip evacuation efficiency during machining operations. The choice of flute count typically ranges from two to eight flutes, depending on the application requirements.

Two-Flute End Mills are primarily used for slotting operations and cutting materials with high chip removal rates. The larger flute space allows for efficient chip evacuation, making them ideal for non-ferrous materials like aluminum. However, they have limited application in finish machining due to their lower surface finish quality.

Three-flute end Mills provide a balance between the chip removal capacity of two-flute mills and the finish quality of four-flute mills. They are particularly suited for machining soft to medium-hard materials, offering a compromise between cutting speed and surface finish, making them versatile for roughing and finishing operations.

Four-flute end Mills are the most commonly used configuration, balancing chip removal capacity and surface finish well. They are suitable for various materials and applications, including steel, stainless steel, and iron. Four-flute mills are favored for finish machining, where a high-quality surface finish is paramount.

High-Flute Count End Mills, typically six to eight flutes, are designed for finishing operations where excellent surface finishes are required. The increased number of flutes distributes the cutting force more evenly, reducing tool deflection and enabling higher feed rates. However, these configurations have limited chip space and are unsuitable for heavy chip removal applications.

Selecting the appropriate flute count involves considering the machining material, the machining operation type (roughing vs. finishing), and the desired balance between cutting speed and surface finish. Understanding the unique benefits of each flute configuration ensures optimal tool performance and longevity, contributing significantly to the efficiency and effectiveness of machining processes.

Factors to Consider When Choosing a 1/4 End Mill

Factors to Consider When Choosing a 1/4 End Mill

Cutting Diameter and Shank Diameter

Cutting Diameter refers to the diameter of the end mill at its widest point where it will cut. This dimension dictates the maximum width of the tool’s cut in a single pass and significantly impacts the resolution of the workpiece details. For precise operations or fine features, a smaller cutting diameter is recommended.

Shank Diameter is the diameter of the non-cutting part of the tool that the tool holder grips. A matching shank and tool holder diameter are essential for minimizing vibration and ensuring stability during the machining process. Selecting a shank diameter that can withstand the torque and forces applied during the cutting operation without causing deflection is critical.

Material and Coating Options

End mills are manufactured from various materials and may include specific coatings to enhance performance. Common materials include high-speed steel (HSS), which is suitable for general-purpose machining, and carbide, which is known for its superior hardness and heat resistance. It is ideal for high-speed machining and more rigid materials.

Coatings such as Titanium Nitride (TiN), Aluminum Titanium Nitride (AlTiN), and Diamond can increase tool life, reduce friction, and improve performance in specific applications. The choice of material and coating is determined by the workpiece material, machining environment (wet or dry), and the particular requirements of the machining operation.

Speeds and Feeds Recommendations

The optimal Speeds and Feeds for a 1/4 end mill depend on the material being machined, the end mill material and coating, the depth of cut, and the cooling or lubrication condition. General recommendations include:

  • For Aluminum: A higher speed with a moderate feed rate to prevent sticking and facilitate chip evacuation.
  • For Stainless Steel: A lower speed with a reduced feed rate to prevent work-hardening and to extend tool life.
  • For Hardened Materials: To prevent tool breakage, use a carbide end mill with a coasting suitable for hard materials at lower speeds and with minimal feed.

Accurate speeds and feeds should be calculated based on specific machining conditions and adjusted based on tool wear, noise, and vibration during cutting. Software or speed and feed calculators provided by end mill manufacturers can assist in determining these values accurately.

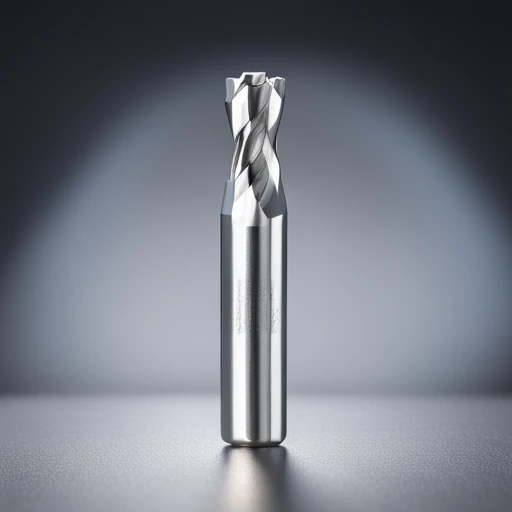

Best Practices for Using a 1/4 End Mill

Best Practices for Using a 1/4 End Mill

Maintenance and Cleaning Tips

Regular maintenance and cleaning are imperative to optimize tool life and cutting performance. Following these guidelines can significantly prolong the usability of a 1/4 end mill:

  1. Inspect Regularly: Inspect the end mill before and after each use for signs of wear or damage. Look for chips on the cutting edges and any discoloration that might indicate overheating.
  2. Clean After Use: Remove any metal chips or debris adhering to the end mill. Using a specialized cleaning solution or isopropyl alcohol can help dissolve stubborn residues. Avoid abrasive materials that can damage the coating.
  3. Lubricate as Necessary: Certain end mill designs may require lubrication of the shank or flutes. Consult the manufacturer’s recommendations for specific lubrication requirements and compatible products.
  4. Store Properly: End mills should be stored in a dry, cool place and ideally in their original cases or racks designed to prevent damage to the cutting edges. Avoid mingling used and unused tools to prevent premature wear.

Optimizing Tool Life and Cutting Performance

Optimizing the life and performance of end mills involves:

  1. Proper Selection: Using an end mill specifically designed for the material being machined and the type of machining operation.
  2. Correct Speeds and Feeds: Adhering to the recommended speeds and feeds for the material and end mill type. Adjustments may be necessary based on real-world performance.
  3. Use of Coolants/Lubricants: Appropriate use of coolants or lubricants can reduce heat build-up, prevent material adhesion, and extend tool life.

Common Mistakes to Avoid When Using End Mills

  1. Overlooking Machine Calibration: Failing to ensure that machining centers are calibrated and in good condition can lead to suboptimal end mill performance and premature failure.
  2. Ignoring Manufacturer’s Specifications: Using speeds and feeds that exceed manufacturer recommendations can cause overheating, excessive wear, or tool breakage.
  3. Inadequate Clamping of Workpiece: Insufficient securing of the workpiece can lead to vibration, inaccuracies, and tool damage.
  4. Using Worn Tools: Continuously using end mills beyond their service life can result in poor finish quality, inaccuracy, and increased risk of tool failure.

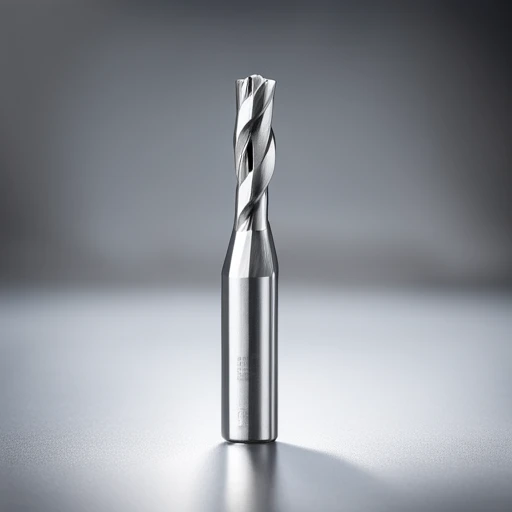

Frequently Asked Questions

Frequently Asked Questions

Q: What is a 1/4 End Mill?

A: A 1/4 end mill is a cutting tool used in milling applications with a cutting diameter of 1/4 inch.

Q: What materials are 1/4 End Mills made of?

A: 1/4 End Mills can be made of solid carbide, carbon steel, alloy steel, and industrial-grade materials.

Q: What are the advantages of using a solid carbide end mill?

A: Solid carbide end mills offer increased rigidity, better resistance to heat buildup, and longer tool life compared to other end mills.

Q: What is the significance of the helix angle in an end mill?

A: The helix angle in an end mill determines the chip removal efficiency and the surface finish quality during milling operations.

Q: How do I place an order for a SAMHO end mill?

A: You can order a Samho end mill through our website by selecting the desired product and following the instructions.

Q: What is the typical shipping time for end mills?

A: The shipping time for end mills may vary depending on the supplier and your location. It is advisable to check the estimated delivery time during the ordering process.

Q: What is the overall length of a standard milling end mill?

A: The manufacturer usually specifies the overall length of a standard milling end mill and can vary based on the specific model.

Q: What are the benefits of PVD, TiCN, or ZrN coatings on end mills?

A: Coatings like PVD, TiCN, or ZrN provide enhanced wear resistance, increased tool life, and improved performance in various cutting applications.

Q: What are the typical applications of a 3-flute end mill?

A: A 3-flute end mill is commonly used for slotting, profiling, and finishing operations in aluminum, brass, and plastics.
