What are HSS end mills, and how do they work?

What are HSS end mills, and how do they work?

Understanding the composition of high-speed steel

High-Speed Steel (HSS) is a class of carbon and alloy steel. It is particularly well-suited for manufacturing cutting tools, including end mills, due to their high resistance to wear and ability to retain a cutting edge at high temperatures. HSS end mills are renowned for their durability and versatility in various machining tasks. The composition of HSS is a critical factor that contributes to its properties. The following are the primary elements found in high-speed steel, each contributing specific characteristics that enhance the performance of HSS end mills:

  • Tungsten (W): Ranges from 2% to 18%. Tungsten increases wear resistance and hardness at high temperatures. It is crucial for maintaining sharp cutting edges during intense machining processes.
  • Molybdenum (Mo): Varies between 0% to 10%. Molybdenum serves a similar function to Tungsten but at a lower cost. It enhances the steel’s strength at high temperatures and improves its toughness.
  • Chromium (Cr): Typically from 3% to 4%. Chromium enhances the steel’s hardenability, allowing it to achieve high hardness levels through heat treatment. It also improves corrosion resistance.
  • Vanadium (V): Usually 1% to 2%. Vanadium refines the grain size of the steel, significantly improving wear resistance and toughness.
  • Cobalt (Co): Often found in amounts up to 12% in some high-speed steels. Cobalt increases the steel’s hot hardness, which retains hardness and cutting capability at elevated temperatures.

Each of these elements plays a pivotal role in determining the overall properties of HSS end mills, such as their cutting speed, durability, and the quality of finish on the machined part. The precise composition of HSS can vary depending on the specific application requirements, leading to several grades of high-speed steel, each optimized for different cutting tasks.

Exploring the cutting capabilities of HSS end mills

The cutting abilities of High-Speed Steel (HSS) end mills depend on their composition and resulting microstructure from specific alloying elements. Compared to other materials, HSS end mills offer an excellent balance of hardness and toughness, suitable for various machining tasks. They retain sharp edges even at high temperatures, which is beneficial for high-speed cutting or rigid materials. HSS end mills can machine steel, titanium, and aluminum, offering durability for roughing and finishing. Different HSS grades allow tailored selections, like increased cobalt, for better hot hardness. Coatings like Titanium Nitride (TiN) enhance wear resistance and cutting speeds. HSS end mills, with their customizable features, are crucial in modern manufacturing.

Benefits of using HSS end mills in various applications

High-speed steel (HSS) end mills provide distinct advantages across multiple machining operations owing to their unique combination of hardness, toughness, and wear resistance. These attributes confer several benefits across a broad spectrum of applications:

  1. Versatility: HSS end mills are suitable for cutting a wide range of materials, including but not limited to carbon steel, alloy steel, stainless steel, titanium, and aluminum. This versatility makes them a valuable tool in diverse machining environments.
  2. Cost-Efficiency: Compared to solid carbide end mills, HSS end mills are generally more cost-effective, especially for short-run jobs and applications where tool cost per part is critical. This cost advantage is particularly significant for small and medium-sized enterprises.
  3. Durability in High-Temperature Environments: HSS end mills maintain their hardness at higher temperatures than carbon steels. This property is crucial for high-speed applications where the tool and workpiece may become extremely hot.
  4. Resistance to Wear: Using alloying elements and, in some cases, surface coatings like Titanium Nitride (TiN), HSS end mills exhibit enhanced wear resistance. This extends tool life and reduces the frequency of tool changes, contributing to more efficient machining operations.
  5. Grindability: HSS is more forgiving than carbide in terms of re-grinding. Tools can be easily re-sharpened without specialized equipment, significantly extending the end mill’s life.
  6. Shock Resistance: HSS offers superior shock resistance compared to more rigid materials. This makes HSS end mills the preferred choice for less strict setups, interrupted cuts, and applications where the tool may experience sudden stresses.

Given these benefits, it is clear that HSS end mills are an indispensable asset in the toolkit of modern manufacturing operations, providing a balanced solution for speed, durability, and cost-efficiency in a wide variety of machining applications.

Types of HSS end mills available in the market

Types of HSS end mills available in the market

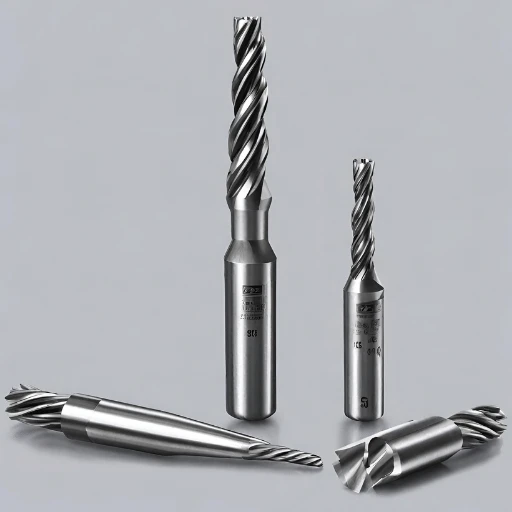

HSS end mills come in various designs to cater to specific cutting requirements, enhancing their versatility and application in precision machining operations. Key variants include:

  • Different Flute Designs: The number of flutes on an end mill directly influences the cut’s finish and the tool’s capacity for chip removal. Fewer flutes allow for larger chip loads, suitable for heavier cutting operations, while a higher count results in finer finishes and is preferred for detailed work on more rigid materials.
  • Single and Double End Variants: End mills are fashioned in single and double-ended designs. Single-end mills offer cost efficiency and concentrated robustness for dedicated tasks. In contrast, double-ended types provide the advantage of doubling the tool’s life by enabling the operator to flip the end mill to utilize an unused cutting edge, thereby reducing tool replacement frequency.
  • Exploring Tapered End Mills for Precision Cutting Operations: Tapered end mills are engineered to offer precision and efficiency in specific applications such as die-sinking, which involves machining a cavity in tool and mold making. These end mills have a conical cutting head that offers increased strength by distributing cutting forces over a larger area, thereby minimizing tool deflection and maximizing accuracy in angled cuts.

Each of these variations optimizes the machining process, whether by prolonging tool life, improving surface finish, or enhancing the precision of cuts. Understanding the specific requirements of a machining task is crucial in selecting the most appropriate HSS end mill type, ensuring both cost-effectiveness and high-quality outcomes.

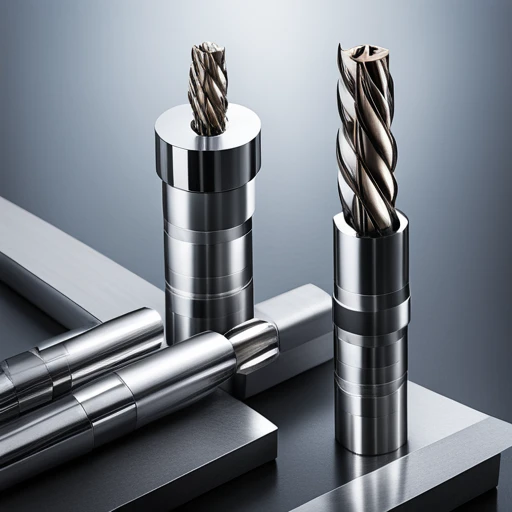

Choosing the suitable HSS end mill for your project

Choosing the suitable HSS end mill for your project

Factors to consider when selecting the appropriate diameter

When selecting an HSS end mill, the tool’s diameter is one critical assessment parameter. This factor significantly influences the tool’s performance, material removal rates, and the finish of the machined surface. Consider the following aspects to determine the most suitable diameter for your application:

  • Material Properties: The hardness and machinability of the workpiece material can constrain the effective diameter of the end mill. Complex materials may require smaller diameters to reduce the cutting forces experienced, minimizing tool wear and breakage.
  • Type of Cutting Operation: The required operation—roughing, finishing, or detailed contouring—directly impacts the choice of diameter. Larger diameters are preferable for roughing operations to remove material quickly, while smaller diameters are better suited for finishing operations requiring high precision and surface quality.
  • Machining Depth: The depth of the cut affects the choice of diameter due to tool stability and strength considerations. Deeper cutting operations may necessitate a larger diameter to ensure the end mill can withstand the forces exerted during machining without bending or breaking.
  • Machine Tool Capability: The capability of the CNC machine or machining center, including its power and torque, also dictates the feasible diameter range of the end mill. Larger diameters require machines with greater control and rigidity to efficiently manage the increased cutting forces.
  • Accessibility and Tool Clearance: In situations where the machining area is constrained or where intricate features must be machined, smaller diameter end mills may be required to provide sufficient accessibility and tool clearance.

By carefully evaluating these factors, machinists can select an HSS end mill diameter that optimizes cutting performance, tool longevity, and workpiece quality. It is a nuanced decision that balances the demands of the specific machining operation with the capabilities of the tool and machine.

Understanding the significance of the number of flutes in end mills

The number of flutes on an end mill is a critical factor that significantly influences its performance and suitability for specific machining tasks. Flutes are the cutting edges that spiral around the tool, and their primary role is to evacuate chips from the cutting zone, thereby reducing heat accumulation and preventing tool wear or failure. Generally, end mills can vary from having one to as many as eight flutes, depending on their intended use.

  • Fewer Flutes (2 or 3): End mills with fewer flutes offer larger chip removal capacity and are ideal for softer materials like aluminum. The larger spaces between flutes facilitate efficient chip evacuation, minimizing the risk of clogging and overheating. They are typically used in roughing operations where material removal rate is a priority.
  • More Flutes (4 or More): High-flute-count end mills are suited for finishing operations and machining more complex materials like steel. More cutting edges mean a higher feed rate and the end mill can sustain a smoother, finer finish on the workpiece. However, the reduced space between flutes limits chip evacuation, necessitating a well-planned cutting fluid strategy.
  • Specialized Applications: End mills with variable helix angles and different flute counts are available for unique or technical tasks, such as machining complex geometries or materials with specific properties. These specialized tools are designed to mitigate vibration, harmonics, and heat build-up, enhancing the precision and quality of the machined component.

Application-specific guidance for using HSS end mills effectively

High-speed steel (HSS) end mills are widely recognized for their versatility and durability in various machining operations. HSS offers a balanced combination of toughness, wear resistance, and cost efficiency, making it a preferred choice for multiple applications, particularly in materials that are not excessively hard, such as aluminum and mild steel. To optimize the use of HSS end mills effectively:

  • Material Compatibility: Ensure the HSS end mill is compatible with the machined material. HSS is ideal for non-ferrous metals and plastics, offering resistance to wear and maintaining edge sharpness for consistent cutting quality.
  • Speeds and Feeds: Adjust the machining speeds and feeds appropriately for the HSS end mill. While HSS can withstand higher temperatures than carbide tools, exceeding the recommended speeds can lead to premature wear and suboptimal machining outcomes.
  • Coolant Usage: A proper coolant strategy is crucial when using HSS end mills to dissipate heat efficiently, minimize tool wear, and prevent material warping. Water-based coolants are commonly used; however, the choice of coolant may vary based on the material being machined and the specific machining operation.
  • Tool Geometry Considerations: Select an HSS end mill with the appropriate geometry for your specific application, including considerations for flute count, helix angle, and coating. These factors influence cutting efficiency, surface finish quality, and tool longevity.
  • Re-Sharpening and Tool Life Management: One of the advantages of HSS end mills is their amenability to re-sharpening, which extends the tool’s life and reduces overall tool cost. Establish a regular maintenance schedule to inspect, sharpen, and replace tools as needed to maintain optimal performance.

By adhering to these guidelines, machinists can enhance the effectiveness of HSS end mills in their operations, ensuring efficient material removal, high-quality surface finishes, and prolonged tool life.

Tips for maximizing the performance of HSS end mills

Tips for maximizing the performance of HSS end mills

Optimizing Feed Rates for Improved Efficiency

To optimize feed rates while using HSS end mills, a balance between tool longevity and machining efficiency must be established. Calculating the correct feed rate involves understanding the machined material and the desired finish quality. Employ software simulations and cutting tests to identify optimal feed rates for different materials. Remember, overly aggressive rates can cause tool damage, while too conservative approaches reduce efficiency.

Exploring Different Coatings to Enhance Cutting-Edge Durability

Coatings such as Titanium Nitride (TiN), Titanium Carbonitride (TiCN), and Aluminum Titanium Nitride (AlTiN) can significantly extend the life of HSS end mills by enhancing their surface hardness and resistance to heat and wear. Selecting the appropriate coating depends on the machined material and the specific machining conditions. For instance, AlTiN coatings are highly beneficial for high-temperature applications.

Common Mistakes to Avoid When Using HSS End Mills

  1. Ignoring Material Compatibility: Failure to select an end mill appropriate for the machined material can result in poor performance and premature tool failure. Ensure compatibility between the tool and material for optimal results.
  2. Overlooking Coolant Requirements: Inadequate or improper use of coolants can lead to overheating, affecting the tool’s lifespan and the quality of the machined parts. Always use a coolant suited to both the tool and the material.
  3. Neglecting Tool Maintenance: Not regularly inspecting and maintaining end mills for wear and damage can decrease performance and accuracy. Incorporate routine checks and re-sharpening practices to maintain tool efficiency.
  4. Using Inappropriate Speeds and Feeds: Employing speeds and feeds not optimized for the specific machining operation can cause unnecessary stress on the tool, leading to wear or breakage. Utilize manufacturer recommendations and machining tests to determine the ideal settings.

Frequently Asked Questions

Frequently Asked Questions

Q: What are high-speed steel (HSS) end mills, and how are they used?

A: High-speed steel end mills are cutting tools made from high-speed steel, typically used in applications requiring precision cutting, such as milling and drilling. They are known for their durability and ability to maintain sharp cutting edges even at high speeds.

Q: What is the difference between HSS and cobalt end mills?

A: HSS end mills are made from high-speed steel, while cobalt end mills contain more cobalt. Cobalt end mills are typically used for more rigid materials and can withstand higher temperatures than HSS end mills.

Q: What are the common types of end mills used for milling applications?

A: Some common types of end mills used for milling applications include square end mills, corner rounding end mills, roughing end mills, drill mills, and profile cutters. Each type is designed for specific cutting tasks and materials.

Q: How does the number of flutes on an end mill affect the cutting process?

A: The number of flutes on an end mill, such as two flutes or four flutes, affects the chip evacuation and finish of the material being cut. More flutes generally have a finer finish but may require lower feed rates to prevent overheating.

Q: What are some typical applications for high-speed steel end mills?

A: High-speed steel end mills are used for general-purpose milling in various applications such as slot, plunge, and profile. They are versatile tools that can achieve high metal removal rates with precision.

Q: How do you select the suitable high-speed steel end mill for a specific milling task?

A: When selecting a high-speed steel end mill, consider the cut material, the desired finish, cutting speed, and feed rate. Choosing the correct type of end mill with the appropriate flute design and coating is essential for the job.

Q: What are the advantages of using high-speed steel end mills for precision cutting?

A: High-speed steel end mills offer advantages such as durability, versatility, and the ability to maintain sharp cutting edges even at high speeds. They are cost-effective tools that excel in a wide range of milling applications.

References

  1. End Mills – The Milling Tool Guide – This source provides an essential beginner’s guide to end mills, discussing their uses in the precision cutting of various materials.
  2. Mastering Steel Cutting: Unveiling the Best End Mill for the Job – This article discusses the primary choices for cutting steel, including High-Speed Steel (HSS) end mills.
  3. How do you judge the quality of an end mill? – This source offers insights into determining the quality of an end mill, with mentions of HSS end mills.
  4. Top 6 End Mill Brands for Precision in Manufacturing – This source provides a guide to choosing the best end mill brand for precision manufacturing.
  5. End Mills Explained – Complete Guide – This comprehensive guide explains end mills’ different types and applications, including HSS ones.
  6. End Mill Cutting & End Milling – Technical Guide – This technical guide discusses the precise cuts that can be made using end mills.
  7. End Mill Speeds – The Home Machinist! – This source provides information on the speeds at which end mills, including HSS end mills, can operate.
  8. Bare End Mills Technical Information – This source offers technical information on the uses of end mills in various applications.
  9. Carbide VS HSS End Mills – This article compares carbide and HSS end mills, discussing their rigidity and speed of operation.
  10. Beginner’s Guide to End Mills – This beginner’s guide discusses end mills’ versatility in cutting various materials.

Recommended Reading: Exploring the World of Carbide End Mills
