Corner Radius End Mills represents a specialized tool in the machinist’s arsenal, designed to offer durability and precision in milling operations that require detailed work on edges and corners. These tools feature a rounded cutting edge, unlike the sharp edges seen in standard end mills, which is instrumental in reducing stress concentration on the workpiece. This characteristic not only enhances the strength and life expectancy of the end mill but also results in a higher quality finish on the machined product, making it a preferred choice for aerospace, automotive, and die-mold machining applications.

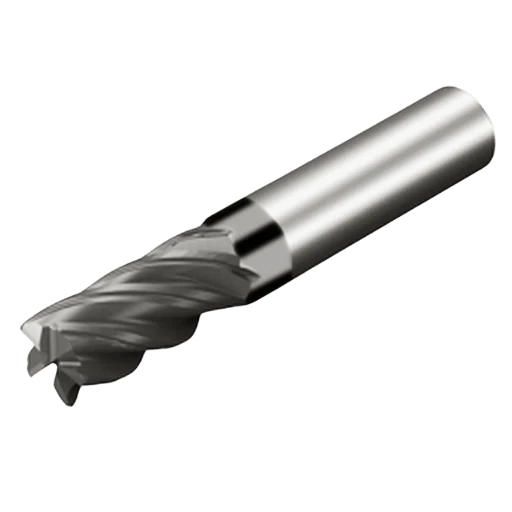

What Makes Corner Radius End Mills Superior in Milling Applications?
Increasing Tool Life with Corner Radius End Mills
The benefits of the corner radius design in end mills extend significantly to increasing the tool’s life. The rounded corners distribute the stresses more evenly across the cutting edge, unlike the concentrated stress points experienced with sharp-edged tools. This crucial difference results in less wear and tear on the end mill, allowing it to maintain its cutting efficiency over a longer period.
Furthermore, the corner radius enhances the durability of the end mill by reducing the risk of chipping on the cutting edge, a common issue in high-speed or high-feed-rate machining processes. Reduced wear and chipping directly translate to fewer tool changes, consistent quality in machined parts, and ultimately, lower production costs.
When considering the impact of the corner radius on material resistance during milling operations, several key parameters stand out:
- Stress Distribution: Rounded edges lead to a more uniform distribution of cutting forces along the workpiece, minimizing the likelihood of material deformation or cracking.
- Heat Generation: Less friction at the cutting edge means lower temperatures, preserving the material properties of the workpiece, and extending the life of the cutting tool.
- Surface Finish: A smoother transition at the corner radius minimizes burr formation and improves surface finish, often eliminating the need for secondary finishing processes.
In summary, corner radius end mills are engineered to tackle the toughest machining tasks with remarkable efficiency. Their design mitigates wear, reduces material resistance, and enhances overall tool life, making them an invaluable asset in precision milling applications.
Decoding the Material and Coating Options: Carbide, Altin, and Beyond
In the realm of machining, selecting the right tool for the job is paramount to achieving precision, efficiency, and cost-effectiveness. This brings us to the question: Why should one opt for solid carbide end mills, and what benefits does an AlTiN (Aluminum Titanium Nitride) coating add to these tools?
Why Choose Solid Carbide End Mills?
Solid carbide end mills stand out primarily for their material properties. Carbide, a compound of carbon and tungsten, is renowned for its hardness, which ranks second only to diamonds. This exceptional hardness allows carbide end mills to maintain their cutting edge sharpness longer, even under high-temperature conditions typical in machining. Key advantages include:
- Durability: Carbide’s resistance to wear and heat makes these tools highly durable, significantly extending their lifespan.
- Cutting Speed: The hardness of solid carbide permits higher cutting speeds, translating to faster machining times and increased productivity.
- Precision: Solid carbide tools can achieve tighter tolerances due to their inherent stiffness, resulting in finer finishes and more precise cuts.
Advantages of AlTiN Coating on End Mills
AlTiN coating, a thin layer of Aluminum Titanium Nitride, offers several benefits that further enhance the performance of end mills:
- Heat Resistance: AlTiN has a higher oxidation temperature, making it excellent for high-temperature machining operations.
- Reduced Wear: The coating minimizes tool wear, especially in abrasive materials, thus extending the tool’s life.
- Improved Lubricity: This reduces friction at the cutting edge, enhancing cutting efficiency and achieving smoother finishes.
Material Selection: Steel vs. Carbide Corner Radius End Mills
The choice between steel and carbide corner radius end mills hinges on several factors:
- Material Being Machined: Harder materials typically require carbide tools for efficient cutting, whereas steel end mills might suffice for softer materials.
- Production Volume: For high-volume runs, carbide’s durability and ability to maintain sharpness mean fewer tool changes and downtime, translating to cost savings.
- Budget Constraints: Steel end mills are generally less expensive upfront but might not offer the same longevity and performance as carbide, especially in demanding applications.
In conclusion, the decision to use solid carbide end mills, particularly those with AlTiN coating, involves weighing the benefits of durability, cutting efficiency, and material compatibility against cost considerations. For precision machining tasks, especially with hard materials, carbide often provides the best value over time.
Design Features of Corner Radius End Mills: Flutes, Helix, and Coating
Understanding the Function and Benefits of the 4 Flute Design
The architecture of corner radius end mills is pivotal in their performance in precision machining. Specifically, the 4 flute design is renowned for its versatility and efficiency. The primary functions and benefits include:
- Enhanced Cutting Efficiency: With four cutting edges, these end mills can remove material more quickly than their 2 or 3 flute counterparts, making them ideal for both roughing and finishing operations.
- Reduced Chip Load: Each flute carries a portion of the chip load, reducing the heat and wear on any single edge, which contributes to longer tool life.
- Improved Finish Quality: The additional flutes ensure a smoother finish on the workpiece, reducing the need for secondary finishing operations.
- Versatility: They are capable of handling a wide range of materials and machining operations, from slotting and profiling to plunging and contouring.
The Role of Helix Angle in the Performance of Corner Radius End Mills
The helix angle of an end mill affects its cutting mechanics and is a crucial factor in material ejection, cutting forces, and the overall finish of the workpiece. Specifically:
- High Helix Angles: Typically, angles greater than 45 degrees reduce the force on the cutting edge and are excellent for soft materials or when finish quality is paramount. They also efficiently evacuate chips upwards, reducing the risk of re-cutting.
- Low Helix Angles: Angles lower than 30 degrees are better suited for harder materials. They offer increased edge strength and reduced deflection, but chip evacuation is less efficient compared to higher angles.
- Optimal Helix Angle: It balances cutting force, chip evacuation, and finish quality. It often depends on the material being machined and the specific machining operation.
How Coatings Like AlTiN Enhance the End Mill’s Functionality
The application of coatings such as Aluminum Titanium Nitride (AlTiN) significantly boosts the functionality and lifespan of corner radius end mills through:
- Increased Hardness: AlTiN coatings enhance the surface hardness of the end mill, allowing it to resist wear and tear better, particularly in challenging materials.
- Thermal Protection: By sustaining higher temperatures, AlTiN coatings protect the cutting edge during high-speed or high-feed-rate operations, minimizing thermal deformation.
- Reduced Friction: The smooth surface of the coating reduces friction at the cutting interface, improving cutting efficiency and potentially lowering power consumption.
- Chip Evacuation: The slick nature of the coating aids in chip evacuation, reducing the buildup on the cutting edge, which can compromise the finish and accuracy.
In summary, the design and enhancements like the 4 flute configuration, the consideration of the helix angle, and the application of advanced coatings such as AlTiN are integral to optimizing the performance of corner radius end mills. Each of these elements plays a significant role in achieving efficiency, longevity, and quality in machining operations.
Selecting the Right Corner Radius End Mill for Your Specific Application
Selecting the appropriate corner radius end mill for your specific needs hinges on understanding the relationship between the end mill features and the material you intend to machine. To ensure efficient milling and optimal results, consider the following:
- Material Match: Different materials require different cutting properties. For example, softer materials like aluminum benefit from a high helix angle, promoting efficient chip removal, whereas harder materials like stainless steel may require a lower helix angle for increased strength and stability of the cutting edge.
- Size and Depth of Cut: The dimensions of your end mill should align with the size of your workpiece and the depth of the cuts you intend to make. A larger diameter end mill can remove more material in a single pass, but if precision is key, a smaller diameter with a finer tip might be necessary. The depth of cut directly influences the choice of flute length; deeper cuts require longer flutes.
- Application-Specific Recommendations:
- For general-purpose machining, a variable helix end mill with a medium coating like AlTiN can reduce vibration and increase performance across a wide range of materials.
- When working with aluminum and non-ferrous materials, consider an end mill with a sharper edge and high helix angles to prevent the material from sticking to the tool.
- For hard materials like stainless steel and titanium, opting for an end mill with a lower helix angle, fewer flutes, and a robust coating like AlTiN or TiAlN can manage the high temperatures generated and increase tool lifespan.
In summary, the right corner radius end mill should match the material type through careful consideration of coating, helix angle, and flute configuration. Additionally, assessing the size and depth of cut required for your project will help in choosing the most efficient end mill for your application, ensuring high-quality machining results.
USA-Made vs. Global Corner Radius End Mills: Is There a Difference?
When comparing the quality of CNC ground corner radius end mills manufactured in the USA versus those produced globally, several critical factors emerge. American-made end mills are often perceived to offer superior quality due to rigorous manufacturing standards, advanced technology, and high-quality materials. These standards ensure a product that is consistently reliable and durable, with precise cutting abilities that can significantly impact the final workpiece’s quality.
Assessing the Value: Cost versus Performance of USA-made End Mills
- Cost: Initially, USA-made end mills may come with a higher price tag compared to globally produced ones. This difference is due to higher labor costs, the use of premium materials, and the adherence to stringent quality control measures.
- Performance: The performance of an end mill is critical. USA-made end mills often excel in terms of longevity, precision, and the ability to withstand high-speed operations without losing integrity. This can result in fewer tool changes, less downtime, and ultimately, cost savings over time.
- Consistency: The consistency in manufacturing processes ensures that each end mill performs to the same high standards, reducing the variability seen in some globally produced end mills.
- Material Quality: High-quality carbide and coatings used in USA-made end mills contribute to their superior performance, especially in challenging materials and high-temperature applications.
Why CNC Professionals Prefer End Mills Manufactured in the USA
- Reliability: The assurance of getting a tool that performs as expected every time is paramount. Reliability reduces the risk of tool failure, which can be costly in terms of both time and materials.
- Precision: When tolerances are tight, the precision of USA-made end mills can be the difference between a successful project and a scrapped workpiece.
- Customization: The possibility of customization for specific jobs is another significant advantage. USA manufacturers can offer bespoke solutions tailored to unique machining needs.
- Support: Having direct support from the manufacturer for troubleshooting and optimization can dramatically improve machining efficiency and outcomes.
In summary, while the initial cost of USA-made end mills might be higher than those produced globally, the superior quality, performance, and reliability often justify the investment for professionals who prioritize outcomes and operational efficiency.
Advanced Techniques for Maximizing Efficiency with Corner Radius End Mills
Optimizing Feed Rates and Speeds for Different Materials
To achieve the best results with corner radius end mills, it’s crucial to optimize feed rates and speeds according to the material being machined. For example, softer materials like aluminum can tolerate higher speeds and feeds due to their lower hardness, allowing for faster material removal rates. Conversely, machining harder materials like stainless steel or titanium requires lower speeds to reduce tool wear and prevent work hardening. Here are key parameters to consider:
- Aluminum: Speeds up to 1,000 SFM (surface feet per minute) and feeds 0.001″ per tooth.
- Stainless Steel: Speeds around 200-350 SFM with feeds of 0.0005″ per tooth.
- Titanium: Aim for speeds of 75-100 SFM and feed near 0.0005″ per tooth.
Adapting these parameters to the material you’re working with will help maximize tool life and performance.

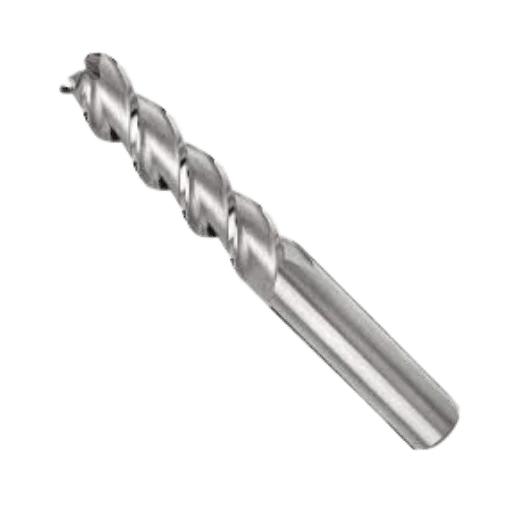

Innovative Strategies for Deep Pocket and Deep Cavity Milling
Deep pocket and deep cavity milling present unique challenges, such as tool deflection and poor chip evacuation. Employing strategies like ramping and peck drilling can significantly improve outcomes:
- Ramping: Gradually increases the depth of the cut, reducing tool deflection.
- Peck Drilling: Helps with chip removal in deep cavities, preventing re-cutting and heat build-up.
These techniques, combined with appropriate coolant use, are vital for maintaining tool integrity and achieving a high-quality finish.
Leveraging Tool Geometry for Improved Cutting Edge Performance
The geometry of a corner radius end mill plays a significant role in its cutting performance, especially concerning the quality of finish and tool longevity. Key aspects include:
- Corner Radius: A larger corner radius can increase tool strength and reduce chipping.
- Helix Angle: A high helix angle results in smooth chip evacuation and a better surface finish on non-ferrous materials.
- Coatings: Titanium Aluminum Nitride (TiAlN) coatings can enhance tool life in high-temperature alloys by reducing wear.
By carefully selecting a corner radius end mill with the right geometry and coatings for your specific material and application, you can significantly enhance cutting performance and outcomes.
References
-
Harvey Performance Company – Corner Radius End Mills: The Ultimate Guide
- Source: Harvey Performance Company
- Summary: Harvey Performance Company’s blog, “In the Loupe,” provides an extensive guide on corner radius end mills, covering their benefits, applications, and how they compare with other types of end mills. The company is known for its high-quality precision tools, and this article reflects their depth of knowledge in the field. It explains how corner radius end mills can enhance strength, reduce wear, and improve surface finish in machining tasks, making it an essential read for machinists and engineers looking to optimize their milling strategies.
-
Journal of Manufacturing Processes – Study on the Performance of Corner Radius End Mills in Milling
- Source: ScienceDirect
- Summary: This peer-reviewed article from the “Journal of Manufacturing Processes” presents a detailed study on the performance characteristics of corner radius end mills in various milling operations. By analyzing factors such as tool wear, surface quality, and machining efficiency, the study provides valuable insights into the advantages and limitations of using corner radius end mills. This source is particularly relevant for academic researchers and industrial engineers focused on optimizing machining processes and tool selection for specific materials and applications.
-
KYOCERA Precision Tools – Corner Radius End Mill Catalog
- Source: KYOCERA Precision Tools
- Summary: KYOCERA, a leading manufacturer of precision cutting tools, offers a comprehensive catalog of corner radius end mills, showcasing a wide range of sizes, coatings, and material compositions. The catalog not only serves as a product guide but also educates readers on the applications and benefits of different corner radius end mill designs. This source is invaluable for procurement specialists, machinists, and manufacturing engineers in selecting the right tool for their specific machining needs, considering factors like material compatibility, desired finish, and tool longevity.
Frequently Asked Questions
Q: What is a corner radius end mill cutter?
A: A corner radius end mill cutter features a rounded cutting edge that is designed to improve the strength of the tool, reduce chipping and wear, and provide a cleaner finish than square end cutters. Often used in CNC machining, these cutters combine the benefits of square and ball nose end mills to tackle a wide range of material and application types.
Q: How does the 30° helix angle benefit a corner radius end mill cutter?
A: The 30° helix angle on a corner radius end mill cutter helps reduce the cutting forces applied to the tool, making it more suitable for materials that are easy to deform or for use in thin-walled parts. This design offers better surface finishes, enhances chip evacuation, and allows for higher feed rates, ultimately improving productivity and tool life.
Q: Can single-end corner radius end mills be used for deep pocket milling applications?
A: Yes, single-end corner radius end mills are well-suited for deep pocket milling applications. Their design, especially with long flute and long length variations, allows for deep reach and efficient machining of deep pockets. The corner radius adds strength, enabling the tool to withstand the stresses of long-reach scenarios.
Q: What advantages do corner radius end mills-corner radius-2 offer?
A: Corner radius end mills-corner radius-2 offer the advantage of increased strength at the mill’s corners, which helps prevent the edge from chipping. This design feature also enables the tool to handle higher feed rates and cutting speeds, making it more efficient in removing material. Additionally, the corner radius helps in producing a smoother surface finish on the workpiece.
Q: Why are corner radius end mills often CNC ground in the USA?
A: Corner radius end mills are often CNC ground in the USA for precision and quality assurance. This high-level manufacturing process enables the production of tools with exacting tolerances and superior performance characteristics. CNC grinding ensures that the cutter’s geometry, including its radius, helix angle, and flute shape, is produced with precision for optimal cutting efficiency and lifespan.
Q: How do the long flute and long reach features of corner radius end mills benefit deep pocket milling?
A: The long flute and long reach features of corner radius end mills significantly benefit deep pocket milling by enabling the cutter to extend into deep cavities of the workpiece without interference. This design allows for the efficient removal of material from deep pockets and recesses. Additionally, the extended reach can help minimize tool deflection, thus improving accuracy and finish quality.
Q: In what way does the nose geometry of a corner radius end mill affect machining?
A: The nose geometry of a corner radius end mill affects machining by influencing the tool’s ability to produce a smooth finish, its susceptibility to wear and chipping, and its applicability to various materials and milling operations. The rounded nose reduces the impact and vibration on the tool, leading to better surface finishes and longer tool life while also enabling the milling of contours and complex shapes more effectively than square ends.
Q: Can the speed of machining be increased with corner radius end mills?
A: Yes, the machining speed may be increased with corner radius end mills due to their stronger cutting-edge geometry compared to traditional square end mills. The corner radius stabilizes the tool during cutting, allowing for higher feed rates and speeds while also reducing the risk of edge chipping. This leads to more efficient machining processes and shorter production times.
