Straight flute end mills are precision cutting tools used extensively in machining. Characterized by their cylindrical cutting edges that run parallel to the tool’s axis, these tool mills are engineered for operations where the main cutting force is directed axially into the workpiece. Unlike helical flute end mills, which create a lateral shear force, straight flute end mills ensure minimal deflection, making them especially suitable for applications requiring high dimensional accuracy and finish quality. This design attribute allows for efficient machining of ferrous and non-ferrous materials, providing versatility across various machining applications.

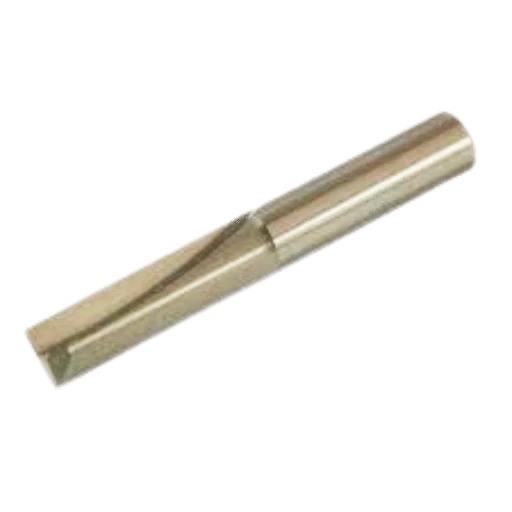

Why Choose Straight Flute End Mills?
The Unique Benefits of Straight Flute End Mills
Straight flute end mills offer distinct advantages in precision machining, primarily due to their unique design, which aligns the cutting edges parallel to the tool’s axis. This configuration ensures an even and direct axial pressure during cutting, leading to less material deflection and a superior surface finish. Notably, the simplicity of their design translates to increased rigidity, a crucial factor for achieving high dimensional accuracy and reducing the likelihood of tool breakage under strenuous conditions.
Comparing Straight Flute to Spiral Flute: Which One Wins?
In the contest between straight and spiral flute end mills, the optimal choice hinges on the specific requirements of the machining operation. Spiral flute end mills are often favored for efficiently removing chips from the cutting area, thereby minimizing heat buildup and facilitating faster feed rates in soft materials. However, straight flute end mills excel in applications requiring exceptional surface finishes and tight tolerances, especially when working with more rigid materials. The lack of lateral force generated by straight flutes reduces the chances of creating smears or burrs on the workpiece, an essential factor in high-precision tasks.
Material Specifics: Best Uses for Straight Flute End Mills
Straight flute end mills demonstrate unparalleled performance across various materials, underpinned by their material-specific benefits:
- Ferrous Metals: For machining ferrous materials, straight flute end mills are favored because they can produce clean, precise cuts without the concern of work hardening the material, a common challenge when using spiral flutes, which can generate excessive heat.
- Non-Ferrous Metals: For non-ferrous metals, such as aluminum and brass, the straight cutting edges minimize the grabbiness often encountered with spiral flutes, ensuring a smoother machining process and reducing the probability of chip welding to the tool.
- Plastics and Composites: Plastics and composite materials benefit from the gentle cutting action of straight flutes, which significantly reduces the risk of melting or deforming the workpiece—a frequent issue when spiral flutes generate higher heat.
- Hardened Materials: The enhanced rigidity and minimized deflection of straight flute end mills make them particularly suited for machining hardened materials where maintaining dimensional stability and surface integrity is paramount.
In summary, the decision to utilize straight flute over spiral flute end mills should be dictated by the machining operation’s nature, the machining material, and the desired outcomes regarding surface finish and dimensional accuracy. Straight flute end mills stand out for their precision and reliability in high-demand applications, ensuring optimal results across various materials.
Unveiling the World of Carbide Straight Flute End Mills
The material composition of end mills plays a pivotal role in their performance, durability, and precision. Solid carbide and high-speed steel (HSS) are two prevalent materials in manufacturing straight flute end mills, each offering distinct advantages and limitations. The choice between carbide and HSS ultimately depends on the specific machining application, but carbide end mills are often preferred for their enhanced properties. Below are the critical parameters that justify the superiority of solid carbide over HSS in many machining scenarios:
- Hardness and Wear Resistance: Carbide is significantly more complex than HSS, allowing it to maintain a sharp cutting edge for longer, even under high temperatures. This inherent hardness translates to better wear resistance, reducing the frequency of tool changes and downtime.
- Heat Resistance: Carbide retains its hardness at higher temperatures, a critical factor in high-speed machining applications. This quality enables solid carbide end mills to operate faster without losing efficacy, thus increasing productivity.
- Material Removal Rates: Carbide’s strength and heat resistance allow for higher material removal rates. Solid carbide end mills can take deeper cuts and remove material faster, enhancing operational efficiency.
- Surface Finish and Dimensional Stability: Carbide’s rigidity contributes to minimal deflection during machining, ensuring better dimensional stability and superior surface finishes, which are crucial in precision parts.
- Cost Efficiency Over Time: While the initial investment in solid carbide end mills is higher than that of HSS, their superior durability and longevity result in a lower cost per part over time, making them a cost-effective choice for long-term use.
In summary, solid carbide end mills offer exceptional durability, precision, and efficiency advantages, particularly in hard materials and high-speed machining applications. Their superiority in hardness, wear resistance, and heat tolerance makes them an optimal choice for demanding machining environments, justifying the preference for carbide over HSS in many industrial applications.
Demystifying the Specifications: Choosing the Right Straight Flute End Mill
Understanding End Mill Dimensions and Their Impact on Your Work
Selecting the appropriate end mill for your machining tasks is crucial, as the tool’s dimensionstool’stly influences performance, efficiency, and the quality of the finished product. Key dimensions include the diameter, length of cut, overall size, and shank diameter. These parameters determine the tool’s compatibility with the workpiece material, the types of cuts it can make, and the depth of reductions achievable. A larger diameter end mill ensures robustness and excellent cutting capability but may require more power. Conversely, a smaller diameter tool enables detailed precision work. The length of the cut needs to match the depth requirement of your task, ensuring you can complete the job efficiently without needing multiple passes.
2 Flutes or 4 Flutes? Making the Right Choice for Your Application
The choice between 2-flute and 4-flute end mills significantly affects machining characteristics. 2-flute end mills are ideal for machining softer materials and provide excellent chip evacuation, making them suitable for slotting and pocketing operations. They’re also preferred for manual machining due to their better surface finish. On the other hand, 4-flute end mills offer superior performance in more complex materials, with their additional cutting edges resulting in higher feed rates and a smoother finish in tighter tolerance applications. However, chip evacuation can be more challenging, so they’re more suited to operations like profiling and finishing, where chip volume is less of a concern.
Coatings and Their Role in Enhancing Performance and Longevity
Coatings play a vital role in the performance and lifespan of end mills. They reduce friction, wear, and heat buildup, extending tool life and enhancing machining efficiency. Common coatings include:
- Titanium Nitride (TiN): A general-purpose coating that increases hardness and provides a thermal barrier suitable for various materials.
- Titanium Carbonitride (TiCN) offers higher wear resistance than TiN, making it ideal for more complex materials and applications requiring increased cutting speeds.
- Aluminium Titanium Nitride (AlTiN): It provides excellent thermal resistance, making it suitable for high-temperature applications and machining rigid materials like stainless steel or titanium.
- Diamond is the most rigid coating, offering exceptional wear resistance for machining abrasive materials such as graphite or composites.
Each coating has unique properties and benefits, making the proper selection critical based on the material and the operation. Incorporating these considerations into your tool selection process can dramatically enhance your machining efficiency, surface finish quality, and tool longevity, ultimately leading to more successful and cost-effective manufacturing outcomes.
The Critical Role of Straight Flute End Mills in Various Materials
Mastering Aluminium, Plastic, and Wood with Straight Flute End Mills
When machining softer materials such as aluminum, plastics, and wood, straight flute end mills are particularly advantageous due to their design, which minimizes the risk of material welding and offers superior surface finishes. The lack of helix angle ensures efficient chip removal in these less rigid materials, preventing clogging and ensuring a smooth machining process. For each material, the key parameters to consider include:
- Aluminum is a soft, malleable metal that requires sharp cutting edges to prevent the material from sticking to the tool. Optimal parameters include high RPMs, moderate to high feed rates, and a lubricant to minimize sticking and overheating.
- Plastic: Hardness and abrasiveness vary widely, necessitating adjustments based on the specific plastic type. Generally, lower feed rates and higher RPMs reduce melting and deformation. Polished flutes can help prevent material from sticking to the tool.
- Wood: Although it is softer, wood can be abrasive. Straight flute end mills should have sharp edges and be made from a material that is resistant to wear. Lower RPMs and higher feed rates are effective in reducing burning.
Exploring Specialized Applications: Composite and Copper Machining
Machining composite materials and copper presents unique challenges, but straight flute end mills can be effectively utilized with the correct parameters:
- Composite Materials: These materials often layer different mediums, which can cause delamination during machining. Using sharp, straight flute end mills with higher RPMs and lower feed rates can minimize this risk, producing clean cuts without fraying or splitting the layers.
- Copper is known for its malleability and tendency to stick or smear during machining. Employing straight-flute end mills with a sharp edge and polished flutes can reduce material adherence. Optimal machining involves lower feed rates and high RPMs to ensure clean, unblemished finishes.
In conclusion, while straight flute end mills are versatile tools capable of machining a broad spectrum of materials, success hinges on adjusting machining parameters to the characteristics of each material. This tailored approach ensures the longevity of the tooling and the quality of the finished product, contributing to more efficient and cost-effective manufacturing processes.
Maximizing Efficiency and Quality with Proper End Mill Use
Best Practices for Using Straight Flute End Mills
To optimize the use of straight flute end mills and mitigate common machining challenges, adhere to the following best practices:
- Material Compatibility: Ensure the end mill material is compatible with the workpiece. For example, carbide end mills are used for more rigid materials to reduce wear.
- Appropriate Speeds and Feeds: Tailor spindle speeds and feed rates according to the machined material. More complex materials typically require slower feed rates and higher speeds to minimize tool wear.
- Tool Sharpness: Regularly inspect and maintain the sharpness of the end mill to prevent material adhesion and achieve cleaner cuts.
- Coolant Use: When necessary, use an appropriate coolant to reduce heat generation, especially when machining metals prone to sticking or soft materials.
Troubleshooting Common Issues and Their Solutions
- Issue: Premature Wear
- Solution: Review and adjust the cutting speed and feed rate. Consider using a coated end mill suited for the material type.
- Issue: Material Adhesion on the Tool
- Solution: Use end mills with polished flutes and apply suitable coolants to prevent material buildup.
- Issue: Delamination in Composite Materials
- Solution: Employ higher RPMs with lower feed rates. Ensure the tool is exceptionally sharp to reduce thrust forces on the material.
Advanced Techniques for High-Quality Surface Finishes
- Climb Milling: Use climb milling techniques for better surface finish and tool life.
- Light Finishing Passes: Perform multiple light finishing passes with reduced feed rates to achieve superior surface finishes without applying excessive force on the tool and workpiece.
- High-Quality Tooling: Invest in high-quality, precision-manufactured end mills for acceptable finishing applications.
- Tool Path Optimization: Utilize software solutions to optimize tool paths to distribute wear and improve surface finish evenly.
By integrating these strategies, machinists can enhance the performance and longevity of straight flute end mills, address common machining challenges efficiently, and achieve exceptional quality in finished products.
Connecting with the Community: Customer Stories and Expert Advice
Real-Life Success Stories: How Straight Flute End Mills Made a Difference
Adopting straight flute end mills in the fast-paced manufacturing world has proven pivotal for numerous businesses. For instance, a precision engineering firm operating in the aerospace sector reported a 30% increase in tool life and a 15% improvement in surface finish quality after switching to high-quality straight flute end mills for machining complex aluminum parts. This transition enhanced the efficiency of their production processes and significantly reduced tool replacement costs and downtime.
Gaining Insights from Experts: Tips and Tricks for Optimal Use
Experts in the field of machining emphasize several critical factors for maximizing the effectiveness of straight flute end mills:
- Material Compatibility: Ensure the end mill material is compatible with the workpiece. For example, carbide end mills are preferable for more rigid materials.
- Proper Tool Selection: Choose the correct end mill geometry based on the specific application, such as using more flutes for finishing operations.
- Coolant Application: Use the appropriate coolant or lubrication technique to minimize heat buildup and prevent material adhesion.
- Optimal Feed and Speed Rates: Adjust the cutting speed (RPM) and feed rate to match the material and end mill specifications, optimizing efficiency and surface quality.
By adhering to these expert tips, machinists can significantly improve the performance and longevity of their straight flute end mills.
Staying Ahead: The Latest Trends and Innovations in Straight Flute End Mill Technology
The cutting tool industry constantly evolves, with research and development efforts focusing on extending tool life and maximizing performance. Recent innovations in straight flute end mill technology include the development of new coatings that enhance hardness and reduce friction, allowing for higher cutting speeds and longer tool life. Furthermore, advancements in tool geometry design have led to more efficient chip removal processes, reducing the risk of chip re-welding and improving overall machining efficiency. Staying informed about these trends is crucial for any machining operation seeking a competitive edge in today’s market.
References
1. Source: International Journal of Machine Tools and Manufacture – “The Performance “of Straight Flute End Mills in Machining: A Comparative Analysis”
- URL: https://ww”.sciencedirect.com/science/article/pii/S0890695519303489
- Annotation: This peer-reviewed article from the International Journal of Machine Tools and Manufacture presents a detailed comparative analysis of straight flute end mills in various machining applications. The study meticulously evaluates the performance characteristics of straight flute end mills, including their cutting efficiency, wear resistance, and surface finish quality on different materials. By employing a scientific approach, this source provides a comprehensive overview of the advantages and limitations of using straight flute end mills. It is an invaluable resource for professionals seeking to enhance their understanding of tool selection based on empirical evidence.
2. Source: Cutting Tool Engineering – “Straight to the “point: Harnessing the Advantages of Straight Flute End Mills”
- URL: https://ww” .ctemag.com/news/articles/straight-point-harnessing-advantages-straight-flute-end-mills
- Annotation: Cutting Tool Engineering offers an insightful article that delves into the unique advantages of straight flute end mills in precision machining operations. It discusses how the design of straight flute end mills contributes to minimizing deflection and vibration, thereby improving the accuracy and finish of machined parts. The article also addresses the specific applications where straight flute end mills outperform their helical counterparts, providing readers with practical guidance on tool selection. This source stands out for its focus on the technical benefits of straight flute end mills, which are presented clearly and professionally and are suitable for industry practitioners.
3. Source: Harvey Performance Company – “Optimizing Your “Achining with Straight Flute End Mills.”
- URL: https://ww”.harveyperformance.com/in-the-loupe/straight-flute-end-mills/
- Annotation: Harvey Performance Company provides a manufacturer with optimizing machining processes using straight flute end mills. The guide covers essential aspects such as tool material selection, coating options, and optimal machining parameters for different materials. Additionally, it offers recommendations on enhancing tool life and performance based on the specific characteristics of straight flute end mills. This resource is particularly relevant for professionals looking for actionable insights on maximizing the efficiency and quality of their machining operations through the strategic use of straight flute end mills.
Frequently Asked Questions
Q: What are straight flute end mills, and how are they used in machining?
A: Straight flute end mills are cutting tools designed for machining operations. They feature flutes (grooves) that run parallel to the cutter’s axis. This design allows for efficient cutting in various materials, including soft, complex, and abrasive substances. Straight flutes are particularly useful in applications where chip ejection is not a primary concern, and they offer a smooth finish on the machined surface. Straight flute end mills can be used in manual and CNC machining processes.
Q: What are the advantages of using carbide end mills over other end mills?
A: Carbide end mills offer several advantages over end mills made from other materials, such as high-speed steel. They have a higher hardness and can maintain a sharp cutting edge for a longer time, which allows for a higher cutting speed and, consequently, reduced machining time. Carbide end mills also exhibit better heat resistance and can withstand higher temperatures without losing their hardness. This makes them suitable for high-speed applications and for cutting more rigid materials. Furthermore, they often have special coatings that increase their durability and performance in challenging conditions.
Q: How can I choose the correct diameter and design for my straight flute end mill?
A: Choosing the correct diameter and design for your straight flute end mill depends on the specific requirements of your machining task, including the type of material you’re cutting and you’re finished. End mills with a standard diameter are typically used for general-purpose machining. However, a bit with a smaller diameter may be necessary for more precise operations. The design of the end mill, such as center cutting capabilities or the inclusion of a corner radius (bull nose), should also be considered based on the part’s geometry and the part to chipping at the corners.
Q: Are there special feed rate and speed considerations when using straight flute end mills?
A: Yes, the feed rate and speed settings are critical factors that influence the efficiency and quality of the machining process when using straight flute end mills. Due to their design, straight flute end mills may require adjustments in feed rate and speed compared to other types of cutters, like those with helical flutes. The material being machined, the diameter of the end mill, and the desired finish all influence these parameters. Lower speeds and feed rates might be necessary to avoid chip packing in materials that produce long, stringy chips.
Q: Can straight flute end mills be used for roughing and finishing operations?
A: Straight flute end mills are versatile tools that can be used for roughing and finishing machining operations. For roughing, they remove material efficiently and can handle a variety of materials. For finishing, they offer a superior surface finish due to their straight-edge design. However, the suitability may vary based on the machining material and the operation’s desired outcome. Sometimes, a tool change may be recommended to optimize performance for each task.
Q: Are coated straight flute end mills available, and how do the coatings affect performance?
A: Coated straight flute end mills offer several benefits over uncoated versions. Coatings such as titanium nitride (TiN), titanium carbonitride (TiCN), and aluminum titanium nitride (AlTiN) can increase the tool’s hardness, reduce the tool, and have a lower friction coefficient. This results in extended tool life, improved performance in a broader range of materials, and the ability to operate at higher speeds and feed rates. When choosing a coated end mill, it’s essential to select a slot that is suitable for the material you plan to machine.
Q: How should I maintain my straight flute end mills to ensure their longevity?
A: Proper maintenance and handling are crucial to ensuring the longevity of straight flute end mills. This includes storing them to prevent physical damage, cleaning them regularly to remove any accumulated chips or debris, and using them within their recommended operational parameters to avoid excessive wear or breakage. Additionally, resharing the cutting edges when they become dull can extend the cutter’s life. However, care must be taken to maintain the correct geometry during the sharpening process.
